Song has crafted some beautiful non ship models, such as the beautiful Diesel Locomotive!

I have seen some models of temples and the replication of the full scale expert woodworking is quite beautiful to admire!

Nagato came out beautifully! :thumbs_up_1: :thumbs_up_1:




Jose :wave_1:

Song,

I have been to Korea and Japan, and the complex wood work in the temples is amazing. Given your talents for working wood your model will be beautiful!

Phil

Hi Song,
I was expecting another warship, yet the Korean Budist temple will do nicely for sure, albeit probably not reported on this forum !
Whatever the subject, the only important point is that you enjoy doing it...
Stephane

[quote="Silenoz"]Superb work, a real pleasure to follow this build and see this one growing...[/quote]
Thank you,Silenoz!
Your kind words encourage me.
Song.

[quote="DrPR"]Song,

Well done!

Have you ever counted the number of individual pieces you have made for one of your ship models? There are a lot of parts there!

Phil[/quote]
Hi,Phil!
I don't count the number of individual pieces. I think it's not importance to make model.
Song.

[quote="spottier60"]Well done Song... I'm just feeling like a lazy French snail when looking at your work...
What's next then ? Can't wait to see the new one coming ![/quote]
Thank you!
you've been Korea. You know Budist temple in Korea.
I want to make wooden architecture.
Song.

Superb work, a real pleasure to follow this build and see this one growing...

Song,

Well done!

Have you ever counted the number of individual pieces you have made for one of your ship models? There are a lot of parts there!

Phil

Well done Song... I'm just feeling like a lazy French snail when looking at your work...
What's next then ? Can't wait to see the new one coming !

Hi,warshipmodeller!

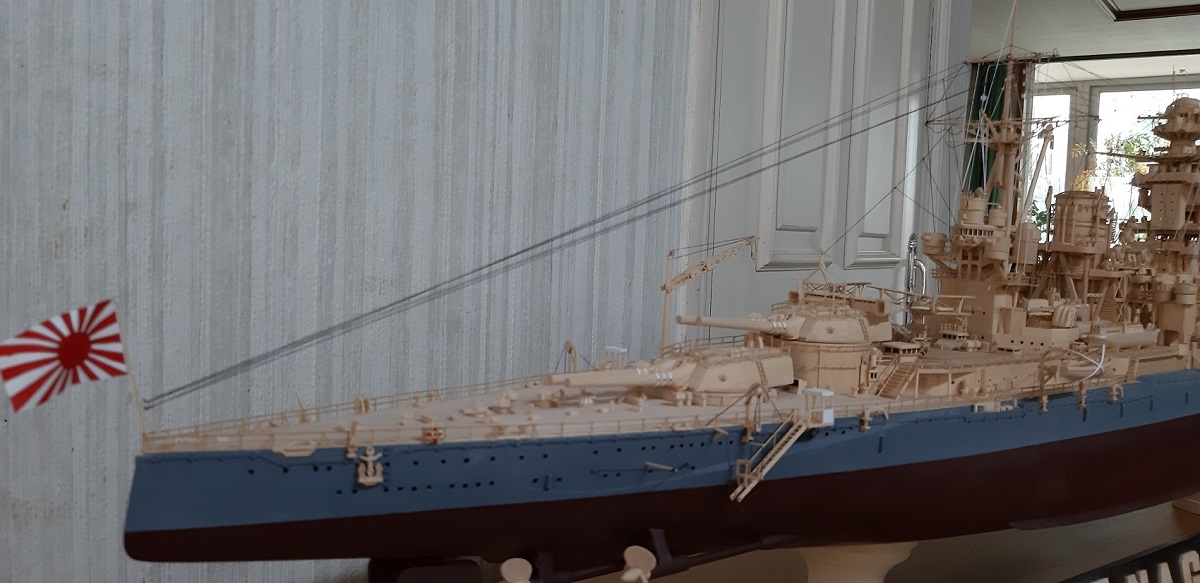

I've done 1/200 ijn Nagato model.
You will see more pictures in the gallery.
I've sent 30 pictures to editor of this site.
Song.

Nice, accurate and clever work in the name plate!

Sad to see another chapter finished, so fun for the rest of us to watch and learn!

Cheers: Tom

I just love your work. Precise.

Hi,Tom!
Thank you sharing photo. It's very useful for me.

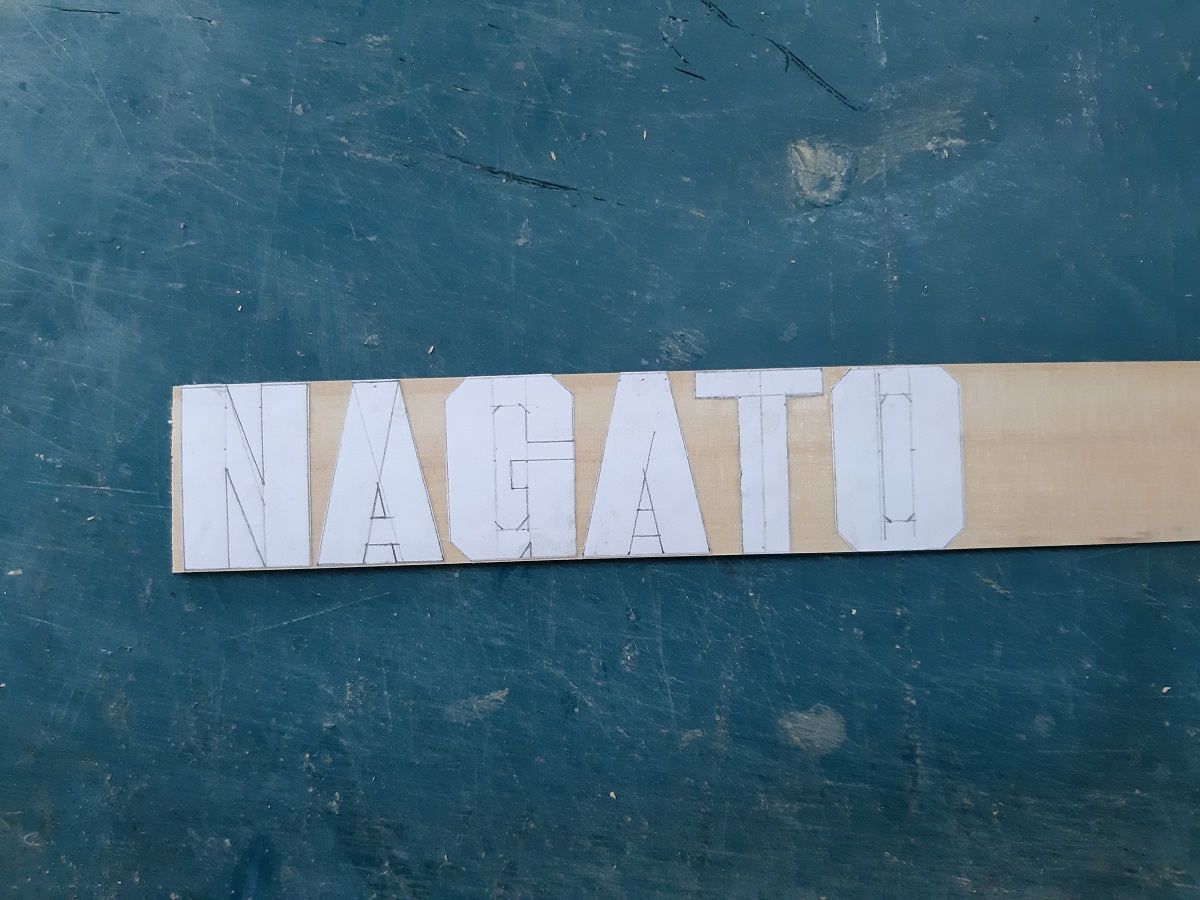

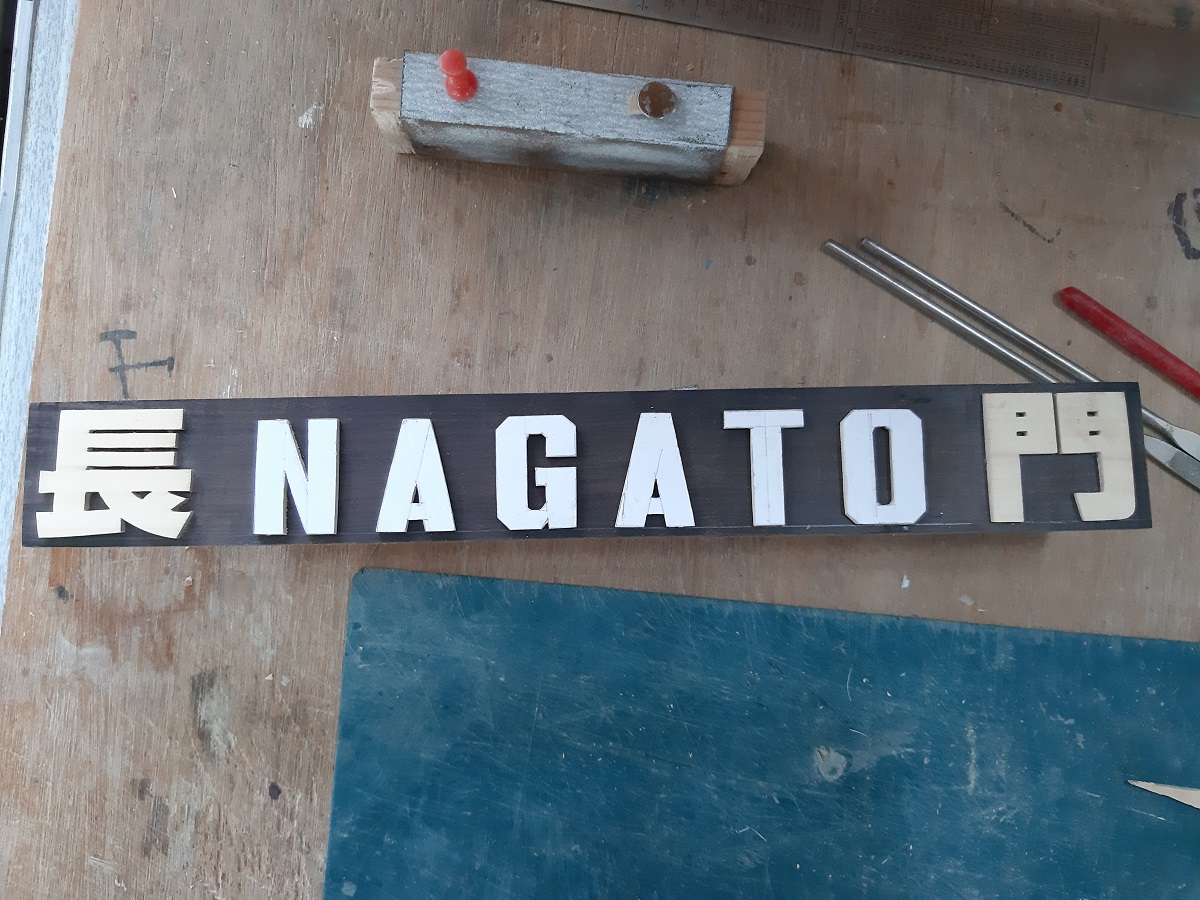

I've made nameplate and pedestal.
But I changed it's font.
Song.

Song:

Jig is still hiding so I cobbled up a simple version so you get the idea. Just angled slots cut with a razor saw into a piece of plexiglas at the appropriate spacing for the scale.

First I cut strips for fails and treads. I tape a rail to the back of the jig then insert treads in the slots with the smallest amount of wood glue possible. After the glue sets I add glue to the protruding treads and attach the other rail. When dry I remove the tape and slip the inclined ladder out of the jig, trimming the rails to appropriate length.

For my ladders I have had best luck with Strathmore art paper which is stiffer than styrene. For styrene ladders one would probably have to make an aluminum jig.

Cheers: Tom

[attachment=0]pexi jig.jpg[/attachment]

Song:

I will post a photo of my simple inclined ladder jig as soon as I find it!

Cheers: Tom

[quote="Froggy84"]Hi Song,
it looks amazing, as always. Can you tell us what wood have you used for the gangway and gangway crane? Did you bend the wood or cut a curve shape?
Regards,
Phil[/quote]
Thank you, Phil!
I used both of them.
1.bending : I used Bamboo.(It's davits for boat)
2.cutting :The others(The place of not required tension...)
Song.

[quote="Fliger747"]Very nice job on the accommodation ladder at this scale. I ended up making them from Strathmore paper in a similar manner, but using a plexiglas jig with slots cut at an angle for the spacing. The wood glue I used did not adhere to the plexiglas so easy enough to remove.

Very nice indeed![/quote]
Thank you, Tom!
Show me your plexiglas jig please.
Song.

Hi Song,
it looks amazing, as always. Can you tell us what wood have you used for the gangway and gangway crane? Did you bend the wood or cut a curve shape?
Regards,
Phil

Very nice job on the accommodation ladder at this scale. I ended up making them from Strathmore paper in a similar manner, but using a plexiglas jig with slots cut at an angle for the spacing. The wood glue I used did not adhere to the plexiglas so easy enough to remove.

Very nice indeed!
