by Mutsuo Sasaki » Tue May 19, 2020 3:56 am
Jon C Ryckert wrote:Yes, but I was comparing how he depicted the linoleum strips on the main deck to those on the airplane deck on drawing H18/3.
Hi, I didn�t do comparison-check since my aot book is still at his place in Krakow.(he stopped sending books and materials to other countries as they were found stolen at the local post office)
In stead, I tried to look into the aircraft deck area and the pattern of lino stripes from another source.

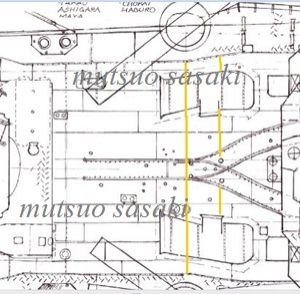

It ought to be like this pr attached illust. of mine. Shown with yellow lines. Got the stripes info from a pic of ex captain of Atago where the a/c deck surface is visibe .The Chokai might have had the same,also counting the ending of the stripes from the stern.Takao and Maya seemingly must have had extra stripes longditudinally on either side here,too
cheers,
mutsuo
- Attachments
-
- ASIASI??_???? ? ????A Cc.jpg (25.33 KiB) Viewed 5997 times
[quote="Jon C Ryckert"]Yes, but I was comparing how he depicted the linoleum strips on the main deck to those on the airplane deck on drawing H18/3.[/quote]
Hi, I didn�t do comparison-check since my aot book is still at his place in Krakow.(he stopped sending books and materials to other countries as they were found stolen at the local post office)
In stead, I tried to look into the aircraft deck area and the pattern of lino stripes from another source.
It ought to be like this pr attached illust. of mine. Shown with yellow lines. Got the stripes info from a pic of ex captain of Atago where the a/c deck surface is visibe .The Chokai might have had the same,also counting the ending of the stripes from the stern.Takao and Maya seemingly must have had extra stripes longditudinally on either side here,too
cheers,
mutsuo
