Hello everyone :wave_1:
An update!!! Well, a little ....

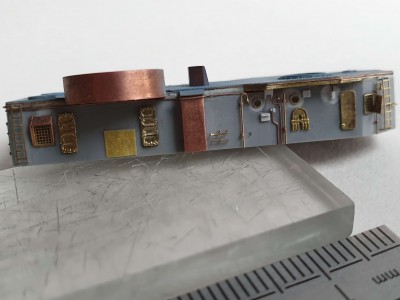

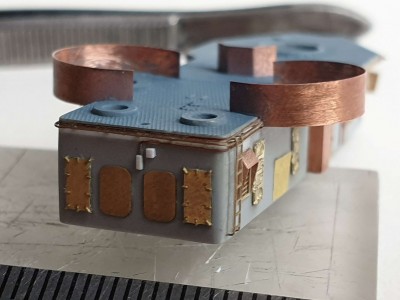

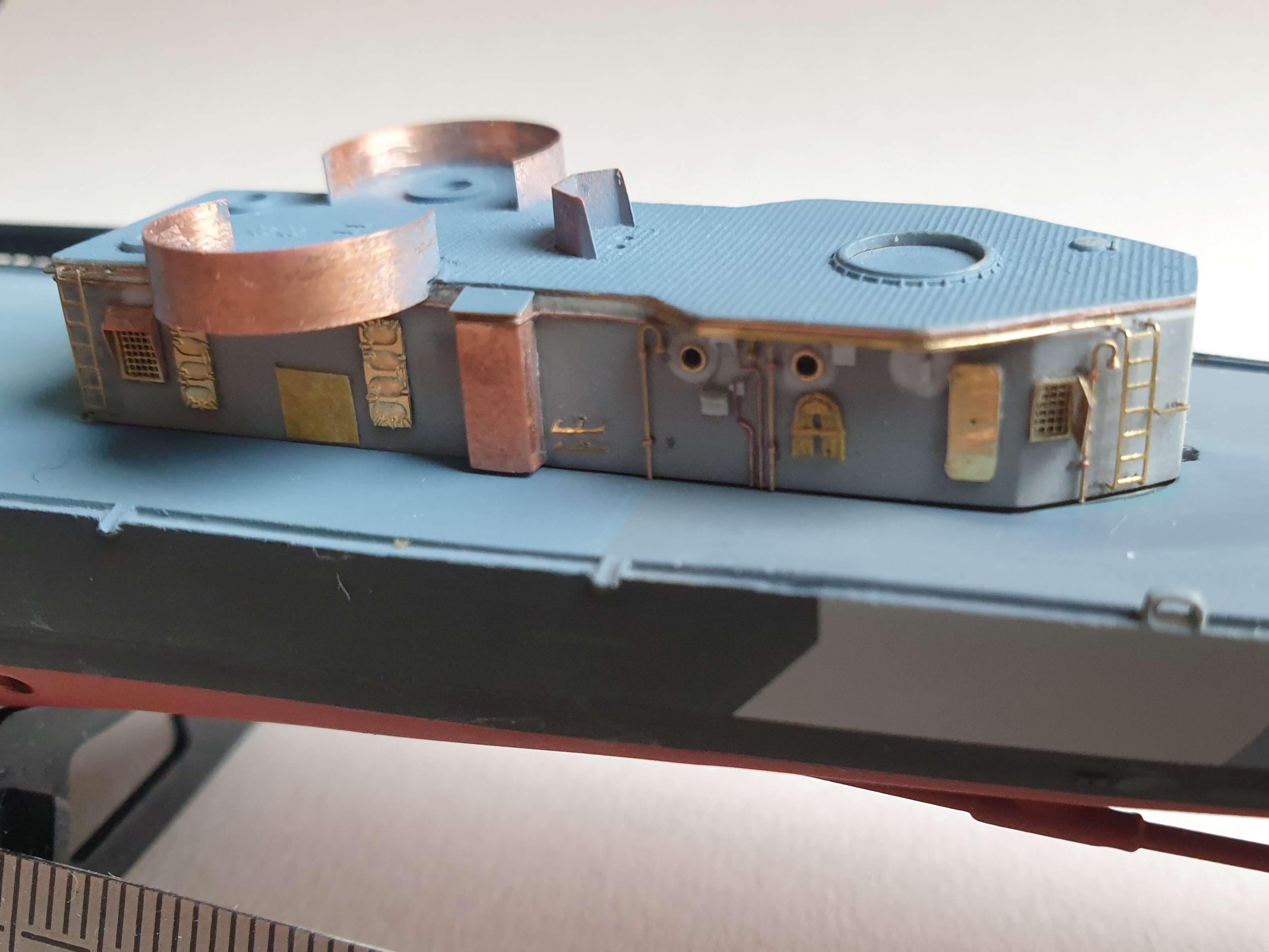

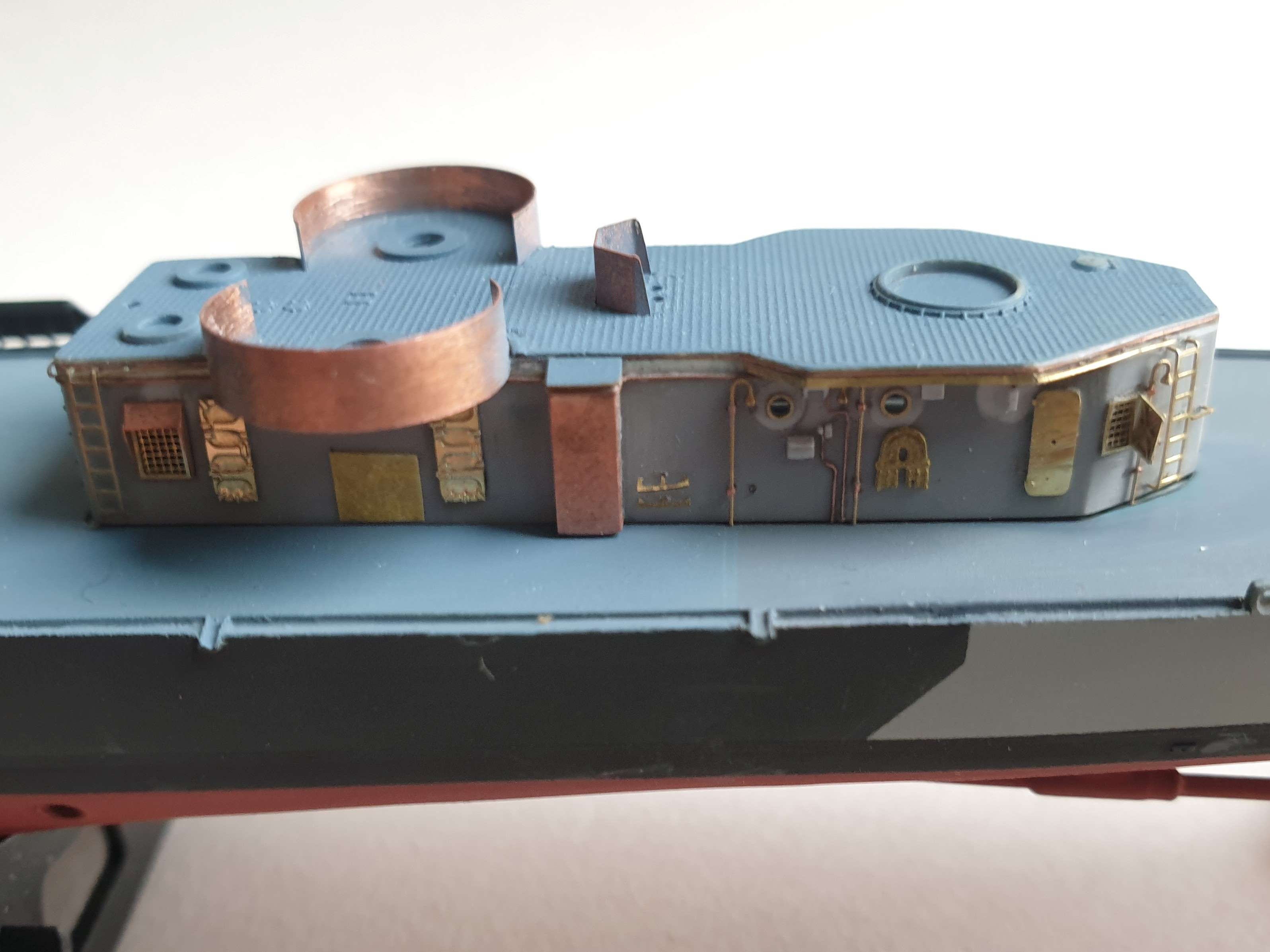

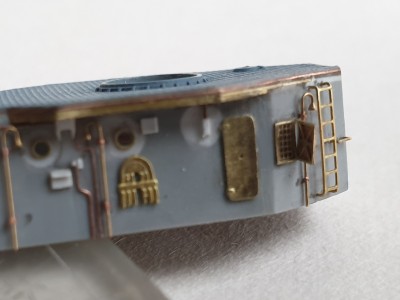

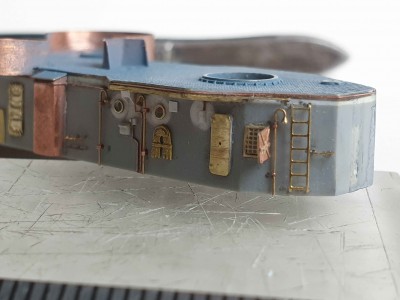

My efforts are focused on the rear superstructure of USS Buchanan. I almost finished the port side.
The grid panel at the back is temporarily glued, just like the fire / water hose.
Missing depth charge launchers are missing.
It also lacks a box under the 40mm platform.
They will be painted separately.

[attachment=7]20200419_161721.jpg[/attachment]

[attachment=3]20200419_161935.jpg[/attachment]

[attachment=4]20200419_161930.jpg[/attachment]

[attachment=5]20200419_161853.jpg[/attachment]

[attachment=6]20200419_161834.jpg[/attachment]

[attachment=0]20200419_162438.jpg[/attachment]

[attachment=1]20200419_162239.jpg[/attachment]

[attachment=2]20200419_162209.jpg[/attachment]

I advise you to compare with the photos of the excellent Warship Pictorial 31 (pages 57, 58 and 59).

And a huge thank you for your invaluable help to Rick E Davis. :thanks:

The next step, the starboard side.

Your comments, criticisms and questions are welcome.

Take care of yourself
Seb

[quote="EJFoeth"]Models are never finished; they are abandoned :heh:[/quote]
�Leonardo da Vinci

This is true for any other form of creative arts as well.

Models are never finished; they are abandoned :heh:

Bonjour!

[i][b]>> If I relaunch this post, it is also to force me.....<<[/b][/i]

but... but.... you Must continue-- such fine wok must have a purpose!

:wave_1: :wave_1:

hello EJ and Jim
If only Jim ...
In nine years, unfortunately, I have made very little progress. No finished model.
I will take as much time as EJ to finish a model !!! :big_grin:

If I relaunch this post, it is also to force me to continue my models. Finish them, we'll see ...

And take care of yourself. :wave_1:

Seb

hehhehehe! Seb !

afire a NINE YEAR gap since your last posting....

I guess you must have a HUUUge update with lots of new photos of completed models...( lol! :cool_2: :cool_2: )

anyhow-- :welcome: back to MW.com !!! :thumbs_up_1: :thumbs_up_1:

Looking forward to seeing your progress

JIM B :wave_1:

Yes please, more of your exquisite scratch building please :yeah:

Hello everyone
Yes, still alive !!! :wave_1: :wave_1:
I am updating the photo links.
And normally, a little update at the end of the week.
See you soon.
Seb

That is very much wow!

And I second your statement on Piotr of MASTER. I have the cutest set of pompom barrels (old style) for my model!

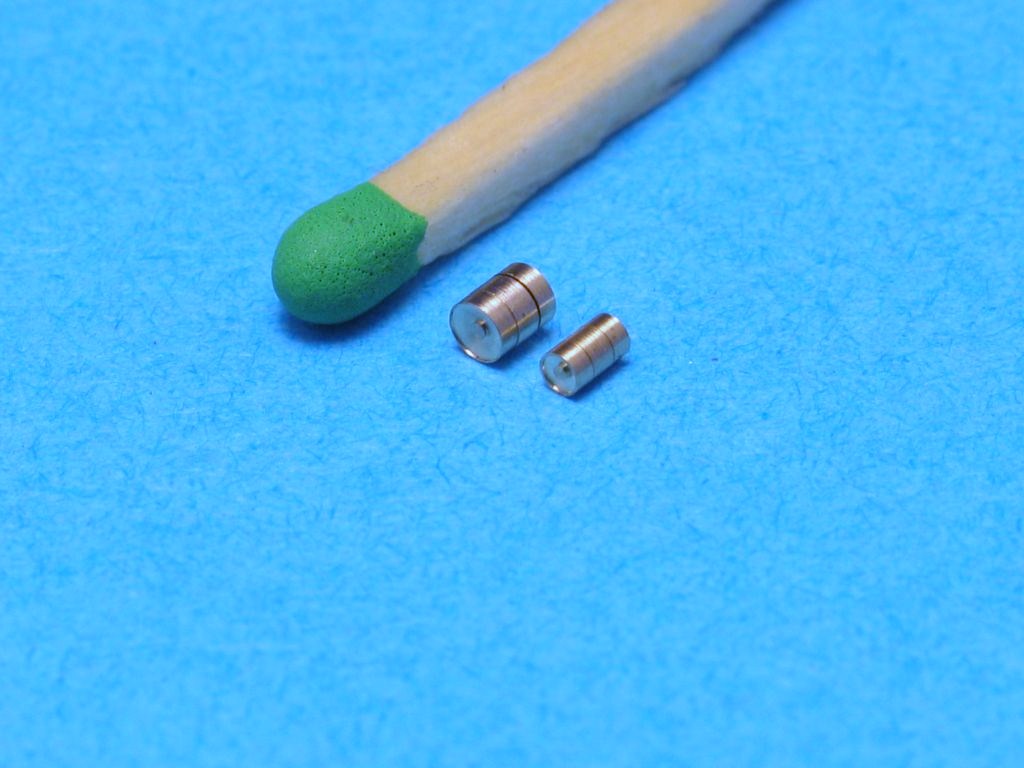

Then I sent him a project even crazier: the grenades of 300lbs and 600lbs in 1/350.
As he could not turn them into a 1 part, he turned into 3 parts!

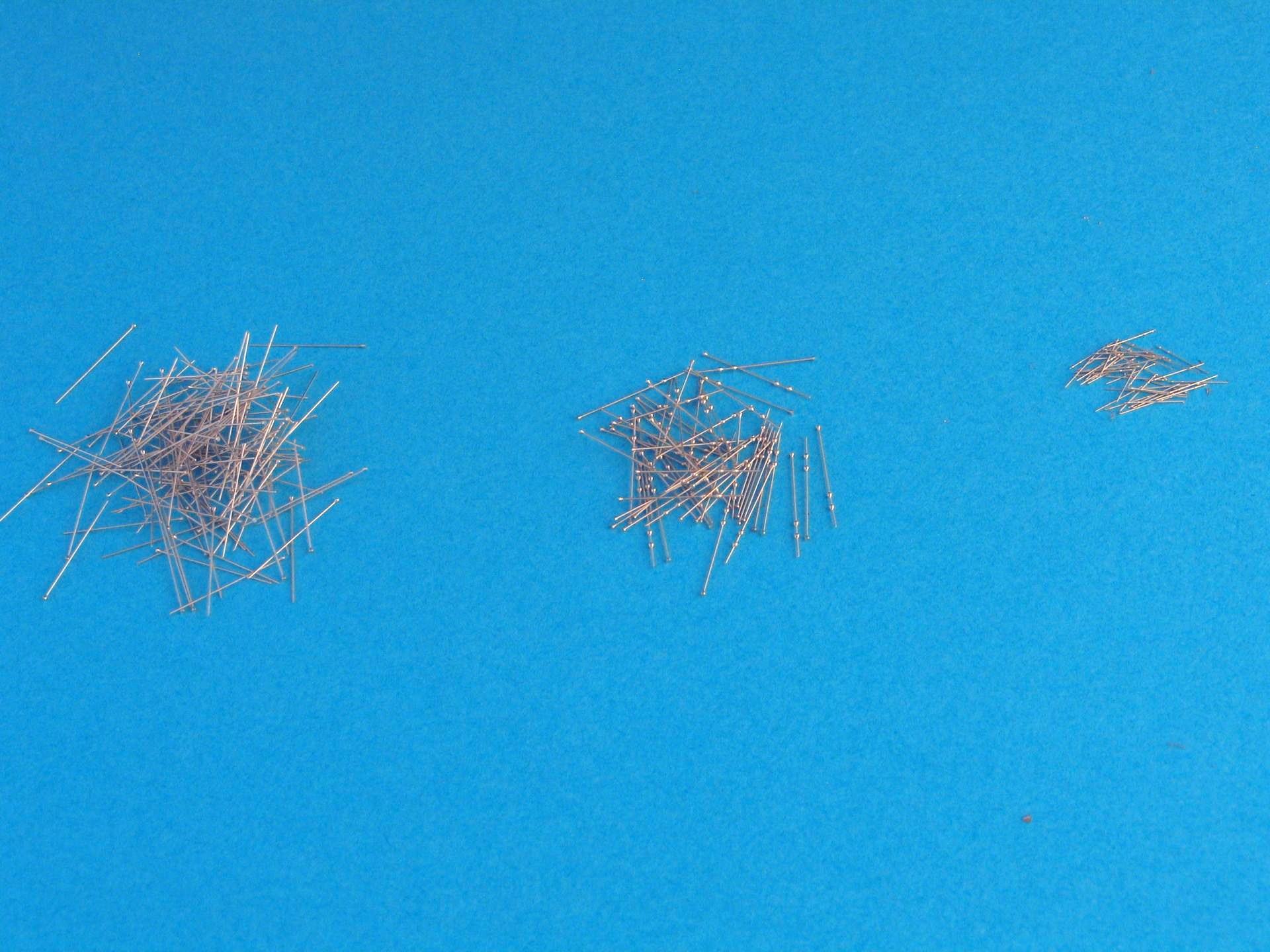

The grenades of 660lbs

[attachment=3]Sebastien-grenades 001.jpg[/attachment]

The grenades of 300lbs

[attachment=2]Sebastien-grenades 002.jpg[/attachment]

Grenades assembled but not glued.

[attachment=1]Sebastien-grenades.jpg[/attachment]

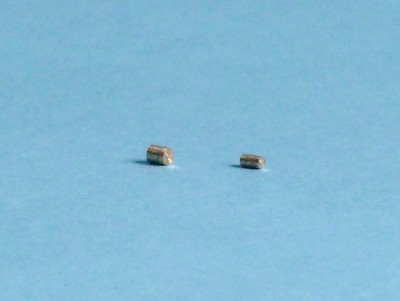

And glued.

[attachment=0]P1010037.JPG[/attachment]

200 grenades of each to assemble. :crazy:
If you are interested in these parts, contact Piotr.
He is great guy. :thumbs_up_1:
Seb

Hello everyone
I must confess that I could not work on my models for 6 months.
However, this did not remain at a standstill. I had planned to run a number of brass parts.

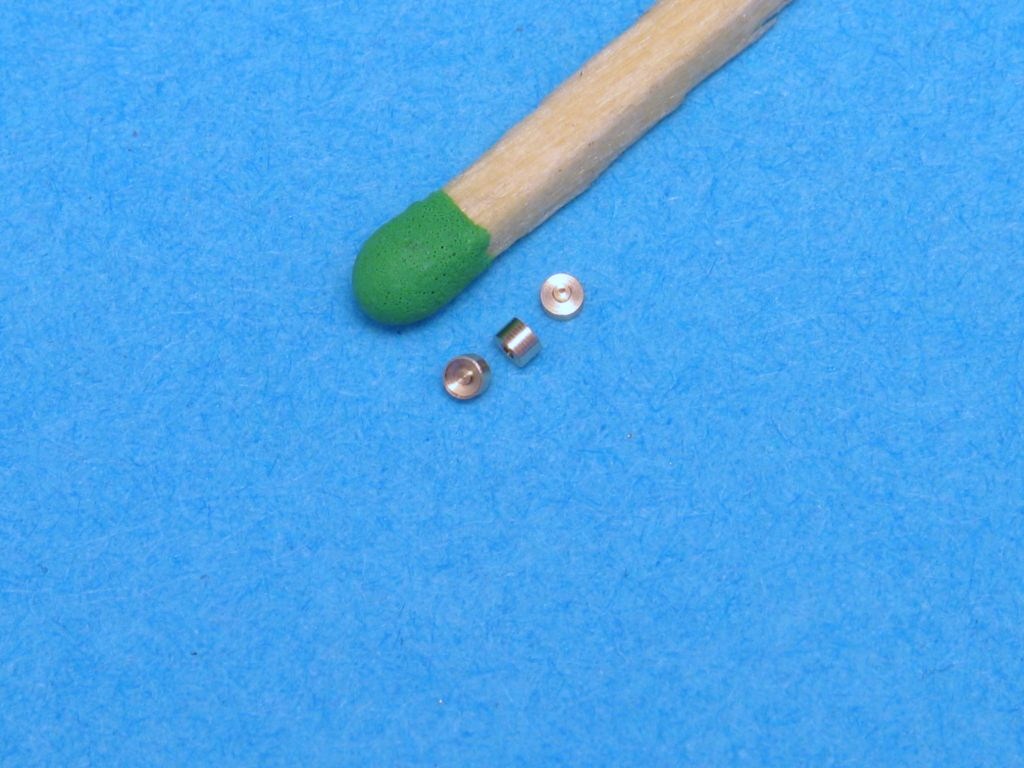

I started with the "oil vents." On Tunisien, I found three types.

[attachment=2]oil vent.jpg[/attachment]

To 1 / 350, they are pieces of very fine, so I asked Piotr Czerkasow society "Master" to turn these pieces. It has very kindly agreed.

His work is incredible.

[attachment=4]Sebastien 004.jpg[/attachment]

[attachment=3]Sebastien 001.jpg[/attachment]

So I set up.

[attachment=1]P1010035.JPG[/attachment]

[attachment=0]P1010036.JPG[/attachment]

Your opinion ?
Seb

Now that is superb work Seb :thumbs_up_1:

John

Hello all

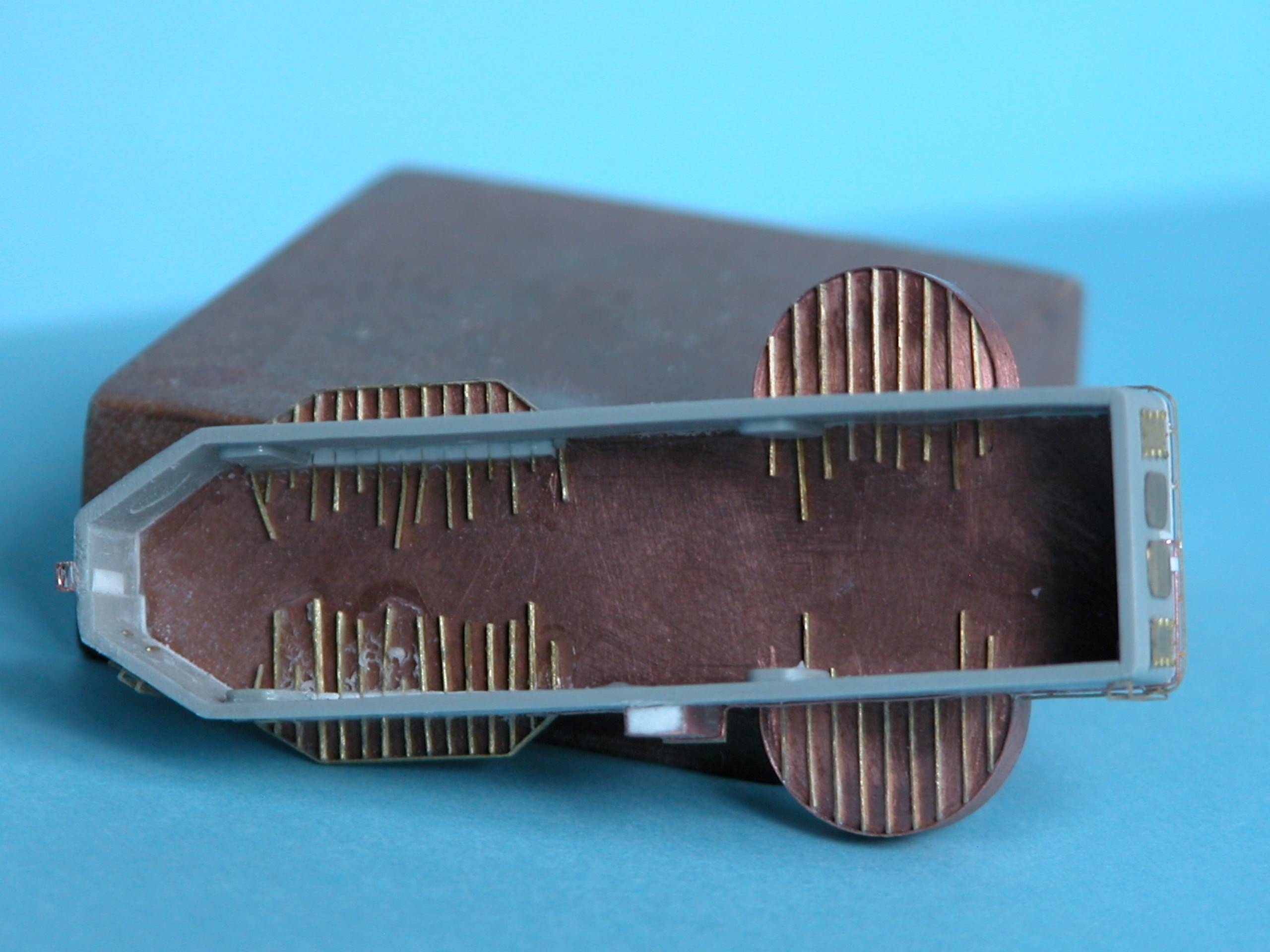

So, I started the rear of the superstructure of Tunisien.

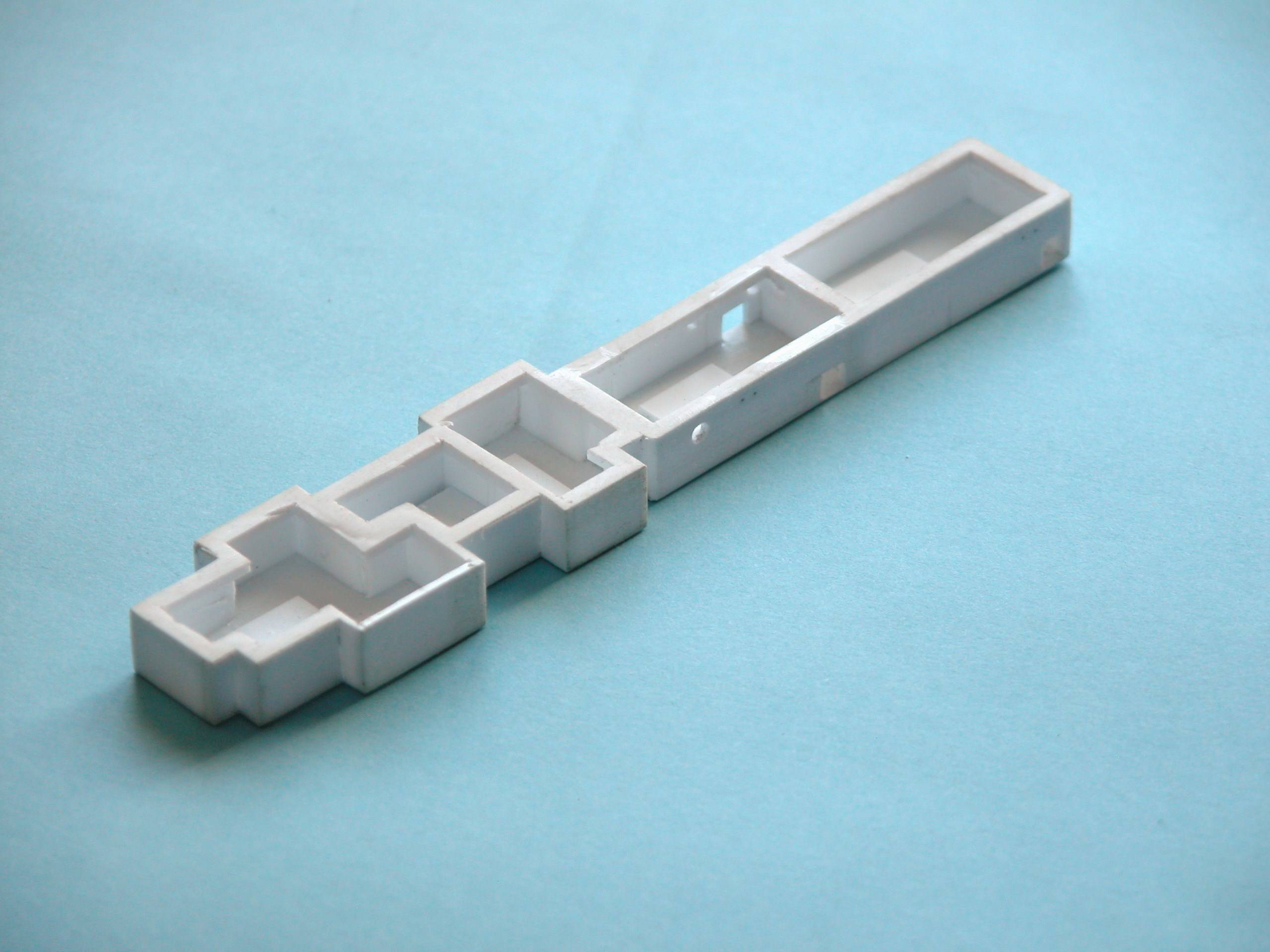

First, I scratchbuild the structure by cutting in profile of Evergreen the floor and ceiling.

[attachment=7]DSCN0836.JPG[/attachment]

Then I glued sections of 5mm between the two in order to obtain the desired height.

[attachment=6]DSCN0839.JPG[/attachment]

[attachment=5]DSCN0840.JPG[/attachment]

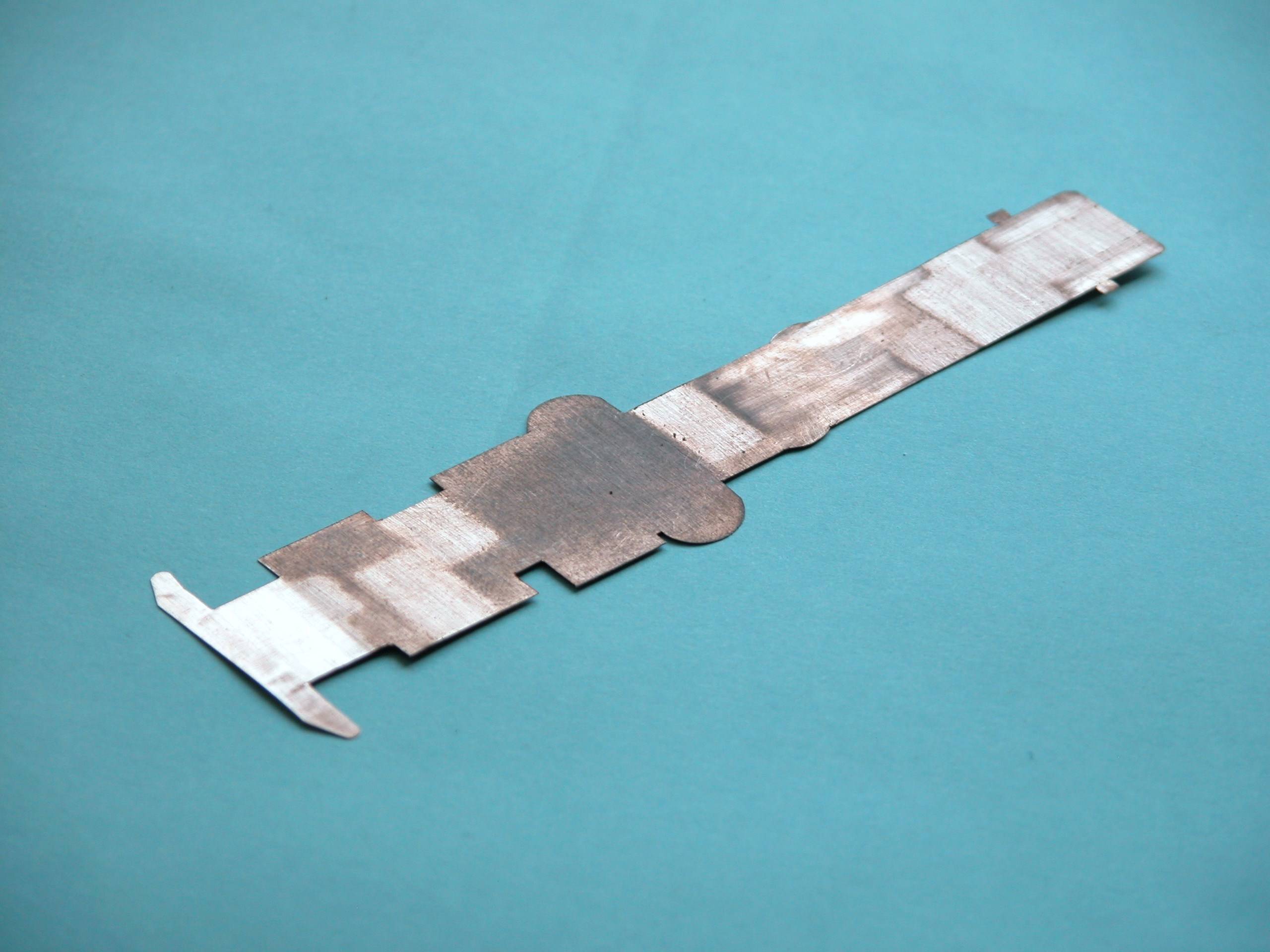

Then, I cut the bridge in the sheet copper.

[attachment=4]DSCN0841.JPG[/attachment]

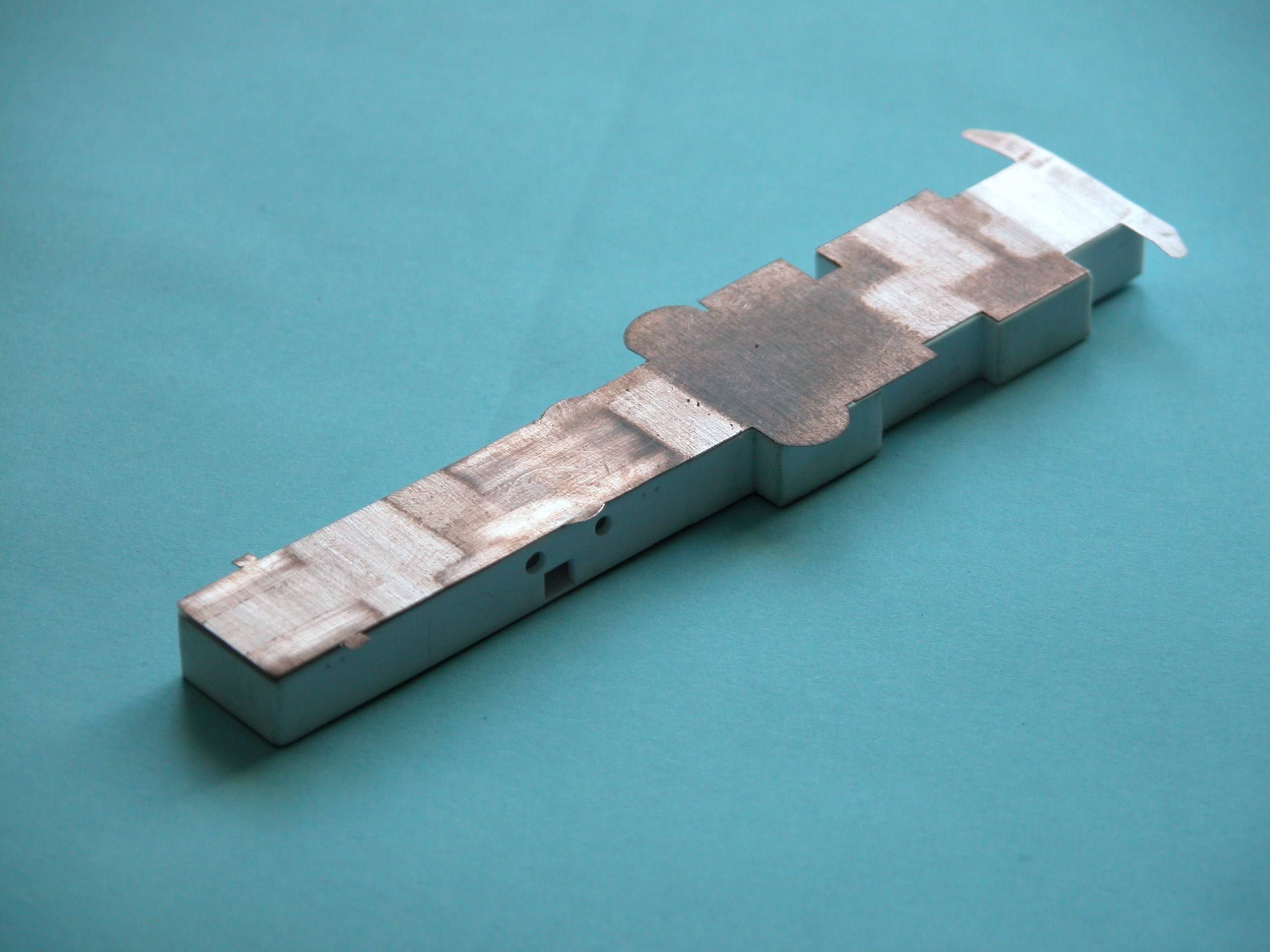

It is necessary that the bridge fits perfectly with the structure.

[attachment=3]DSCN0842.JPG[/attachment]

Then I started dressing in sheet copper. I must scratchbuild several parts for the final part.

[attachment=2]DSCN0843.JPG[/attachment]

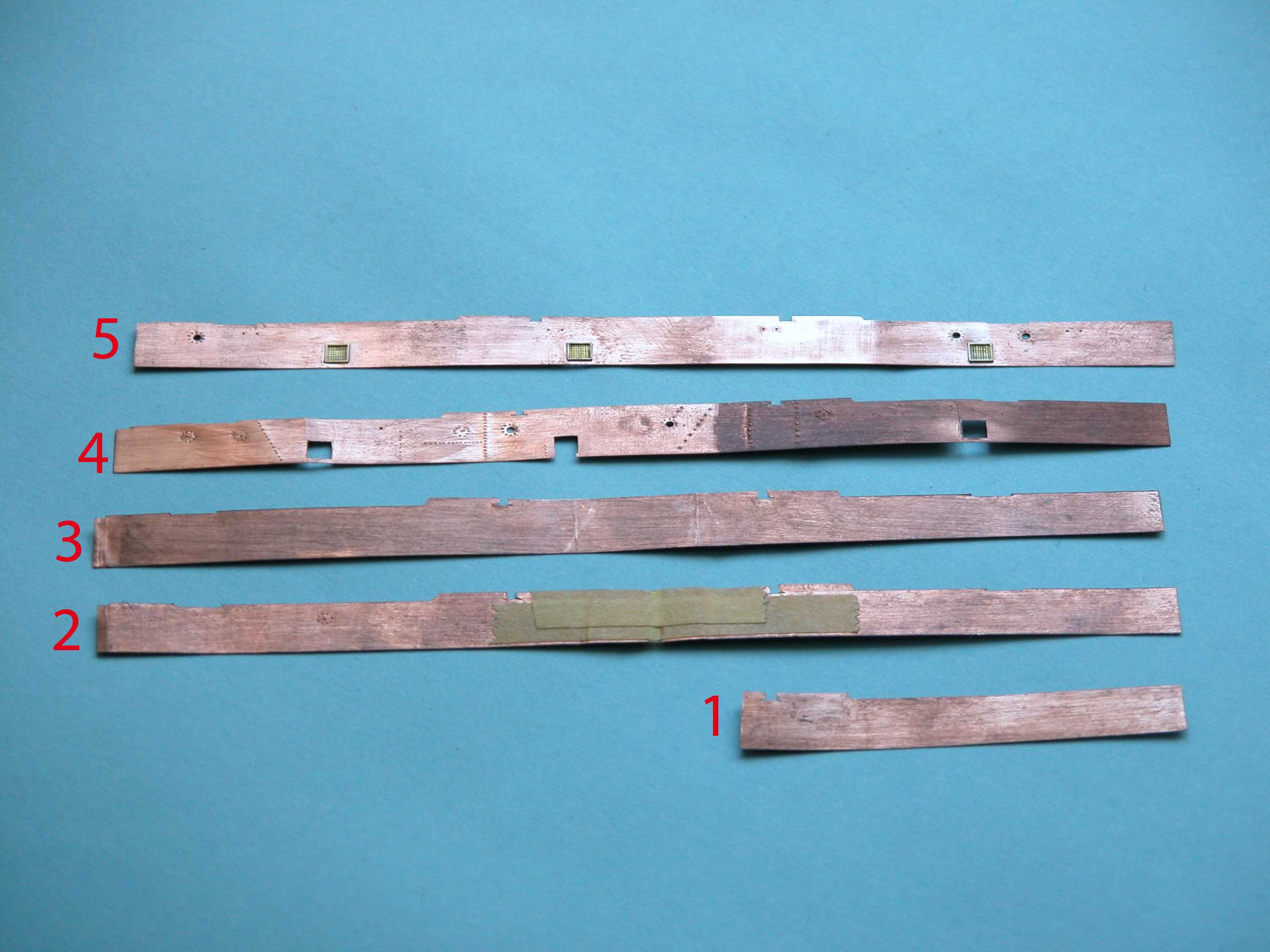

Exhibit 1 is the starboard�s form.

Exhibit 2 is all forms of port and starboard. They are taped to get the right length.

Exhibit 3 is the template for cutting the following pieces.

Exhibit 4 is the test that I used for cutting air vents, portholes and for testing the rivets.

Exhibit 5 is the final piece

[attachment=1]DSCN0845.JPG[/attachment]

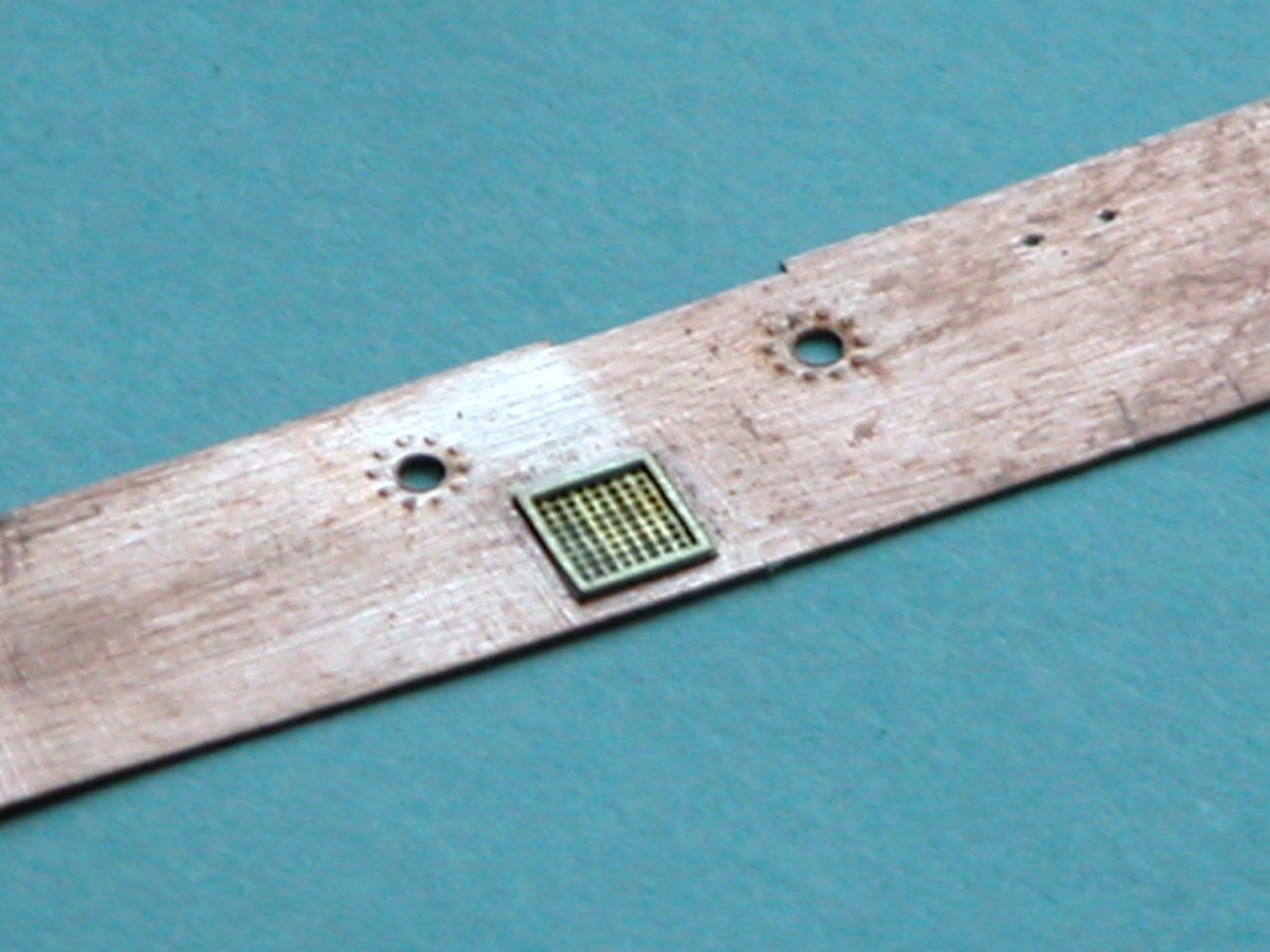

Detail of portholes, rivets and the air vents.

[attachment=0]DSCN0847.JPG[/attachment]

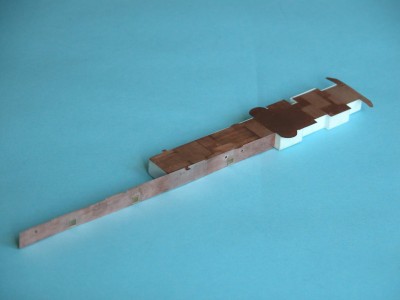

Finally the final part in place but not glued.
To be continued...
Seb

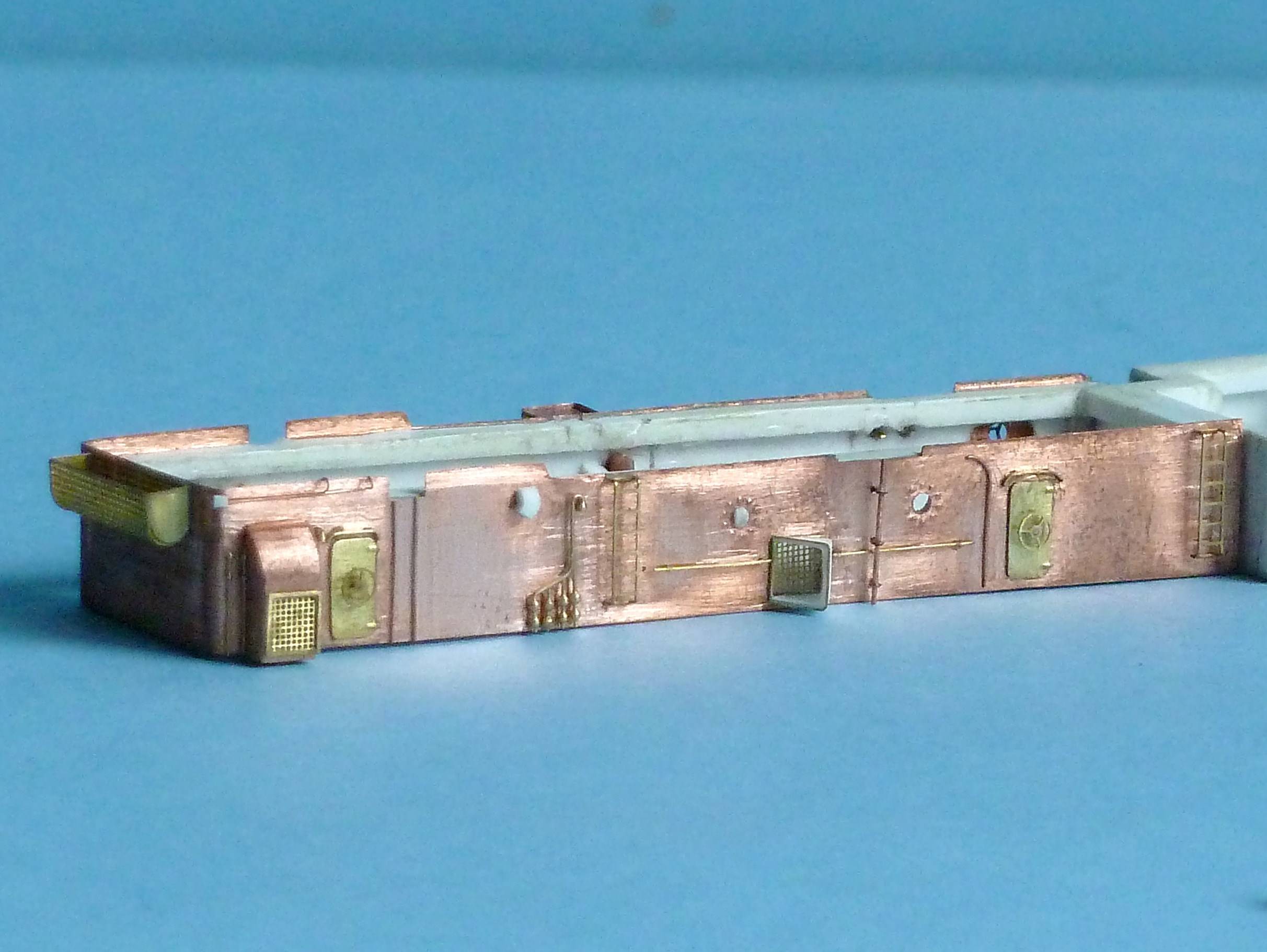

I have not remained completely inactive for the duration of this vote, I started the rear structure of the USS Buchanan.
It's not over:

[attachment=3]DSCN0827.JPG[/attachment]

[attachment=1]DSCN0829.JPG[/attachment]

[attachment=0]DSCN0830.JPG[/attachment]

Now, for Tunisien. It takes three things to build the superstructure:

[attachment=2]DSCN0834.JPG[/attachment]

Evergreen profiles, the sheet of copper and a good documentation.
I begin the work tonight, so the next update is expected soon.
Seb

P.S. : I forgot to post this message on August 24, sorry ! :big_grin:

Hello
Final result of votes on the forums Modelwarships and L'Arsenal:

Choice 1�) [b][color=#FF0000]10[/color][/b] votes

Choice 2�) 4 votes

Choice 3�) 1 votes

Choixce 4�) 4 votes*

So, the winner is : Tunisien :woo_hoo:
I thank all those who participated in this vote.
Immediately an update ...
Seb

[quote="EJFoeth"]Nonononono: I'll throw in a vote for #1. I'd like to see the metalwork so that I might learn something ;)[/quote]

I'll have to second that! #1 is my choice :thumbs_up_1:

Hello
Seconde provisional result of votes on the forums Modelwarships and L'Arsenal:

Choice 1�) 8 votes

Choice 2�) 4 votes

Choice 3�) 1 votes

Choixce 4�) 4 votes*

*=I took a vote, as a modeler French voted 2 times. I kept his vote for 1), in respect for his father, a sailor on Tunisien. :wink:
Seb

I vote the second choice too... Go Buchanan go... :big_grin: :big_grin: :wave_1:

Choice 2 for me please. :)
When you try to fit superstructures to the deck I think you will have to rebuild&repaint some pieces of deck again - Dragon has made a few errors and omissions in this area...

Hello
Provisional result of votes on the forums Modelwarships and L'Arsenal:

Choice 1�) 2 votes

Choice 2�) 2 votes

Choice 3�) 0 votes

Choice 1�) 5 votes

I repeat: no update without 10 votes to one of four choices.
So : Vote! :thumbs_up_1:
