Expand view Topic review: 1:110 HMS Anson - progress to date

Re: 1:110 HMS Anson - progress to date

by Bondoman » Wed Apr 06, 2011 2:31 pm

Ah... basswood we call that here in the Colonies. Yes, expensive indeed.

Thank you the info and I learned something.

Re: 1:110 HMS Anson - progress to date

by Timmy C » Wed Apr 06, 2011 2:14 pm

He means the wood type, which I guess is this: http://en.wikipedia.org/wiki/Tilia

Re: 1:110 HMS Anson - progress to date

by Bondoman » Wed Apr 06, 2011 2:01 pm

Please explain what you are using that's "lime". Is that what I'd call plaster of Paris?

Re: 1:110 HMS Anson - progress to date

by DariusP » Wed Apr 06, 2011 10:43 am

Looking great Grandad! I following your build with interest :thumbs_up_1:

Re: 1:110 HMS Anson - progress to date

by Capit�o Norbert » Wed Apr 06, 2011 7:17 am

Hi grandad
good to see Anson here
all the best :thumbs_up_1: :wave_1:

Re: 1:110 HMS Anson - progress to date

by Gorg » Wed Apr 06, 2011 6:11 am

:thumbs_up_1:
Hy Grandad,

that's great & wonderfull!! As Jim Baumann showed me your thread - I try myself in a 1/350 Version of Anson I wrote a PN to you.

Yours,
Gorg

Re: 1:110 HMS Anson - progress to date

by bismarck builder » Wed Apr 06, 2011 6:00 am

hi roger
glad your back
clocks all done now?
is that other hull for BK?
linda and me are moving to a little cottage at the end of the month in bentley roses round the door beams everything
watching with interest
cheers
gary r

Re: 1:110 HMS Anson - progress to date

by Dave Wooley » Wed Apr 06, 2011 4:27 am

Welcome Grandad . Jim told me that you had started to post , traditional scratchbuilding and a wonderful subject :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: . Just returned after visiting Chatham and the reserve collection , my mind and eyes are in a spin but the reserve collection at the FAA is out of this world, so many ship models. :cool_1:
Dave Wooley

Re: 1:110 HMS Anson - progress to date

by ARH » Wed Apr 06, 2011 3:07 am

Hi Grandad, I have seen this on another web site, but :welcome: to modelwarships, lovely work, different approach, :thumbs_up_1: :thumbs_up_1:

1:110 HMS Anson - progress to date

by Grandad » Wed Apr 06, 2011 1:12 am

Plans from the NMM. I carved the hull from lime, a real pleasure to use, but mighty expensive to buy. Yes, you can see 2 hulls in the first photo, whilst I carved mine I carved another, of a different ship, for a friend.

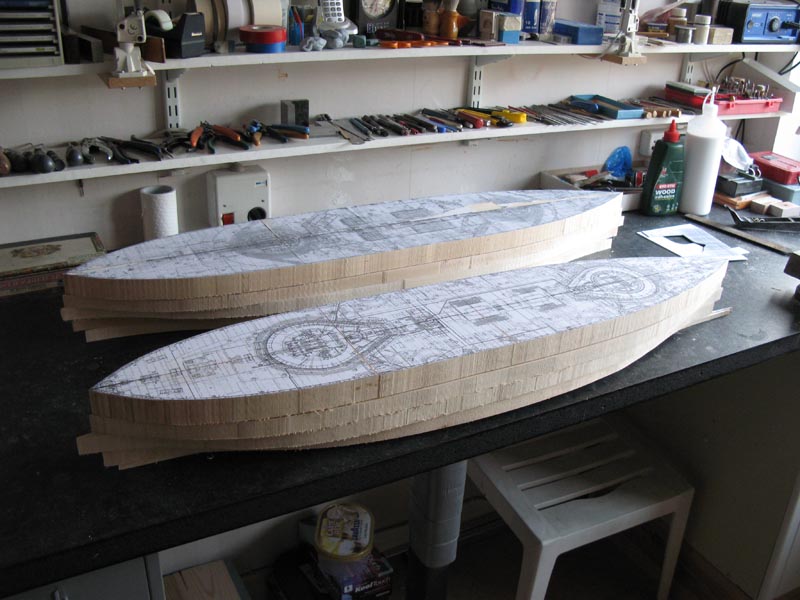

The hull planks ready for carving.
The hull planks ready for carving.

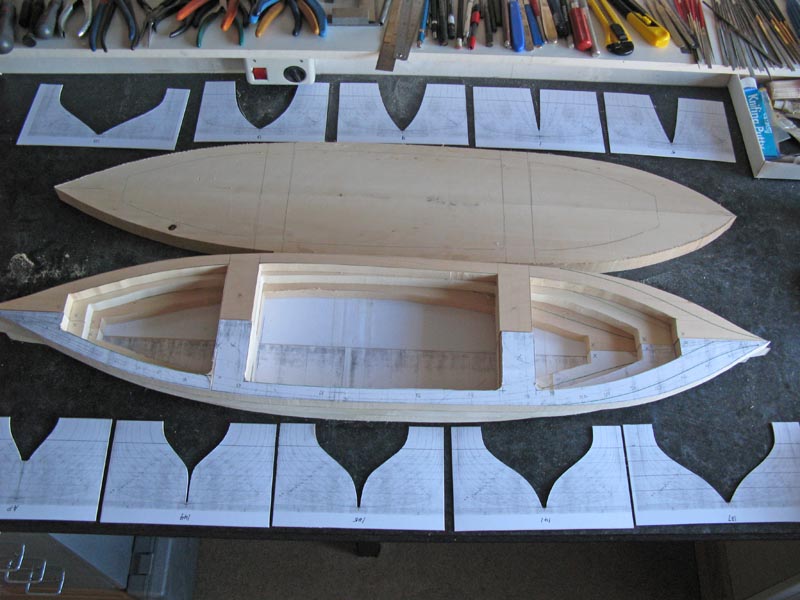

The interior is hollowed out to save weight, to stop the hull from cracking, and so I can use the waste elsewhere.
The interior is hollowed out to save weight, to stop the hull from cracking, and so I can use the waste elsewhere.
Carving, carving, carving...................
Carving, carving, carving...................

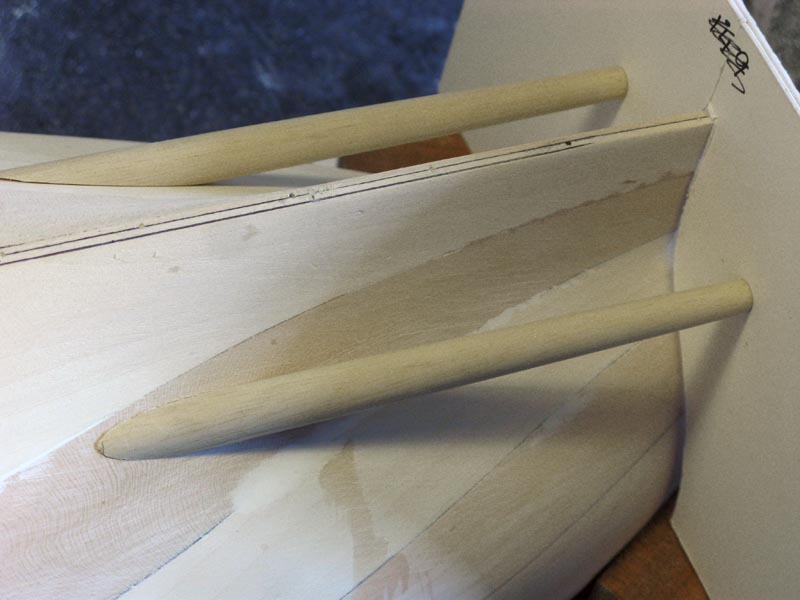

Setting up the stern tubes - a tricky job.
Setting up the stern tubes - a tricky job.
Setting up the stern tubes - a tricky job.
Setting up the stern tubes - a tricky job.

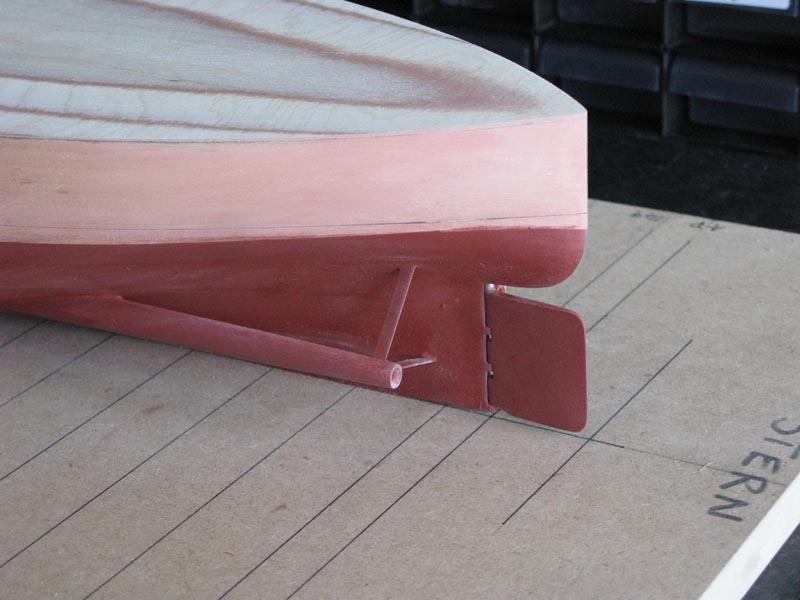

Stern tubes and rudder done
Stern tubes and rudder done

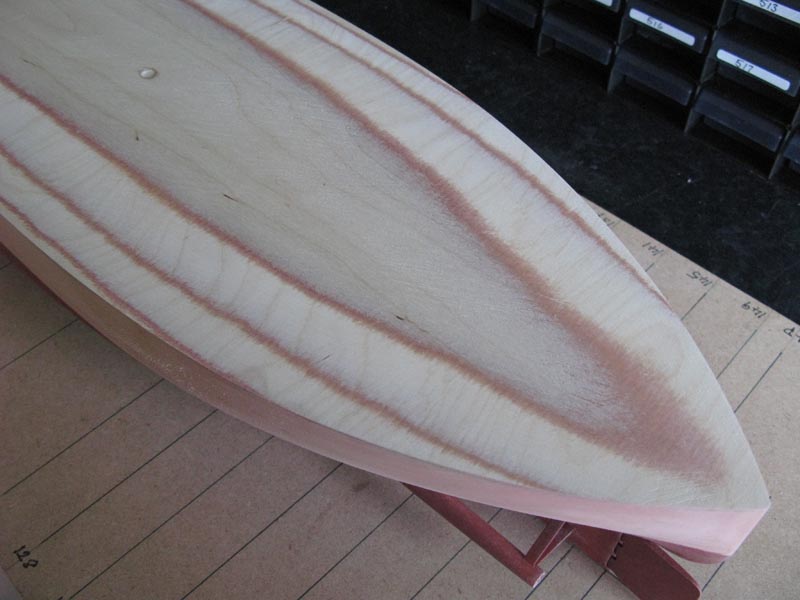

The deck camber can bee seen, using a 2mm ply sheet the glue joins of the ply can be used as a guide when carving.
The deck camber can bee seen, using a 2mm ply sheet the glue joins of the ply can be used as a guide when carving.
Setting up the barbette sandwich on the lathe to turn the slope
Setting up the barbette sandwich on the lathe to turn the slope

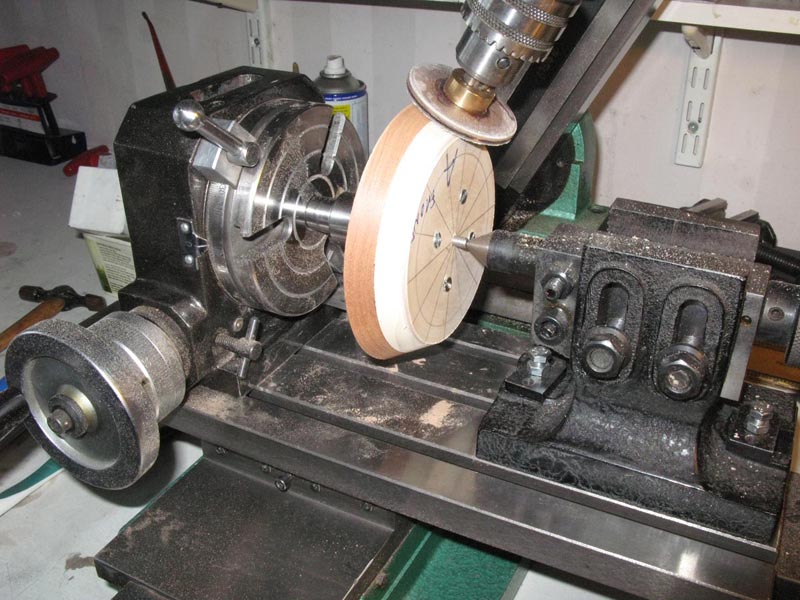

The barbette on the rotary table in the milling machine to cut the 14 flat sides. Why 14, it makes life so difficult as 14 is not divisible into 360, giving 25.71 �? These Victorians were fairly potty!
The barbette on the rotary table in the milling machine to cut the 14 flat sides. Why 14, it makes life so difficult as 14 is not divisible into 360, giving 25.71 �? These Victorians were fairly potty!

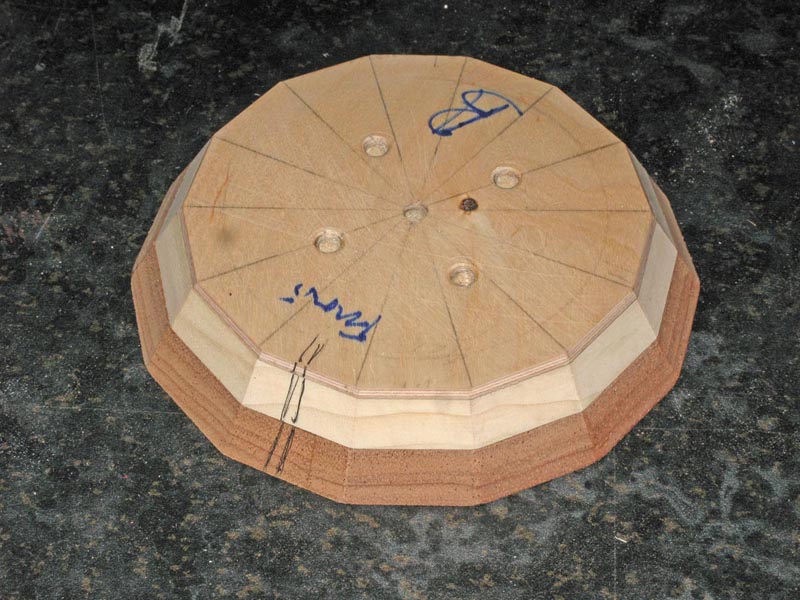

The barbette sandwich. Made thus so photoetch shelves and whotnot can be inserted easily.
The barbette sandwich. Made thus so photoetch shelves and whotnot can be inserted easily.
