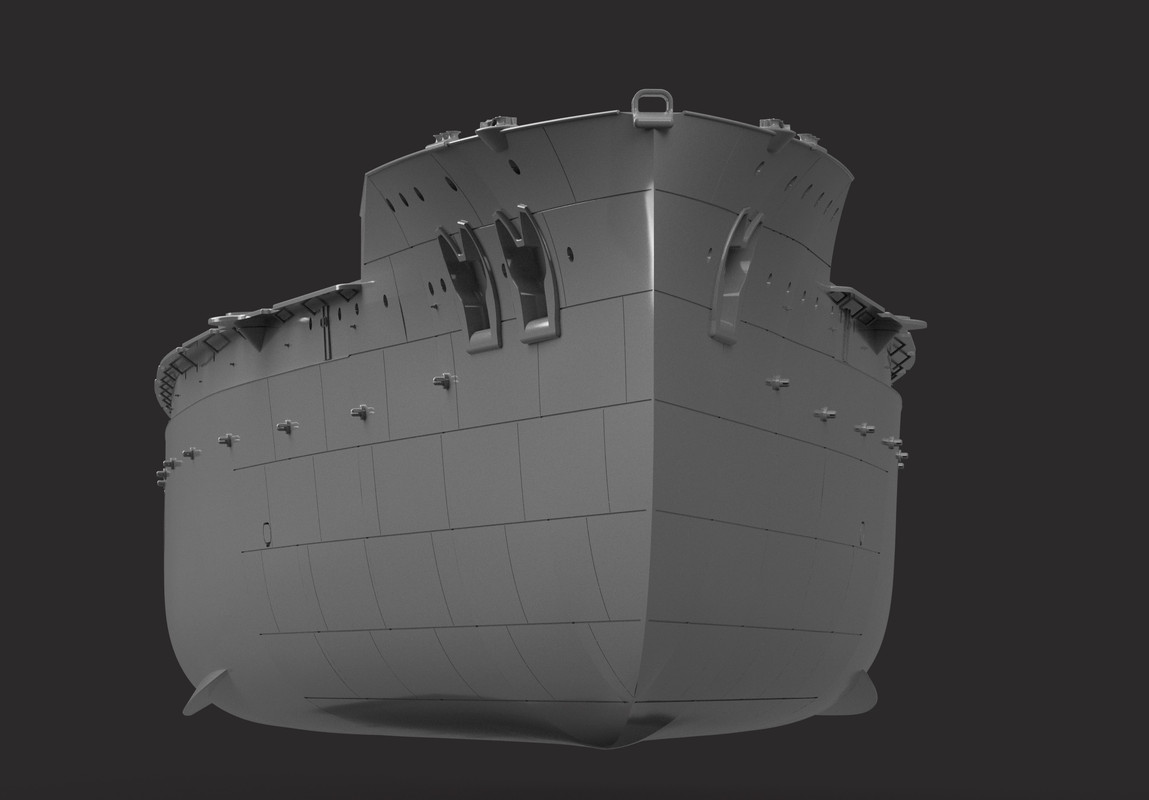

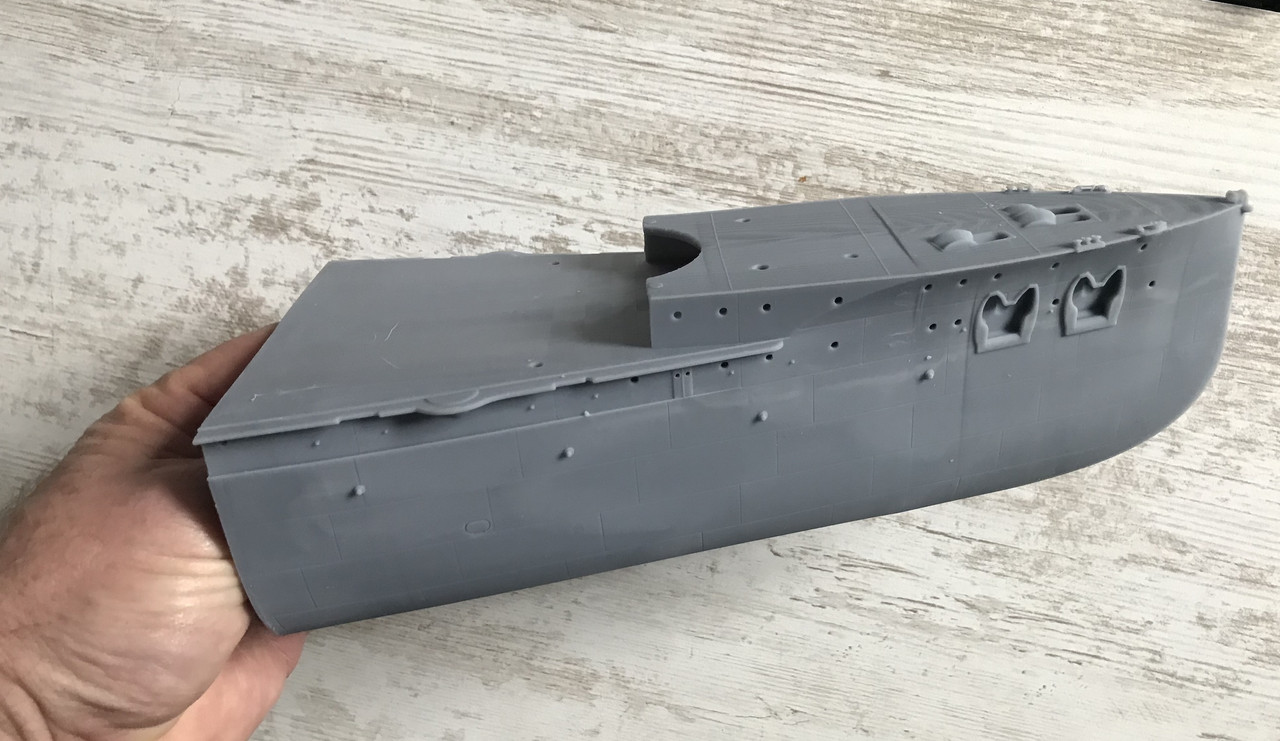

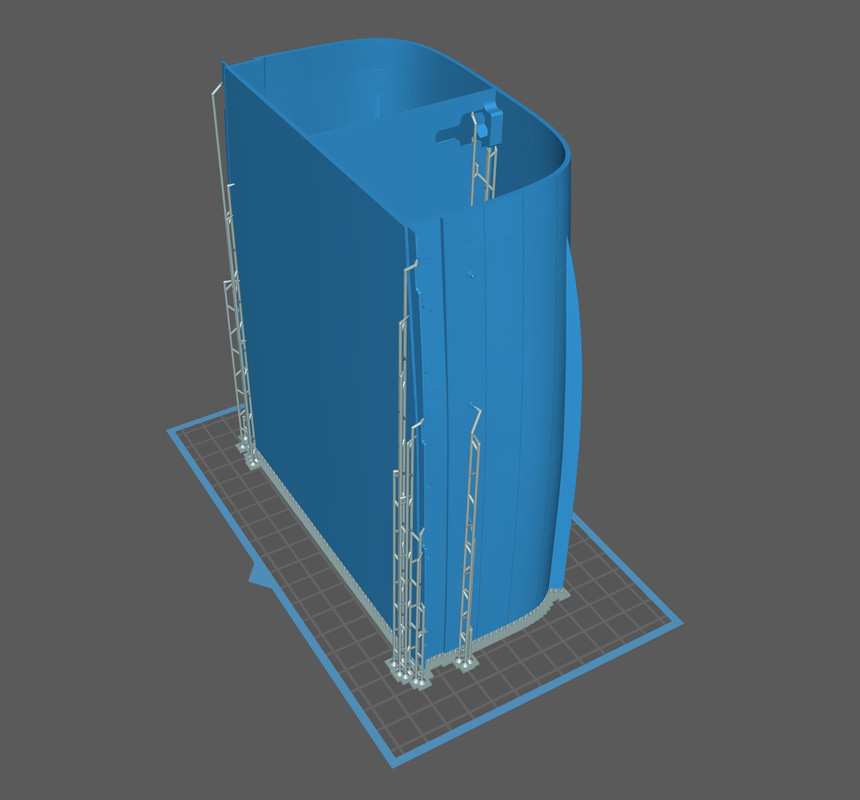

I started to print the hull by starting with the section N°1 of the bow.

I had a very small problem with the deck coming off a few supports, the section is usable but a little deformed, rectifiable with very little filler.

But as I have another little thing that I don't like (a forgotten a wall in the front that deforms the deck), I reprint it.

The problem comes from the protective film of the glass that reduces a little the UV radiation, I put it in place a little while ago, it plays a little on the exposure times, especially on the layers of the deck.

I corrected it in the settings and now it's ok for the second copy of section 1.

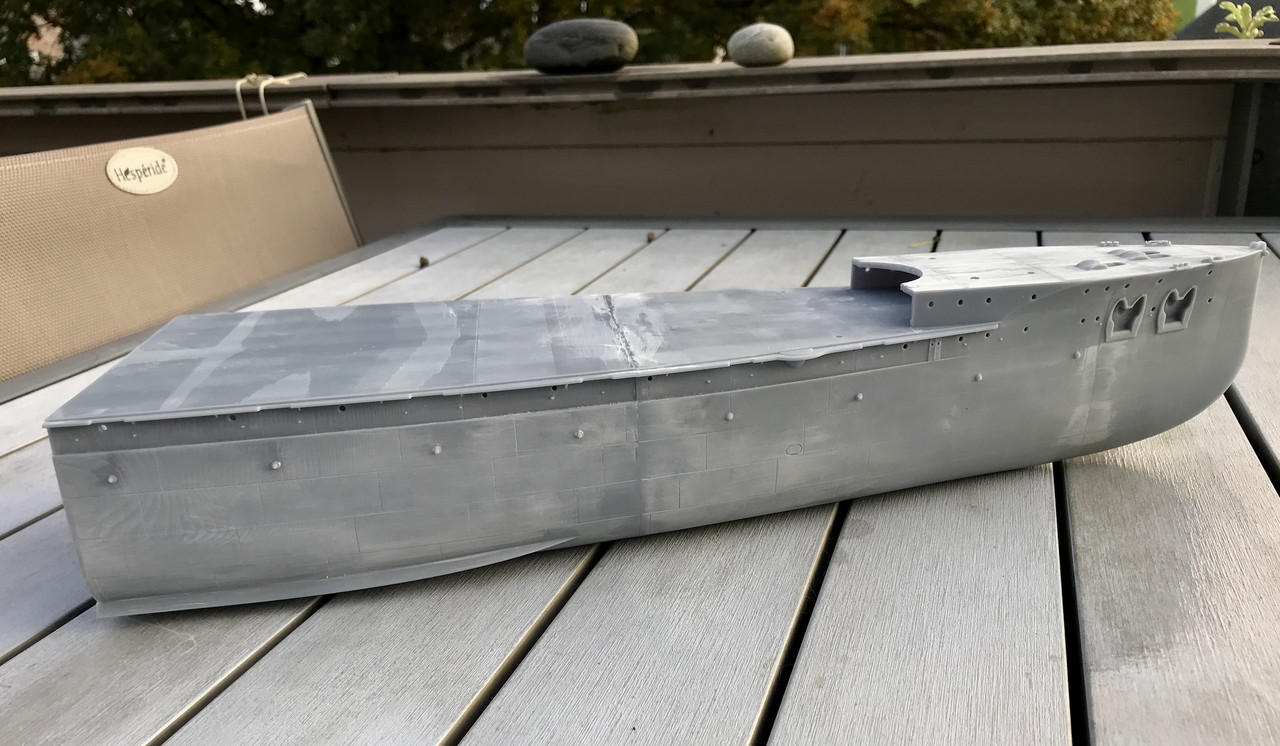

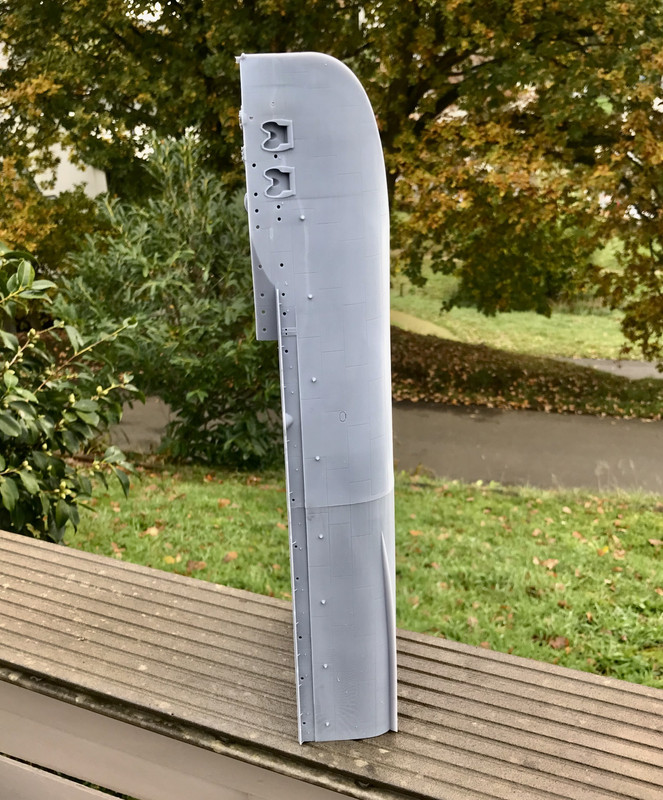

I also printed the second section, it is very good. I keep the prototypes in general, it allows to show people how the printing of the ship is done.

In any case it will make a hell of a beast, it is far from being ridiculous next to the Bismarck at 1/200 too.

I am very happy with this first round.

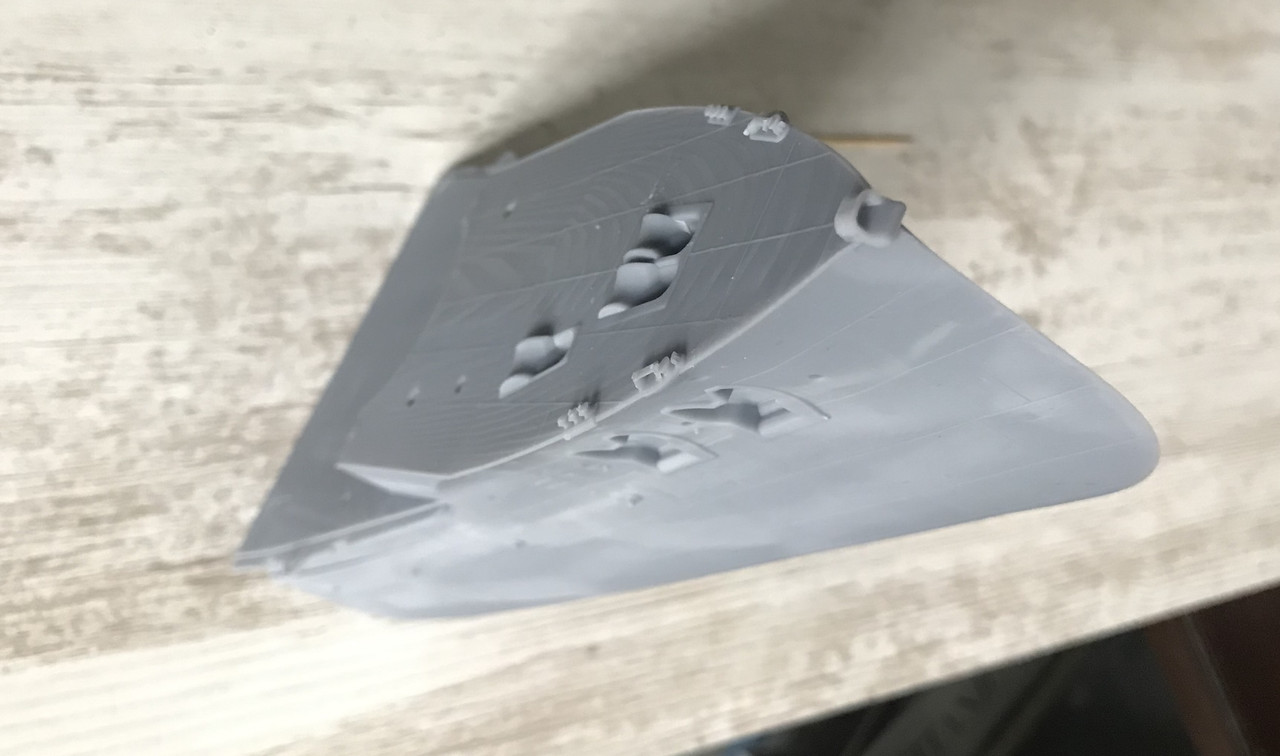

You can see the flaw on the forecastle deck in low light. A useless transverse bulkhead that I forgot to erase on the inside. It causes a stretch on the deck indirectly during printing, a known phenomenon.

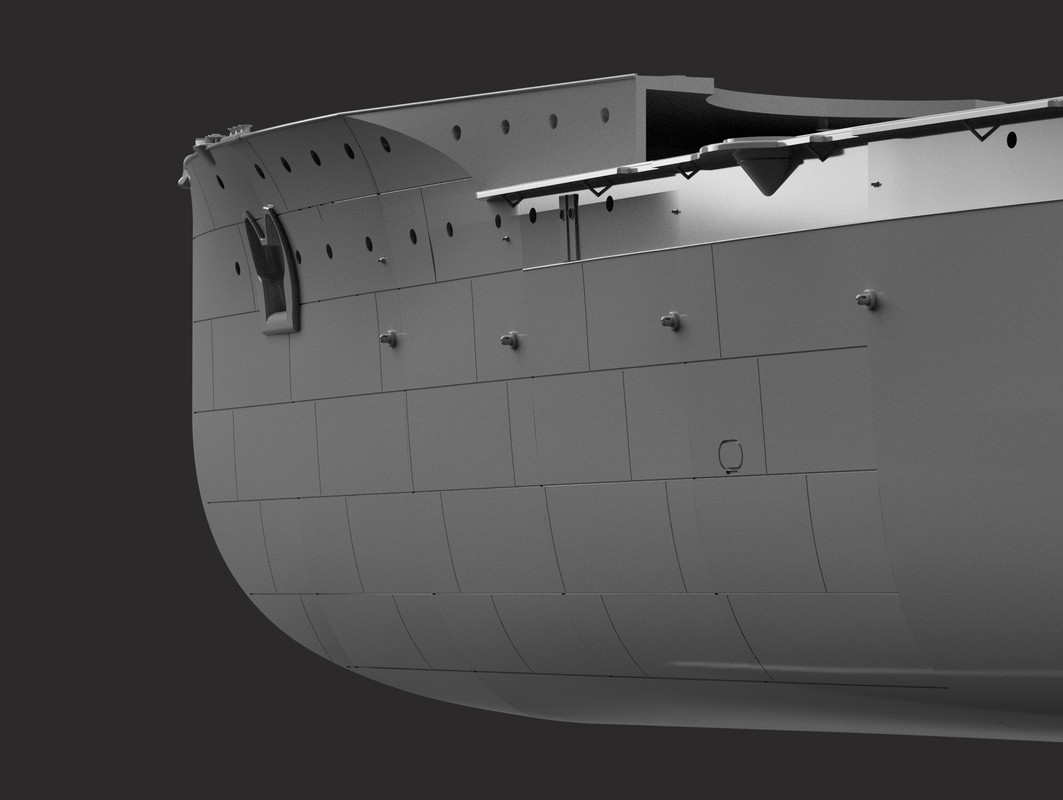

You can see some on the hull plating, because of the hawksbills which are very big and embedded on this ship, but there it's normal, there's nothing to do, it's unavoidable, except sanding a little.  :)



Section 2, I made an impression for the threaded rod nut that will hold the vessel and bracket, the nut will be glued on with Pattex bi-component glue.




What's next:

Joining section 2, gluing and sanding.

Pause a transparent Rhodoid behind the portholes before gluing, it will not be accessible afterwards.







The No. 1 board of front range equipment.


Trying to get the anchors in place.


_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 02, 2022 8:15 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7839
Location: New Jersey
Amazing!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 02, 2022 10:10 pm
Offline
User avatar

Joined: Sun Jul 03, 2011 5:10 pm
Posts: 187
Location: Windsor Junction NS
HOLY COW!

I've kept an eye on this thread from the start, and have really enjoyed seeing the 3D model coming to be. Now, seeing it printed and coming from a screen into your hands...wow.

Well done!

_________________
ICBM Address: 44:78N 063:63W

Ex RCN, HMC Ships Gatineau, Athabaskan, Charlottetown, St. John's, Montreal, Charlottetown, Summerside, Montreal.


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Dec 03, 2022 4:55 pm
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1298
Location: Brittany, France
Thanks Martin and NS! :thumbs_up_1:

_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Dec 03, 2022 6:00 pm
Offline
User avatar

Joined: Tue Nov 01, 2005 8:19 am
Posts: 239
Location: Fort Worth, Texas
Pascal,

Very nice; I think I'm going to enjoy watching the assembly of the printed vessel almost more than I enjoyed the 3d development and I thought that was outstanding!

_________________
Bruce
OSC USN-Ret

Currently on the building ways:
1/144 USS Stevens DD-479
1/144 USS Cook Inlet AVP-36
1/144 USS Walke DD-416
1/144 USS Preble DDG-46


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Dec 03, 2022 7:40 pm
Offline
User avatar

Joined: Wed Apr 16, 2008 1:58 pm
Posts: 100
Location: Salisbury, NC USA
So exciting seeing the printing stage.


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 04, 2022 1:47 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 4751
Indeed the printing is coming along nicely. There is quite a bit of leger de main involved in producing really good prints. At this Pascal really shows his experience.

Best regards: Tom


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 05, 2022 3:39 am
Offline
User avatar

Joined: Wed Sep 28, 2011 12:04 pm
Posts: 1602
Location: Paris
Printing such large pieces that need to fit together, such as the hull, is quite a challenge ... :thumbs_up_1:

_________________
wefalck

Chairman Arbeitskreis historischer Schiffbau e.V. (German Association for Shipbuilding History)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Image Image Image Image


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 05, 2022 10:12 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5195
Location: Nr Southampton England
Oh my word-- for a 1/700 fellow like me...

that is biiiG!--

well 1/200 scale is ... ! :cool_1:

a bit like comparing O gauge model railways to N gauge model railways :wave_1:


Attachments:
A-Guide-to-Model-Railway-Scales-Image.jpg [ 1.05 MiB | Viewed 235 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 07, 2022 4:55 pm
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1298
Location: Brittany, France
Tks all ! :thumbs_up_1:

Yes, it's a big baby.. :big_grin:

Printed and glued section 3 a few days ago, then sanded the joints until I couldn't feel anything with my fingertips at the glued sections.





Printing of the last section N°4. It fits perfectly, it's not glued yet, I have some cleaning to do before and I have to put the Rhodoid of the portholes inside, because it won't be accessible once glued.

I've opened the deck at the level of the gun barbettes to be able to glue the rear 140 mm guns in casemate, not easy but it's ok.










_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 07, 2022 5:44 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2361
Location: Hoboken, NJ
Looks fantastic! I feel your paint on the hull plating: I just had to do a 1/96th scale model of Grand Central Terminal for work, and even though all of the brick lines on that thing are mostly straight-forward, it still took days of work to draw then boolean them out.

Really looking forward to seeing this finished. I love the French warships.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 09, 2022 4:11 pm
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1298
Location: Brittany, France
Thanks Devin! :thumbs_up_1:

Section 4 was very easy to assemble and glue, little sanding.

It's starting to take a turn in this case...











The hull weighs 663 grams for the moment. A weight roughly equivalent to what would be its weight in injected plastic.

But much more rigid because of its design and material.

Printing the 2 pillars of the base in the same style as my Bismarck at 1/200. The advantage of 3D is that it fits perfectly the hull.

viewtopic.php?f=59&t=314096

The resin is easily scratched, but this is very superficial in fact, once painted it is not visible.

You can see the links of the sections that have been sanded. I still have to apply a primer to check if everything is perfect. At this level some of the sheet metal lines have been re-engraved with Trumpeter's "engraver" which is usually used for my model aircraft. I will also use it to clean the sheet metal lines loaded with sanding dust.




I didn't do any embedding on this deck. I only made 2 holes for the 140mm barrels at the front to do a test.

With resin I'm a bit wary of precision. You always have to "play" a little. For deck 2, there are some recesses planned, I'll see what it gives visually, I'll decide if I should leave them or not. Deck 2 is easier to reprint than a hull or a section of hull.

As for the linoleum plates, you can see them perfectly without seeing them too much either, just fine, as I like, it's discreet.

Here there is just a micro-coat of spray primer to see what it does to the moiré surface of the deck. I want to know if I need to sand to 1000 again. I have a second coat to put on to see if it covers well, by finger, by not feeling anything..


_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 09, 2022 4:45 pm
Offline

Joined: Sat Jan 17, 2009 2:12 pm
Posts: 3712
how are you going to get the 4 smaller guns in beside "Y" turret being the main deck is in place above them?


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 09, 2022 5:27 pm
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1298
Location: Brittany, France
By the barbettes, with a pliers, it is quite easy, there is a printing platform to put them and glue them.

That's why I opened the deck at this place.

I can even glue them very late in the assembly.


_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Dec 10, 2022 9:17 am
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 3868
Location: USA
Brilliant.

_________________
Have fun, Monkey around.

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 11, 2022 8:56 am
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1298
Location: Brittany, France
Tks! :thumbs_up_1:

Printing of a 340 mm prototype turret, there is not much to review, it is rather good. The assembly is well done respecting the tolerances of the resin 0.3 mm.

The printing is very fine thanks to the Photon Ultra, especially the padding and riveting.

I printed with 30 micron layers, but I'll test again at 20 microns.

I chipped the sealing skirt a bit when I was removing the paint, it's very thin there. No problem, it's a test. Otherwise it runs well with the system.

I've primed the hull, and sanding and repairing the little dings is in progress.

About the colors:

Extract from "Les Cuirassés de 23500 tonnes" Bretagne, Lorraine, Provence:

5. Paintings and particular marks :

51. Paintings :

The hull up to the waterline is painted green (Schweinfurth green), the deadworks and superstructures are bluish-gray, a classic color since its adoption in February 1908. Only the strake on top of the chimneys is black.

From 1915 onwards, i.e. during the test period, the steel of the 340 turrets and their guns was stripped and treated with a "grease plug" to prevent corrosion. These "grease plugs" contained a mixture of grease and lampblack, which gave the main artillery turrets the shiny black color that can be seen in photos from that period.

Towards the end of the war (1918), the upper half of the AR. mast was painted black to avoid the soiling caused by smoke.

In compliance with the Ministerial Circular of November 30, 1920, the waterline is painted black over a height of one meter (0.50 m on either side of the waterline 10).

The boats are painted bluish gray with white interior. The vertical parts of the deckhouses of the launches are kept "clear" or varnished if they are made of wood, otherwise they are painted in the color of the boat. The roofs are painted in grey for the steamers, in white for the launches.

52. Particular marks :

Since 1912, the particular marks of battleships and cruisers consist of white rings painted around one of the stacks. These rings allow, within a squadron, to identify the division to which a ship belongs and its rank in that division. The code used has already been explained during the presentation of the Courbet type battleships.

Between 1916, the year of their entry into service, and their first redesign, the three Britannies frequently changed their particular markings, so the study of the latter is the subject of a table in the appendix, common to all battleships of 23,500 tons."


If anyone has existing paint references for the bluish gray, Schweinfurth green, linoleum red ochre (Here can be the Tamiya XF-59 ("Linoleum Deck Brown")?

http://www.warpaints.net/viewtopic.php? ... 3&start=30

For the 380 and 140 gun turrets, I'm thinking of using two colors, a dark charcoal gray for the turret itself and a semi gloss black for the guns.

We can see on the 1915 photos that the color of the turrets varied according to whether a recent layer of grease plugs had been applied, from shiny black to medium dark gray. It must not have held up well in the sun, sea spray and rain.













Comparison with a Bismarck turret at the same scale.



_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 11, 2022 11:16 am
Offline
User avatar

Joined: Sun Mar 13, 2005 11:51 am
Posts: 2359
Location: Belgium
Never heard of these ships before, but they sure are gorgeous.

Great work so far! :thumbs_up_1:

_________________
The merchant shipyard


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 11, 2022 6:07 pm
Offline
User avatar

Joined: Wed Apr 16, 2008 1:58 pm
Posts: 100
Location: Salisbury, NC USA
Mmmmmmm..... look at them gorgeous guns!!!!!!! :thumbs_up_1:


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 11, 2022 11:59 pm
Offline
User avatar

Joined: Sun Mar 07, 2010 12:01 am
Posts: 1555
Location: Corvallis, Oregon, USA
Everything about this project is well done.

Phil

_________________
A collision at sea will ruin your entire day. Aristotle


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 12, 2022 4:43 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5195
Location: Nr Southampton England
It is really taking shape now...!

excellent sanding and scribing!

its a most excellent transcription from 3-D digital into 3-D physical

questions ;-- I note that on many images of the black turret era ( my favourite!! )
( I am paying attention !! ) and in the photos

the ' black' is certainly lighter than one thinks

But there is a lighter stripe section- seems--painted -
I have never noticed this before .

was that a fleet identifier ? -or another purpose?
this is one of your images from BM

Attachment:
bretagen  turret.jpg
bretagen turret.jpg [ 171.83 KiB | Viewed 51 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 250 posts ]  Go to page Previous  1 ... 7, 8, 9, 10, 11, 12, 13  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 21 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
