Hi Phil "I'm Back" Suffered terrible with drawl syptoms ! :woo_hoo:
Dave Wooley


Report this post
Top

Reply with quote
Dave Wooley
PostPosted: Fri Feb 01, 2008 3:18 am
Offline
User avatar

Joined: Sat Jan 22, 2005 10:18 am
Posts: 4131
Location: Liverpool
Kiwi Medic's magnificent Bismarck project up dates were ready to depart page 1 . :cool_1:
Dave Wooley


Report this post
Top
 Profile
Reply with quote
nboyd383
PostPosted: Sat Feb 02, 2008 6:18 pm
Offline
User avatar

Joined: Sat May 19, 2007 7:46 am
Posts: 40
Location: Paradise Newfoundland
If I had the money I would build 1:1 Ships it'd be fun to sail around in them scaring people firing
empty guns :big_grin: :big_grin: :big_grin: :big_grin: :big_grin: :big_grin: I always wanted a 1:1 Fletcher!

_________________
-Nicholas Boyd

This is not the end, nor is it the beginning of the end, but perhaps it is, the end of the beginning.
-Sir Winston Churchill


Report this post
Top
 Profile
Reply with quote
Reid
PostPosted: Sat Feb 02, 2008 9:26 pm
Offline
User avatar

Joined: Thu Jul 13, 2006 6:03 pm
Posts: 436
Location: SoCal
DUDE who doesn't want 1:1 Fletcher!!

_________________
Reid, PIO of the 48th Fleet
http://www.48thfleet.com


Report this post
Top
 Profile
Reply with quote
Avery Boyer
PostPosted: Sun Feb 03, 2008 1:52 pm
Offline
User avatar

Joined: Mon Apr 24, 2006 4:56 pm
Posts: 934
Location: Berks County, Pennsylvania
Go to Alabama after they get USS John Rodgers back and you can get the next best thing to owning one! :woo_hoo:

_________________
"It is best to remain silent and let others assume you are dumb than to speak up and remove all doubt"

http://nssavannah.wordpress.com/


Report this post
Top
 Profile
Reply with quote
Kiwimedic
PostPosted: Mon Mar 03, 2008 5:35 pm
Offline
User avatar

Joined: Thu Dec 08, 2005 11:02 am
Posts: 133
Location: Scotland
Hi All
It has been a little while since I posted last.
I am in the "Doldrums" As far as the bismarck is concerned. I call it the doldrums because you can do a lot of work and have little to show for it.

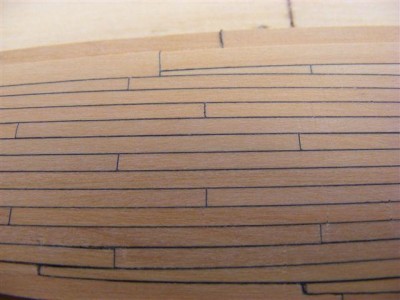

I have started planking the deck which will involve over a thousand feet of planking. I am also putting the Superstructure together. I am also making fittings at the same time because you cannot "margin plank" without the fittings.
There is also detail that I have been able to put on a of this scale model that you will not see on other Bismarcks simply because the detail is too small to be practicable on smaller scales.
I will do a few updates over the next week or so.

Regards
Phil


Attachments:
Deck Planking Chain Plate 001.jpg
Deck Planking Chain Plate 001.jpg [ 48.43 KiB | Viewed 4491 times ]
Copy of Deck Planking Chain Plate 008.jpg
Copy of Deck Planking Chain Plate 008.jpg [ 41.56 KiB | Viewed 4335 times ]
Deck Planking Chain Plate 011.jpg
Deck Planking Chain Plate 011.jpg [ 50.39 KiB | Viewed 4374 times ]
Report this post
Top
 Profile
Reply with quote
Kiwimedic
PostPosted: Mon Mar 03, 2008 5:49 pm
Offline
User avatar

Joined: Thu Dec 08, 2005 11:02 am
Posts: 133
Location: Scotland
Hi All Continued.
There are a couple more showing the begining of the deck planking.
The last image shows the riveting going all the way round the ship. This attached the deck to the hull on the real Bismarck. There is another angle attached to the deck a little further in. This channel created made the scuppers. The deck was then margin planked and the decking laid up against that. There are over 46,000 rivets.

regards
Phil.


Attachments:
Rivet detail around hull and deck join.jpg
Rivet detail around hull and deck join.jpg [ 25.92 KiB | Viewed 4398 times ]
Deck Planking Chain Plate 009.jpg
Deck Planking Chain Plate 009.jpg [ 50.99 KiB | Viewed 4317 times ]
Deck Planking Chain Plate 010.jpg
Deck Planking Chain Plate 010.jpg [ 42.8 KiB | Viewed 4291 times ]
Report this post
Top
 Profile
Reply with quote
bismarck builder
PostPosted: Mon Mar 03, 2008 8:00 pm
Offline
User avatar

Joined: Wed Jan 12, 2005 3:28 am
Posts: 403
Location: alton hampshire uk
hi phil
very nice
what are you using for glue?
the admiral used on the iron duke and other UV77 CLEAR SATIN ( blackfriar ) exterior varnish also used on my scharnhorst
gary

_________________
a bad day sailing is better than a good day at the office


Report this post
Top
 Profile
Reply with quote
Reid
PostPosted: Mon Mar 03, 2008 9:39 pm
Offline
User avatar

Joined: Thu Jul 13, 2006 6:03 pm
Posts: 436
Location: SoCal
o dude what is killer great job!!!

_________________
Reid, PIO of the 48th Fleet
http://www.48thfleet.com


Report this post
Top
 Profile
Reply with quote
J. Soca
PostPosted: Mon Mar 03, 2008 10:46 pm
Offline
User avatar

Joined: Sun Dec 03, 2006 5:36 pm
Posts: 2160
Location: About 50 miles away from the Gulf of Mexico ( traveling W is you do so :)
Beautiful job soo far on the deck :thumbs_up_1: :thumbs_up_1:


Report this post
Top
 Profile
Reply with quote
Andy G
PostPosted: Tue Mar 04, 2008 4:54 am
Offline
User avatar

Joined: Wed Nov 02, 2005 9:12 am
Posts: 234
I know EXACTLY how you feel! :smallsmile:

I've still got planking to slap on the Dreadnought. It's such a slow process - but the end result (as yours is looking) is really worth it, I think. You've made a lovely job of it.

Andy


Report this post
Top
 Profile
Reply with quote
Dave Wooley
PostPosted: Tue Mar 04, 2008 5:41 am
Offline
User avatar

Joined: Sat Jan 22, 2005 10:18 am
Posts: 4131
Location: Liverpool
Excellent job :thumbs_up_1: :thumbs_up_1: :wave_1:
Dave Wooley


Report this post
Top
 Profile
Reply with quote
ingura
PostPosted: Tue Mar 04, 2008 9:19 am
...


Last edited by ingura on Sun Oct 31, 2010 7:53 pm, edited 1 time in total.

Report this post
Top

Reply with quote
Kiwimedic
PostPosted: Tue Mar 04, 2008 11:15 am
Offline
User avatar

Joined: Thu Dec 08, 2005 11:02 am
Posts: 133
Location: Scotland
Dear All
I am using "PVA for outdoors."It is user friendly and has a quick drying time.


Peter
I have copied what you have shown on the original bismarck drawing.
It is nice to see that I have got it right. The width of the scupper is a reassuring measurement as I guessed it to be around 300mm. As you are aware information as far as sizes of fittings etc can be a bit thin on the ground.

Do you have much information on Bismarck?

regards
Philip.


Report this post
Top
 Profile
Reply with quote
ingura
PostPosted: Tue Mar 04, 2008 4:43 pm
....


Last edited by ingura on Sun Oct 31, 2010 7:53 pm, edited 1 time in total.

Report this post
Top

Reply with quote
Kiwimedic
PostPosted: Mon Mar 10, 2008 6:03 pm
Offline
User avatar

Joined: Thu Dec 08, 2005 11:02 am
Posts: 133
Location: Scotland
Hi all

As promised a few more postings before I get into my Parafin Parrot for another stint.

The first three show a little of the detail that I am adding to Bismarck.

Regards
Phil


Attachments:
kick plate 2.JPG
kick plate 2.JPG [ 60.2 KiB | Viewed 2343 times ]
Rivet detail around base of barbettes.jpg
Rivet detail around base of barbettes.jpg [ 38.96 KiB | Viewed 2296 times ]
Showing stern fairlead and flagstaff. Also the hatches to smoke unit and also the stern anchor hawser. (Medium).jpg
Showing stern fairlead and flagstaff. Also the hatches to smoke unit and also the stern anchor hawser. (Medium).jpg [ 70.73 KiB | Viewed 2421 times ]


Last edited by Kiwimedic on Mon Mar 10, 2008 6:16 pm, edited 1 time in total.
Report this post
Top
 Profile
Reply with quote
Kiwimedic
PostPosted: Mon Mar 10, 2008 6:15 pm
Offline
User avatar

Joined: Thu Dec 08, 2005 11:02 am
Posts: 133
Location: Scotland
Hi All

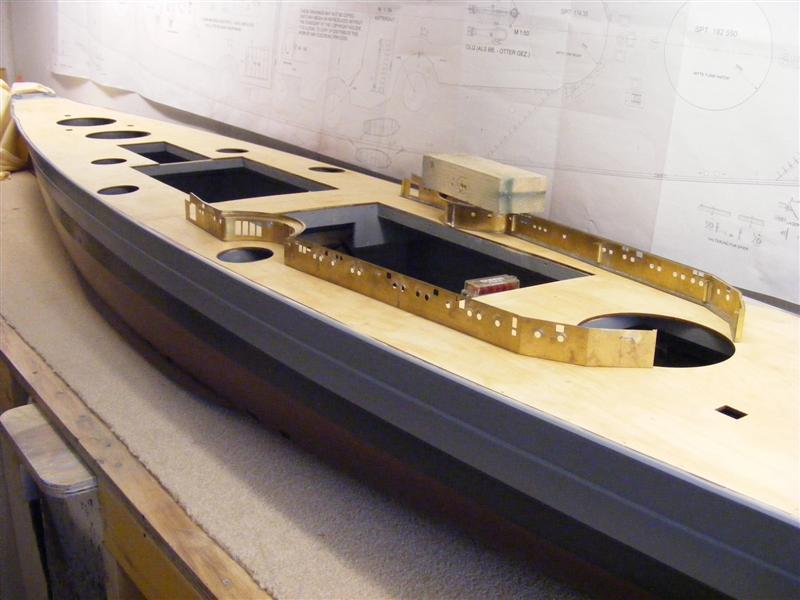

These photos show the superstructure after building sections of it up. It needs constant adjustment as it is put together because the deck is raised. Each time something is added a new stress is created that needs to be relieved.
Then there is the filing and sanding to remove excess solder. Some parts are silver soldered and some parts are soft soldered.
Regards
Phil


Attachments:
Another view.JPG
Another view.JPG [ 68.72 KiB | Viewed 2386 times ]
Set up with after superstructure.JPG
Set up with after superstructure.JPG [ 70.7 KiB | Viewed 2295 times ]
First Superstructure set up.jpg
First Superstructure set up.jpg [ 59.6 KiB | Viewed 2274 times ]
Report this post
Top
 Profile
Reply with quote
Kiwimedic
PostPosted: Mon Mar 10, 2008 6:21 pm
Offline
User avatar

Joined: Thu Dec 08, 2005 11:02 am
Posts: 133
Location: Scotland
More ...................


Attachments:
showing catapult gusset.JPG
showing catapult gusset.JPG [ 53.81 KiB | Viewed 2382 times ]
Thats the after superstructure level one. The superstructure will actually become one whole piece. The Superstructure will be around 6' long..JPG
Thats the after superstructure level one. The superstructure will actually become one whole piece. The Superstructure will be around 6' long..JPG [ 59.68 KiB | Viewed 2279 times ]
Soldering it together and hoping it will fit.JPG
Soldering it together and hoping it will fit.JPG [ 79.67 KiB | Viewed 2334 times ]
Report this post
Top
 Profile
Reply with quote
Reid
PostPosted: Mon Mar 10, 2008 7:32 pm
Offline
User avatar

Joined: Thu Jul 13, 2006 6:03 pm
Posts: 436
Location: SoCal
O THAT IS AWESOME!!! this is one of the best builds i have seen... it is all soo AWESOME

_________________
Reid, PIO of the 48th Fleet
http://www.48thfleet.com


Report this post
Top
 Profile
Reply with quote
Sylvain Auger
PostPosted: Thu Mar 13, 2008 2:28 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 323
Location: Québec, Canada
I have hard time imagining a 6 foot long superstructure! :big_eyes:

Great job so far on assembling the first level of the structure. It looks challenging in the extreme but the end result will be awesome for sure.

Thanks for sharing with us and keep those pictures coming! :wave_1:
