Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Wed Dec 19, 2018 4:34 am
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
Hi,forks!

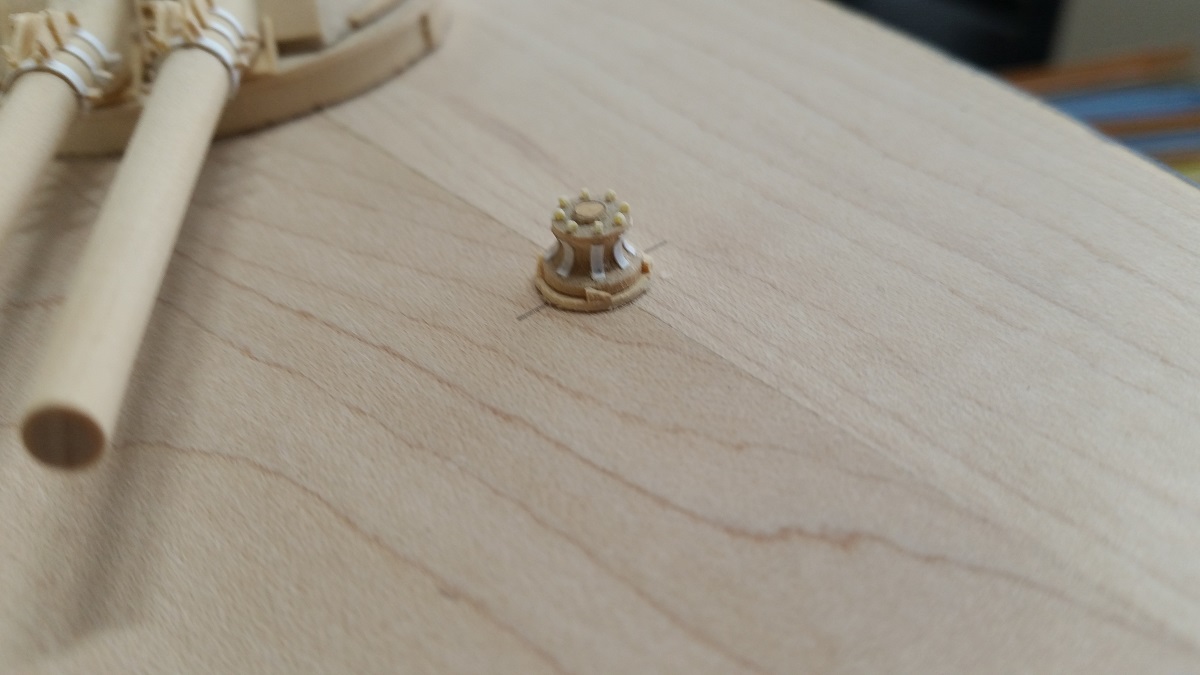

It's capstan.
Song.


Attachments:
20181215_1.jpg [ 241.74 KiB | Viewed 1381 times ]
20181219_2.jpg [ 141.29 KiB | Viewed 1381 times ]
20181219_3.jpg [ 160.06 KiB | Viewed 1381 times ]

_________________
Life is short model-warships is too many to make!!
Report this post
Top
 Profile
Reply with quote
Dan K
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Wed Dec 19, 2018 8:00 am
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 8798
Location: New York City
Crazy good.


Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Fri Dec 21, 2018 4:06 am
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
[quote="Dan K"]Crazy good.[/qu
Thank you, Dan K!
it's 3types of anchors.
Song.


Attachments:
20181221_161618.jpg [ 208.68 KiB | Viewed 1347 times ]

_________________
Life is short model-warships is too many to make!!
Report this post
Top
 Profile
Reply with quote
Fliger747
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Sat Dec 22, 2018 5:01 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 5058
Good job on the shackles!

Cheers: Tom


Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Mon Dec 24, 2018 5:05 pm
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
[quote="Fliger747"]Good job on the shackles!

Cheers: Tom[/q
Merry Christmas,Tom and all modeller!
I've made anchor chain from wood.
Cheers: Song.


Attachments:
20181222_163753.jpg [ 289.88 KiB | Viewed 1296 times ]
20181224_093624.jpg [ 296.86 KiB | Viewed 1296 times ]
20181224_100953.jpg [ 270.13 KiB | Viewed 1296 times ]
20181224_133834.jpg [ 307.16 KiB | Viewed 1296 times ]
20181224_144727.jpg [ 333.79 KiB | Viewed 1296 times ]

_________________
Life is short model-warships is too many to make!!
Report this post
Top
 Profile
Reply with quote
DrPR
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Tue Dec 25, 2018 12:21 am
Offline
User avatar

Joined: Sun Mar 07, 2010 12:01 am
Posts: 1677
Location: Corvallis, Oregon, USA
Song,

Happy holidays!

I have seen pictures of your anchor chains on several occasions on this Forum. Could you explain for us how you do it?

Phil

_________________
A collision at sea will ruin your entire day. Aristotle


Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Tue Dec 25, 2018 8:04 am
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
[quote="DrPR"]Song,

Happy holidays!

I have seen pictures of your anchor chains on several occasions on this Forum. Could you explain for us how you do it?

Phil[/quo
Thank you, Phil!

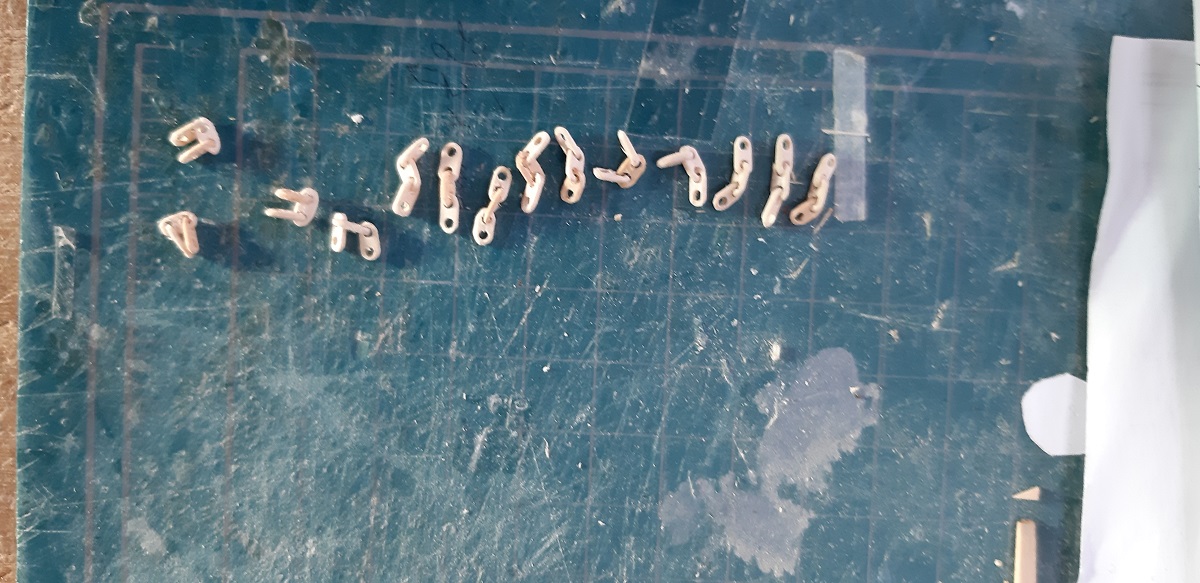

The method :
1.Make each link, drill the narrow panel 2hoes and cut and make shape of link by fine sandpaper or file.
Prepare enouh Qtys of link.(1st photo)
2.split a link and insert links both sides(3links) then glue the other piece of link.(2nd photo and 3rd)
3.connect links same method untill wanted lenth.
Cheers: Song.

_________________
Life is short model-warships is too many to make!!


Report this post
Top
 Profile
Reply with quote
Fliger747
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Tue Dec 25, 2018 12:53 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 5058
Yes, in the photos, the give away to the technique was the razor blade and the split link.

Song is unmatched in producing items the rest of us purchase. A prompt to create the 40 mm Quad and twins for my APA from scratch! As Song demonstrates, if you can make one, you can make more than one!

Here it is Christmas morning, greeting to my friends around the world, for many it was yesterday, and some not till January 7 th.


Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Wed Dec 26, 2018 4:55 pm
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
Fliger747 wrote:
Yes, in the photos, the give away to the technique was the razor blade and the split link.

Song is unmatched in producing items the rest of us purchase. A prompt to create the 40 mm Quad and twins for my APA from scratch! As Song demonstrates, if you can make one, you can make more than one!

Here it is Christmas morning, greeting to my friends around the world, for many it was yesterday, and some not till January 7 th.

Hi,Tom!
Thank you,always kind words.
You can see 40 mm Quad and twins my Flecture class destroyer in this forum.
viewtopic.php?f=13&t=153759
Cheers: Song.

_________________
Life is short model-warships is too many to make!!


Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Thu Dec 27, 2018 5:05 am
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
Hi,all!
I've installed anchors. First,I made chain stoppers and The chain goes into the hosepipe round the winches
finally down to the deck.

Other anchors was attached on the wall.
Song.


Attachments:
20181226_1.jpg [ 386.36 KiB | Viewed 1221 times ]
20181226_2.jpg [ 215.65 KiB | Viewed 1221 times ]
20181227_3.jpg [ 235.25 KiB | Viewed 1221 times ]
20181227_4.jpg [ 278.05 KiB | Viewed 1221 times ]
20181227_5.jpg [ 196.27 KiB | Viewed 1221 times ]

_________________
Life is short model-warships is too many to make!!
Report this post
Top
 Profile
Reply with quote
Fliger747
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Thu Dec 27, 2018 12:40 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 5058
Song:

I checked out your Fletcher's and your 40 mm's. Very nice small turnings for the barrels, I have been experimenting with this but not 100% satisfied as yet.

Good work! Tom


Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Sat Dec 29, 2018 4:47 am
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
Hi,all!
It's very cold today. I've installed hatches skylights and ventillators on the main deck.
Song.


Attachments:
20181229_161859.jpg [ 227.98 KiB | Viewed 1167 times ]
20181229_161905.jpg [ 283.65 KiB | Viewed 1167 times ]
20181229_161923.jpg [ 267.46 KiB | Viewed 1167 times ]
20181229_161929.jpg [ 270.6 KiB | Viewed 1167 times ]

_________________
Life is short model-warships is too many to make!!
Report this post
Top
 Profile
Reply with quote
Fliger747
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Tue Jan 01, 2019 3:25 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 5058
Song:

The inclined ladders are very impressive in the 1:200 scale! I have been building such ladders in 1:125, which is light years easier from Strathmore paper. The advantage I so far find with the paper is that I can glue it with wood glue over a plexiglass jig, the wood glue not sticking to the plexiglass. That you produce these in 1:200 in wood is fine work indeed!

Happy New year! Tom


Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Thu Jan 03, 2019 6:47 am
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
[quote="Fliger747"]Song:

The inclined ladders are very impressive in the 1:200 scale! I have been building such ladders in 1:125, which is light years easier from Strathmore paper. The advantage I so far find with the paper is that I can glue it with wood glue over a plexiglass jig, the wood glue not sticking to the plexiglass. That you produce these in 1:200 in wood is fine work indeed!

Happy New year! Tom[/q
Happy new year too!
It's difficult to make inclined ladders for me.
I've done a catapult.It's difficult too it's thin panels and small parts.
Happy new year everyone!
Song.


Attachments:
1.jpg [ 298.05 KiB | Viewed 1080 times ]
2.jpg [ 348.6 KiB | Viewed 1080 times ]
3.jpg [ 131.8 KiB | Viewed 1080 times ]
4.jpg [ 346.47 KiB | Viewed 1080 times ]
5.jpg [ 232.63 KiB | Viewed 1080 times ]
6.jpg [ 336.11 KiB | Viewed 1080 times ]

_________________
Life is short model-warships is too many to make!!
Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Fri Jan 04, 2019 4:07 am
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
Hi,everyone!

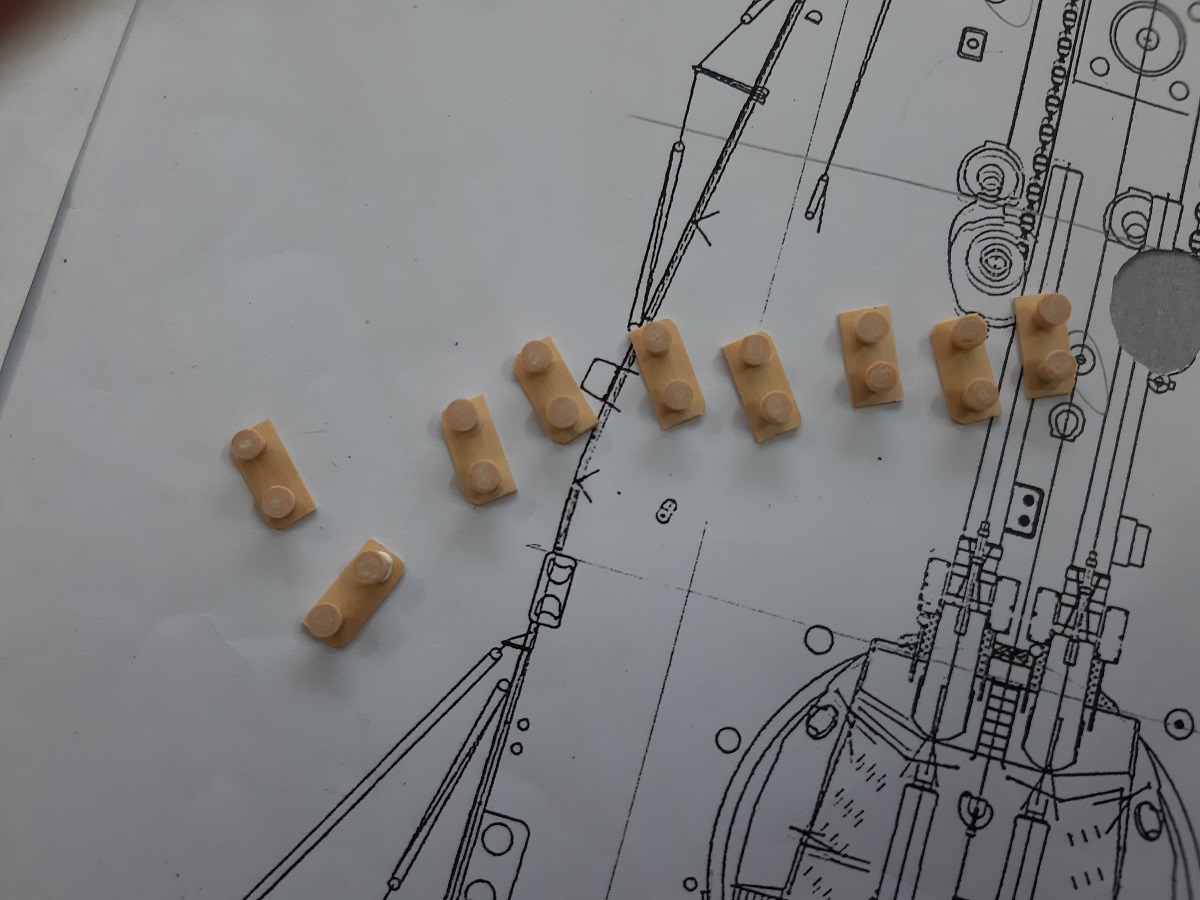

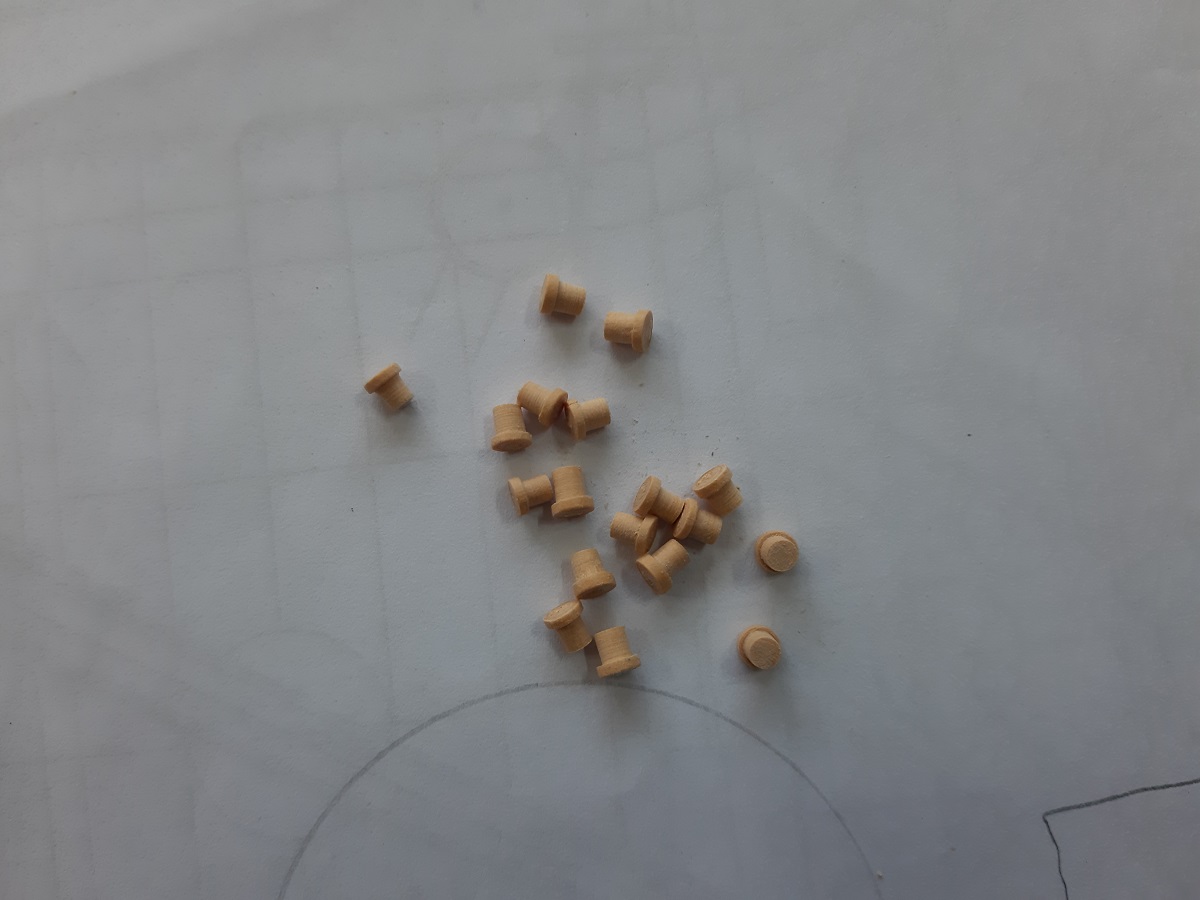

I've done bollad of nagato.
Song.


Attachments:
2.jpg [ 165.71 KiB | Viewed 1051 times ]
3.jpg [ 245.27 KiB | Viewed 1051 times ]
4.jpg [ 232.7 KiB | Viewed 1051 times ]

_________________
Life is short model-warships is too many to make!!
Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Sat Jan 05, 2019 4:17 am
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
Hi,gentlemen!

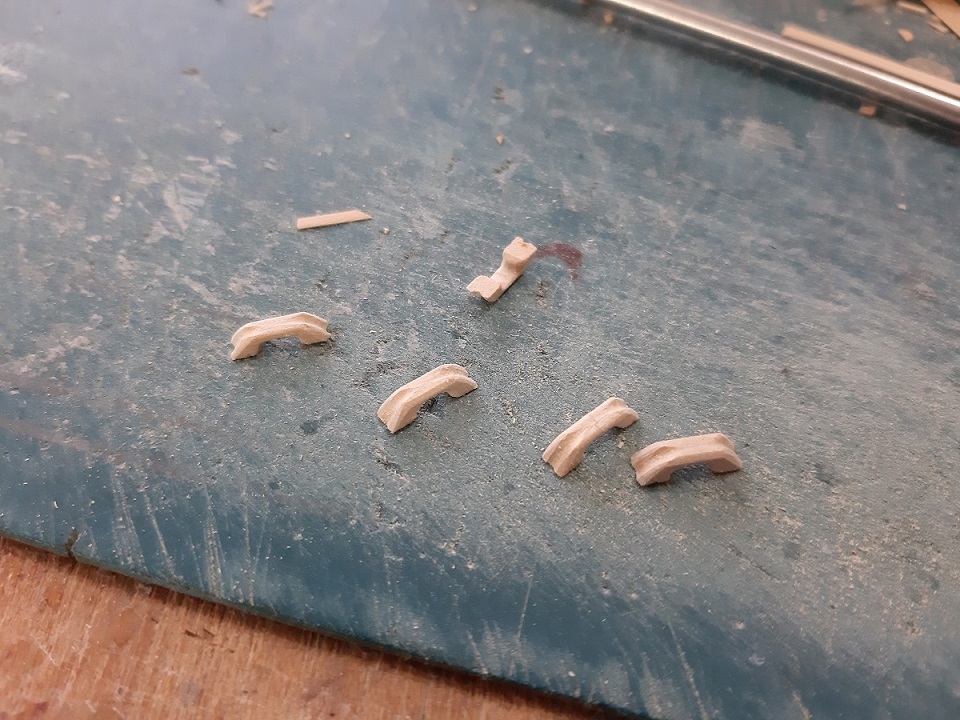

It's opened fairleads. It's roller fairlead for paravane last picture.
Song.


Attachments:
20190105_105814.jpg [ 248.49 KiB | Viewed 1024 times ]
20190105_131403.jpg [ 265.5 KiB | Viewed 1024 times ]
20190105_153303.jpg [ 276.61 KiB | Viewed 1024 times ]
20190105_162246.jpg [ 227.57 KiB | Viewed 1024 times ]

_________________
Life is short model-warships is too many to make!!
Report this post
Top
 Profile
Reply with quote
K494
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Sat Jan 05, 2019 7:25 am
Offline
User avatar

Joined: Sun May 20, 2012 6:01 am
Posts: 409
Location: Ontario Canada
:thumbs_up_1: Excellent work,Song! :thumbs_up_1:

Scott

_________________
K494 HMCS Arnprior
Royal Canadian Navy


Report this post
Top
 Profile
Reply with quote
JIM BAUMANN
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Sat Jan 05, 2019 3:17 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5556
Location: Nr Southampton England
stunning work in wood!

:thumbs_up_1: :thumbs_up_1:
JIM B

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
Fliger747
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Sat Jan 05, 2019 4:16 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 5058
Song:

Having worked in that scale (darn close anyway) I know how small those bitts and pieces are!

As always an inspiration to continue to scratch away at pieces that could be purchased. Actually scratching away at the small parts is rather satisfying, and each batch is eventually done!

Cheers: Tom


Report this post
Top
 Profile
Reply with quote
Song Jung Gun
 Post subject: Re: 1/200 IJN NAGATO
PostPosted: Mon Jan 07, 2019 4:31 am
Offline
User avatar

Joined: Sat Apr 26, 2008 5:21 pm
Posts: 1547
Location: chun an city chung nam Korea
Thank you, Tom and Jim!

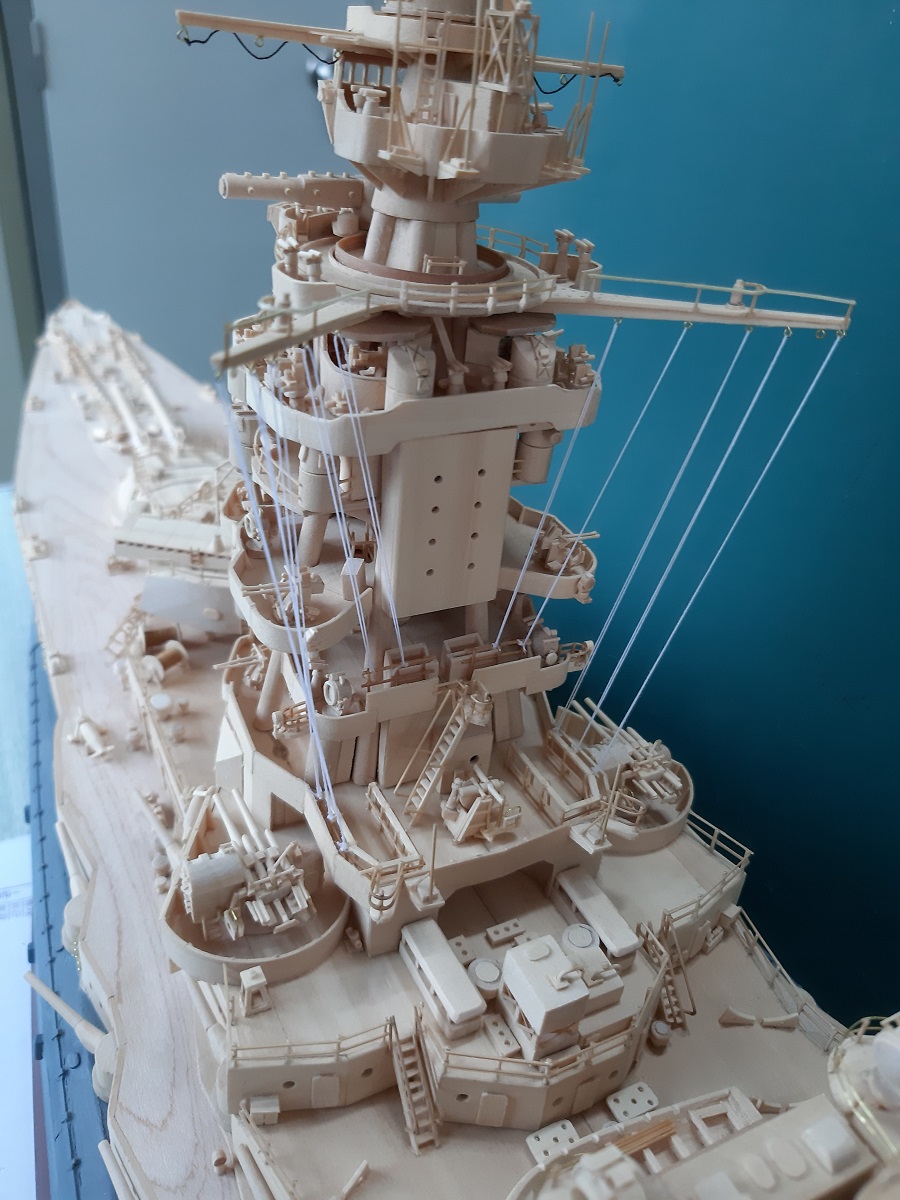

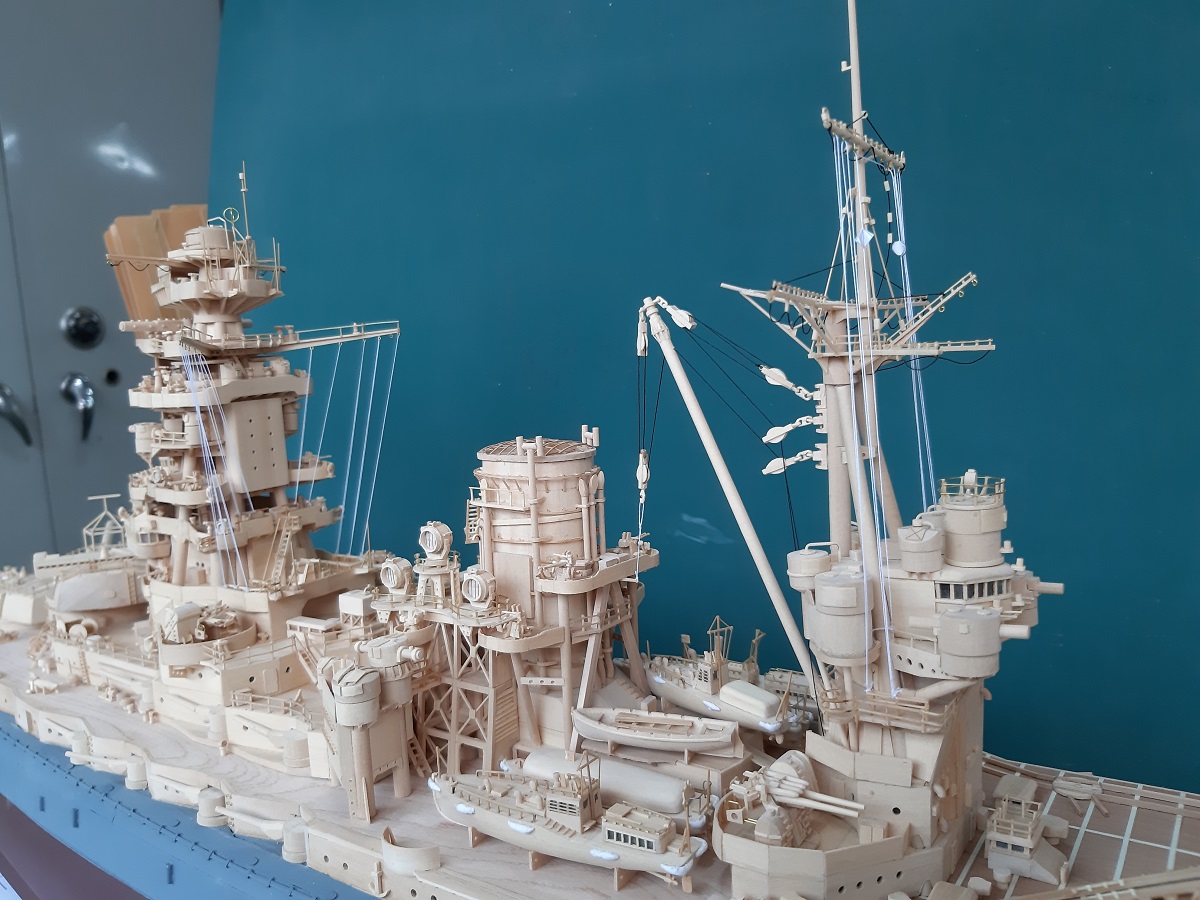

I start some rigging at the yards.
Song.


Attachments:
1.jpg [ 263.53 KiB | Viewed 987 times ]
2.jpg [ 250.68 KiB | Viewed 987 times ]
3.jpg [ 297.45 KiB | Viewed 987 times ]
5.jpg [ 307.01 KiB | Viewed 987 times ]

_________________
Life is short model-warships is too many to make!!
Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  Page 7 of 9
  [ 180 posts ]  Go to page Previous  1 ... 4, 5, 6, 7, 8, 9  Next

Board index » Scratchbuilding and RC » Online Scratchbuild Projects

All times are UTC - 6 hours [ DST ]

Who is online

Users browsing this forum: No registered users and 17 guests

You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
