Hi okram12
I think that the problem is in which year we are talking about, unsure about which date but the KGV was updated in this position, I have looked at my plans and the original 1940 KGV does not have the shall we say bulge above the ladders but has a charly float there and has an indent in the structer were the ladder is and the photo we have is from 1946 http://upload.wikimedia.org/wikipedia/c ... _Green.jpg

. I do not know to the exact year this update was done but I hope it was at the time of the ups removel which I believe was after the bismark sinking
Ian

_________________
On the slipway
HMS King George V 1:144
HMS Hood 1:200 (Hachette Partworks)
IJN Akagi, 1:250 Partworks

In the drawing room
IJN Hiryu
IJN Taiho

I mainly about the shape of the base of the superstructure. I analyzed myself now and I see that I did back wall unnecessarily so long. You have to draw the plans for the shape of your board and superstructure base is different. The rest looks ok.

Hi

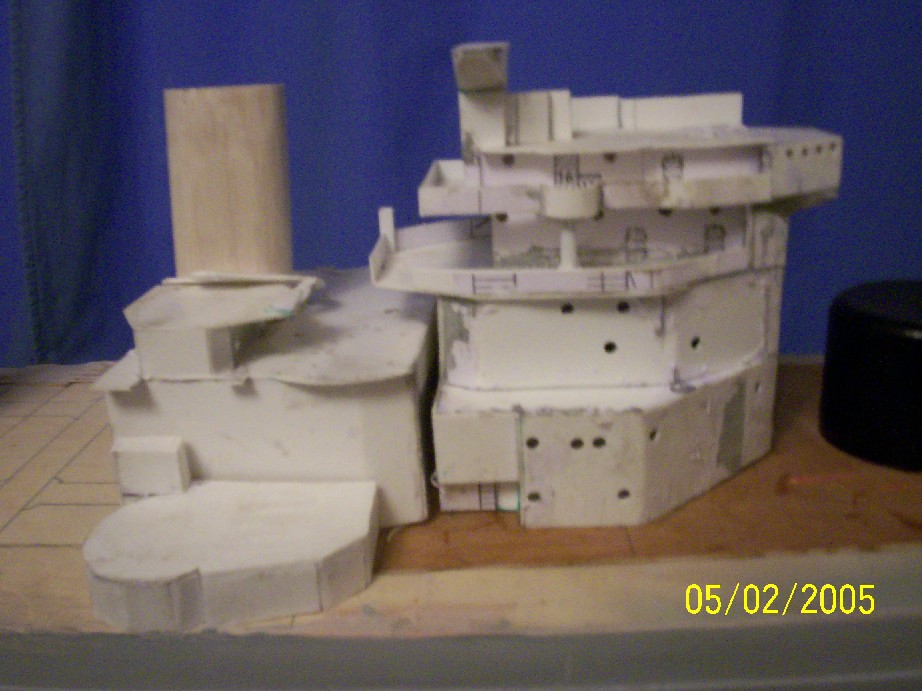

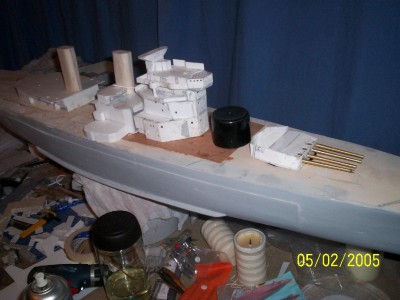

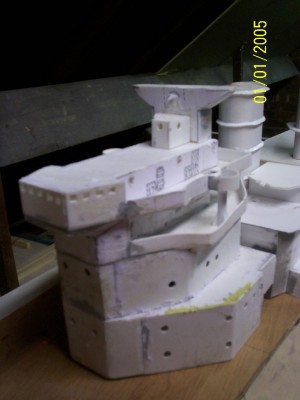

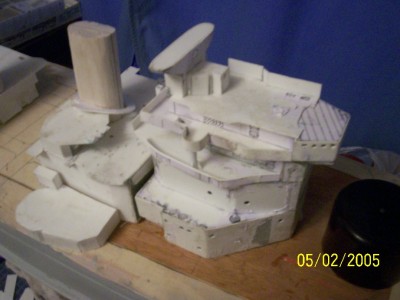

Have been away for a while but I have been doing some of the super structer and it is going a lot slower than I thought it would but here are a few update pics










The funnels that are there will be coverd with styrine. all the majore large work is done now to proced with the small items on the structre. Also waiting to get a one piece section for the compartments, instead of the three that I have now.

Ian

_________________
On the slipway
HMS King George V 1:144
HMS Hood 1:200 (Hachette Partworks)
IJN Akagi, 1:250 Partworks

In the drawing room
IJN Hiryu
IJN Taiho

Ian
Looks like things are coming along nicely . Looking forward to more >

_________________
If you are not living on the edge then you are taking up to much space

Hello Ian i am remembering when i do my model of KGV.
is good to see your project growing
very good

Hi
thanks to Richard and Norbert for there comments.

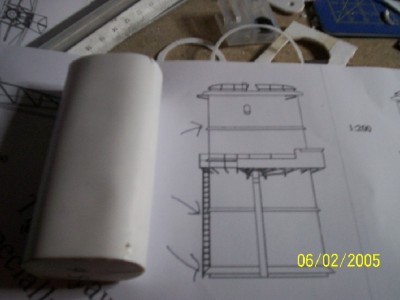

Question how do you get the er frills round the funnel, I have coverd the funnel with styrine as phots


Ian

_________________
On the slipway
HMS King George V 1:144
HMS Hood 1:200 (Hachette Partworks)
IJN Akagi, 1:250 Partworks

In the drawing room
IJN Hiryu
IJN Taiho

hi ian, if you go to 1/144 addmiral sheer scratch build page 16 and scrole down you can see what i did to get a angled,beveled splinter screen or what ever it is called,this may work for you.

hi ian!
i´ve cut the bottom and top plate from plywood and filed it to 45 degrees of angle...
photos soon!

best regards

joachim

I cut 3 plates from styrene in the format that surrounds the funnel and each lesser plate that to another one and I filled with puty and later I sandpapered giving the format

Ian,

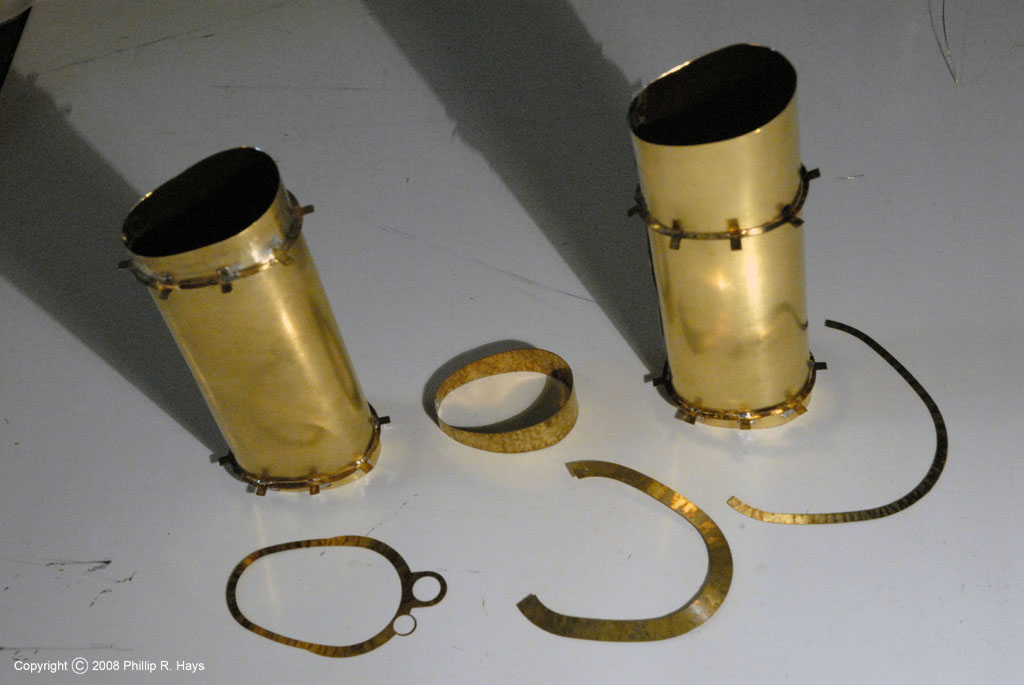

Here is the hard way to get the skirts around the funnel. First you create a 3D CAD model:

http://www.okieboat.com/CAD%20smoke%20pipes.html

Then you flatten the skirts into a 2D outline and make a photoetch:

http://www.okieboat.com/Copyright%20ima ... 24%20C.jpg

Someone posted a tip on how to calculate conical sections on the Forum somewhere, but I don't remember where. Maybe someone else remembers.

Phil

_________________
A collision at sea will ruin your entire day. Aristotle

Phil
Impressive !

_________________
If you are not living on the edge then you are taking up to much space

Hi
Thanks for all the input chaps ,I will endever to be worthy of it.

Also had to go back into the loft this week seems the CIC is alergic to the glue that I am using, and since I was up there I had a good look at the KGV's deck, and was not happy with it, so now the whole deck has been removed to be replaced with one that has more rigitness about it, I'am sure you chaps know what I mean, also have decided to use only two moters powered and two free. I will post some photos as soon as poss.

Ian

_________________
On the slipway
HMS King George V 1:144
HMS Hood 1:200 (Hachette Partworks)
IJN Akagi, 1:250 Partworks

In the drawing room
IJN Hiryu
IJN Taiho

Hi Ian,

great work on the King!

I wish I would have 3 lives to build some British capital ships ....

Bye!

_________________
Thanks & Sources: Nilsson (research), M.Otten (modelling, research), J.Kaiser (research), B.Jenzsch (3D Services) and J.Arntz (research, drawings). HASSLER Profile, ZERO PAINTS, IWATA airbrush, EXCEL blades, Byrnes Model Machines and more

_________________
MUSEUM OF BALTIC SEA
http://temnikoffv.wix.com/museum-of-baltic-sea
http://www.hot.ee/revell/

Click image to go to my funnel exercise report. Hope it may help!

Hi
Thanks for the ideas for the funnels, splended workmanship, I hope that one day I might come close to your level of workmenship.
Ian

_________________
On the slipway
HMS King George V 1:144
HMS Hood 1:200 (Hachette Partworks)
IJN Akagi, 1:250 Partworks

In the drawing room
IJN Hiryu
IJN Taiho

Hi
Just though that I would post my progres todate



Plus I did not like the way the deck was looking, looked very poor and scruffy, so of it came, time for a replacement deck.
also I will be able to level up the side walls easiler.




Ian

_________________
On the slipway
HMS King George V 1:144
HMS Hood 1:200 (Hachette Partworks)
IJN Akagi, 1:250 Partworks

In the drawing room
IJN Hiryu
IJN Taiho

Hi i am i am posting some older pic of my 1:160 KGV funnel.
i wait help you

Hi


thanks Capitao Norbert ery nice KGV, hope that I can get mine as good.

Ian.

_________________
On the slipway
HMS King George V 1:144
HMS Hood 1:200 (Hachette Partworks)
IJN Akagi, 1:250 Partworks

In the drawing room
IJN Hiryu
IJN Taiho
