The Cape Class Patrol Boats (CCPBs) are a 58 m long all aluminium vessel built by Austal in Western Australia. The original eight CCPBs were constructed for Australian Boarder Force. An additional two were then constructed and were leased to the Royal Australian Navy (RAN) to supplement the Armidale Class Patrol Boat (ACPB) fleet. Two more were then procured by Trinadad and Tobago. Recently an additional six Evolved Cape Class Patrol Boats (ECCPBs) have been ordered with the first ship of this order entering service with the RAN in March 2022.

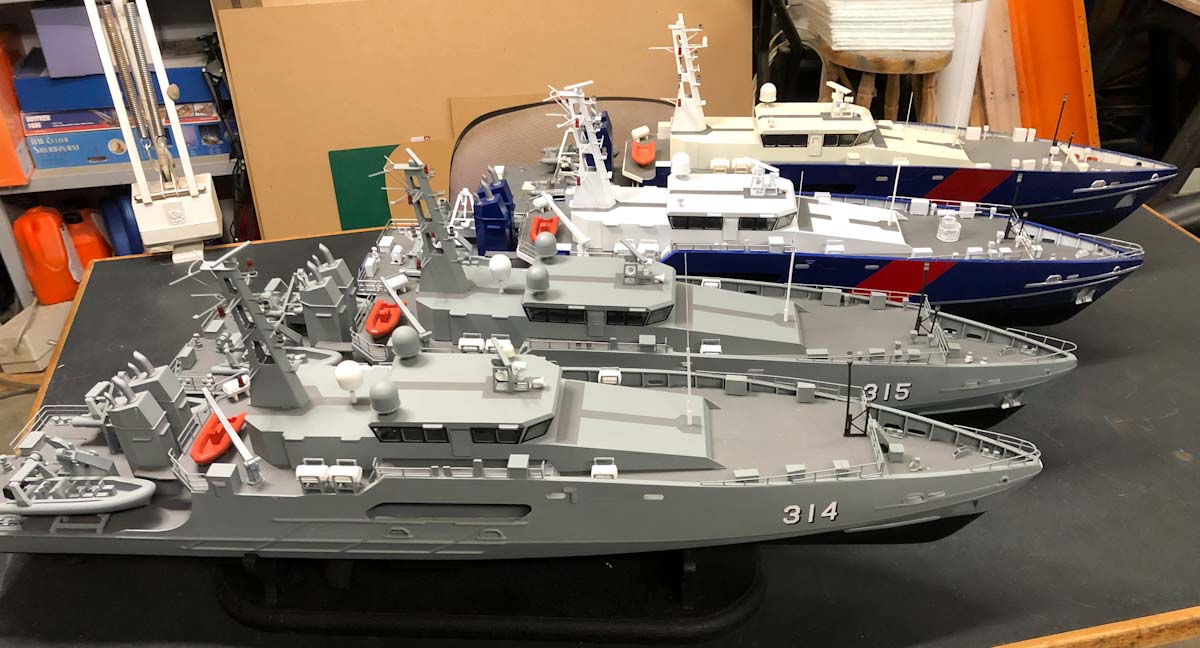

I have constructed several 1:72nd scale models of the CCPBs in recent years and the photos in the following posts show how the journey has progressed.
Attachment:

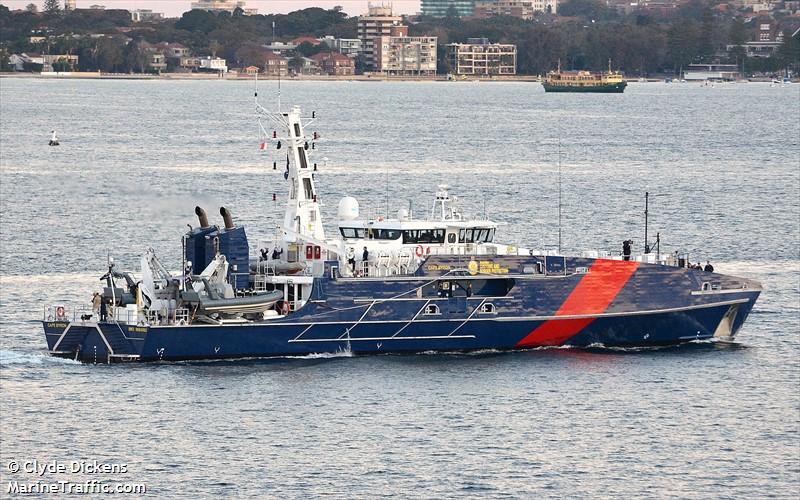

File comment: An original CCPB of Australian Boarder Force.
CAPE_BYRON (1).jpg [ 102.1 KiB | Viewed 660 times ]
Attachment:
File comment: The first of the new ECCPB of the Royal Australian Navy.
Cape Otway 01.jpg [ 294.6 KiB | Viewed 660 times ]
Attachment:

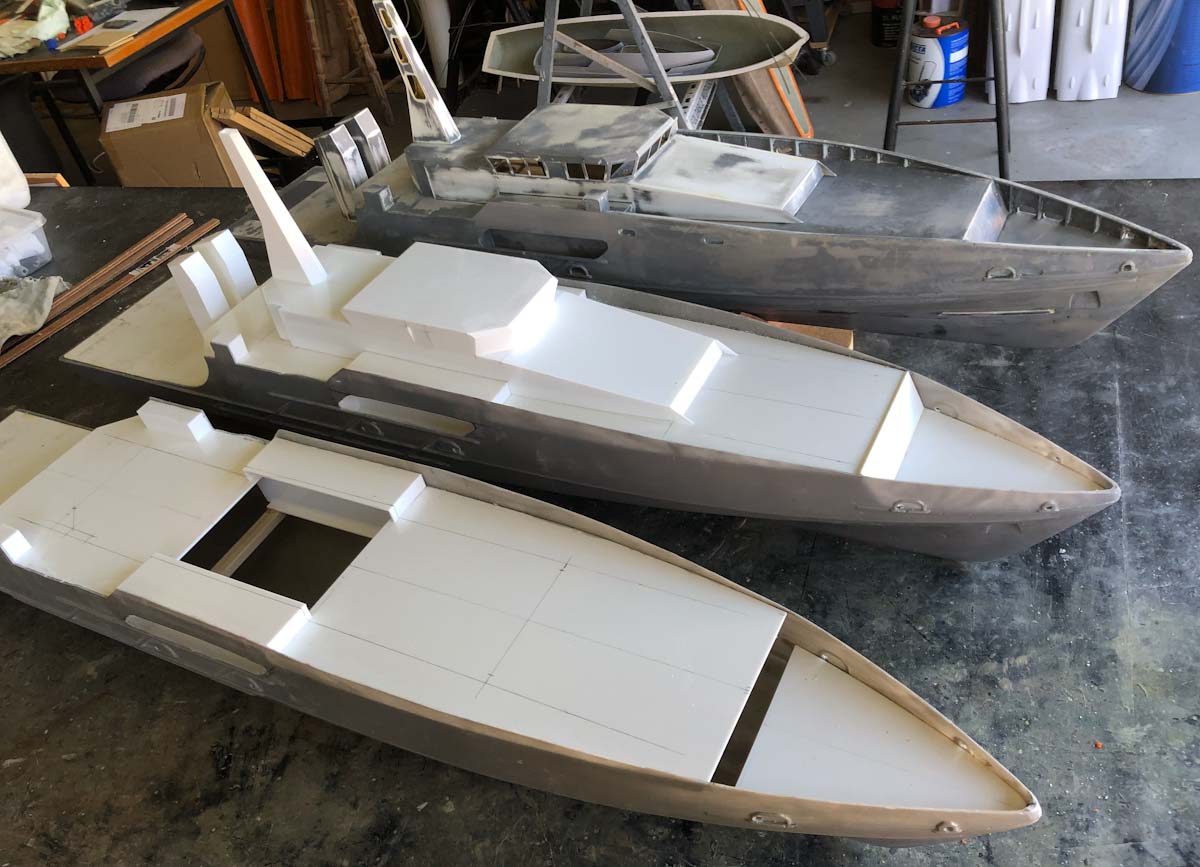

File comment: The start of my CCPB model.
IMG_52732.jpg [ 102.19 KiB | Viewed 660 times ]
Attachment:

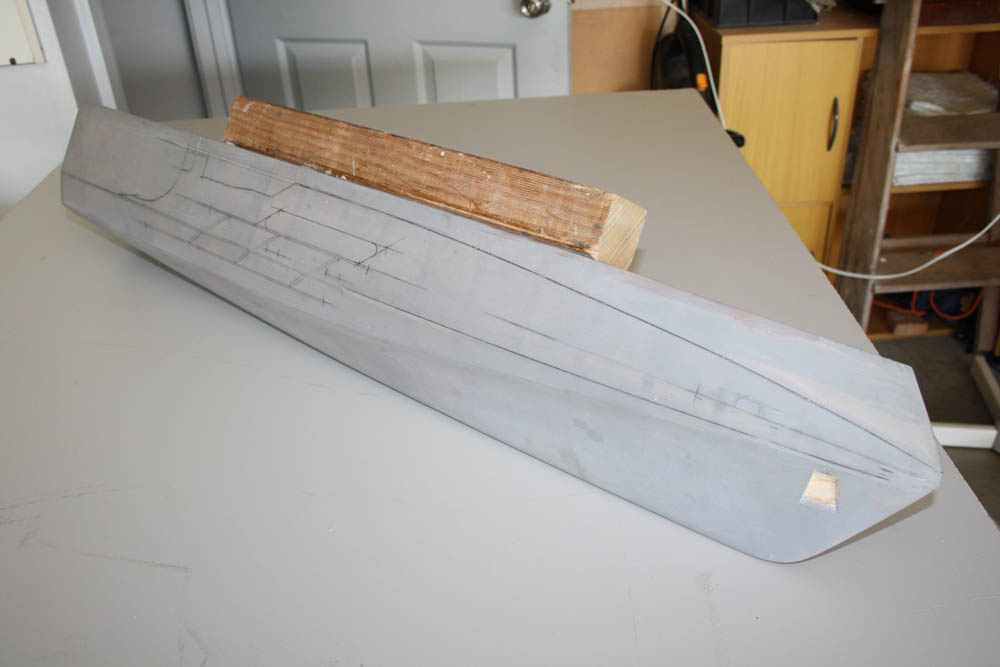

File comment: A fair bit of work went into making a wooden plug to take a fibreglass mould from.
IMG_73296.jpg [ 70.42 KiB | Viewed 660 times ]
Attachment:
File comment: Getting things prepared to lay up the first side of the mould.
IMG_73557.jpg [ 104.81 KiB | Viewed 660 times ]
Attachment:
File comment: The mould and the first hull from the mould.
IMG_74031.jpg [ 75.27 KiB | Viewed 660 times ]
