A little help to Nova73 on his project with a quick drawing of the hull only which will be in waterline mode.

Alain will continue with the superstructure design.


The information is thin as for the original plan of the hull couples, I found a small triptych of the ship in low resolution and some errors, but it helped me to make the different couples, it is far from being perfect especially the back arch which requires a lot of information and... time.

For waterline, it will pass.

A bit of history:

USS Nokomis (YT-142/YTB-142/YTM-142) was a Woban class harbor tug built in Bremerton, Wash, and assigned to Pearl Harbor, Hawaii, in 1940.


The Nokomis was present during the Japanese attack on Pearl Harbor on 7 December 1941. She was the first ship on the scene of the USS Arizona, and was recalled by the officers on deck because of the impending explosion of the battery below deck. She then went off and helped to beach the USS Nevada, along with the Hoga (YT-146), and the YT-153.


The grounding of the Nevada prevented the blockage of the entrance to Pearl Harbor. Then the USS Nokomis fought the fires and dried out the battleship USS California for three days. This effort made the California salvageable, to be recommissioned later in the war. The Nokomis was also the last ship to move the surviving YC-699 barge before the Japanese attack on Pearl Harbor.

The Nokomis accompanying the CV-8 Hornet back to Pearl Harbor after its raid on Tokyo

After the war, the Nokomis continued to serve the Pearl Harbor ships until it was decommissioned in May 1973 and sold for scrap to Crowley in San Francisco. She was renamed Sea Serpent and served for many years in San Francisco Bay as a tug and fireboat.

In 1989, after the Loma Prieta earthquake in the San Francisco Bay area, the Nokomis and the Hoga (which had served the city of Oakland as a fireboat) again fought fires alongside each other.

According to the Historic Tugboat Education and Restoration Society, the Nokomis was purchased in April 1975 by Crowley Maritime Corporation, and its name was changed to Sea Serpent. She operated in San Francisco Bay as a commercial tug to assist ships in docking. Crowley Maritime ceased operations in the San Francisco area in the early 1990s and the Nokomis was renamed Panamanian and abandoned, like many other tugs, to decay and rust.

She was rediscovered in mid-2002 at the Hunters Point mudflats in San Francisco by tugboat captain Melissa Parker[8]. 8] It was purchased at an auction for $50 for the Historic Tugboat Education and Restoration Society (HTERS) and was originally moored at Pier 80 in San Francisco.

The 501 non-profit organization was dedicated to historical research, hands-on engineering education programs for disadvantaged Bay Area youth, and cooperative programs between historic ship organizations in the San Francisco Bay Area and beyond. HTERS acquired an operational sister tug, the USS Wenonah, with the intention of using the Wenonah as a floating class to engage HTERS to help raise funds to restore the Nokomis.
After falling behind on dock rental fees, the two tugs were moved to Treasure Island, but dock rental and insurance fees continued to accumulate, eventually costing the Historic Tugboat Education and Restoration Society both vessels.

Sinking of the Wenonah ( Sister Ship )


While moored at Treasure Island, the Wenonah sank in August 2009 and spilled oil into San Francisco Bay. The Coast Guard asked Global Diving to salvage the vessel to prevent further leaks, and Global Diving approached the American Bridge/Fluor Joint Venture to use the Left Coast Lifter crane to salvage the vessel. The Wenonah was turned over to the Coast Guard for disposal, and Bay Ship & Yacht in Alameda took over the lease of Pier 1 at Treasure Island, which included taking possession of the Wenonah and Nokomis. Both vessels were scrapped in 2010 in Alameda.

The Wenonah was a sister ship to the Hoga. It would have been a great resource of parts to restore her. The Nokomis was the oldest surviving naval vessel from the Pearl Harbor attack.



The barge YC-699 in SF Bay and the tug YT-153 on the East Coast, along with the Hoga, are now the last surviving naval vessels from Pearl Harbor.

http://www.runcornmodelboats.co.uk/USS_Hoga.html

https://drive.google.com/file/d/0B32-8Z ... zFGqjQ2rbA










I still have a lot of work to do.

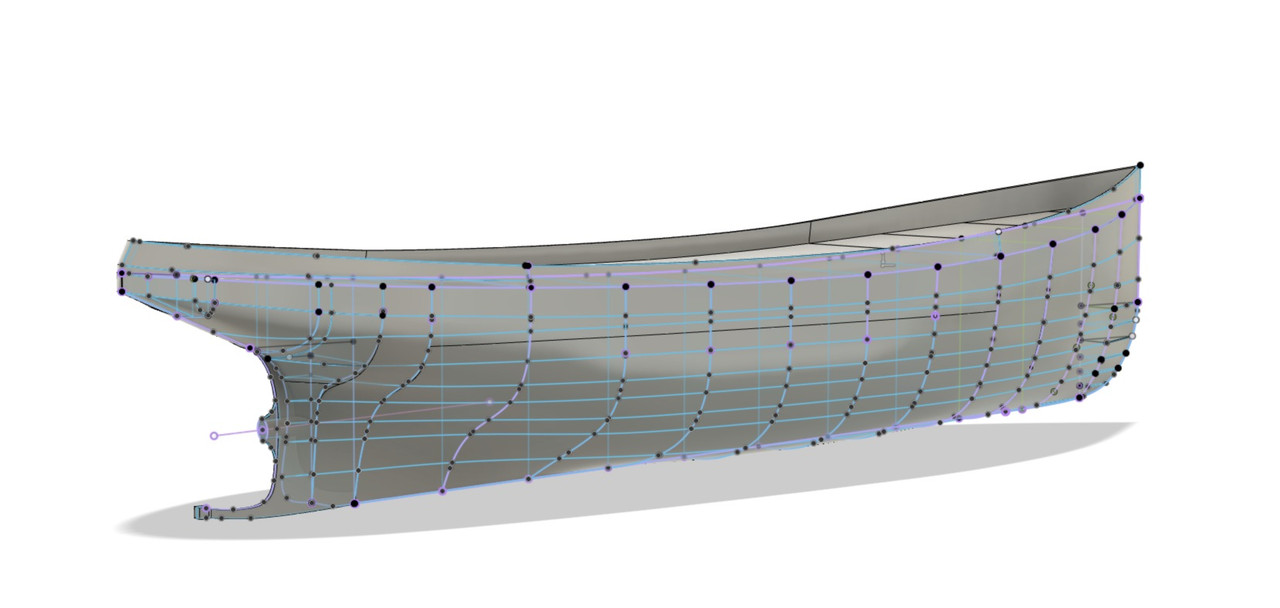

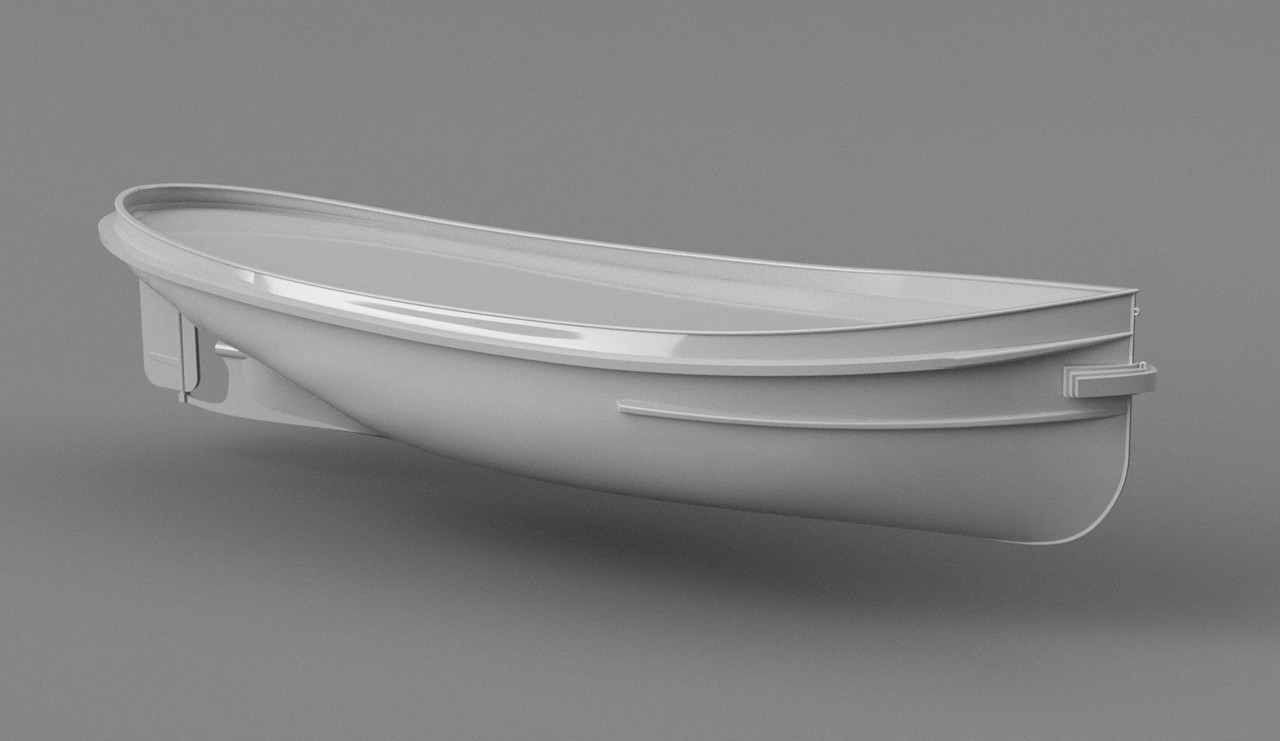

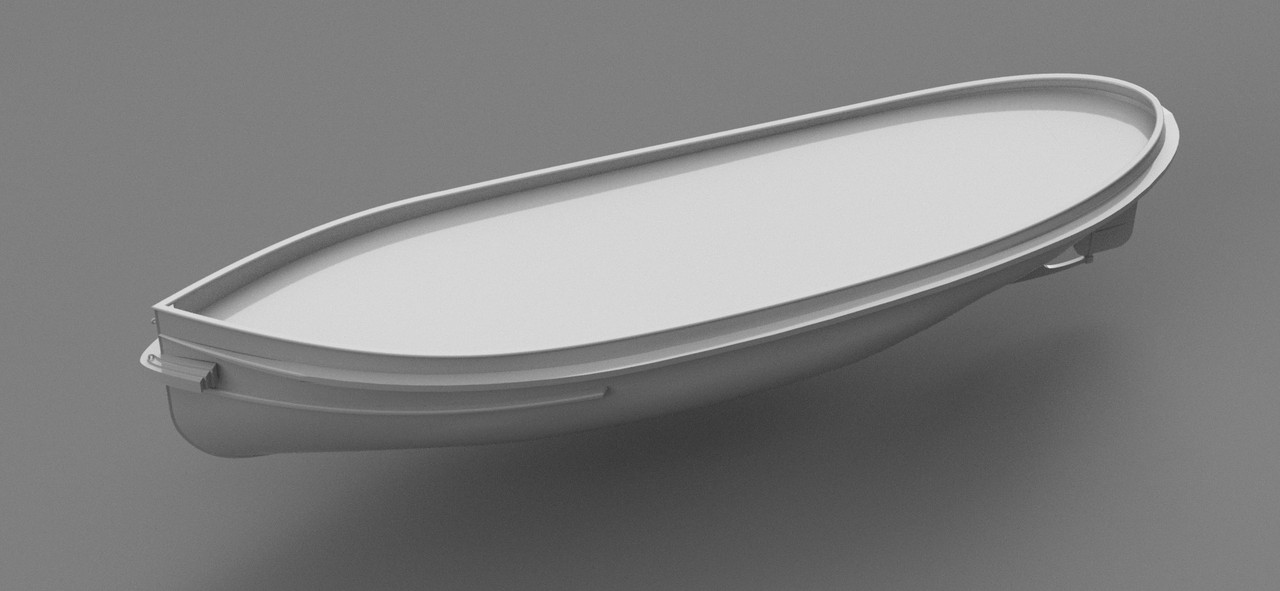

This afternoon's progress:

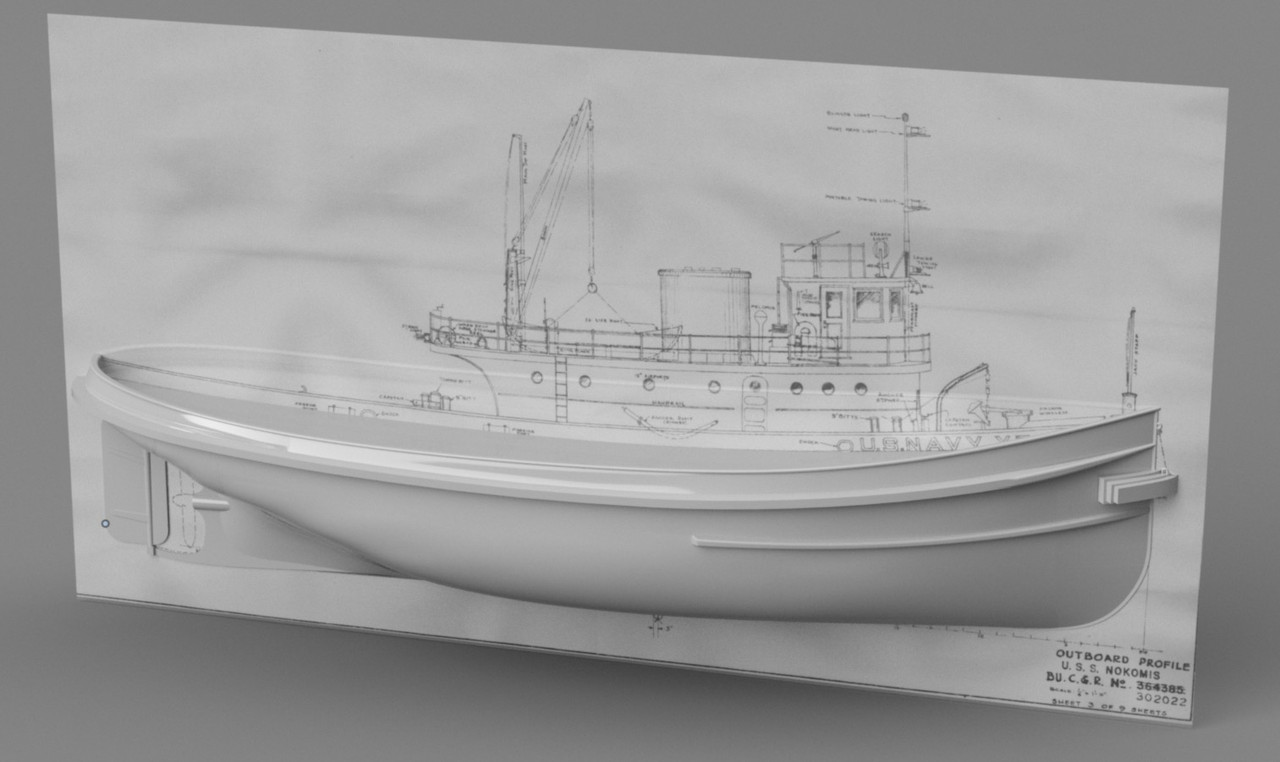

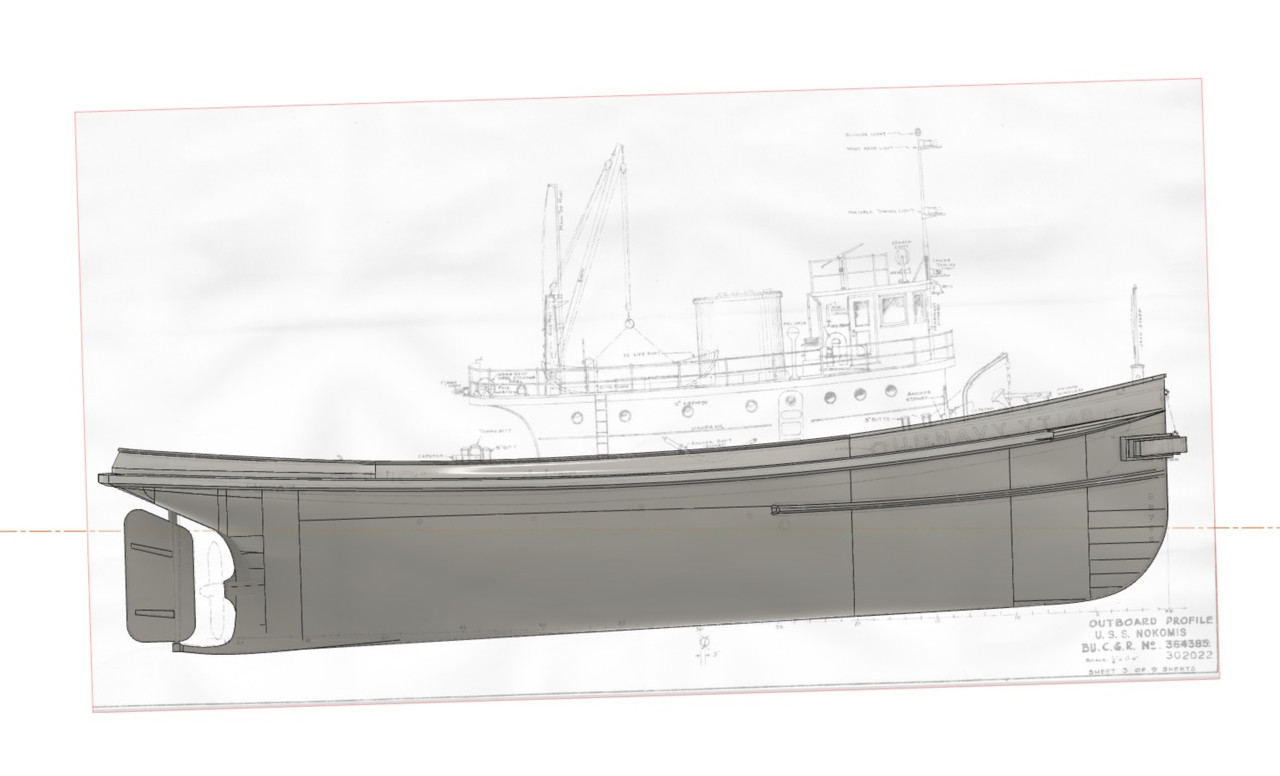

I have drawn the waterline in relation to the photos, you can see that this tug was ballasted at the back in relation to the horizontal plane of the plan. You will have to keep some in waterline to cut the hull.


_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Last edited by Iceman 29 on Mon Jan 31, 2022 7:18 am, edited 2 times in total.

Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Sep 24, 2021 2:13 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 4566
Interesting small ships (barely). I hadn't realized that Bremerton built some of those. The Captain was usually a Chief Bosun's Mate. In the 60's we didn't have the firefighting gear on board. Another Wartime tug we had was the Auxilary Fleet Tug, Tatnuck which served wartime in the Pacific.

Interesting subject!!


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Sep 24, 2021 3:09 pm
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1169
Location: Brittany, France
Nice tug! USS Tatnuck (ATA-195). :thumbs_up_1:


_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Sep 25, 2021 2:08 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 4566
I remember taking Tatnuck up to RCNS Comox (Vancouver Island) for some training with the RCN. Two of the YTB's assigned to PSNS at the time were Mimac and Sabeata. They were maybe decommissioned somewhere circa 1970 along with a lot of the WWII equipment still in service.

Looking forward to the actual construction project, though a larger scale would be fun. I remember gluing (assembling) together a "white plastic" tugboat model when I was maybe 8 years old?

Cheers: Tom


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Oct 01, 2021 12:49 pm
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1169
Location: Brittany, France
Tom, you were raised on a bottle full of white glue. :big_grin:

I redrew most of the back, I didn't like it. It's a bit better.

It would also be nice to do it at 1:100, which is about 30 cm long.





_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Oct 01, 2021 2:01 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 4566
Yes, 1:100 would be a nice scale for this. I can see that fairing the hull lines, especially around the stern is very difficult to get just right. In the Analogue Era, this was called "Lofting"?


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Oct 01, 2021 2:29 pm
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1169
Location: Brittany, France
There is, Tom.

If you leave the hull bare, you will only need to sand to reduce the small defects, it is quite easy.

If the hull is covered with sheet metal as I usually do, it will hardly be noticeable.

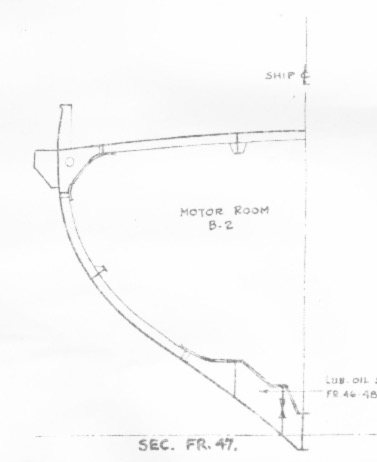

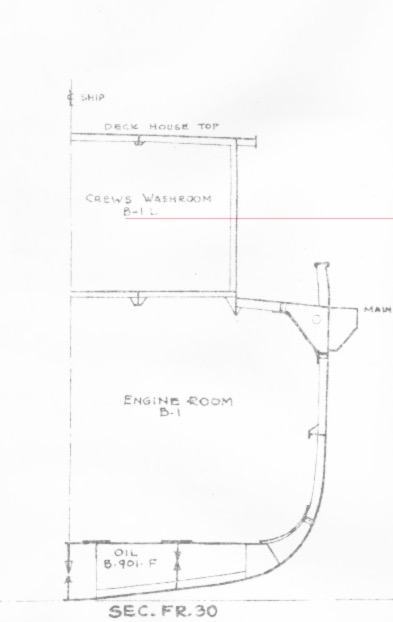

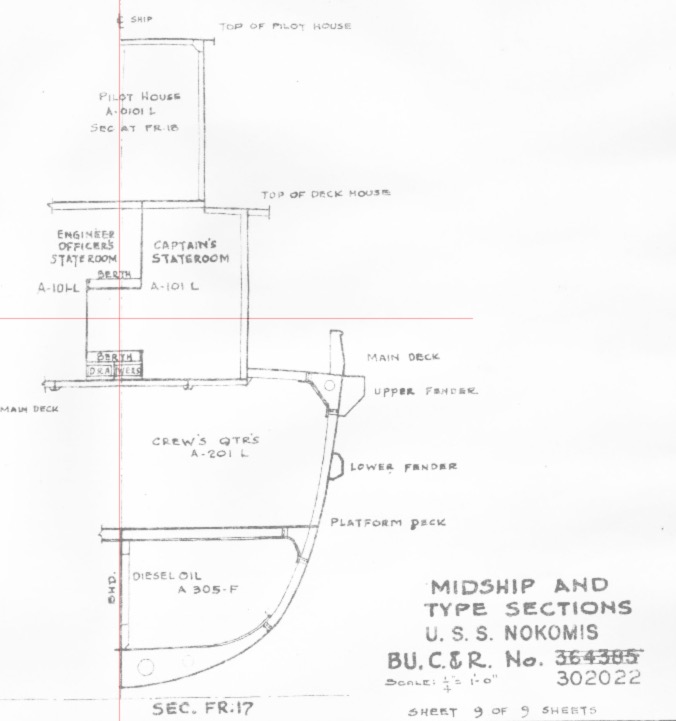

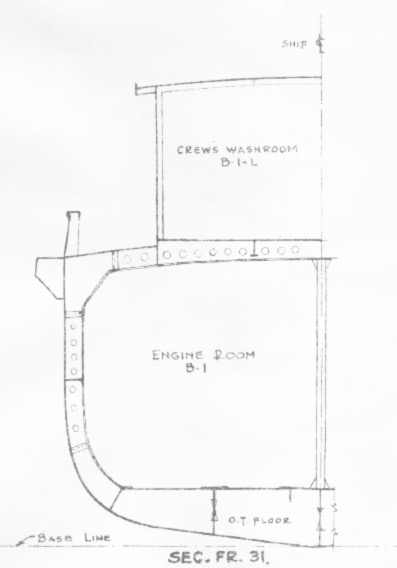

If I had a precise original drawing of the sections, it would be perfect.

_________________
Pascal

•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•VLCC Olympic Bravery 3D: https://vu.fr/OZMY
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Oct 03, 2021 2:50 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 4566
It's the method I use due to a lack of technical perfection. It's what we call "bend to fit, paint to match".

Cheers: Tom


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Oct 03, 2021 10:52 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 4566
I came across a photo in my Dad's album of similar YTM assisting Poseidon mooring in San Diego after the end of the war. Interesting vessels to serve on, new ships, new duties every day.


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Oct 06, 2021 7:04 pm
Offline

Joined: Wed Jan 02, 2013 1:15 am
Posts: 4566
Attachment:
tug boat Sandiego YTM 133.jpg
tug boat Sandiego YTM 133.jpg [ 349.16 KiB | Viewed 908 times ]

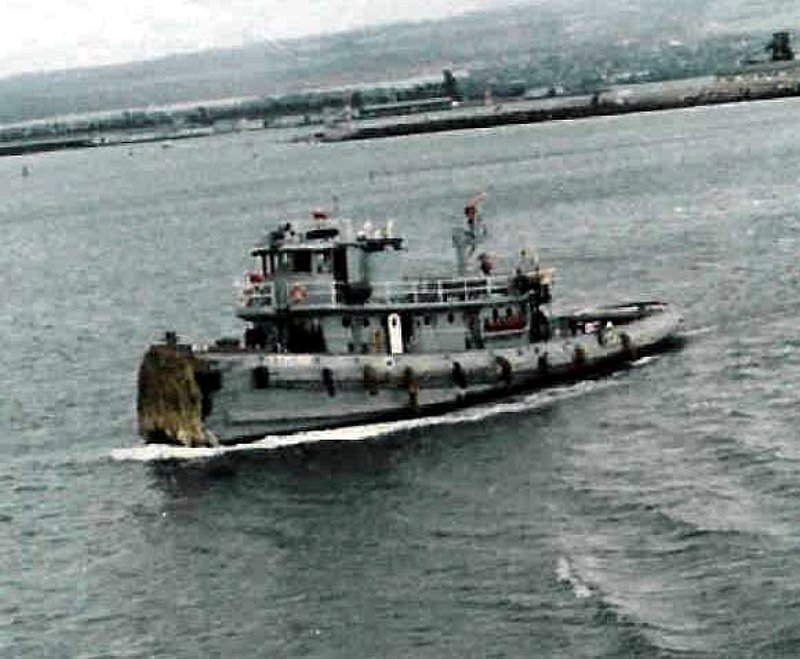

USS Narkeeta, YTM 133 coming along side Poseidon ARL 12 at SanDeigo, 1946 on return to USA.
