Getting bored while revising & printing the main deck lifelines & stanchions for my STODDARD build, I turned once again to creating a 3D design and printing of a proposed dual 5"-54 Gun Mount as envisioned for the never-built MONTANA class battleships. Again, as with my other scaled up gun mount designs, this one is also Not To Scale (NTS), but sized according to the illustration of the Single 5"-54 Gun Mount as appears in the USN Gun Mount & Turret Cat., OP-1112, 1945, pg 462. As for length to width dimensioning of the mount, I used the plan view of MONTANA as shown in Battleships (Garzke & Dulin), pg. 178. Also, photos available of the single 5"-54 mount that was removed from one of the MIDWAY class carriers and set up for testing at White Sands, NM provided smaller details that the illustration did not show. I then took a bit of artistic license + knowledge of mechanical fittings, etc. to come up with my version of what could have been the secondary armament for this class of battleship.

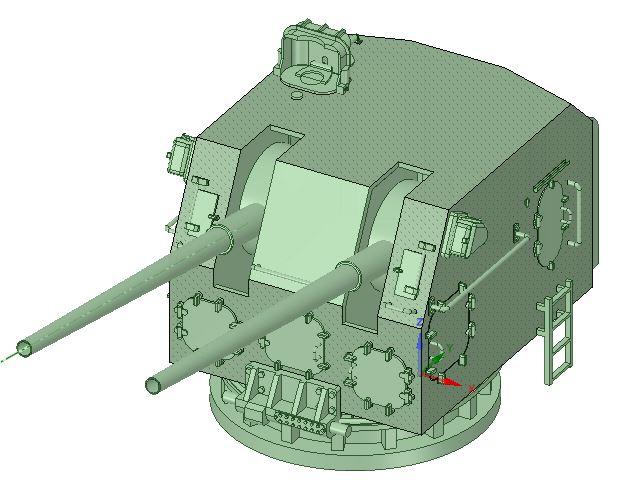

Printing is in progress and there are 4 main parts - mount base ring, mount floor, mount body, and dual gun barrel assembly. So, here are a couple design shots of what this mount looks like -




When (and if ) I get successfully printed parts, I'll post the completed model. As always, this is not a science, but a rather elementary art at this stage of the game!
