EDIT: this little project has expanded from printing some guns for other modelers and a sampler of Constellation's guns, to basically every and any gun I can find usable data for from the 1850's to the 1870's.
As they are completed, I'm posting the STLs on [url="https://www.thingiverse.com/uhlan/"]Thingiverse[/url]. Note: all the guns are modeled in 1:36 scale and some details may not survive reducing to scales such as 1:96 - use at your own risk.

We now return you to your scheduled program, already in progress...

Working on 3D models of some Civil War Naval guns to print for someone's model of the Harriet Lane, I got the idea to do a sampling of each gun the sloop of war Constellation carried in her career up to present day.
Constellation is a 1:36 scale radio-controlled model

The idea is to 3D model and print one of each gun the ship ever carried (that I can determine) in the same scale as the model, that will be displayed with the model when it's on static display, which she is from time-to-time.

Her armament over the years has been:

My list of guns to make amounts to:

• 8-inch shell gun on a 4-truck carriage
• 32-pd gun on a 4-truck carriage
• 10-inch pivot mounted shell guns*
• 12 pd Dahlgren light boat howitzer*
• 30-pounder Parrot Rifle on iron pivot carriage
• 20-pounder Parrot Rifle on iron pivot carriage
• 9-inch Dahlgren gun on Marsilly carriages*
• 100-pound Parrot Rifle on wood carriage
• 11-inch Dahlgren on iron carriage
• 24-pounder gun on truck carriage
• 32 pound Carronade

*=already made

Since the model was intended to actually sail, I opted not to model the gun deck, and never made a model of the 8" shell guns or the 32 pounder shot-guns. I did model the 10" shell gun pivots based on plans for the Mississippi's gun from the National Archives.
I also modeled the launch's boat howitzer, but I'm not sure I'll include it in this display or not.




One other model, already modeled, and printed, is a IX inch Dahlgren on a Marsilly carriage.



Two other guns I'm working on for the Lane are a 9" gun on a pivot mount and a 24 pd Dahlgren howitzer on a swivel carriage - but I won't need them for this project.

The STLs for all these guns are, or will be posted on Thingiverse. They're 1:36 and I can't say how well they'll scale down. I did accidentally print a smaller boat howitzer which came out great, and the Marsilly-Dahlgren was printed at 1:96 only losing it's eyebolts...so...



Now that I think of how to set-up this display, I should probably group them by time-period, which means I'll have to print more than one copy of some of them, like the 8 inchers and 32 pounders.

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

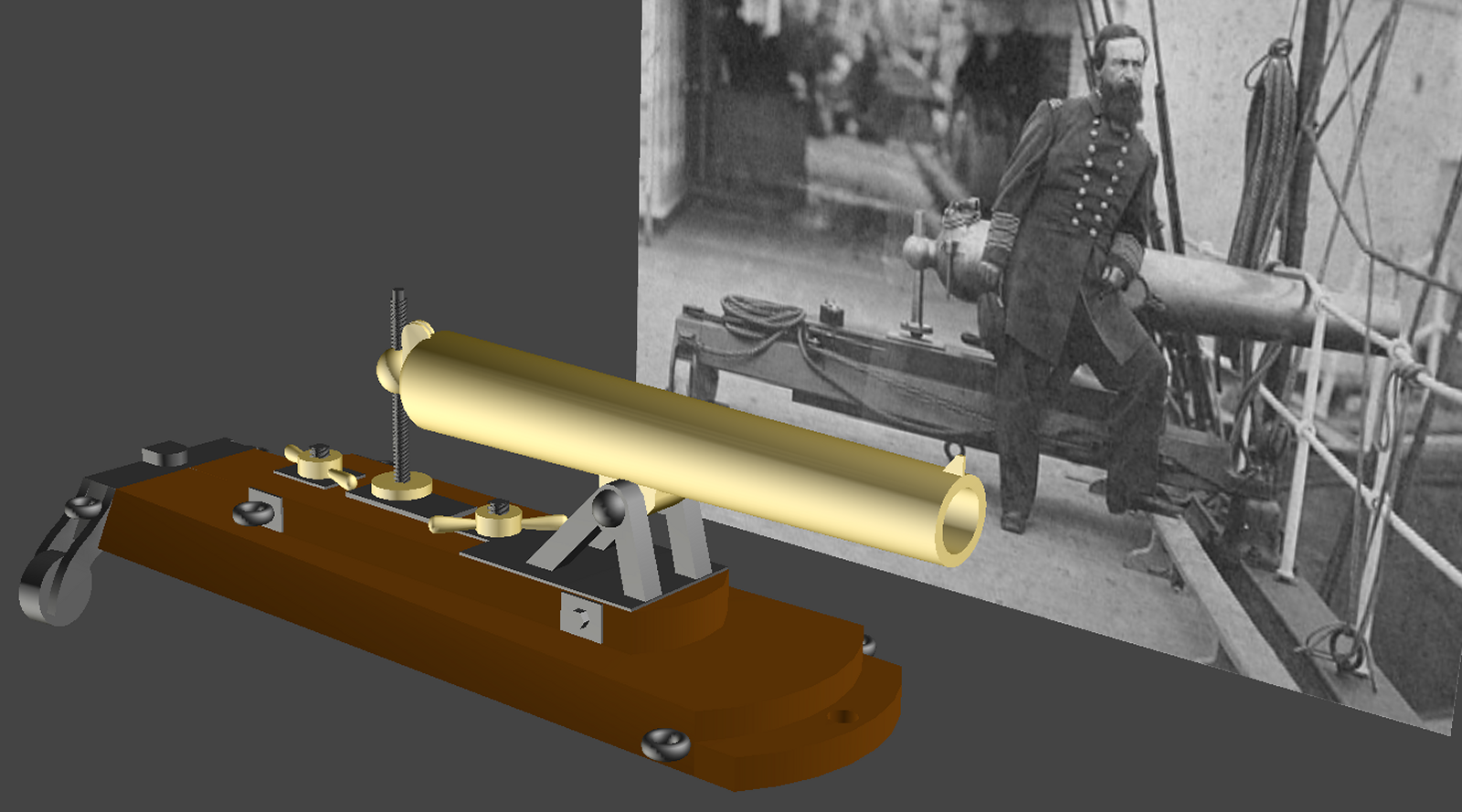

Still making guns for the Lane, she had 2 24 pdr howitzers and a IX inch Dahlgren on a pivot. The pivot's carriage is based on a photo of the Miami's (Mendota) gun.

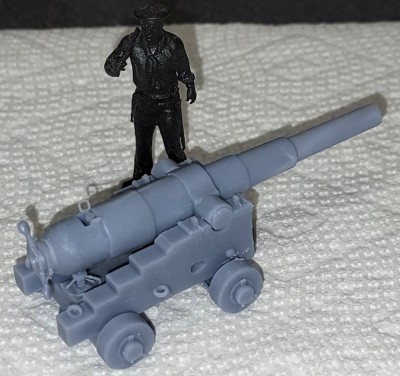

3D prints of them all and some spares


But none of those are on my list
What is on my list is an 8" shell gun on a Naval truck carriage, which I modeled inside of a day by re-scaling the 10" shell gun's tube, and stealing some parts from the Marsilly carriage. I haven't printed this yet.



The Lane get's one more gun; a 30pdr Parrott rifle on a pivot carriage. It took a lot of searching, but I finally found drawings for both the 20pdr and the 30pdr. I need both for my list.
The Lane's Parrott is going on a wooden pivot carriage, though I'm having a hard time finding a photo or drawing of such a thing.
The folks running the Constellation in Baltimore told me the Parrotts were on iron carriages, and showed me a plan from the Archives of them. I was building the ship at an earlier time, so I never got a copy of the drawing, and now I can't find it.
I'm not even sure they were on iron carriages because much of what the restoration people told me back then turned out to be wrong. It means more searching I suppose...

Here's the 20 and 30 pounder Parrotts in progress...

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

[size=150]Work continues...
Someone needs 1:72 scale guns for a Susquehanna model; more IXs on Marsillys and a pair of 150pdr Parrotts on pivots.
The 32pdr is for my list, and I'll need a 100pdr Parrott as well.
I'll need an XI inch Dahlgren on an iron pivot carriage, but since I made the tube and the slide, might as well make the carriage too.
I found new data on the bigger Parrotts, and I resized them to this new data which included dimensions for the trunnions, which I didn't have. Now I'm to working on the cascables to get all the tubes finished.

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

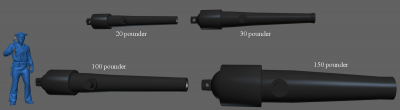

I finished the Parrott rifle tubes with reworked breaches and cascables. While searching for data on the 30pdr's pivot carriage, I built the 100 and 150 pounder guns.





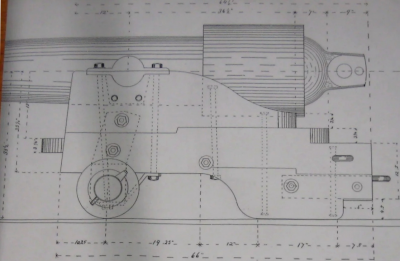

Years ago I visited the Constellation and was shown a drawing from the US National Archives of a 30pdr Parrott on a pivot carriage. I took some photos of the plans just out of interest, but never got a copy as I didn't figure I needed it.
I found those photos on my hard drive, and they were enough to build the model from.



I need a 30pdr in 1:36 for my list, and 1 in 1:96 for the Harriett Lane and both of them are on the printer now, as I type this.

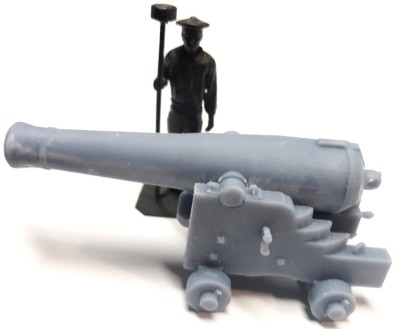

Another gun from my list that was modeled, was printed today, the 32 pounder.

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

Between modeling and print guns for other folks, I've managed to get four of my own printed so far; the 32# gun, the IXDahlgren on the Marsilly carriage, and these two...



The 8" tube needs to be reprinted, as a part of the breech misprinted.


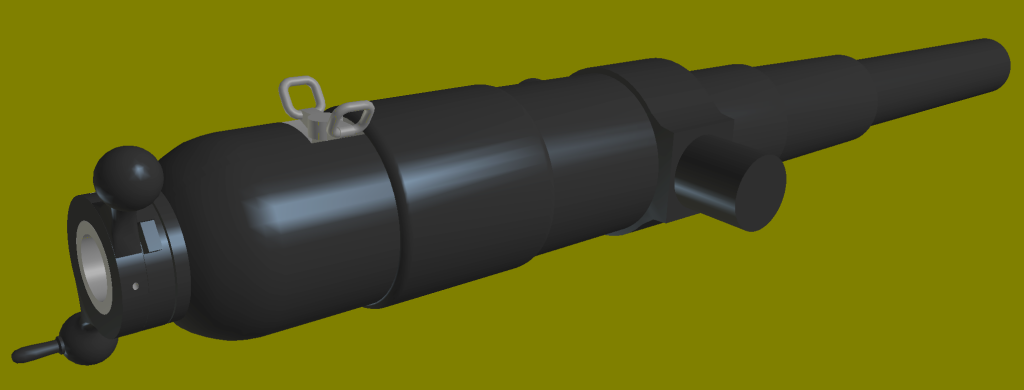

As for other people's guns, I made a 7" Armstrong breech loading rifle, and had to print it to see how my simple breech plug would turn out.
The plug just slips in, the screw breech mechanism doesn't function, though I'm tempted to make one that does, maybe.

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

Jerry the Parrot Pivot gun is an absolute beauty!! Very well done.

_________________
Bruce
OSC USN-Ret


Currently on the building ways:
1/144 USS Stevens DD-479
1/144 USS Cook Inlet AVP-36
1/144 USS Walke DD-416
1/144 USS Preble DDG-46

The "Powder Monkey" image has been popping up recently, but you know social media, everything old is new discovery in a day or two.
Here's my favorite colorization of that photo


I always thought the gun was a 30# Parrott, but this recent attention to the images, and the other images of the New Hampshire crewmen posing next to it had me realizing that wasn't right.
The gun's too big, relative to the men (and boys). So I looked up the New Hampshire's armament and found she had 4 100# Parrotts in addition to her broadside pieces. That wasn't right either; the end of the cascable of this gun stopped right even with the back of the carriage, a 100# Parrott would have stuck out aft much further than that from where the trunnions were.
Digging around again, I found that the gun was a 60# Parrott, and I found actual plans for it. Well, pictures of plans, but the measurements were marked, so I could use them.
When I thought I could just pop my existing 3D model 30# Parrott on my already existing 3D model Marsilly carriage, and have another model made - it's turns out I have to start almost from scratch for this one.
I got the tube done, and added to the collection, but I have to come back to the carriage...




While I'm not a fan of Confederate stuff, or pirate trash either for that matter, several folks have asked about the Brooke Rifled gun, and it does fit into the new focus of this project, so... it's back into the morass of the internet trying to find usable images and data.

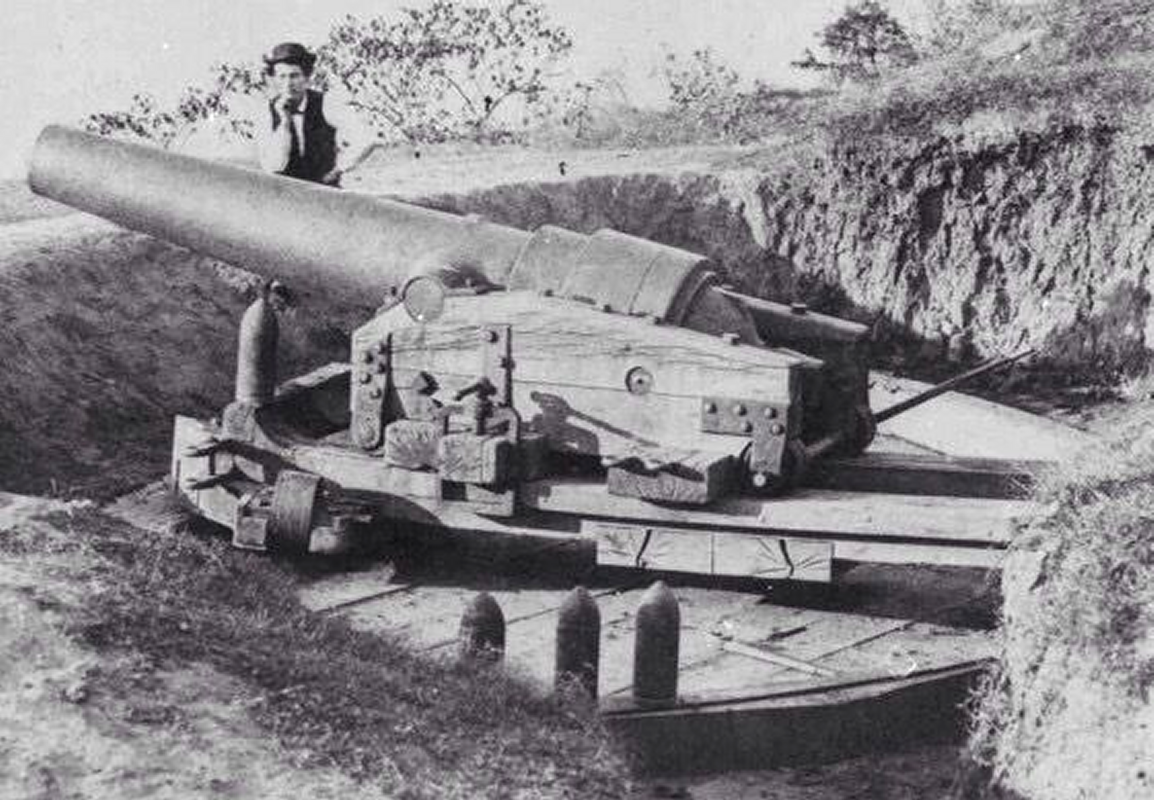

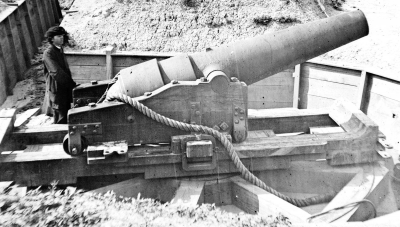

I found a period profile drawing of the gun in a case-mate ironclad setting, and some period photos of the guns in a shore defense setting on an 8-sided wagon-wheel looking base. The period photos were taken from a slightly elevated position, so showed some details a profile drawing would'nt.



The profile picture I had I noticed was of a single-banded piece, and I happened upon a very similar drawing I just though was a better resolution version of the same gun when I saw it was a 2-banded piece and the carriage was different.
With this information, I shifted gears and separated into single, and a double banded models. This are still being tweaked and detailed before they're done, but here they are so far...

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

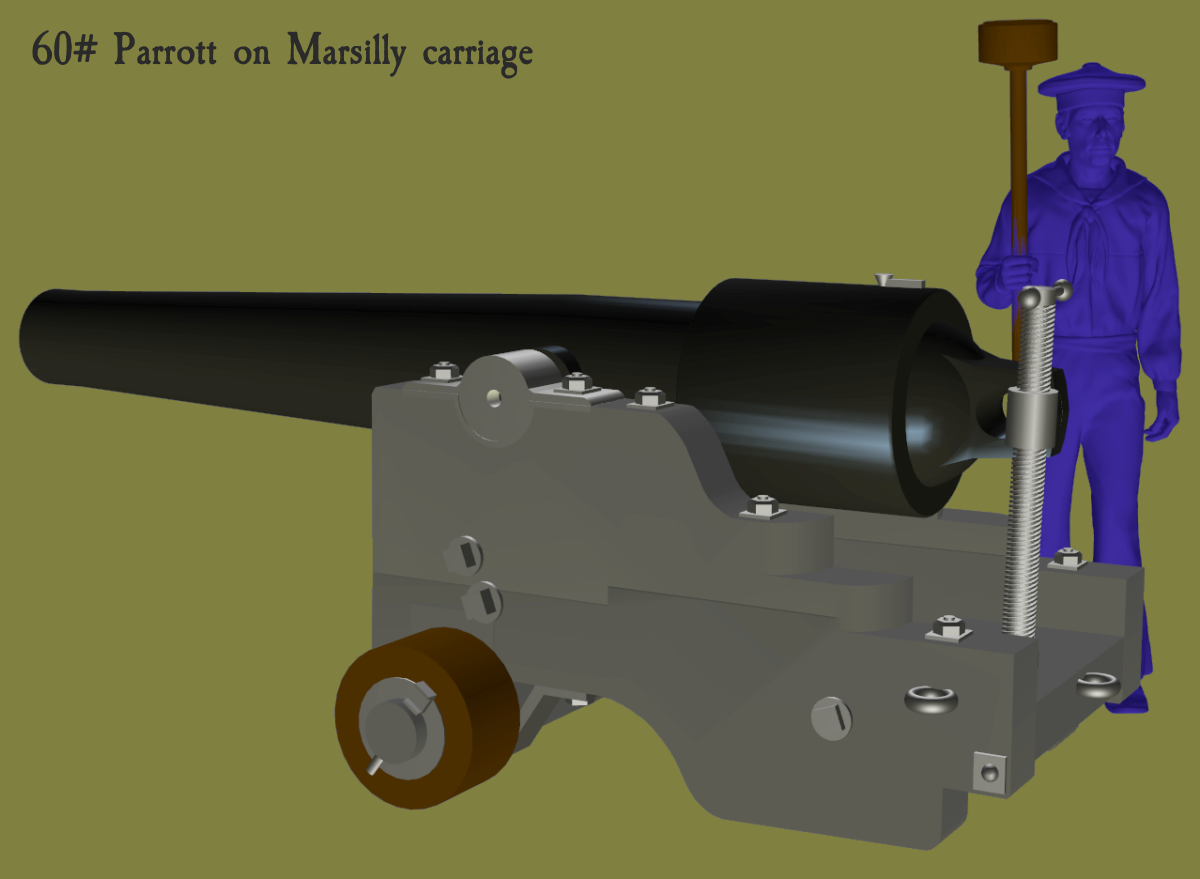

I made the carriage for the 60# Parrott according to the "plan" I found online, but it was different than the carriage in the "Powder Monkey" and other photos, so I went back and redid it. One thing I hadn't done is taper the carriage, that is the sides are closer at the front than at the back, and I had them parallel at first.


I poked around trying to figure out a pivot carriage for the 60# Parrott. When the sloop of war Cumberland was towed out of Gosport, she sailed up to Boston to be repaired. They apparently removed the aft 10 inch Dahlgren pivot gun and replaced it with a 60# Parrott pivot gun. On March 8th, 1862, Buchanan steamed the Virginia right for the Cumberland because he felt that rifled gun was a greater threat. That gun was fired on the Virginia until the water reached it.
I found this at an antiques web site commemorating the Cumberland's gun;


My 3D model is pure conjecture where the carriage is concerned. I altered the pivot carriage for the IX inch Dahlgren to accommodate the relatively skinny Parrott rifle.


Another gun from my list of Constellation's guns is the 20# Parrott pivot gun. I modified the pivot carriage for the 30# Parrott for this one, as I've yet to see any images of one so far.

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

It seems that ogival projectiles fired from rifled guns were not so effective on wooden ships, as the projectiles punched relatively small holes through the wood, which were relatively easy to repair, if below the waterline. Als much damage to crew and hardware was done by the splintering wood and fragmented round shot, an effect that was less pronounced with the ogival projectiles.

Very interesting, btw, your reconstructions and 3D-prints. I would have expected more detailed documentation at least for the Union navy being available. For some European navies we have beautiful coloured lithographs or engravings illustrating the naval hardware of that period.

_________________
Eberhard

Former chairman Arbeitskreis historischer Schiffbau e.V. (German Association for Shipbuilding History)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Making the 60# Parrott as Cumberland had in her last battle, got me thinking about her forward pivot gun, a 10 inch smooth-bore shell-gun.
Looking for data on this gun about the only thing I could find were some dimensions that weren't really helpful to me, bore diameter, bore length, etc, but one number was of use - maximum diameter. The 9 and 10 inch guns were of the same proportions, one was simply scaled up - according to the patent drawings. I already made the tubes for the 9 inch and 11 inch guns, so I just scaled the 11 inch tube to that maximum diameter.


The more difficult thing to find information on was the carriage. Short of an actual plan, like I had for the Mississippi pivot gun, I found a drawing by Dahlgren himself submitted July 31 1850, as a proposed armament for "First Class Frigates," suggesting they be armed with six 10 inch pivot guns on the spar deck, and 26 9 inch guns on the gun deck. The Navy rejected the proposal, mostly. They opted for two 10 inch pivots and the gun deck armed with 8 inch shell-guns and 32# shot guns.


The 10 inch gun in the drawing looked familiar, because it was the the same as the gun depicted in the Traversing Pivot Gun Carriage and Slide diagram in the Ordnance Instructions for the United States Navy. Dahlgren drew the same image and altered the tube of the gun to appear more like one of his guns, but left the Columbiad breech of the drawing as it was. Spencer Tucker in his Arming the Fleet says the carriage was the same as that for for the Columbiads, but widened to accommodate the larger Dahlgren gun body.

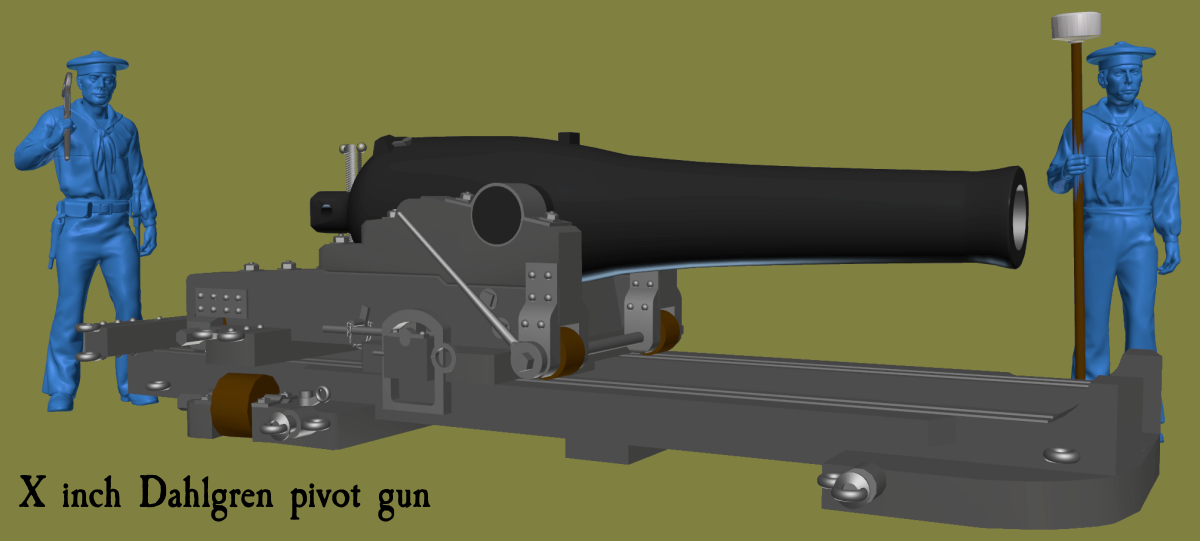

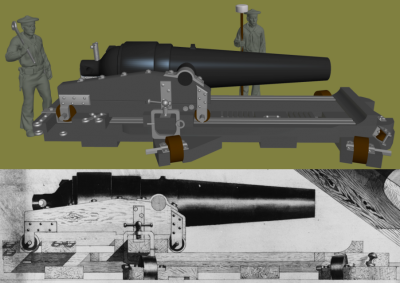

Based on all that, I made my 3D model


All this led me to think about my Constellation model's pivot guns (link to that build-log in my signature) which led me to also print this gun, two of them actually, in 1:36 scale

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

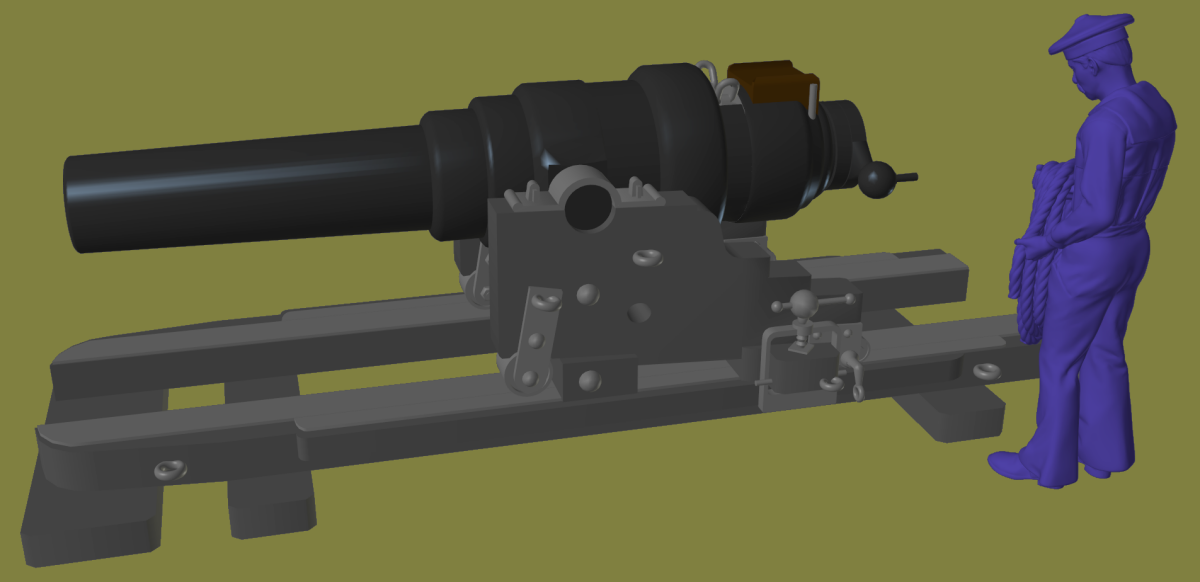

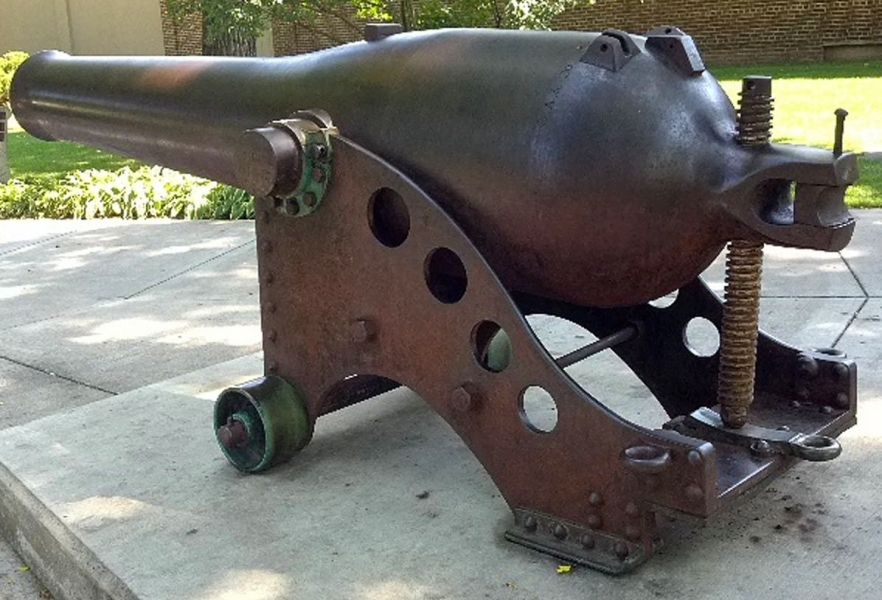

Poking away at the XI Dahlgren on an iron carriage, though the images I have are into the 1880s and I have very little showing the earlier versions of it.

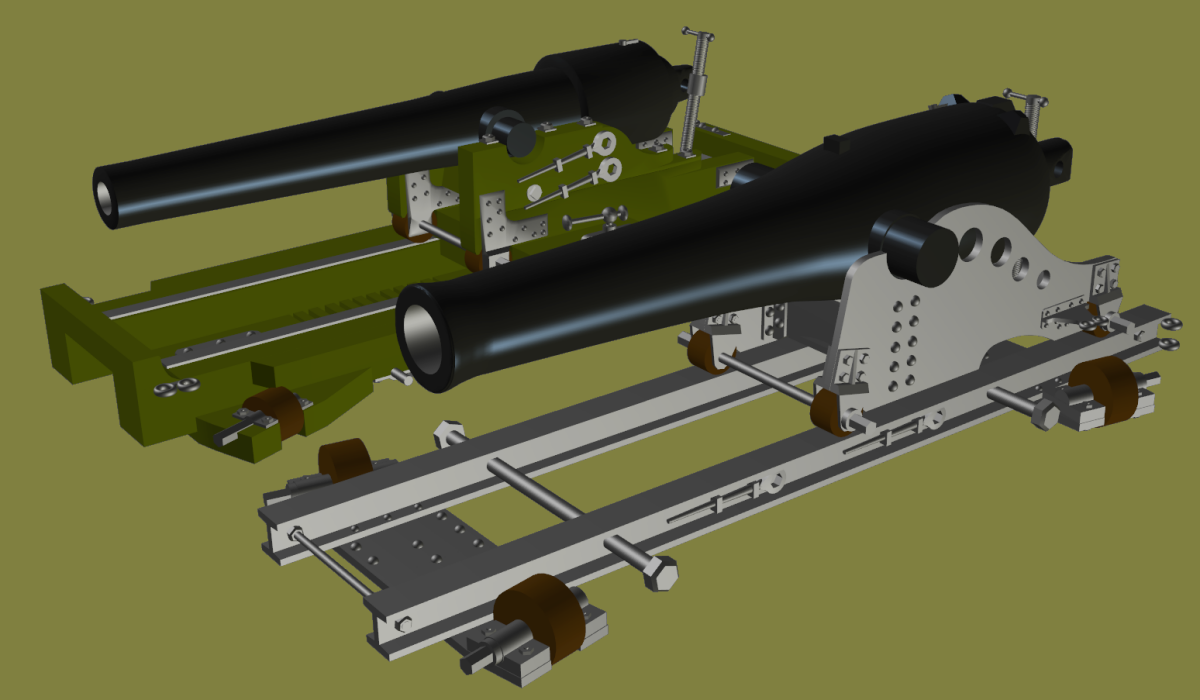

Here's the model in progress along-side the 100# Parratt it was mounted with on Constellation during the 1870s.

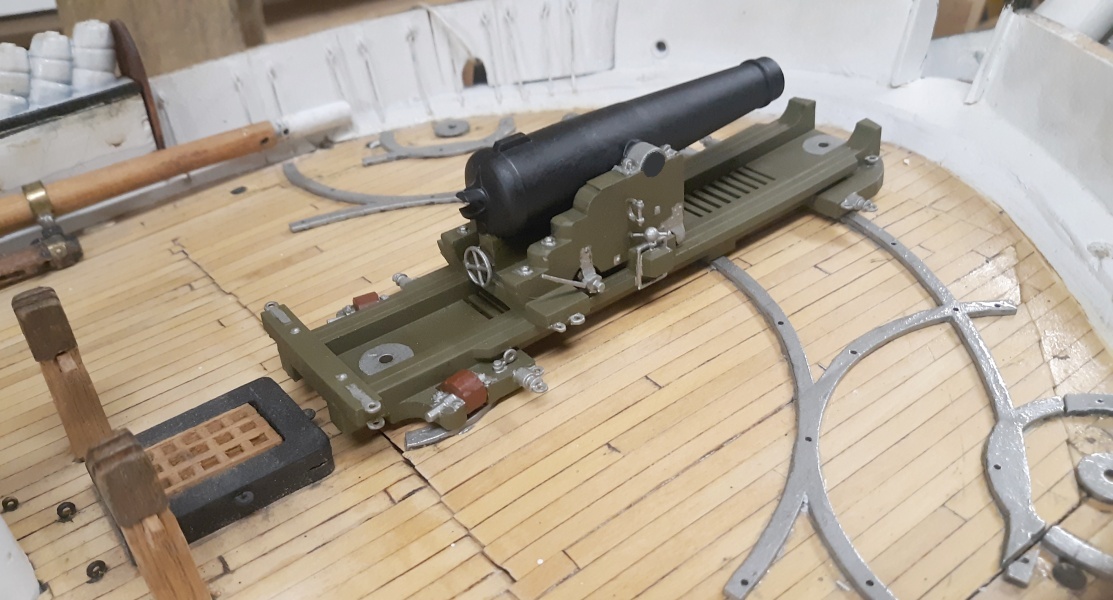

The guns I've printed so far got some paint


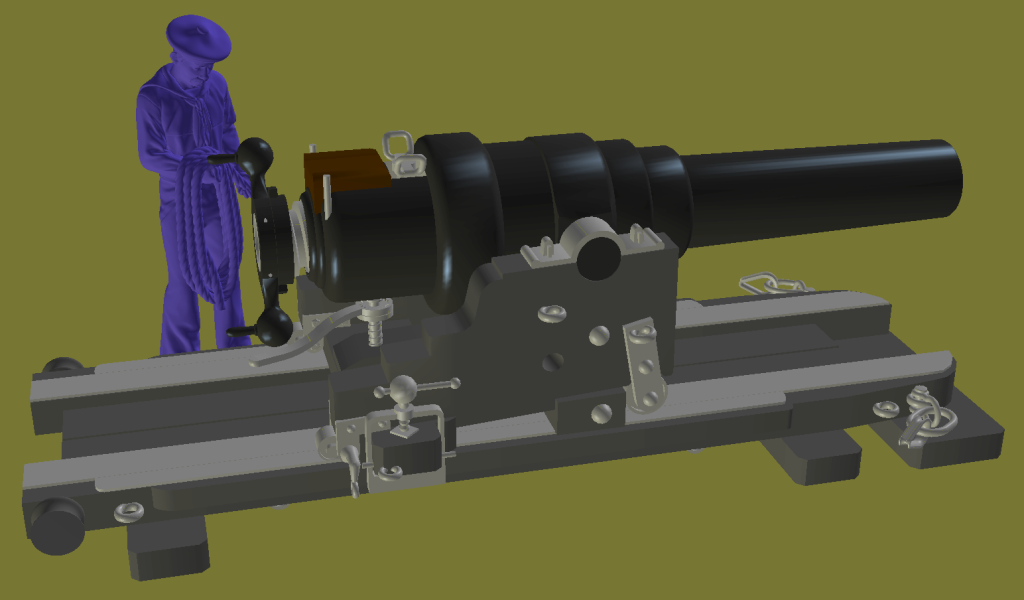

I found a drawing at the National Maritime Museum's website for the Armstrong gun's carriage and slide, and began making the 3D model for it.

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

This is most impressive and serious work, thank you for sharing it.

Thank you JoeP

So I made 3D models of a pair of Brooke Rifles, a single-banded version and a double-banded version, but not needing any myself, I never printed either of them.

Well, that changed recently when I actually printed a pair of one of them, the double-banded one, for a 1:48 scale model of the ironclad CSS Neuse a fellow in the UK is building.

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

Thanks for the video. I didn't know that one. And, I didn't realise that the ball-lever is not connected to the breech-screw, but can rotate separately to tighten it with its inertia.

_________________
Eberhard

Former chairman Arbeitskreis historischer Schiffbau e.V. (German Association for Shipbuilding History)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

And....now I have my next 3D printing project....LOL

Thank-you!

NS

_________________
ICBM Address: 44:78N 063:63W

Ex RCN, HMC Ships Gatineau, Athabaskan, Charlottetown, St. John's, Montreal, Charlottetown, Summerside, Montreal.

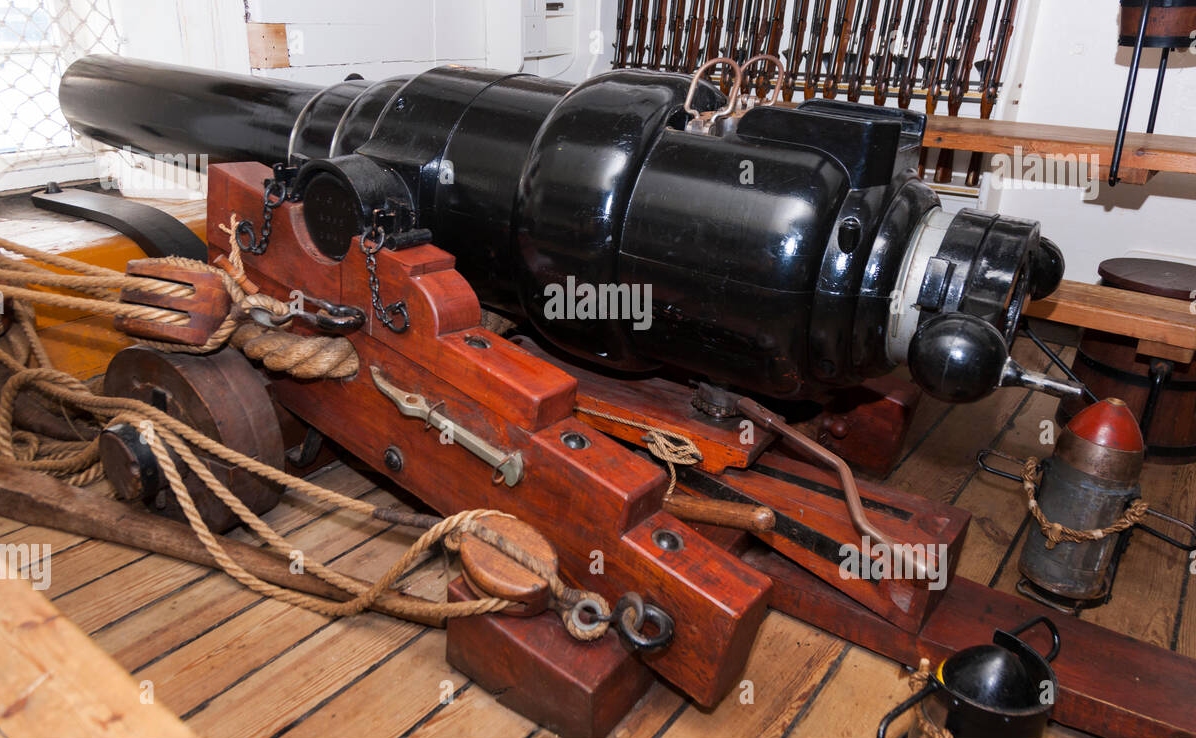

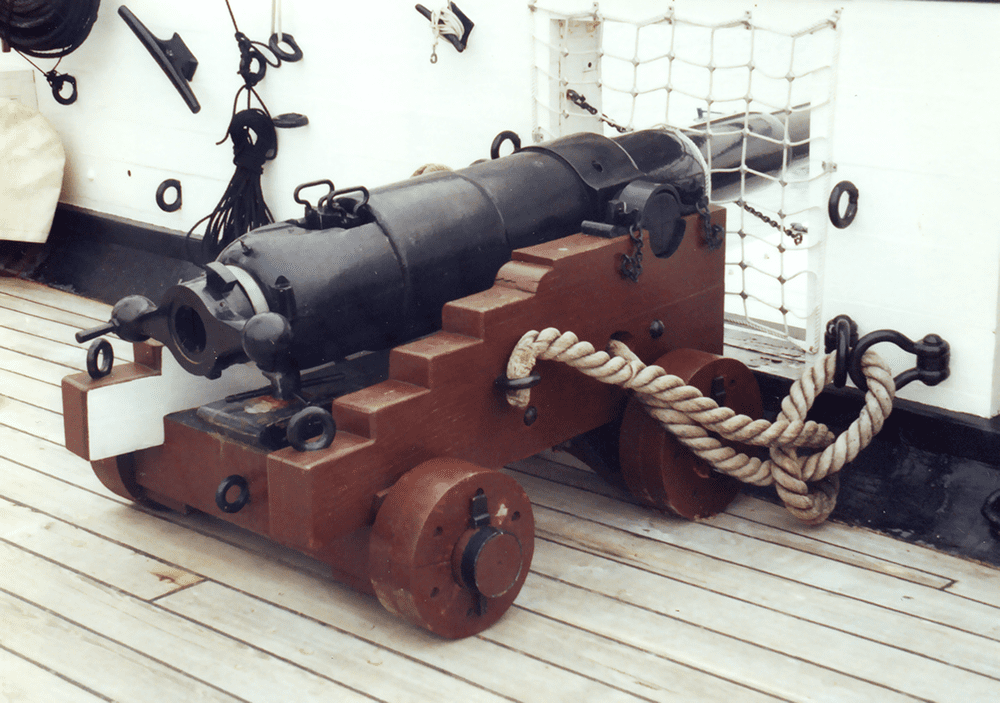

It's looking like I'll need to do the rest of Warrior's armament, I guess
...but I'm not building a model of the ship, no sir.

_________________
Jerry

~>Constellation 1856
~>3D Modeled Naval Guns 1850s~1870s
~>My Gallery
~>My Thingiverse stuff
~>My Web Site

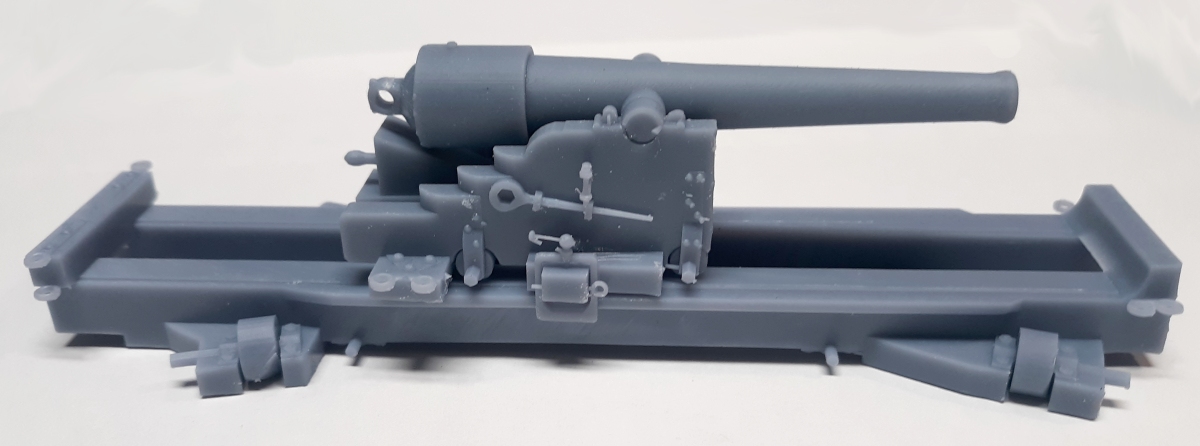

So, this one's done, and posted on Thingiverse
