 Post subject: 1/50 "Vanya" (1905)
PostPosted: Wed Oct 07, 2009 10:41 pm
Offline
User avatar

Joined: Thu Aug 06, 2009 3:47 pm
Posts: 28
Location: Latvia
Attachment:
vanya_n5_1.jpg [ 36.77 KiB | Viewed 5838 times ]

It's Russian cannon boat with 2 (75mm) cannons 6 (7,62mm) machine gun "maxim" and 1 anti air cannon (47mm) crew 78.
Real name in Russian.
Attachment:
untitled.JPG [ 3.46 KiB | Viewed 5825 times ]

Body carcass I build from plywood.
Attachment:
P9280002.JPG [ 145.55 KiB | Viewed 5836 times ]

Attachment:
P9280004.JPG [ 149.84 KiB | Viewed 5830 times ]

Attachment:
P9290005.JPG [ 128.26 KiB | Viewed 5833 times ]

On this carcass I glued tin sheet.
Attachment:
PA080012.JPG [ 141.2 KiB | Viewed 5836 times ]

I don't know how good this ship to feel in water but after seen... :heh:
Wen I waiting to get dry glue I build some other details for my ship.
Attachment:
PA080019.JPG [ 141 KiB | Viewed 5833 times ]

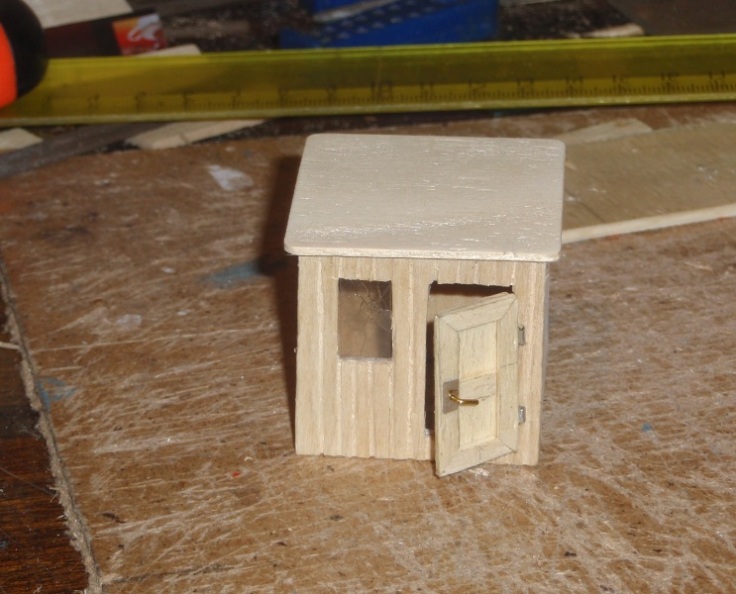

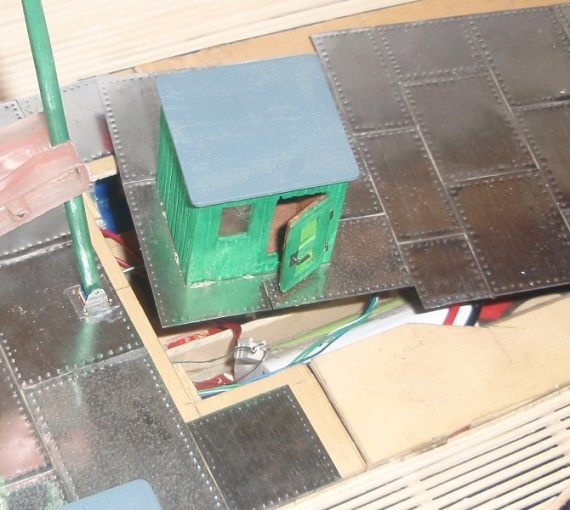

This house is a entry in body front living quarters. It's 38x40x42mm opening door and bullet damaged window
Attachment:
PA080014.JPG [ 138.1 KiB | Viewed 5830 times ]

It's has been experimental for material testing but looks like good for my ship (with little corrections)


Report this post
Top
 Profile
Reply with quote
MichelB
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Thu Oct 08, 2009 3:07 am
Offline
User avatar

Joined: Tue Jan 11, 2005 10:26 am
Posts: 1689
Location: The Netherlands
Looks good so far! Neat idea to have bullet holes in the windows, gives a authentic feeling.

_________________
If all else fails, a complete pig-headed refusal to see facts in the face will see us through. - General Melchett


Report this post
Top
 Profile
Reply with quote
Dave Wooley
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Thu Oct 08, 2009 3:47 am
Offline
User avatar

Joined: Sat Jan 22, 2005 10:18 am
Posts: 4131
Location: Liverpool
Hi Raivo Veryu interesting subject . Please keep us updated with your build. :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:
David Wooley


Report this post
Top
 Profile
Reply with quote
Timmy C
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Thu Oct 08, 2009 12:34 pm
Online
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 12311
Location: Ottawa, Canada
Also like the bullet damage! Looking forward to more of this!

_________________
De quoi s'agit-il?


Report this post
Top
 Profile
Reply with quote
raivo
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Fri Oct 09, 2009 10:15 am
Offline
User avatar

Joined: Thu Aug 06, 2009 3:47 pm
Posts: 28
Location: Latvia
There is a next detail.
It's a pilot-house.
Attachment:
PA090011.JPG [ 140.17 KiB | Viewed 5824 times ]

Attachment:
PA090012.JPG [ 129.73 KiB | Viewed 5822 times ]

Attachment:
PA090017.JPG [ 144.84 KiB | Viewed 5827 times ]

That all is glued with 120 wood details
Some day that all has been painted and looks better.


Report this post
Top
 Profile
Reply with quote
Dave Wooley
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Fri Oct 09, 2009 3:41 pm
Offline
User avatar

Joined: Sat Jan 22, 2005 10:18 am
Posts: 4131
Location: Liverpool
The pilot house is an excellent piece of workmanship . :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:
Dave Wooley


Report this post
Top
 Profile
Reply with quote
JIM BAUMANN
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Fri Oct 09, 2009 3:56 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5556
Location: Nr Southampton England
:welcome: to modelwarships.com!

What an interesting and inspiring model!

reminds me in style--if not shape of my model of Kolchida
http://www.modelwarships.com/reviews/sh ... eview.html

Very cool!

:thumbs_up_1: :thumbs_up_1:

Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
Cadman
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Fri Oct 09, 2009 6:09 pm
Offline
Site Admin
Site Admin
User avatar

Joined: Sat Jan 08, 2005 4:31 pm
Posts: 3578
Location: Plattsburg, Missouri
Very nice. I will be checking back often for updates.

_________________
Timothy Dike
Owner & Administrator
ModelWarships.com


Report this post
Top
 Profile
Reply with quote
Pieter
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Sun Oct 11, 2009 6:23 am
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1548
Love that wheelhouse! More please!


Report this post
Top
 Profile
Reply with quote
raivo
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Sun Oct 11, 2009 2:34 pm
Offline
User avatar

Joined: Thu Aug 06, 2009 3:47 pm
Posts: 28
Location: Latvia
I think that my ship will need some light.
All my available LED was too big because of that I used LED from old mobile phone.
The switch is made from silicon.
Attachment:
PA110011.JPG [ 137.87 KiB | Viewed 5829 times ]

Here light is in the wheelhouse.
Attachment:
PA110022.JPG [ 144.88 KiB | Viewed 5827 times ]

Attachment:
PA110039.JPG [ 126.37 KiB | Viewed 5827 times ]

Attachment:
PA110033.JPG [ 96.17 KiB | Viewed 5829 times ]

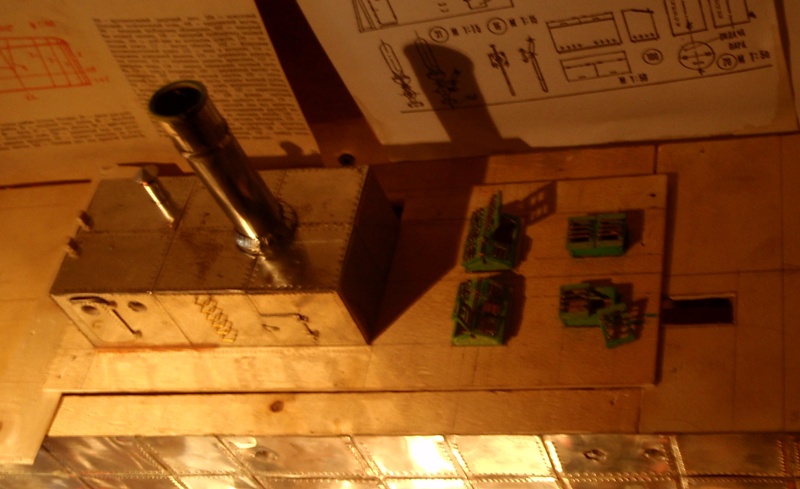

Stove (with fire light), desk and dirty cooking pot for kitchen.
Attachment:
PA110019.JPG [ 142.49 KiB | Viewed 5829 times ]

Attachment:
PA110015.JPG [ 86.3 KiB | Viewed 5830 times ]

Kitchen and steam house carcass. I am going to plate it with tin. Windows from pill pack.
Attachment:
PA110041.JPG [ 143.39 KiB | Viewed 5830 times ]

Attachment:
PA110047.JPG [ 140.21 KiB | Viewed 5829 times ]


Report this post
Top
 Profile
Reply with quote
MichelB
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Sun Oct 11, 2009 3:40 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 10:26 am
Posts: 1689
Location: The Netherlands
A lit stove? Expletive, now I've seen everything! Impressive! :thumbs_up_1:

And the windows from a pill strip: that's ingenious!

_________________
If all else fails, a complete pig-headed refusal to see facts in the face will see us through. - General Melchett


Report this post
Top
 Profile
Reply with quote
Dave Wooley
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Sun Oct 11, 2009 3:54 pm
Offline
User avatar

Joined: Sat Jan 22, 2005 10:18 am
Posts: 4131
Location: Liverpool
MichelB wrote:
A lit stove? Expletive, now I've seen everything! Impressive! :thumbs_up_1:

And the windows from a pill strip: that's ingenious!


I'll go with that , working stove now I have seen every thing! really interesting build. :thumbs_up_1: :woo_hoo:
Dave Wooley


Report this post
Top
 Profile
Reply with quote
raivo
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Sun Oct 11, 2009 4:41 pm
Offline
User avatar

Joined: Thu Aug 06, 2009 3:47 pm
Posts: 28
Location: Latvia
MichelB wrote:
A lit stove? Expletive, now I've seen everything! Impressive! :thumbs_up_1:

And the windows from a pill strip: that's ingenious!


Why buy if I have. it's just practically. :wink:


Report this post
Top
 Profile
Reply with quote
raivo
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Thu Oct 22, 2009 4:43 am
Offline
User avatar

Joined: Thu Aug 06, 2009 3:47 pm
Posts: 28
Location: Latvia
I am back :wave_1:
There is some details for show.

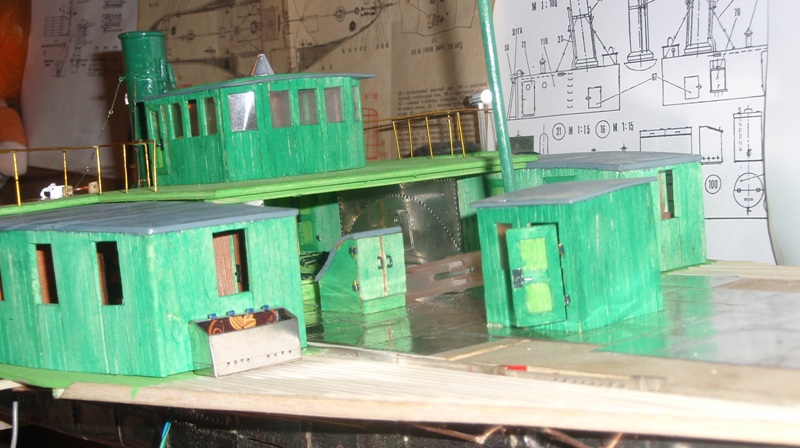

Steam room and kitchen. All doors has opening and inside has light. It's not fully finished.
Attachment:
PA220014.JPG [ 126.38 KiB | Viewed 5835 times ]

Attachment:
PA220018.JPG [ 126.56 KiB | Viewed 5832 times ]

Attachment:
PA220021.JPG [ 134.75 KiB | Viewed 5832 times ]

Hatchway to engine room. All covers has opening.
Attachment:
PA220022.JPG [ 137.53 KiB | Viewed 5831 times ]

Attachment:
PA220013.JPG [ 131.42 KiB | Viewed 5835 times ]

And here is my ship body.
Attachment:
PA220020.JPG [ 110.63 KiB | Viewed 5838 times ]

And here is my ship crew prototype.
Attachment:
PA140012.JPG [ 137.9 KiB | Viewed 5831 times ]

It's made from wax. After from this provided to create a few from silicon and inside aluminum skeleton (one individual can to strike a pose how I want) , and in the boots little magnets (don't need glued because my ship has from metal).
But reality is not to sweet... :huh:
Too biggest problem has block creation. First time I cant take out finished product but second time my to prototype and he don't survive. :(
But I don't think to surrender!


Report this post
Top
 Profile
Reply with quote
AlainFR
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Thu Oct 22, 2009 6:50 am
Offline

Joined: Wed Mar 18, 2009 12:29 pm
Posts: 247
Location: Amiens - FRANCE
Hello raivo,

Interesting subject and good realization, i want to know what is the origin of your plan for this ship?.

Best regards

Alain


Report this post
Top
 Profile
Reply with quote
raivo
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Thu Oct 22, 2009 1:09 pm
Offline
User avatar

Joined: Thu Aug 06, 2009 3:47 pm
Posts: 28
Location: Latvia
AlainFR wrote:
Hello raivo,

Interesting subject and good realization, i want to know what is the origin of your plan for this ship?.

Best regards

Alain


From old soviet magazine.


Report this post
Top
 Profile
Reply with quote
raivo
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Mon Jan 11, 2010 3:07 pm
Offline
User avatar

Joined: Thu Aug 06, 2009 3:47 pm
Posts: 28
Location: Latvia
Hi!
I hawe some more details for showing.
There is the anchor
At first I to cast in moulds lead
Attachment:
PC160002.JPG [ 133.76 KiB | Viewed 5777 times ]

The next step to file with file
Attachment:
PC280062.JPG [ 126.51 KiB | Viewed 5777 times ]

and after coloring
Attachment:
P1110113.JPG [ 137.15 KiB | Viewed 5780 times ]

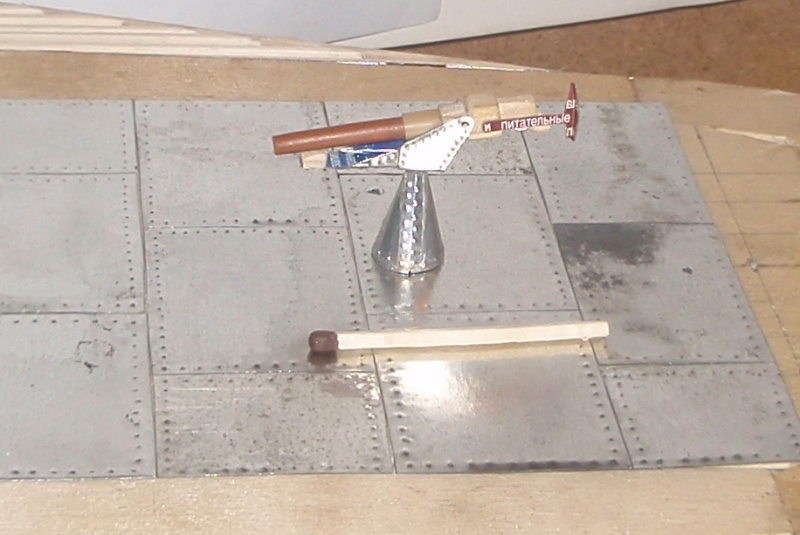

There is a machine guns
Attachment:
P1110106.JPG [ 124.9 KiB | Viewed 5780 times ]

and anti air artilery
Attachment:
P1110110.JPG [ 136.07 KiB | Viewed 5780 times ]
Attachment:
P1110111.JPG [ 102.89 KiB | Viewed 5778 times ]

and some staff
Attachment:
P1110105.JPG [ 123.11 KiB | Viewed 5778 times ]


Report this post
Top
 Profile
Reply with quote
raivo
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Mon Jan 11, 2010 3:17 pm
Offline
User avatar

Joined: Thu Aug 06, 2009 3:47 pm
Posts: 28
Location: Latvia

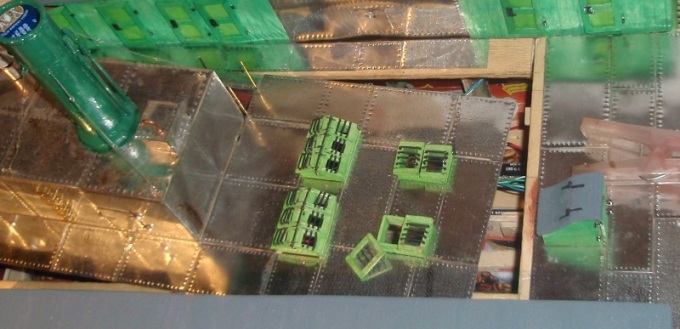

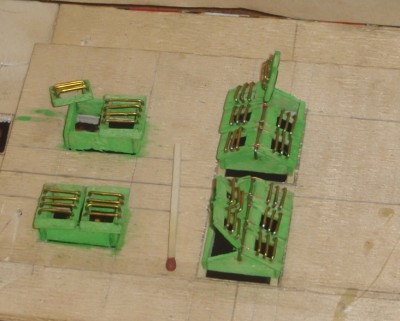

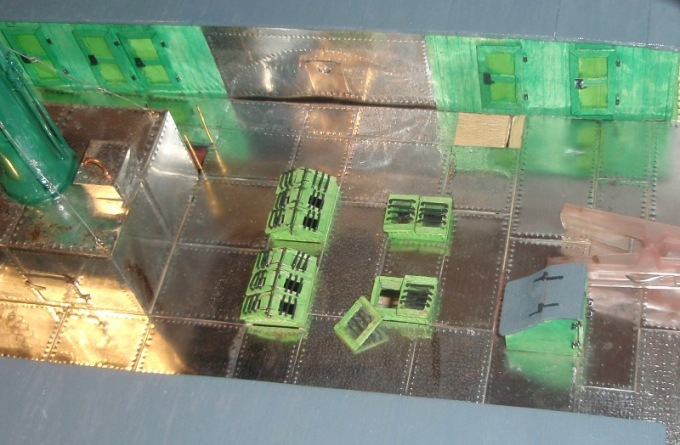

My progress


Attachments:
P1110092.JPG [ 127.59 KiB | Viewed 5779 times ]
P1110093.JPG [ 113.3 KiB | Viewed 5778 times ]
File comment: For simply deconstruction I used contact from cell phone
P1110096.JPG [ 99.36 KiB | Viewed 5779 times ]
P1110097.JPG [ 103.98 KiB | Viewed 5778 times ]
P1110099.JPG [ 113.87 KiB | Viewed 5779 times ]
P1110103.JPG [ 97.8 KiB | Viewed 5779 times ]
P1110104.JPG [ 116.13 KiB | Viewed 5779 times ]
P1110125.JPG [ 137.14 KiB | Viewed 5779 times ]
P1110128.JPG [ 141.71 KiB | Viewed 5778 times ]
P1110131.JPG [ 121.9 KiB | Viewed 5779 times ]


Last edited by raivo on Sun Jan 17, 2010 12:25 pm, edited 1 time in total.
Report this post
Top
 Profile
Reply with quote
raivo
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Mon Jan 11, 2010 3:21 pm
Offline
User avatar

Joined: Thu Aug 06, 2009 3:47 pm
Posts: 28
Location: Latvia

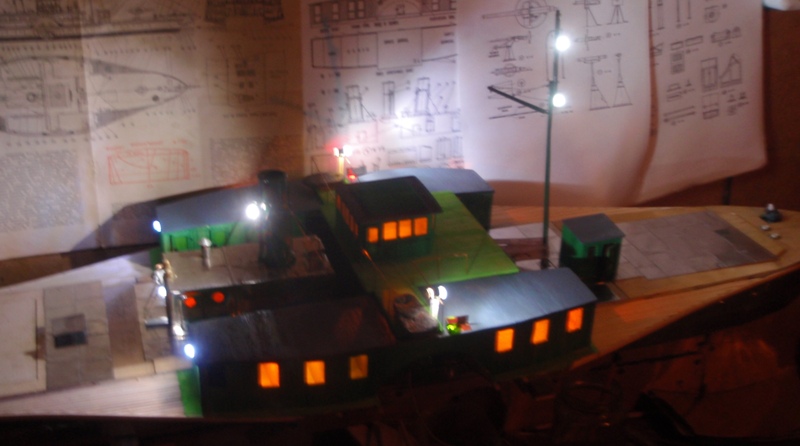

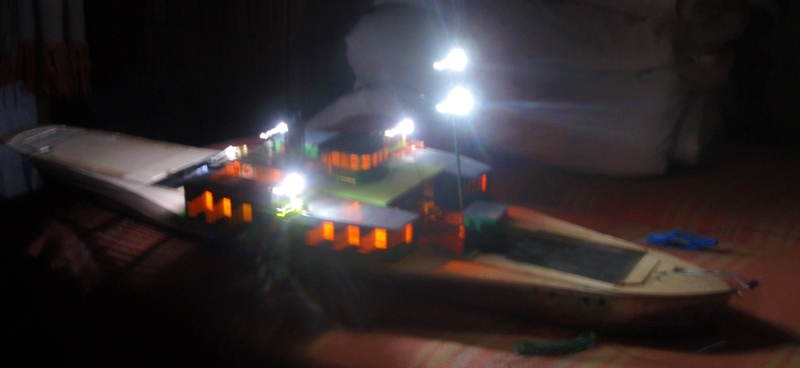

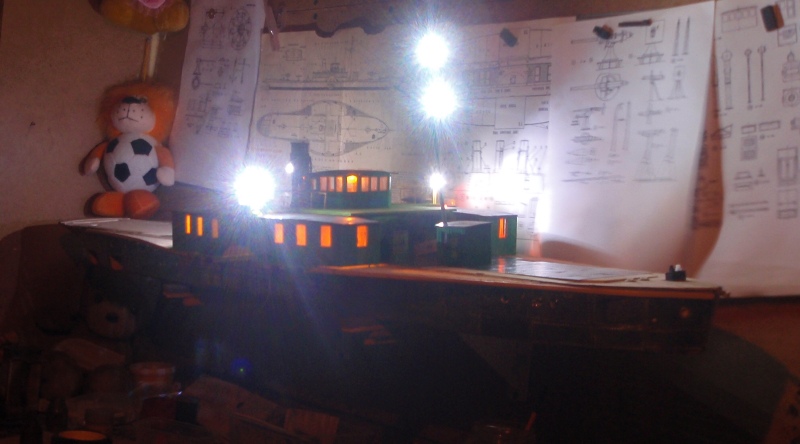

My ship in the night.


Attachments:
P1110078.JPG [ 93.51 KiB | Viewed 5784 times ]
P1110080.JPG [ 114.76 KiB | Viewed 5782 times ]
P1110081.JPG [ 112.62 KiB | Viewed 5781 times ]
P1110123.JPG [ 136.25 KiB | Viewed 5781 times ]
P1110142.JPG [ 143.25 KiB | Viewed 5781 times ]
P1110143.JPG [ 125.39 KiB | Viewed 5781 times ]
File comment: If you look carefully, you will see the beds through windows :)
P1110119.JPG [ 112.87 KiB | Viewed 5782 times ]


Last edited by raivo on Sun Jan 17, 2010 12:21 pm, edited 1 time in total.
Report this post
Top
 Profile
Reply with quote
JIM BAUMANN
 Post subject: Re: 1/50 "Vanya" (1905)
PostPosted: Mon Jan 11, 2010 6:59 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5556
Location: Nr Southampton England
Very good work!

I LOVE THE BUNK BEDS!!!!

:thumbs_up_1: :thumbs_up_1:


Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  Page 1 of 2
  [ 39 posts ]  Go to page 1, 2  Next

Board index » Scratchbuilding and RC » Online Scratchbuild Projects

All times are UTC - 6 hours [ DST ]

Who is online

Users browsing this forum: Chris Coveney, steviecee and 12 guests

You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
