PostPosted: Thu Apr 29, 2010 7:47 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada
My first scratchbuild thread! Yay!

Subject: Burrard Pacific Breeze, the newest member of Vancouver's SeaBus fleet. You can read more about them in the CASF thread here, if you want!: viewtopic.php?f=51&t=51219

Attachment:

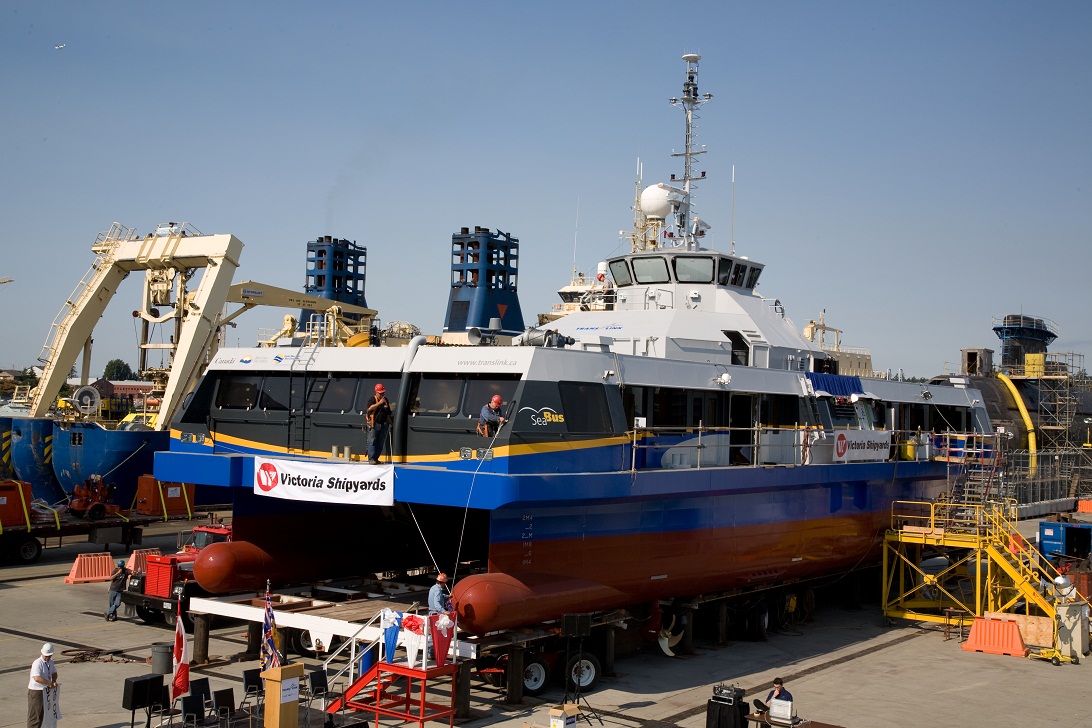

File comment: Here's a pic of the actual ship at her commissioning ceremony. Don't we wish we had these kind of views for warships!
3769963442_b18164edbc_o res.jpg
3769963442_b18164edbc_o res.jpg [ 308.43 KiB | Viewed 4737 times ]


I'm planning on building her in subassemblies that can later be resin-casted.

First step is the hull (well, it's hard to define what the hull is for a catamaran, haha! Better just call this the main deck)!


Attachments:

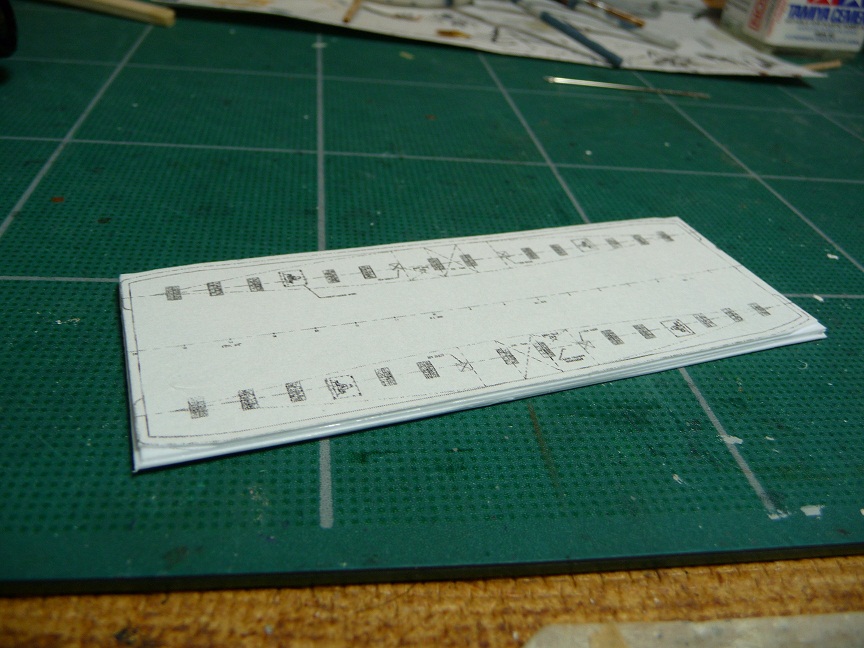

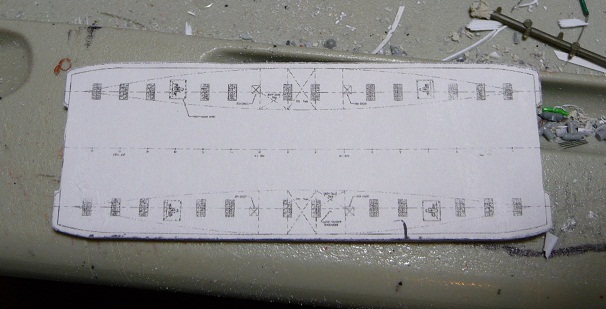

File comment: Here we see the main hull before shaping. 4 layers of 0.5mm styrene card, which just so conveniently scale out to the dimensions of 700mm in real life!
P1080677resized.jpg [ 187.84 KiB | Viewed 4741 times ]
File comment: In my palm just for a sense of size.
P1080678resized.jpg [ 188.21 KiB | Viewed 4741 times ]
File comment: Trimming the border - snip snip snip!
P1080679resized.jpg [ 156.25 KiB | Viewed 4741 times ]
File comment: At the end of the day, the hull is shaped!
P1080681resizedcropped.jpg [ 81.6 KiB | Viewed 4741 times ]

_________________
De quoi s'agit-il?
Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Apr 30, 2010 5:25 am
Offline
User avatar

Joined: Mon Apr 13, 2009 8:42 pm
Posts: 178
Location: Fort Myers, Florida
Timmy,
Very nice. I'll be looking forward to watching this one come together.
Mark


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu May 13, 2010 10:21 am
Offline
User avatar

Joined: Sun Mar 13, 2005 11:51 am
Posts: 2130
Location: Belgium
Yep great ship, I was looking forward to it. Any progress so far? Once you get started with scratchbuilding... There's no end to it :heh: :thumbs_up_1:

_________________
Yard conversion to merchant shipbuilding


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu May 13, 2010 10:35 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada
Have been having some problems with programs not outputting drawings at the same size they were input, leading to the delays thus far. I should be able to get a paper test hull by tomorrow, if not tonight. Thanks for reading!

_________________
De quoi s'agit-il?


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri May 14, 2010 4:23 am
Offline
User avatar

Joined: Sat Jan 22, 2005 10:18 am
Posts: 4131
Location: Liverpool
Good to see you with a scratch building thread , This looks an interesting if different ship. I'll keep looking in.
Dave Wooley :thumbs_up_1: :thumbs_up_1: :thumbs_up_1: :wave_1:


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri May 14, 2010 7:56 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada
Thanks for the interest, Dave!

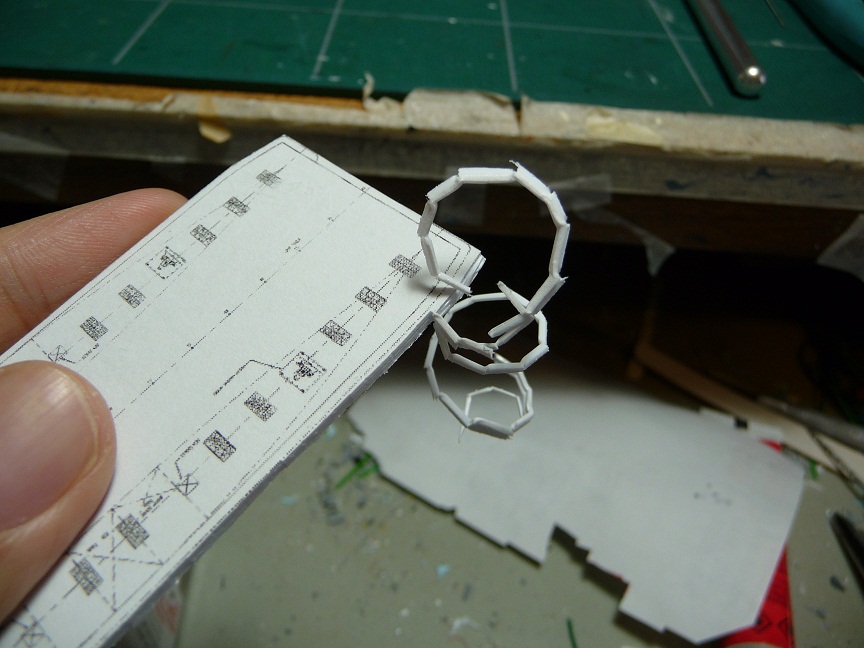

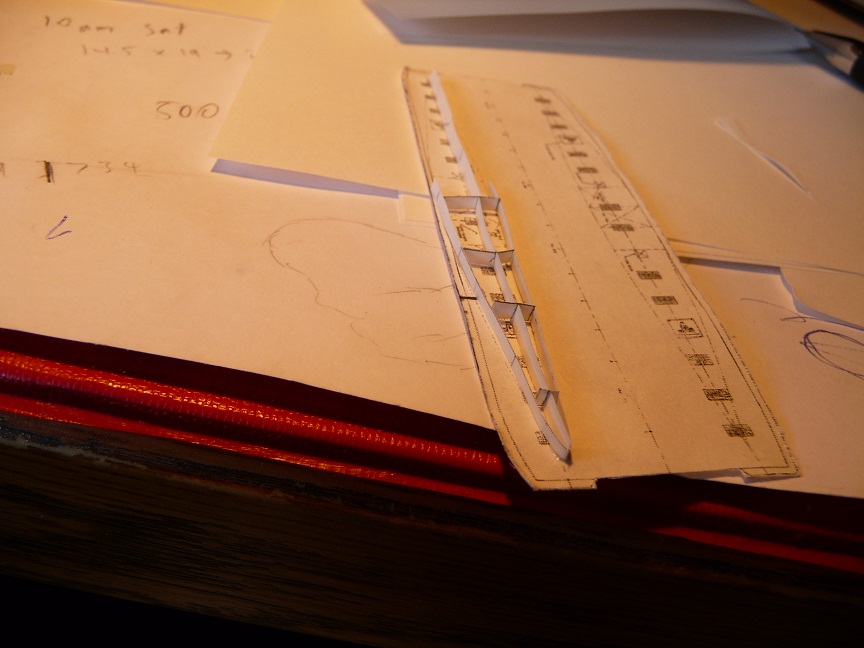

Ok, absolutely nothing astounding to see here - just a paper mock-up of the frames for the hull, and not even a complete mock up; it's just one quarter of the hulls :P

Hopefully I can get around to making the styrene versions this weekend!


Attachments:
P1080828.JPG [ 148.63 KiB | Viewed 4566 times ]
P1080829.JPG [ 135.2 KiB | Viewed 4566 times ]

_________________
De quoi s'agit-il?
Report this post
Top
 Profile
Reply with quote
PostPosted: Sun May 16, 2010 10:27 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada

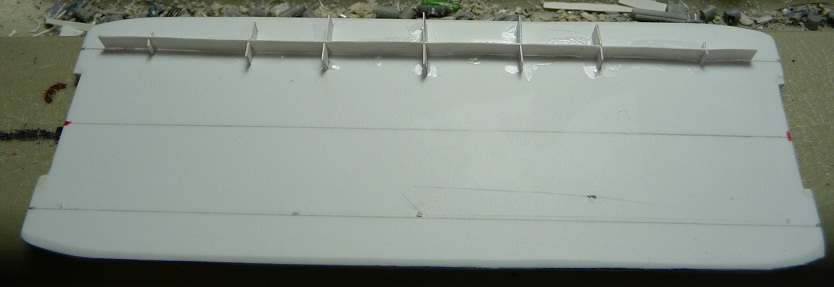

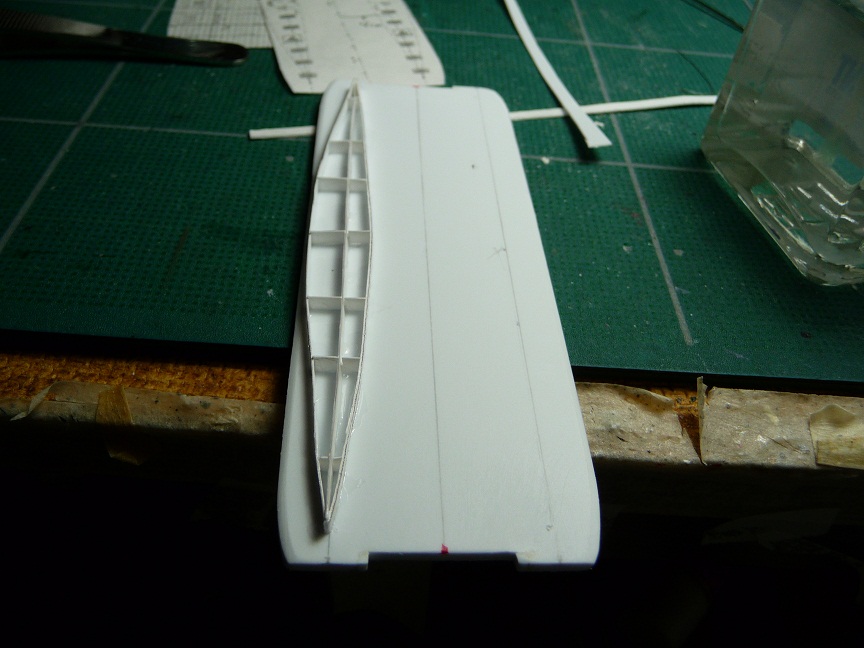

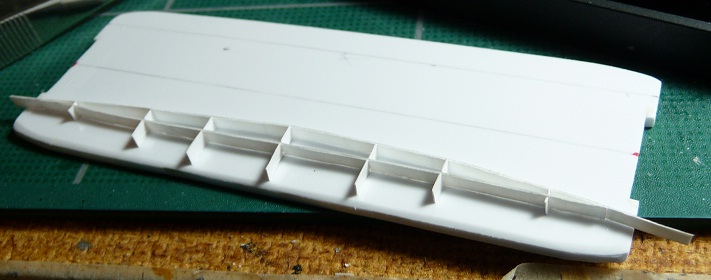

One of the hulls is now constructed - waiting for the putty to dry and then it can be sanded. The frames, keel, and sides are .005" (0.13mm) styrene with paper superglued onto one side. The waterline plate is 0.5mm styrene and technically hangs below the waterline.


Attachments:
4.jpg [ 57.29 KiB | Viewed 4543 times ]
2.jpg [ 57.24 KiB | Viewed 4543 times ]
5.jpg [ 140.49 KiB | Viewed 4543 times ]
1.jpg [ 40.45 KiB | Viewed 4543 times ]
3.jpg [ 35.19 KiB | Viewed 4543 times ]

_________________
De quoi s'agit-il?
Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Jun 05, 2010 8:52 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada

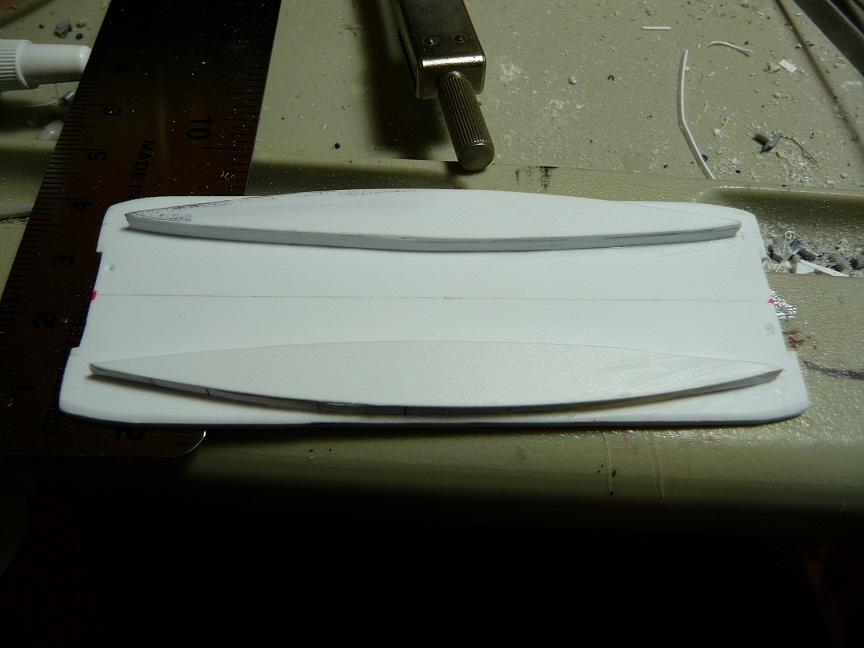

Today I attached the other hull! Yay! And they both look decent.

The second hull was made using the sandwich method, as I ran into depressions on the side of the first hull, requiring much putty and ugliness.

None the less, both are now attached (the one farther away from the camera is the sandwich one):
Attachment:
P1080852 res.jpg
P1080852 res.jpg [ 139.46 KiB | Viewed 4464 times ]

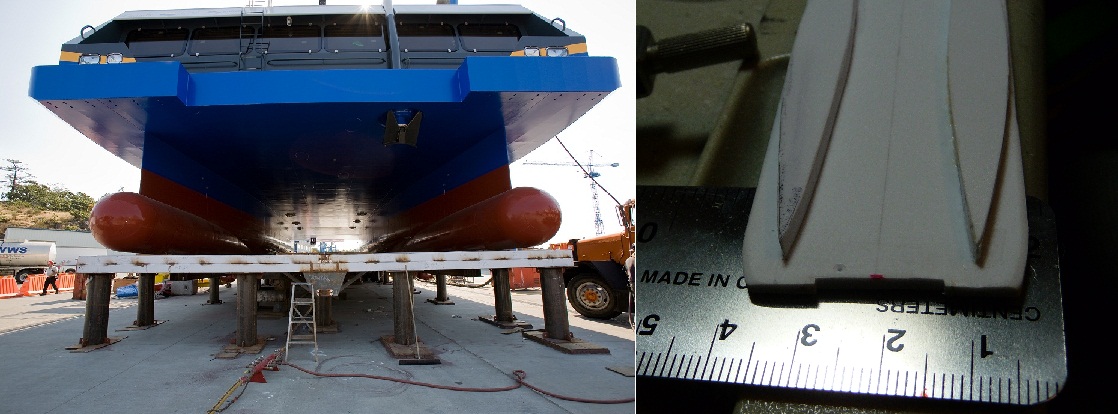

The anchor wells are also drilled out. Now comes the question of whether to make the anchors separately or molded on (as this hull structure will be molded as one piece later). While generally it makes sense to make them separate for the modeler to choose, the tiny size of the anchor may not make it feasible to do so.
As you can see below, the anchor is much smaller than the ones we see on warships:
Attachment:
anchor position.jpg
anchor position.jpg [ 172.4 KiB | Viewed 4464 times ]


Any opinions?

_________________
De quoi s'agit-il?


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Jun 05, 2010 8:58 pm
Offline
User avatar

Joined: Thu Aug 20, 2009 6:52 pm
Posts: 1038
Location: Y-town Ohio
I like it!!!

_________________
God grant me the courage not to give up what I think is right even though I think it is hopeless.
~ Chester W. Nimitz ~
My Builds ~ http://ussnorthcaroilna.shutterfly.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Jun 06, 2010 7:38 am
Offline
User avatar

Joined: Sun Mar 13, 2005 11:51 am
Posts: 2130
Location: Belgium
Hmm, good question. Molding them seperately will for sure make them very weak and breakable! To make the master, I guess even using a piece of PE sprue to cut out the flukes of the anchor. Perhaps leave the option for the modeller to do the same. It depends on what type of kit you want to make out of this. Something like a full kit, or a semi-kit, leaving some stuff to do to the modeller.
The PE piece would be the strongest for such a narrow thickness and small size. Molding them in will be very difficult as these small angles and spaces would be very difficult to mold (I think). I suppose those are easy places to get air bubbles in the mold. Just my opinion though, I don't have any real molding experience myself. Also perhaps the risk of breaking them off when releasing the cast.
So, the conclusion for me would be either make them seperately with PE or give at least a drawing, in scale of these anchors with the kit, to let the modeller make them himself.

Good luck with your build :thumbs_up_1:

_________________
Yard conversion to merchant shipbuilding


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jun 21, 2010 1:24 am
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada
Thanks Mark!

And thanks for your input, Neptune! In the usual way of doing things, I'm putting off on that anchor until a much later date :P

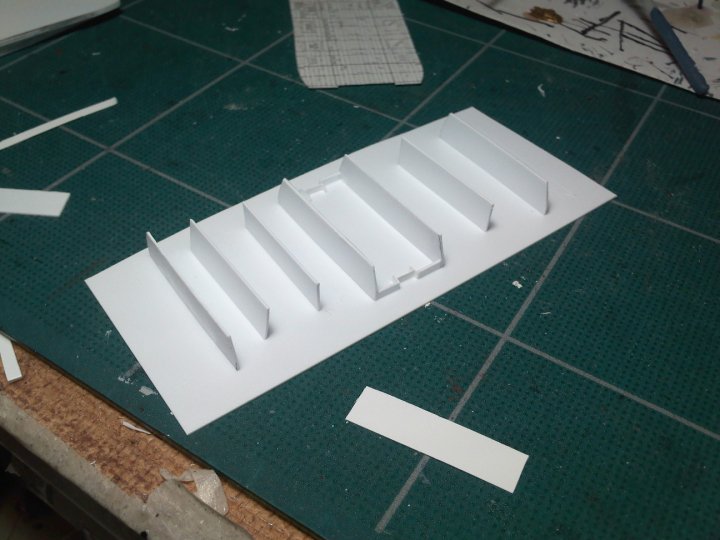

Today, work began on the passenger cabin. More complex that I was hoping, particularly in how to make the recessed doors.


Attachments:
bpb1.jpg [ 63.13 KiB | Viewed 4345 times ]

_________________
De quoi s'agit-il?
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jun 28, 2010 12:09 am
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada
Suddenly, a wild Update appears!

Now I just have to do this three more times.

In the upper left corner of the second picture, you can see the cross-structure and hull - note that I've added two (four, including the other side) bumper-type thingies amidships.


Attachments:
IMG089.jpg [ 120.15 KiB | Viewed 4251 times ]
IMG091.jpg [ 479.06 KiB | Viewed 4251 times ]

_________________
De quoi s'agit-il?
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Aug 09, 2010 2:01 am
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada
Yes! An Update!

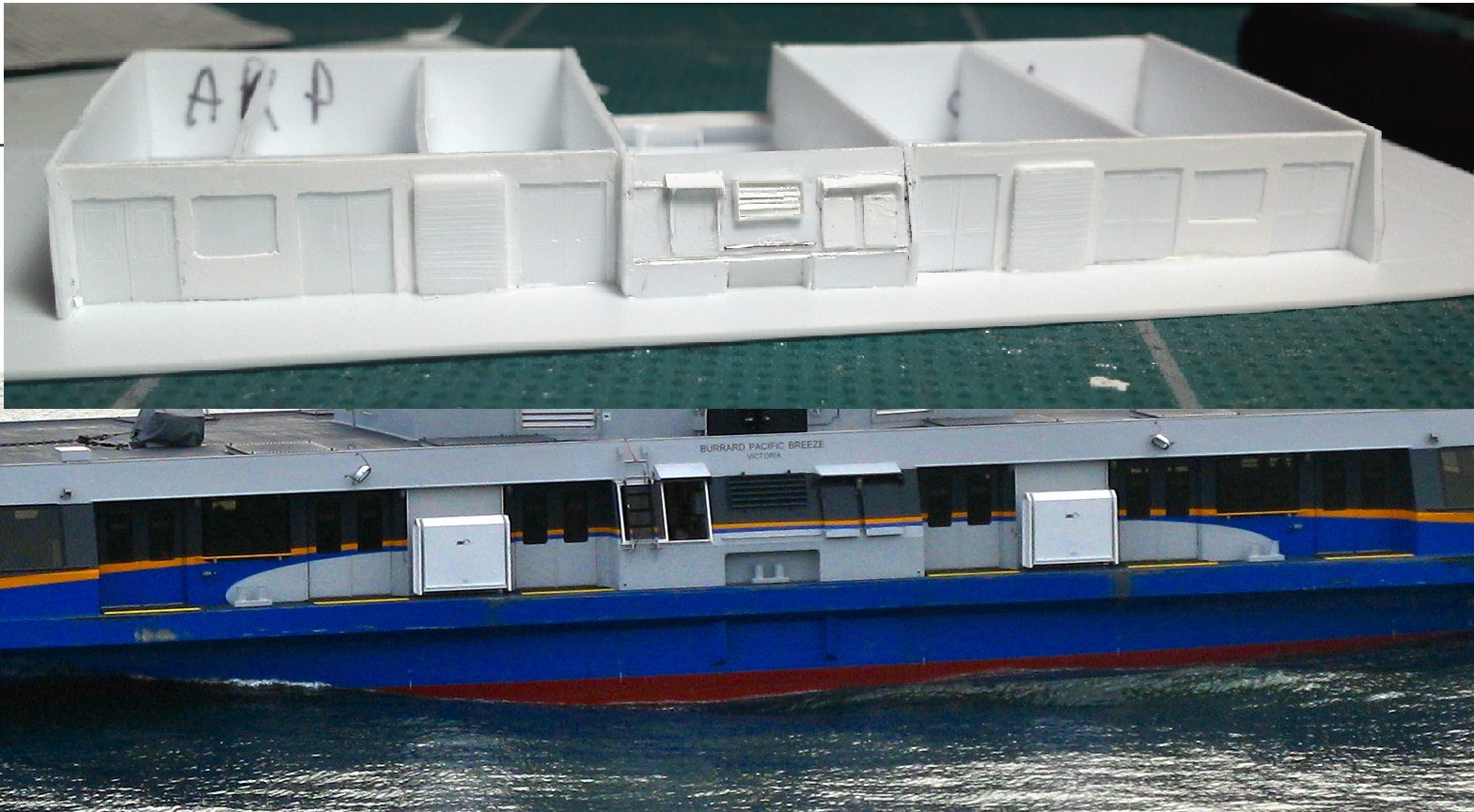

Detailed this area of the bulkhead. Fingers crushed the right-hand side visor while the plastic was still "soggy" from the cement, but managed to make it somewhat acceptable with some shaping and slicing.

It's messy, but I'm still learning as I go!


Attachments:
IMG122.jpg [ 497 KiB | Viewed 4065 times ]
comparison.jpg [ 414.37 KiB | Viewed 4065 times ]

_________________
De quoi s'agit-il?
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 27, 2011 9:38 am
Offline
User avatar

Joined: Sun Mar 13, 2005 11:51 am
Posts: 2130
Location: Belgium
Timmy any updates on this one? Did you actually finish your model (with or without molds?)

_________________
Yard conversion to merchant shipbuilding


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 27, 2011 2:22 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada
I had a 4-month pause as I was out of the country for an exchange in Istanbul, so was not able to work on it. I hopefully will be able to get some work done this weekend - thank you for thinking of it :D

_________________
De quoi s'agit-il?


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Feb 05, 2011 3:18 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada

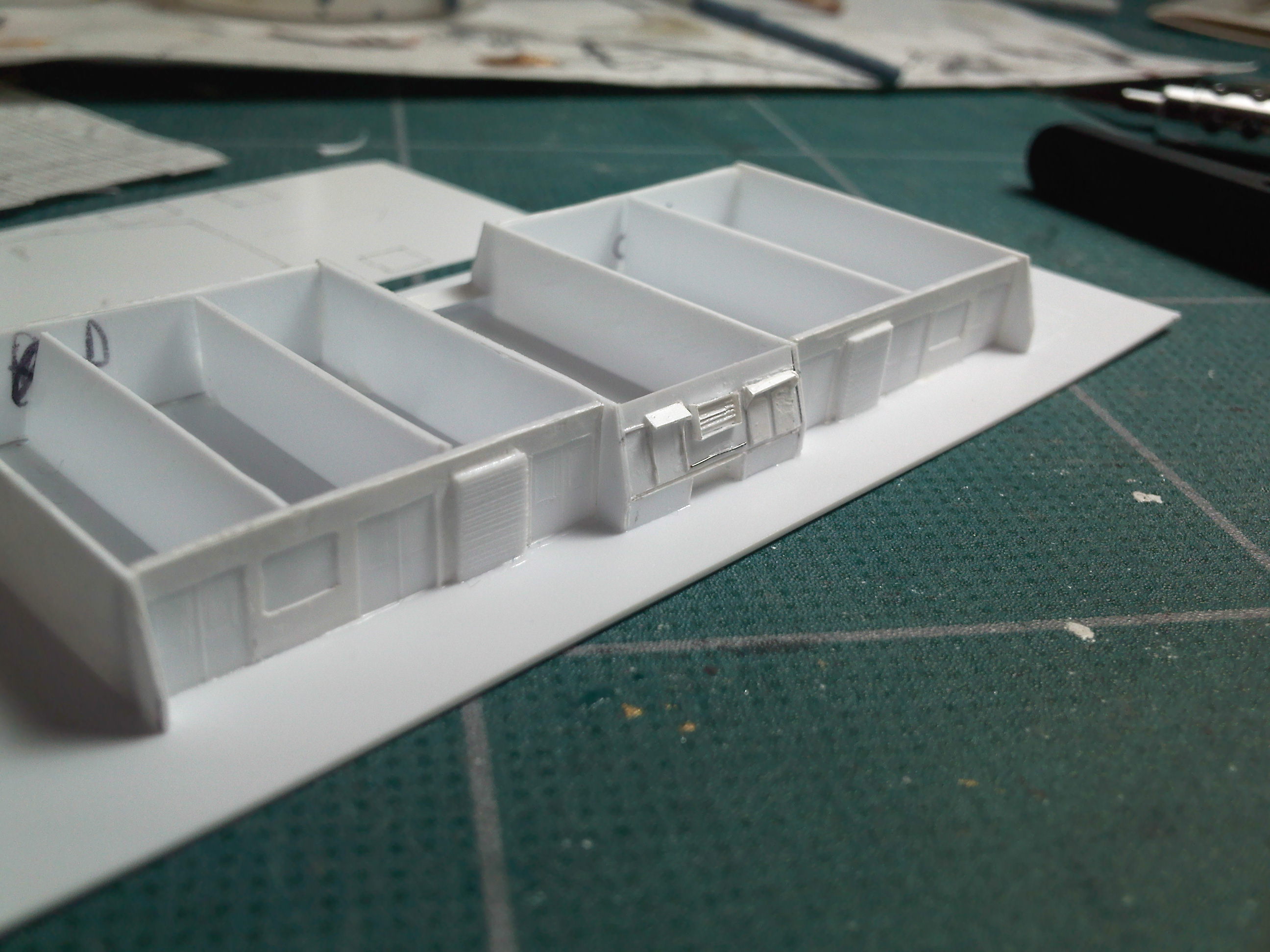

Right then, here's what I got done last week. Finished the detailing on the port side bulkhead and added the bottom halves of the four curved bulkhead corners of the cabin. The cabin roof is not glued on (may have to be redone due to warping of the base :( )


Attachments:
P1190734.JPG [ 229.77 KiB | Viewed 3575 times ]

_________________
De quoi s'agit-il?
Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Feb 05, 2011 8:56 pm
Offline
User avatar

Joined: Thu Aug 20, 2009 6:52 pm
Posts: 1038
Location: Y-town Ohio
Glad to see you back at it! It sure looks great!

_________________
God grant me the courage not to give up what I think is right even though I think it is hopeless.
~ Chester W. Nimitz ~
My Builds ~ http://ussnorthcaroilna.shutterfly.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Feb 06, 2011 8:11 pm
Offline
User avatar

Joined: Sat Dec 09, 2006 6:12 pm
Posts: 1173
Location: campbell river.b.c canada
welcome back home timmy the pacific breeze is looking good .styrene is tircky stuff sometime. on larger areas as decks and such i will use wood skined with thin styrene to eliminate this problem.


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Feb 06, 2011 8:24 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada
Thanks for looking in, Mark!

You're right, Russ - in retrospect, I should have glued a metal "spine" to the bottom of the base!

_________________
De quoi s'agit-il?


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Feb 17, 2011 2:59 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11148
Location: Calgary, AB/Surrey, B.C., Canada

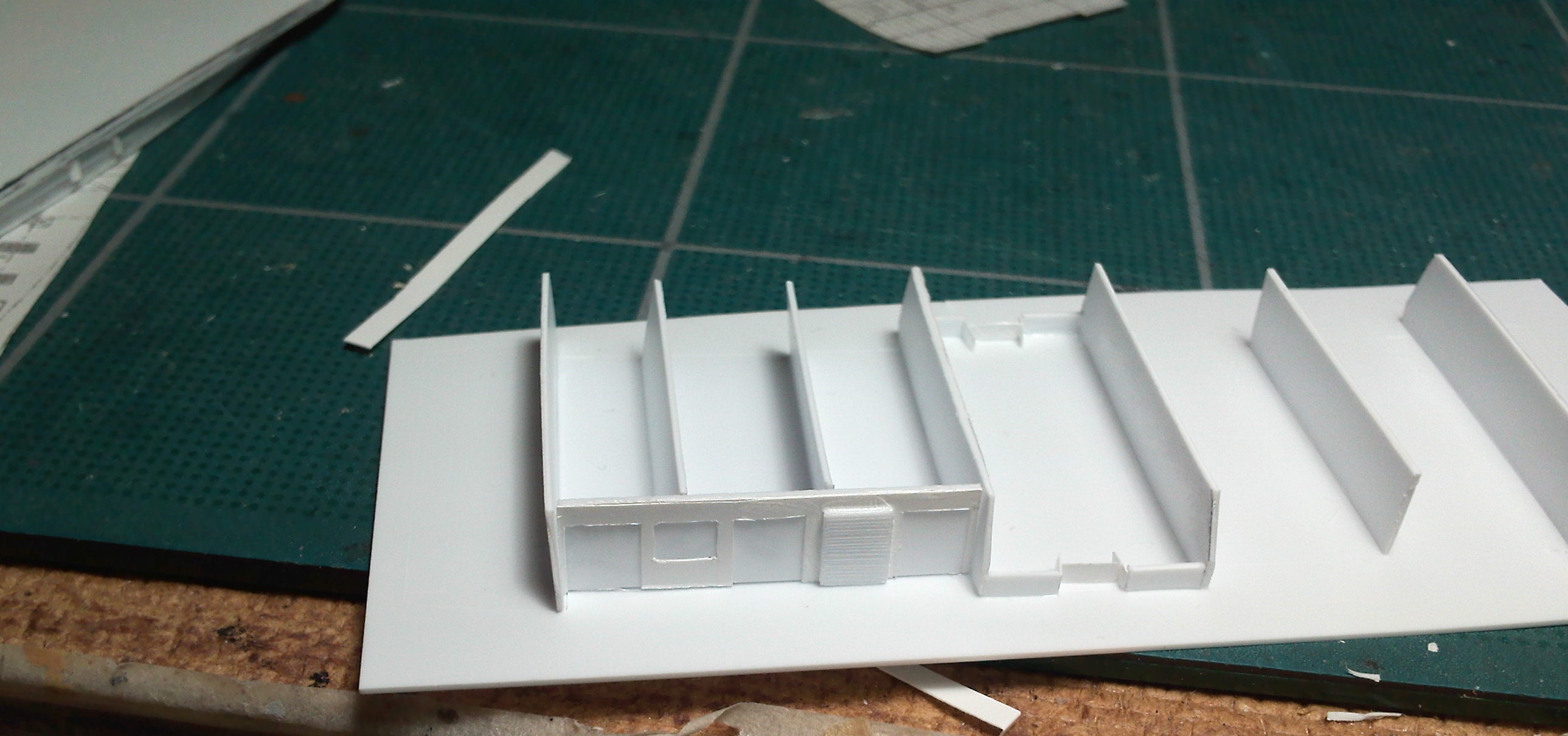

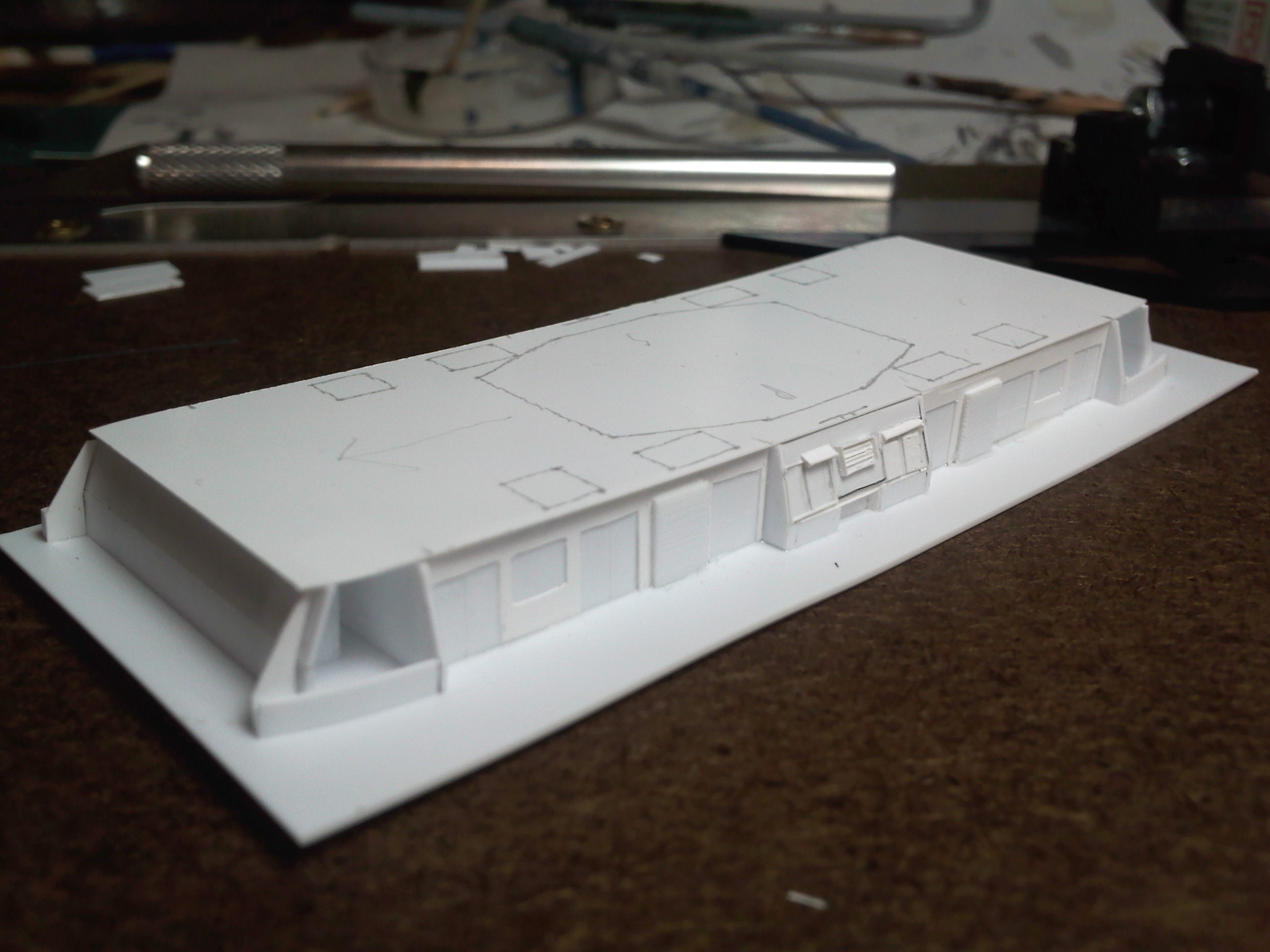

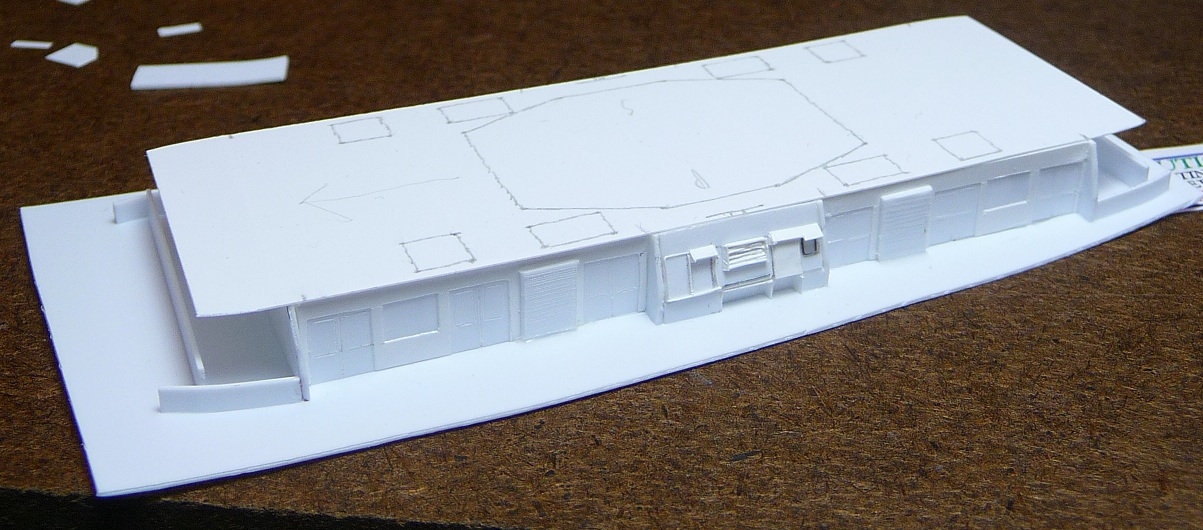

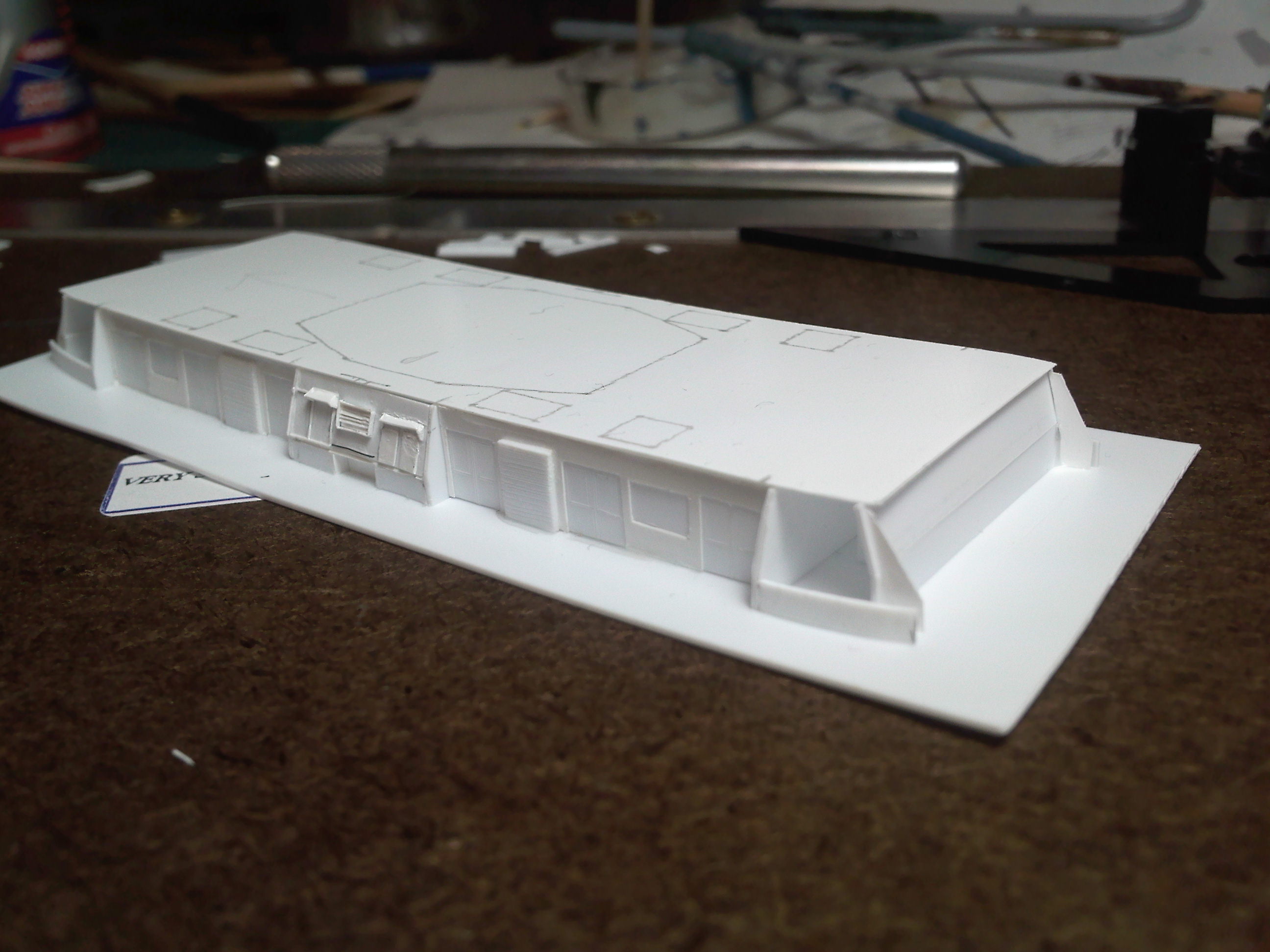

Got the fore/aft bulkheads roughed-in on Tuesday. Trickiest thing was to build the angled bulkheads on the four corners:


Attachments:
IMG015.jpg [ 370.75 KiB | Viewed 3422 times ]
IMG016.jpg [ 389.82 KiB | Viewed 3422 times ]

_________________
De quoi s'agit-il?
Report this post
Top
 Profile
Reply with quote
