Here is a 1/125 scale scratch-built Fletcher class destroyer.

This build was inspired by, but is NOT the classic Lindberg "Blue
Devil Destroyer" kit.


When complete, she'll be built to represent DD-804,
as she appeared in 1945 wearing the dramatic MS 31/11d scheme.

Of the 175 Fletchers built, DD-804 was one of 21 Fletchers built
at Seattle-Tacoma. Often thought to be one of five twin-rudder
Fletchers, Jay Milliken, a former crewman, sent photos conclusively
proving this ship had just one rudder.

Here is DD-804 in the Pacific in late World War Two
wearing MS 31/11d scheme as I intend to build her:

Click on thumbnail to view larger photo



Inspired by, but definitely not, the Lindberg model.
As you know, Lindberg makes a popular, fun, motorized model of the
Fletcher
. It is big and pond-worthy. But it is not a very accurate
representation of a real Fletcher. There are noticeable hull, bridge
and turret shape inaccuracies with the Lindberg kit. Like many other
modelers I like the size and scale of the Lindberg kit but wanted better
accuracy. So I chose to make a new, more accurate model from scratch
using whatever Lindberg kit parts that were reasonably accurate.

1/96 scale plans obtained from Floating Drydock were reduced to 1/125
scale. The plans showed what, if anything, was accurate with the Lindberg
kit and could be used on my model. Aftermarket white-metal 1/125th
scale Bofors and Oerlikons are available from HR Products so I bought
sets of those. They are not yet installed.

First item to build was the hull. A real Fletcher has a very gracefully
shaped hull. A new, properly shaped hull was carved from a solid balsa
block and sanded to shape then fiberglassed for strength. The real ship's
hull plates were made from 1/4-inch thick steel, pretty thin in 1/125 scale.
So the hull plating was replicated by simply painting on thicker layers of
primer for the overlapping strakes.

Click on thumbnail to view larger photo

Scratchbuilt hull next to Lindberg kit hull:

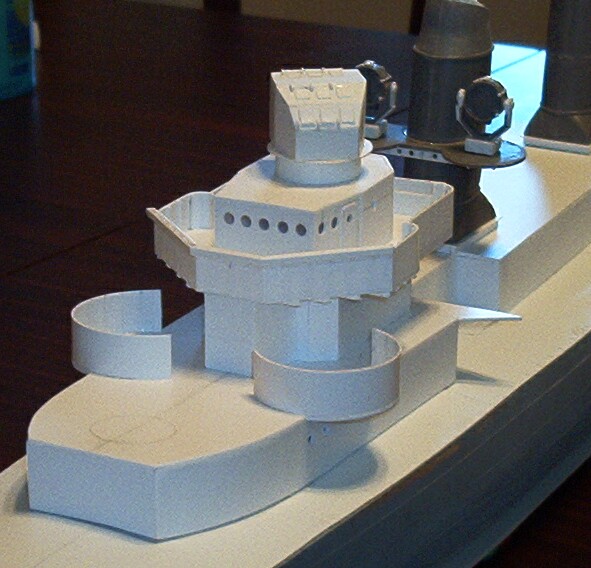

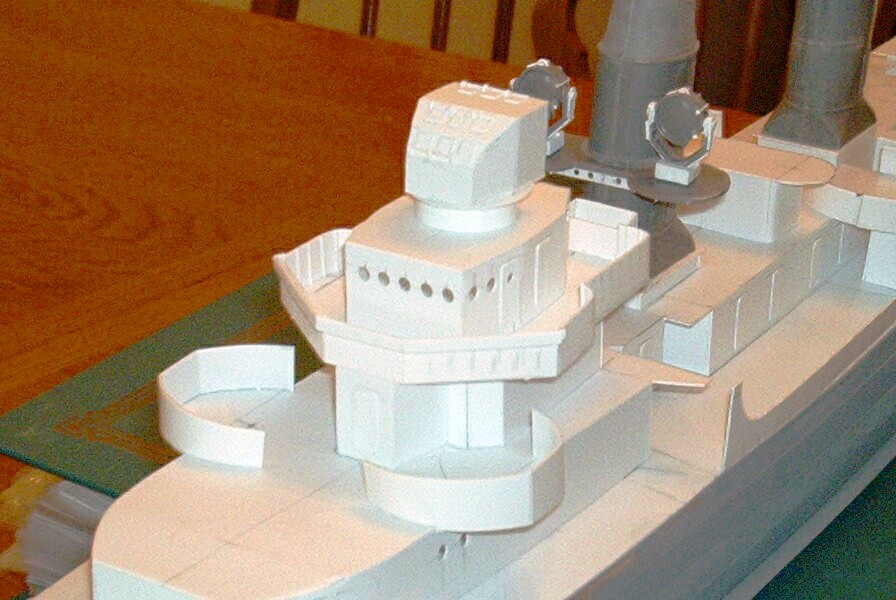

Next items to replace were the deckhouses. The plans indicated that
generally the kit deckhouses were accurate in dimension and layout but
not in detail. For example, the pilot house has four portholes (airports)
on its face but a real "square-bridge Fletcher has five. So I replaced
the deckhouses. Let's begin with the foreward deckhouse and bridge.




More to follow!

_________________
Best wishes to you!
-Steve Larsen

On the ways:
1:350 USS Saratoga CV-3 (1944)
1:350 USS Yorktown CV-10 (1945)
1:125 Fletcher class DD-804
1:192 USS Missouri BB-63 (1945)
1:350 HMS Duke of York (1945)


Last edited by Steve Larsen on Sat Dec 29, 2007 7:30 pm, edited 27 times in total.

Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 15, 2006 4:22 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 3:39 pm
Posts: 858
Location: Newcastle Upon Tyne, England
Great work Steve, how long is she?

John


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 15, 2006 4:45 pm
Offline
User avatar

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 552
Location: North Carolina
She is 36.14 inches (91.8cm) long x 3.81 inches (9.68cm) wide. I like the big size a lot.

_________________
Best wishes to you!
-Steve Larsen

On the ways:
1:350 USS Saratoga CV-3 (1944)
1:350 USS Yorktown CV-10 (1945)
1:125 Fletcher class DD-804
1:192 USS Missouri BB-63 (1945)
1:350 HMS Duke of York (1945)


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 15, 2006 5:25 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 8461
Location: Calgary, AB/Surrey, B.C., Canada
Cool! Couldn't you have saved the old bridge and made a second Fletcher for it?

_________________
Yo dawg, I heard you like PE, so I put some PE in your PE so you can use PE on your PE.


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 15, 2006 5:28 pm
Offline
Waldorf Productions
Waldorf Productions
User avatar

Joined: Mon Jan 10, 2005 11:57 pm
Posts: 541
Location: Jacksonville, Florida
Excellent styrene work!! I am impressed. Another great build on the way! :thumbs_up_1: :eyebrows: :thumbs_up_1:

_________________
Waldorf Productions / Museum Quality Model Warships
Custom Building Services Available


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 15, 2006 7:26 pm
Offline
User avatar

Joined: Sat Jan 22, 2005 10:18 am
Posts: 4101
Location: Liverpool
Hi Steve Good to see you posting more on your superb builds and as Bill says a nice piece of styrene work. :thumbs_up_1:
Dave Wooley


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 15, 2006 8:35 pm
Offline
User avatar

Joined: Tue Nov 01, 2005 8:19 am
Posts: 124
Location: Fort Worth, Texas
Hey Stephen
From one Fletcher builder to another; excellent work, that superstructure looks great! Keep up the good work she's going to be a beauty.

Bruce
USS Stevens DD479


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Jan 16, 2006 10:37 am
Offline

Joined: Tue Mar 29, 2005 10:06 pm
Posts: 38
Location: nearby parallel universe
Steve that thing looks incredible. Right down to the "I" in the little structural I-beams. Truly a work of art!

_________________
Governments consist of groups of people, usually noteably ungoverned.


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 22, 2006 5:48 pm
Offline
User avatar

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 552
Location: North Carolina
Thanks, gentlemen!

If you haven't seen Bruce's USS Stevens, also in the "RC and Scratchbuilding" forum, you are missing a real treat. His styrene work is superb. And check out the hull plating detail.


Work continues...


The Venturi was tricky to make. On real ships, the device deflects wind
and spray from bridge personnel. You can see it on the forward edge of
the bridge splinter shielding. Research indicates real Fletchers' splinter
shielding varied greatly. Photos from "Destroyer History"
http://www.destroyerhistory.org/
were very helpful in determining how they appeared on USS Rooks.

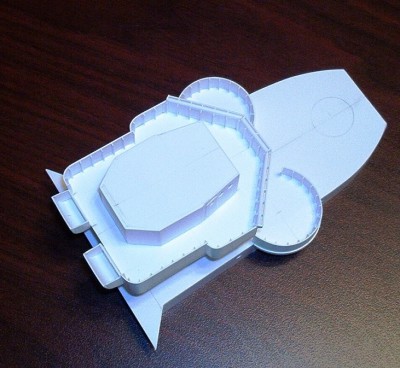

Reinforcing strips have been added to the interior of the forward twin
Bofors tubs:

Click on thumbnail to view larger photo

_____________________________________________________________

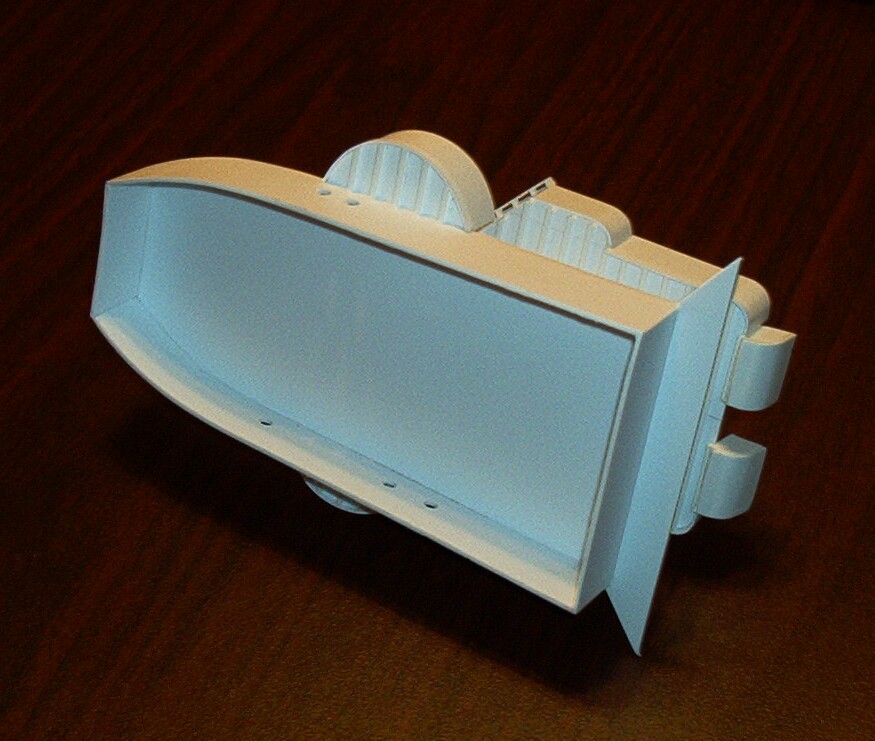

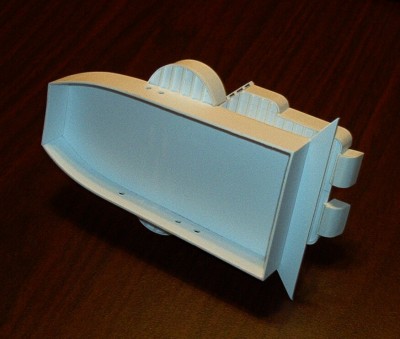

Supporting "I-beam" structural members have been added to the
undersides of the Bofors tubs:

Click on thumbnail to view larger photo


_____________________________________________________________

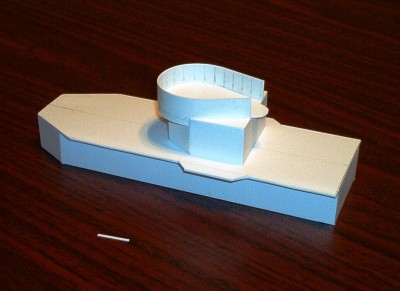

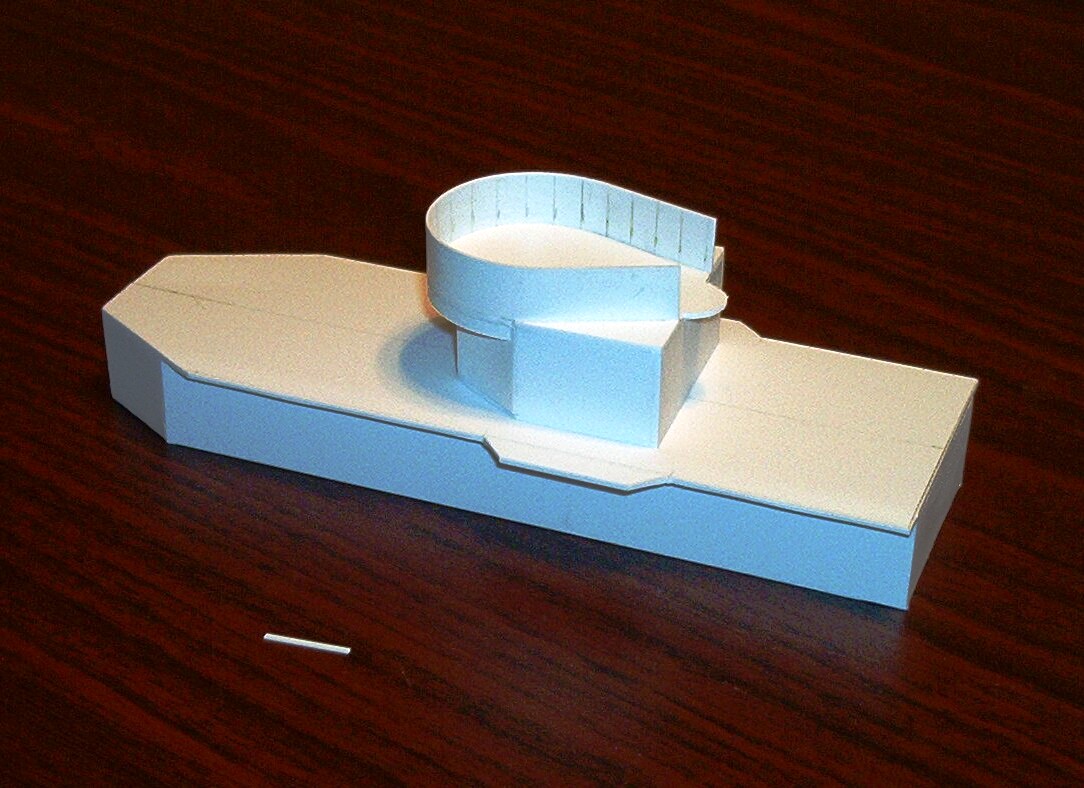

Roughing out the aft deckhouse and aft-most twin Bofors position. The
bulkheads and decks are cut from .040 Evergreen styrene. Stiff .040
sheet is good for structural components resisting any tendency to
warp. The splinter shields are cut from .020 sheet. The corners of the
upper structure are rounded on the real ship at the joint. The model's will
be rounded later. The small styrene piece is one of the splinter shield
reinforcements not yet installed. The locations for the reinforcements are
marked in pencil on the shield before the shield is glued in position. The
open end of the Bofors position will be filled by a cylindrical Mk-51
Director platform.

Click on thumbnail to view larger photo


_________________
Best wishes to you!
-Steve Larsen

On the ways:
1:350 USS Saratoga CV-3 (1944)
1:350 USS Yorktown CV-10 (1945)
1:125 Fletcher class DD-804
1:192 USS Missouri BB-63 (1945)
1:350 HMS Duke of York (1945)


Last edited by Steve Larsen on Fri Apr 27, 2007 7:38 pm, edited 4 times in total.

Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 22, 2006 8:14 pm
Offline

Joined: Tue Mar 29, 2005 10:06 pm
Posts: 38
Location: nearby parallel universe
Steve that's some AWESOMELY clean work. What is the technique for forming those radii? It must be heat and bend? Such smoothe looking rounds!
I still haven't decided if my next large scale model will be a 16th pt-boat or a 96th Fletcher, but this thread has me leaning this way!

_________________
Governments consist of groups of people, usually noteably ungoverned.


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 22, 2006 8:23 pm
Offline
User avatar

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 552
Location: North Carolina
Thanks, Chuck!

To make thin sheet curve I simply pull the sheet across the handle of a small file, the diameter of which is about half that of a standard pencil. Pull it hard and quickly. By drawing it quickly across the handle the sheet curls right up in a pretty uniform curve. I then glue the piece down to marks on the deck. This technique works very well for thin sheet.

For thicker sheet, I place the sheet in very hot water to soften it then press it to the proper shape by hand sometimes using another object as a form.

PT Boats are very cool but Fletcher's rock.

_________________
Best wishes to you!
-Steve Larsen

On the ways:
1:350 USS Saratoga CV-3 (1944)
1:350 USS Yorktown CV-10 (1945)
1:125 Fletcher class DD-804
1:192 USS Missouri BB-63 (1945)
1:350 HMS Duke of York (1945)


Last edited by Steve Larsen on Fri May 05, 2006 6:46 pm, edited 2 times in total.

Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 22, 2006 8:27 pm
Offline
User avatar

Joined: Sat Jan 08, 2005 7:29 pm
Posts: 821
Location: Tempe, Arizona
Steve, loking beautiful so far, keep us updated. I hope my Arizona will turn out that nice once I can start working on it again.

_________________
-Abram


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 22, 2006 8:47 pm
Offline
User avatar

Joined: Tue Nov 01, 2005 8:19 am
Posts: 124
Location: Fort Worth, Texas
Steve, the detail work is coming along very nicely. If you need more pictures of square-bridge Fletchers let me know; I've probably got 70-80 pictures of the USS Kidd that might help you.

Best,
Bruce


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 22, 2006 9:58 pm
Offline
User avatar

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 552
Location: North Carolina
Thanks, Abe and Bruce!

Bruce, if you have any pictures showing any overhead areas or bulkhead details I would appreciate them immensely! I'd like to get the details right. Finding good photos of the overhead areas has been particularly tough!

_________________
Best wishes to you!
-Steve Larsen

On the ways:
1:350 USS Saratoga CV-3 (1944)
1:350 USS Yorktown CV-10 (1945)
1:125 Fletcher class DD-804
1:192 USS Missouri BB-63 (1945)
1:350 HMS Duke of York (1945)


Last edited by Steve Larsen on Fri Feb 10, 2006 11:41 pm, edited 1 time in total.

Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Jan 23, 2006 7:54 am
Offline
User avatar

Joined: Mon Jan 10, 2005 3:39 pm
Posts: 858
Location: Newcastle Upon Tyne, England
Stephen,

Looking good...

Don't know if you've seen them or if they would be of any use to you but Fine Art Models large scale Fletcher models. There are a few pics of their version here: http://www.fineartmodels.com/pages/prod ... uct_id=190

I've been using them a lot for my build of the Tamiya Fletcher (albeit I haven't been that concerned with being accurate for a particular ship).

John


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Jan 23, 2006 8:37 am
Offline

Joined: Tue Mar 29, 2005 10:06 pm
Posts: 38
Location: nearby parallel universe
Beautiful models, only seven thousand dollars eh?

_________________
Governments consist of groups of people, usually noteably ungoverned.


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Jan 23, 2006 9:16 am
Offline
User avatar

Joined: Tue Apr 12, 2005 5:30 am
Posts: 306
Location: Spain
Wow! What a great job on that superstructure. Really clean and crisp! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

_________________
Image I will miss you Werner. Fair winds and following seas.


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Jan 23, 2006 5:12 pm
Offline

Joined: Mon Jun 06, 2005 3:24 pm
Posts: 395
Location: Tamworth, Staffs, Home of No1 Drydock
Nice work there Steve, it's nice to see more builds on the scratchbuilding forum, and for a change, a smaller class of ship. I am not really an American ship fan, but I do like the Fletcher's.
Look forward to more pictures, as you progress. :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

_________________
Presently Building - Aircraft Carrier H.M.S. Victorious 1/96
Under Construction Laid Up - H.M.S. Marlborough 1/96


Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Jan 27, 2006 8:16 pm
Offline
User avatar

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 552
Location: North Carolina
Thanks for all the kind comments and helpful suggestions!!

Slowly but surely...

A little more work done on the aft deckhouse and Bofors platform.
Splinter shield reinforcing ribs and the base of the Mk-51 Director
platform are now installed. An open-topped, circular splinter shield will be
added to the top of the director base later. The penciled circles on the
deck indicate the positions of two of the 5"/38 single mounts.

Click on thumbnail to view larger photo


_________________
Best wishes to you!
-Steve Larsen

On the ways:
1:350 USS Saratoga CV-3 (1944)
1:350 USS Yorktown CV-10 (1945)
1:125 Fletcher class DD-804
1:192 USS Missouri BB-63 (1945)
1:350 HMS Duke of York (1945)


Last edited by Steve Larsen on Fri Apr 27, 2007 7:39 pm, edited 4 times in total.

Report this post
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Jan 27, 2006 9:12 pm
Offline
User avatar

Joined: Tue Nov 01, 2005 8:19 am
Posts: 124
Location: Fort Worth, Texas
She's looking good Steve; keep up the good work.

Bruce


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 150 posts ]  Go to page 1, 2, 3, 4, 5 ... 8  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: Dave Rowe, Google [Bot], londonlogik, mick and 25 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
Powered by phpBB® Forum Software © phpBB Group
