When I was doing research on the Russian G-5 torpedo boat I stumbled on the BK-1124 tank boat .Having built WWII armor ,I found this interisting .It will be a scratch build except I will cheat and use two T-34 turetts from the Tamiya kit .I am building this boat for the model contest my club will be having in Nov.

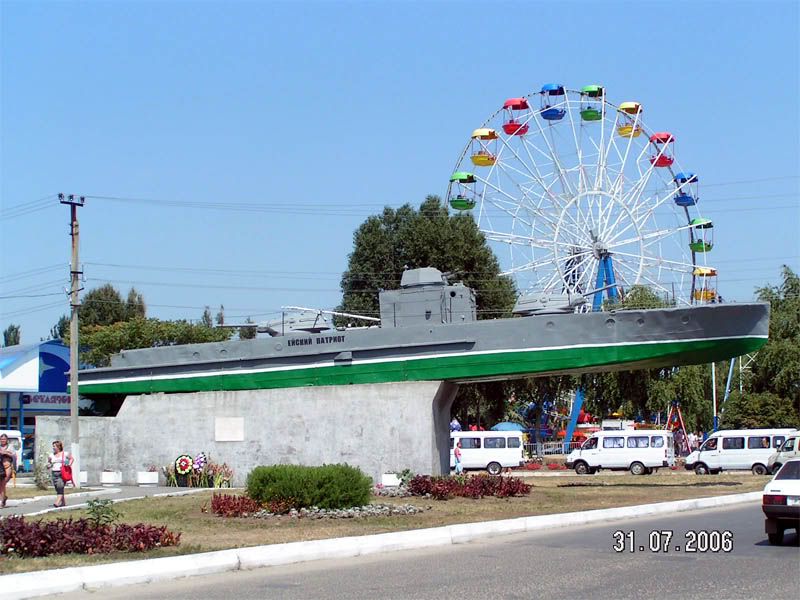

This is the Yeysky Patriot an 1124 built by Rechnik Kubani with funds raised by the people of Yeysky Russia .It fought at Izmail and finished in Vien .They were 25.3M long .

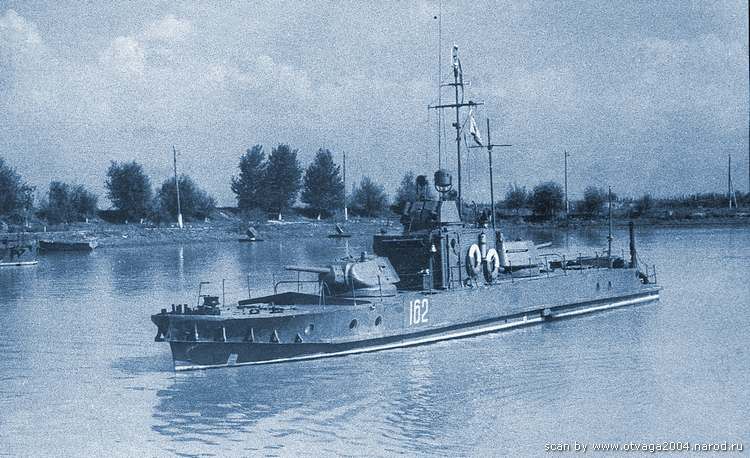

Here are a couple of photo's of them in use .

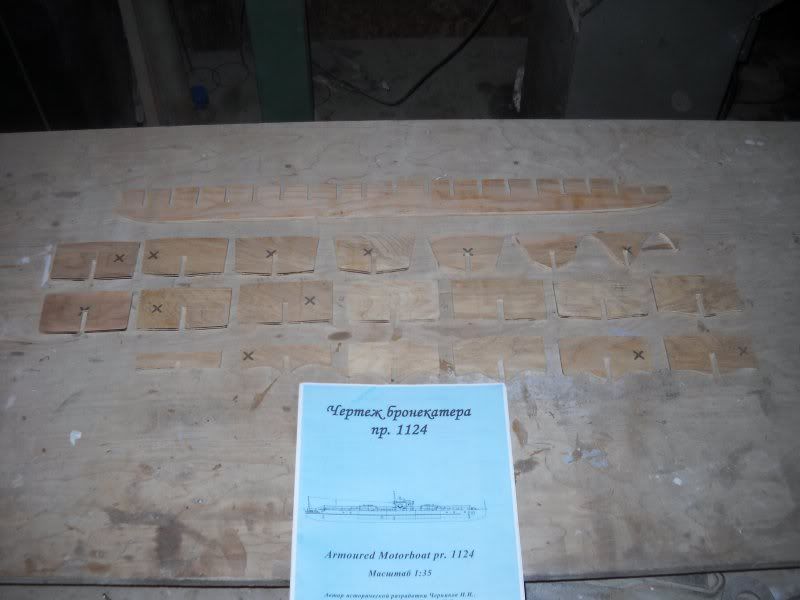

The keel and bulkheads cut from 1/4 inch ply .

_________________
If you are not living on the edge then you are taking up to much space

Very unusual project . This type of craft is described in great detail in Jurg Meister's book Soviet Warships of the Second World War. Looking forward to more of your build.
Dave Wooley

Thanks Dave
I will try and get that book

_________________
If you are not living on the edge then you are taking up to much space

I built a very stand off scale version 15 years ago I'm looking forward to seeing more as the build progresses.

_________________
On the Slips:
1/144th Stand-off scale:
IJN Nisshin
HMAS Albatross

Keels laid: IJN Tone

Frames laid 1/25: DDR KleineSchnellBoot

http://www.edinburghmodelboatclub.org.uk
https://www.facebook.com/pages/Edinburg ... 2565540179

I saw your 1124 on Steve Neal's 1125 build .Do you still have it ?

_________________
If you are not living on the edge then you are taking up to much space

Looking forward to this build... I seem to recall someone else doing one a few years ago, and I fell in love with the ship. I'd like to build my own one day.

_________________
It's not who you are, but what you do that defines you.

Hi Kenny

Steve Neal made a 1125 a while back .1125's have one turret ,one prop and one rudder .The 1124's have two turrets,two props and two rudders .These boats could carry T-35A,T-28 ,6T-7A turrets also .The T-34 turrets could be the cast or welded types and some carried rocket launchers .




I am making a mould so I will have these hulls available latter .

_________________
If you are not living on the edge then you are taking up to much space

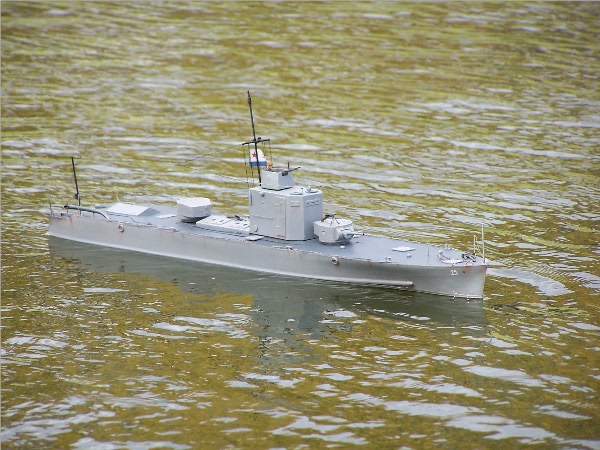

Yep,, she gets the occassional outing still.
My 1125 has a Tamiya T32 turret and the 1124 has 2 x T28s robbed from Zvezda tanks bought in St Petersburg in 1995!

_________________
On the Slips:
1/144th Stand-off scale:
IJN Nisshin
HMAS Albatross

Keels laid: IJN Tone

Frames laid 1/25: DDR KleineSchnellBoot

http://www.edinburghmodelboatclub.org.uk
https://www.facebook.com/pages/Edinburg ... 2565540179

I have been thinking about using AFV Club's T-34 kit because they have complete interiors .I could have the hatch or hatches open to show the turret interior but the kits are twice the price of the old Tamiya kits .The 1941 version has one large hatch which would show more of the turret detail but the Yeysky Patriot had the late 1942 turretts with the two round hatches ( Mickie Mouse Ears ) .

_________________
If you are not living on the edge then you are taking up to much space

Hi All

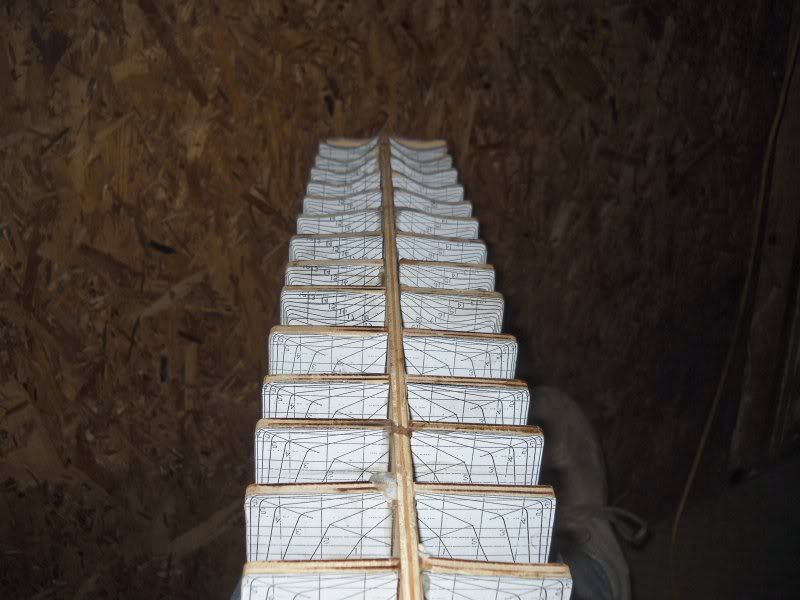

All framed up .





I stole this from Bill Waldorf. He puts a styrne strip on the bow to keep it straight while forming .I figured alum would work even better .

_________________
If you are not living on the edge then you are taking up to much space

veryintresting build richard,she must have been a very sturdy craft ,judging by the size of the guns on her

Hi Russ
I guess they were but I dont think they could take a hit .I have a photo of one that got in a shoot out with a German Elephant tank and guess who won ?

_________________
If you are not living on the edge then you are taking up to much space

Yeah, but the Axis forces on the Danube and Dneipr had nothing to touch them, as long as the stayed out of range of the tanks


BTW I put a strip of brass into the stem of all my ships, it helps to keep the shape right during the build and adds damage resistance when my steering capability fails me!

_________________
On the Slips:
1/144th Stand-off scale:
IJN Nisshin
HMAS Albatross

Keels laid: IJN Tone

Frames laid 1/25: DDR KleineSchnellBoot

http://www.edinburghmodelboatclub.org.uk
https://www.facebook.com/pages/Edinburg ... 2565540179

I will try and find the photo because the boat realy was the winner The round went right through both sides without exploding so all they did was beach it .Knowing the Russians they had it operational the next day .

_________________
If you are not living on the edge then you are taking up to much space

Hi All

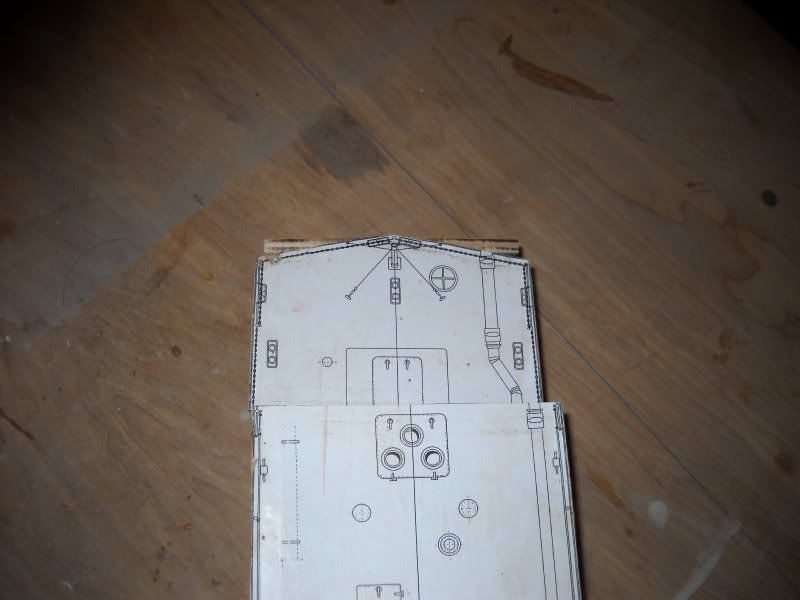

The deck template glued in place .



The stern was canted but the frames are straight so the area between the frame and the deck template was filled in with basswood then sanded to the deck template with a 12in disc sander .

_________________
If you are not living on the edge then you are taking up to much space

Styrafoam was used to fill in the space between bulkheads .



The styrafoam had to be lowerd because the resin will eat it .

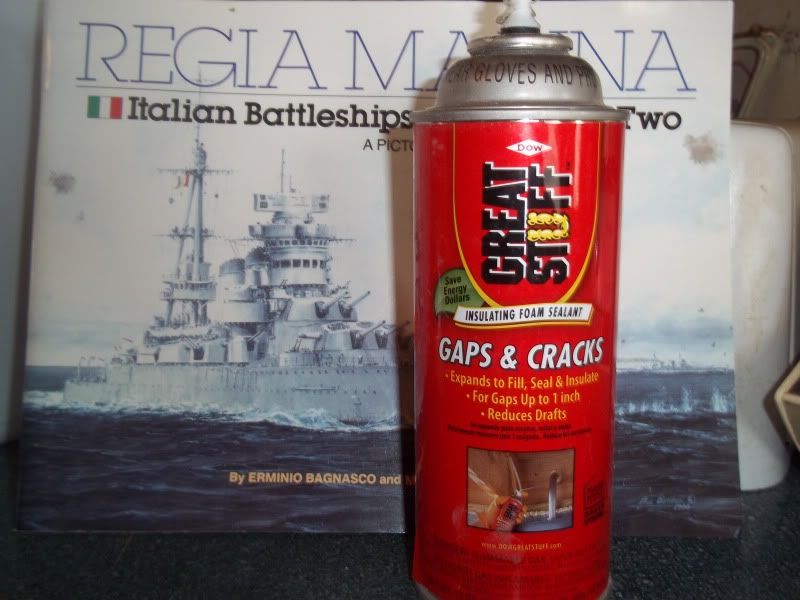

The styrafoam was held in place with spray foam insulation .





This is were I discovered that the resin would not eat the spray foam .

_________________
If you are not living on the edge then you are taking up to much space

Hi All

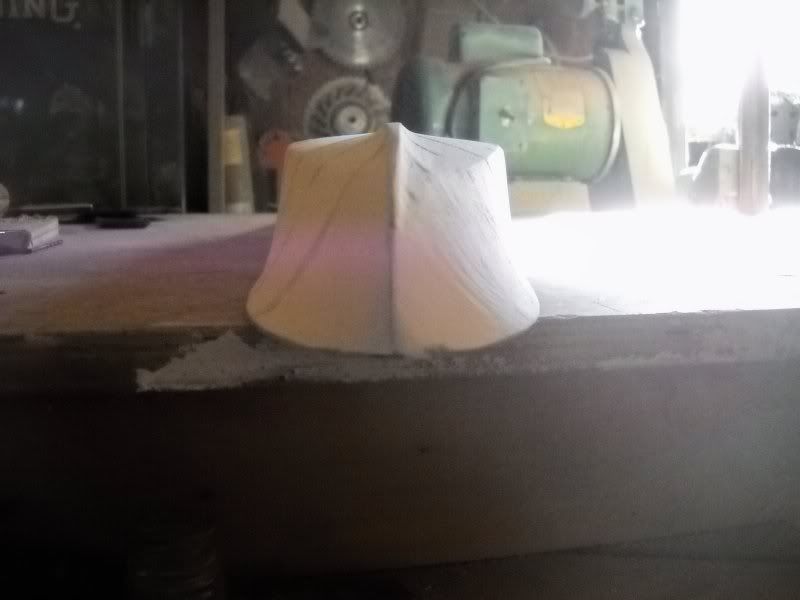

Next the hull was covered with dry wall plaster to protect the styrafoam .



The body lines on these plans are to the inside of the plating ( moulded ) so the bulkheads were not reduced to make up for the layers of glass .You can see that the deck template sticks out past the bulkheads ,perfect for glass and plating .



Tommorow I will take a break from the hull and try to turn the 12.7mm machine gun barrels.



This should be fun .At least they did not have the front sight but the flash supresser will be a challenge .

_________________
If you are not living on the edge then you are taking up to much space

Hi All
Dusted on my Compact 5 lath .I haven't used it in years since I got my full size on .

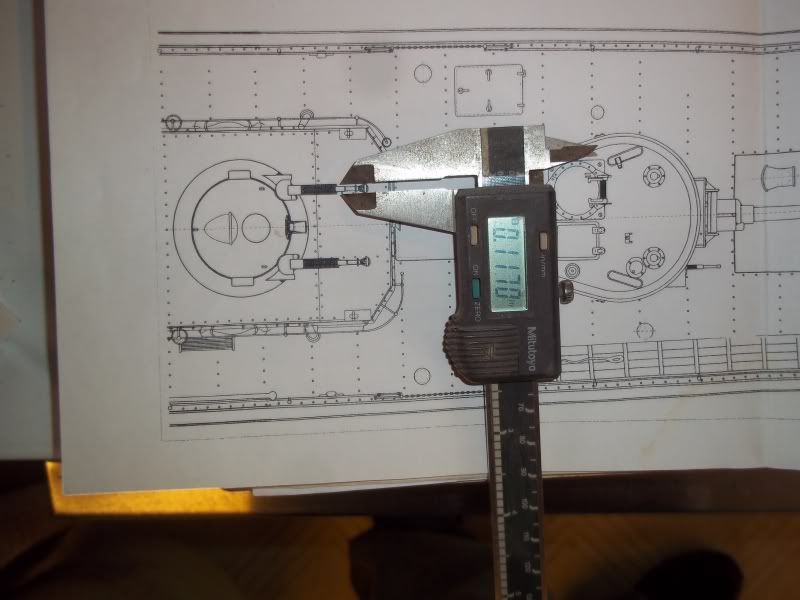

I don't have a diagram of the 12.7mg barrel so I had to measure off the plans .



Used a OO center drill .



The brass rod is .156 so it had to be turned down to .117 which is the largest dia.of the barrel.



This is when I ran into problems . The motor started to get hot and slow down so I had to shut it down .Now I will have to take it off and get it fixed so its back to the hull .

_________________
If you are not living on the edge then you are taking up to much space

How about this -
http://www.modelhobbies.co.uk/shop/zvez ... 21194.html

Thank you Niall This will save me alot of work .
