Hello all.
This is my current project with my twin brother. This is going to be one of our first completed models, maybe after the AFV I-58 submarine that should be completed first.
Detail up sets consisted of:
- Eduard photo-etch set
- Aber 38 cm, 15 cm and 10.5 cm metal barrels.
- Pontos wooden deck.
The camo is not yet painted.
Here are some pictures of the progress. Note: this is one of our first formal models with PE, so there are some errors to be fixed by some more experiences. Plus we have not much knowledge of tools that would ease up the build.
Enjoy!
One of the most work so far was removing the details inside two lifeboats

Nice day to you all!!,
Aop.

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Last edited by Aop Aur on Tue Dec 22, 2015 4:45 am, edited 2 times in total.

Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 02, 2015 7:26 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
And our working table

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Last edited by Aop Aur on Mon Dec 28, 2015 11:11 am, edited 1 time in total.

Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 18, 2015 4:10 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
Hi all.
I am going to make a diorama for my build, depicting her in the camouflage scheme 'as sunk', November 1944:
http://www.bismarck-class.dk/tirpitz/pa ... rt_big.gif
http://www.bismarck-class.dk/tirpitz/pa ... rd_big.gif
http://www.bismarck-class.dk/tirpitz/pa ... ve_big.gif
I am going to need some good, detailed photos of her including some of the surroundings, such as the mountains and torpedo nets, etc. So if any of you have some references for this, please post it here.

Thanks!
P.S I am trying to reproduce this, using Chris Flodberg's water techniques:

Aop and Aur.

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Last edited by Aop Aur on Mon Dec 28, 2015 11:11 am, edited 1 time in total.

Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 18, 2015 5:27 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
BTW, can anyone identify me which colours were used in the camouflage. And also which Tamiya colours I should be using. The colours of the camouflage spots on the deck are unknown to me, so please help!

Aop.

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 23, 2015 11:16 am
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 3950
Location: USA
Aop Aur wrote:
BTW, can anyone identify me which colours were used in the camouflage. And also which Tamiya colours I should be using. The colours of the camouflage spots on the deck are unknown to me, so please help!

Aop.

Nice work!

Great info for Tirpitz and Bismarck here:
http://kbismarck.com/

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 23, 2015 3:29 pm
Offline
User avatar

Joined: Mon Sep 24, 2012 10:35 am
Posts: 184
Location: Birmingham AL
I deleted my post, that already had the link above, John Asmussen(sp?) drawing.


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 25, 2015 10:34 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
Hi to all and merry christmas!!
Thank you for the web Steve & MarOnca.
Here are some more progress!

My brother and I figured out ourselves the Tamiya paints for the hull.

We started with the anti fouling red, brushing along the waterline using different tones of brownish red and red. The black waterline is also painted.
Then masked the hull and sprayed the upper hull with Tamiya Light Grey Surface Primer. Here's dry fitting.
We sprayed down TS-48 (Gunship Grey) as a base colour. Then finished with XF-24 using airbrush.
The Tamiya weathering set B is also used.

Not entirely done though!
Cheers!!
Aop.

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 25, 2015 7:07 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 3950
Location: USA
:thumbs_up_1:

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 27, 2015 7:35 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
Attachment:
2015-12-27 19.33.31.png
2015-12-27 19.33.31.png [ 169.15 KiB | Viewed 14287 times ]
Thanks Steve!

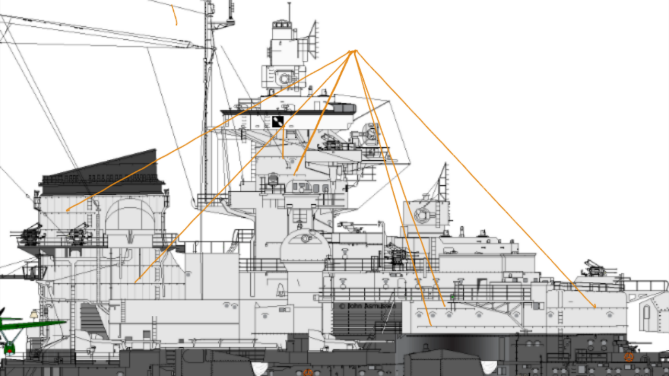

I just took a look over the side plans; I wanted to make this build as accurate as I can. I found that there are degaussing cables (not sure it's the degaussing cable:)) on the upper section of the funnel and some parts of the superstructure. Tamiya made them only as horizontal lines. If anyone has advice on the PE product suitable for making these that'd be great! I noticed Eduard did that for the Trumpeter 1/200 Bismarck. The Pontos must have done it as well. I searched and found only the Hood's and IJN degaussing cables?; no germans...

Thanks!
Aop.

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Last edited by Aop Aur on Fri Jan 08, 2016 12:16 am, edited 2 times in total.

Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 28, 2015 11:05 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
---UPDATE---
Here I tried my best to add as much possible details as I can on the rangefinder, using some photos preview of the Trumpeter's 1/200 review parts on the www.model-making.eu

I use the pencil charcoal tip to create the little pointing detail (don't know how to interpret:). The strips are made of PE railing from Pontos (was damaged) and the hatches are from Eduard piece no.1
I Hope that has paid off for over an hour of working!!

Here comparing to another rangefinder that has no details added.
Sprayed with Tamiya light grey primer. I may recall that the PE strips are a bit oversize, but I tried masking tape, plasticard, and hair; those didn't work as good as the PE:)

Hope this build would come out nicely like others!

Aop.

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 28, 2015 1:09 pm
Offline
User avatar

Joined: Mon Sep 24, 2012 10:35 am
Posts: 184
Location: Birmingham AL
this looks really nice, kinda love the Tirpitz.

I completed Heller's 1/400 Tirpitz about a year ago, using Tom's Modelworks PE, which really spruced it up, but the
kit was nowhere near as nice as this Tamiya. Had a real PAIN getting the deck only attached, even bought feeler gauges, for car points, to help guide it in but still ended up ALMOST throwing it against a wall. I had gotten the kit at a LHS in Florida in 1996, done most of the upper sub-structures, guns, and boats, then they sat in a container for about 15 years, of course had to re-spray everything. Had done the deck up nicely, but the drag with that kit was the dividing area between 'planks' was ridged UP, which defeated the idea of doing a wash that would fill in between planks to slightly different shade/color. As it was, I had to do so much deck touch-up, using three different shades of "brown", (sand, wood, light tan, and one artist-oils Sienna), that it still worked out OK. I was pleased, deck-wise.

it kinda got ruined with my attempts at rigging, using line probably too thick. Yet to get good pictures of it, though,
that a whole project itself, (right back-drop, cut foam, I have two completed Schellboote, also from Heller, to place alongside a to-water gangway, four gangways came with the PE).

other things to do. I hated it(sorta) when I got done, but then also want/ed to do a 1/200 Tirpitz. Go figure. :big_grin:

it is 25 inches long, and aside from a 25-inch long SR-71A above my stereo, is the largest model I have done. Certainly the most complex. Had a 25-30 inch long Tirpitz profile, printed on joined regular printer paper, taped together, above the door, inside, of my hobby room, probably still there.


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 07, 2016 11:35 am
Offline
User avatar

Joined: Thu Dec 10, 2015 10:36 pm
Posts: 140
Location: Bangkok, Thailand
MarOnca wrote:
this looks really nice, kinda love the Tirpitz.

I completed Heller's 1/400 Tirpitz about a year ago, using Tom's Modelworks PE, which really spruced it up, but the
kit was nowhere near as nice as this Tamiya. Had a real PAIN getting the deck only attached, even bought feeler gauges, for car points, to help guide it in but still ended up ALMOST throwing it against a wall. I had gotten the kit at a LHS in Florida in 1996, done most of the upper sub-structures, guns, and boats, then they sat in a container for about 15 years, of course had to re-spray everything. Had done the deck up nicely, but the drag with that kit was the dividing area between 'planks' was ridged UP, which defeated the idea of doing a wash that would fill in between planks to slightly different shade/color. As it was, I had to do so much deck touch-up, using three different shades of "brown", (sand, wood, light tan, and one artist-oils Sienna), that it still worked out OK. I was pleased, deck-wise.

it kinda got ruined with my attempts at rigging, using line probably too thick. Yet to get good pictures of it, though,
that a whole project itself, (right back-drop, cut foam, I have two completed Schellboote, also from Heller, to place alongside a to-water gangway, four gangways came with the PE).

other things to do. I hated it(sorta) when I got done, but then also want/ed to do a 1/200 Tirpitz. Go figure. :big_grin:

it is 25 inches long, and aside from a 25-inch long SR-71A above my stereo, is the largest model I have done. Certainly the most complex. Had a 25-30 inch long Tirpitz profile, printed on joined regular printer paper, taped together, above the door, inside, of my hobby room, probably still there.


Hello MarOnca,

I think that the Tamiya's Tirpitz is a very nice kit, although it was released long ago. I don't know anything about Revell's version, but that might be another nice kit as well, together with Pontos set in the future.
We started too many ships at the same time, and are having quite a hard time finishing one; only a 1/350 AFV club I-58 submarine (at completion version) managed to sail out of the stash. :big_grin: :joker:

Regarding your Heller's Tirpitz, that seemed to be a valuable experience for a modeler. Not long ago we bought a 1/800 Bismarck by Academy, and decided to build her just for fun; it was a good decision. The kit was designed to be motorized, so not to mention the underwater hull accuracy at such scale....and the superstructure and turrets were nothing near Tamiya's, or even Heller's. I painted her a camouflage I made up myself. Not too bad, I hope.

So to mention your 1/200 Tirpitz, is that the Trumpeter Bismarck to be converted? Using Pontos's Bismarck set would be nice, only that the price is rather high. I always dream of having large model kits in my stash. My biggest one right now is a 1/350 Tamiya USS Enterprise. She is waiting her turn to be built, but for how long I wouldn't know. :huh:

BTW, you can post your Heller's Tirpitz here too, if you like. I will definitely want to see it. Sounded like she got lots of improvements.

Have a nice time modeling!

Aop & Aur

_________________
On the way:
1/350 Tamiya DKM Tirpitz Nov 1944

1/350 scratch-build HMS Lion never built battleship (1938)

Completed build:
1/350 AFV Club Japanese Submarine I-58

And our artworks!


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 07, 2016 11:31 pm
Offline
User avatar

Joined: Sat Jan 08, 2005 7:29 pm
Posts: 1284
Location: Tempe, Arizona
Aop Aur wrote:
Thanks Steve!
I just took a look over the side plans; I wanted to make this build as accurate as I can. I found that there are degaussing cables (not sure it's the degaussing cable:)) on the upper section of the funnel and some parts of the superstructure. Tamiya only do strips. If anyone has advice on the PE product suitable for making these that'd be great! I noticed Eduard did that for the Trumpeter 1/200 Bismarck. The Pontos must have done it as well. I searched and found only the Hood's and IJN degaussing cables?; no germans...

Thanks!
Aop.


As far as I know those are actually small foot rails, not part of a degaussing apparatus.

_________________
-Abram


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jan 08, 2016 2:58 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
Yes, that is correct. I had nothing in mind of that thing except the degaussing cables at the time, so... :big_grin:
I was looking for DKM hand rails on Ebay, but, instead, I found a cheap 1/350 Ship Vessel Detail Update handrails for general use, so I won the bidding (maybe because it's a product that is not so necessary for most builds that already have considerably good upgrade sets, so no one was interested except me) At $4.99 it is quite cheap!
:cool_1:

Judging from the photos of the displayed products and my previously bought 1/350 Uss New Jersey upgrade set, the brand is of considerably nice quality, as long as it is cheap....

Aop.

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Jan 19, 2016 12:51 pm
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
---UPDATE---
THE FUNNEL
As many knows, Tamiya's 1/350 Bismarck and Tirpitz kits were released long ago, and many details are incorrect. We tried our best on improving the kit's funnel. The main deficiency of this funnel is the trunked portion. the 1/350 Revell and 1/200 Trumpeter have square trunk at front, while Tamiya and Academy (a copy kit of the Tamiya) have it rounded; wrong. I am not very good at rebuilding things, plus correcting errors would be endless as for this kit.

According to this image, there are strips running vertically on most part of Bismarck's funnel, and I assume the Tirpitz had them as well (edit: now I know I guessed it wrong; Tirpitz did not have those, according to some photos, and Revell's kit):

So, our method of replicating this is using Tamiya masking tape; cut the tape into 1.7 mm wide strips (this was measured according to the Bismarckclass.dk Tirpitz plan scaled by eyes and a ruler, due to insufficient info, so not very exact.) Then, place them individually on the funnel, spacing them a distance roughly 1/3 mm so that when sprayed with primer, the strips' width would the same of those you spaced the tape.
More added. Note: the strips running down the trunk at front is not exactly correct, resulted from the funnel's incorrect shape and insufficient info.
Then sprayed the Tamiya primer on. I tried not to spray too many layers. That would create too thick strips, which is oversized comparing to the 3D photo above.
Just bought a new little USB fan, so it helped us dried the primer. :big_grin:
Then after about ten minutes, we started removing the tape. Was very excited the method would work or not, but what a relieve to see a rather nice 3D strip popped up when the first piece of tape strip was removed! :frown_2: :big_grin:
Here are final pics of the funnel with all masking tape removed. I also sanded it down a little, so now I know I sprayed a weeny bit too thick.

Hope this looks okay to you all too. It is our first attempt in using this method to create this kind of thing, the first project with serious (hope so) detailing, as well as one of the first model to be completed!

Cheers!
Aop & Aur

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Last edited by Aop Aur on Sun Mar 20, 2016 2:59 am, edited 5 times in total.

Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Jan 19, 2016 5:39 pm
Offline
User avatar

Joined: Fri Aug 29, 2008 6:17 am
Posts: 396
Location: Lerici
a smart idea for replicating the funnel structural ribs...really nice executed, too.

love it! :thumbs_up_1:

_________________
On the bench: evolution of Royal Italian Navy Ironclads-1/700

-Regia Nave Formidabile


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Jan 19, 2016 8:36 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 3950
Location: USA
Beautifully done!

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Jan 20, 2016 12:29 am
Offline
User avatar

Joined: Thu Dec 10, 2015 10:36 pm
Posts: 140
Location: Bangkok, Thailand
Stefano Salesi wrote:
a smart idea for replicating the funnel structural ribs...really nice executed, too. love it! :thumbs_up_1:

Thanks for the compliments, we really appreciate them. Although it is not historically exact, we are quite pleased with the result, and glad you like it!

ModelMonkey wrote:
Beautifully done!

Thanks, Steve.
Glad you follow our thread!


Aop & Aur

_________________
On the way:
1/350 Tamiya DKM Tirpitz Nov 1944

1/350 scratch-build HMS Lion never built battleship (1938)

Completed build:
1/350 AFV Club Japanese Submarine I-58

And our artworks!


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jan 22, 2016 11:21 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
The Ship Vessel Detail Update handrails for general use just arrived today! :big_grin:
Next, the Gator glue! Can't do PE works at all right now! :heh:

Regards,
Aop.

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Feb 20, 2016 1:01 am
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 972
Location: Bangkok, Thailand
Hello all :wave_1: ,

It has been quite sometime we did no update at all, mostly because we were (and are still) very busy practicing the piano to attend the Jacobs School of Music in Bloomington, Indiana. Back in early December 2015, we were practicing hard for the prescreening round, and since we passed it, we have to continue practicing for our audition in early March 2016.
Despite all the busy things we got involved in, we did manage to make a little progress on the Tirpitz...
We also took with us most of the parts we could take to Bloomington, hoping to work on the build here(!!?!?) Many security guards at the airports asked us "What is in that box (all tirpitz' parts/PE fret in it) and that big tube (Lion's incomplete frames)?", or "Ship models? Cool, I like them!!". :big_grin: We made very little progress here, only a couple lines of handrails and other small PE parts, and due to the cold weather, the glue worked terribly.

We kept in touch with Maarten, and he adviced us many things on the Lion and Tirpitz builds, and together we found out that Tirpitz did not actually have the vertical flat strips running down the funnel, according to Revell's kits, which clearly distinguished the two ship's details. And unless someone can dig up a very clear photograph of the ship's funnel, we can only assume it is another difference of the two ships. The more we look, the more we find.
Still, we considered leaving them there, cause we put much effort into them. Thinking optimistically, there is nothing bad, and the funnel got some extra details, at least!

So, here are the photos of the progress we made. They were taken some days ago when the weather was still cold. We met some lovely snow here, and also the first frozen streams in our lives!
Enjoy!

Here the secondary turret's bolts were made of little dots of Scotch glue, using a pin.
Here is Aur's drawing of the Tirpitz he made while waiting for piano lessons.

Cheers!
:woo_hoo: :woo_hoo: :thumbs_up_1: :thumbs_up_1: :big_grin:

Aop & Aur

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 53 posts ]  Go to page 1, 2, 3  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: Bing [Bot] and 18 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
