Aye - but shh! It was stolen from a maths' site.

...That said, it gets the point across.

I really like the scans Jim put in - it's construction details like that which get my fingers wandering off to the bits-and-pieces box. Ummm...Not that my Dreadnought is going to be sprouting a cage mast any time soon!

Andy

Dear Colleagues,
Thank you for your comments; I am glad that you liked the masts... The 5-in AA guns are from the "weapons and equipment" sprues that are now included into some 1:700 Revell ship kits... Kind regards - Alex

Hi guys

My web-chum Wolfgang Kring from Germany is building a number of US Pre-dreadnoughts --mainly in 1/350.

He has allowed me to post a couple of pictures of his work.

I include below the text pertaining to the images.
Note the presence of the platforms and the internal ladders....!!

-over to Wolfgang:
-----------------------------------------------------------------------------

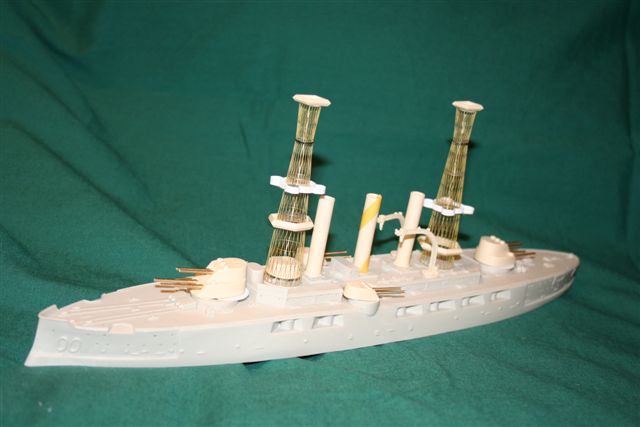

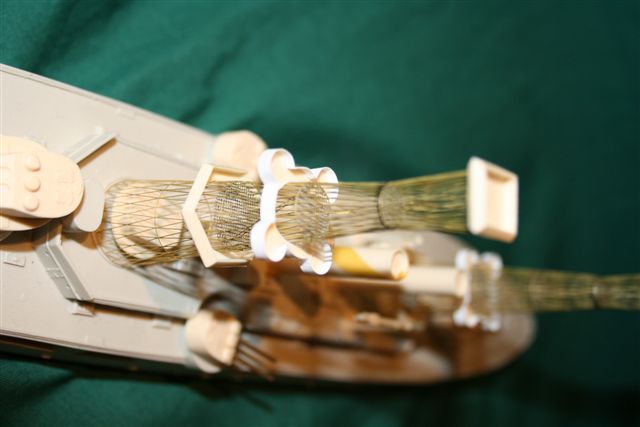

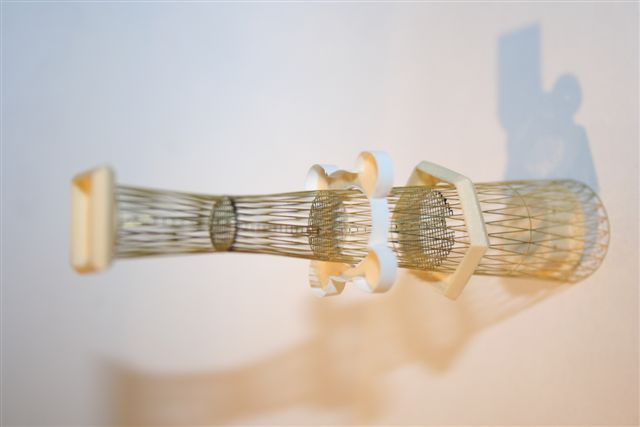

>>This ISW cagemast is modified.
I used the original ISW mast and added one
more segment upside down. The pictures I have of " USS Nebraska" during
1918 show very thin and long cagemasts; they seem to be nearly double as
tall as her stacks. ...and the standard ISW PE-cagemasts were to short, so I
think it was the best idea to extend them like I did (...by the way: this was my only idea...!!

And now it looks like more than a hourglass shape than before.

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

What a simple, yet brilliant idea! My only comment would be the cage masts look a little too tall.

BTW - I'm moving this thread to the Tips forum, I think it's worth keeping around.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

At some point in time i want to do an early USS.Arizona and thinking about the cage mast, couldn't seem to find what i wanted, i mess a round in 3d modelling now an then i would have thought that would have been the way to go, unless the thickness of the struts [ can we call them that?] is too thin to produce, I know Shapeway's can only do a certain thickness otherwise the printer can't print it.

3D-printed cagemasts have become available since this thread was made - Blue Ridge makes several versions: https://freetimehobbies.com/search/sear ... =cage+mast

_________________
De quoi s'agit-il?

Unfortunately, the 1/350 cage masts are OOP and superbly fragile.

_________________
- Chris

1/700 Saratoga w/Pontos (Needs paint)
1/700 Potato w/Kurama (On hold)
1/700 Murdertorpedoboat Ooi

You could build in the Only True Scale off course -:) And while not OOP I found my 3D printed '700 cage masts rather fragile as well and i am considering going 'back' to old method for a stalled 1/700 project. I have seen some very nice cage masts in 1/350 using the 'traditional' method, why don't you try doing one?
