PostPosted: Sat Nov 01, 2014 9:46 am
Offline

Joined: Thu May 30, 2013 1:50 pm
Posts: 1980
Does anyone have any suggestions for modelling rolled up (stowed) anti-torpedo nets in 1/700? I thought of suitably sized thread or string, but they just don't have a netting texture. I will take a look at nylon stockings, but I think the mesh might be a little coarse. :wave_1:


Top
 Profile
Reply with quote
PostPosted: Sat Nov 01, 2014 1:57 pm
Offline
User avatar

Joined: Thu Jan 20, 2005 8:02 am
Posts: 312
Location: Waiting for HMS Glatton in resin. Not holding my breath!!
Take a pair of black nylon tights, the very cheapest quality you can find; you don't want expensive ones with lycra. Stretch them over a frame of some kind, such as a open box. Paint well diluted white glue over the fabric. You don't want it touching anything, that's another reason for the frame. When dry the painted section will be semi-rigid. Cut a strip about 5mm wide and as long as you need. Despite the semi-rigidity imparted by the glue, it will still roll up into a thin sausage, just right for a rolled net. It won't look nearly as heavy or solid as the piece of shoelace or thread-type elastic that Jim Baumann tends to use.

Kind regards,

David Griffith

_________________
"For scientific leadership, give me Scott. For swift and efficient travel give me Amundsen. But when you are in a hopeless situation, when you are seeing no way out, get down on your knees and pray for Shackleton."


Top
 Profile
Reply with quote
PostPosted: Sun Nov 02, 2014 10:30 am
Offline

Joined: Thu May 30, 2013 1:50 pm
Posts: 1980
Basically what I tried yesterday, but I didn't stretch before applying glue so it didn't look too neat. I'll try again as per your method. Thanks. :wave_1:


Top
 Profile
Reply with quote
PostPosted: Sun Mar 29, 2015 2:55 pm
Offline

Joined: Thu Jan 01, 2015 2:08 pm
Posts: 1
Just to add a question to this topic; how about modelling the net 'cages' for ship anchorages and harbour defences with multiple layers of nets at different depths?
I'm planning on modelling some vertically condensed ones for wargaming. I had thought about the tights method, but I'm unsure the nets would be robust enough - what size were the holes in the real life nets? Would metal mesh with 1mm by2mm holes in be too big for 1/700? I'm guessing it would, but can't easily find smaller sized mesh. Anyone got any suggestions, or pointers for a specific kit?


Top
 Profile
Reply with quote
PostPosted: Mon Mar 30, 2015 9:58 am
Offline

Joined: Thu May 30, 2013 1:50 pm
Posts: 1980
In 1/700 scale 1 x 2 mm holes would let a torpedo right through! :big_grin: Very fine brass screening by K&S, or fine mesh from model RR store might be more to scale. :wave_1:


Top
 Profile
Reply with quote
PostPosted: Wed Apr 01, 2015 8:23 am
Offline

Joined: Sun Jan 16, 2005 5:21 pm
Posts: 9
I once saw a piece on line about using a shoe lace for 1/350 rolled nets. The lace, which was round in cross section, had a weave pattern to it that was pretty convincing. Sorry I cannot remember where I saw this modeled but I think it was used on one of the 1/350 ICM WWI German battleships.

_________________
fuhrman


Top
 Profile
Reply with quote
PostPosted: Tue Nov 09, 2021 7:59 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 11642
Location: Calgary, AB/Surrey, B.C., Canada
Another option to add to this short thread: .3mm PE grid sheets such as Flyhawk's FH700054, rolled around a rod core. As demonstrated by hypno7 in their excellent 1/700 SMS Konig: viewtopic.php?f=60&t=339325#p964996

_________________
De quoi s'agit-il?


Top
 Profile
Reply with quote
PostPosted: Wed Nov 10, 2021 4:01 am
Offline
User avatar

Joined: Wed Sep 28, 2011 12:04 pm
Posts: 1343
Location: Paris
There have been experiments with different configurations, but eventually all nations settled for larger rings connected by smaller rings. You can see hanging on the wall to the left some examples in the Musée de la Marine in Paris (before it closed for renovation):


There is an excellent article on (French) torpedo-nets by Patrice Decencière in Neptunia No. 300 (2020).

Another and free (sort of) source of very fine and stiff netting are certain brands of tea-bags:


The meshes are rectangular, but if cut diagonally, it might work also for torpedo-nets. I have used them for wire-gratings:


No stiffening is required and they spray-paint well with acrylics.

_________________
wefalck

Chairman Arbeitskreis historischer Schiffbau e.V. (German Association for Shipbuilding History)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Image Image Image Image


Top
 Profile
Reply with quote
PostPosted: Wed Nov 10, 2021 9:27 am
Offline
User avatar

Joined: Fri Oct 19, 2007 2:25 pm
Posts: 686
Location: Phoenix, AZ
biggles2 wrote:
Does anyone have any suggestions for modelling rolled up (stowed) anti-torpedo nets in 1/700? I thought of suitably sized thread or string, but they just don't have a netting texture. I will take a look at nylon stockings, but I think the mesh might be a little coarse. :wave_1:

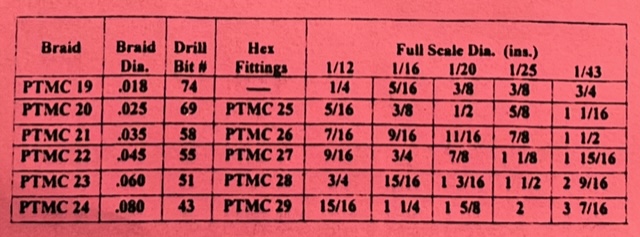

You might want to look at braided hose line that car modelers use. Comes in a variety is diameters and gives a nice even rolled appearance for anti-torpedo nets.

Attachment:
49A82E48-BE1B-4FE3-AA34-28F84D84F336.jpeg [ 143.23 KiB | Viewed 100 times ]


Attachment:
7847DFC1-1180-4D39-B066-D163CA297E7C.jpeg [ 121.03 KiB | Viewed 100 times ]

_________________
-- Scott Reigel
Back home again, in Arizona


Top
 Profile
Reply with quote
PostPosted: Wed Nov 10, 2021 11:38 am
Offline

Joined: Sun Aug 20, 2017 9:46 am
Posts: 1306
Location: Montreal, Canada
Some good suggestions! :thumbs_up_1:
:wave_1:
