Are you able to post a pic or two of your stand? With the templates?

_________________
http://www.USS-Silversides.com

John,

Did your carved hull stop at the main (hanger) deck? Also, I am trying to picture the frame you made. I assume the templetes had the opening at the top and the hull would be lowered into the frame. Almost like a mold would be shaped, but with just the section frames in place. Is that correct?

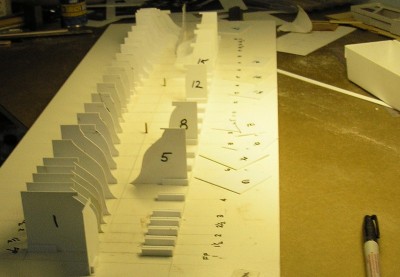

These photos should answer both questions. You can see the donor resin BWN hull clearly in the first photo. If I were carving a new hull (which I would do in basswood as I've said) I would still carve the hull , gun galleries, and foredeck all as one piece as you see here.

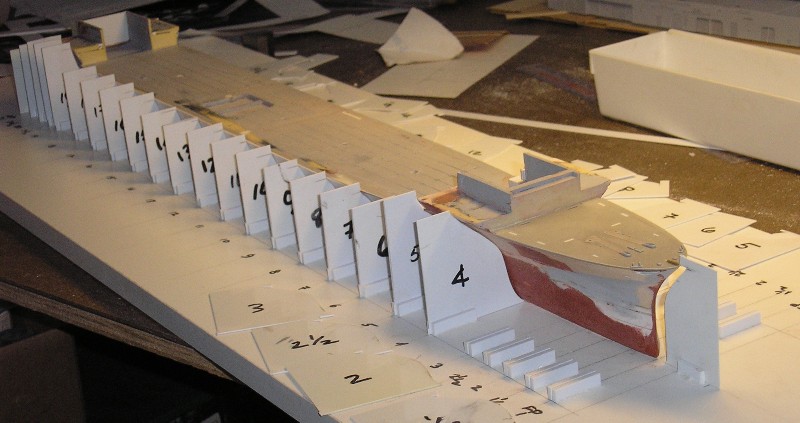

In the second photo, you may notice that I made a secong set of profile templates in the midbody which did not go all the way to the centerline. I did this to enable me to carve the side (vertical part) first, then used the full profile to get the underside inboard of the turn of the bilge. It was easier to do it that way because of the complex curves involved.

Sixman - I used the Webb Warships plan - which used 21 stations plus some intermediate stations and the bow and stern - and not the 39 +/- stations on the drawing you referenced yesterday.
