Happy New Year for everybody!
I am a scale modeler from Ukriane who works with 1:700 scale. I love to build the full-hull models... alas a few companies adds a lower hulls into their kits, so usually i'm scratchbuilding the ones for my IJN ships - as they are available almost exclusively as the waterline models.

And, now i have a "problem" about my Shokaku.. as i just can't find the body plan (the "theoretic drawing" of hull lines) of her, for to scratchbuild the lower hull properly and accurately!

PLEASE, can anybody help and share the historically credible scan of the body plan of Shokaku-class carrier? Many thanks in advance! Sincerely - Alex [ mandel97ua@yahoo.com ]

MODERATOR EDIT: Added the following, compiled by Dan Kaplan and the IJN posse.

Shokaku Class Gallery Entries
1/350 scale
A really nice, crisp build of Zuikaku, late 1944 by Peter Van Buren: http://www.modelshipgallery.com/gallery ... index.html
A build of Shokaku, 1941 by Rick Cotton: http://www.modelshipgallery.com/gallery ... index.html
Robert Apfelzweig's Shokaku http://www.modelshipgallery.com/gallery ... /index.htm
Jean Barby's Shokaku (Fujimi) http://www.modelshipgallery.com/gallery ... /index.htm

1/700 scale
A build of the Tamiya Zuikaku, late 1944, by Paolo Yuen: http://www.modelshipgallery.com/gallery ... index.html
A build of the original Fujimi Zuikaku, late 1944, by Erick Navas: http://www.modelshipgallery.com/gallery ... index.html
A build of the Tamiya Shokaku 1941 by Ricky Goyetche: http://www.modelshipgallery.com/gallery ... index.html
A detailed build of the Tamiya Shokaku 1941 by Anthony Tow: http://www.modelshipgallery.com/gallery ... index.html
A detailed build of the Tamiya Zuikaku, mid 1944, by Dan Kaplan: http://www.modelshipgallery.com/gallery ... index.html
A detailed build of the Tamiya Shokaku, 1942, by Dan Kaplan: http://www.modelshipgallery.com/gallery ... index.html
A great build of the Tamiya Zuikaku 1941 by Takumi Akiharu: http://www.modelshipgallery.com/gallery ... index.html
A build of the Taiya Zuikaku, late 1944, by Waldo Silva: http://www.modelshipgallery.com/gallery ... index.html
A build of the original Fujimi Zuikaku, 1944, by Paul Helfrich: http://www.modelshipgallery.com/gallery ... index.html
A build of the original Fujimi Zuikaku 1944, by Marty Shay: http://www.modelshipgallery.com/gallery ... index.html
A clean build of the Tamiya Shokaku, early 1942, by Hanchang Kuo: http://www.modelshipgallery.com/gallery ... index.html
A build of the original Fujimi Zuikaku, 1944, by Pascal Bruyere: http://www.modelshipgallery.com/gallery ... index.html
A build of the Tamiya Zuikaku, 1944, by John Shum: http://www.modelshipgallery.com/gallery ... index.html
A very nice build of the Tamiya Zuikaku, mid 1944, by Yifeng-Mao: http://www.modelshipgallery.com/gallery ... index.html
Victor Tropa Ayala's Tamiya Zuikaku 1944: http://www.modelshipgallery.com/gallery ... /index.htm

Miscellaneous scales
An interesting 1/600 kitbash by David Flynn: http://www.modelshipgallery.com/gallery ... index.html

While never placed in the finished gallery, here is an excellent, step by step, super detailed build of the 1/500 Nichimo Zuikaku kit in her late 1944 fit by A.C. Studio: viewtopic.php?f=59&t=44984

1/200 IJN Zuikaku (Scratchbuilt R/C) by Mario Beyer http://www.modelshipgallery.com/gallery ... /index.htm


Top
 Profile
Reply with quote
PostPosted: Wed Apr 22, 2009 5:58 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 1:21 pm
Posts: 2795
Location: The city that rests on top of 100 earthquake faults
Now that Fujimi's 1/350 Shokaku is out and mine ($250!!!) is on the way, I figure it's a good time to revive this thread.

So. 1st question: For a 1/350 carrier kit, a hanger is almost a must whether scratch built or out of box. Does anyone have any references that shows the length, width and layout of Shokaku's hangers?

MODERATOR EDIT: Added a listing of the most common kits of this class, courtesy of Dan Kaplan.

30cm Box scale (1/859 scale)
Nichimo, full hull. Originally released circa late 1960s -1970s, and motorized. SKU #s for earlier iterations are unavailable. Now all OOP

Shokaku 1944 - item #033051
Zuikaku 1944 - item #033129
item #NCMo3312, released September, 2007

1/700

1972 (Waterline Consortium 1st generation) – Fujimi issued

Shokaku 1944 – item # WLAO25, #25, released circa early 1970s
item # 43025, #SWM-?, re –released January 1994
item # 43026-3, SWM-SP, re-issued with new Cartograf decals, released October, 2003
item # 430270, #SWM-SP16, re-issued with new Cartograf decals and new weapons sprue, released February, 2009

Zuikaku 1944 - item # WLAO49, #49, released circa early 1970s
item # 430492, #SWM-19, re –released January 1994
item # 43050, SWM-SP, re-issued with new Cartograf decals, released December, 2003
item # 430515, #SWM-SP17, re-issued with new Cartograf decals and new weapons sprue, released February, 2009

2001 new tooling (WL Consortium 2nd generation) – Tamiya issued
Shokaku 1941 – item #31213, WL #213, released 1993-94
item #083208, (Under Aoshima label) 1/700 Kantai Collection #15, Collaboration model, released June, 2014

Zuikaku 1944 - item #31214, WL #214, released 1993-94

Zuikaku 1941 – item # 31223, WL #223, 70th anniversary release, Pearl Harbor fit, with appropriate flight deck decals, released September, 2011

2011 new tooling – Fujimi issued

Shokaku 1941 - item # 430294, # SWM (EX) -41, released February, 2011
item # 430355, # FH-17, full hull version, released October, 2011
item # 430362, # SWM (EX) –SP11, “5th Carrier Division 1941”, boxed with a Zuikaku 1941 kit, released February, 2012
item # 430430, # SWM (EX) –SP-24, DX version with wood flight deck sheet and dry rub deck decals, released August, 2013
item # 430546, # SWM (EX) –SP31, “Perfect” version, with full PE set, wood flight deck sheet and dry rub deck decals, released January, 2014
item # 430676, # FHSP-11, DX full hull version with full PE set, released May, 2014
item # 470030, # EASY (EX) -4, with colored hull parts and full color flight deck decals, released December, 2014
item # 431390 # SWM (EX) -52, Version 1.1 1942-1944 with revised mainmast, radio mast parts, released February, 2016

Shokaku 1942 - item # 430324, # SWM (EX) -52, with additional AA and radar, released June, 2011

Zuikaku 1944 – item # 430522, # SWM (EX) -50, released May, 2011
item # 430447, # SWM (EX) –SP-25, DX version with wood flight deck sheet and dry rub deck decals, released August, 2013
item # 430461, # FH-20, full hull version, released September, 2013
item # 430553, # SWM (EX) –SP32, “Perfect” version, with full PE set, wood flight deck sheet and dry rub deck decals, released January, 2014
item # 430683, # FHSP-11, full hull version with full PE set, released May, 2014
item # 470092, # EASY (EX) -10, with camouflage colored hull parts and full camouflage color hull and flight deck decals, released September, 2015

Zuikaku 1941 – item # 430362, # SWM (EX) –SP11, “5th Carrier Division 1941”, boxed with a Shokaku 1941 kit, released February, 2012
item # 430539, # SWM (EX) –62, released April, 2012
item # 431437, # SWM (EX) -62, Version 1.2.1941 with revised mainmast, radio mast parts, released June, 2016

1/500

Nichimo, full hull. Originally released circa late 1960s -1970s. SKU #s for earlier iterations are unavailable. Now all OOP

Shokaku 1941 – item #050812, motorized, original released
item # NCMU-5015, non motorize, released January, 1994
item # NCMU-04081, non motorize, released August, 2006
item # NCM77003, non motorize, released October, 2013

Zuikaku 1944 - item #050829, motorized, original released
item # NCMU-5016, non motorize, released January, 1994
item # NCMU-04082, non motorize, released August, 2006
item # NCM77048, non motorize, released October, 2013

1/350

Fujimi issued, full hull only


Shokaku 1941 – item #600031, released April, 2009
item #600215, 2014 Summer Limited Edition, with metal 12.7cm barrels, released August, 2014
item #600253, SP “Navalized” version, with 36 aircraft, released February, 2015
item #600314, SP Premium version, with all Fujimi photo etch frets and flight deck mask, pending release December,
item # 600406, SP version with wood deck sticker, pending release February, 2017

Zuikaku 1944 – item #600048, released May, 2010
item #600123, DX version with all Fujimi photo etch frets, released January, 2013
item #600222, 2014 Summer Limited Edition, with metal 12.7cm barrels, released August, 2014
item #600260, SP “Navalized” version, with 36 aircraft, released February, 2015
item #600321, SP Premiums version, with all Fujimi photo etch frets and flight deck mask, pending release December, 2016

_________________
Assessing the impact of new area rug under modeling table.


Top
 Profile
Reply with quote
PostPosted: Wed Apr 22, 2009 9:04 pm
Offline
User avatar

Joined: Sun Aug 28, 2005 10:12 am
Posts: 510
Location: long way SSE of Woomera
Well Fwd Hanger at least

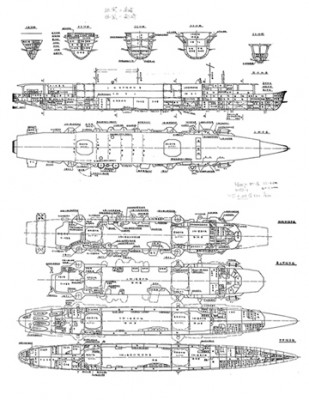

From the Hara Shobo planset of Shokaku


Attachments:
shokaku.jpg [ 107.46 KiB | Viewed 13660 times ]

_________________
My job was to comfort the disturbed & Disturb the comfortable.
Top
 Profile
Reply with quote
PostPosted: Thu Apr 23, 2009 1:01 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6137
Location: New York City
LOL, I see you picked up my scan from the discussion over at j-aircraft.com/ships

The Hara Shobo planset is really the only available reference. No dimensions. The thing to keep in mind is that the hagar deck varies in width from section to section, as some areas have workshops placed between the hull plating and the hangar wall.

Not that it will be built so soon, but I am comptemplating something similar. However,I will probably opt for a simpler setup that spans the distance between the fore and aft elevators, really just to highlight the wells.

There is certainly an opportunity for an aftermarket kit here, now with 2 CV kits on the market. All IJN CV elevator/wells are essentially the same, excepting the size of the elevator. A gerenric set of of walls, with different deck inserts, would do the trick. I can dream.

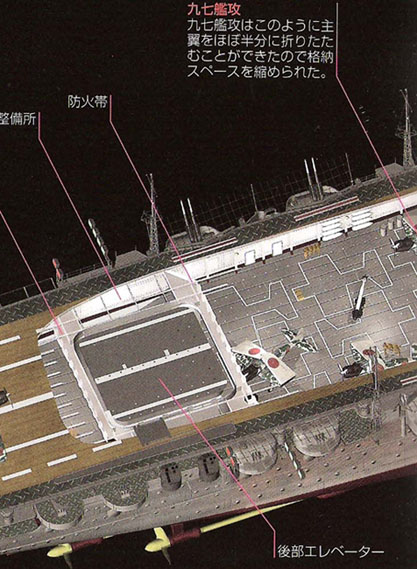

The 3DCG Futubasha Volume on the Shokakus also has a cutaway rendering (below)


Attachments:
Shokaku hangar deck cutaway view, Futubasha 3DCG.JPG
Shokaku hangar deck cutaway view, Futubasha 3DCG.JPG [ 108.79 KiB | Viewed 13637 times ]
Shokaku hangar deck, Futubasha 3DCG.JPG
Shokaku hangar deck, Futubasha 3DCG.JPG [ 116.39 KiB | Viewed 13552 times ]
Zuikaku Hangar (forget war, enjoy performance).jpg
Zuikaku Hangar (forget war, enjoy performance).jpg [ 72.52 KiB | Viewed 13550 times ]
Top
 Profile
Reply with quote
PostPosted: Thu Apr 23, 2009 2:19 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 1:21 pm
Posts: 2795
Location: The city that rests on top of 100 earthquake faults
Thanks, Dan. Futubasha Volume on the Shokakus seems to be out of print according to HLJ. Bummer. One thing your illustration showed is forward end of the aft elevator well seems to be closed off with a fire door. Maybe that is the excuse for closing off all 4 sides of the elevator well in the Fujimi and Hasagawa kits? Does the illustration show similar fire containment barriers around the other 2 elevator wells?

Another question, do the illustration mean to show the hanger walls to be white? or Gray?

_________________
Assessing the impact of new area rug under modeling table.


Top
 Profile
Reply with quote
PostPosted: Thu Apr 23, 2009 3:29 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6137
Location: New York City
Internal walls were white, thought the exposed elevator shaft walls themselves will be grey. The illustration does show a curtained firewall in the closed postion, and I believe all the elevators were so equipped fore and aft. But, the fire curtain would not be closed except if under attack or on fire.


Top
 Profile
Reply with quote
PostPosted: Fri Apr 24, 2009 1:37 am
Offline
User avatar

Joined: Sun Nov 16, 2008 3:07 am
Posts: 3

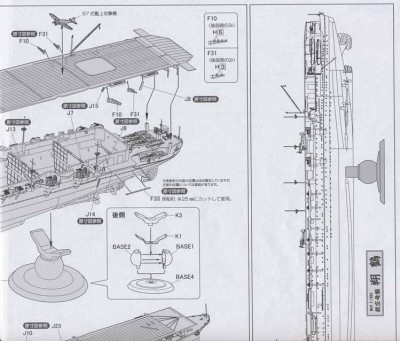

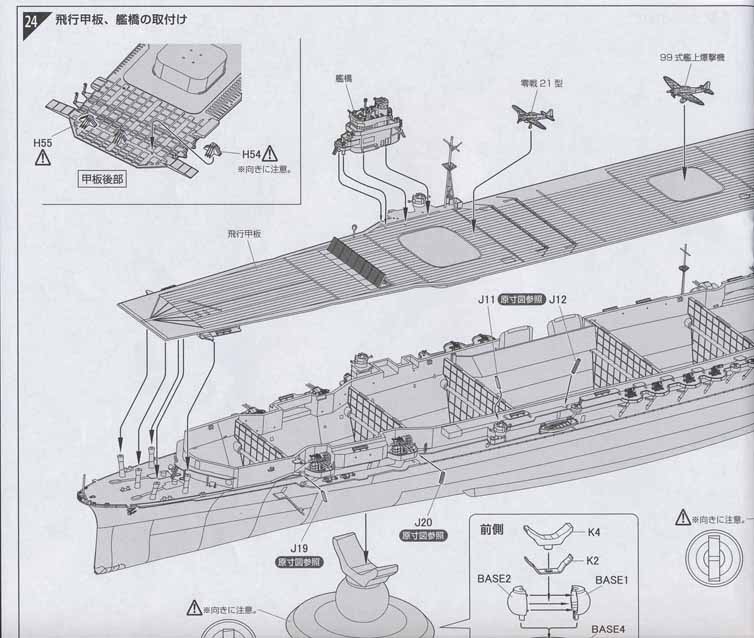

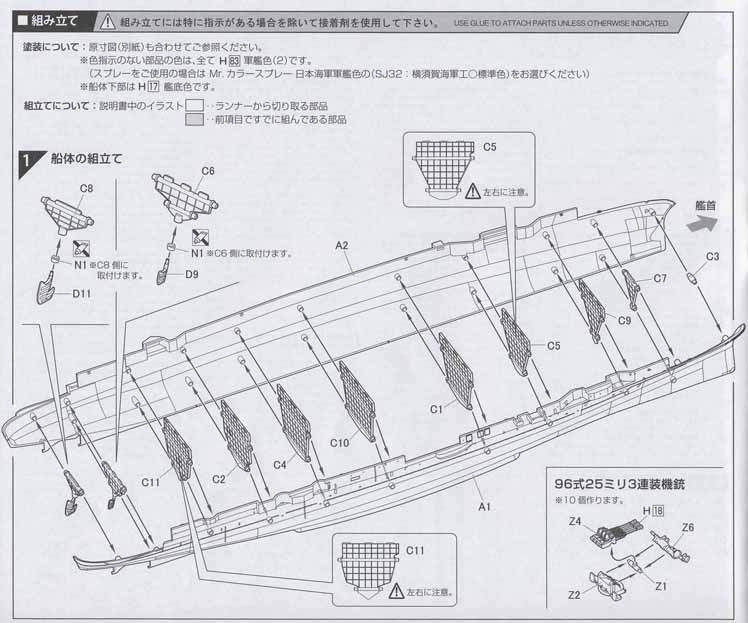

Here is a scan of the hanger area and bulk heads (waterlining may be easier then Akagi as not so many BH) to show you what is in-store for you when modifying internals for hanger deck. The carrier is a beauty but will need after market PE to improve IMHO. There are way too many wedge supports that will need replacing and the under deck details are in need of PE like the Akagi. The aircraft sets are nice in clear plastic. Glad I ordered extras as these will be popular like the Fujimi figures.


Attachments:
Shokaku-Instructions001.jpg [ 104.37 KiB | Viewed 13461 times ]
Shokaku-Instructions002.jpg [ 104.17 KiB | Viewed 13462 times ]
Shokaku-Instructions003.jpg [ 101.98 KiB | Viewed 13475 times ]
Top
 Profile
Reply with quote
PostPosted: Fri Apr 24, 2009 12:40 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 1:21 pm
Posts: 2795
Location: The city that rests on top of 100 earthquake faults
Yes, I am disappointed that neither Fujimi nor Hasagawa was considerate enough to design the kit so that what comes in the box doesn't obstruct the installation of a scratch built hanger.

_________________
Assessing the impact of new area rug under modeling table.


Top
 Profile
Reply with quote
PostPosted: Sat Apr 25, 2009 10:09 am
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6137
Location: New York City
Yeah, that's a problem. We're back to elevator shafts.

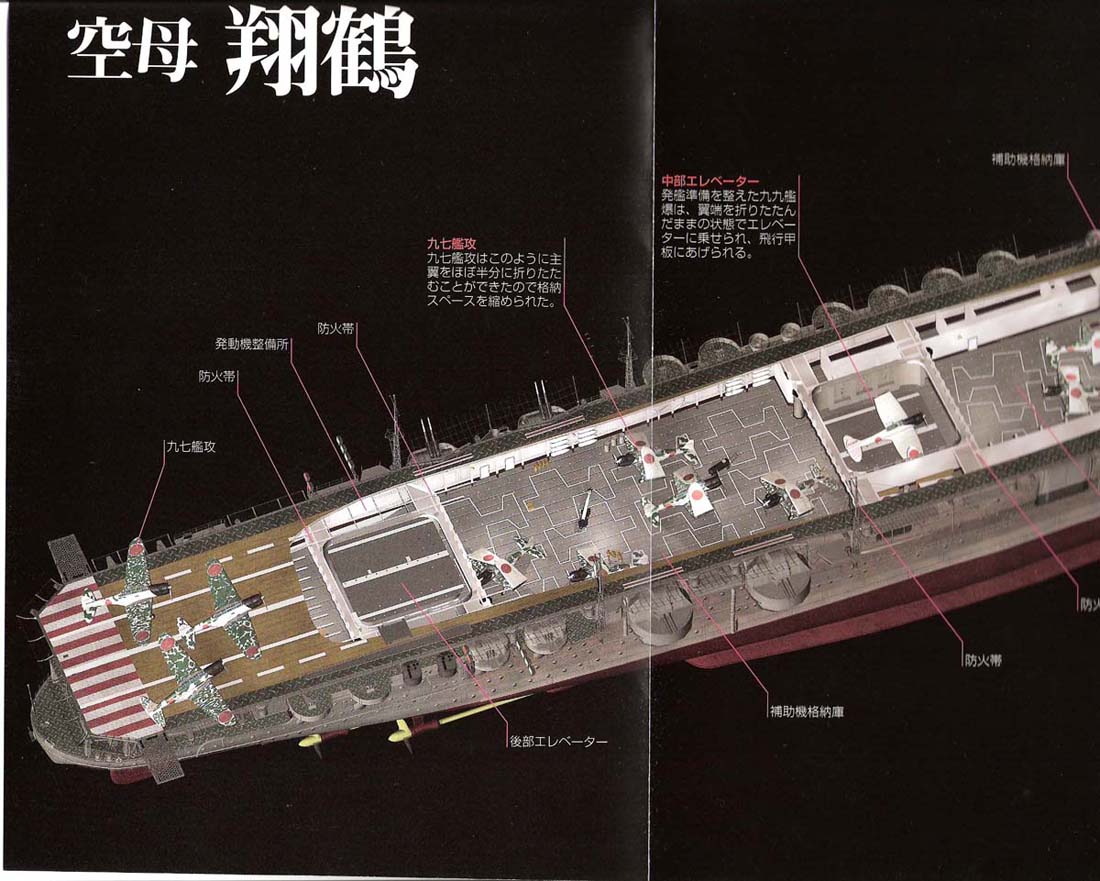

For completeness sake, let me post the full scan of that page from the Futubasha volume, as well as some rare photos of Shokaku's damage at Santa Cruz that shows some hangar wall detail. THen I'll post some elevator shaft photos, though not of this class


Attachments:
Shokaku Hangar Deck cutaway view, Futubasha 3DCG small.jpg
Shokaku Hangar Deck cutaway view, Futubasha 3DCG small.jpg [ 149.07 KiB | Viewed 13566 times ]
Shokaku deck damage #2, Santa Cruz, August 1942.jpg
Shokaku deck damage #2, Santa Cruz, August 1942.jpg [ 115.49 KiB | Viewed 13479 times ]
Shokaku hangar deck damage, Santa Cruz, August 1942.jpg
Shokaku hangar deck damage, Santa Cruz, August 1942.jpg [ 125.45 KiB | Viewed 13481 times ]
Top
 Profile
Reply with quote
PostPosted: Sat Apr 25, 2009 10:13 am
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6137
Location: New York City

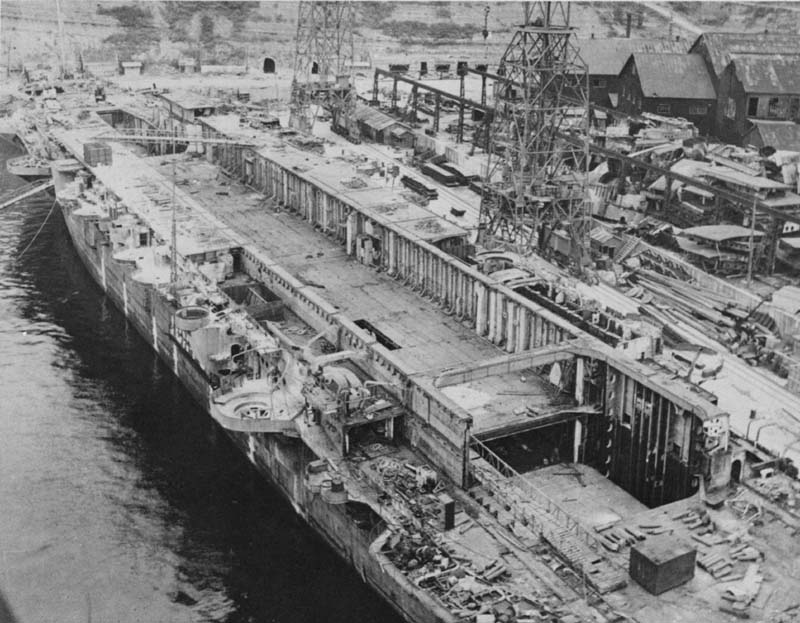

Unryu class elevator detail from Kasagi. I have more on my work PC. Incidentally, the two objects on the hangar deck are two of the enclosed 25mm mounts viewed from the rear.


Attachments:
Kasagi elevator shaft, postwar, small.jpg
Kasagi elevator shaft, postwar, small.jpg [ 132.54 KiB | Viewed 13500 times ]
Top
 Profile
Reply with quote
PostPosted: Sun Apr 26, 2009 3:39 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4256
Location: Nr Southampton England
Hello Shokaku class fans

hangar layout...

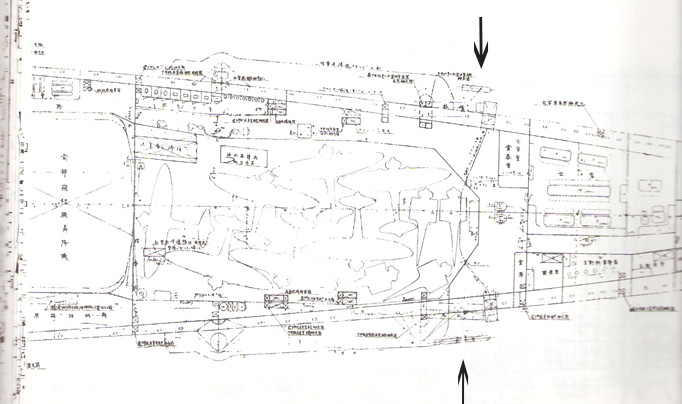

I have been sent an e-mail of hangar layout scans by our esteemed and ever helpful Modelling colleageue Peppe Giuffre via Alex Mandel.

Alas they are unable to post them- and I am unsure whether I can post them all - copyright etc etc

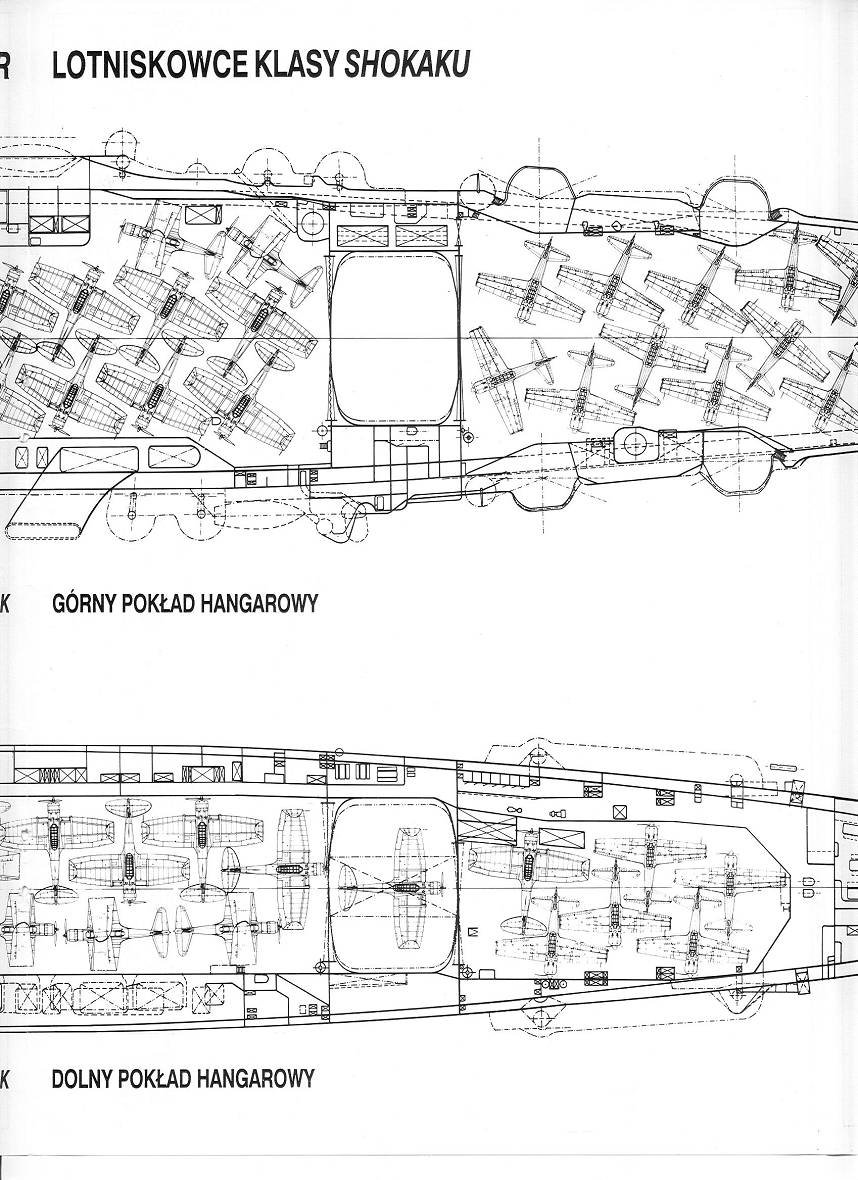

Hence I post an 'illustrative' image from the AJ Press Profile Morskie ship monograph

Redacted by Tracy: sending copies by e-mail is also a violation of copyright FYI... be careful what you offer to do! If you can cite the source of the plans below then I will let them stay... see my post below.

Cheers

Jim Baumann
Attachment:
754541459.jpg [ 236.07 KiB | Viewed 13570 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Top
 Profile
Reply with quote
PostPosted: Sun Apr 26, 2009 1:11 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6137
Location: New York City
Thx, Jim. THese look like they are from the Profile Morskie volume on the Shokakus


Top
 Profile
Reply with quote
PostPosted: Mon Apr 27, 2009 1:19 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6137
Location: New York City
Here's a good shot of Junyo's aft elevator well details, taken while under scrapping in 1947


Attachments:
Junyo scrapping 1947.jpg
Junyo scrapping 1947.jpg [ 109.37 KiB | Viewed 13596 times ]
Top
 Profile
Reply with quote
PostPosted: Mon Apr 27, 2009 1:20 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6137
Location: New York City
And Shoho's, recently posted in another thread


Attachments:
Shoho elevator well during conversion, 10-41, SOTW V248, p23.jpg
Shoho elevator well during conversion, 10-41, SOTW V248, p23.jpg [ 99.44 KiB | Viewed 13513 times ]
Top
 Profile
Reply with quote
PostPosted: Mon Apr 27, 2009 3:20 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 1:21 pm
Posts: 2795
Location: The city that rests on top of 100 earthquake faults
Dan:

Do you know if the transverse wall seen through Shoho's elevator well is a fixed bulkhead or a movable fire break?

_________________
Assessing the impact of new area rug under modeling table.


Top
 Profile
Reply with quote
PostPosted: Tue Apr 28, 2009 10:33 am
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6137
Location: New York City
Unlike the larger fleet carriers, shortcomings in the design parameters in the hulls used for CVLs meant that the hangar deck was limited to the space between the two elevators. So, what we're seeing is the forwardmost, or rearmost, solid bukhead for one of the elevator wells.

The attached plan view illustrates the extent of the hangar deck for Zhuiho. (note: Shoho/Zuiho are unique among the CVLs for having 2 hangar decks).

So, unfortunately Chuck, no way to use the well provided in the Shokaku kit :(

On a related note, I came across a website a few years back of a Japanese modeler who was scratchbuilding a 1/350 Zuikaku, including a hangar deck. The site was never updated but the work posted was impressive. There are 6 pages to view, mostly hangar deck construction and very well done. See:

http://cmk2005.hp.infoseek.co.jp/zuikaku1944_06.htm


Attachments:
Zuiho plans, Show Shipbldg History v1, Hara Shobo, 1978 b.jpg
Zuiho plans, Show Shipbldg History v1, Hara Shobo, 1978 b.jpg [ 113.97 KiB | Viewed 13681 times ]
Top
 Profile
Reply with quote
PostPosted: Tue Apr 28, 2009 8:59 pm
Offline

Joined: Sun Dec 07, 2008 8:31 pm
Posts: 74
Hey guys...

I don't really mean to hijack the thread... but I've been considering getting a 1/700 kit of both Shokaku and Zuikaku, and was wondering in your experience, which kit was the best?

I'm considering the Tamiya ones...

But I also noticed that Fujimi newly released a 1/700 Zuikaku with decals and all, but from experience, Fujimi's 1/700 kits from the 90s don't look very accurate, and I have no idea if their newly released kit of Zuikaku has been improved.

Any suggestions will be greatly appreciated.


Top
 Profile
Reply with quote
PostPosted: Wed Apr 29, 2009 8:11 am
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6137
Location: New York City
As far as I know, the Fujimi is just a re-release with wood deck decals and a small PE fret. Tamiya still superior, with some flaws. Though, the Fujimi cartograph wood deck decakl is pretty nice (also sold separately)


Top
 Profile
Reply with quote
PostPosted: Wed Apr 29, 2009 12:47 pm
Offline

Joined: Sun Dec 07, 2008 8:31 pm
Posts: 74
That's what I was thinking too... From experience, Tamiya typically produces finer models, at least, from that era.

I did a Hasegawa Akagi, it was alright. I used a knife to do the decking on my own, it turned out pretty ok, so the deck I can fix...

Thanks for the 2 cents!


Top
 Profile
Reply with quote
PostPosted: Wed Apr 29, 2009 12:54 pm
Offline

Joined: Mon Jan 10, 2005 11:02 am
Posts: 9408
Location: EG48
Guys, I want you to be VERY careful about the photos you are posting here. DO NOT post a photo or plans unless you follow one of the following guidelines:

* The photo is known to be public domain. If not, post in line with US Copyright "fair use" guidelines:
Quote:
“quotation of excerpts in a review or criticism for purposes of illustration or comment; quotation of short passages in a scholarly or technical work, for illustration or clarification of the author's observations;


* If from a book, please credit the book and limit yourself to one photo from each book, as a review item in a sense.
* Plans need to be cited as well; what source they are from, and please limit yourself to a portion of any one plan.
* If there is a site that has a bunch of those photos please link to them (other than known copyright infringing sites) directly instead of reposting "their" photos.

This will help shield us from copyright liability and getting our hulls sued out from under us.

_________________
Tracy White -Researcher@Large

"Let the evidence guide the research. Do not have a preconceived agenda which will only distort the result."
-Barbara Tuchman


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 390 posts ]  Go to page 1, 2, 3, 4, 5 ... 20  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 3 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
Powered by phpBB® Forum Software © phpBB Group
