Dan K
PostPosted: Wed Sep 18, 2019 7:57 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 8798
Location: New York City
Have you read through the previous page?
Top
 Profile
Reply with quote
thebunkerparodie
PostPosted: Thu Sep 19, 2019 2:21 am
Offline

Joined: Wed Aug 21, 2019 9:10 am
Posts: 106
yes ,I'm asking because maybe they would be different after the trial of the fisrt 2 or correcting flaw in the initial design.
Top
 Profile
Reply with quote
Dan K
PostPosted: Thu Sep 19, 2019 8:25 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 8798
Location: New York City
Since the battle cruiser design was unrealized, it's impossible to say. Everything is just conjecture.
Top
 Profile
Reply with quote
PetrolGator
PostPosted: Mon Nov 15, 2021 1:14 pm
Offline
User avatar

Joined: Fri Jun 22, 2012 12:02 pm
Posts: 2350
Location: Herndon, VA
Coming back to this project. I just realized that I was being an idiot and was viewing the Tosa casemates as flush with the rest of the hull....

...this is without her bloody armor belt. :doh_1:

I'm not sure about the accuracy of resin parts included from the bridge and above. The citadel is too short, based on the builder's models. To be honest, the entire structure seems like it's been modeled a wee bit compressed. Interestingly enough, my spare 1920's Nagato base seems more accurate and likely easier to bash into something approaching the base of Tosa's pagoda. I plan to scratch build just about everything above this, based on level-by-level drawings in "Battleships and Battlecruisers of 'Hachi Hachi' Fleet"

_________________
- Chris

1/700 Saratoga w/Pontos (Needs paint)
1/700 Potato w/Kurama (On hold)
1/700 Murdertorpedoboat Ooi
Top
 Profile
Reply with quote
PetrolGator
PostPosted: Mon Nov 15, 2021 1:28 pm
Offline
User avatar

Joined: Fri Jun 22, 2012 12:02 pm
Posts: 2350
Location: Herndon, VA
Here's the book and one of the relevant sections.

Attachment:
HH.jpg [ 176.79 KiB | Viewed 5183 times ]


Attachment:
Tosa.png [ 399.09 KiB | Viewed 5183 times ]

_________________
- Chris

1/700 Saratoga w/Pontos (Needs paint)
1/700 Potato w/Kurama (On hold)
1/700 Murdertorpedoboat Ooi
Top
 Profile
Reply with quote
arc1039
PostPosted: Sat Jul 08, 2023 5:45 am
Offline

Joined: Sat Aug 13, 2022 8:29 pm
Posts: 7

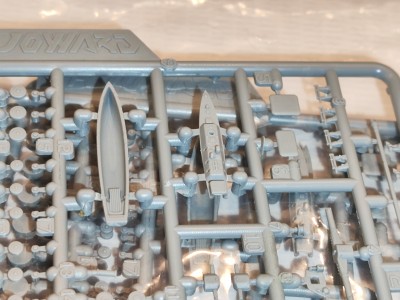

JoyYard’s new products，IJN BB KAGA

Attachment:
B5[3$Y`7WVQ`]B21TB(]0{F.jpg [ 196.07 KiB | Viewed 4712 times ]

Attachment:
{$I[5WF)A1AE}NX$}VZ_XKK.jpg [ 3.4 MiB | Viewed 4712 times ]


Top
 Profile
Reply with quote
Dan K
PostPosted: Sat Jul 08, 2023 3:42 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 8798
Location: New York City
Whoa! Is that injection styrene? Got a link?
Top
 Profile
Reply with quote
arc1039
PostPosted: Sat Jul 08, 2023 10:17 pm
Offline

Joined: Sat Aug 13, 2022 8:29 pm
Posts: 7
Dan K wrote:
Whoa! Is that injection styrene? Got a link?

Yep,but theres no official link ,its on a model show in China, theyll sell it in Japan this month.



more details:

Attachment:
GXAU9XZ9RTOIHMZW$8I@1W1.jpg [ 164.23 KiB | Viewed 4688 times ]

Attachment:
TAJ2LP7{XC6@3(IVEULZ~43.jpg [ 3.39 MiB | Viewed 4688 times ]


Why am I only able to upload two images?
Top
 Profile
Reply with quote
TZoli
PostPosted: Sun Jul 09, 2023 11:33 am
Offline

Joined: Thu Oct 07, 2021 3:34 am
Posts: 154
Location: Hajdúszoboszló, Hungary
For anybody interested, the development of the Tosa class battleships, the preliminary designs. All of them are based on official plans:
https://www.secretprojects.co.uk/thread ... ost-535005
My drawing of the final Tosa design as laid down:
Attachment:
Tosa1918.png [ 441.84 KiB | Viewed 4654 times ]

https://www.deviantart.com/tzoli/art/IJ ... -852093882
https://images-wixmp-ed30a86b8c4ca88777 ... pZK_i07MqU

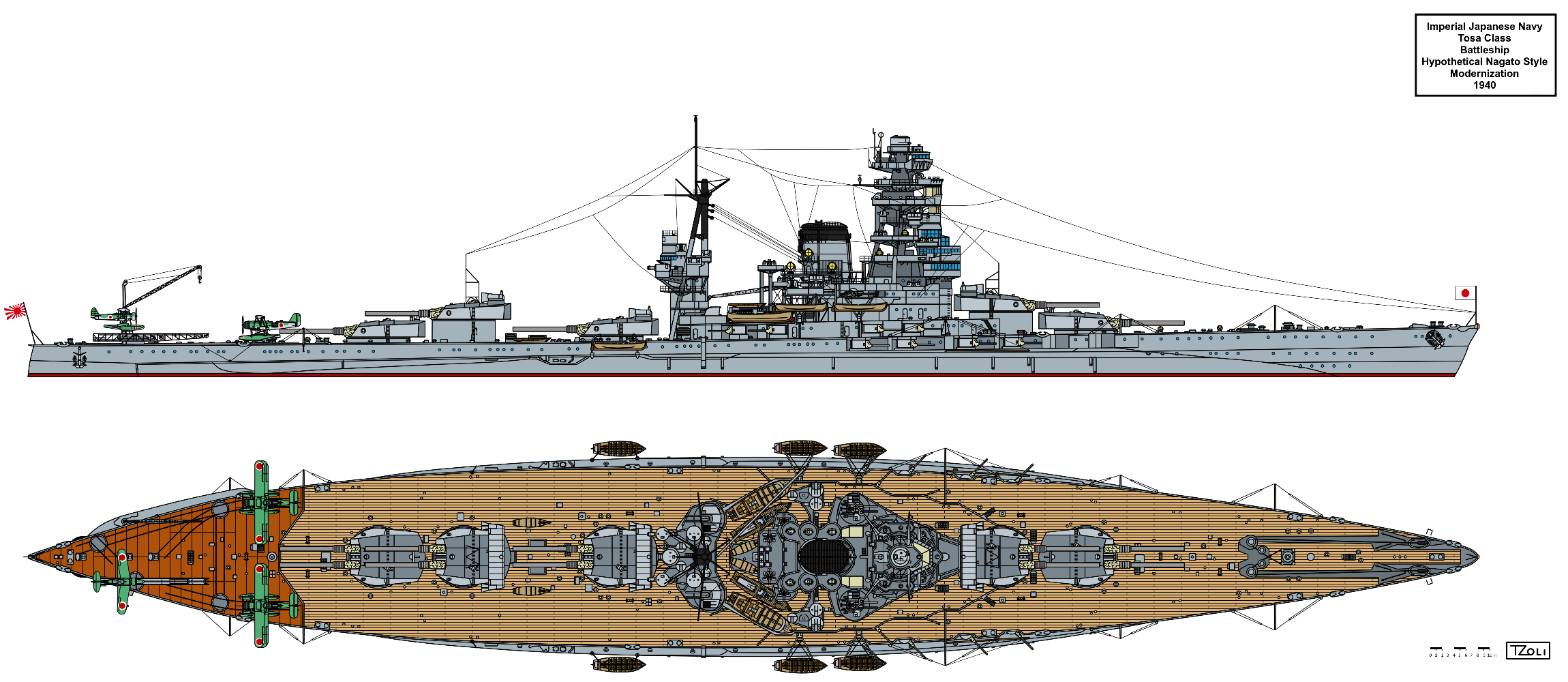

And a hypothetical 1930's modernization ala Nagato:
Attachment:
Tosa1940.png [ 561.19 KiB | Viewed 4654 times ]

https://www.deviantart.com/tzoli/art/Ka ... -917629927
https://images-wixmp-ed30a86b8c4ca88777 ... gm-MPAgs6Q


Last edited by MartinJQuinn on Sun Jul 09, 2023 12:09 pm, edited 1 time in total.
Resized the pics. Click links for full sized


Top
 Profile
Reply with quote
Dan K
PostPosted: Mon Jul 10, 2023 3:53 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 8798
Location: New York City
Thx for posting.
Top
 Profile
Reply with quote
Caravellarella
PostPosted: Fri May 10, 2024 4:12 am
Offline
User avatar

Joined: Fri Mar 25, 2005 3:20 pm
Posts: 534
Location: S. W. London/Surrey.
Someone just posted what look like original plans for the Amagi class on facebook - https://www.facebook.com/photo/?fbid=12 ... 3153858333

In this group - https://www.facebook.com/groups/869327847209539

Terry (Caravellarella)

_________________
Because L'Oréal keeps telling me I'm worth it!

Maybe it's Maybelline..............
Top
 Profile
Reply with quote
TZoli
PostPosted: Fri May 10, 2024 5:19 am
Offline

Joined: Thu Oct 07, 2021 3:34 am
Posts: 154
Location: Hajdúszoboszló, Hungary
I can provide a libk to the Hiraga archive containing the plans as well as the preliminaries.
