Just a comment on the Washington.

There are several Photo Etch kits for her that allow you to build her as she was at Guadalcanal, one of which is very extensive, by a member of this forum (I think who goes by the name Shelf Oddity).

Here is a link to his build of the Washington (prepare to be overwhelmed by the detail he goes into):

viewtopic.php?f=59&t=159504&start=120

Five Star Models also make a very complete PE set for the Washington, which will allow you to build her at nearly any point in her WWII career prior to 1944/45.

http://www.fstarmodel.com/pd.jsp?id=89# ... _304_60_-1


I do not know if Blacman (Who is I think who Shelf Oddity is) has the Washington detail set for sale, but it is the better of the two sets specifically for Guadalcanal.

MB

_________________
OMG LOOK! A signature

Working on:


1/700 (All Fall 1942):
HIJMS Nagara
HIJMS Aoba & Kinugasa
USS San Francisco
USS Helena
USS St. Louis
USS Laffey & Farenholt
HIJMS Sub-Chasers No. 4 - 7
HIJMS Sub-Chasers No. 13 - 16

Couple of questions regarding the 1/350 Trumpeter North Carolina. Being that this is a Trumpeter kit, is the lower hull accurately shaped? The kit represents the ship in 1944 but I would like to do the kit in the Sep - Oct 1942 timeframe so would the tubs for the 40mm be the same as the 1.1mg's tubs? I have hardly any reference material for this ship besides what I can find online and what I have found after reading up to page 12 of this forum. Thanks for any help.

I don't have the exact dimensions for the quad 1.1-in mount, but the quad 1.1-in "tubs" were smaller than required for the quad 40-mm "tubs" surrounding bulwark. The bulwark diameter for the quad 1.1-in mount on the first FLETCHERS equipped with that mount, had a diameter of 15.5-ft. Twin 40-mm mounts could fit in the bulwark working circle for quad 1.1-in mounts, but it appears that they normally installed all new bulwarks to account for height and bulwark clip stowage differences. Attached are drawings for the "standard" bulwark working circles as determined in 1941-42 as the new 40-mm gun mounts were being developed. Also, I included the typical single 3-in/50cal DP gun mount bulwark shield diameter since the 3-in/50 and quad 1.1-in mounts were used in the same "tubs". I can't confirm that these dimensions were final or the same throughout the war.

The bulwark diameters and shapes were dependent on the installation location and refinements did occur.

(Note; the "AB" circles show where measuring gages were located for the tests)

Single 3-in gun mount bulwark ... 16-ft diameter



Quad 40-mm mount bulwark ... 18-ft diameter



Twin 40-mm mount bulwark ... 14-ft diameter

Thank you for the reply Rick.

After the Sept. 1944 refit, did the 20 mm guns have the Mk 14 gunsights? Were these also mounted on the Mk 51 gun directors?
Thanks, Walt Haynes

I'm getting everything together ready to build the Trumpeter 1/350 kit of NC as in July 45 and have read through the thread, however the one thing I've not been able to find is the position of the twin 20mm's. Does anyone have a plan that shows the position of these?

_________________
On the slip - all 1/350
USS Fletcher - Tamiya w/GMM PE and L'Arsenal resin
USS Mackinac AVP-13 - ISW w/ AM parts from several sources
In the design office -
HMS Ariadne Conversion of WEM kit

Hi Littorio, I think this is the 1945 diagram you're looking for. Cheers!

_________________
"I've heard there's a wicked war a-blazing, and the taste of war I know so very well
Even now I see the foreign flag a-raising, their guns on fire as we sail into hell"
Roger Whittaker +9/13/2023

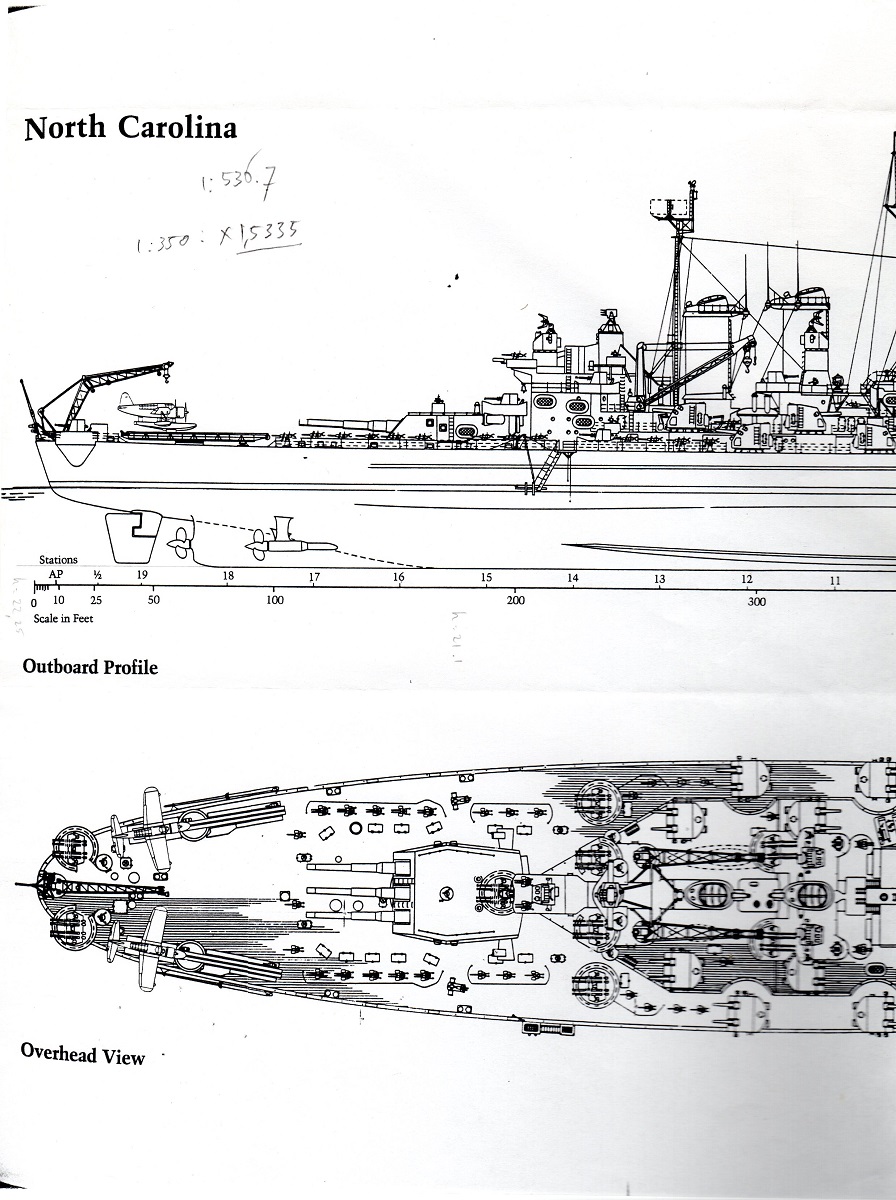

I have searched further, I found also another plan showing many more twin 20mm guns. This is even more to your liking. I had to scan it in two parts.

_________________
"I've heard there's a wicked war a-blazing, and the taste of war I know so very well
Even now I see the foreign flag a-raising, their guns on fire as we sail into hell"
Roger Whittaker +9/13/2023

Thank you Maarten this second set of drawings clearly shows the twins, now I can get the twins I need plus some other items still to get then I’ll be ready to go.

_________________
On the slip - all 1/350
USS Fletcher - Tamiya w/GMM PE and L'Arsenal resin
USS Mackinac AVP-13 - ISW w/ AM parts from several sources
In the design office -
HMS Ariadne Conversion of WEM kit

_________________
"I've heard there's a wicked war a-blazing, and the taste of war I know so very well
Even now I see the foreign flag a-raising, their guns on fire as we sail into hell"
Roger Whittaker +9/13/2023

Hello,

does anybody know when NC got the "Strykers Bridge" at 07 lvl? I've read it got installed after the battle of the eastern solomons my guess would've been that it was late 1943

Sometime between August and November, 1943, when these photos were taken.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

Anyone have some good pictures of the inside of the fantail 40mm mounts. Are the decks of the mounts flush with the main deck or did they step down? Thanks

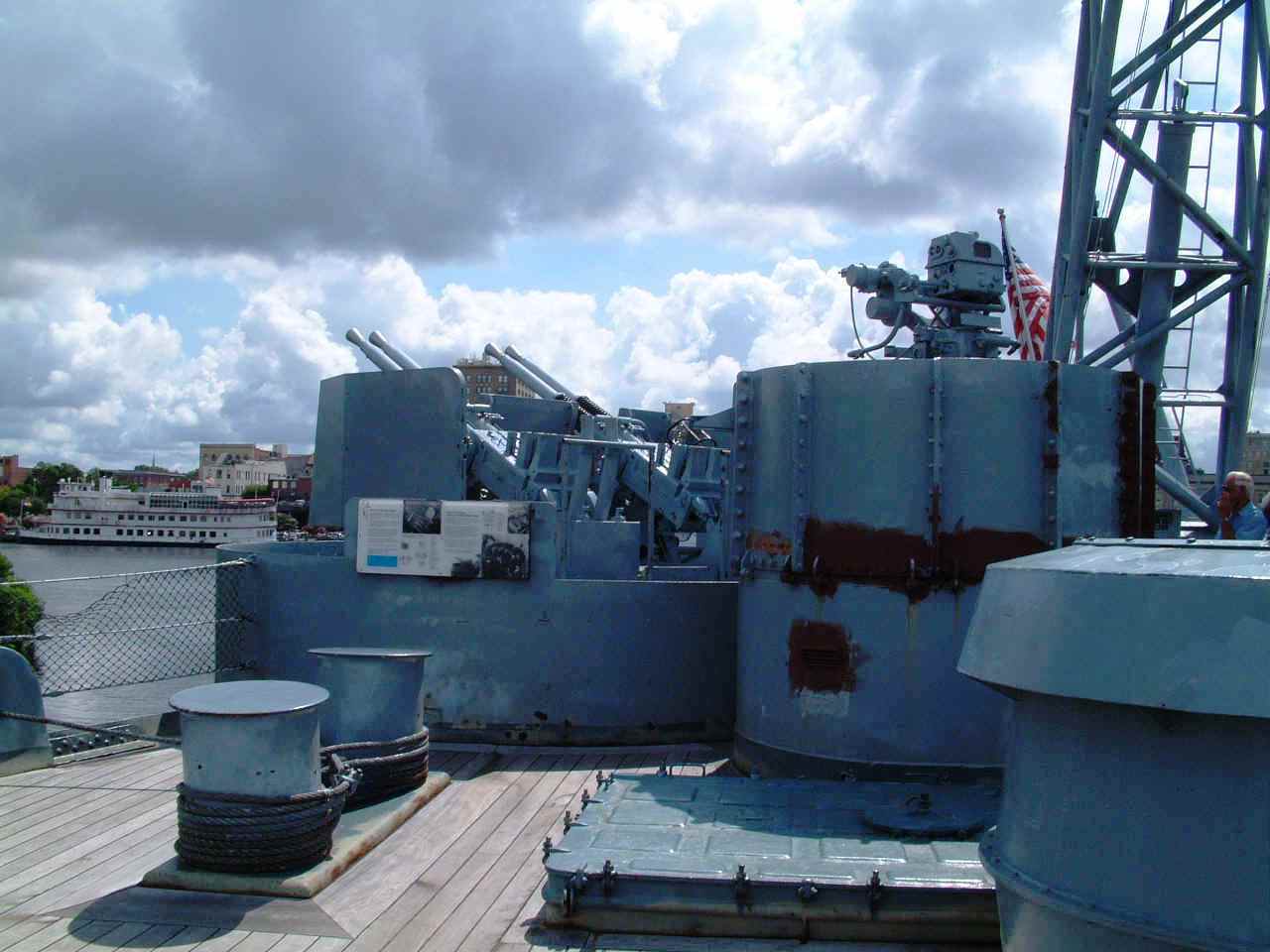

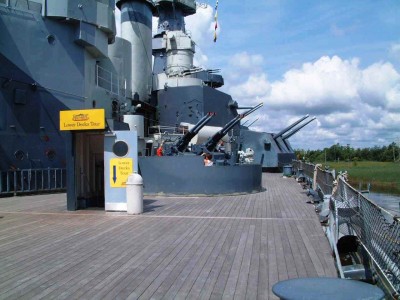

Not inside. I know that this photo doesn't answer the question very well but may help. It looks like it is raised higher than similar tubs farther forward (see bottom photo).

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

Sorry Steve, it doesn't, but thank you anyway. Btw, have you gotten caught up yet?

All caught up!

_________________
Have fun, Monkey around.™

-Steve L.

Complete catalog: - https://www.model-monkey.com/
Follow Model Monkey® on Facebook: - https://www.facebook.com/modelmonkeybookandhobby

What is considered the best PE detail set for 1/350 North Carolina, would that be Lionroar or some other set?

I used the White Ensign set on my North Carolina. Overall, I recalled I liked it. The Gold Medal Model set looks pretty good as well.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

Don't know which one is best, but years ago, when i was building my NC i found LR to contain somewhat more details than others - for example around rear superstructure. Also LR gets you the propellers, chain, barrels etc - things that you otherwise need (or rather might want) to get separately.
I still ended up using bits from Eduard, as well as had to buy WEM SK2 radar (lost some LR parts one during a move from UK to Poland ;) ).

Don't forget the Five Star Model set (FS350033).

_________________
- David
