PostPosted: Fri May 03, 2013 9:25 pm
Offline

Joined: Fri May 03, 2013 6:25 pm
Posts: 3
Location: riverton, wyoming
Howdy,
Greetings from the Kazakhstan of the United States. We're a lot like the other Kazakhstan (lots of sheep and horses) but with fewer Kazakhs. And like our long lost cousins in Central Asia, there's not a lot to do out here after going to the rodeo, going to the bar, and re-tightening the headers on the pickup. So you find yourself thinking "why not scratch build old herself BB 32?"
In the city of Casper, Wyoming we have a great honkin' model of her as she was in her glory. It is said to be a "builders model" which may mean that a shop at William Cramps and Sons built it, or was contracted by that yard. And in the city of Cheyenne (our Capital) there used to be an old blueprint with an elevation and plan, but very faded.
There may or may not be plans in Record Group 19 at the College Park Archives. Taubman's Plans can't help. Combrig said they'd consider as a future project, but at 1:700 or 1:350 these would just be aides for a larger scratch build.
There are lots of photos of Wyoming and her sister Arkansas, and even some small plans for Arkansas available on ebay but I need better info specific to Wyoming. Locating a manuscript collection from Cramp's Philadelphia shipyard would be a real help.
Just to let you young salts know what a real battleship was like, Wyoming was coal fired (no greasy kid stuff for her) and belched through two stacks. She had six (yes, 6) turrets and two cage masts. All in all a proper battleship.

"The map of the world in the Admiralty War Room measured nearly twenty feet by thirty. Being a seaman's map, its center was filled by the greatest mass of water on the globe: the enormous areas of the Pacific filling upwards of three hundred square feet. On this map the head of a pin represented the full view to be obtained from the masts of a ship on a clear day."
Winston Churchill

July 6, 2013

Got my pre-order into Pacific Front for the Samek 1:700 Wyoming. Along with the Floating Drydock "G" plans of Arkansas I may be making some headway.


Last edited by wyomingkid on Sat Jul 06, 2013 4:28 pm, edited 2 times in total.

Top
 Profile
Reply with quote
PostPosted: Sat May 04, 2013 2:25 am
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 10757
Location: Calgary, AB/Surrey, B.C., Canada
For your interest - Wyoming late in life: viewtopic.php?f=13&t=152065

_________________
De quoi s'agit-il?


Top
 Profile
Reply with quote
PostPosted: Thu Aug 15, 2013 2:13 pm
Offline
User avatar

Joined: Thu Apr 25, 2013 12:01 pm
Posts: 254
Location: Fort Worth, Texas
Love the Wyoming - got some great picks of her. will have to post later


Top
 Profile
Reply with quote
PostPosted: Thu Aug 15, 2013 2:26 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 12:25 pm
Posts: 1422
Location: England
Most things with 12 guns, especially those with 6 turrets, are of interest to me. However I got impatient with the Wyoming not being out yet (and I dislike pre-ordering) so I just bought the Samek New York for now to get my cage mast fix :big_grin: I'll keep an eye on what you're doing with their Wyoming though, might inspire me to get one in the future.

_________________
Vlad


Top
 Profile
Reply with quote
PostPosted: Tue Aug 20, 2013 12:41 pm
Offline
User avatar

Joined: Thu Apr 25, 2013 12:01 pm
Posts: 254
Location: Fort Worth, Texas
here's my 2400 Wyomings - still working on the paint - KBed 2 Arkansas hulls to make the AG17 conversions


Attachments:
USS Wyoming BB Deck.JPG
USS Wyoming BB Deck.JPG [ 23.01 KiB | Viewed 3360 times ]
USS Arkansas Deck.JPG
USS Arkansas Deck.JPG [ 24.44 KiB | Viewed 3360 times ]
USS Arkansas SB.JPG
USS Arkansas SB.JPG [ 22.63 KiB | Viewed 3360 times ]
USS Wyoming AG17 SBs.JPG
USS Wyoming AG17 SBs.JPG [ 29.29 KiB | Viewed 3360 times ]
USS Wyoming AG17 Deck.JPG
USS Wyoming AG17 Deck.JPG [ 30.86 KiB | Viewed 3360 times ]
Top
 Profile
Reply with quote
PostPosted: Fri Aug 23, 2013 5:13 pm
Offline
User avatar

Joined: Thu Apr 25, 2013 12:01 pm
Posts: 254
Location: Fort Worth, Texas
Here are some better picks.


Attachments:
USS Arkansas Deck.JPG
USS Arkansas Deck.JPG [ 70.99 KiB | Viewed 3311 times ]
USS Arkansas SB.JPG
USS Arkansas SB.JPG [ 44.85 KiB | Viewed 3311 times ]

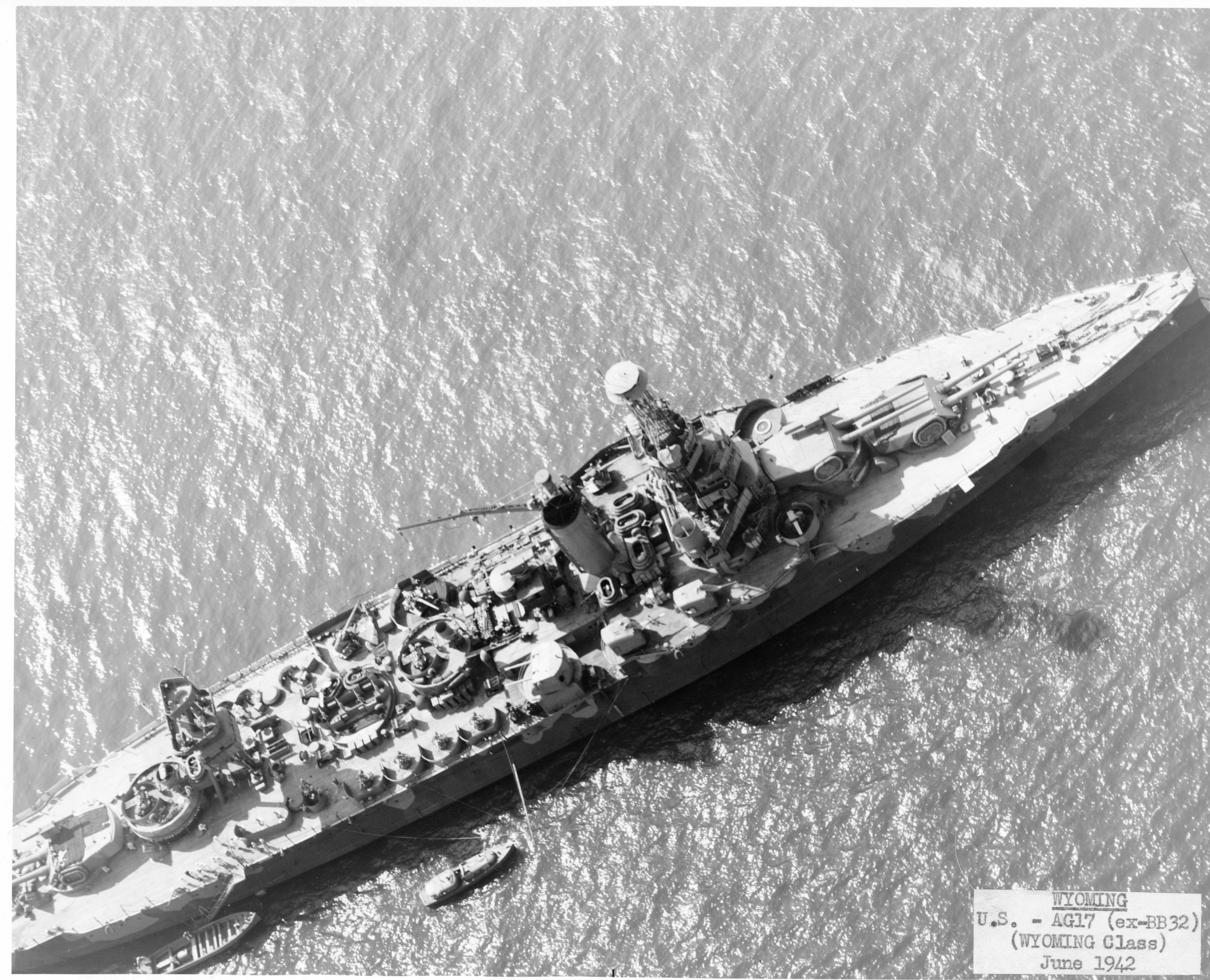

USS Wyoming AG17 Deck.JPG
USS Wyoming AG17 Deck.JPG [ 136.54 KiB | Viewed 3311 times ]
USS Wyoming AG17 SBs.JPG
USS Wyoming AG17 SBs.JPG [ 99.52 KiB | Viewed 3311 times ]
USS Wyoming BB Class Deck.JPG
USS Wyoming BB Class Deck.JPG [ 197.45 KiB | Viewed 3311 times ]
USS Wyoming BB Port.JPG
USS Wyoming BB Port.JPG [ 65.23 KiB | Viewed 3311 times ]
Top
 Profile
Reply with quote
PostPosted: Thu Mar 13, 2014 10:27 pm
Offline

Joined: Fri Mar 07, 2014 10:00 pm
Posts: 583
Location: Richmond, VA, USA
I'll have to do one of those Samek BB-33's... Six turrets!

_________________
... Brian
Building: BB-67 Montana
Fitting out: DD-450 O'Bannon


Top
 Profile
Reply with quote
PostPosted: Fri Mar 14, 2014 2:13 pm
Offline
User avatar

Joined: Thu Apr 25, 2013 12:01 pm
Posts: 254
Location: Fort Worth, Texas
blw wrote:
I'll have to do one of those Samek BB-33's... Six turrets!


1918 cool ! - $100 wow - too rich for me - but cool - I see BB-32 as well also Tom's Modelworks & HP have BB-33 1944 but I don't see a price? I'd love to get a 700 scale - 1918 mod of 32 & Texas.


Top
 Profile
Reply with quote
PostPosted: Wed Aug 13, 2014 5:50 pm
Today is August 13, 2014: My grandfather, John C. Gamble (Ship Fitter, 2nd Class) served aboard USS Wyoming from 1917-1919. He was in the "Carpenter's Gang" because of his ability as a Mechanical drawer, which later became his life-long career as a naval draftsman at (first) the Boston Navy Yard and later Portsmouth Navy Yard. When he left the Wyoming, he walked off with a complete set of blueprints. He died in 1982 and a lot of his stuff was simply boxed up and forgotten about. I recently came into possession of the box with the blueprints, and the 1917-1918 North Sea cruise book. Both are in excellent condition. I'm thinking of having the blue prints framed. The front sheet says: "Plan No. 39, Booklet of General Plans, prepared in office of Superintendending Constructor, WM Cramp & Sons, S & E B. Co." The "box" labelled "Corrected to Suit Ship" has corrected dates ranging from July 13, 1911 up to "DEC 1915". The booklet of plans folds up: when laid flat, it initially measures 18'' X 7 1/2 inches, and then folds out again so that it is 36'' X 15''. There are tears along some of the fold lines. (Not surprising given that they are nearly 100 years old.) I live and work in the Washington DC area and hope to get over to the Naval Historical Center at the Washington Navy Yard to see if there is any interest in their "scanning" these prints before I have them mounted to a decorate an office. Rick Gamble email: swegam@verizon.net


Top

Reply with quote
PostPosted: Wed Aug 13, 2014 7:54 pm
Offline
User avatar

Joined: Sun Feb 01, 2009 3:55 pm
Posts: 3125
Location: Hawaii
Very nice find Rick! They will probably wish to have them scanned and hopefully add them to this page in due course: http://www.hnsa.org/doc/plans/index.htm

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984


Top
 Profile
Reply with quote
PostPosted: Tue Oct 06, 2015 6:28 pm
Offline
User avatar

Joined: Sun Feb 01, 2009 3:55 pm
Posts: 3125
Location: Hawaii
Does anyone have any more info on this photo or by chance have come across more of the same scene? Its dated to early October 1945 at Pearl and depicts BB-33 moored alongside BB-64 during a respite between Magic Carpet runs. I'd like to build this as a diorama for possible display aboard BB-64.

http://navsource.org/archives/01/064/013364a.jpg

Does anyone know where in Pearl they are tied up so I could get some more shots of the surrounding area? I'm only going to include a small section of the pier/land but enough to show where they are.

The ships appear to be nested, correct? Any idea how the gangways between the two ships would be rigged or how they would be tied up to each other?

Would it be safe to assume that the crews had holy stoned the teak back to natural wood by this point?

Any and all help is appreciated as always.

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984


Top
 Profile
Reply with quote
PostPosted: Wed Oct 21, 2015 4:08 pm
Offline
User avatar

Joined: Sun Feb 01, 2009 3:55 pm
Posts: 3125
Location: Hawaii
Okay found this gem today: http://www.history.navy.mil/our-collections/photography/numerical-list-of-images/nhhc-series/nh-series/80-G-451000/80-G-451391.html

From looking at aerial photos they're moored at Ten-Ten Dock. I was able to get a few shots of the pier wall from looking at salvage photos of the Oglala so I think I'm set. I'll just use artistic license for the rest.

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984


Top
 Profile
Reply with quote
PostPosted: Fri Apr 22, 2016 12:57 pm
Offline

Joined: Sun Jan 10, 2016 12:28 pm
Posts: 89
Location: Cripple Creek VA
I've got the 1/700 Samek 1/700 USS Arkansas BB-33 kit arriving soon and wondered if anyone has any comments on building this kit or any good sources for her WWI-era fit; paint scheme etc.


Attachments:
Arkansas.jpg [ 15.7 KiB | Viewed 1460 times ]
Top
 Profile
Reply with quote
PostPosted: Sun Feb 10, 2019 12:34 am
Offline

Joined: Wed Aug 26, 2009 12:46 am
Posts: 252
I'm working on a commission build of the USS Wyoming 1918. Does anyone have any close up pics or better yet a rigging diagram for her at or about that time period?

Thanks,


Top
