I've just recently come across these battleships (never studied French ships) and didn't see a thread for them so here we go.

After searching the board and the net I've come to realize that photos of the three ships are hard to come by. I'm interested in Lorraine in particular after she was re-built and supporting the Allies in France in 1944. Does anyone know of any good sources (internet, print, etc...) for photos/plans of Lorraine from that time period? I found plans for her and Bretagne over on http://www.servicehistorique.sga.defense.gouv.fr/02fonds-collections/banquedocuments/planbato/planbato/listebato/listebato.php but they are from 1913.

Also, I found a 1/700 resin kit of Lorraine in her 1944 fit ( :woo_hoo: ) from H-P Models. I've tried finding a review or build of the kit but have come up short. Can anyone comment on any aspect of the kit?

Ultimately I want to build the Lorraine as she was off beaches during Operation Dragoon as well as do a few drawings/paintings of her throughout her years of service. My mothers side of the family is part French, my mother happens to be named Lorraine, and upon hearing that there was a French battleship with the same name she's wanted a painting ever since :cool_2:

Any and all help is appreciated guys.

Thanks in advance,
-Mike

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984


Last edited by Cliffy B on Mon Dec 27, 2010 4:26 pm, edited 1 time in total.

Top
 Profile
Reply with quote
PostPosted: Mon Dec 27, 2010 4:53 am
Offline
L'Arsenal
L'Arsenal
User avatar

Joined: Mon Aug 18, 2008 1:55 pm
Posts: 914
Location: 64700 Hendaye, FRANCE
Mike,

One of the best reference regarding Lorraine is this book "Les cuirassés de 23500t" by Robert Dumas and Jean Guiglini. This French book covers all ships of "Courbet" and "Bretagne" classes with lots of photos,drawings and tips vey useful for the modeller.
You can get it here : http://www.avions-bateaux.com/en/catalo ... e_193.html.

HTH
Gilbert


Top
 Profile
Reply with quote
PostPosted: Mon Dec 27, 2010 9:11 am
Offline
User avatar

Joined: Tue Jun 20, 2006 6:50 am
Posts: 352
Location: roma, italia
waiting for the french book (higly recommended) some image from russian sources and from wayne scarpaci
ciao peppe


Attachments:
r05.jpg [ 37.41 KiB | Viewed 38310 times ]
r7.gif [ 43.74 KiB | Viewed 38310 times ]
r9.gif [ 22.23 KiB | Viewed 38310 times ]
File comment: from waynw book on french battleships
rfr-05.jpg [ 137.2 KiB | Viewed 38310 times ]
rO3.jpg [ 54.73 KiB | Viewed 38310 times ]
Top
 Profile
Reply with quote
PostPosted: Mon Dec 27, 2010 9:24 am
Offline
User avatar

Joined: Tue Jun 20, 2006 6:50 am
Posts: 352
Location: roma, italia
http://dash63.livejournal.com/ one more illustration from this site
ciao peppe


Attachments:
rlorraine.jpg [ 145.74 KiB | Viewed 38305 times ]
Top
 Profile
Reply with quote
PostPosted: Mon Dec 27, 2010 5:15 pm
Offline
User avatar

Joined: Sun Feb 01, 2009 3:55 pm
Posts: 3125
Location: Hawaii

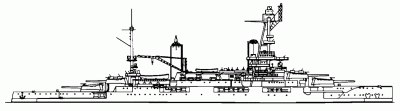

Awesome guys, thanks a million for the line drawings and the info!

Les Cuirassés de 23 500 Tonnes sounds like its the best bet as books go. While looking around on the net for a stateside copy I keep finding the 1980 edition. Is that the only one available or is there a newer one out there? The French website doesn't mention and I just want to be sure I'm not missing out on a newer copy with extra stuff :big_grin: Its a shame I didn't take French in high school, took Spanish instead, d'oh! Guess I'll learn the hard way :big_grin: I always wanted to learn it anyway so it'll be a neat experience. I put in a request at my local library to see if they track down a copy. They're usually pretty good about finding books within their network. We'll see what turns up. If they can't find it I'll order a copy.

How's Wayne's French BB book? I have his US BB book and was not very impressed by it. I bought it mainly because I love his paintings and was thrilled when I found he released them in a book. I got it only to find that they are TINY (maybe 3"x5" at most) and horribly pixelated, same goes for the line drawings :doh_1: Being an artist I know all about taking precautions to make sure your work isn't pirated but that's a little extreme, oh well. Is the French one the same way? :frown_2:

Thanks again guys!
-Mike

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984


Top
 Profile
Reply with quote
PostPosted: Tue Dec 28, 2010 4:38 am
Offline
L'Arsenal
L'Arsenal
User avatar

Joined: Mon Aug 18, 2008 1:55 pm
Posts: 914
Location: 64700 Hendaye, FRANCE
Cliffy B wrote:
Les Cuirassés de 23 500 Tonnes sounds like its the best bet as books go. While looking around on the net for a stateside copy I keep finding the 1980 edition. Is that the only one available or is there a newer one out there? The French website doesn't mention and I just want to be sure I'm not missing out on a newer copy with extra stuff :big_grin: Its a shame I didn't take French in high school, took Spanish instead, d'oh! Guess I'll learn the hard way :big_grin: I always wanted to learn it anyway so it'll be a neat experience. I put in a request at my local library to see if they track down a copy. They're usually pretty good about finding books within their network. We'll see what turns up. If they can't find it I'll order a copy.

-Mike

Mike, the French website has the latest edition (04/2005). Photos are normal to large size and drawings are double page format. Even without speaking French at all, there are lots of photos and drawings. And, if you'll need some additional assistance, as I own a copy, i will help you :smallsmile:

Gilbert


Top
 Profile
Reply with quote
PostPosted: Tue Dec 28, 2010 10:46 am
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 8347
Location: New Jersey
Available kits (all in 1/700):
HP Models Provence (1940)
HP Models Lorraine (1944)
Delphis Models Bretagne

Gallery:
1/700 Delphis Bretagne by Jim Baumann

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Sun Jun 05, 2011 7:28 am
Offline
User avatar

Joined: Fri Apr 16, 2010 6:47 pm
Posts: 3134
Location: Oslo, Norway
I might order the Delphis Models Bretagne class battleship in 1/700, any comments/impressions/accuracy etc about the Delphis model ?
Thanks in advance.


Top
 Profile
Reply with quote
PostPosted: Sun Jun 05, 2011 10:50 am
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 8347
Location: New Jersey
Atma wrote:
I might order the Delphis Models Bretagne class battleship in 1/700, any comments/impressions/accuracy etc about the Delphis model ?
Thanks in advance.


Check out the 1/700 Delphis Bretagne by Jim Baumann - he makes comments on the quality of the kit.

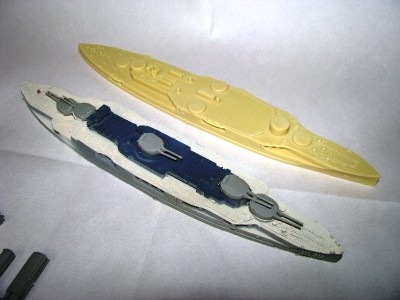

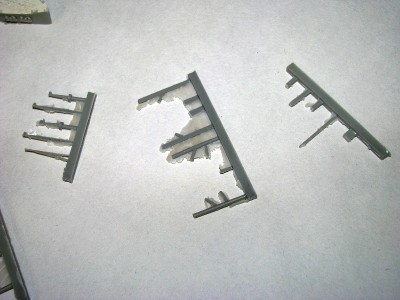

EDIT: Here are a few photos of the Delphis kit parts. Newer castings I've seen have the funnels as part of the hull. HP France is in the background.


Attachments:
IMG_0841.JPG [ 237.35 KiB | Viewed 37911 times ]
IMG_0842.JPG [ 238.21 KiB | Viewed 37911 times ]
IMG_0843.JPG [ 218.28 KiB | Viewed 37911 times ]
IMG_0844.JPG [ 733.72 KiB | Viewed 37911 times ]
IMG_0845.JPG [ 226.56 KiB | Viewed 37911 times ]
IMG_0846.JPG [ 246.98 KiB | Viewed 37911 times ]
IMG_0847.JPG [ 247.03 KiB | Viewed 37911 times ]
IMG_0848.JPG [ 247.2 KiB | Viewed 37911 times ]
IMG_0849.JPG [ 200 KiB | Viewed 37911 times ]

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery
Top
 Profile
Reply with quote
PostPosted: Sun Jun 05, 2011 11:38 am
Offline
User avatar

Joined: Fri Apr 16, 2010 6:47 pm
Posts: 3134
Location: Oslo, Norway
Thanks again Martin, compared to the HP kit, in your opinion wich is better, casting wise. Delphis or HP ?
Thanks in advance.


Top
 Profile
Reply with quote
PostPosted: Sun Jun 05, 2011 2:15 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 8347
Location: New Jersey
Atma wrote:
Thanks again Martin, compared to the HP kit, in your opinion wich is better, casting wise. Delphis or HP ?
Thanks in advance.


The Delphis kit, even though it's older, is better cast, in my opinion.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Top
 Profile
Reply with quote
PostPosted: Sun Jun 05, 2011 5:36 pm
Offline
User avatar

Joined: Fri Apr 16, 2010 6:47 pm
Posts: 3134
Location: Oslo, Norway
Thanks Martin for your input !


Top
 Profile
Reply with quote
PostPosted: Sat Sep 03, 2011 1:17 pm
Offline
User avatar

Joined: Fri Apr 16, 2010 6:47 pm
Posts: 3134
Location: Oslo, Norway
Yes !
The Delphis kit so far has awesome casting :) :thumbs_up_1:


Top
 Profile
Reply with quote
PostPosted: Fri Dec 23, 2022 7:56 am
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1881
Location: Bretagne, France
About colors:

Some other references here:
viewtopic.php?f=47&t=46997&start=40

Cuirassé Bretagne 1/200:
viewtopic.php?f=13&t=366021

Plans & Drawings:
General list : http://www.shipmodell.com/index_files/0PLAN5A.html#2S

Battleship Bretagne plans:
https://drive.google.com/file/d/0B32-8Z ... PDNXfRG9kg

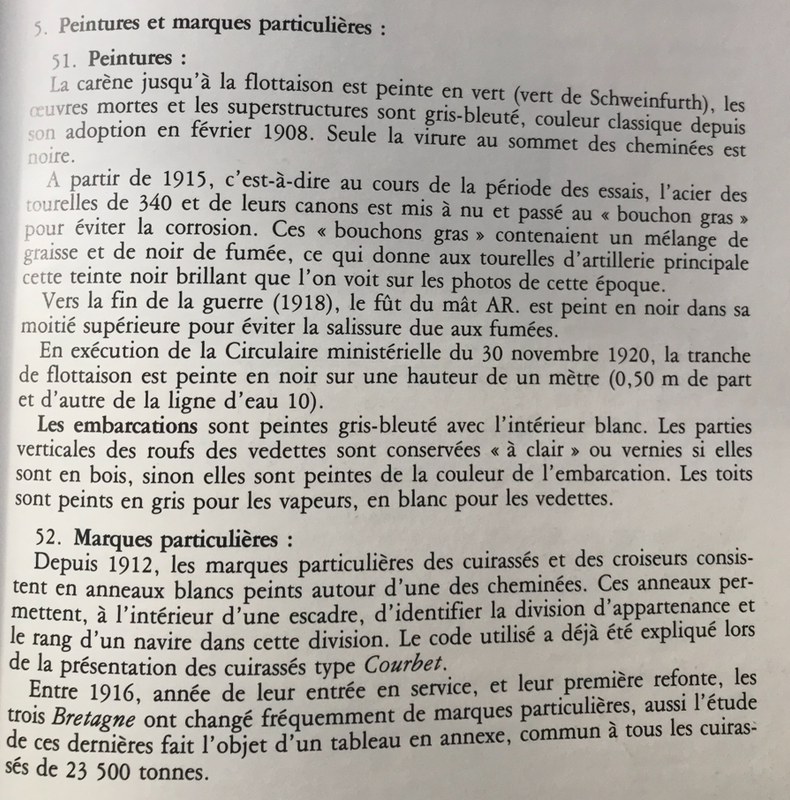

From the french book & plans " Les Cuirassés de 23 500 tonnes":


"5. Special paints and marks:
51. Paintings:

The hull up to the waterline is painted green (Schweinfurth green), the topsides and the superstructures are grey-bluish, a classic color since its adoption in February 1908. Only the strake at the top of the funnels is black.

From 1915, that is to say during the period of the tests, the steel of the 340 turrets and their guns was stripped bare and treated with a "greasy plug" to prevent corrosion. These "fat plugs" contained a mixture of grease and lampblack, which gives the main artillery turrets that shiny black hue seen in photos from this era.

Towards the end of the war (1918), the shaft of the rear mast. is painted black in its upper half to avoid soiling due to fumes. Pursuant to the Ministerial Circular of November 30, 1920, the tranche of waterline is painted black over a height of one meter (0.50 m from and the other side of the water line 10).

The launch boats are painted bluish gray with white interior. The vertical parts of the deckhouses of the launches are kept "clear" or varnished if they are wooden, otherwise they are painted the color of the boat. The roofs are painted gray for the steamers, white for the launches.

52. Specific marks:

Since 1912, the particular marks of battleships and cruisers consist of white rings painted around one of the funnels. These rings make it possible, within a squadron, to identify the division to which it belongs and the rank of a ship in this division. The code used has already been explained during the presentation of Courbet type battleships.

Between 1916, the year of their entry into service, and their first overhaul, the three Class "Bretagne" frequently changed particular marks, so the study of the latter is the subject of a table in the appendix, common to all battleships. of 23,500 tons."

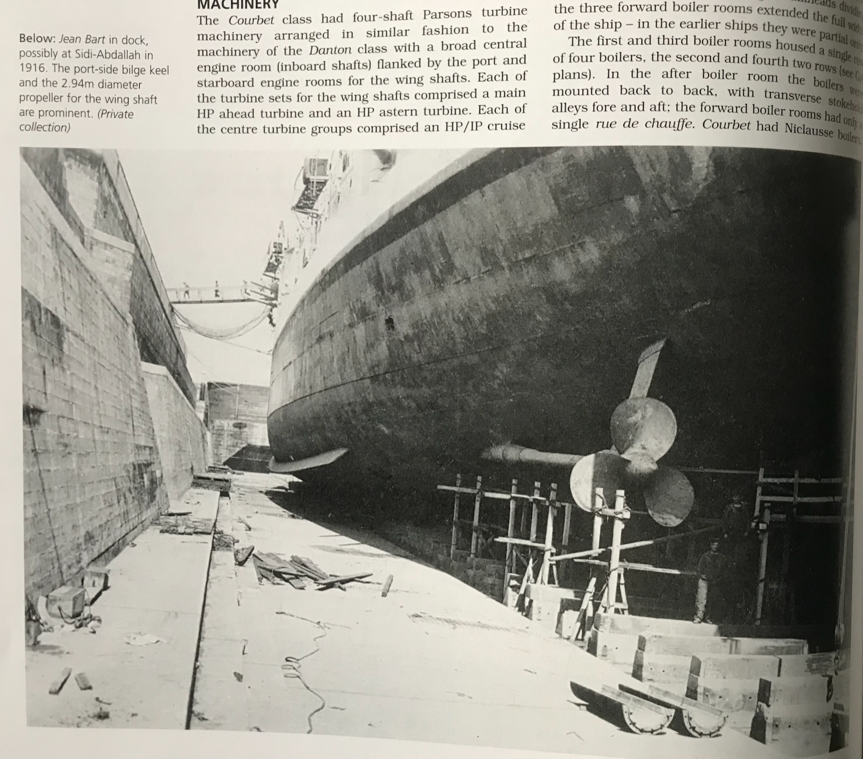

From the book " French battleships of WW1 " :

Jean Bart in drydock 1916. You can see the 3 bands..


Extract from the book by Laurent Roblin and Luc Féron. "La Royale à la Belle Epoque".


In 1995, Laurent Roblin, chief curator of the Musée de la Batellerie in Conflans-Sainte-Honorine, discovered a large metal box at the bottom of one of the museum's storage rooms. Inside, fourteen boxes of glass plates? This collection, which had been sleeping in a storeroom since 1967, turns out to be of inestimable value.

What are we looking at?

223 images of exceptional quality and totally unpublished, based on the theme of the Royale, the French Navy, from 1895 to 1914.

Translate:

"The boundary between the dead and the live works is materialized by a white band about 25 cm above the waterline.

As far as the color of the living works is concerned, the campaign specifications all specify, when the matter is mentioned, that during the passages in the basin, the hull was repainted with "Schwein-furth green". We also owe Jean Guiglini the formula for the composition of this painting, and we give it here for the benefit of model builders who would like to get a closer look at reality. (Extract from the magazine LA NATURE ler semestre 1930 p. 47).

- Mercury soap 15%
- Rosin 20%
- Turpentine 20%
- Lead soap 15%
- Linseed oil 20%
- Copper acetoarsenate 15%


This last material, toxic for marine organisms, and having a very bright aquamarine green color, gives this paint its tint and its anti-shellfish and algae characteristics (nowadays, it looks like an "antifouling" paint)
But the problem is not so simple! Indeed, the black and white photographs of the building taken during this period all show, under the white net of the waterline, a dark area that cannot be the result of a green tint. Furthermore, the paintings, watercolors and colored postcards generally show a red area under the white line in question. Finally, the estimates for the work done on various buildings at that time, and on the Bouvet in particular, mention, in addition to the Schweinfurth" green, the use of lead minium in large quantities.

The explanation seems clear to us and is, for example, visible in the photo of the Carnot at the basin. While the minium was used as a protective layer against rust, a layer of "Schweinfurth green" was applied afterwards to protect the hull as much as possible against organic dirt. When floating, the main problem is corrosion - it is the oxygen in the air that attacks the iron; this is probably the reason why an area of about one meter, painted with minium, was kept at the top of the living works, just under the white border.


_________________
Pascal

•Battleship Bretagne 3D: https://vu.fr/FvCY
•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Top
 Profile
Reply with quote
PostPosted: Tue Jan 17, 2023 1:46 pm
Offline
User avatar

Joined: Sat Jun 14, 2008 9:27 am
Posts: 849
Location: Kingston, Jamaica
Hi all,

I took the plunge and bought the new SS Model 3D printed kit of Bretagne. Even though I have very little knowledge of the details of the ship itself, this kit has several issues. Thought I'd post some pictures here to get some feedback.

This will be a "review" of sorts, so if this should be in the Reviews section it can be moved there, but I have some questions, so hopefully I can get some answers in this thread.

First up, it comes with virtually non existent instructions, just a sheet with 5 poorly printed close-ups from the CAD drawings showing the assembled areas for the few part "sprues".

Attachment:
Bretagne kit (1).jpg
Bretagne kit (1).jpg [ 45.22 KiB | Viewed 35603 times ]

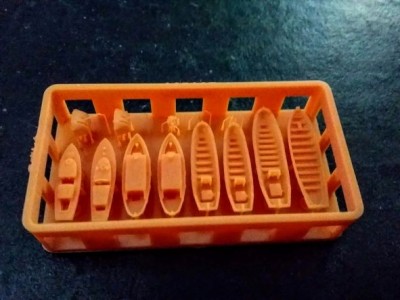

The kit is cast in an orange-coloured resin. There is a waterline hull that looks nice at first glance, cleanly printed, but then the decks are smooth as ice - no grooves for wood planks. I've seen Jim Bauman's Bretagne and it has wood decks, but I've also seen pictures that suggest the decks were steel (at least as built) maybe with a corticene-like covering???

The forecastle deck is also missing the capstan for the port anchor chain.

Attachment:
Bretagne kit (8).jpg
Bretagne kit (8).jpg [ 40.35 KiB | Viewed 35603 times ]


The kit should be an extremely simple build as the superstructure parts are printed in 4 pieces only - bridge with fore-funnel (with all platforms)and middle turret deck, foremast with spotting top, rear funnel, aft superstructure including boat deck. These are printed in a protective "crate" sort of like a milk crate (as are the other parts). In the same "crate" are the main turrets and cranes.

There are brass barrels for the main and secondary armaments, but no PE.

Attachment:
Bretagne kit (3).jpg
Bretagne kit (3).jpg [ 47.5 KiB | Viewed 35603 times ]

Attachment:
Bretagne kit (7).jpg
Bretagne kit (7).jpg [ 40.84 KiB | Viewed 35603 times ]

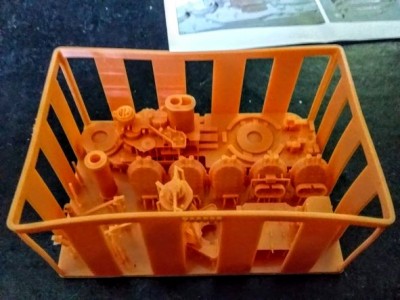

The above pics show the superstructure "crate", the second with the sides removed. I noticed slots on the bridge wings for the secondary directors (which I ID'd from photos/drawings), but there are no directors in the kit. Also missing are the prominent horizontal aerials on either side of the spotting top. I'll have to see what I can figure out to replace those.

Attachment:
Bretagne kit (6).jpg
Bretagne kit (6).jpg [ 44.33 KiB | Viewed 35603 times ]


Above is the mainmast which is 3D printed, but the topmast is so thin, it's bent like a palm tree in a hurricane! It'll need replacement. Other part "crates" below, boats and AA guns.

Attachment:
Bretagne kit (4).jpg
Bretagne kit (4).jpg [ 42.9 KiB | Viewed 35603 times ]

Attachment:
Bretagne kit (5).jpg
Bretagne kit (5).jpg [ 48.87 KiB | Viewed 35603 times ]


My main concern right now are the hull decks. Were they wood planked in WW2 or were they steel?

And should corticene be applied to superstructure steel decks? Would that have been the case in WW2? Or were they dark grey as depicted in some drawings?

See this Britmodeller thread:

https://www.britmodeller.com/forums/ind ... 200-scale/
The CAD images in this thread are for her WW1 fit.

Thanks in advance for any help!

_________________
Hard a starboard.......Shoot!


Top
 Profile
Reply with quote
PostPosted: Sat Apr 01, 2023 3:19 am
Online
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5568
Location: Nr Southampton England
The Iceman 200 3 D scratch model ...is to date....

THE datum line for Bretagne... !



viewtopic.php?f=13&t=366021



Had I only... all those years ago...
when I built my Delphis Bretagne ....
known of all the excellent images that Iceman has found and analysed !

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Top
 Profile
Reply with quote
PostPosted: Wed Jan 31, 2024 7:26 am
Offline
User avatar

Joined: Tue Sep 29, 2020 4:35 pm
Posts: 1881
Location: Bretagne, France
A beautiful colorized shot of a well-known photo of the Battleship Bretagne.

The colors seem right for the time, around 1916.

The brick red of the antifouling is only present to a height of about 1.30 m, underneath it's Paris green or Schweinfurt green.

https://journals-openedition-org.transl ... r_pto=wapp


_________________
Pascal

•Battleship Bretagne 3D: https://vu.fr/FvCY
•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ


Top
 Profile
Reply with quote
PostPosted: Sat Jun 01, 2024 6:06 pm
Offline

Joined: Sat Jun 29, 2019 12:37 am
Posts: 21
I, too, purchased the SSModel battleship Bretagne, but in a different version -- the one has the fully complete bridge with tripod and finely printed yardarms, but the hull is a traditional 2-part cream-colored resin set in which the upper and lower sections do not match laterally -- overlap of the upper half in various places in the rear half of this section. They were also slightly warped, which problem I solved when gluing the two halves together by drilling holes in the keel and installing screws through the lower half into the upper half while gluing the two parts together and using various clamps to fix them in place. I still had to add some Evergreen plastic strips beneath the overhangs and do a lot of puttying and sanding to eventually get a satisfactory full hull with a smooth surface where both halves merged; also had to add a few mm of length (with putty) to the lower section bow and stern to match the top hull half. What is further annoying is that various deck fixtures for mooring (the large chocks with bulges where the deck meets the hull, both on the forecastle and quarter decks, and the similar chocks at the very tip of both bow and stern) are completely absent and will have to be scratch-built for authenticity. I'll also make an attempt at a scratch-built capstan for the forecastle (nothing in my extensive plastic spare parts stash is a match). It's odd, but not problematic, that the secondary (5.45-in.) secondary gun barrels in both resin and brass number 22, the number for when the ship was first built, not the 14 in place by 1939 (with pairs of casemates plated over near the bow and stern on both sides of the ship). I, too, found the 3D-printed mainmast to be warped and easily bent, but with the help of a candle flame I straightened it out. The last major issue with this kit is that the third (rearmost) superstructure deck (the boat deck, with the stump of the mainmast and searchlight platform) is too long to fit into the available deck space once the two forward sections (bridge, funnels and central turret) have been installed. I had to cut away the forward end (about 5 mm of width) in order to install it and still leave room for the fourth turret to swing clear of the base of the mainmast and rear rangefinder. A close examination of various photographs of the Bretagne taken during the last few years of her career don't seem to show the structures of this deck that I removed, so they probably won't be missed. The building process of this model continues . . .


Top
 Profile
Reply with quote
PostPosted: Mon Jun 03, 2024 11:03 pm
Offline

Joined: Sat Jun 29, 2019 12:37 am
Posts: 21
OK, I've successfully scratch-built the missing chocks on my 1/350 full hull SSModel Bretagne; I also managed to install the stern anchor and its attachments and clamps. My last hull issue with this kit involves the 7 or 8 apparently small square openings on each side of the hull between the casemates and the armor belt. Can anyone tell me what these are? The available photos
Attachment:
French battleship Bretagne ca. 1939.jpg
French battleship Bretagne ca. 1939.jpg [ 240.4 KiB | Viewed 2641 times ]
seem to show square openings with a short pipe protruding through, as though they are some type of drain for waste liquids from inside the ship. I'm trying to figure out how to simulate them on my model.


Top
 Profile
Reply with quote
PostPosted: Tue Jun 04, 2024 3:50 am
Online
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 5568
Location: Nr Southampton England
Hello JB here! I dont think the 'square' openings are square ! :wave_1:

I think your photo shows what in the lower image--large portholes with open lids

Also have a look at my 1/700 Bretagne model built around 18 years ago (!) if you wish

http://www.modelwarships.com/reviews/sh ... tagne.html



see enclosed image of Bretagne


Attachments:
bretagne small.jpg
bretagne small.jpg [ 1.3 MiB | Viewed 2635 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 23 posts ]  Go to page 1, 2  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 4 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
