Yes. The Oakland kit has the different bridge applicable to that sub-group. Also, 40MM tubs replace both the waist 5" guns and the boats amidships. But on the flip side, it has all the issues with the hull (armor belt wrong shape and grossly over the proper thickness), stacks, and other details that are found on the original Atlanta kits.

Any news on when this might be released?

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

Yes, for the differences between Skywave kits for USS Atlanta and Oakland, visit page 5 of this thread. Warning: Neither kit is adequate by itself to build a reasonably accurate model of the actual ship!

I combined these ingredients to model USS Flint of the Oakland group:

. My own designs and creations in PE, based on blueprints and photographs
. Styrene kit for USS Oakland by Dragon/DML/Skywave
. Resin kit for USS Spokane by Admiralty Model Works
. Metal parts from Paper Lab
. PE from Gold Medal Models

My USS Flint won first place among ship models and best of show among all models (about 20) at the IPMS San Diego quarterly contest last week!

_________________
If humanity wishes to preserve a planet similar to that on which civilization developed and to which life on Earth is adapted, [atmospheric] CO2 will need to be reduced from its current 385 ppm to at most 350 ppm.
Dr James Hansen, NASA, 2008.

Good day folks,

I'm building the Yankee Modelworks 1/350 USS Atlanta and I have a question about the layout of the superstructure. At the main deck level, between the forward and center sections of the superstructure (directly aft of the fwd funnel), there appears to be an open breezeway accross the ship from port to starboard. Was this so? And was there a deck or covering over it, or was it open? The pictures I have are too grainy to tell for sure.

Thanks!
Steve V
Winnipeg MB

Yes. Atlanta and her earlier sisters (CL-51, 52,53, 54) had a crane and 'boat farm' at this location. They soon proved to be fire hazards and were later removed. Unfortunately Atlanta and Juneau died with theirs. AA mounts soon filled this area on later sisters. Hope this helps!

I believe that Steve V mentions the transverse opening on the main deck of the Atlanta class first eight units. Based on the plans from Floating Drydock, yes, it existed, and contained the winch for the ship's boats davits.

Catwalks between the boat deck and B gun deck spanned the opening (i.e., catwalks were at the 01 level). If not for the winch, one could call the opening a passageway. These catwalks are visible in the Warship Perspectives book on this class.

Among the errors in the Skywave 1/700 kit is that it omits the transverse opening.

The last three units had a different type of davit that presumably used electric motors to hoist boats, and also apparently had no opening on the main deck level. The forward superstructure upper levels and the forward funnel were relatively further aft, to allow for the forward quad-40mm mount.

I correspond with a weapons officer from USS Flint who can answer questions about this basic design. I also can reach a sailor from the same ship although his memories seem not altogether reliable. Ask!

_________________
If humanity wishes to preserve a planet similar to that on which civilization developed and to which life on Earth is adapted, [atmospheric] CO2 will need to be reduced from its current 385 ppm to at most 350 ppm.
Dr James Hansen, NASA, 2008.

Hello "Atlanta" class guys. Question: What was Atlanta's (at the time of her loss) paint configuration? I always thought according to the references I have that she (and Juneau) was in MS-12 (mod) dapple using 5-S, 5-O, on the hull with 5-O, 5-H, on the superstructure. I have been told that she carried 5-N (apparently exclusive)on the hull and 5-O, 5-H on the superstructure. Can anyone show or tell me how to verify these quandries? Thank you.

Hello again I reviewed back several pages and got my answer although I'm still not convinced. Thanks anyway!

Good question! The photos about 11 or 12 posts up on this thread show Atlanta with a solid-color hull and dapple superstructure. The ships in the South Pacific were gradually repainting into MS-21. The process was "catch-as-catch-can", meaning that part would be painted during one stopover and part at the next (and the next, etc.). The above photo has a claimed date of Oct 16, 1942, less than a month before her loss. It is the last "confirmed" scheme. It is possible that the repainting had been completed prior to her loss, the superstructure being easier to paint than the hull, but confirming that would have to come from anecdotal sources rather than photographic ones (unless something new is discovered). The last clear photo of Juneau (Rod Dickson's monograph, p37, dated to Sep '42) shows a uniformly colored superstructure and matching transom, but with a badly faded wave pattern on the port side of the hull. Rod claims that photos taken during Santa Cruz show that MS-21 was complete, but no such photos were included. (Distant, indistinct shots, yes, blow-ups of Juneau to confirm, no.)

Steve,

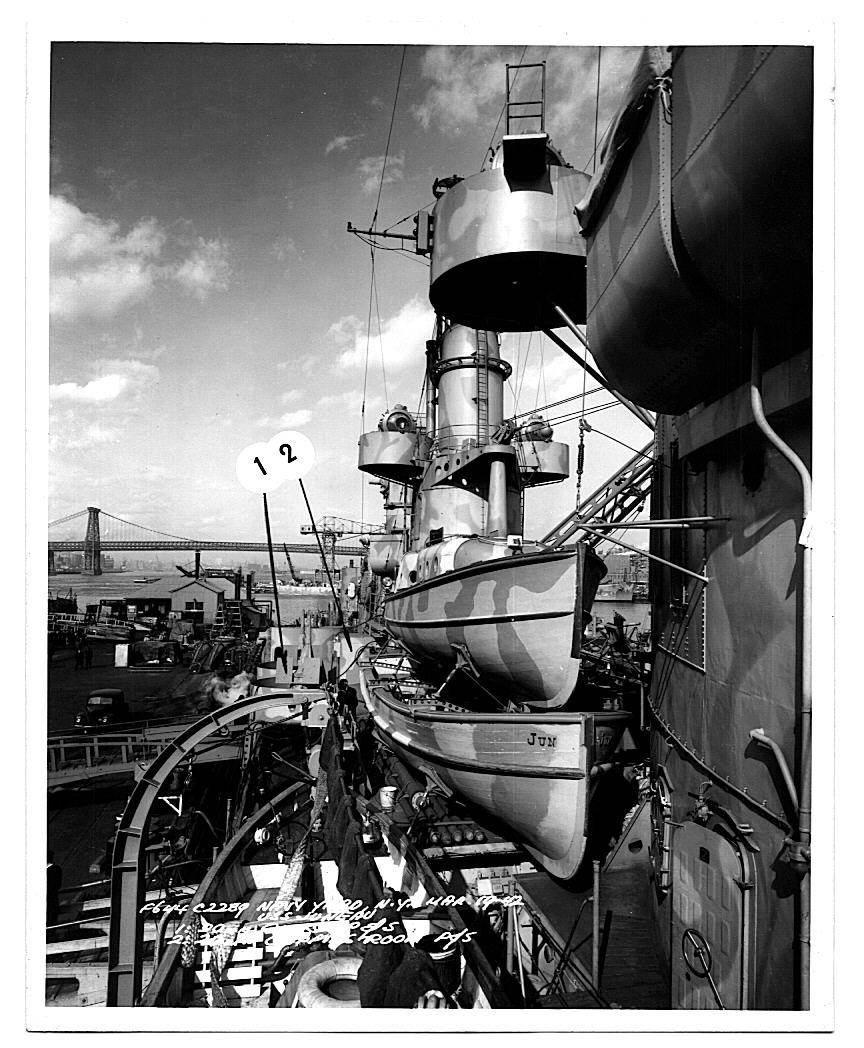

It was indeed there, this photo of the Juneau from March of 1942 shows it.
