PostPosted: Sun Feb 10, 2008 5:31 am
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2253
Location: Copenhagen
There are several 1/700 kits of US protected cruisers:

USS Chicago (Kombrig)
USS Boston (Kombrig, not yet available?)
USS Baltimore (Kombrig)
USS Olympia (Kombrig, WSW, Modelkrak)
USS Cincinnati (Modelkrak)
USS Columbia (Modelkrak)
USS Cleveland (Modelkrak)
USS Milwaukee (Modelkrak)

Which literature is useful? I have "US Cruisers" by Friedman. It contains profiles of many ships in the original state, but deck views only of the 1918 fit. Modelkrak depict most ships in the 1918 fit using those drawings. I have also "History of US Cruisers" (Ship of the World, 1993 No 464).

I want to built Chicago, Baltimore, Olympia and Raleigh (sister of Cincinnati) in their 1898 fit. The bridges of Kombrig's Baltimore and Modelkrak's Cincinnati are certainly wrong for the 1898 fit judged by the available photos.

But are their better drawings available?

I found those:
http://www.servicehistorique.sga.defense.gouv.fr/02fonds-collections/banquedocuments/planbato/atlas/rec.php
(search e.g. for "Cincinnati" and save the drawing GMMEUPL018.tif using the "save target as"-function. Tif-files can't be opened using most browsers)

Does somebody can recommend additional sources?

_________________


Top
 Profile
Reply with quote
PostPosted: Sun Feb 10, 2008 6:10 am
Offline

Joined: Tue Jan 11, 2005 7:44 pm
Posts: 836
Location: Zipangu - Jipukuo
I`ve built the Kombrig USS BALTIMORE and WSW USS OLYMPIA. The 1880s/1890s were certainly interesting times for ship designs.

_________________
No Quarter Asked - None Given


Top
 Profile
Reply with quote
PostPosted: Thu Feb 14, 2008 3:08 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 10:26 am
Posts: 1683
Location: The Netherlands
I don't know of any other resources (but hey, I'm European). I used the drawings from the French archives for my San Fransisco build (it's somewhere down on the online scratchbuild thread) but found details on deck clutter lacking.

The official US Navy archives perhaps?

_________________
If all else fails, a complete pig-headed refusal to see facts in the face will see us through. - General Melchett


Top
 Profile
Reply with quote
PostPosted: Thu Feb 14, 2008 3:49 pm
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1001
Daniel Jones' Plastic Scale modeler had some fairly good drawings on Atlanta, Boston and Chicago in its last two issues which seem to have influenced the Kombrig kit of Chicago


Top
 Profile
Reply with quote
PostPosted: Tue Mar 10, 2009 1:26 pm
Offline

Joined: Sun Jan 11, 2009 9:48 am
Posts: 26
I am looking for any information on the USS New Orlenes from 1900 to 1905. My gtandfather served on board her and the USS baltimore while he was in the Marine Corps during the Boxer Rebellion? Thanks for any information Hank45


Top
 Profile
Reply with quote
PostPosted: Thu Mar 12, 2009 8:41 am
Offline

Joined: Tue Jan 11, 2005 7:44 pm
Posts: 836
Location: Zipangu - Jipukuo
Hank45 wrote:
I am looking for any information on the USS New Orlenes from 1900 to 1905. My gtandfather served on board her and the USS baltimore while he was in the Marine Corps during the Boxer Rebellion? Thanks for any information Hank45



This man served aboard USS NEW ORLEANS (as well as USS OREGON and USS CONCORD) at the same time as your grandfather. It is a most excellent read; I`m sure you`d find it fascinating. The image is not from the focsle of USS NEW ORLEANS.

I`m planning on scratch-building this ship some time soon. Let me know if you get any useful details other than that availale from Navsource or USN history.org

_________________
No Quarter Asked - None Given


Top
 Profile
Reply with quote
PostPosted: Thu Mar 12, 2009 1:01 pm
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2253
Location: Copenhagen
There is some information about USS New Orleans in

Warships for Export by Peter Brook
(design, career, technical data 1 photo plus 2 photos and 2 profiles of her sister Albany plus a drawing of a 4.7 in QF gun)

Armstrong's contribution to the New United States Navy by Peter Brook in Warship 2004
(design, career, technical data 3 photo and 1 profile plus 2 photos and 1 profile of her sister Albany)

USS New Orleans is one of the numerous Elswick protected cruisers built by Armstrong. There were similar ships in the Brazilian (Barroso) and Chilean (Ministro Zenteno) navy.

US Cruisers by Norman Friedman
(design, technical data, 1 profile of original fit, 1 profile and deck view of her 1913 fit)

Conway's All the World's fighting ships 1860-1905 by Robert Gardiner (Ed.)
(design, technical data, career, 1 photo and 1 profile or her sister Albany)

I have 33 photos of her on my PC, which I found somewhere in the internet (and perhaps in some books).

_________________


Top
 Profile
Reply with quote
PostPosted: Tue Mar 17, 2009 5:29 am
Offline
User avatar

Joined: Wed May 23, 2007 10:46 am
Posts: 786
Location: Rio de Janeiro - Brazil
http://www.servicehistorique.sga.defens ... as/rec.php

I'm very sad about it, look at what happenned, and owners of the site ads:

"Following attacks on databases of SHD, they are no longer available, for an indefinite period. We ask you to forgive us."

I hope they can fix it, and turn back the files. I was looking for the files to Cincinnati.
Jimmy Conway

_________________
Make your influence positive!

"Oh Lord thy sea is so great and my boat is so small."
Breton Fisherman's Prayer


Top
 Profile
Reply with quote
PostPosted: Wed Mar 18, 2009 7:10 am
Offline
User avatar

Joined: Wed May 23, 2007 10:46 am
Posts: 786
Location: Rio de Janeiro - Brazil

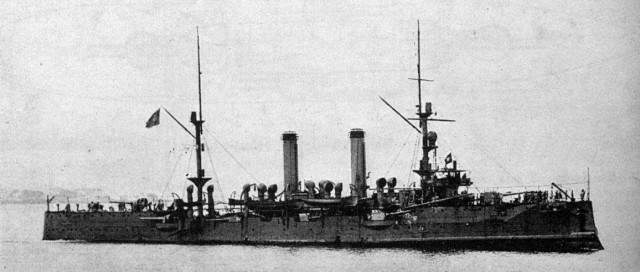

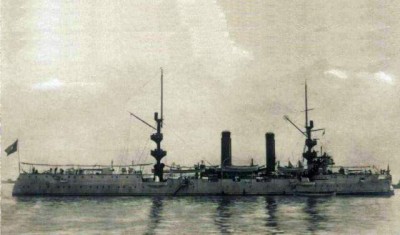

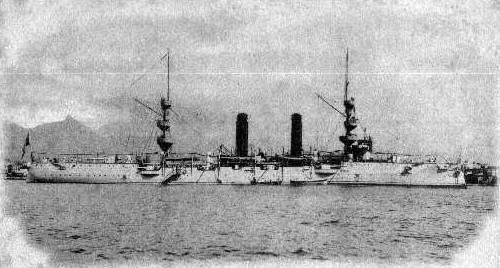

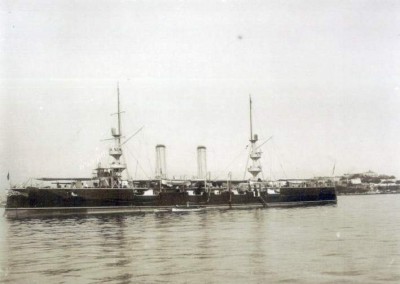

Brazilian Navy Ship, C1 "Barroso", built by Armstrong Mitchell & Co., em Elswick, Newcastle-on-Tyne, United Kingdon, keel laid in 1895, the ship was comissioned in 1896 serving till 1931.

Dimensions:
Displacement - 3446 tons ( full)
O. Lenght - 107,9 m
Beam - 13,10 m
Draft - 4,88 m

Attachment:
B019-f01.jpg [ 75.06 KiB | Viewed 4461 times ]


Attachment:
B019-f02.jpg [ 24.54 KiB | Viewed 4462 times ]


Attachment:
B019-f03.jpg [ 27.45 KiB | Viewed 4461 times ]


Attachment:
B019-f04.jpg [ 29.98 KiB | Viewed 4463 times ]


Attachment:
B019-f05.jpg [ 27.78 KiB | Viewed 4459 times ]

_________________
Make your influence positive!

"Oh Lord thy sea is so great and my boat is so small."
Breton Fisherman's Prayer


Top
 Profile
Reply with quote
PostPosted: Thu Mar 08, 2012 12:09 pm
Offline
User avatar

Joined: Thu Oct 06, 2005 8:21 pm
Posts: 41
Location: Sacramento, California USA
maxim wrote:
There are several 1/700 kits of US protected cruisers:

USS Chicago (Kombrig)
USS Boston (Kombrig, not yet available?)
USS Baltimore (Kombrig)
USS Olympia (Kombrig, WSW, Modelkrak)
USS Cincinnati (Modelkrak)
USS Columbia (Modelkrak)
USS Cleveland (Modelkrak)
USS Milwaukee (Modelkrak)
[...]

Does somebody can recommend additional sources?

maxim,
A great source of photographic reference for U.S. protected cruisers and U.S.Navy ships in general is Navsource Online, a volunteer outfit dedicated to preservation of naval history in the form of images and text. They have a fantastic collection of photographs; here's a link to their page for the USS Olympia, for example:
http://www.navsource.org/archives/04/c6/c6.htm

By the way, there are also models in scales other than 1/700! Here's my in-progress Revell 1/232 scale Olympia:


regards,
Tim


Top
 Profile
Reply with quote
PostPosted: Thu Mar 08, 2012 12:24 pm
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2253
Location: Copenhagen
Yes, navsource is a fantastic source of photos!

I had ignored the other scales - probably because I am building only 1/700. But I had owned also a 1/232 kit of Olympia - a very nice kit! It is now produced by Encore.

The French archive is accessible again:
http://www.servicehistorique.sga.defense.gouv.fr/02fonds-collections/banquedocuments/planbato/atlas/rec.php

There are also drawings of USS Olympia (0022-0027, this are tiff files, which cannot be opened by most browsers and have to be saved directly).

_________________


Top
 Profile
Reply with quote
PostPosted: Sun Nov 25, 2012 2:49 am
Offline
User avatar

Joined: Fri Nov 23, 2012 7:40 am
Posts: 12
I work with a group trying to save the Olympia, so I have access to some pretty neat plans of the ship. Anybody interested in them for use in modeling? They're mostly TIFF files and very large so I can't just upload them to this forum.


Top
 Profile
Reply with quote
PostPosted: Sun Nov 25, 2012 3:09 am
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2253
Location: Copenhagen
I still do not have finished Olympia, therefore I would be very interested!

You have a PM!

_________________


Top
 Profile
Reply with quote
PostPosted: Sun Nov 25, 2012 5:50 am
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 743
Location: Adelaide,SouthOZ

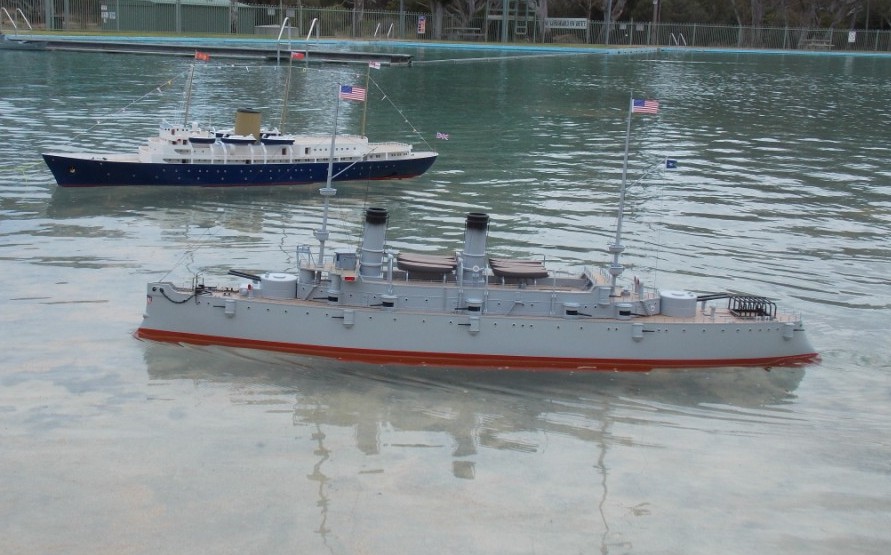

One of my TF72 club mates has scratch built this 1/72 Rc USS Olympia.....not to shabby for only his second scratchbuilt RC ship!!


Attachments:
Nara2sat11aa.JPG [ 126.41 KiB | Viewed 3538 times ]

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS ALBANY CG10
Top
 Profile
Reply with quote
PostPosted: Sun Nov 25, 2012 1:10 pm
Offline
User avatar

Joined: Fri Nov 23, 2012 7:40 am
Posts: 12
Oh that's classy - is that one of those model warship combat ships?


Top
 Profile
Reply with quote
PostPosted: Sun Nov 25, 2012 7:43 pm
Offline

Joined: Mon May 10, 2010 9:09 am
Posts: 743
Location: Adelaide,SouthOZ
Mandarax wrote:
Oh that's classy - is that one of those model warship combat ships?


No weapons, the only combat these models see is of a more physical nature! (collisions!!)

Bruce

_________________
building:
1/72 RC USS LONG BEACH CGN9
1/72 RC USS CALIFORNIA CGN36
1/72 RC USS SAIPAN LHA2
1/72 RC USS JOHN PAUL JONES DDG53
1/72 RC USS SHARK SSN591
1/72 RC USS ALBANY CG10


Top
 Profile
Reply with quote
PostPosted: Sun Nov 25, 2012 10:50 pm
Offline
User avatar

Joined: Fri Nov 23, 2012 7:40 am
Posts: 12
Here are dropbox links to the plans I've got access to right now.

https://www.dropbox.com/s/gubxantc61da7 ... g-Plan.tif - Drydock keel block plan, with great side and cross-sectional front views.
https://www.dropbox.com/s/ndrjvbppxanic ... ansion.tif - Hull expansion plan, so you can track the strakes.
https://www.dropbox.com/s/pb7hkz3u8rrp2 ... lating.tif - Main deck plating diagram.
https://www.dropbox.com/s/peiegd2tiz5a8 ... lating.tif - Superstructure deck plating diagram.
https://www.dropbox.com/s/j8h52j6pfljt3 ... n-Deck.tif - A rather attractive drawing of the main deck, inside and out, including interior design features.
https://www.dropbox.com/s/93btpklglig2t ... ffsets.tif - Table of Offsets. This information is basically Greek to me.
https://www.dropbox.com/s/7brz54mae1esy ... -plans.pdf - Interior deck and space plans.

Hope these are of use and interest!


Top
 Profile
Reply with quote
PostPosted: Mon Nov 26, 2012 12:57 am
Offline
User avatar

Joined: Wed Jun 27, 2012 8:29 pm
Posts: 173
Location: Philadelphia, PA
Those are really interesting Mandarax, thanks for the links.

I'm really hoping to see some good news with the Olympia this year. I love the ship, and can certainly appreciate the story she tells, but I truly hope she can find a better home, even if that means leaving Philadelphia.

San Francisco is an awfully nice town, and the connection fits Olympia well. Good luck!

_________________
I would like to have seen Montana...


Top
 Profile
Reply with quote
PostPosted: Mon Nov 26, 2012 3:05 am
Offline
User avatar

Joined: Fri Nov 23, 2012 7:40 am
Posts: 12
The Mare Island Historic Park Foundation is doing all it can to get the ship; she'd be permanently placed in the same graving dock where she was originally fitted out in 1895. We already have the graving dock, now we just need the ship to put in it :)

I'm working on a small exhibit about the ship for the museum, and would welcome any input from anybody with anything to offer.


Top
 Profile
Reply with quote
PostPosted: Mon Nov 26, 2012 2:58 pm
Offline
User avatar

Joined: Sun Mar 07, 2010 12:01 am
Posts: 1029
Location: Corvallis, Oregon, USA
Mandarax,

The Table of Offsets is a list of XYZ coordinates for points on the hull surface (in some drawings the points are on the inside of the hull plating). They were calculated by the ship's architect to define the shape of the hull.

X. The longitudinal or X value is the frame number, listed down the left side of the table. This gives the position along the length of the ship. Frames are usually a fixed distance apart for a given ship, for example 4 feet or 1.5 meters. This is different for each ship type. Multiply the frame number by the frame-to-frame spacing to get the distance along the length of the ship.

Note 1: Frame zero is often at the end of the hull at the normal load waterline. It is at the bow (Fore Peak) on American drawings, but some European nations start at the stern (After Peak). The hull may overhang frame zero, so some frames may have negative numbers.

Note 2: In some drawings the longitudinal positions are at "stations" instead of frames. Stations are typically multiples of frames, such as five frames per station. In this case multiply the station number by the distance between stations.

Y. The vertical or Y values are the waterlines. These are essentually contour lines around the hull. Imagine the ship in drydock and they start letting water in. The 2 ft water line is where the water surface would be after it had risen two feet above the bottom of the keel (in some drawings it would be 2 ft. above an imaginary "Base Line" on top of the keel plating).

Z. The numbers in the table rows and columns are transverse distances (Z values) outward from the centerline of the ship. These are given in feet-inches-eighths. So 3-1-4 would be out 3 feet, 1 inch and 4/8 inch. If the eighths are followed by a plus, like 3-1-4+, it means that the distance is more than 4/8 and less that 5/8.

For modeling purposes I change eighths to sixteenths and convert to decimal, so 4 becomes 8/16 (0.5) and 4+ becomes 9/16 (0.5625). I change feet to inches, and add up the three numbers. so 3-1-4+ = 3*12 + 1 + 0.5625 = 37.5625.

****

There are also tables of Hull Sight Lines that define the location of edges of the plates in the hull strakes. Other tables give the alignment of the propeller shafts, profiles of bow and stern, bilge keel placement, etc. These tables define almost everything about the shape and construction of the hull.

Tables that show elevations of deck centerlines and edges along the hull sides can be misleading. The actual deck surface is sometimes defined to be some distance above the deck lines in the tables, such as 1/4" or 1/2". Sometimes the deck lines are to the middle of the thickness of the deck plating. You need to read the fine print in the drawings.

To make it more interesting, they don't actually show the thickness of the metal plating on most drawings. Instead they give the weight of a square foot of the plating, and often this is abbreviated. So 10# means 10 pounds per square foot, and for ordinary rolled steel that is actually 10.2 pounds per square foot for 1/4" thick plate.

So, to figure out where the outside surface of the hull is for some ships you first use the Table of Offsets to find the inside of the plating, then you convert the plating weight to the thickness, and add that to the inside dimension to get the outside dimension. For large scale models of armored ships the difference between inside and outside dimensions can add up to a significant fraction of an inch.

Note 3: Hull armor plating is usually added to the outside of the hull plating, so the Table of Offsets dimensions may not include armor thickness.

Simple, isn't it? Not!

****

In most cases the drawings that show hull lines, the entire ship profile or deck plan views are pretty inaccurate. They often are just conceptual drawings made before the ship was built, and the actual construction may be different. Hull line drawings are a carry-over from wooden ship days. The Table of Offsets is what modern builders use to construct the hull, and it is much more accurate than hull line drawings. The only way to build an accurate large scale hull model (or CAD model) is to work from the Table of Offsets.

Phil

PS: Thanks for the drawings!
