PostPosted: Sun Nov 18, 2012 8:27 am
Offline
User avatar

Joined: Sat Oct 20, 2012 11:01 pm
Posts: 311
Location: Concrete, USA
I found an interesting series of photos of the USS Laffey in drydock. Lots of great pictures of the stern area:

http://laffey.org/2009_dry_dock_photo_page_courtes.htm

particularly of note is the set here:

http://laffey.org/dry_dock_photos_sept_01.htm
http://laffey.org/Dry%20Dock%20d008.jpg

where the shaft appears to be coated with some sort of sheet rubberized (?) sealant. Of course, this might be an "aftermarket" mod. (better look for evidence of large scale PE) But in any case, it is obvious that the shaft isn't metal-sleeved at least.

Also answered is the question of whether the Revell 1:144 model is accurate with their portrayal of the area where the shaft enters the hull as being a distinct large panel assembly ... it isn't. :smallsmile: Time to get out the gap filling putty!

_________________
Мощность для рабочих, которые просто пытаются построить простой судна под строгим тиранов! - В. И. Ленин

Hello from Elk & Steelhead country and Cody the Incorrigible Cat



Top
 Profile
Reply with quote
PostPosted: Sun Nov 18, 2012 9:55 am
Offline

Joined: Tue Nov 03, 2009 9:28 pm
Posts: 2126
Location: Egg Harbor Twp, NJ
I think these are better

http://laffey.org/november_2009_dry_dock_photos_co.htm


Top
 Profile
Reply with quote
PostPosted: Sun Nov 18, 2012 1:53 pm
Offline

Joined: Thu May 29, 2008 8:02 pm
Posts: 3841
These photos of LAFFEY being "repaired" so she won't sink at her museum berth, are not good examples of what operational ships would look like. The shaft to hull interfaces are good, but coatings and extra "chalking/seals" are questionable.


Top
 Profile
Reply with quote
PostPosted: Sun Nov 18, 2012 11:14 pm
Offline
User avatar

Joined: Sat Oct 20, 2012 11:01 pm
Posts: 311
Location: Concrete, USA
oh well, back to step 1. The Laffey was a Sumner class not a Fletcher class. It turned up in a Fletcher search ... my mistake. One can't compare apples with watermelons. :huh:

_________________
Мощность для рабочих, которые просто пытаются построить простой судна под строгим тиранов! - В. И. Ленин

Hello from Elk & Steelhead country and Cody the Incorrigible Cat



Top
 Profile
Reply with quote
PostPosted: Sun Nov 18, 2012 11:50 pm
Offline

Joined: Tue Nov 03, 2009 9:28 pm
Posts: 2126
Location: Egg Harbor Twp, NJ
Except that the materials used for Navy propellers and propeller shafts does not change from Class to Class. Nor do below waterline coatings on non-museum ships at any given time. If you're going to coat a steel hull with anti-fouling paint, why wouldn't you coat the steel shafts too, except where they go through bearings?


Top
 Profile
Reply with quote
PostPosted: Mon Nov 19, 2012 12:48 am
Offline
User avatar

Joined: Sat Oct 20, 2012 11:01 pm
Posts: 311
Location: Concrete, USA
Russ,

I'm really not trying be a pain in the behind or stubborn, but ...

An on-board plan of the Cassin Young
viewtopic.php?f=59&t=40032&start=40#p284520
shows the prop and shaft both as being bronze (or a dissimular metal).

Additionally a pair of illustrations by John Robert Barrett also show the same thing. (I don't have the link to those right now but will try to find them ... I have the pics on my computer)

got me? But I am going to make sure first. :smallsmile:

_________________
Мощность для рабочих, которые просто пытаются построить простой судна под строгим тиранов! - В. И. Ленин

Hello from Elk & Steelhead country and Cody the Incorrigible Cat



Top
 Profile
Reply with quote
PostPosted: Mon Nov 19, 2012 12:53 am
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 12324
Location: Ottawa, Canada
codythecatt wrote:
Russ,

I'm really not trying be a pain in the behind or stubborn, but ...

An on-board plan of the Cassin Young
viewtopic.php?f=59&t=40032&start=40#p284520
shows the prop and shaft both as being bronze (or a dissimular metal).

Only the side-view, though! The top view shows the shafts as red!

_________________
De quoi s'agit-il?


Top
 Profile
Reply with quote
PostPosted: Mon Nov 19, 2012 12:54 am
Offline

Joined: Thu May 29, 2008 8:02 pm
Posts: 3841
The SUMNER class (short-hull and long-hull ... aka GEARING class) were built on the same hull and with the same machinery plant. Only major differences were the twin rudders and a slightly wider hull (and the longer hull for GEARINGS). So views of the underwater hull would be very similar. What coatings were used can very, the USN experimented with different paints ALL the time. I read one account where this destroyer had about a dozen different underwater primers from different manufactures applied for evaluation in different locations on the hull. A common top coat was applied over the whole thing, so there wouldn't be any notice until the next drydocking, depending on how well the paint worked. :scratch: There was a "cheat sheet" drawing in the file telling where and who's paint was applied where. And no I didn't scan it and I don't even remember which FLETCHER it was.

Don't trust Barrett's drawings for configuration or anything. They produce drawings that are "pretty" and the same illustration is used for many units ... many times in configurations that ship NEVER had. The display plans for CASSIN YOUNG are not color coded for what they are, just for illustration purposes.


Top
 Profile
Reply with quote
PostPosted: Wed Nov 21, 2012 3:59 pm
Offline

Joined: Thu Feb 03, 2011 1:44 pm
Posts: 145
Location: McMinnville, OR
Well I've gone through this thread since last I posted. Still trying to get motivated to finish the 1/144 Fletcher, hoping reading through this will help me.

I've looked at it a lot though :woo_hoo:

_________________
On the Table - 1/350 USS Arizona

In the Stack - 1/700 Titanic


Top
 Profile
Reply with quote
PostPosted: Wed Nov 21, 2012 6:50 pm
Offline
User avatar

Joined: Sat Oct 20, 2012 11:01 pm
Posts: 311
Location: Concrete, USA
KevinH wrote:
Well I've gone through this thread since last I posted. Still trying to get motivated to finish the 1/144 Fletcher, hoping reading through this will help me.
I've looked at it a lot though :woo_hoo:

Kevin:

Howdy from up north of you.
Come re-join the fun ... ie: you can make fun of me while I build my USS Leutze!
There will loads of entertainment for all!
Pack a picnic lunch, bring the urchins (and the ball and chain if you must), macaroni salad, and sign up for the '3-masted' race ...(or was that something to do with potatoes???)

_________________
Мощность для рабочих, которые просто пытаются построить простой судна под строгим тиранов! - В. И. Ленин

Hello from Elk & Steelhead country and Cody the Incorrigible Cat



Top
 Profile
Reply with quote
PostPosted: Wed Nov 21, 2012 10:04 pm
Offline
User avatar

Joined: Sat Jan 21, 2012 5:43 pm
Posts: 371
KevinH wrote:
Well I've gone through this thread since last I posted. Still trying to get motivated to finish the 1/144 Fletcher, hoping reading through this will help me.

I've looked at it a lot though :woo_hoo:


Hey Kevin,
You were doing a great job with your Johnston :thumbs_up_1: .

The Johnston is a great choice of the Fletcher class to build due to her great sacrifice helping to turn the tide of the battle off Samar that fateful day of October 25th 1944. :cool_2:

I encourage you to take your time and continue your build, you will be glad you did. :big_grin:

BTW, were you able to build the tear drop centerline 40mm bulwark for your build?

Roger DD-473/DD-555 :wave_1:


Top
 Profile
Reply with quote
PostPosted: Fri Nov 23, 2012 12:23 am
Offline

Joined: Thu Feb 03, 2011 1:44 pm
Posts: 145
Location: McMinnville, OR
snaphappy321 wrote:
KevinH wrote:
Well I've gone through this thread since last I posted. Still trying to get motivated to finish the 1/144 Fletcher, hoping reading through this will help me.

I've looked at it a lot though :woo_hoo:


Hey Kevin,
You were doing a great job with your Johnston :thumbs_up_1: .

The Johnston is a great choice of the Fletcher class to build due to her great sacrifice helping to turn the tide of the battle off Samar that fateful day of October 25th 1944. :cool_2:

I encourage you to take your time and continue your build, you will be glad you did. :big_grin:

BTW, were you able to build the tear drop centerline 40mm bulwark for your build?

Roger DD-473/DD-555 :wave_1:


Thanks, I didn't change it yet. I may stll do it. LOL I did fold one K-Gun rack today hahaha

_________________
On the Table - 1/350 USS Arizona

In the Stack - 1/700 Titanic


Top
 Profile
Reply with quote
PostPosted: Fri Nov 23, 2012 10:04 am
Offline
User avatar

Joined: Sat Jan 21, 2012 5:43 pm
Posts: 371
Hi Kevin,
I'm happy to hear about the PE. :big_grin: :thumbs_up_1: There's no need to rush the project, we are not in a race to see who finishes first. Building a ship such as the Johnston, requires a fair amount of scratch work. We all have day jobs that require production of some type or we would loose our jobs. Building model ships is a labor of love and is something to savor. If we rush our work and get burned out it becomes nothing more than a job we must do much like working for a living and all the enjoyment is lost.

Roger DD-473/DD-555 :big_grin:


Top
 Profile
Reply with quote
PostPosted: Mon Nov 26, 2012 6:06 am
Offline
User avatar

Joined: Sat Oct 20, 2012 11:01 pm
Posts: 311
Location: Concrete, USA
codythecatt wrote:
oh well, back to step 1. The Laffey was a Sumner class not a Fletcher class. It turned up in a Fletcher search ... my mistake. One can't compare apples with watermelons. :huh:

...etc ad nauseum ...lol

I got a definative answer, regarding Fletchers, from my outside source:

Quote:
As to the screws: I know bronze, but whether alloy I am not sure...the fairings were steel, to the best of my recollection, The shaft was steel. From personal experience, the shaft journal bearings were steel, >400 lbs in weight, with Babbitt metal as the soft metal that cushioned the shaft, using slinger ring lubrication. Just a few more of the facts that, after 53 years, i wish weren't still cluttering up my head!


I still have to contact the source directly and when I do I will credit the citation. :smallsmile: I want to contact the Naval Historian at Bremerton's Puget Sount Naval Shipyard ... but that is still proving a little elusive.

Thanks all!

_________________
Мощность для рабочих, которые просто пытаются построить простой судна под строгим тиранов! - В. И. Ленин

Hello from Elk & Steelhead country and Cody the Incorrigible Cat



Top
 Profile
Reply with quote
PostPosted: Mon Nov 26, 2012 3:51 pm
Offline

Joined: Mon Oct 01, 2012 7:03 pm
Posts: 46
The NAVSOURCE website is down. Does anyone know if this is just a temporary problem?

PeeJay

_________________
So many ships to model and so little time . . . .


Top
 Profile
Reply with quote
PostPosted: Mon Nov 26, 2012 4:57 pm
Offline

Joined: Thu May 29, 2008 8:02 pm
Posts: 3841
Navsource has been having Server problems. There has been a notice posted in the "What's New" section for the Destroyers, anyway, about this for sometime now. There was an indication that "they" (Mr Yarnall) would be seeking a new Server ... I don't know if that has ever happened or is an ongoing process.

An alterative is to check out NHHC's website. Not as many photos, but at least many of the better ones are posted there.

Listed by Ship's name ... http://www.history.navy.mil/photos/sh-usn/usn-name.htm ... some ships are not listed under hull number, so this is worth trying for an individual ship.

Listed by Hull number ... http://www.history.navy.mil/photos/shus ... nsh-no.htm ...


Top
 Profile
Reply with quote
PostPosted: Mon Nov 26, 2012 7:26 pm
Offline

Joined: Mon Oct 01, 2012 7:03 pm
Posts: 46
Thank you for that info. I had been viewing the site as recently as last week and was looking for different angles of the sisters of USS Van Valkenburgh. Hopefully the site will come back.

PeeJay

_________________
So many ships to model and so little time . . . .


Top
 Profile
Reply with quote
 Post subject: Navsource back on line
PostPosted: Thu Dec 06, 2012 6:34 pm
Offline

Joined: Mon Oct 01, 2012 7:03 pm
Posts: 46
I am happy to see that the Navsource Site is back on line. Must have just been the server problem. Have been downloading like crazy before it goes down again!

PeeJay

_________________
So many ships to model and so little time . . . .


Top
 Profile
Reply with quote
 Post subject: Skychairs
PostPosted: Thu Dec 06, 2012 7:22 pm
Offline

Joined: Mon Oct 01, 2012 7:03 pm
Posts: 46
When going through the plan CD, I came across a drawing for the skylookout station. The one on the drawing has a bicycle sat and is illustrated in the attached photos that were attached to a Buships directive for their construction. There is one shown at the aft corners of the pilot house roof on the attached photo of the USS LaVallette.

However, the skylookout chairs on the USS Kidd are constructed differently and located at the forward corners of the pilot house roof. When zooming on photos of the USS Van Valkenburgh, I doid not see any at all, so I am wondering if the use of the skylookout stations was optional. Also, whether there are any drawings of the later style, though I know that they are offered in 1/96 scale by John Haynes through the Floating Drydock. I am probably being overly anal over their use and placement, but I would just like to know if there was any standard policy for the skylookout chair use and design.

PeeJay


Attachments:

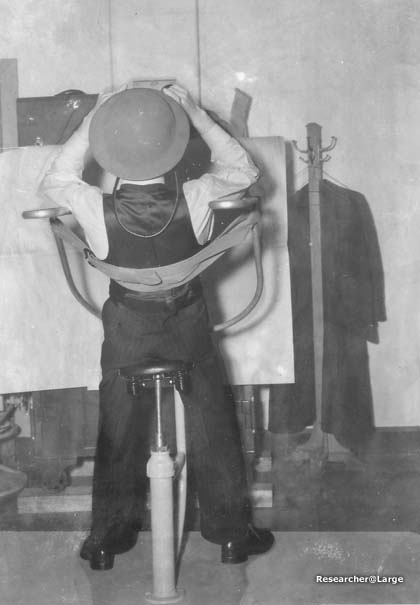

File comment: Buships Skylookout design
SkyLookout-early-01.jpg [ 25.57 KiB | Viewed 1929 times ]

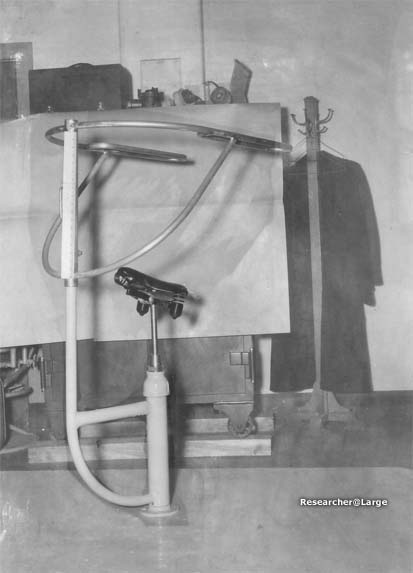

File comment: Buships Skylookout design
SkyLookout-early-02.jpg [ 24.14 KiB | Viewed 1929 times ]

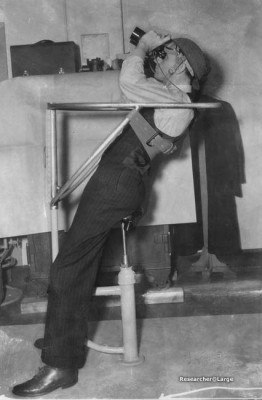

File comment: Buships Skylookout design
SkyLookout-early-03.jpg [ 32.01 KiB | Viewed 1929 times ]

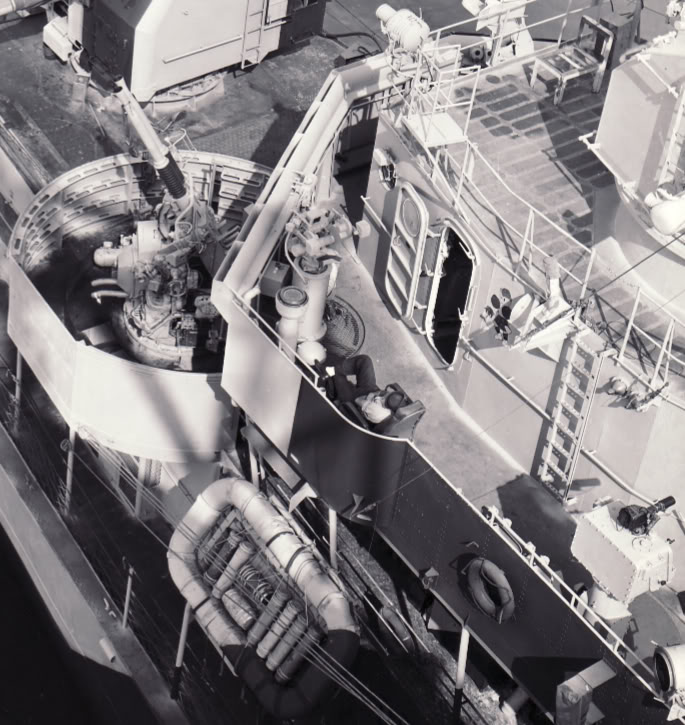

File comment: These skylookout chairs from a DE are the same as those on the USS Kidd
skylookout_1.jpg [ 158.43 KiB | Viewed 1929 times ]

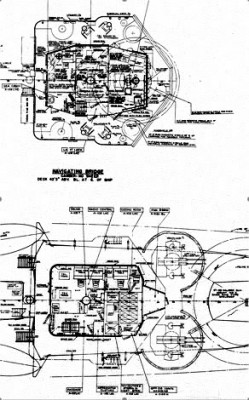

File comment: The plan for the 650 and later Fletchers shows a pair of chairs on the bridge level each side of the pilot house. They are mounted on the forward corners of the pilot house roof on the Kidd.
DD650Bridge.jpg [ 58.63 KiB | Viewed 1929 times ]

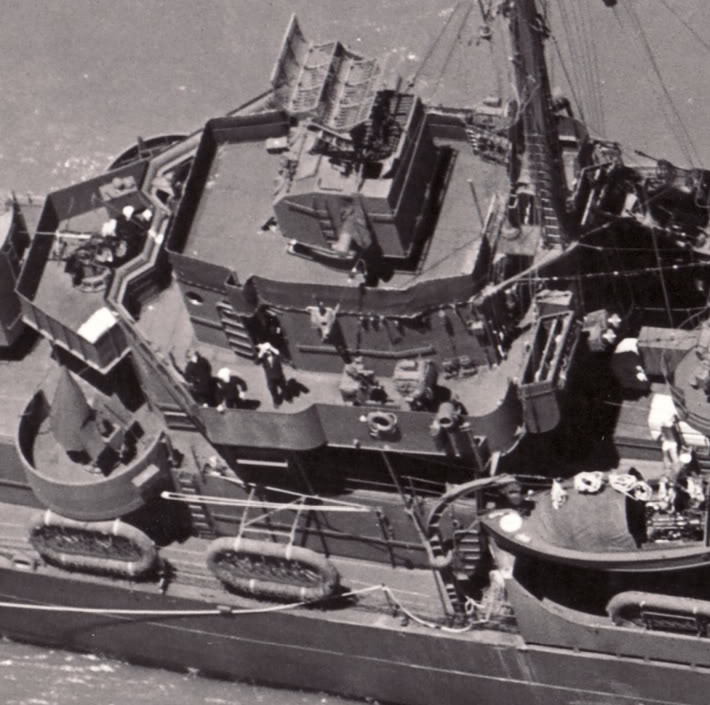

File comment: Early style skylookout station is visible on the aft port radiuysed corner of the LaValette's pilot house roof.
LaValletteCloseup2-19Jul43.jpg [ 163.3 KiB | Viewed 1929 times ]

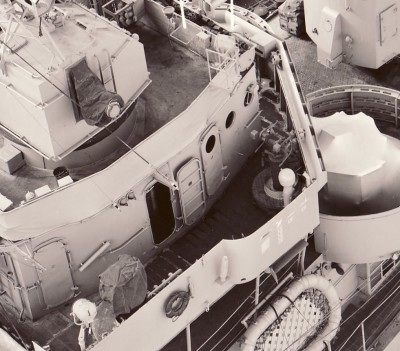

File comment: No skylookout chairs on either level of the USS Hazelwood.
Hazelwoodcloesup-24Jun43.jpg [ 89.15 KiB | Viewed 1929 times ]

_________________
So many ships to model and so little time . . . .
Top
 Profile
Reply with quote
PostPosted: Thu Dec 06, 2012 8:00 pm
Offline

Joined: Mon Oct 01, 2012 7:03 pm
Posts: 46
While zooming in on various photos showing the pilot house roofs of low bridge Fletchers in search of skylookout chairs, I came across some "mystery objects." The one shown in the photo of the USS Shields looks like a huge stereo speaker. However, since the ship appears to be in the yard, it could also be some yard equipment, and not an actual part of the ship.

In the photo of the USS Remey (DD 688), there is a structure on the port side of the pilot house roof that appears to be an angle-iron open frame attached to a box fastened to the forward railing on top of the pilot house. There are a bunch of round objects in it that may be helmets, but, if so, I can't tell how they are restrained, and why all that structure is necessary.

The USS Norman Scott (DD 690) has its own angle iron structure on top of the pilot house. Again, the ship may be in the yard, and it could just be some type of workbench.

PeeJay


Attachments:

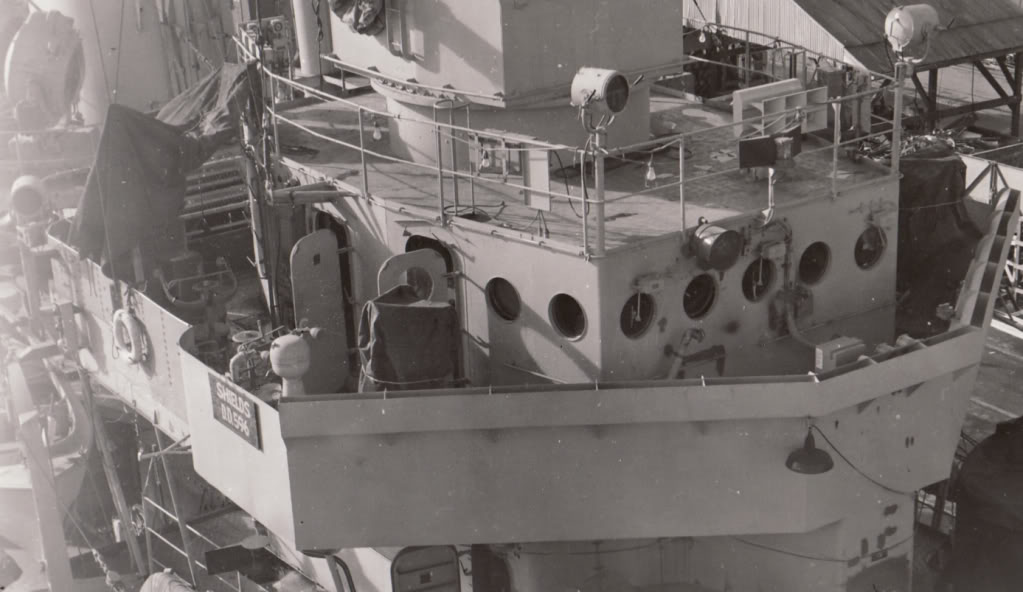

File comment: Is that white thing on top of the pilot house a large speaker? (I doubt it!)
DD596Bridge-11Feb45.jpg [ 82.06 KiB | Viewed 1924 times ]
File comment: "Mystery Structure" is at the far left of the pilot house roof. Large helmet rack?
DD688Bridge-11Dec45.jpg [ 168.24 KiB | Viewed 1924 times ]
File comment: Is the angle iron structure part of the ship or yard equipment?
DD690Bridge-14Oct44.jpg [ 110.05 KiB | Viewed 1924 times ]
