Hello, I was surprised to find a thread on the Zumwalt has yet to have been started, so I was wondering what were your guys thoughts, ideas, hopes about the class.


Top
 Profile
Reply with quote
PostPosted: Sun Jan 12, 2014 3:31 pm
Offline
User avatar

Joined: Fri Nov 07, 2008 3:35 pm
Posts: 2629
Location: UK
Well, I have a question: why is the hull that shape?
It was described as "futuristic" in one press report but it reminds me of the old "ram" bow from the turn of the 20th century.

It must be that shape for a reason.

_________________
In 1757 Admiral John Byng was shot "pour encourager les autres". Voltaire


Top
 Profile
Reply with quote
PostPosted: Sun Jan 12, 2014 3:47 pm
Offline

Joined: Thu May 29, 2008 8:02 pm
Posts: 3102
Well the reason given is for low RF observability. But, given the weak armament, maybe "RAMMING" is a valid option. :big_grin:


Top
 Profile
Reply with quote
PostPosted: Sun Jan 12, 2014 3:59 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 10402
Location: Calgary, AB/Surrey, B.C., Canada
It's a so-called "wave piercing" design, so that the ship cuts through waves instead of going up and down them.

I wouldn't call them weakly armed, at least not for a modern ship - two 155mm guns, two 57mm guns, and 80 VLS cells is pretty darn potent!

_________________
Yo dawg, I heard you like PE, so I put some PE in your PE so you can use PE on your PE.


Top
 Profile
Reply with quote
PostPosted: Mon Jan 13, 2014 4:03 am
Offline
User avatar

Joined: Fri Nov 07, 2008 3:35 pm
Posts: 2629
Location: UK
Timmy C wrote:
It's a so-called "wave piercing" design, so that the ship cuts through waves instead of going up and down them.

I wouldn't call them weakly armed, at least not for a modern ship - two 155mm guns, two 57mm guns, and 80 VLS cells is pretty darn potent!


Thanks Timmy, but doesn't that mean a wet forecastle?

_________________
In 1757 Admiral John Byng was shot "pour encourager les autres". Voltaire


Top
 Profile
Reply with quote
PostPosted: Mon Jan 13, 2014 11:45 am
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 10402
Location: Calgary, AB/Surrey, B.C., Canada
Yes, but everyone's inside anyway, right? And presumably, she's all watertight - at least, has to be capable of being watertight for NBC conditions.

_________________
Yo dawg, I heard you like PE, so I put some PE in your PE so you can use PE on your PE.


Top
 Profile
Reply with quote
PostPosted: Mon Jan 13, 2014 5:53 pm
Offline
User avatar

Joined: Thu Sep 22, 2005 8:58 pm
Posts: 1549
Location: Houston, Texas
From what I have read the Zumwalt class design calls for her to cut swells and waves as not to bob around any to minimize the radar footprint especially when moving at high speeds. The design expects the bow to be very wet and watertight is a major consideration. She is going to need a lot of paint and non-skid over her lifetime.

_________________
╔═════╗
Seasick
╚═════╝


Top
 Profile
Reply with quote
PostPosted: Tue Jan 14, 2014 12:43 pm
Offline
User avatar

Joined: Fri Nov 07, 2008 3:35 pm
Posts: 2629
Location: UK
Timmy C wrote:
Yes, but everyone's inside anyway, right? And presumably, she's all watertight - at least, has to be capable of being watertight for NBC conditions.


Thanks Timmy.

_________________
In 1757 Admiral John Byng was shot "pour encourager les autres". Voltaire


Top
 Profile
Reply with quote
PostPosted: Tue Jan 14, 2014 12:44 pm
Offline
User avatar

Joined: Fri Nov 07, 2008 3:35 pm
Posts: 2629
Location: UK
Seasick wrote:
From what I have read the Zumwalt class design calls for her to cut swells and waves as not to bob around any to minimize the radar footprint especially when moving at high speeds. The design expects the bow to be very wet and watertight is a major consideration. She is going to need a lot of paint and non-skid over her lifetime.


Hi Seasick, it sounds like an interesting idea. They desrve credit for trying something new.

_________________
In 1757 Admiral John Byng was shot "pour encourager les autres". Voltaire


Top
 Profile
Reply with quote
PostPosted: Wed Jan 15, 2014 10:56 am
Offline
User avatar

Joined: Sun Mar 13, 2005 11:51 am
Posts: 2075
Location: Belgium
It does have a lot design considerations. One of them being the anchor, that looks like a Submarine style anchor inside the ship.
Sort of strange that they came up with this shape as there are already quite some more wave-piercing designs available nowadays. There are the Axe-bow (Dutch) and X-bow (Norwegian) designs which are quite important. I must admit that both of them are not entirely "stealthy", yet the axe-bow could be modified a bit I guess.
The commercial aspect of these designs if of course that they reduce fuel consumption a lot and speed loss is less in bad weather. It's also supposed to be more comfortable in heavy seas (that's why they are mostly used on offshore supply ships, rather small ships that go far into the sea and need some stability/performance in heavier weather as well. Nowadays some cargo ships like general cargo and cattle carriers are using this kind of bow shapes as well.
The reason why there is no topic is probably because there are no plans or models of these ships available yet. I, for one, would be quite interested in a large scale RC version. But for that you of course need plans...
It would make for a nice and fast build, but with a guaranteed impressive result!

_________________
Yard conversion to merchant shipbuilding


Top
 Profile
Reply with quote
PostPosted: Fri Jan 17, 2014 2:49 am
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2212
Location: Copenhagen
I have seen simulations that the wave-piercer bow actually makes a ship drier, because it is reducing pitching. Unfortunately the link is not longer working.

A conventional bow increases the buoyancy, if a high wave runs against it (because it is broader at the deck compared to the waterline). Therefore the bow is lifted upwards resulting in a pitching movement, which results in more green water. The wave-piercer bow does not increase buoyancy, i.e. the ship should move more stable and less water is taken over.

Anyway, is there any company announcing a 1/700 kit of this class?

_________________


Top
 Profile
Reply with quote
PostPosted: Mon Feb 03, 2014 7:58 pm
Offline
User avatar

Joined: Wed Nov 27, 2013 7:06 am
Posts: 2043
Location: Vancouver, Canada
An interesting video, plus some key screengrabs with important points about the class, including comparisons to past warship classes. Sorry Cleveland class fans. :big_grin:

Naval Technology.com video


_________________
"Haijun" means "navy" in Mandarin Chinese.

"You have enemies? Good. It means you stood up for something in your life."- Winston Churchill


Top
 Profile
Reply with quote
PostPosted: Thu Feb 20, 2014 3:40 pm
Offline
User avatar

Joined: Thu Sep 22, 2005 8:58 pm
Posts: 1549
Location: Houston, Texas
The 57mm is an upgrade to supersede the 25mm bushmasters. The ship is all electric, the MT-30 gas turbines turn alternators for the ships electric supply and to run the electric motors. There are a lot of doors with equipment behind them. Models are going to have lots of doors that can be posed.

_________________
╔═════╗
Seasick
╚═════╝


Top
 Profile
Reply with quote
PostPosted: Thu Apr 17, 2014 5:10 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 10402
Location: Calgary, AB/Surrey, B.C., Canada
De facto armour? Apparently the Mk 57 cells have 4-inch thick "steel plate armor", technically for the heat from missile launches, but kinda justifies putting them on the perimeter:
http://navylive.dodlive.mil/2014/04/17/ ... he-future/

_________________
Yo dawg, I heard you like PE, so I put some PE in your PE so you can use PE on your PE.


Top
 Profile
Reply with quote
PostPosted: Sat Apr 19, 2014 10:59 pm
Offline

Joined: Tue Nov 01, 2011 10:27 am
Posts: 33
Dear Folks,

My only comment on this class is, "shoulda been Nuclear-powered".

Sincerely,
Nelson


Top
 Profile
Reply with quote
PostPosted: Sun Apr 20, 2014 12:01 am
Offline
User avatar

Joined: Thu Mar 05, 2009 10:38 pm
Posts: 2937
NelstoneB wrote:
Dear Folks,

My only comment on this class is, "shoulda been Nuclear-powered".

Sincerely,
Nelson

Then, instead of the first unit being $6.1 Billion and the two follow ons $3.2 Billion, they would have been $7.5 Billion for the first and $4.6 Billion for the two follow on. Worth it? For only 2 6" guns and 80 VLS? No way, Jose.

_________________
Proper Preparation Prevents Poor Performance


Top
 Profile
Reply with quote
PostPosted: Wed May 21, 2014 11:34 pm
Offline
User avatar

Joined: Thu May 12, 2011 11:52 pm
Posts: 157

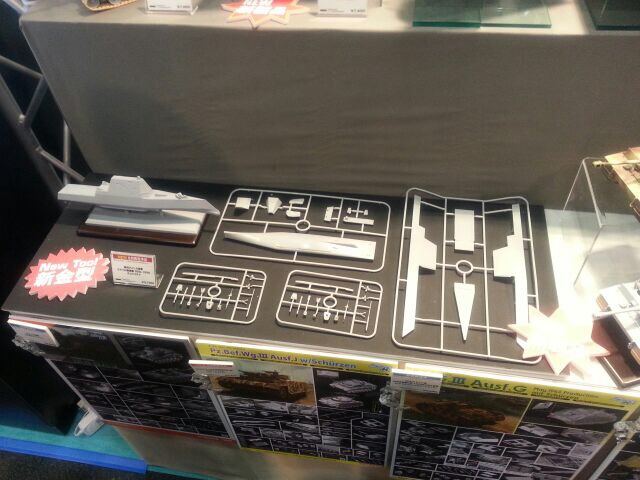

Coming soon from Dragon. In 1/700 IIRC. I hope they will do a 1/350 version!


Attachments:
image.jpg [ 124.78 KiB | Viewed 4565 times ]
image.jpg [ 89.34 KiB | Viewed 4565 times ]

_________________
Never argue with an idiot, he will only drag you down to his level and beat you with experience.
Top
 Profile
Reply with quote
PostPosted: Thu May 22, 2014 1:26 am
Offline
User avatar

Joined: Thu Sep 22, 2005 8:58 pm
Posts: 1549
Location: Houston, Texas
Nuclear runs up operating cost.

_________________
╔═════╗
Seasick
╚═════╝


Top
 Profile
Reply with quote
PostPosted: Thu May 29, 2014 10:04 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 1:21 pm
Posts: 2825
Location: One valley over from Hayward fault.
Timmy C wrote:
Yes, but everyone's inside anyway, right? And presumably, she's all watertight - at least, has to be capable of being watertight for NBC conditions.



Keeping everyone inside just mean fewer of them would survive when the ship rolls over, thanks reduced righting moment because of tumble home hull.

_________________
Assessing the impact of new area rug under modeling table.


Top
 Profile
Reply with quote
PostPosted: Fri May 30, 2014 3:05 am
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2212
Location: Copenhagen
From the drawings on Dragon USA the new 1/700 will not include a new MH-60R helicopter, but still the very strange looking old PitRoad mould, which is not very similar to a SH-60B, but for sure has not features at all of a MH-60R:

http://www.dragonmodelsusa.com/dmlusa/prodd.asp?pid=DRA7141

For some reason they claim that the kit will contain a MH-60S, which is the wrong version...

_________________


Top
 Profile
Reply with quote
