 Post subject: Calling all FFG Fans!
PostPosted: Mon May 21, 2007 10:58 pm
Offline

Joined: Mon Jan 10, 2005 11:02 am
Posts: 9511
Location: EG48
I love "figs." My uncle served on FFG-1, the "Broke," as he called her. So here we have FFG thread.

Gallery

1/96
FFG-31 USS Stark by Paul Simpson
FFG-41 USS McClusky by Don Macdonald
FFG-57 USS Ruben James by Eric Bertelsen

1/300
FFG-43 USS Thach by John Sykes
FFG-61 USS Ingraham by Chris Bloswick

1/350
FFG-51 USS Gary by Dave Becker
FFG-51 USS Gary by Dirk Mennigke
FFG 58 USS Samuel Roberts by Rusty White

1/700
FFG-7 USS Oliver Hazard Perry by Adam Mcleish
FFG-8 USS McInerney by Monty Fowler
FFG-10 USS Duncan / FFG-19 USS John A. Moore By Timothy J. Barron
FFG-19 USS John A. Moore By Peter Van Buren
FFG-36 USS Underwood by John C. Goodacre
FFG-43 USS Thatch by Christian Bruer
FFG-51 USS Gary by Nye Nava

Reviews
1/300 Lee Plastic

OK, so now here's my question. I've got the Blue Water Navy FFG-57 Ruben James kit, which is a Flight II ship. I'm interested in doing FFG-21 Flatley, but I'm not sure if she was a Flight I or II ship, and I can't seem to find anything on the web that breaks the class down by flights. Any good sources?

_________________
Tracy White -Researcher@Large

"Let the evidence guide the research. Do not have a preconceived agenda which will only distort the result."
-Barbara Tuchman


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon May 21, 2007 11:52 pm
Offline
User avatar

Joined: Mon Feb 14, 2005 4:09 pm
Posts: 1861
Location: Athens Greece
If by Flight I/II you mean short vs long hull Perry then FFG-21 Flatley is the short hull Flight I. The FFGs able to support SH-60 were FFG-8, FFG-15, FFG-28, FFG-29, FFG-32 and FFG-36-61. FFG-7 had her hull lengthened but didnt receive RAST so she couldn t handle SH-60.Hope this helps.

_________________
On the workbench:

Various 1/700 aircraft.
Juan Carlos I LHD 1/700.
HMAS Canbera LHD 1/700.
FGS Type 122 class FFG 1/700.
LSD-41 class LPD 1/700.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue May 22, 2007 12:39 am
Offline
User avatar

Joined: Tue Apr 12, 2005 5:30 am
Posts: 306
Location: Spain
Hi all, Tracy:

I am in the process of building an FFG in her Spanish Navy guise, which means some changes from her American counterparts. I will post some pics here if you are interested.

Cheers.
Pachi.

_________________
Image I will miss you Werner. Fair winds and following seas.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue May 22, 2007 2:06 am
Offline
User avatar

Joined: Sat Jan 08, 2005 11:17 pm
Posts: 1403
Location: Columbus, OH
If you look at any of the online references, like Navsource, just check the listed hull length- Flatley has the short fantail @ 445' OA, vs the extended one @ 453'.


I've got one I've already hacked to make FFG-13 someday.

_________________
--
Sean Hert


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue May 22, 2007 11:16 am
Offline

Joined: Mon Jan 10, 2005 11:02 am
Posts: 9511
Location: EG48
Francisco P. de Nanclares wrote:
I am in the process of building an FFG in her Spanish Navy guise, which means some changes from her American counterparts. I will post some pics here if you are interested.


I'd go for it; these ships are serving around the world now (Turkey comes to mind as well as Spain) and the more information for people the better!

_________________
Tracy White -Researcher@Large

"Let the evidence guide the research. Do not have a preconceived agenda which will only distort the result."
-Barbara Tuchman


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue May 22, 2007 3:19 pm
Offline
User avatar

Joined: Tue Apr 12, 2005 5:30 am
Posts: 306
Location: Spain
Hi all.

Well then, the Spanish Navy FFGs have got some different features from the American original. You can see a couple of them in this picture of the early stages of the build (not that I have progressed much since :mad_1: ).

The bulkheads below the bridge were closed some years down their service to accomodate another cabin for the Squadron Commander or Commodore. A bit astern there are two structures supporting the satellite antennae.


Further back, not seen because they are still not build, are three antennae for INMARSAT and the like and the CIWS is not a VPhalanx, but an indigenous system by the name of Meroka. You can see a couple of the sat antennae in the backgroung.


Also the EW antennae over the bridge are different from their American counterparts.


Cheers.
Pachi.

_________________
Image I will miss you Werner. Fair winds and following seas.


Top
 Profile
Reply with quote
PostPosted: Sun Jun 24, 2007 3:00 pm
Offline
User avatar

Joined: Sat Sep 30, 2006 9:30 pm
Posts: 363
Location: Long Island NY
Ok guys, lets get this category moving again! I just got my sweaty hands on a Monogram USS Ramsey kit, and I am going to town on her! I have GMM 1/350 PE for modern USN warships, so I will be making the most out of it. Anyone tacked this classic? I have read a review which stated the hangar needs to be enlarged - any other observations?

_________________
On the workbench:
1/350 USS Independence (1944) CVL-22
1/350 USS Buchannan (1944) DD-484
1/350 SS Edmund Fanning (1944) #710


Top
 Profile
Reply with quote
 Post subject: USS RAMSEY
PostPosted: Sun Jun 24, 2007 5:42 pm
Offline

Joined: Sun Feb 19, 2006 6:21 pm
Posts: 217
I built the RAMSEY as a GARCIA Class FF. Overall the ship is quite accurate for its as-built configuration. At that time she carried the DASH (Drone anti-submarine Helicopter) and had a smaller hangar. If you built her in her 1960's configuration I would remove a lot of the molded detail and replace it. If you want the ship in the 1970's-1980's configuration you have a lot of scratchbuilding to do. I found it pretty straght forward.
Either way you need to replace the 5in gun, it is the weak point of the kit. Email me, I can help with a replacement mount.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Jun 25, 2007 2:49 pm
Does any CVBG has a FFG with them? I too have the BLUE WATER NAVY FFG so I would to know if they are with the group's. :wave_1:


Top

Reply with quote
 Post subject:
PostPosted: Mon Jun 25, 2007 3:39 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 10378
Location: Calgary, AB/Surrey, B.C., Canada
There are, though not many. If you take a look at this page: http://www.navsource.org/archives/02/73a.htm
and look at image number NS027321, you will see at the far right (our right) an OHP class FFG.

_________________
Yo dawg, I heard you like PE, so I put some PE in your PE so you can use PE on your PE.


Top
 Profile
Reply with quote
 Post subject: ffg
PostPosted: Mon Jun 25, 2007 4:53 pm
Offline
User avatar

Joined: Wed May 23, 2007 10:46 am
Posts: 786
Location: Rio de Janeiro - Brazil
Dear Pachi, I have some details for the Propellors of former Oliver Hazard Perry frigates....your model looks great, and bring us some more images as you go constructing....Would like to see its hull from the bow and astern! Show it!!! Visit navsource for more pics. My best regards: Jimmy

Francisco P. de Nanclares wrote:
Hi all.

Well then, the Spanish Navy FFGs have got some different features from the American original. You can see a couple of them in this picture of the early stages of the build (not that I have progressed much since :mad_1: ).


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Jun 25, 2007 5:05 pm
Offline
User avatar

Joined: Thu Dec 14, 2006 8:06 pm
Posts: 1612
Location: SAN FRANCISCO CA.
Nektarios wrote:
If by Flight I/II you mean short vs long hull Perry then FFG-21 Flatley is the short hull Flight I. The FFGs able to support SH-60 were FFG-8, FFG-15, FFG-28, FFG-29, FFG-32 and FFG-36-61. FFG-7 had her hull lengthened but didnt receive RAST so she couldn t handle SH-60.Hope this helps.
Hey Nektarios are the FFG's getting RAM's to replace thier forward missle launchers?


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Jun 26, 2007 3:21 pm
Offline
User avatar

Joined: Tue Apr 12, 2005 5:30 am
Posts: 306
Location: Spain
Hi all, Jimmy:

In order to not clutter this thread with an "in progress" set of posts, which I understand is not the goal of this section, please go here:
http://u-modelismo.com/foro_modelismo_n ... wtopic=568

It´s in Spanish, but the pictures show the progress so far.

Cheers.

_________________
Image I will miss you Werner. Fair winds and following seas.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Jun 28, 2007 10:11 pm
Offline
User avatar

Joined: Sat Sep 30, 2006 9:30 pm
Posts: 363
Location: Long Island NY
Pachi - that's a sweet looking ship - love the attention to detail. I am doing my best to prepare the Ramsey for work upon my return from vacation. I look forward to seeing the end result of your work.
John

_________________
On the workbench:
1/350 USS Independence (1944) CVL-22
1/350 USS Buchannan (1944) DD-484
1/350 SS Edmund Fanning (1944) #710


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jul 22, 2007 2:13 pm
Offline
User avatar

Joined: Tue Apr 12, 2005 5:30 am
Posts: 306
Location: Spain
Hi all.

Thanks John!, however, I just found a mistake I hadn´t noticed at the beginning. I am posting here since it can be useful for those of you building, or thinking about it, the YMW 1/350 FFG.

Two days back, while working on the model, it turned over and the SPS40 antena broke loose. No big deal after the first shock, so I readily was on my way reglueing it. Then I noticed the antenna was too close to the main mast. In fact it would break onto the lower platform. Surprised, I went back to my pictures wondering what I would have done wrong, but at the same time knowing I had done nothing wrong. So I found the forward mast is OK, while the main mast is too short. Look at this two pics:



The antenna clearly shows higher relative to the main mast than it should. As it is, the forward mast looks OK to me, but the main one don´t. Looking at the horizontal struts on both, the forward one has three on both the actual ship and the model, while the main one has six on the real ship and five on the model, making it shorter. I think it could be a design failure, but, what do you think?.

_________________
Image I will miss you Werner. Fair winds and following seas.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jul 22, 2007 8:52 pm
Offline
User avatar

Joined: Sat Jan 08, 2005 11:17 pm
Posts: 1403
Location: Columbus, OH
Here's a sneak peek for my Fig buddies-

http://www.modelwarships.com/features/w ... g8-01.html



The mast is definitely too short...

_________________
--
Sean Hert


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Jul 23, 2007 12:11 pm
Offline
User avatar

Joined: Thu Dec 14, 2006 8:06 pm
Posts: 1612
Location: SAN FRANCISCO CA.
are the FFG's getting RAM's to replace thier forward missle launchers?


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Oct 29, 2007 8:44 pm
Offline

Joined: Mon Jan 10, 2005 11:02 am
Posts: 9511
Location: EG48
HMAS Sydney FFG-03 in Seattle October 29, 2007. Click for a LARGE copy of each photo.


Image Image Image

Image Image Image


And something for the weathering inclined:


_________________
Tracy White -Researcher@Large

"Let the evidence guide the research. Do not have a preconceived agenda which will only distort the result."
-Barbara Tuchman


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Oct 29, 2007 11:11 pm
Offline
User avatar

Joined: Sun Oct 09, 2005 4:22 pm
Posts: 159
Location: Melbourne Australia
Hi Guys, I have a stack of photos on my web site of Aussie FFG HMAS Newcastle, help yourself. Also pictures of my FFG done as HMAS Melbourne FFG 05.
http://homepage.mac.com/davidgatt/modelsite/Menu10.html

The problem with the Main mast as depicted in the 1/350 BWN Kit is that it is structured wrong. The kit depicts it as having 4 sides all inclined to a middle point as in a pyramid. However if you look closely at photos of the mast the rear corner supports should be 90 deg to the deck. The two front corner supports should incline towards the rear. This places the top platform further aft. In my build I used a fleetline Hull/superstructure. and then used parts from the Lee kit and photoeching/scratchbuilding, to finish her off. The hull and superstructure in the Lee kit is 1/300, however the masts, gun and other small fittings are 1/350.

David Gatt


Top
 Profile
Reply with quote
 Post subject: Re:
PostPosted: Sun Jan 27, 2008 6:49 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 292
Location: Vigo, Spain
Hi all,

I have already started the construction of my Spanish FFG F81 Santa María, of Lee, scale 1/300.

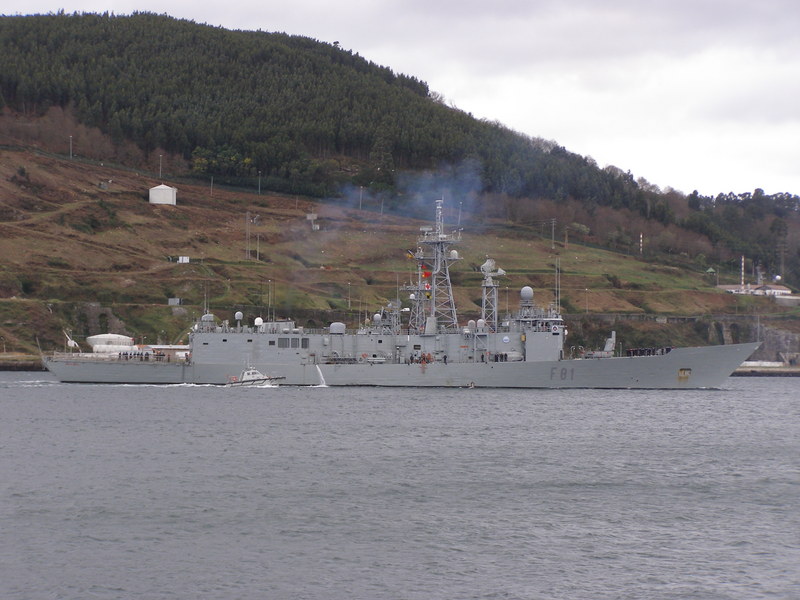

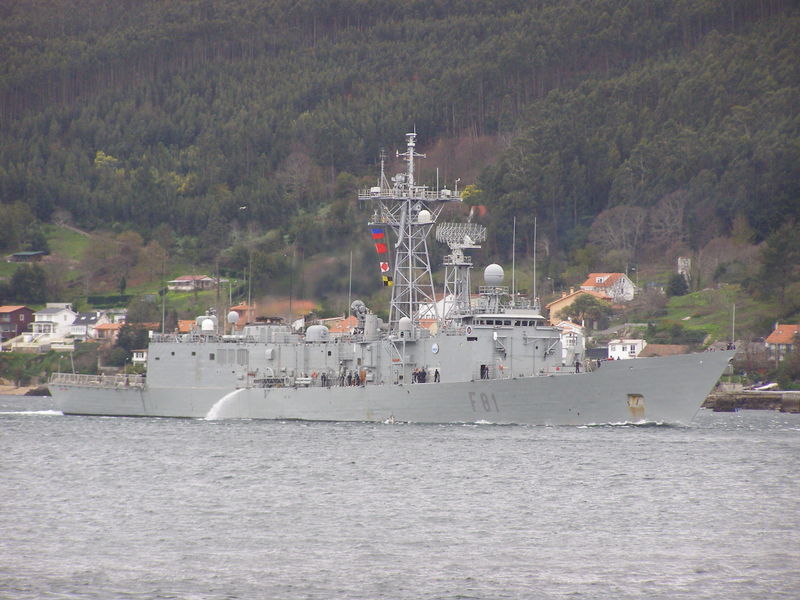

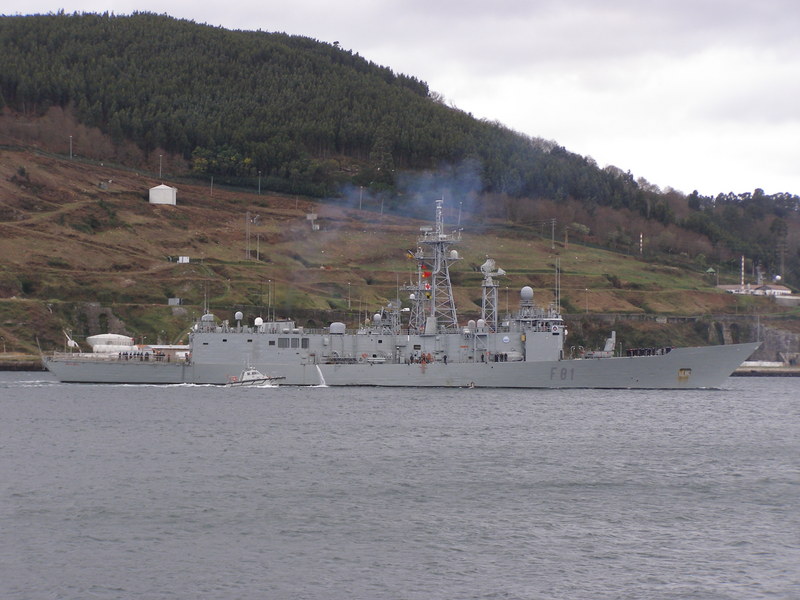

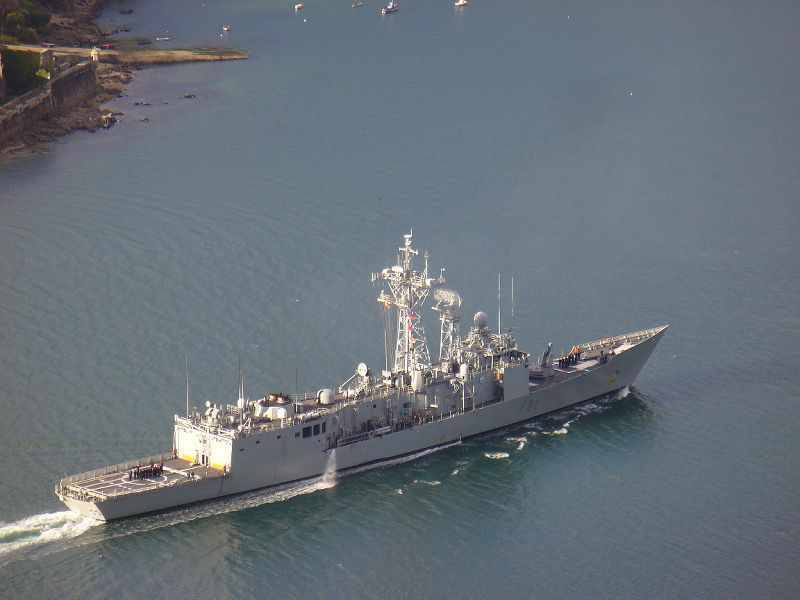

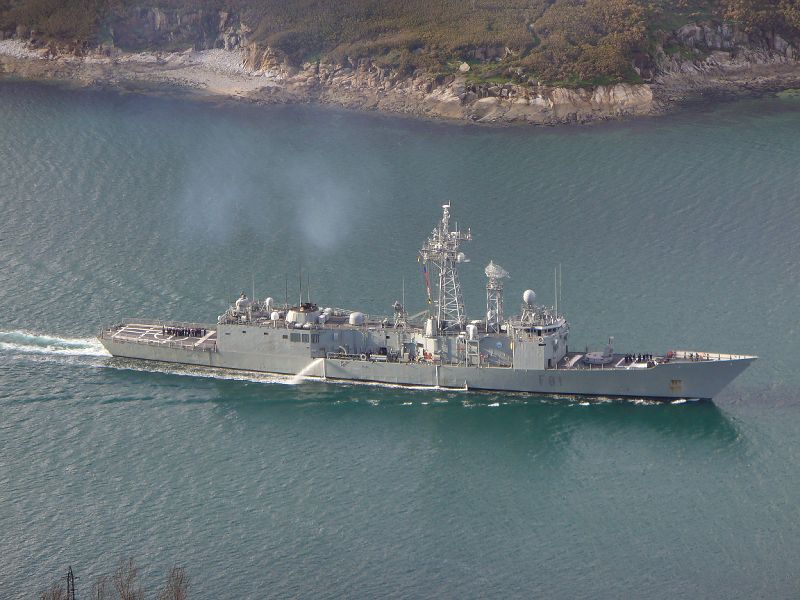

This is the ship herself :





As for now, I have not done much except erasing all details on decks and bulkheads, because the equipment that the model offers does match the American and Australian FFG´s, but not the Spanish counterparts.
I have also made the missile launcher and some parts of the stacks.

My way of buliding is somehow unorthodox : When all the basic elements are ready, and instead of starting with the hull and structures and only then the the finer details, I build as completely as possible some of the details first, to set the construction/quality standard for the rest of the ship.

You could say it is starting a house with the garden fence...

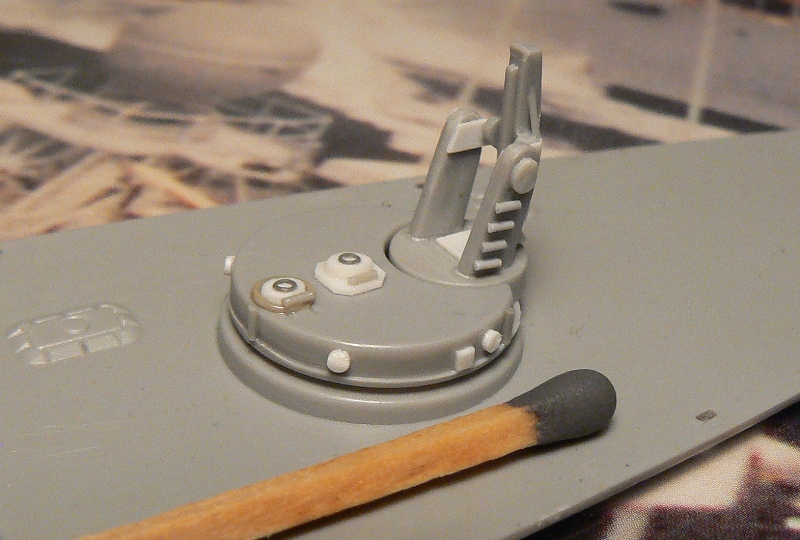

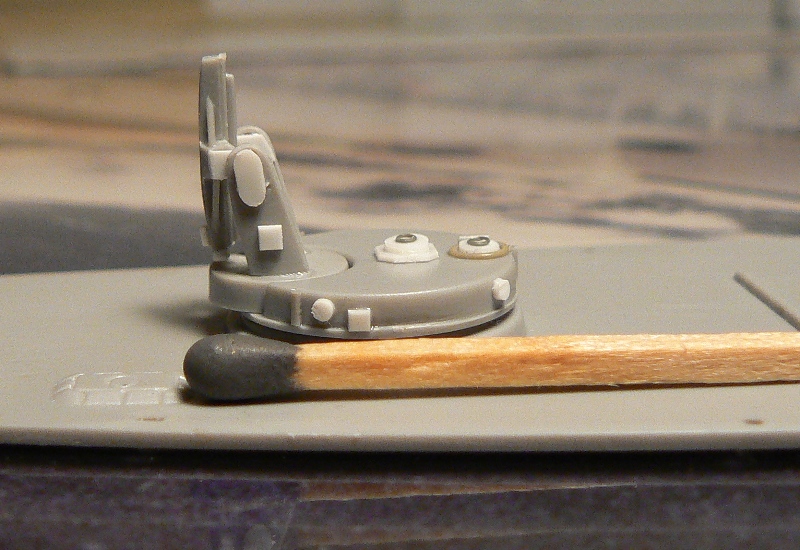

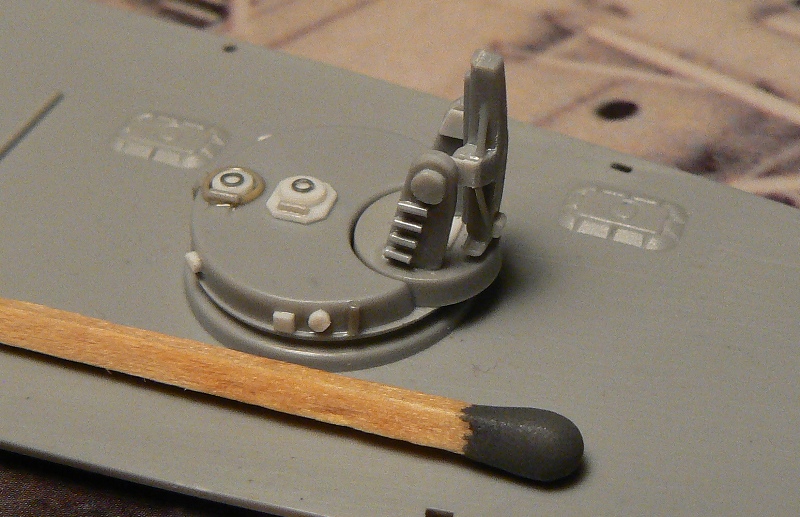

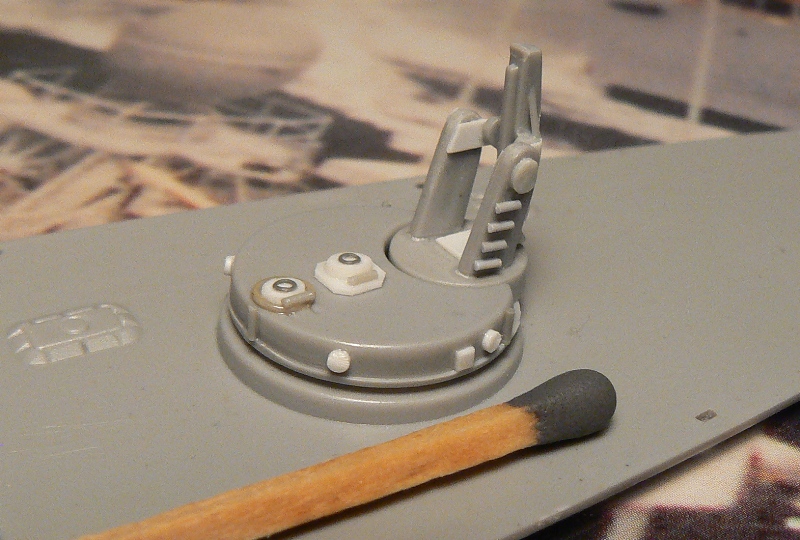

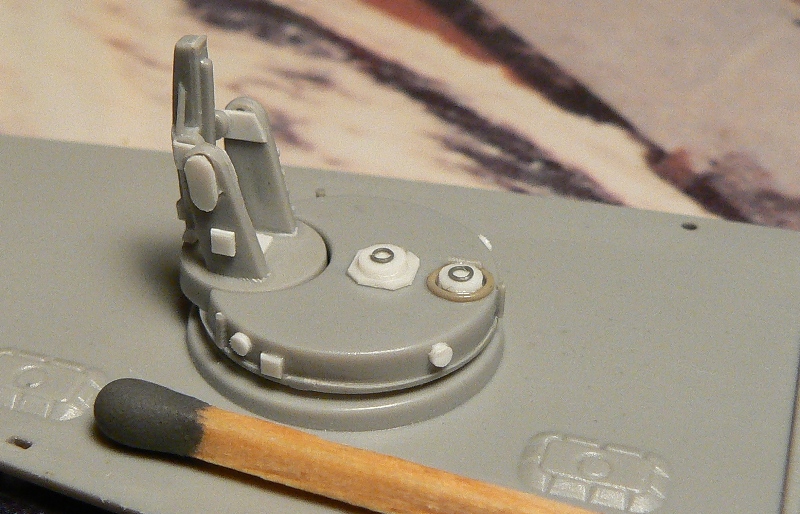

The missile launcher is completely finished, and the stacks lack some details yet.
It is necessary to note that the launcher itself is set too aft in the model, exactly between the suspension arms, and has to be placed a bit further ahead.

Here you are some pics :






Please let me know any suggestion that you can make.
Very best regards from Spain,

Willie.

_________________
Nil Nisi Bonum


Last edited by Willie on Sun Jul 02, 2017 5:25 pm, edited 3 times in total.
