PostPosted: Sun Aug 07, 2011 6:18 pm
Offline
User avatar

Joined: Sun Feb 27, 2011 4:02 pm
Posts: 7
Help:
I'm building several Cold war submarines in 1/350 scale. Both my father and brother
served on many of these boats over the last 50 years. I already have
the Yankee Models Lafayette class and Franklin Class, but in dire need of
a Ethan Allen class - anyone have plans or converted a Lafayette/Franklin
to a Allen Class??
Robert Bond
San Antonio, TX


Last edited by rcbond4449 on Tue Aug 09, 2011 10:44 pm, edited 1 time in total.

Top
 Profile
Reply with quote
PostPosted: Tue Aug 09, 2011 8:23 pm
Offline

Joined: Wed May 07, 2008 8:05 pm
Posts: 470
Location: Ayer, Ma. USA
Hi Robert,
I too have a large collection of Cold War submarines, including both YKM resin and Seawolf/Torpedo Combat Subs Nautilus, Halibut (SSGN and Spec ops) and the Regulus Grayback SSG. Still have plenty to build!

To your specific question: the problem with a conversion is that the Ethan Allens were shorter (410 feet) than Lafayette & Franklins (425 ft.). Thus you would have to shorten the hulls back in the machinery spaces; not easy due to the taper. There were only 5 Allen class boats SSBN 608, 609, 610, 611 and 618. The Allens were the first purpose designed SSBN class, and incorporated silencing features (rafted machinery) not found in the Washington class. The preceeding Washington (SSBN-598) class were 382 feet and modified (heavily) from a Skipjack hull.

To my knowledge, the only model of this class is the old (inaccurate) Renwal Ethan Allen, which is also not scaled properly nor highly accurate.

_________________
Tom Dougherty
Researcher for: "Azorian: The Raising of the K-129" DVD
http://www.projectjennifer.at/
"Project Azorian: The CIA and the Raising of the K-129" Book
http://www.usni.org/store/catalog-fall-2012/project-azorian


Top
 Profile
Reply with quote
PostPosted: Tue Oct 11, 2011 5:49 am
Offline
User avatar

Joined: Fri Apr 16, 2010 6:47 pm
Posts: 3119
Location: Oslo, Norway
rcbond4449 wrote:
Help:
I'm building several Cold war submarines in 1/350 scale. Both my father and brother
served on many of these boats over the last 50 years. I already have
the Yankee Models Lafayette class and Franklin Class, but in dire need of
a Ethan Allen class - anyone have plans or converted a Lafayette/Franklin
to a Allen Class??
Robert Bond
San Antonio, TX

Unfortunatly I dont have an information about an USS Ethan Allen class SSBN. OKG-Grigorov are producing 1/700 USN SSBN of the USS George Washington, USS Lafayette/USS James Madison/USS Benjamin Franklin but no USS Ethan Allen class. USS Ethan Allen class was considerable different from USS George Washington and USS Lafayette/USS James Madison/USS Benjamin Franklin, a conversion is feasible but risky as there are not many accurate plans available and pictures dont help a lot.
I will try and convince Georgi to make a 1/700 USS Ethan Allen class.




Anyway, got some questions.
This is USS Theodore Roosevelt, the third USS George Washington class SSBN. You can see she was original built with 5 blade propelers

This is the USS Patrick Henry, the second USS George Washington class SSBN.
USS George Washinton class submarine where original built with 5 blade propelers and Polaris A1 ballistic missiles, but in this picture we see USS Patick Henry with a 7 blade one.
My question, does anyone know when the upgrade of the 7 blade one occured ? During the Polaris A3 upgrade, earlier, or later ?Did later class of SSBN USS Ethan Allen and USS Lafayette/USS James Madison/USS Benjamin Franklin was also first completed with 5 blade propelers wich later where upgraded to 7 ?
Thanks in advance.


Top
 Profile
Reply with quote
PostPosted: Thu Oct 13, 2011 6:10 pm
Quote:
Unfortunatly I dont have an information about an USS Ethan Allen class SSBN. OKG-Grigorov are producing 1/700 USN SSBN of the USS George Washington, USS Lafayette/USS James Madison/USS Benjamin Franklin but no USS Ethan Allen class. USS Ethan Allen class was considerable different from USS George Washington and USS Lafayette/USS James Madison/USS Benjamin Franklin, a conversion is feasible but risky as there are not many accurate plans available and pictures dont help a lot.
I will try and convince Georgi to make a 1/700 USS Ethan Allen class.




Anyway, got some questions.
This is USS Theodore Roosevelt, the third USS George Washington class SSBN. You can see she was original built with 5 blade propelers

This is the USS Patrick Henry, the second USS George Washington class SSBN.
USS George Washinton class submarine where original built with 5 blade propelers and Polaris A1 ballistic missiles, but in this picture we see USS Patick Henry with a 7 blade one.
My question, does anyone know when the upgrade of the 7 blade one occured ? During the Polaris A3 upgrade, earlier, or later ?Did later class of SSBN USS Ethan Allen and USS Lafayette/USS James Madison/USS Benjamin Franklin was also first completed with 5 blade propelers wich later where upgraded to 7 ?
Thanks in advance.


Good evening and thank you for you reply

I have a number of Georgi's fine models I working on now, for a Christmas present for my
little brother (all 6 of the subs, and the Tico Class CG that he was one). Once that is
done I'll turn my attention to doing ships that Dad was on..So the Allen class and
some of the late cold war Balao and Gato GUPPY conversions would be great.

. Going to have to scratch build two possibly and one for me (CGC Valiant). I've done a little in HO scale trains thought I'd ships a shot....

Momma's calling for dinner..

Robert Bond
San Antonio tx


Top

Reply with quote
PostPosted: Thu Dec 08, 2011 12:41 pm
Offline
User avatar

Joined: Wed May 26, 2010 1:57 pm
Posts: 1271
Location: Schodack Landing, NY
Tom Dougherty wrote:
Hi Robert,
I too have a large collection of Cold War submarines, including both YKM resin and Seawolf/Torpedo Combat Subs Nautilus, Halibut (SSGN and Spec ops) and the Regulus Grayback SSG. Still have plenty to build!

To your specific question: the problem with a conversion is that the Ethan Allens were shorter (410 feet) than Lafayette & Franklins (425 ft.). Thus you would have to shorten the hulls back in the machinery spaces; not easy due to the taper. There were only 5 Allen class boats SSBN 608, 609, 610, 611 and 618. The Allens were the first purpose designed SSBN class, and incorporated silencing features (rafted machinery) not found in the Washington class. The preceeding Washington (SSBN-598) class were 382 feet and modified (heavily) from a Skipjack hull.

To my knowledge, the only model of this class is the old (inaccurate) Renwal Ethan Allen, which is also not scaled properly nor highly accurate.


Nice list of subs, Tom.

I'm building the Waveline/Combat Subs Regulus II Grayback for the current sub-themed group build online here. I've learned a bit about the boat through the process, with questions, answers and speculations posted there. Still prowling for their Nautilus and Halibut (both version) sub kits (but do have their Russian India Class rescue sub kit, also under construction).

In the meantime, I content myself with all of OKB's USN offerings in 1:700 scale - particularly like his SSN 575 Seawolf and Skate. Triton as a radar picket boat is on the way!

- D-Boy


Top
 Profile
Reply with quote
PostPosted: Sun May 06, 2012 6:59 pm
I have one of the original Renwall kits of the Allen.
(I also served aboard her 2/1972 - 12/1975
I found it at a garage sale many years ago with intentions of building it, but of course never did.

I'd be happy to send it to you if you could make use of it as a basis for your model construction.
I'd love to hav some photo's of it when you were finished.


Top

Reply with quote
PostPosted: Sun May 06, 2012 7:09 pm
I reported aboard the Ethan Allen SSBN 608 Feb 1972 in Bremerton Yard during a Refueling/Refit. I believe that was the A3 upgrade for her as well, however I think she was already carrying the 7 blade by then.
Not sure if that helps you all.


Top

Reply with quote
PostPosted: Mon May 07, 2012 7:18 pm
Offline

Joined: Wed May 07, 2008 8:05 pm
Posts: 470
Location: Ayer, Ma. USA
Quote:
I reported aboard the Ethan Allen SSBN 608 Feb 1972 in Bremerton Yard during a Refueling/Refit. I believe that was the A3 upgrade for her as well, however I think she was already carrying the 7 blade by then.


More likely in 1972 that it was the Poseidon C-3 upgrade, with MIRV capability. The Polaris A-3 went into service in 1964.

The 7 blade J type props were fitted very early in the 1960's, once it became apparent that "blade rate" was a major noise problem. The sternplanes, rudder, and sail all leave a disturbed wake behind them, and the originally fitted five bladed propellers (which were more rounded and did not have skew-see photo below of Scamp under construction) entered the wake patterns abruptly, resulting in vibration and low frequency noise. Low frequency noise carries for quite some distance in the deep sound channel of the ocean, and the SOSUS passive sonar hydrophone arrays took advantage of this channel. The early Skipjack and SSBNs were readily tracked by the SOSUS network. The 7 blade J type damped propeller (see photo), by gradually having the blades enter and exit the disturbed wake area, reduced the blade rate noise. Early SSBNs (the initial 5 boats), based on the Skipjack class, also did not have the rafted machinery platforms, so between the original props and the lack of machinery sound proofing, they were fairly noisy overall. The damped J type propellers were kept secret up through the 1980's, as this represented a major acoustic advantage, and Soviet submarines did not have propellers of this design, and were thus were more noisy than US submarines. See photo of Alfa class SSN with non-skewed propeller, below. The sale to the USSR of specialized, classified milling equipment in 1987 by Toshiba resulted in much quieter propellers on Soviet submarines.


Attachments:
File comment: Original 5 bladed propeller on USS Scamp, SSN-590
Scamp prop photo.jpg
Scamp prop photo.jpg [ 146.19 KiB | Viewed 12018 times ]

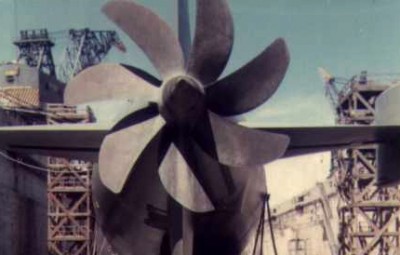

File comment: 7 bladed J Type Propeller
J Type Prop-2.jpg
J Type Prop-2.jpg [ 106.52 KiB | Viewed 12018 times ]

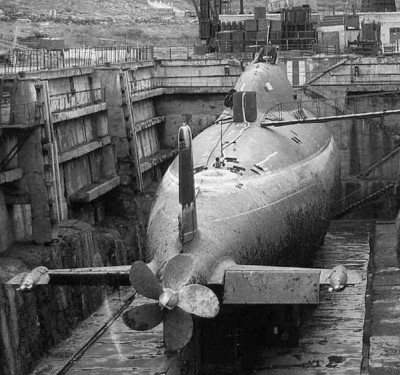

File comment: Russian Alfa class SSN propeller
Alfa Propeller.jpg
Alfa Propeller.jpg [ 125.08 KiB | Viewed 12018 times ]

_________________
Tom Dougherty
Researcher for: "Azorian: The Raising of the K-129" DVD
http://www.projectjennifer.at/
"Project Azorian: The CIA and the Raising of the K-129" Book
http://www.usni.org/store/catalog-fall-2012/project-azorian
Top
 Profile
Reply with quote
PostPosted: Wed Aug 06, 2014 7:51 am
Offline
User avatar

Joined: Wed May 26, 2010 1:57 pm
Posts: 1271
Location: Schodack Landing, NY
OKB has released a resin-cast 1:700 scale model of the SSBN-626 Daniel Webster, circa 1964 (commissioning) - 1976/78 (refit). As such, it includes the boat's unique elevated bow-mounted dive planes that were removed during that refit: http://www.navsource.org/archives/08/0862604.jpg (NavSource).

Picture of the kit here: http://www.shop.okbgrigorov.com/product/217/uss-daniel-webster-ssbn-626.html

I don't own this kit yet, but everything I've purchased from OKB has been flawlessly cast, and they are sweet little kits.


Top
 Profile
Reply with quote
PostPosted: Thu Nov 06, 2014 10:45 pm
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 132
Location: United States
Does anyone know which boats in the Ethan Allen/Lafayette class had split-rudders? As far as I can gather, all the submarines of this class (I consider the Ethan Allens, Lafayettes, James Madisons, and Benjamin Franklins variants of a single class because they are all essentially the same submarine with incremental improvements) had a split rudder except the last few. And why did they have split rudders in the first place? I know the rudders for these submarines were massive, so maybe that has something to do with it. Also, most of the Lafayettes seem to have vertical end-plates on their aft planes as built or retrofitted. Does anyone know why these were added and to which boats?

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Sat Nov 08, 2014 4:03 pm
Offline

Joined: Wed May 07, 2008 8:05 pm
Posts: 470
Location: Ayer, Ma. USA
Quote:
Does anyone know which boats in the Ethan Allen/Lafayette class had split-rudders?


If you mean a vertical split (like the Renwal SSBN models), then all of the drawings I have show them as one piece rudders. There is a horizontal line near the hull where the rudders hinge.

And yes, later SSBNs did have horizontal end plates on their rudders. I think it was from the Franklin onwards.

_________________
Tom Dougherty
Researcher for: "Azorian: The Raising of the K-129" DVD
http://www.projectjennifer.at/
"Project Azorian: The CIA and the Raising of the K-129" Book
http://www.usni.org/store/catalog-fall-2012/project-azorian


Top
 Profile
Reply with quote
PostPosted: Sat Nov 08, 2014 4:11 pm
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 132
Location: United States
I mean that the top 75% of the rudder rotates while the bottom 25% is fixed to the hull. It's really odd because some seem to have it and some don't, although I think only the last few had all-moving rudders.

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Tue Dec 15, 2015 4:56 am
Offline
User avatar

Joined: Fri Dec 12, 2008 12:44 pm
Posts: 791
Location: Herk-de-Stad, Belgium
Tom Dougherty wrote:
Hi Robert,
To your specific question: the problem with a conversion is that the Ethan Allens were shorter (410 feet) than Lafayette & Franklins (425 ft.). Thus you would have to shorten the hulls back in the machinery spaces; not easy due to the taper.

Dear all,

I just had the pleasure to construct the recent 1:350 MikroMir Lafayette, along with the George Washington of the same manufacturer. It struck me that the missile tube section of the Washington was much shorter (12.5mm or half an inch) than that of the Lafayette. Well, I figured: isn't this almost exactly the length difference between the Ethan Allans and the Lafayettes? :eyebrows:

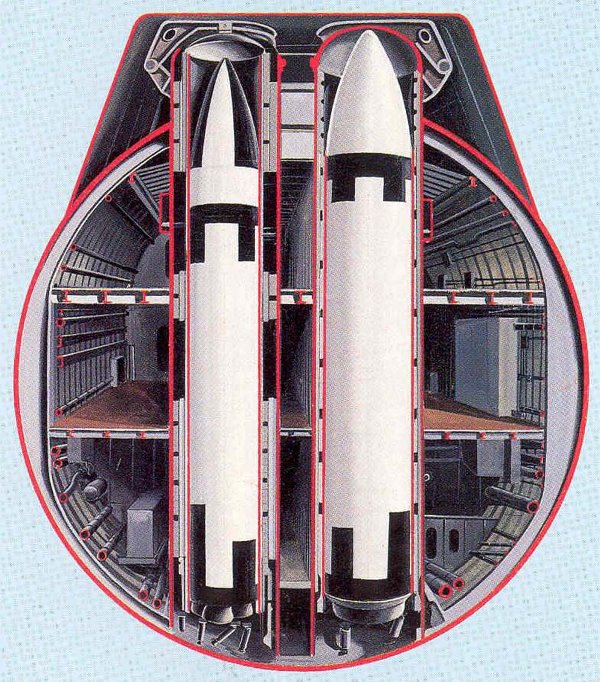

And then checking the references: as the Poseidon missiles were 6'2"in diameter versus the Polaris 4'6", this differences could very well be accountable for the length difference between the Allan and Lafayette boats, and also the explanation why the Allans couldn't be upgraded to carry the Polaris missiles. Here's the math: there are eight missiles lengthwise, each Poseidon missile adds 22", so that makes 176" in total. The difference between the Allans and the Lafayettes is 180", so only 4 inches not accounted for, or less than .3mm on 350 scale...

It seems the Lafayettes (and Madisons and Franklins) had been designed from the outset to take the larger Poseidon missiles, and needed an adapter tube to carry the smaller Polaris missiles. This picture tells it all:
Attachment:
0865758resized.jpg [ 149.03 KiB | Viewed 9522 times ]
The Allans only had the smaller tubes, similar to the Washington, and no room (lengthwise) to allow for the larger Poseidon tubes.

So: am I right to conclude that for building an Ethan Allen from the Lafayette kit, I need only reduce the length of the missile compartment by 13 mm (scale 15 ft), and make a new deck with smaller tube covers, similar to the Washington's, but with the width of the Lafayette deck? Anyway, the length reduction isn't in the tapered area as Tom Dougherty suggested. :cool_2:

Of course the rudders need also be somewhat reduced in size. Btw: I found slight errors in the MikroMir kits: the lower rudders need to be reduced in height as the shouldn't protrude below the keel line. The draft marks on the upper rudder tell the story, how high the upper rudder rises above the keel line. :thumbs_up_1:

_________________
"There are more planes in the ocean, than submarines in the sky" - old carrier sailor


Top
 Profile
Reply with quote
PostPosted: Tue Dec 15, 2015 8:43 am
Offline
User avatar

Joined: Wed Apr 08, 2015 3:38 pm
Posts: 227
Location: Virginia Beach, VA
Vepr157 wrote:
I mean that the top 75% of the rudder rotates while the bottom 25% is fixed to the hull. It's really odd because some seem to have it and some don't, although I think only the last few had all-moving rudders.


This was done to prevent high rudder angles from precipitating air entrapment by the propeller when cruising on the surface. Note that the fixed portion of vertical stabilizer (under the upper rudder) terminates at the normal surfaced waterline.

David
USS DANIEL WEBSTER (SSBN 626) blue

_________________
"... well, that takes care of Jorgensen's theory!"


Top
 Profile
Reply with quote
PostPosted: Wed Dec 16, 2015 12:57 pm
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 132
Location: United States
Thanks for the information, David! I have two more questions:

Any idea why some of the Polaris boats had vertical stabilizers on their stern planes (USS Vallejo: http://i.imgur.com/WLNGACt.jpg)? Looking at this (http://www.navsource.org/archives/08/0861610.jpg) photo of (clockwise from upper-left) Lafayette, Adams, Tecumseh, and Grant, it seems that some boats that didn't have these stabilizers had them retrofitted, possibly along with with their towed arrays.

On some of the boats, there is a small fin on the underside of the port aft plane (USS Hale: http://i.imgur.com/TDyUBgH.jpg and http://i.imgur.com/akjw6Xu.jpg). This is presumably associated with a towed array, but is it a mounting point for a clip-on array or where a thin-line array is streamed out (because the fat-line array is on the starboard side)?

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Wed Dec 16, 2015 1:53 pm
Offline
User avatar

Joined: Wed Apr 08, 2015 3:38 pm
Posts: 227
Location: Virginia Beach, VA
Without them the 608's on up would wander a bit about the yaw axis at patrol speed. So the vertical stabilizers were added (some as retrofits, others as new-construction) to make the boats a bit more stable about that axis. Made life a bit easier for the Helmsman.

Can't speak to the second question -- don't know.

David

_________________
"... well, that takes care of Jorgensen's theory!"


Top
 Profile
Reply with quote
PostPosted: Sat Dec 19, 2015 4:18 am
Offline
User avatar

Joined: Fri Dec 12, 2008 12:44 pm
Posts: 791
Location: Herk-de-Stad, Belgium
Maarten Schönfeld wrote:
Here's the math: there are eight missiles lengthwise, each Poseidon missile adds 22", so that makes 176" in total. The difference between the Allans and the Lafayettes is 180", so only 4 inches not accounted for, or less than .3mm on 350 scale...

Most authoritative sources quote the length of the Ethan Allens as 410 feet 4 inches, so the difference with the Lafayettes is only 14 feet 8 inches, or 176 inches. This equals therefore exactly the added increase of the diameter of eight missiles.

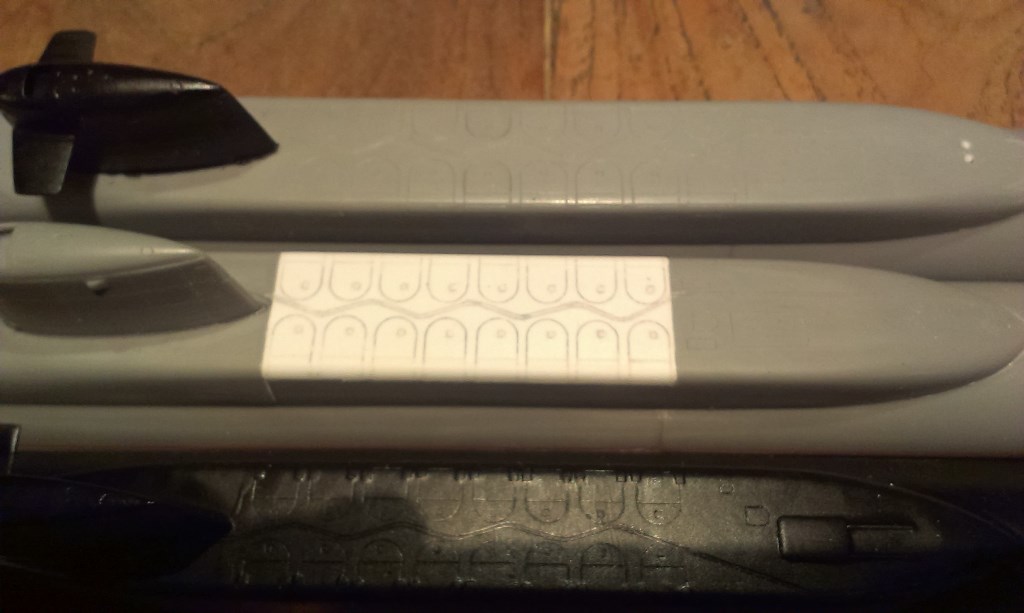

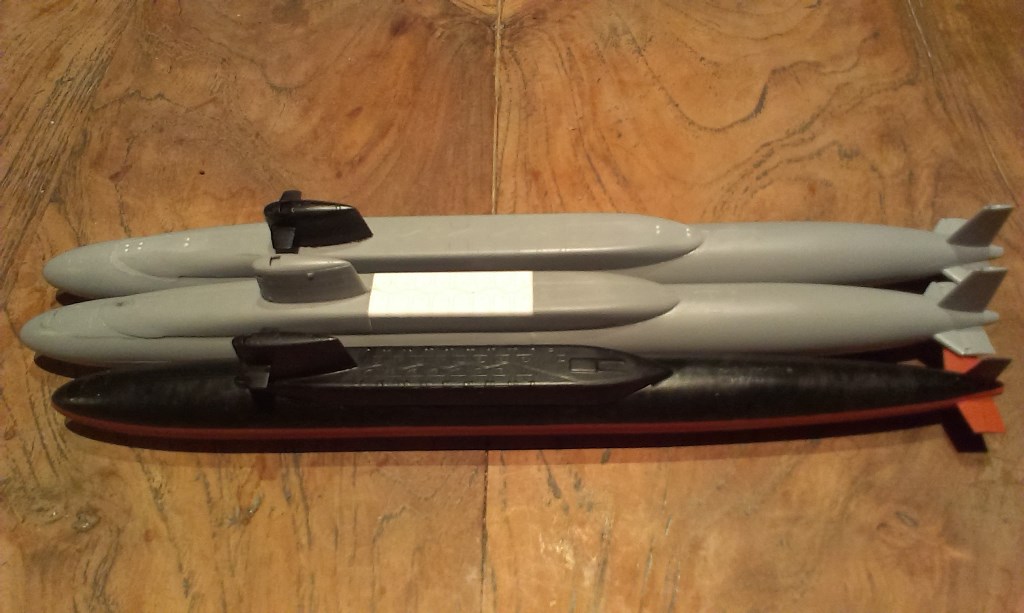

I was convinced, so I bit the bullet. Here's my Ethan Allen, in company with a George Washington and a Lafayette model, with the missile compartments aligned:
Attachment:
SSBN 1.jpg
SSBN 1.jpg [ 111.96 KiB | Viewed 9362 times ]
Attachment:
SSBN 2.jpg
SSBN 2.jpg [ 81.02 KiB | Viewed 9362 times ]

I'm only somewhat uncertain about the location of the hydrophone stump on the bow, it seems somewhat closer to the sail than on the subsequent Lafayettes. Can someone shed some light on this maybe?

_________________
"There are more planes in the ocean, than submarines in the sky" - old carrier sailor


Top
 Profile
Reply with quote
PostPosted: Mon Jul 11, 2016 5:11 pm
Offline

Joined: Thu Nov 05, 2015 1:16 pm
Posts: 1
" [And then checking the references: as the Poseidon missiles were 6'2"in diameter versus the Polaris 4'6", this differences could very well be accountable for the length difference between the Allan and Lafayette boats, and also the explanation why the Allans couldn't be upgraded to carry the Polaris missiles. Here's the math: there are eight missiles lengthwise, each Poseidon missile adds 22", so that makes 176" in total. The difference between the Allans and the Lafayettes is 180", so only 4 inches not accounted for, or less than .3mm on 350 scale..."

The Poseidon is 6'2" or 74 inches and the Polaris is 4' 6" or 54 inches. The difference is 20 inches, not 22 inches. Where does the extra 2 inches come from?

Eight tubes times 20 inches is 160 inches, not 176


Top
 Profile
Reply with quote
PostPosted: Mon Jul 11, 2016 5:47 pm
Offline
User avatar

Joined: Wed Apr 08, 2015 3:38 pm
Posts: 227
Location: Virginia Beach, VA
You guys got it wrong. Upgrade from Polaris to Poseidon made no difference to the boat length whatsoever. They simply took out the inner 'launch' tube from within the 'mount' tube to make the transition. This happened during a scheduled yard period.

Trust me, I was a Launcher Tech (Torpedoman) on the WEBSTER for nine patrols.

David

_________________
"... well, that takes care of Jorgensen's theory!"


Top
 Profile
Reply with quote
PostPosted: Tue Jul 12, 2016 1:13 am
Offline
User avatar

Joined: Fri Dec 12, 2008 12:44 pm
Posts: 791
Location: Herk-de-Stad, Belgium
merriman wrote:
You guys got it wrong. Upgrade from Polaris to Poseidon made no difference to the boat length whatsoever. They simply took out the inner 'launch' tube from within the 'mount' tube to make the transition. This happened during a scheduled yard period.

Trust me, I was a Launcher Tech (Torpedoman) on the WEBSTER for nine patrols.

David


Hi David,
Thank you very much, the point is very clear! The Lafayettes could all be upgraded the way you described.

But the Ethan Allans couldn't, as these had only the smaller tubes similar as the Washingtons. That was the whole point of my conversion description. And therfore the length of the Allans was shorter than of the Lafayettes.

_________________
"There are more planes in the ocean, than submarines in the sky" - old carrier sailor


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 88 posts ]  Go to page 1, 2, 3, 4, 5  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 1 guest


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
Powered by phpBB® Forum Software © phpBB Group
