PostPosted: Mon Apr 25, 2016 7:05 pm
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 153
Location: United States
In light of Blue Ridge Models making a new 1/350 Halibut kit, I was wondering if anyone has any idea what the skegs that were fitted to Halibut for "ocean engineering" looked like. Also, many sources say she had two anchors after the refit, but my plans only show one in the bow.

Here are two pages from the Piping TAB, after the refit but before the DSRV simulator:

http://i.imgur.com/GJ4rB9g.jpg
http://i.imgur.com/USWRdcG.png

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Tue Apr 26, 2016 6:43 am
Offline

Joined: Sat Jun 18, 2005 5:46 am
Posts: 39
Location: New Hampshire, USA
Those are great plans - thanks for sharing!

Do you have plans for the SSGN? I'll be building my kit as the SSGN, with the hangar door open and a Regulus round on the launcher.


Top
 Profile
Reply with quote
PostPosted: Tue Apr 26, 2016 1:29 pm
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 153
Location: United States
Peter O wrote:
Those are great plans - thanks for sharing!

Do you have plans for the SSGN? I'll be building my kit as the SSGN, with the hangar door open and a Regulus round on the launcher.


I don't, but there's not much difference. The plans I linked are from the late 60s, before the taller sail, through-hull thrusters, extra anchor (?), and skegs were added. The only things added on the piping TAB diagram are the aquarium and "bow jet" thruster.

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Tue Apr 26, 2016 2:56 pm
Offline

Joined: Sat Jun 18, 2005 5:46 am
Posts: 39
Location: New Hampshire, USA
Thanks, Vepr157. I was hoping to find drawings of the missile hangar and gear. Regulus has long been a favorite weapons system of mine.


Top
 Profile
Reply with quote
PostPosted: Tue Apr 26, 2016 4:54 pm
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 153
Location: United States
Here's an SSGN drawing (with Regulus II):

http://i.imgur.com/ni2GHjo.png

Navsource also has some good photos of 1/4 scale mock-ups the Navy made of her hangar:

http://www.navsource.org/archives/08/08587.htm

You might also want to look at photos of USS Growler's hanger, which should be broadly similar, at least in terms of missile-handling gear. Since she's a museum ship, there are a lot of photos out there.

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Wed Apr 27, 2016 3:18 pm
Offline
User avatar

Joined: Sat Aug 09, 2014 3:53 am
Posts: 37
Location: Arcachon-France
It's very difficult to have a real information on the halibut , I hope you 'll have an answer Vepr !

For the Blue Ridge Models , I'm looking for informations about this sort of skate landing on the special ops configuration .I see some draws but I don't know if this parts really exists .

Pierre

_________________
In progress :
1/700 : CVN 68 USS Nimitz 2005 Trumpeter
1/350 : SSN 687 Richard B. Russell base Mikromir
1/350 : SSBN 626 Daniel Webster Mikromir


Top
 Profile
Reply with quote
PostPosted: Wed Apr 27, 2016 7:00 pm
Offline

Joined: Wed May 07, 2008 8:05 pm
Posts: 488
Location: Ayer, Ma. USA
Quote:
I was wondering if anyone has any idea what the skegs that were fitted to Halibut for "ocean engineering" looked like. Also, many sources say she had two anchors after the refit, but my plans only show one in the bow.


Skegs were bow & stern, sort of looked like sled skids. Hal Sutton has a good drawing, which also shows the VDS Aquarium deploy tube. See his page and drawings at: http://www.hisutton.com/images/halibut_1700.jpg. Halibut was updated in two stages. The first was the general rearrangement of the former Regulus Hanger into three levels, as shown. The Univax computer (1224, also designated as CP 818A/U, a "small" computer roughly the size of two old phone booths. BTW, Blind Man's Bluff lists it as an 1124- no such computer existed). You, too can obtain your own copy of Vol. I of the 1224 manual at http://bitsavers.trailing-edge.com/pdf/univac/military/1224/TEM0-377-011A_CP-818A_Digital_Data_Computer_Vol1_Oct68.pdf. At this point, Halibut was part of Winterwind, a secret program to recover "objects of interest" from the ocean floor (like Russian test RVs, etc.). There was no provision for saturation diving; that installation came in Ph. 2. Interestingly USS Seawolf (SSN 575) was also converted to Special Projects in the early 1970's, but in that case she got a 52 foot hull "plug" forward of the sail and a thruster installation.

I believe the sail was raised even before this point, during the Regulus era, although the TAB drawing has the original sail. I have had the Halibut TAB since the early 2000's; note that the reactor area does not show reactor details just the shield area (as it should- reactor details are still classified). Halibut was fairly large with a big wetted hull area but was underpowered with the S3W power plant, which had only half the power of the S5W that was in the Skipjack, Permit, Sturgeon and SSBNs.

In the second stage of modification in the early 1970's, bow and stern thrusters were added below the deck superstructure (2 at each end), the saturation diving chamber was added (disguised as the "DSRV Simulator" ) and a stern mushroom anchor. Later the skegs and a storage gondola system (apparently a net structure) was added. The skeg mounting required that the outer thin hull be partially pealed back and the skews welded to the structural pressure hull before replacing the outer hull.

Many years ago I built up two of the old Pitroad (Seawolf/Torpedo) resin Halibut kits in both SSGN and Special Projects configurations for the Halibut Crew Reunion. That conversion is available here: http://www.modelwarships.com/reviews/ships/ss/halibut/350-td/halibut.html

_________________
Tom Dougherty
Researcher for: "Azorian: The Raising of the K-129" DVD
http://www.projectjennifer.at/
"Project Azorian: The CIA and the Raising of the K-129" Book
http://www.usni.org/store/catalog-fall-2012/project-azorian


Last edited by Tom Dougherty on Wed Aug 07, 2019 1:14 pm, edited 2 times in total.

Top
 Profile
Reply with quote
PostPosted: Wed Apr 27, 2016 9:49 pm
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 153
Location: United States
I actually helped Sutton with those drawings, so those skegs are just based on our conjecture (which was based on a photo of a Parche model I saw on one of these sub forums, which was based on.....etc). Even though I had a hand in drawing them, I think they're a little too fragile-looking and I'd want to have a reasonable idea of what they looked like before I start modifying a $90 model.

Any chance you have that TAB scanned?

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Thu Apr 28, 2016 12:53 pm
Offline

Joined: Wed May 07, 2008 8:05 pm
Posts: 488
Location: Ayer, Ma. USA
I am basing the ski like skegs on drawings from the saturation divers. I figure they saw those up close and personal. They are reasonably heavy duty, but they do not have to support the entire weight of the submarine. You take on enough ballast to give the submarine a firm "plant" on the bottom. The skegs were installed some time after the saturation chamber so it is OK to leave them off of the model.

Yes, I do have high resolution scans of the drawings.

_________________
Tom Dougherty
Researcher for: "Azorian: The Raising of the K-129" DVD
http://www.projectjennifer.at/
"Project Azorian: The CIA and the Raising of the K-129" Book
http://www.usni.org/store/catalog-fall-2012/project-azorian


Last edited by Tom Dougherty on Mon May 30, 2016 4:02 pm, edited 1 time in total.

Top
 Profile
Reply with quote
PostPosted: Sun May 29, 2016 11:40 am
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 153
Location: United States
I've been in contact with the Blue Ridge model guys here (under "Product Reviews"): http://freetimehobbies.com/1-350-blue-ridge-models-uss-halibut-ssgn-ssn-587-2-in-1-submarine-model-kit/. They're going to produce skegs for all the people who ordered the Halibut kit.

If anyone has any additional information or corrections to my guesses about the skegs, now's the time to give them your input.

Jacob

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Mon May 30, 2016 4:22 pm
Offline

Joined: Wed May 07, 2008 8:05 pm
Posts: 488
Location: Ayer, Ma. USA
Well, I did try to add the Halibut skeg drawings I have, but once again received: "the file is too big, maximum allowed size is 200 Kb".

It looks as if you got reasonably close with the Covert Shores drawings; they are a bit longer than you have them and have dual sets of 2 struts at either end of the skegs attaching them to the submarine. They are fairly simple is structure, not too hard to scratch build.

_________________
Tom Dougherty
Researcher for: "Azorian: The Raising of the K-129" DVD
http://www.projectjennifer.at/
"Project Azorian: The CIA and the Raising of the K-129" Book
http://www.usni.org/store/catalog-fall-2012/project-azorian


Top
 Profile
Reply with quote
PostPosted: Tue May 31, 2016 11:07 am
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 153
Location: United States
You can upload them to http://imgur.com/ and post the link to the image instead of hosting the image on this website.

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Tue Jun 07, 2016 4:17 am
Offline
User avatar

Joined: Sat Aug 09, 2014 3:53 am
Posts: 37
Location: Arcachon-France
Vepr157 wrote:
I've been in contact with the Blue Ridge model guys here (under "Product Reviews"): http://freetimehobbies.com/1-350-blue-ridge-models-uss-halibut-ssgn-ssn-587-2-in-1-submarine-model-kit/. They're going to produce skegs for all the people who ordered the Halibut kit.

If anyone has any additional information or corrections to my guesses about the skegs, now's the time to give them your input.

Jacob


Many Thanks Jacob :thumbs_up_1:

Pierre

_________________
In progress :
1/700 : CVN 68 USS Nimitz 2005 Trumpeter
1/350 : SSN 687 Richard B. Russell base Mikromir
1/350 : SSBN 626 Daniel Webster Mikromir


Top
 Profile
Reply with quote
PostPosted: Tue Sep 20, 2016 2:13 am
Offline
User avatar

Joined: Sat Aug 09, 2014 3:53 am
Posts: 37
Location: Arcachon-France
Hello

Some news about skegs for the Blue Ridge model's kit ?

Pierre

_________________
In progress :
1/700 : CVN 68 USS Nimitz 2005 Trumpeter
1/350 : SSN 687 Richard B. Russell base Mikromir
1/350 : SSBN 626 Daniel Webster Mikromir


Top
 Profile
Reply with quote
PostPosted: Fri Sep 22, 2017 6:39 am
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2172
Location: Hoboken, NJ
I'm currently reading Josh Dean's "The Taking of K-129: How the CIA Used Howard Hughes to Steal a Russian Sub in the Most Daring Covert Operation in History" and he mentions that the Halibut wore a "black and gray camouflage scheme". Does anyone have any ideas on what that actually looked like?

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley


Top
 Profile
Reply with quote
PostPosted: Sat Sep 23, 2017 10:04 am
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 153
Location: United States
Devin wrote:
I'm currently reading Josh Dean's "The Taking of K-129: How the CIA Used Howard Hughes to Steal a Russian Sub in the Most Daring Covert Operation in History" and he mentions that the Halibut wore a "black and gray camouflage scheme". Does anyone have any ideas on what that actually looked like?


Short answer: the Halibut was all-black at that time. When she was an SSGN, she had black on the horizontal surfaces and grey on the vertical surfaces, but she was painted all black in the mid-60s when she became an ocean engineering boat. I think the Skates (with which Halibut shared many similarities) were painted all-black at Mare Island about this same time.

Rant: That book angers me. It's written by an author who doesn't know what he's talking about. He's a writer for Popular Science and GQ, not a naval historian. Polmar and White's Project Azorian is the superior book on the subject and Josh Dean admits in the acknowledgements that most of the technical stuff was taken from that book. Admittedly it seems like he interviewed a lot of people not included in Project Azorian, but this book didn't need to be written, and it wasn't written well.

Jacob

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Sat Sep 23, 2017 1:55 pm
Offline

Joined: Wed May 07, 2008 8:05 pm
Posts: 488
Location: Ayer, Ma. USA
First, Jacob is correct about the colors. Some years back, I was in contact with Dr. Roger Dunham, who wrote "Spy Boat", a book about the Halibut mission to find the K-129. I ended up making Halibut models for the 2002 Halibut crew reunion, using the then available Pitroad resin Halibut kits (One SSGN and one as the Special Projects version, scratch building several parts. I had information on the submarine from then that I passed along to Blue Ridge, which along with other research on their part, resulted in their superb model of Halibut.

I have not read the Dean book, but I did research work with Michael White & Norman Polmar on the Azorian book, as well as Micheal White's Azorian documentary film (still available). I can tell you that Michael White spent an enormous amount of time and money chasing down research from first hand sources. Initially, mission participants were reluctant to speak with him, but he managed one time to convey that he wanted to tell the real story (not helping was that the book Red Star Rogue had come out around this time, which presented a classic Conspiracy Theory book about the mission).

Michael who worked on major films in the 1980's, also has an artistic genius for producing (along with his colleague, Markus Cermak) superb CGI renderings of the operation. Pictures online (such as this: http://maritime-executive.com/media/images/article/Photos/Miscellaneous/Original/Glomar%20Explorer%20Moon%20Pool-update2.jpg) are stills from his CGI. He was also kind enough to share with me during the research period large scale drawings of the Glomar Explorer, several engineering drawings of the CV, the HMB barge and the (from Russian archives) Russian Golf I and II classes, as well as B&W video taken from the CV and Glomar Explorer, interview transcripts, raw film interviews etc. over the course of the 3 year period we worked on the documentary. The documentary film trailer is here : https://www.youtube.com/watch?v=8h6rGrzD2VY. The documentary film DVD is still available from Amazon.

While I appreciate the comments by Jacob on the Polmar/White Azorian book and the original research done, additional details have come out since then. In my opinion the very best source is now the first hand account of the mission by former CIA engineer Dr. David H. Sharp. He was in on the planning, the engineering, and was one of the technical directors on board the Glomar Explorer during the mission. He gives a blow by blow account of the details. Initially the CIA denied him the clearance to publish any parts of the book, but at least in part due to the Azorian documentary film led to their relenting. The book, "The CIA's Greatest Covert Operation: Inside the Daring Mission to Recover a Nuclear-Armed Soviet Sub" is the best account you will find. Recently, it was opted by Ridley Scott's company for film treatment: http://deadline.com/2017/08/cia-project-azorian-soviet-nuclear-submarine-movie-scott-free-new-sparta-1202153651/

Full disclosure: For reasons I won't go into further, I I am still in weekly email contact with both Michael White and David Sharp. I have been very privileged to work with Michael and get to know people like Dave, who were part of this incredible operation. It's been a long, incredible journey since I was a college student watching from afar the building of Howard Hughes' strange looking ship, Glomar Explorer in Chester, Pa.

_________________
Tom Dougherty
Researcher for: "Azorian: The Raising of the K-129" DVD
http://www.projectjennifer.at/
"Project Azorian: The CIA and the Raising of the K-129" Book
http://www.usni.org/store/catalog-fall-2012/project-azorian


Top
 Profile
Reply with quote
PostPosted: Wed Aug 07, 2019 11:07 am
Offline

Joined: Sat Feb 08, 2014 4:08 pm
Posts: 153
Location: United States
I'm working on the Blue Ridge Halibut kit, and they unfortunately there is very little detail below the waterline. Does anyone know how the flood holes and other outboard details were arranged? The only source I have is the Jim Christley drawing in Friedman's U.S. Submarines since 1945. I think I can make a reasonable stab at the MSW and ASW seachest locations based on drawings I have of the Skate, but I would have to totally guess on the flood holes.

Jacob

_________________
Under Construction:
1/350 Typhoon
1/350 Skate
1/350 USS Nautilus
1/350 Tang
1/350 November
1/350 Hotel II
1/350 Alfa
1/350 George Washington
1/72 Type VIIC


Top
 Profile
Reply with quote
PostPosted: Wed Aug 07, 2019 12:12 pm
Offline

Joined: Wed May 07, 2008 8:05 pm
Posts: 488
Location: Ayer, Ma. USA
The old Pitroad/Torpedo resin Halibut kit has the MBT vents along the bottom. As far as I can tell, they line up with the MBT (Main Ballast Tanks) in the interior cross section diagrams. I am not sure how you would cut these oblong indentations into the existing Blue Ridge resin kit; if you have any ideas, I would love to hear them. See attached photo for MBT vent positions. The Pitroad kit has no other markings, such as condenser inlet and outlets, etc.

The other issue to deal with in placing the vents is the difference in size of the two (reportedly) 1/350 scale Halibut models. See the side by side comparison photo. I am sorry to say that the older Seawolf kit scales out just about right for the reported 350 foot length as opposed to the Blue Ridge kit. You would have to adjust the positions slightly for the Blue Ridge kit accordingly. I can scale out the positions for you on the two kits, if that helps.


Attachments:
File comment: Ballast tank openings
Fig. 24 copy-1.jpg
Fig. 24 copy-1.jpg [ 178.63 KiB | Viewed 3907 times ]

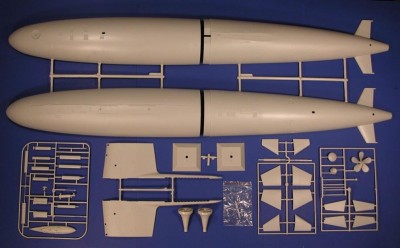

File comment: Two kits compared. Blue Ridge kit upper, Seawolf Torpedo, lower.
Fig. 25 copy-1.jpg
Fig. 25 copy-1.jpg [ 184.67 KiB | Viewed 3907 times ]

_________________
Tom Dougherty
Researcher for: "Azorian: The Raising of the K-129" DVD
http://www.projectjennifer.at/
"Project Azorian: The CIA and the Raising of the K-129" Book
http://www.usni.org/store/catalog-fall-2012/project-azorian
Top
 Profile
Reply with quote
PostPosted: Wed Aug 07, 2019 1:17 pm
Offline

Joined: Sat Jun 18, 2005 5:46 am
Posts: 39
Location: New Hampshire, USA
Tom, I took the liberty of modifying your photo of the two hulls. I found that if I positioned them stern to stern, the hulls matched pretty well for much of their lengths, up to the small gap in the limber holes (shown by the red line). I then stretched the forward part of the Seawolf kit so that the stems matched. The end result matches the Blue Ridge kit pretty well.

That doesn't help explain why there is the discrepancy though.

I have the Blue Ridge kit to build as the SSGN (which, oddly, Blue Ridge calls SSNG in the instructions).

Peter


Attachments:
File comment: Seawolf kit stretched to match Blue Ridge kit
halibut mod 1.jpg
halibut mod 1.jpg [ 279.75 KiB | Viewed 3901 times ]
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 26 posts ]  Go to page 1, 2  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: No registered users and 1 guest


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
