PostPosted: Thu Jul 30, 2020 2:42 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1702
Location: Belgium
Fantastic work Willie! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

I don't see any mistakes. If anything, any irregularities will add to the realism!

I think it is a good idea to have less below the waterline, and none on the flat area near the stern. The contrast with the heavily oil-canned areas will make those look more realistic; otherwise the hull surface would look too uniform.


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jul 30, 2020 8:35 am
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 490
Location: Vigo, Spain
Hi there all again,

And thanks Meister Baumann and Marijn for your high notes to my work. I am a teacher and I appreciate it...

Rick E Davis wrote:
It was pretty common for destroyers to be involved in collisions with carriers or resupply ships (normally during resupply ops when a sudden wave could push them together) or with other destroyers during maneuvers.

Absolutely right, and there have been some examples in my neighborhood too. This is Gravina D62, one of the Gearings in our Navy, after coming to close terms with some other unit. An extreme example of canning on the left and of a lousy paint job on the right. Maybe somebody was taking extreme measures to mend it without the use of paint. :eyebrows:
Attachment:
(622).jpg [ 210.6 KiB | Viewed 452 times ]

marijn van gils wrote:
I think it is a good idea to have less below the waterline, and none on the flat area near the stern. The contrast with the heavily oil-canned areas will make those look more realistic; otherwise the hull surface would look too uniform.

IMO, yes and no. There is no definite oil canning pattern in the flat bottom in the stern, or in the bottom in general, but after 40+ years at sea, it is impossible that there is not something somewhere, with the sea pressure and the regular dockings. Actually, there are shadows that can be observed, quite irregularly, here and there in the few dry dock pictures available.

On the other hand, I didn´t want to leave the hull beaten in some places, and in pristine condition in others, so I have tried to reproduce some of these scars in the lower hull.

I have made the carving irregularly, following no definite pattern, in different positions and in different shapes, refining the areas with different sandpapers, until what can be seen is a kind of bumps or shadows, and only against the light, that is more or less what can be observed in the real pictures.

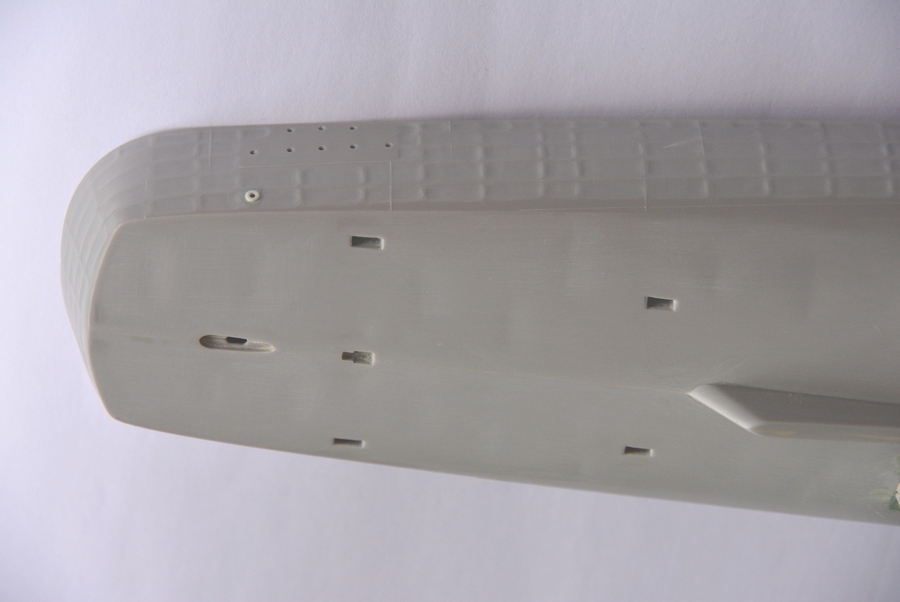

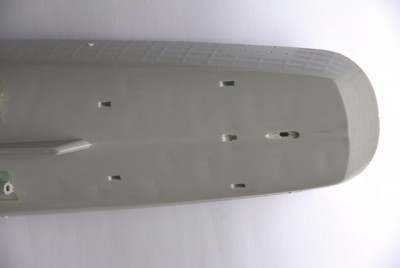

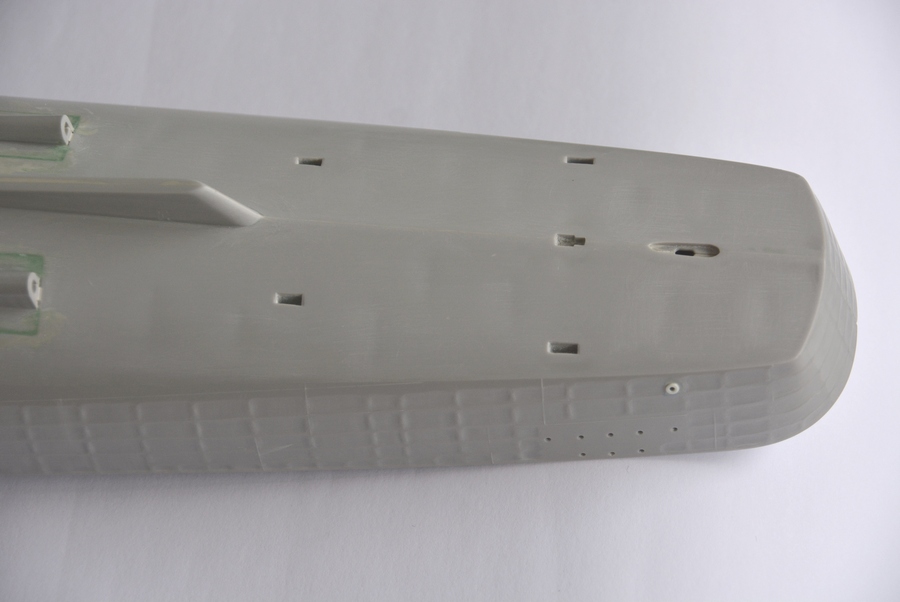

This is what I have done:
Attachment:
(623).jpg [ 191.74 KiB | Viewed 452 times ]

Attachment:
(624).jpg [ 185.88 KiB | Viewed 452 times ]

Attachment:
(625).jpg [ 199.23 KiB | Viewed 452 times ]

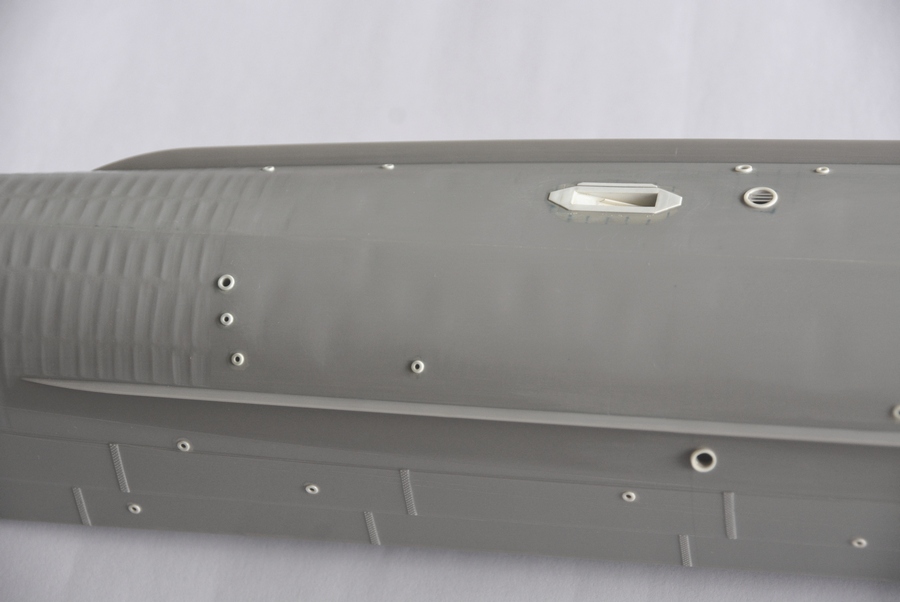

I have done the same thing in the midship area, as a transition between bows and stern:
Attachment:
(626).jpg [ 197.61 KiB | Viewed 452 times ]

Attachment:
(627).jpg [ 198.77 KiB | Viewed 452 times ]

The thing is not easy to see, so I am not sure if it was necessary at all, but at least I have the feeling of having a more complete hull.

I hope you like it, and very best regards from the North Atlantic,

Willie.

_________________
Mihi quoque spem dedisti


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jul 30, 2020 11:00 am
Offline
User avatar

Joined: Mon Nov 18, 2013 3:41 pm
Posts: 1741
Location: Mocksville, NC
Willie,
It looks just like a real FLETCHER after years at sea! Excellent work, Amigo!!!

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS PENNSYLVANIA (BB-38) Late '40 1:200
USS STODDARD (DD-566) 66-68 1:144
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Aug 02, 2020 3:18 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 490
Location: Vigo, Spain
Hi all, folks.

Thanks Hank for your very rewarding remark. If a Fletcher veteran recognizes a Fletcher, the thing is definitely aceptable.

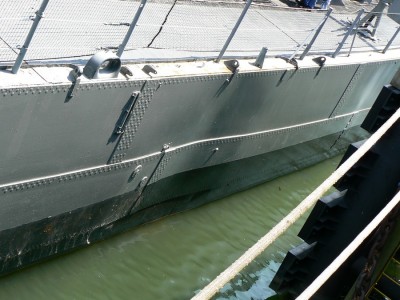

On the other hand, I have found this picture in my files on USS The Sullivans, that proves two different things :
(a) That these plates can cope with a serious punishment, and survive.
(b) That God does exist and he knows me, because I am not building The Sullivans but Jorge Juan, who did not go through this kind of incident, AFAIK, and I will be saving lots of research and work on this specific example of oil canning.
Attachment:
(628).JPG [ 222.78 KiB | Viewed 402 times ]

I am afraid I am not done with the canning yet, and that some more work will be necessary, but for the moment I will replace oil canning by canned beer, in between I decide what to do next.

Nice going and warmest regards from this side,

Willie.

_________________
Mihi quoque spem dedisti


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Aug 03, 2020 2:23 am
Offline
User avatar

Joined: Mon Jan 31, 2005 6:02 am
Posts: 94
Location: Spain
Outstanding example of patience, perseverance and love for a work well done, as always.
This thread, along with others should be teached at High Schools as an inspiring example.

Well done!

Me tienes embobao. ¡Abrazo grande!

_________________
Luis Crespo "Sparrow".


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Aug 03, 2020 12:26 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 490
Location: Vigo, Spain
All hands ahoy !!!!!
Captain Sparrow is back on board !!!!!
Glad to see you back in the forum, my friend, and hopefully you have come to stay.

All the best from this side,

Willie.

_________________
Mihi quoque spem dedisti


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Oct 14, 2020 2:46 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 490
Location: Vigo, Spain
Hi all again,

I have been discussing recently with Hank Strub about the deck rings of the 5"/38 gun bases. Hank wants to detete them completely, and replace them, and I was more prone to use the kit offer and complete it. The more you remove from your kit, the more problems you will have to replace it, and I am always afraid of making a carnage for nothing.
After this discussion I had a first go and tried to find out how it would be to build the elements upwards before removing anything from deck downwards.

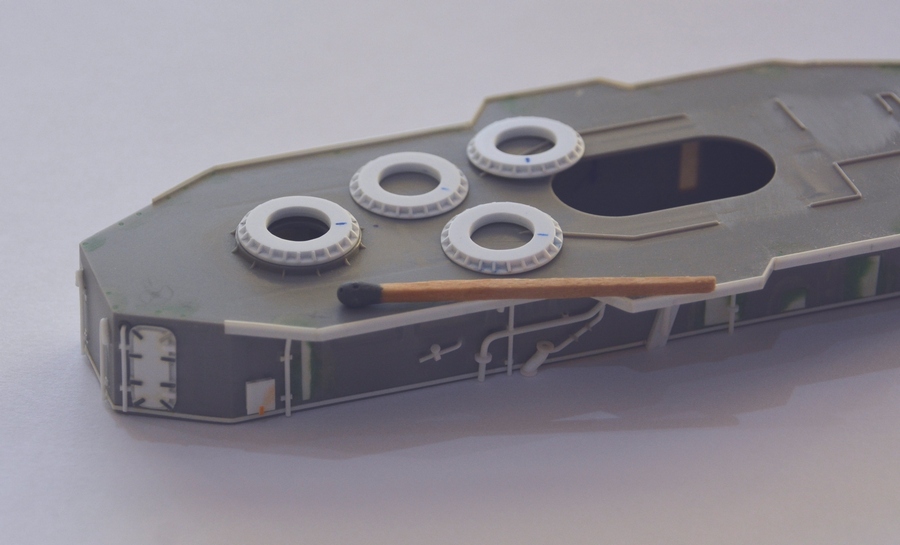

Well, this is what you get in the box:
Attachment:
(629).jpg [ 278 KiB | Viewed 252 times ]

Even if not 100% perfect, these rings have the correct diameter and can be used, but the problem is that they are incomplete all the same, as they are only the first ring, and lack half of the elements upwards just below the gun mount. As a result of this, the gun mounts are too low on deck, while it is clear in every picture of this mount system, that they were just the opposite, i.e., quite high.
This is what has to be made, on Jorge Juan herself, and notice how high the mounts are:
Attachment:
(632).jpg [ 133.95 KiB | Viewed 252 times ]

Going into further detail, the deck ring has twelve brackets (to call them so), and the upper one just double, twenty-four, as it can be deduced from these pictures:
Attachment:
(630).JPG [ 216.66 KiB | Viewed 252 times ]

Attachment:
(631).JPG [ 218.8 KiB | Viewed 252 times ]

I did the eight basic pieces using as a reference the base elements offered in the Revell kit, using the 0.5 mm. base of four yogurt containers for my lower ring, and 1.00 mm. Evergreen plate for the upper one. I used a 1 cent coin to draw the rings, refined the borders with a pair of scissors and some rough sandpaper, and finished the job nailing the roundels on the tip of a file and rolling them in some much finer sandpaper again.
Attachment:
(633).jpg [ 272.17 KiB | Viewed 252 times ]

I let it dry for a ful day, and emptied all four elements, to fit perfectly around the axis of the gun mounts, so that they cannot move when set in place, completing them with 1.00x04.00 mm. Evergreen strips, and refining with sandpaper:
Attachment:
(634).jpg [ 276.19 KiB | Viewed 252 times ]

Attachment:
(635).jpg [ 213.5 KiB | Viewed 252 times ]

The guns are now 1.5 mm. higher, what seems way more realistic than before. It was not difficult at all to make:
Attachment:
(636).jpg [ 218.88 KiB | Viewed 252 times ]

Even if not perfect, this solution suits me much better than removing everything, specially if I had to adapt the shape of the fore guns rings to the shape of the deck, so that the guns remain even.

Nice going from this corner of the North Atlantic,

Willie.

_________________
Mihi quoque spem dedisti


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Oct 14, 2020 7:17 pm
Offline
User avatar

Joined: Mon Nov 18, 2013 3:41 pm
Posts: 1741
Location: Mocksville, NC
Willie,
I won't duplicate my reply - I answered your latest post on my build just a few moments ago. I think we both saw the need to alter the kit base rings as they were incorrect. So, we're basically both on the same page here!

You've done a wonderful job to date - always enjoy your progress!!!

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS PENNSYLVANIA (BB-38) Late '40 1:200
USS STODDARD (DD-566) 66-68 1:144
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Oct 15, 2020 3:52 pm
Offline
User avatar

Joined: Wed Mar 20, 2019 4:02 pm
Posts: 62
Location: Sakarya/Turkey
Outstanding work. :thumbs_up_1: I am watching it like a movie, so I'd better refill the popcorn. :big_grin:

Kubilay.

_________________
Completed :

1/700 US Navy UNREP Diorama
1/350 Turkish Destroyer 'TCG Istanbul - D 340'
1/700 Turkish Destroyer 'TCG Mareşal Fevzi Çakmak - D 351'
1/700 Turkish Frigate 'TCG Zafer - F 253'
1/700 HMS Onslow Diorama


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Oct 15, 2020 5:36 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 3511
Location: USA
¡Magnífica!

_________________
Have fun, Monkey around.

-Steve Larsen

Catalog of over 2500 products for scale modelers - https://www.model-monkey.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Oct 17, 2020 2:14 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 490
Location: Vigo, Spain
Hi there, folks,

Thanks a lot for your messages and always kind remarks.

I would like to finish the aft stack, and to solve the problem of the wiring up it, from main deck to the domes and aerials, but I thought that, as this is going to be something a bit delicate, it would be advisable to finish the rest of the elements first, so I have started the details on the torpedo director platform.

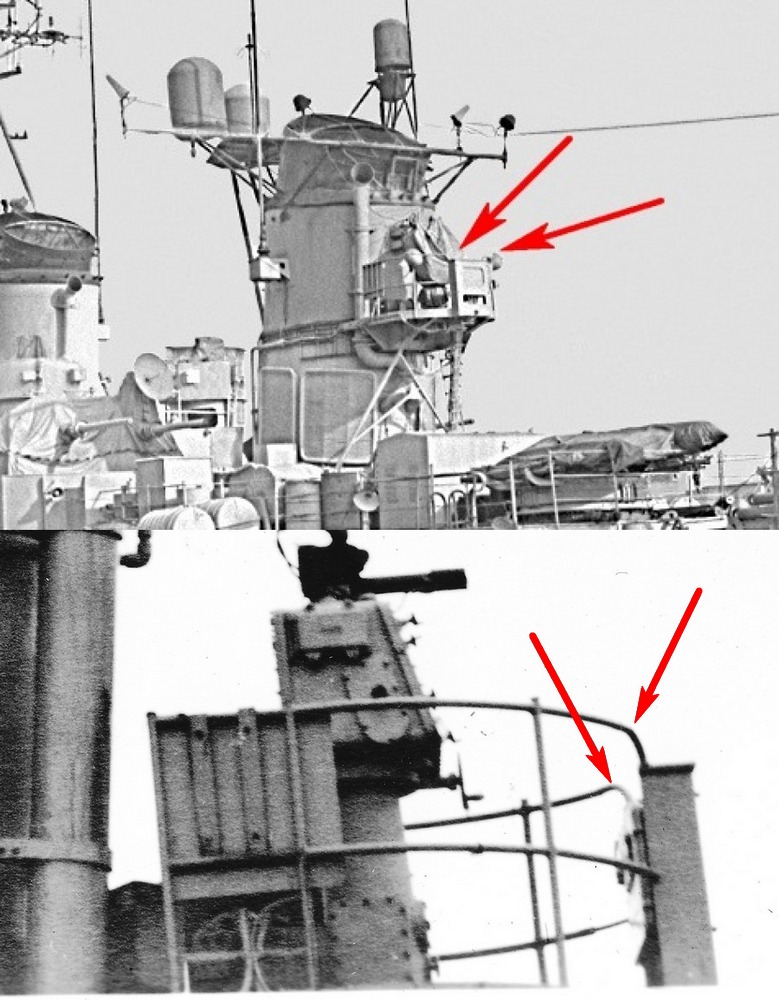

This is what has to be finished on board Jorge Juan :
Attachment:
(638).jpg [ 162.44 KiB | Viewed 120 times ]

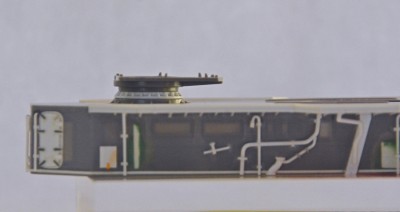

The picture is useful, but not very clear, but a quick comparison of USS MacGowan shows that this platform did not change from her service years in the US Navy :
Attachment:
(639).jpg [ 353.77 KiB | Viewed 120 times ]

Attachment:
(640).jpg [ 341.39 KiB | Viewed 120 times ]

The inner part is clearly displayed in this other picture (Hank will love it) of USS Stoddard:
Attachment:
(641).jpg [ 363.39 KiB | Viewed 120 times ]

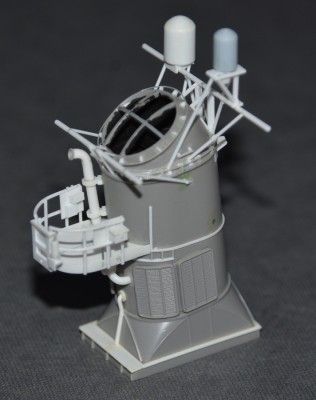

So, with everything more or less clear, I have started the main element, using a scrap of 6.3x0.5mm. Evergreen strip, opening the holes with drills and files, and finishing it with 2.0x0.25mm. Evergreen strip and some other styrene scraps. Again very easy to do. This is the state of the element at the moment:
Attachment:
(642).jpg [ 175.63 KiB | Viewed 120 times ]

Attachment:
(643).jpg [ 181.64 KiB | Viewed 120 times ]

Attachment:
(644).jpg [ 224.13 KiB | Viewed 120 times ]

Attachment:
(645).jpg [ 212.58 KiB | Viewed 120 times ]

Attachment:
(646).jpg [ 201.37 KiB | Viewed 120 times ]

The macro pictures leave no margin for mistakes, that will have to be refined. I will let it dry completely, and will imagine tomorrow how to finish the handrails.

Warmest regards from this side,

Willie.

_________________
Mihi quoque spem dedisti


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Oct 17, 2020 9:57 pm
Offline
User avatar

Joined: Mon Nov 18, 2013 3:41 pm
Posts: 1741
Location: Mocksville, NC
Willie,

Glad to have helped you out photo-wise with the stack!!! I won't have to make that as it was removed from STODDARD probably in the late '50s - it was gone when I arrived aboard in 06/66. You torpedo director's platform is beginning to look ship-shape!!

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS PENNSYLVANIA (BB-38) Late '40 1:200
USS STODDARD (DD-566) 66-68 1:144
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Oct 19, 2020 5:00 pm
Offline
User avatar

Joined: Sat Apr 29, 2006 7:36 am
Posts: 490
Location: Vigo, Spain
Hi there again folks,

Well Hank, if...
BB62vet wrote:
I won't have to make that as it was removed from STODDARD probably in the late '50s - it was gone when I arrived aboard in 06/66.

...You don´t know how lucky you are. This piece is a bit of a nightmare to build.

After yesterday´s element, I carried on with the rest of the platform. First I made the handrails. To start with, I was not able to make the elements one by one, so that vertical and horizontal bars were at the same level, as the real case was, so I had to go for the upper element in one single curve, and the lower one in two pieces, using 0.64 mm. Evergreen rod. It should have been 0.50, but I thought it wiser to make the thing in 0.64 to give it a bit more stability, just in case I messed up --what did not happen. :-?

To make the curves of the three elements identical, or virtually identical, and keep them so after setting them in position took its time. Unnecessary to say, the lower right section of the railing interfered with the vertical cylinder of the rear plate, something I could not foresee, and I had to remove the thing when it was already set in place and completely dry, and redo the element. Double work, double joy. Here is the first step:
Attachment:
(648).jpg [ 308.87 KiB | Viewed 51 times ]

There were many variations in this director platform in both equipment and its placing, and the shape of the handrailings. The specific problem with the upper handrail in Jorge Juan is that it was again split in two sections attached to the top of the rear plate, with the ends going downward at a very steep angle. This is what I mean, both pics being of the same ship, Jorge Juan / Macgowan:
Attachment:
(649).jpg [ 193.78 KiB | Viewed 51 times ]

I more or less solved the problem adding two sections of rod to the sides of the plate, gluing them to the upper circle, and cutting the middle section afterwards. This is the result:
Attachment:
(650).jpg [ 219.22 KiB | Viewed 51 times ]

Attachment:
(651).jpg [ 257.87 KiB | Viewed 51 times ]

As for the rest, it was nothing at all, everything made with scraps of styrene and sprue.
Attachment:
(652).jpg [ 307.88 KiB | Viewed 51 times ]

Attachment:
(653).jpg [ 303.75 KiB | Viewed 51 times ]

Attachment:
(654).jpg [ 295.01 KiB | Viewed 51 times ]

Attachment:
(655).jpg [ 350.1 KiB | Viewed 51 times ]

Without macro, and with without the merciless flash, the thing looks much better:
Attachment:
(656).jpg [ 351.55 KiB | Viewed 51 times ]

Once this is done, I hope the rest of the stack will not be that difficult.

Warmest regards from the North Atlantic,

Willie.

_________________
Mihi quoque spem dedisti


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Oct 19, 2020 9:02 pm
Offline
User avatar

Joined: Mon Nov 18, 2013 3:41 pm
Posts: 1741
Location: Mocksville, NC
Willie,

Well, regardless - your efforts are paying off, this really looks 1st rate!!! IMHO, I think that the McGowan's director's platform was probably a shipyard deviation from a general set of builder's plans - In many cases small differences such as this one were due to local shipyard issues: lack of materials, need to save time/materials, improper location of equipment resulting in modifications to effected areas - which is what I guess happened here. The control box was located below the upper rail, thus making alterations of the rail necessary.

In any event, you've met the challenge well indeed!!

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS PENNSYLVANIA (BB-38) Late '40 1:200
USS STODDARD (DD-566) 66-68 1:144
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 214 posts ]  Go to page Previous  1 ... 7, 8, 9, 10, 11

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: Google [Bot], steinerman and 41 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
