Thank you all for you words of encouragement!
meanwhile--back to "proper " modelmaking;
edit:--apologies for some repeated images-- I have not as yet been able to remove them...the fwd bridge are a has a number of ( surprisingly) tricky stairs.
The PE with the kit supplied stairs with individual folding stairs--nicely done but these are always a bit too over-scale
Attachment:
P1250755.jpg [ 639.03 KiB | Viewed 1577 times ]
( I always compare these things with a scale figure )
Attachment:
The attachment P1250755.jpg is no longer available
In any case, being brass they would need painting in silver grey--
The custom PE rails I have had made , are made of oxidised nickel-silver-- no need to paint
and they stay nice and thin without paint levels building up
They are quite soft and the very thin longitudinals are very delicate
which was tricky when needing to splay

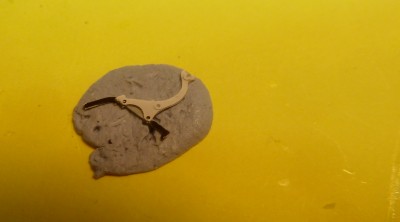

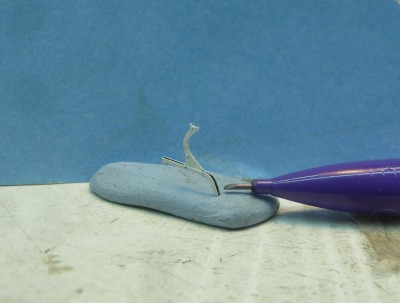

Attachment:
P1250796.jpg [ 534.24 KiB | Viewed 1577 times ]

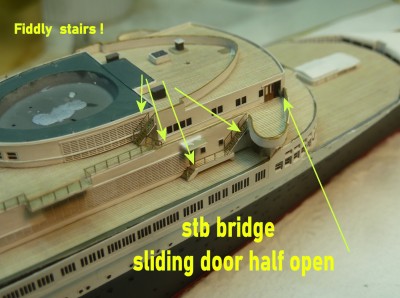

For the staircases themselves
Attachment:
P1250755.jpg [ 639.03 KiB | Viewed 1577 times ]
I used some elderly GMM 1/700 stainless steel stairs, cut away the handrails;
and then afterwards I
added a second layer of these stairs but offset in echolon-
- this gave them substance and the impression of 'proper' treads
Attachment:
P1250783.jpg [ 576.9 KiB | Viewed 1577 times ]
At the bow I 'added back' the hatches I had previously pared away
Attachment:
P1250796.jpg [ 534.24 KiB | Viewed 1577 times ]
and added the bow cargo hatch as well as the armoured bow doors( of paper )
Attachment:
P1250843.jpg [ 912.84 KiB | Viewed 1577 times ]
Moving aft -- I made of brass and underlaid with a sliver of paper the aft hatch-
-barely visible in photos( but can be discerned ) and shown on plans
Attachment:
P1250819.jpg [ 902.82 KiB | Viewed 1577 times ]

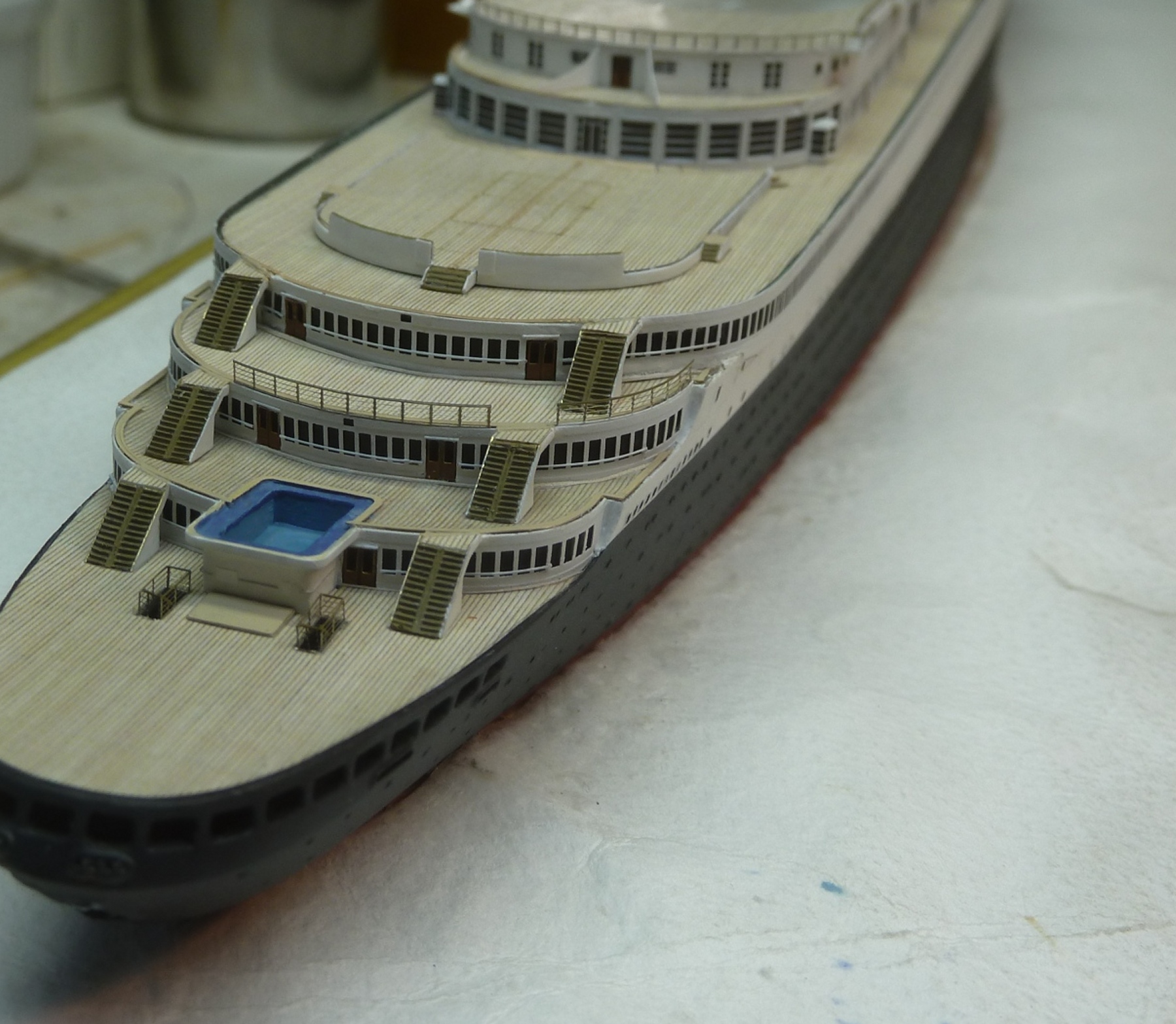

The aft staircases --made of resin-- were ok ( but alas the casting was not perfect cast )
They needed the extension platforms making ( these
are supplied in resin -but too thick for me)
So these these were templated afresh and cut out from the wooden decking paper
Attachment:
P1250834.jpg [ 1.02 MiB | Viewed 1577 times ]
Each level a different shape as the staircases are further outboard as they ascend
Attachment:
P1250819.jpg [ 902.82 KiB | Viewed 1577 times ]

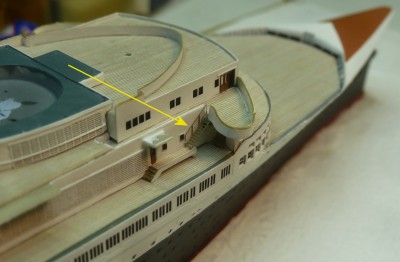

The top staircases were a bit too low --so additional treads were added of shims of paper
Attachment:
P1250839.jpg [ 1003.73 KiB | Viewed 1577 times ]

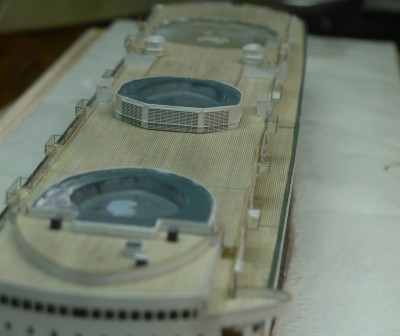

My 3-D printed zig zag seating deck had vent panels added either side ( Flyhawk USN 5- bar asymmetric rail cut down)
it had the wood deck paper added ( after paring down the level to compensate!)
The timber edges of the incredibly fine steps on the aft and radial stairs were " implied " , painted and drawn
This deck also had a geometric pattern of contrasting slightly darker planks laid in -- delineating the tall column lamps
Attachment:
pimdmaeejnjmndeh.jpg [ 870.65 KiB | Viewed 1577 times ]
Attachment:
naainaidiaaphjco.jpg [ 200.92 KiB | Viewed 1577 times ]
I had been getting frustrated as how to depict this-- I have seen it done rather too boldly
( OMK 1/350 N
Attachment:
naainaidiaaphjco.jpg [ 200.92 KiB | Viewed 1577 times ]
Attachment:
P1250839.jpg [ 1003.73 KiB | Viewed 1577 times ]
as on the real ship--when viewed from the the air , this pattern was not as ' contrasty '
Attachment:
Normandie 1.jpg [ 508.49 KiB | Viewed 1577 times ]
I tried it using pale decal stripe... but the effect was just was all too harsh
so I reckoned ....less is more ...
??

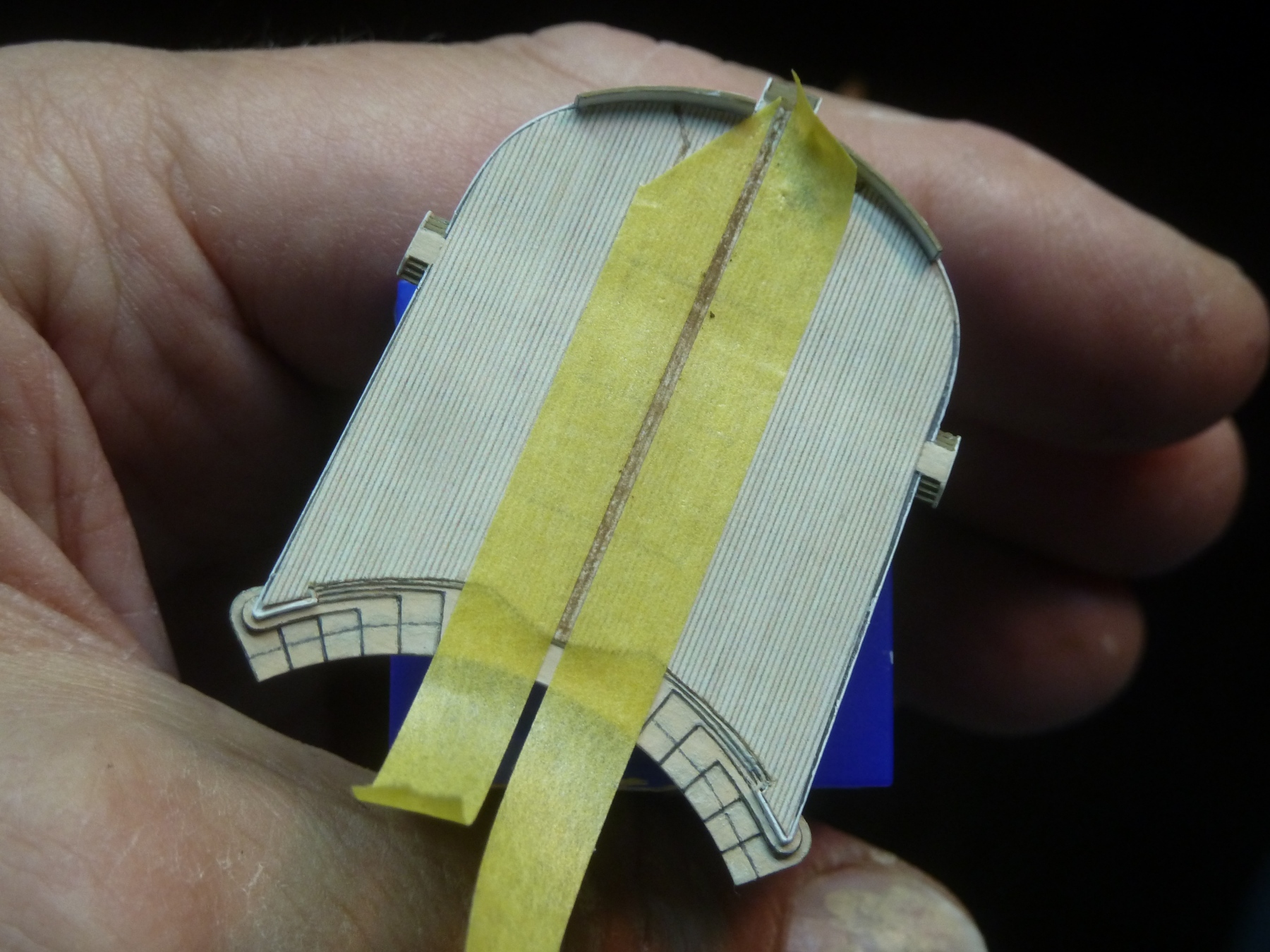

Using a brown coloured pencil I ( softly ) hand-drew the chosen planks ( counting in and out from the centre)
using my printed planks as a guideline with the assistance of masking tape across
Once these were drawn, I used masking tape and blue-tak to ' lift' the brown pencil off again
and scalpel blades to pare away at the brown pencil to crisp up the edges
Attachment:
P1250839.jpg [ 1003.73 KiB | Viewed 1577 times ]
Attachment:
P1250888.jpg [ 622.65 KiB | Viewed 1577 times ]
I then glued the deck to the ship.... with a bit of persuasion
Attachment:
P1250902.jpg [ 958.14 KiB | Viewed 1577 times ]
The result was pretty much as I had hoped it would be -- visible --but without jarring the eye
BTW--the dark dots at the intersections of the lines are the pin holes where lamps will be
Attachment:
aaaa.jpg [ 492.66 KiB | Viewed 1577 times ]
A detail often overlooked on merchant ships ( and naval) are the copious handrails -- just about everywhere
I have added these wherever I have photo evidence
But aft they are quite tricky to make --and ( shame really but...) they bisect the aft windows as they did on the real ship
Attachment:
e0dd0484f6091f0048304139630224fa.jpg [ 654.83 KiB | Viewed 1577 times ]

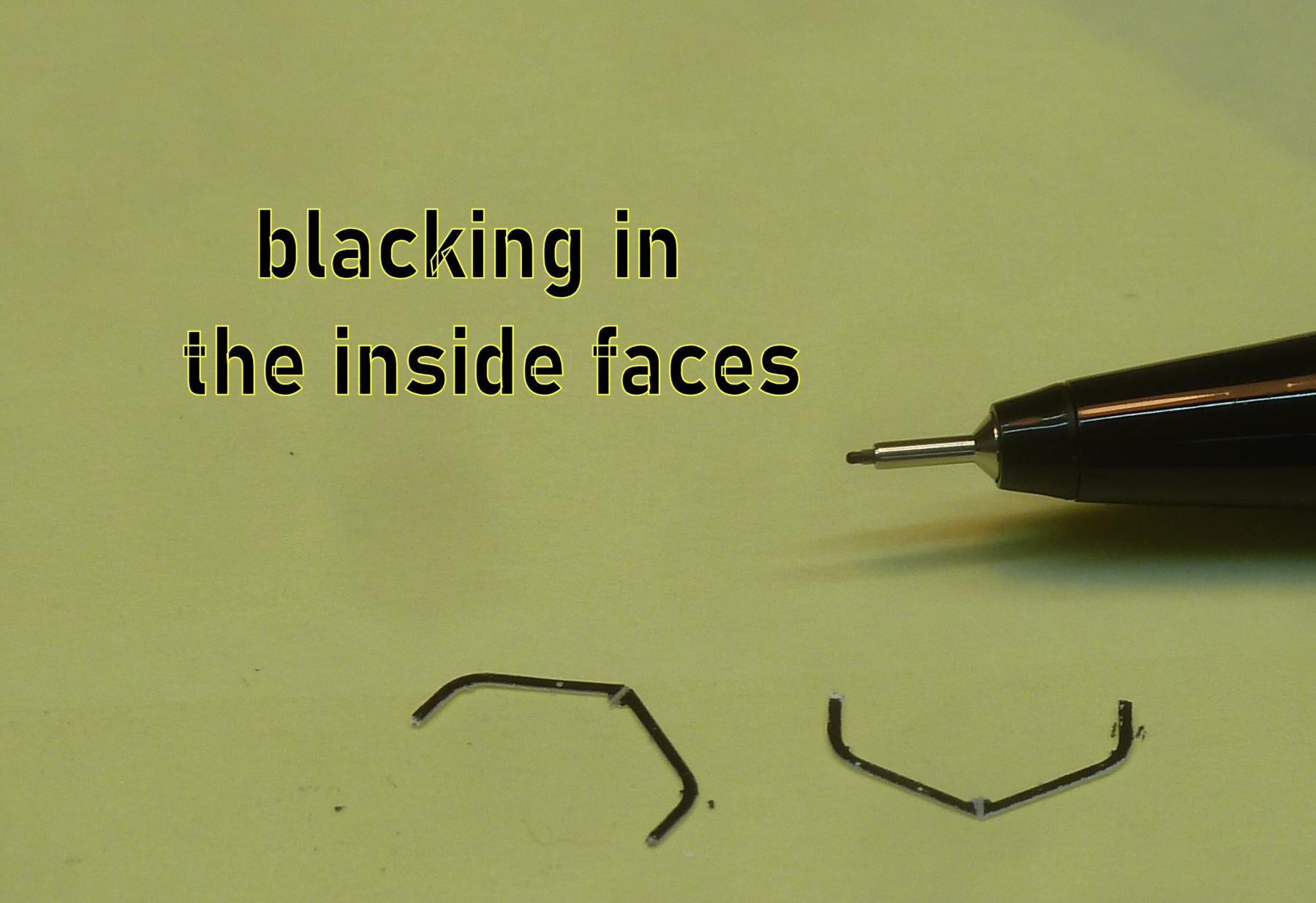

these were tacked at one end with glue --then bent round so as to maintain a clean curve
Attachment:
P1250905.jpg [ 504.62 KiB | Viewed 1577 times ]
Attachment:
P1250906.jpg [ 794.2 KiB | Viewed 1577 times ]
Yes ...I know they are a bit overscale... but...
Attachment:
P1250916.jpg [ 734.83 KiB | Viewed 1577 times ]
What has taken an enormous amount of time (!!! )was to bend, cut and shut all the railing for the the sports deck,
in particular for the lifeboat winch platforms - there are so many of them
- not all the same size-- and the time take to but ensuring that there is a stanchion on each corner....
arghh!!
Attachment:
P1250908.jpg [ 774.45 KiB | Viewed 1577 times ]
Attachment:
P1250912.jpg [ 752.06 KiB | Viewed 1577 times ]
'
There are a large number of other small steps taking place--
ie the bridge roof 'furniture' is now taking shape!
