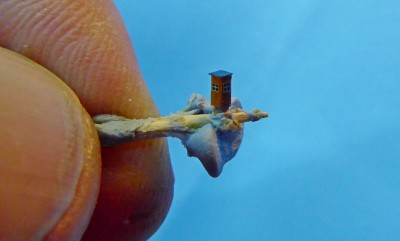

From this tiny piece of wood, a little gem slowly emerges.

_________________
Pascal

•Battleship Bretagne 3D: https://vu.fr/FvCY
•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ

+1!

Good evening all,

a quick update-- images are self explanatory- I hope...
Gratings have been made using any suitable sized piece of PE that I could find
( laboriously ) that matched the deck plan

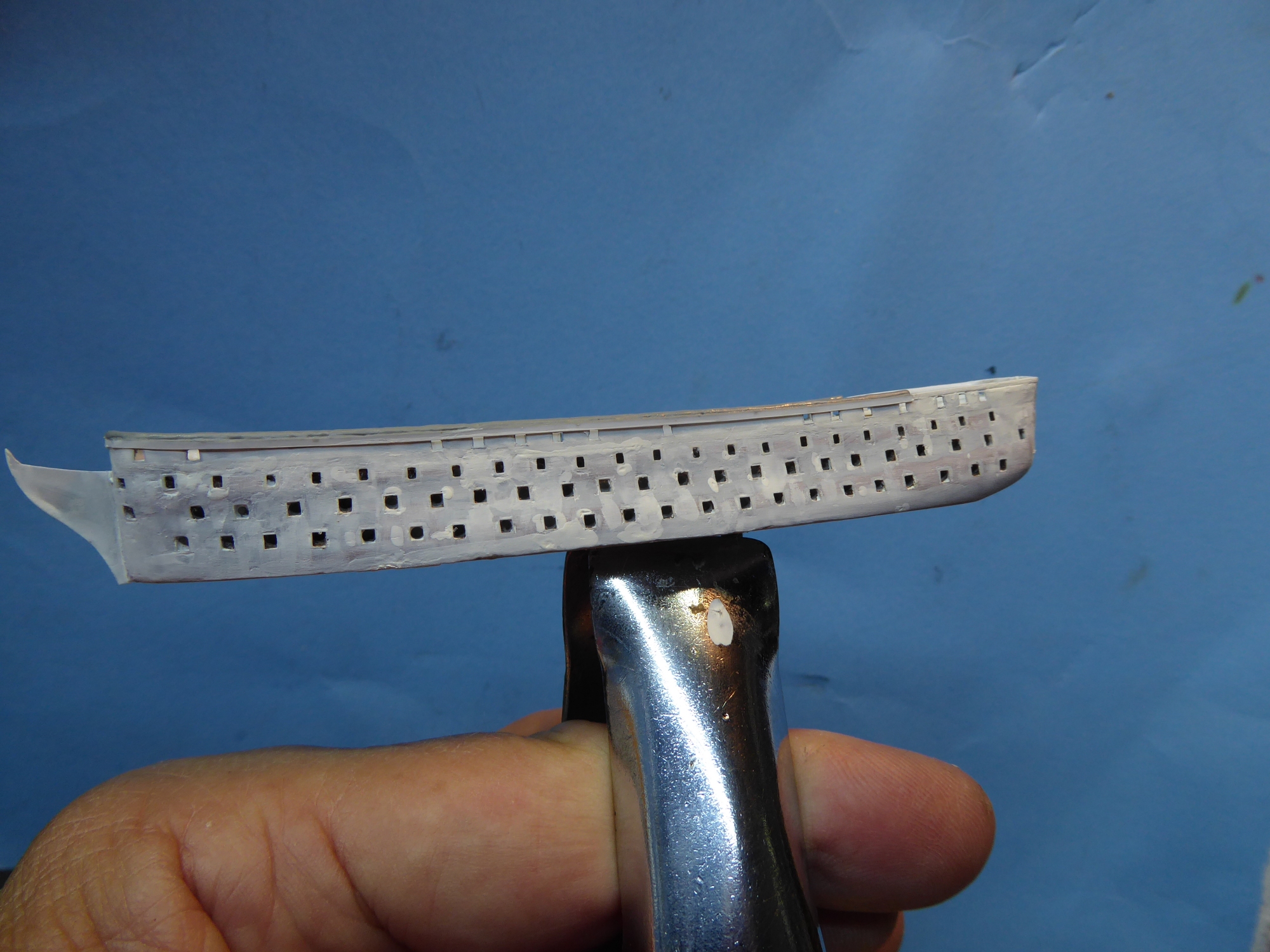

and... the first coat of paint has been applied-- as a guide coat only
and minor imperfections have been been filled with thick paint ( the bright patches )

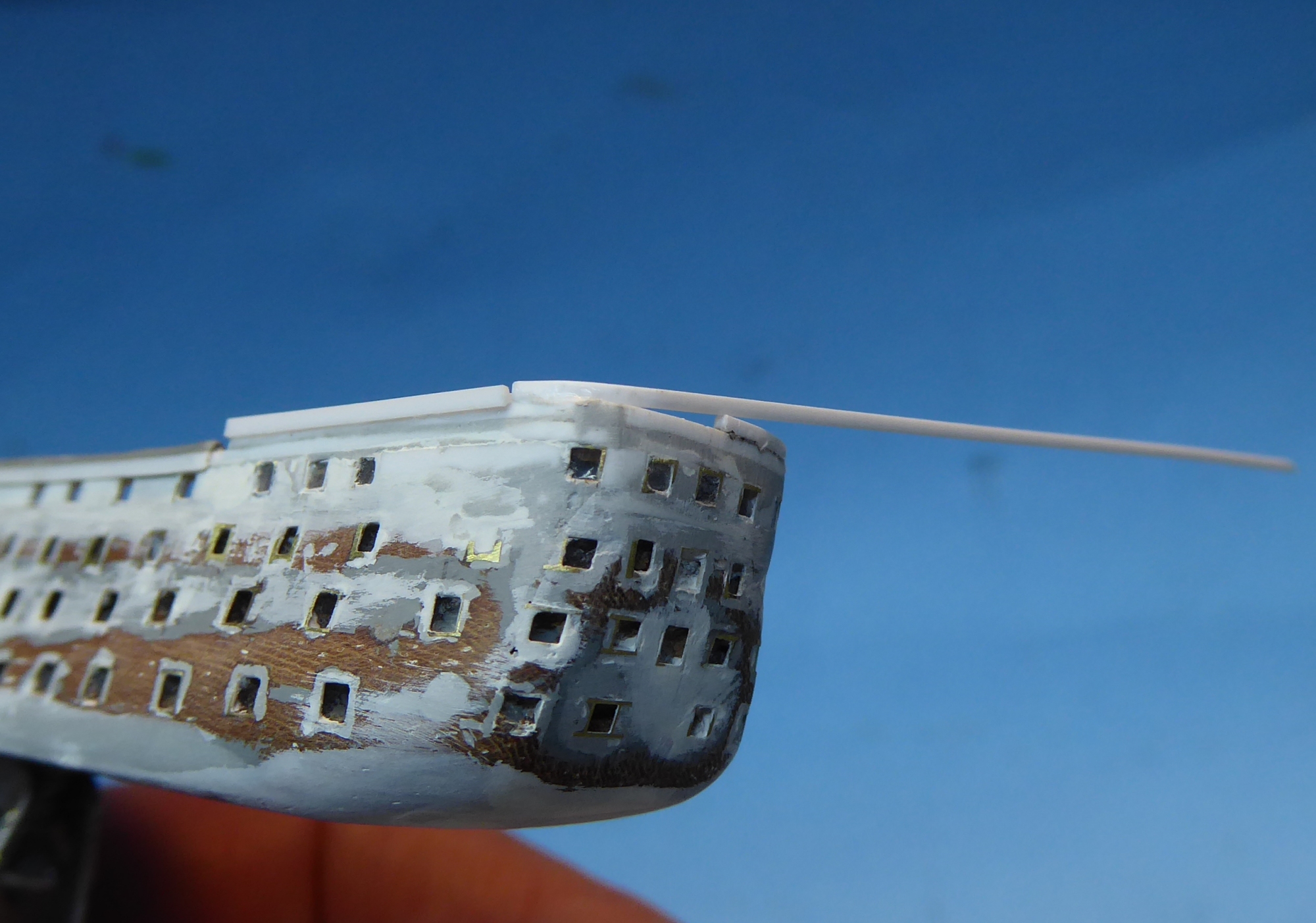

then final clean up edges of gunports

another light sanding--and repeat... and repeat...

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Hi Jim, happy to chime in on this lovely new project of yours! I see your hull is already well off the mark, including the gunports you dreaded! They look very sharp at first glance.

Hi Eberhard,
Thank you for doing the math! Do I summarize this then correctly: the problem is metal vs. plastics/woods. When you have an insufficiently strong bond (i.e. welding/soldering) between the metal railing and ANY other material hull, you might run into an expansion problem i.e. cracking.
Therefore, the only good solution I see is 1: using only short lengths of railing < 3 inch, and 2: using flexible glue to cement these to the hull (and to eachother). So no CA but using PVA glue instead.

Or keep your stellar Normandie in a temp controlled environment forever...

_________________
"I've heard there's a wicked war a-blazing, and the taste of war I know so very well
Even now I see the foreign flag a-raising, their guns on fire as we sail into hell"
Roger Whittaker +9/13/2023

Hi Maarten --thank you for joining in !

You say;
>> 1: using only short lengths of railing < 3 inch,
2: using flexible glue to cement these to the hull (and to eachother). So no CA but using PVA glue instead.<<

I refer you to this illustrated historical post from 2008 ( !! ) "Deck rail methods"

viewtopic.php?f=4&t=37612

an example from there is on my 1/350 Roma --
a huge lump of resin that expands and contracts with temperature variation.
to prevent the ' snaking ' of long lengths of railing when the hull gets longer or shorter...
the rails were applied cutting and shutting to get stanchions in correct places and have flex in the rail.
see the image below

The white arrows point to the joins in the railing made with white glue as a " flexi joint "

Stainless steel moves much less than brass...



cheers

JIM B

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Back to sailing ships;


a small update but a big milestone....

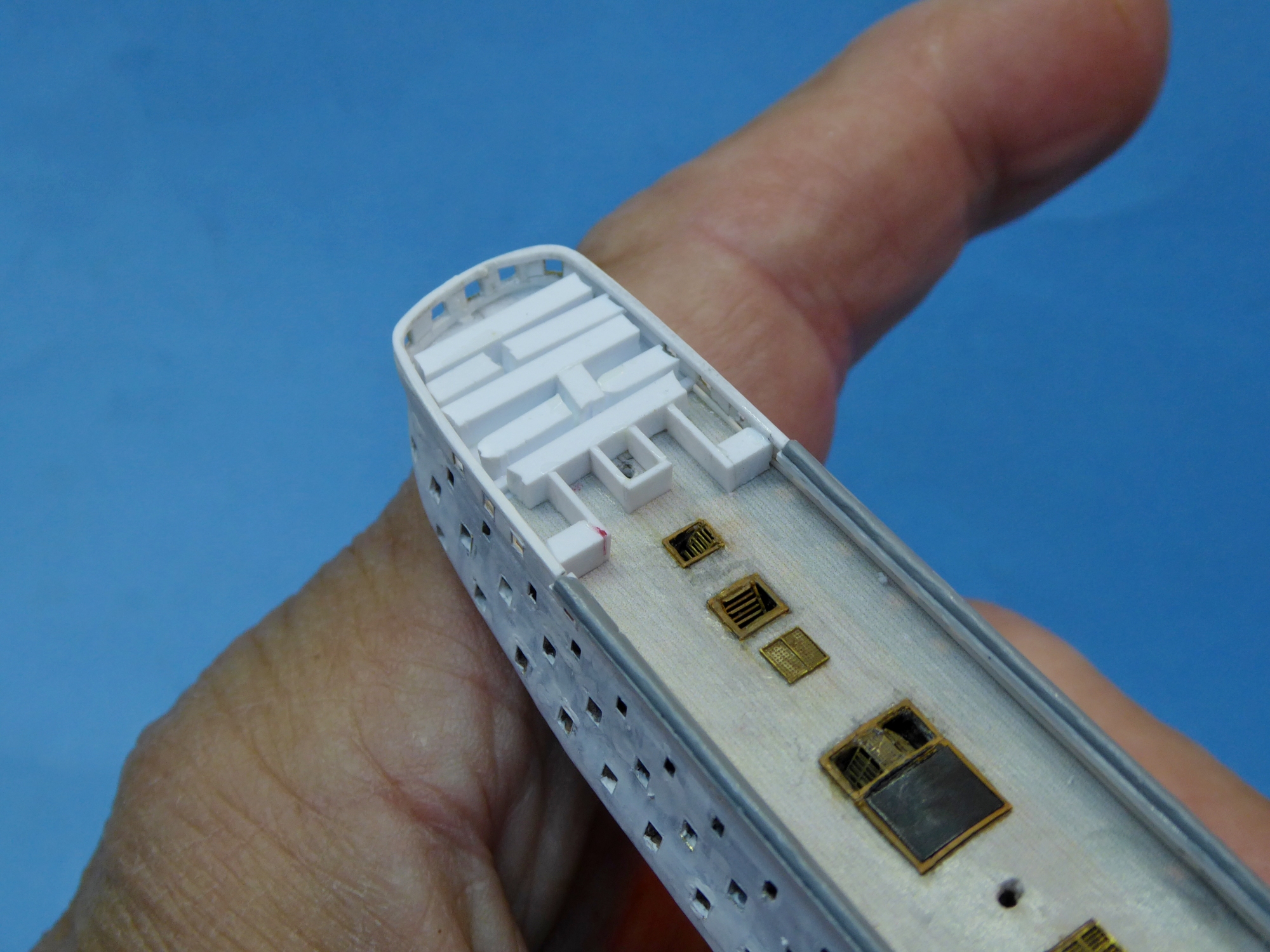

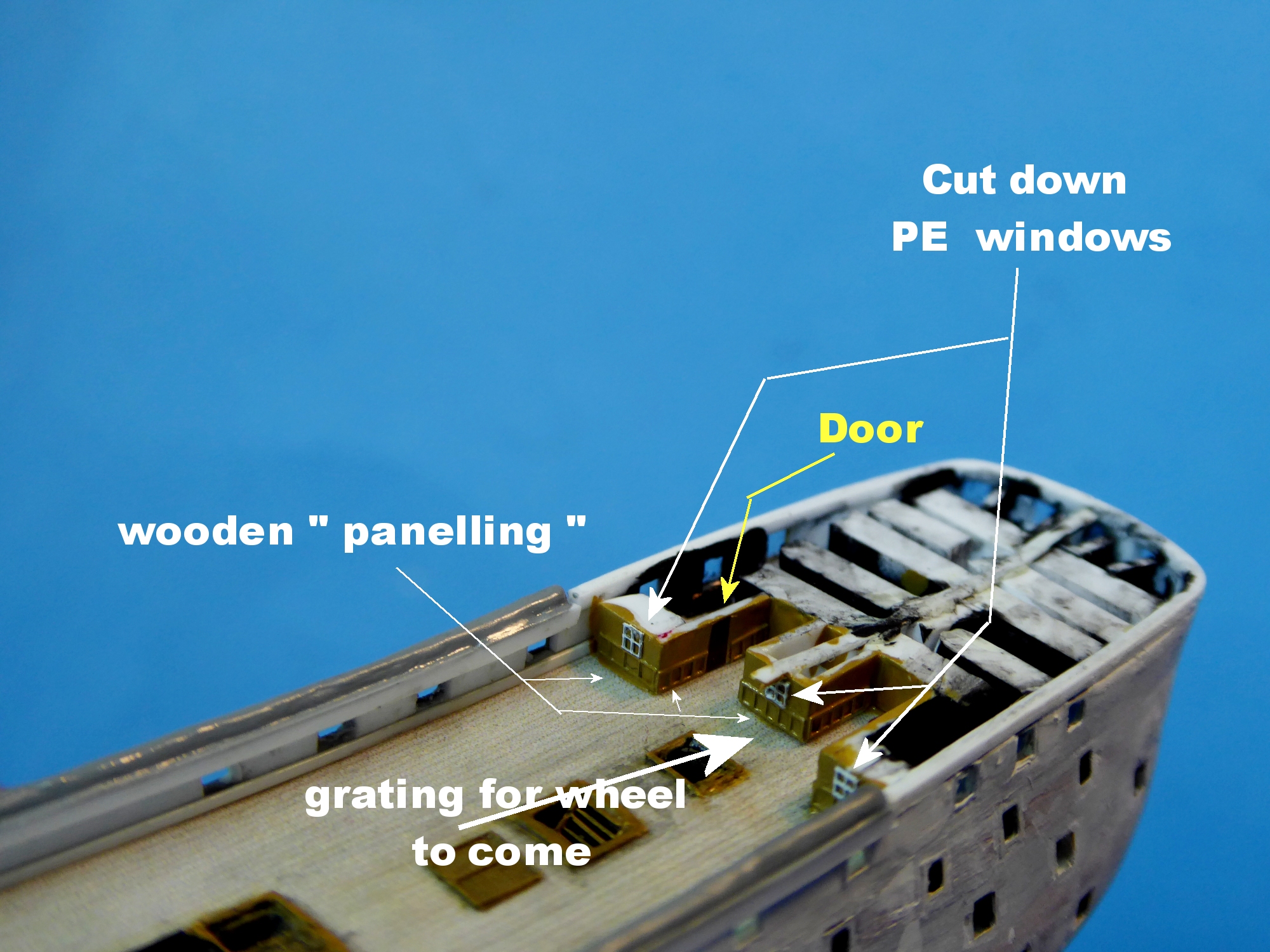

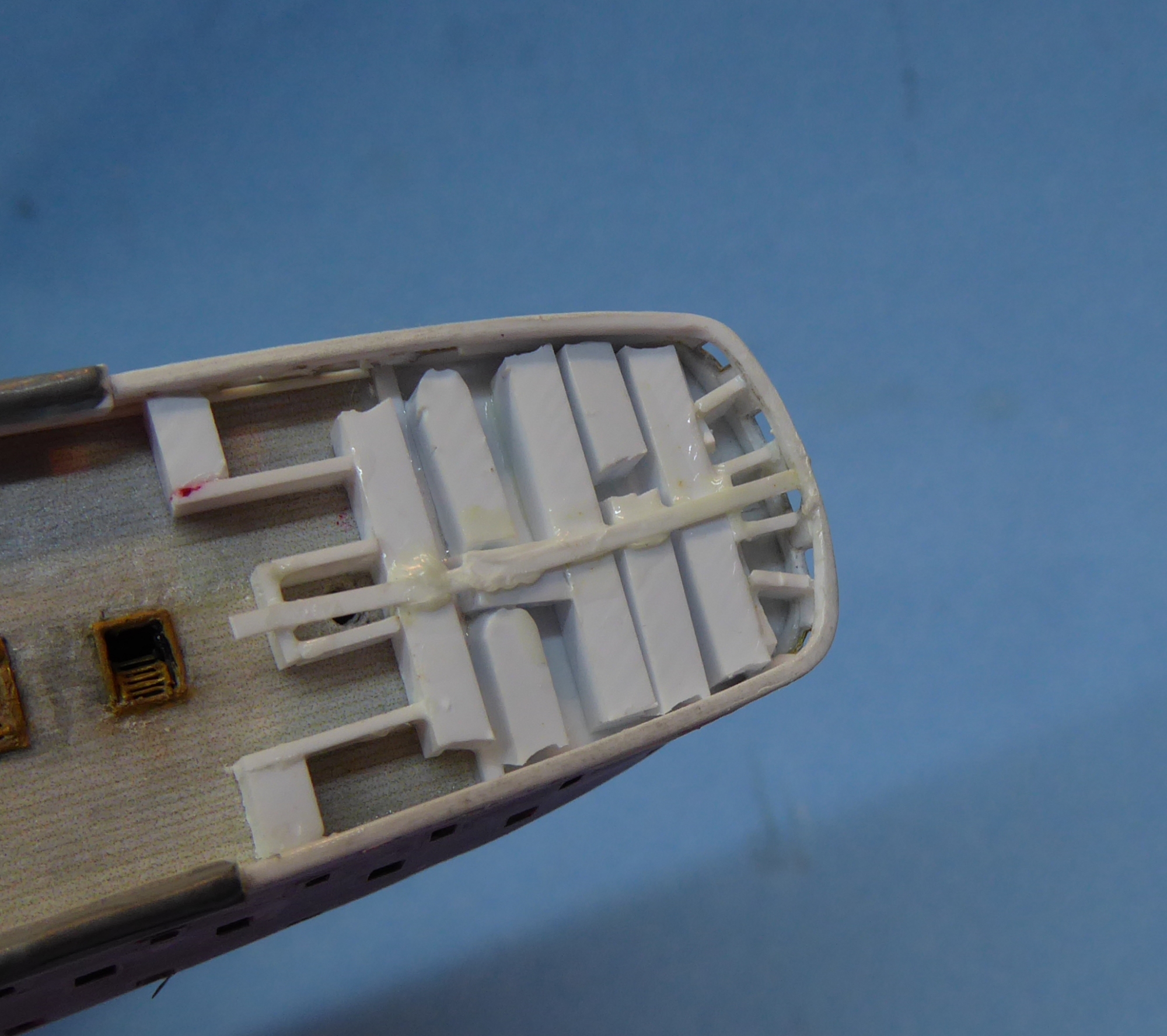

in preparation of installing the poop deck, I had to construct & paint the accommodation, as well as support for the deck to come.






On the face of it this is simple stuff -- but the wooden construction was panelled with 3 x very small( mullioned ) windows ( one behind the wheel )

These were cut from a part fret I suspect was 1/700 North Star French battleship windows-- so it would be kind of appropriate!!





I need quite a lot for the stern windows as well as the apertures below the poopdeck

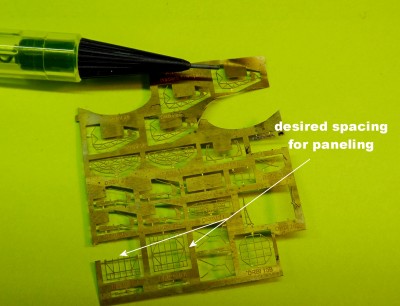

I found suitable size " panneling " on an unlikely piece of PE in my PE scrap box..... French Radars...! ( elderly L'arsenal PE )-- but French!
just the right height and spacing to fit

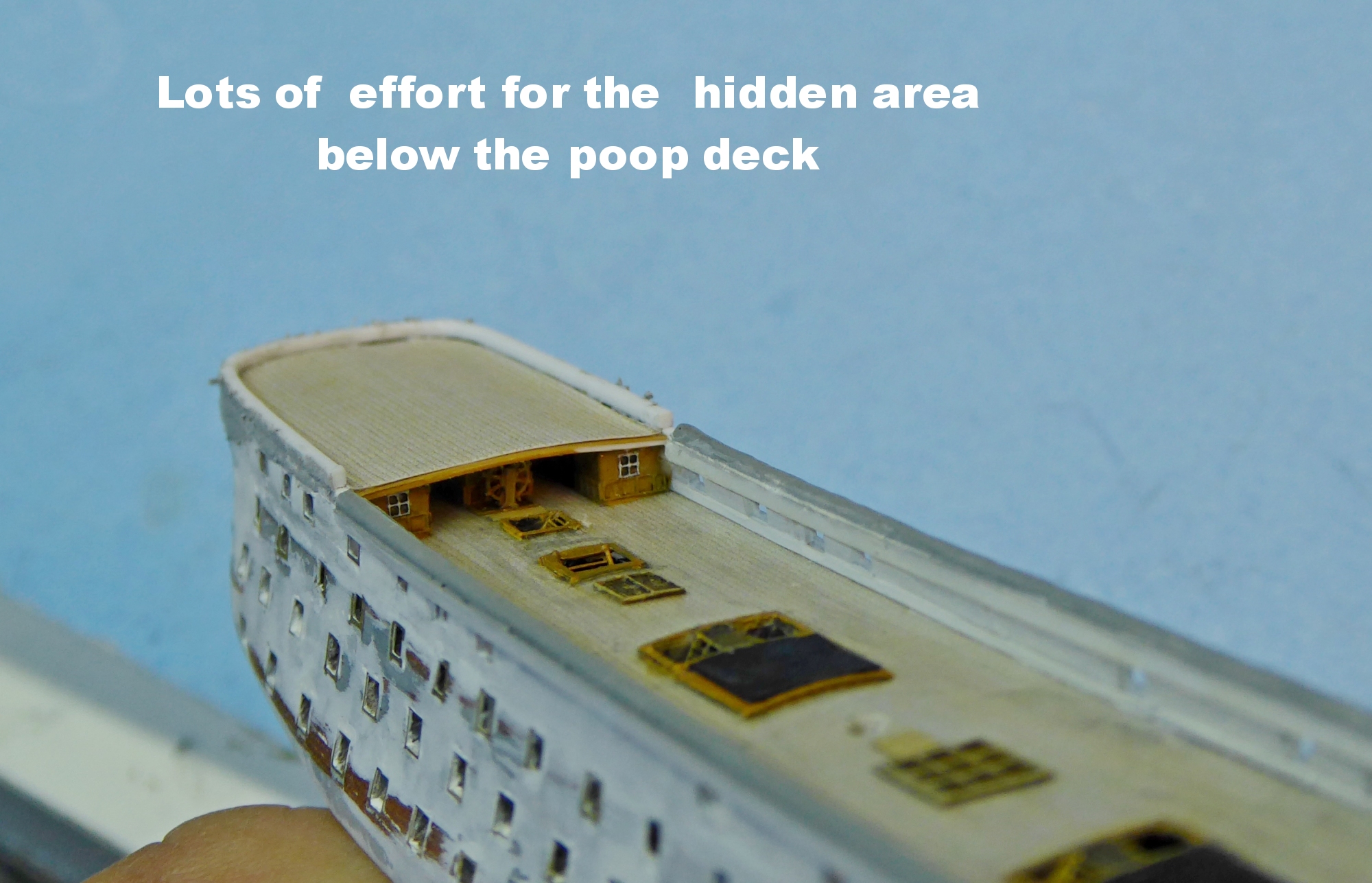

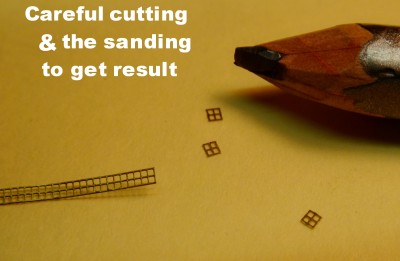

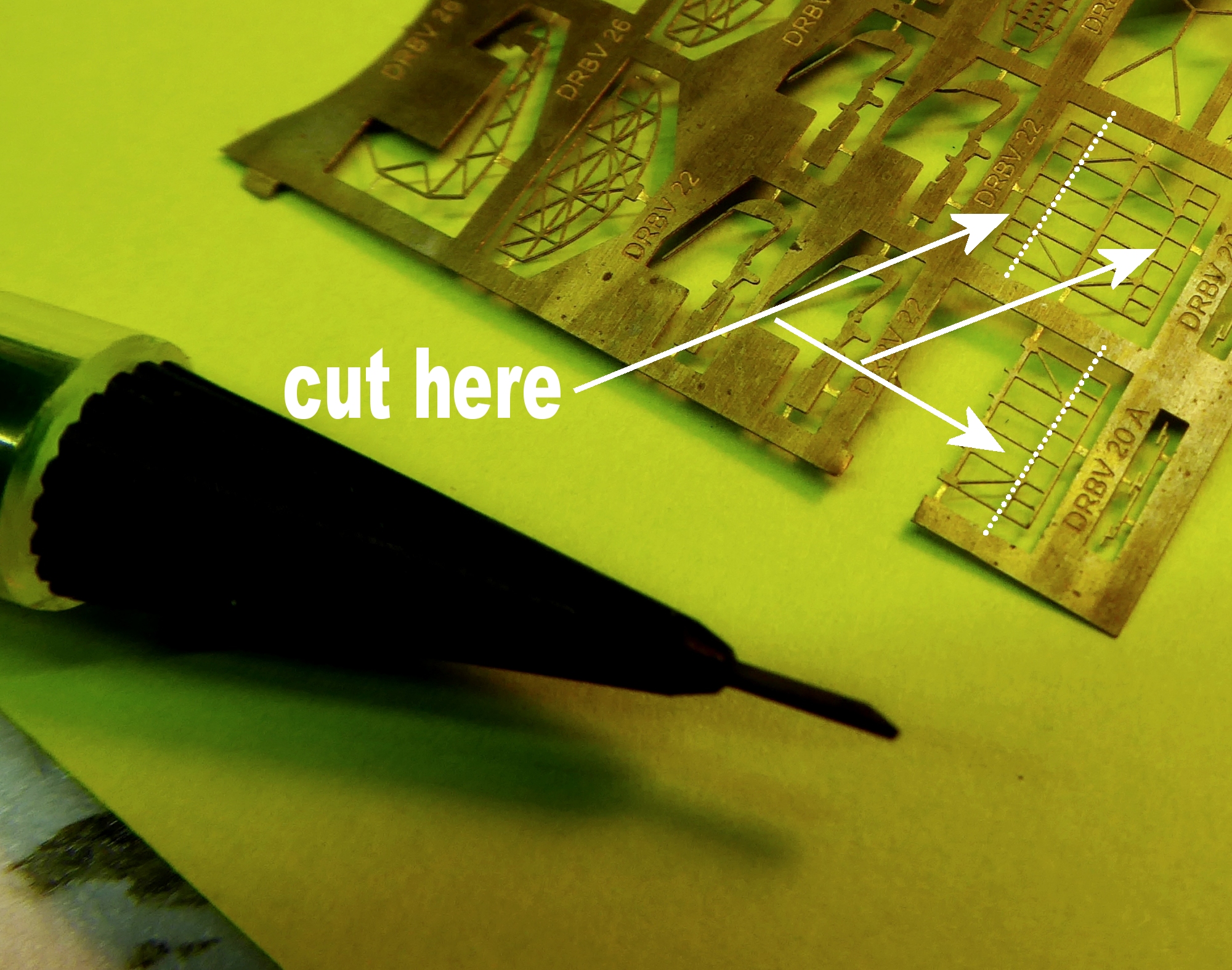

Making cut as below, rendered pleasing 'panel outline'-- the line thickness of this PE was much finer than any ladders



Once applied it all started to look more pleasing to the eye, with the flush fit doors being represented by a strip of nut-brow decal strip
( I have to draw attention to it now , as otherwise it will rarely be observed again ! )



The styrene poop sub-deck was applied ,ensuring that it curved over the centre ' spine -
using the supports underneath -with plenty of 'cushioning' of white glue under it

The paper poop deck was affixed over a thin curved styrene deck-- to allow plenty of white glue

The grating , slim hatch and wheels structure were installed

and it looked much happier!

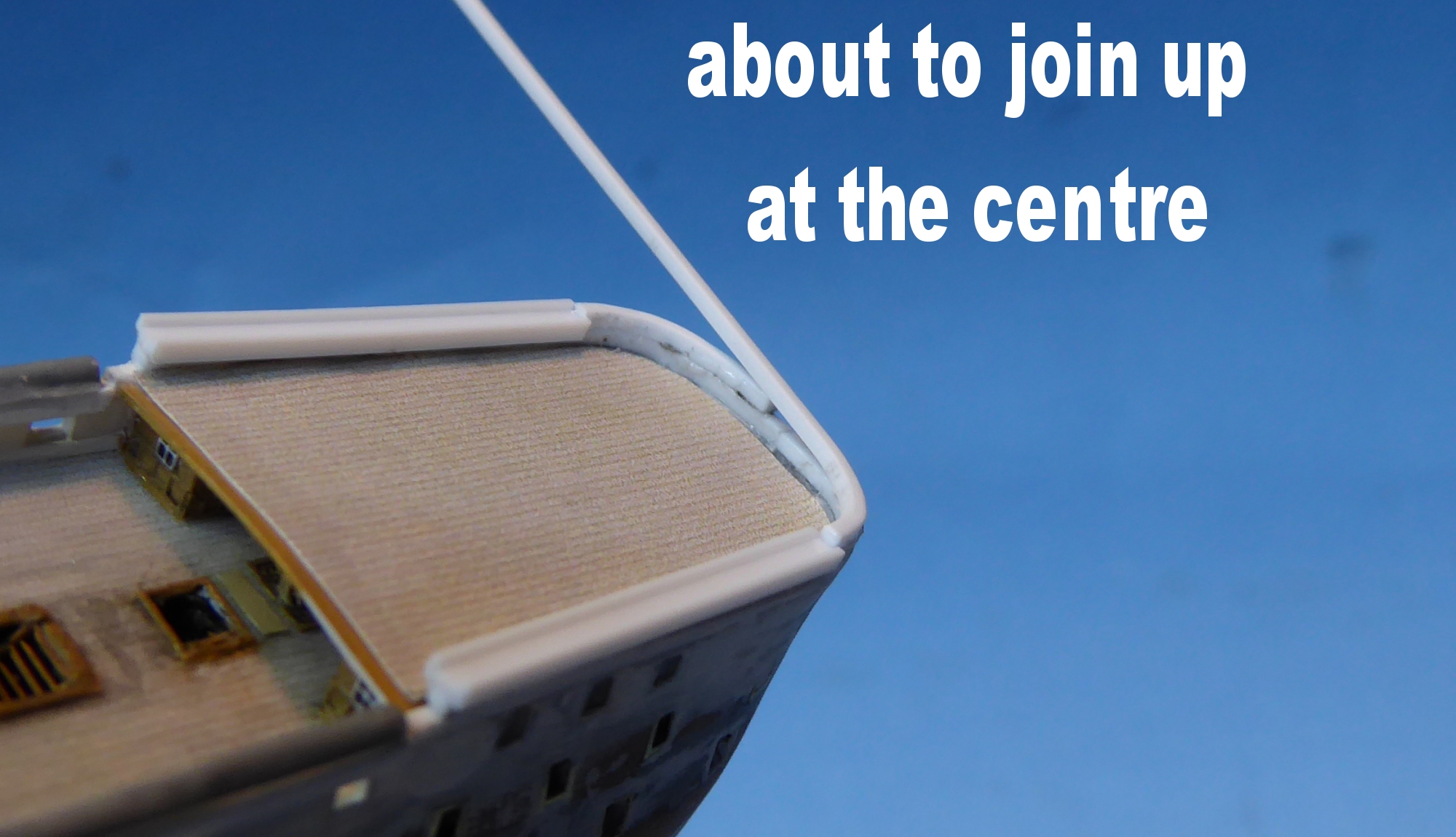

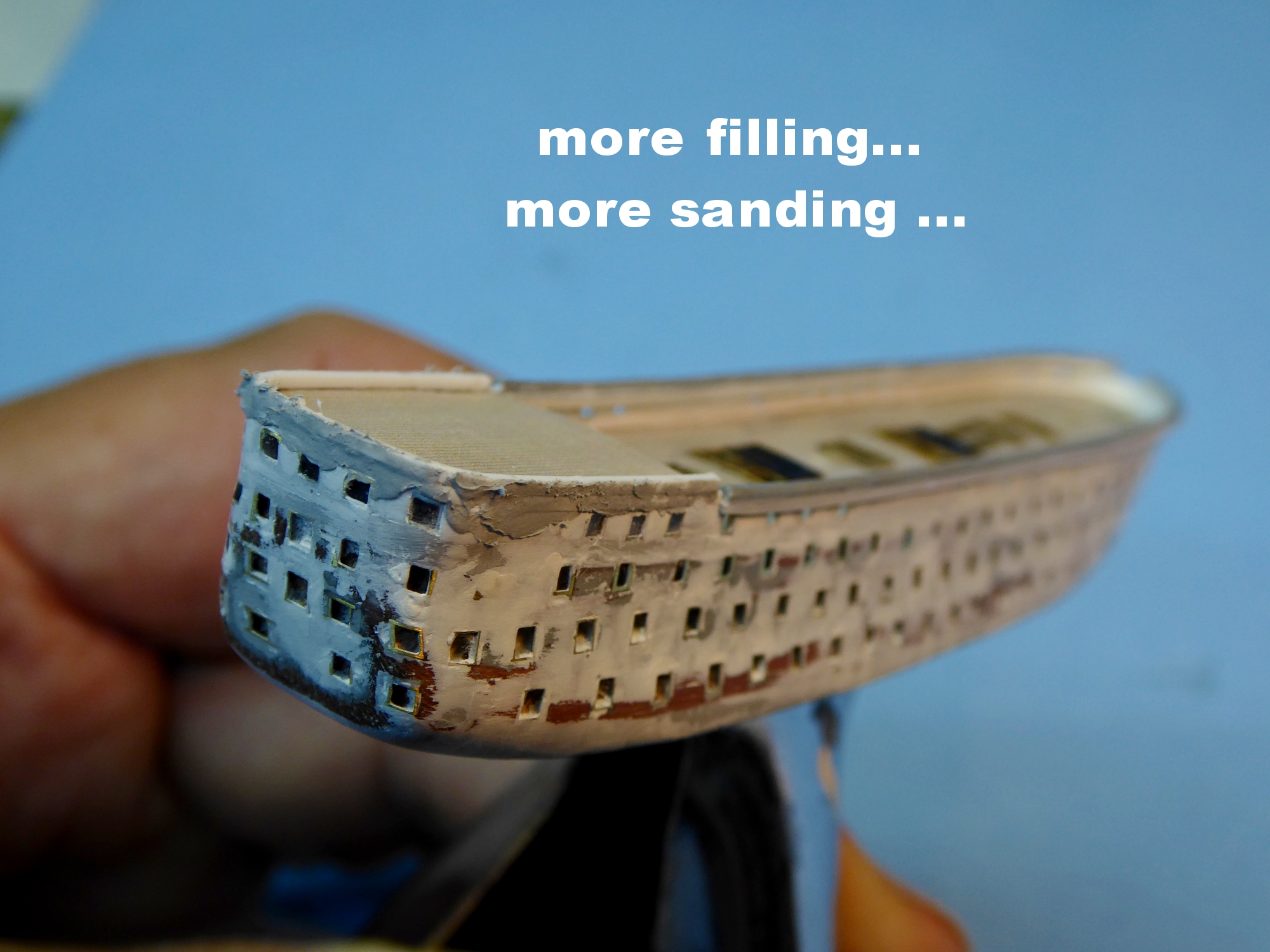

and then more filling , sanding and fairing before the hammock level goes on...



more soon
JB

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

_________________
Eberhard

Former chairman Arbeitskreis historischer Schiffbau e.V. (German Association for Shipbuilding History)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

For the ships helm / wheel, what did you use?

The work youve done on the stern area is mindboggling!

_________________
- @Shipific on IG
my gallery

Absolutely brilliant never-to-be-seen-again's. And does this mean Bretagne will be at anchor or are you going squeeze two men in?

thanks Pieter; the 2 x guys will be either side of the wheel--

they will be placed before masts or other verticals..-- with oblique tweezers !!



the ship will be under sail , about 3 or so degrees heel, broad reaching in about Force 4 @ 7 -8 knots

( max sped under sail was over 12 knots!!--and 13.5 under steam ..impressive for that era )

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

That should look spectacular!

Amazing how you managed to file the edges of those tiny PE frames without crushing them. How do you hold them while filing? Just in a pair of pliers?

@Marjinn

I use flat & thick ( non deflecting under load ) tweezers,
with a layer of masking tape on the jaws ( this embeds the brass slightly )
so as to inhibit it slipping/ pinging out ! ( there are some losses, never to be seen again )
=========================================================

Latest progress consists in part of the usual coarse bits of major (relatively ) construction
and very very fine works of tiny things...

Onwards....

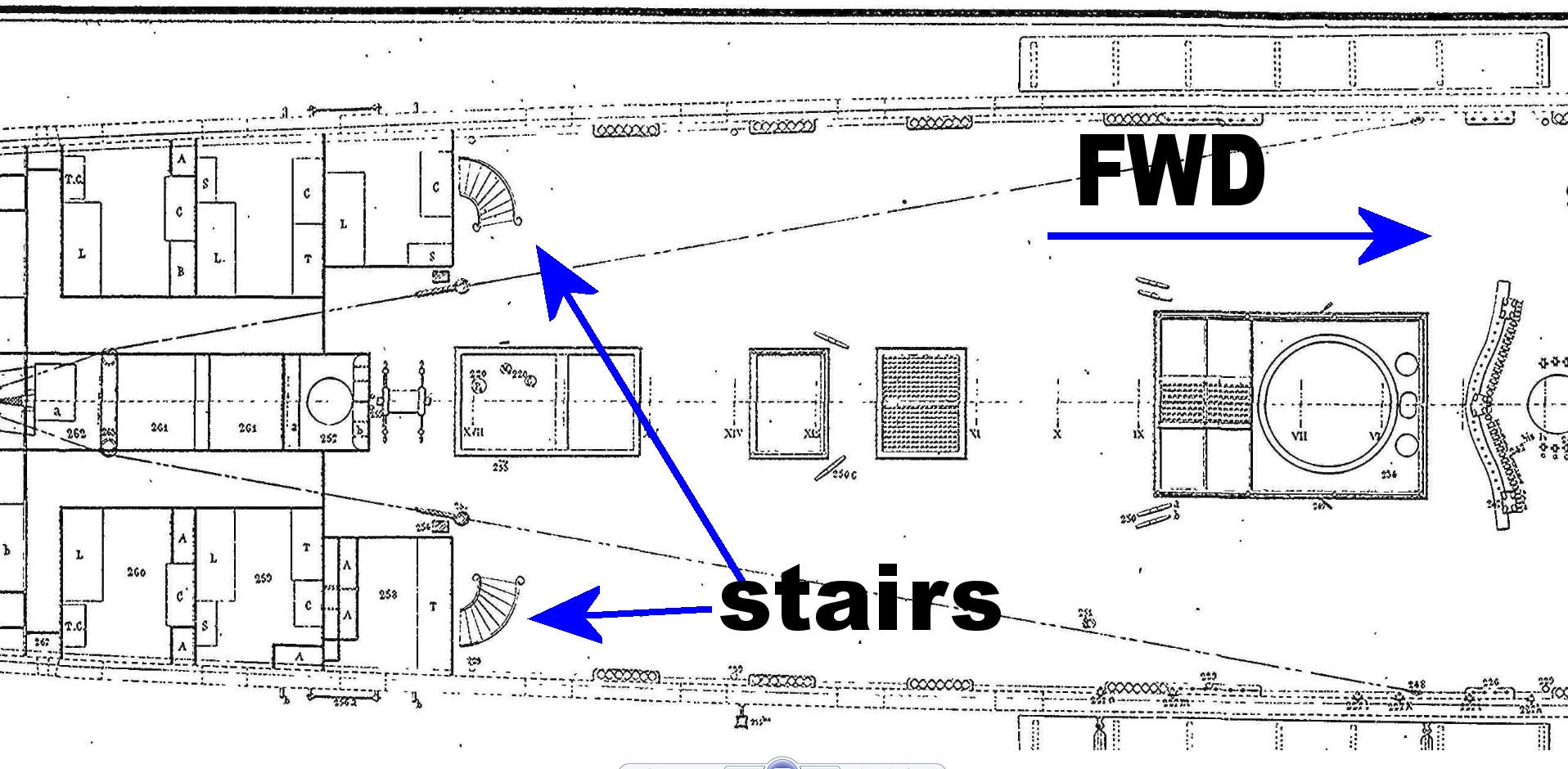

From the quarter deck descending to the main deck is a set of stairs each side that --unusually--are not straight; but have a 90 degree curve within

This is harder than it looks...

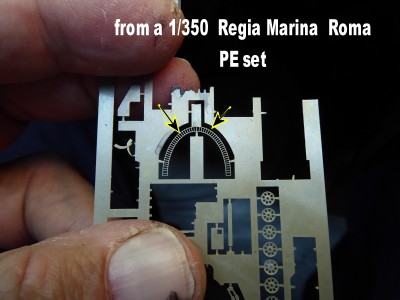

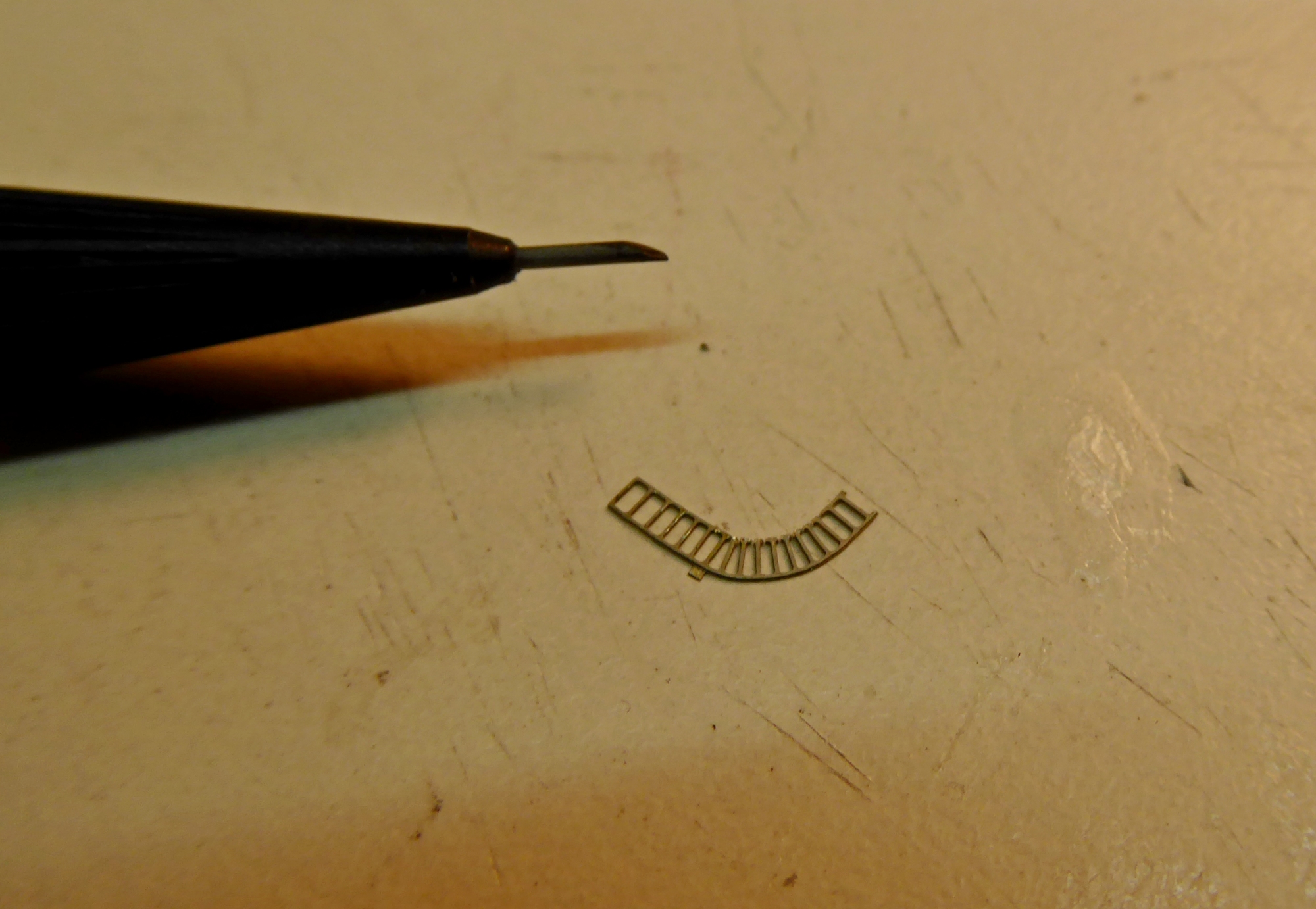

I --very usefully ---- had some spare 1/ 350 Regia Marina PE with a funnel surround platform intended for the ROMA Battleship

( my 2007-8 build of the Axis models RESIN model of that as below )

http://www.modelwarships.com/reviews/ships/it/bb/350-roma-jb/jb-review.html





which is nice but does not have the near 90 degree shape;

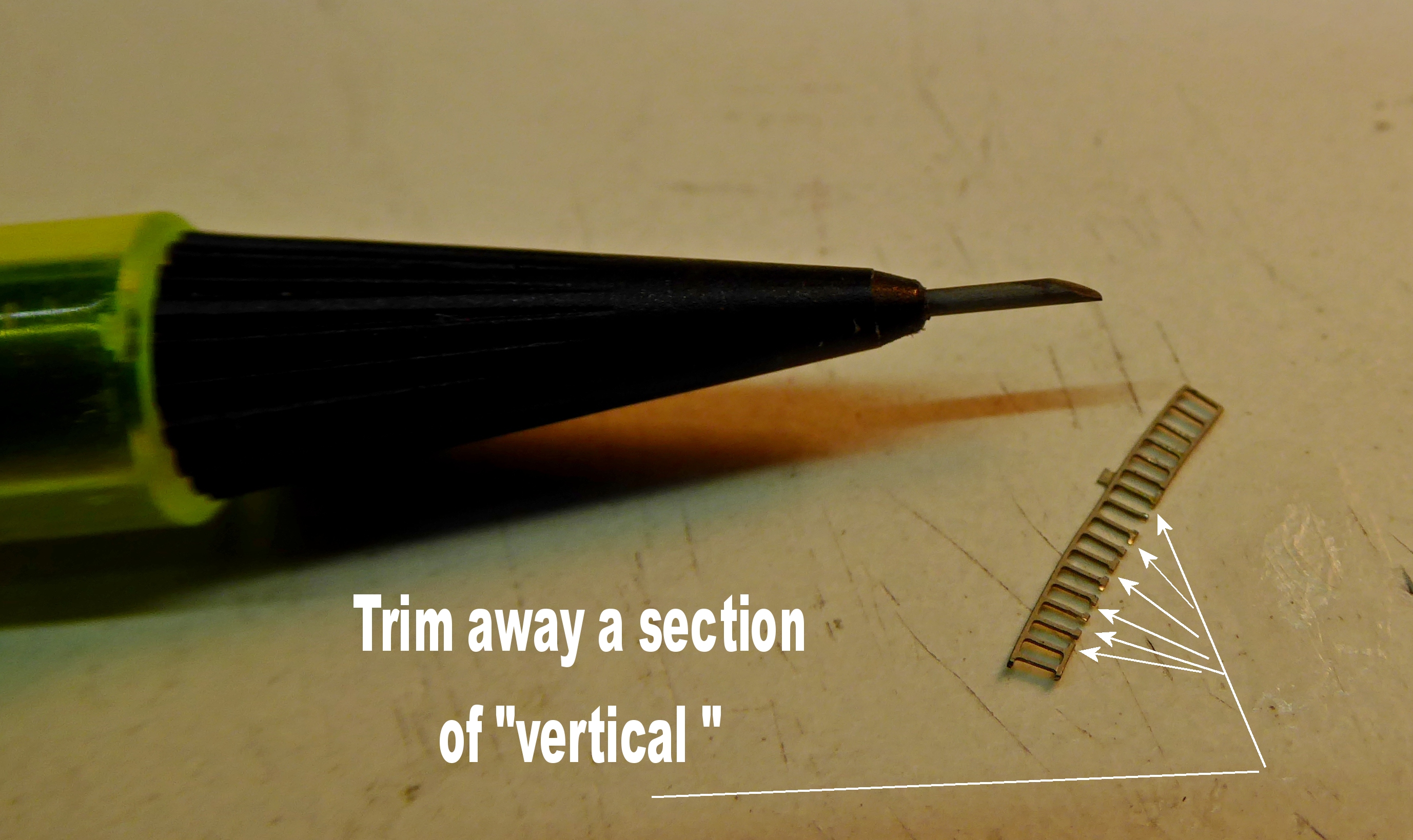

so I experimented....

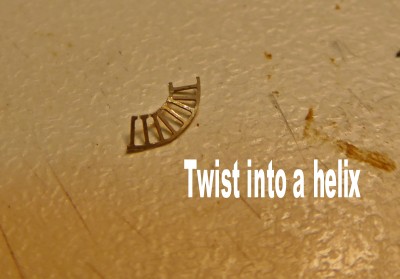

cutting out very small segments between the horizonals...



pushing it together and curving.... to ... 90 degrees




and then twisting !





So far so good with the experiment --all I had to do now was do it all again--twice--in opposite directions

we shall see....


Meanwhile--major constructions... ( on a tiny ship 27mm wide !)

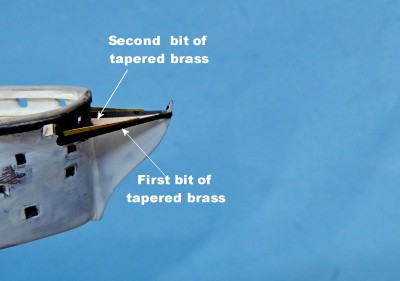

The fwd beak was next for attention ... this was formed using brass strips--lightly tapered

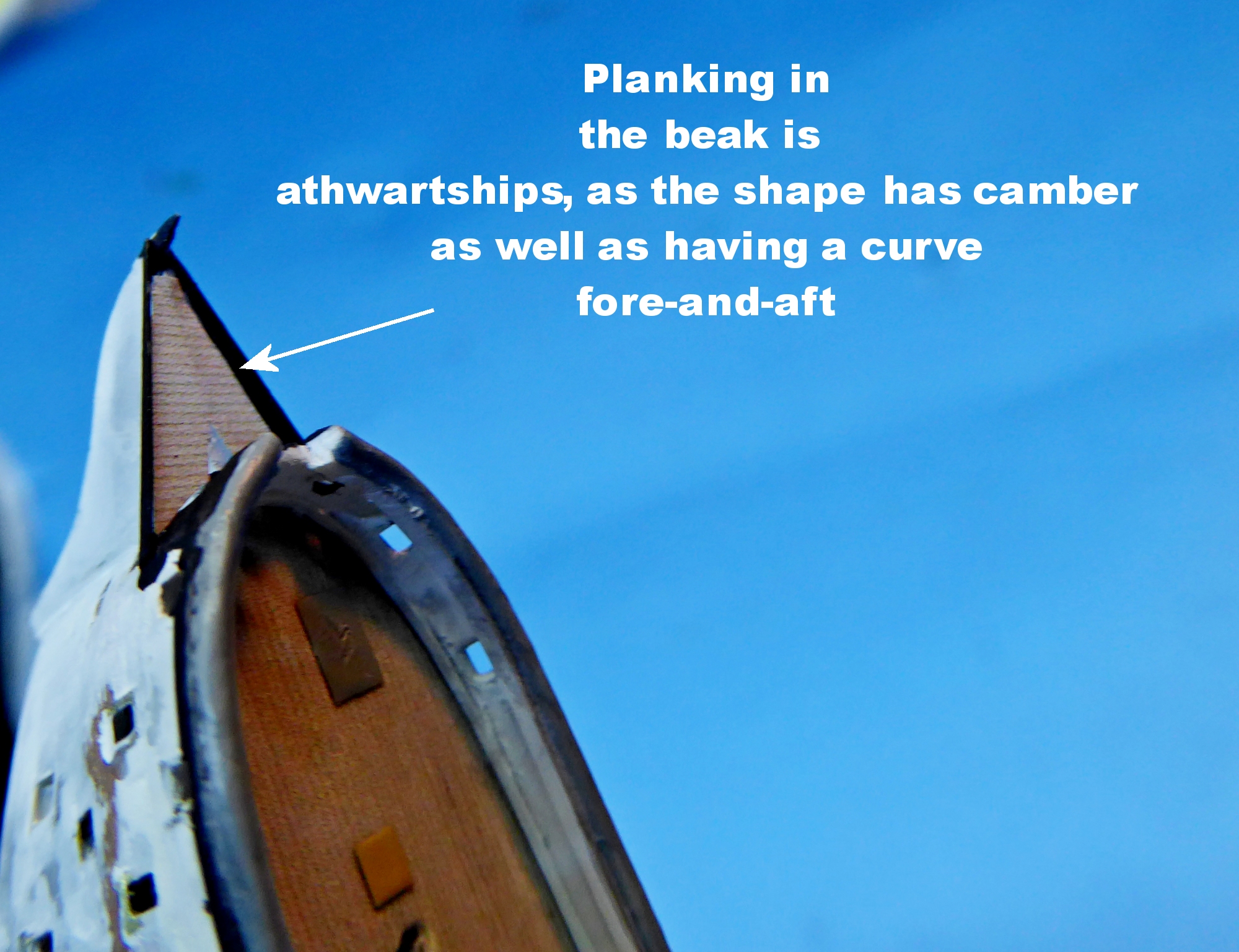

The beak ( paper ) deck was added



Thereafter the tricky bit...

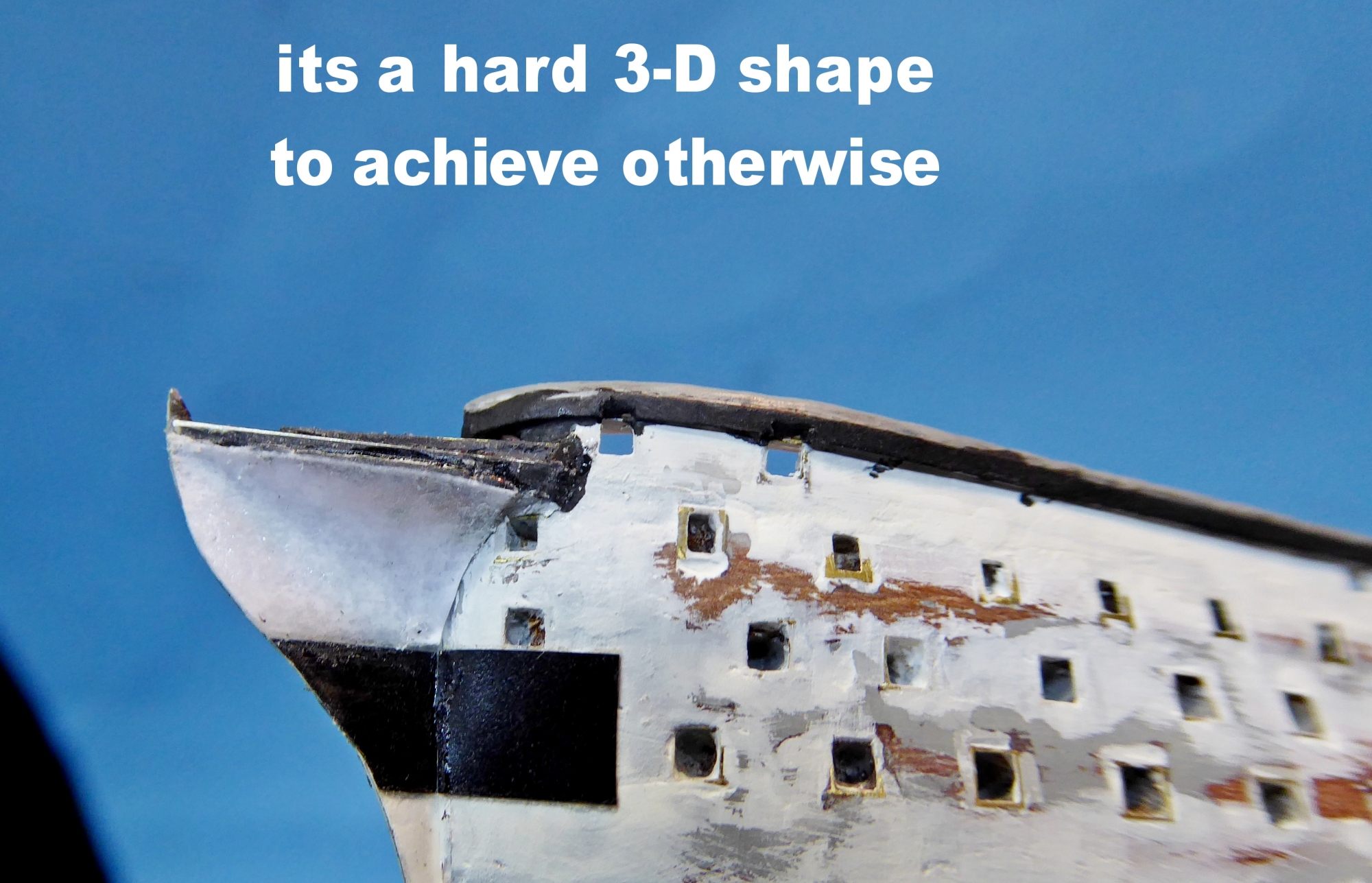

The underside of the beak had a curved " fairing " into the beak--on the real ship this would be planks-over-frames
its a tricky 3-D shape and very small--ergo no planks for me!

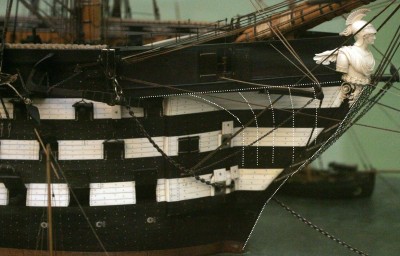

It would like this -- as on the ship ' Valmy ' --photo from the splendid HUGE model in the erstwhile Foyer of the Paris Musee de Marine ( that was)
( Valmy was somewhat earlier member of the Ocean class

( Bretagne was based on the improved and enlarged Ocean class)

( The white dotted profile lines are from me )

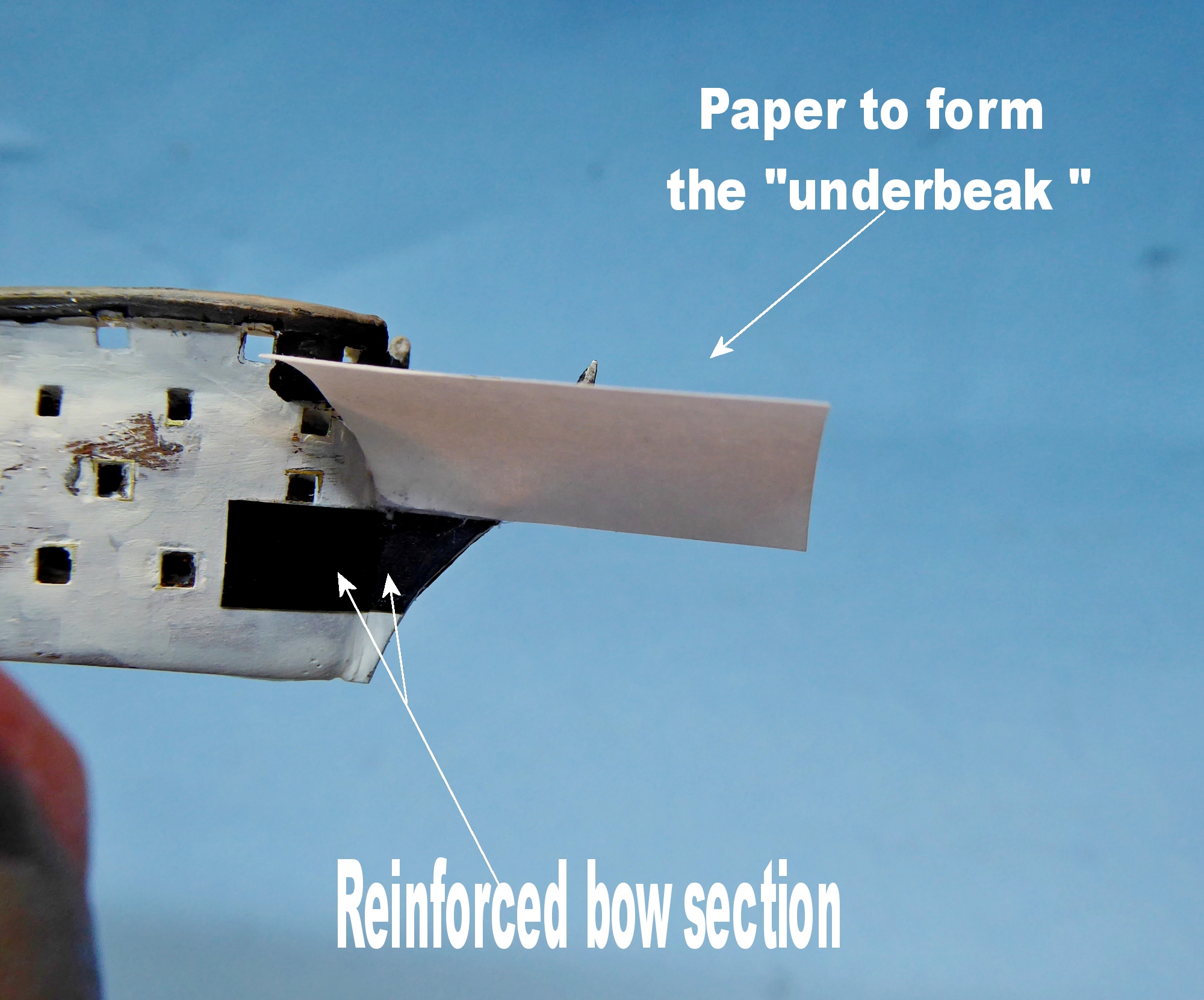

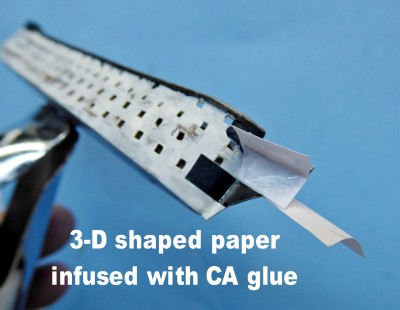

the solution was to make a template ( post it note again !) and the cut a piece of paper to the correct aft intersection curve



the procedure can be gleaned from the annotated images below

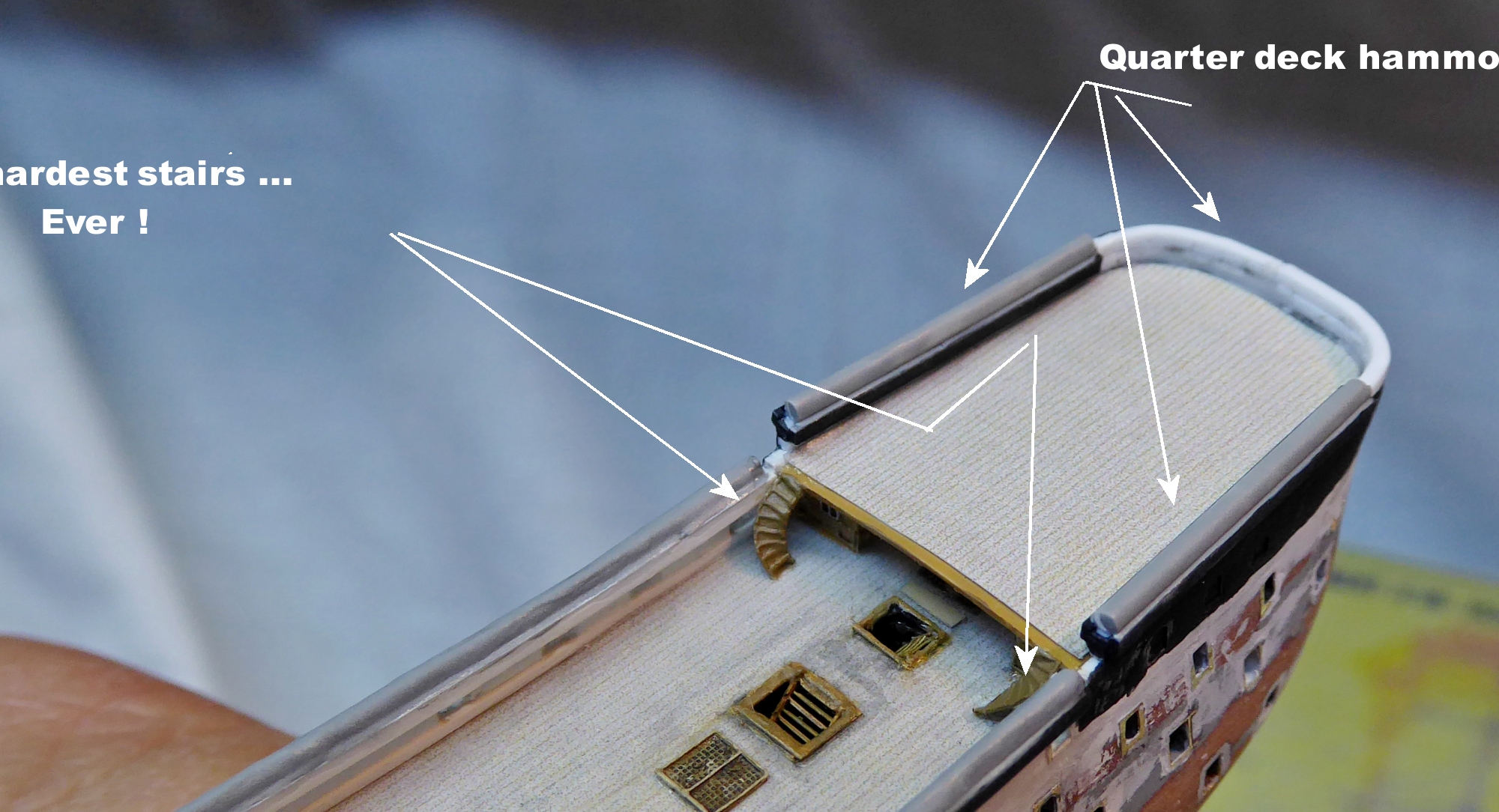

If you were wondering what happened with stairs....

herewith;







onwards to the big quarterdeck skylight, grating and flag locker etc

next time ...

JB

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Awesome work of genius!

_________________
http://www.3xblackcats.wordpress.com

Thank you Jim!


I never realized how different the beakheads of these 'round-bow-ships' were in comparison to the earlier structure with rails. Great job how you made that with paper!

How to spend a lot of time....

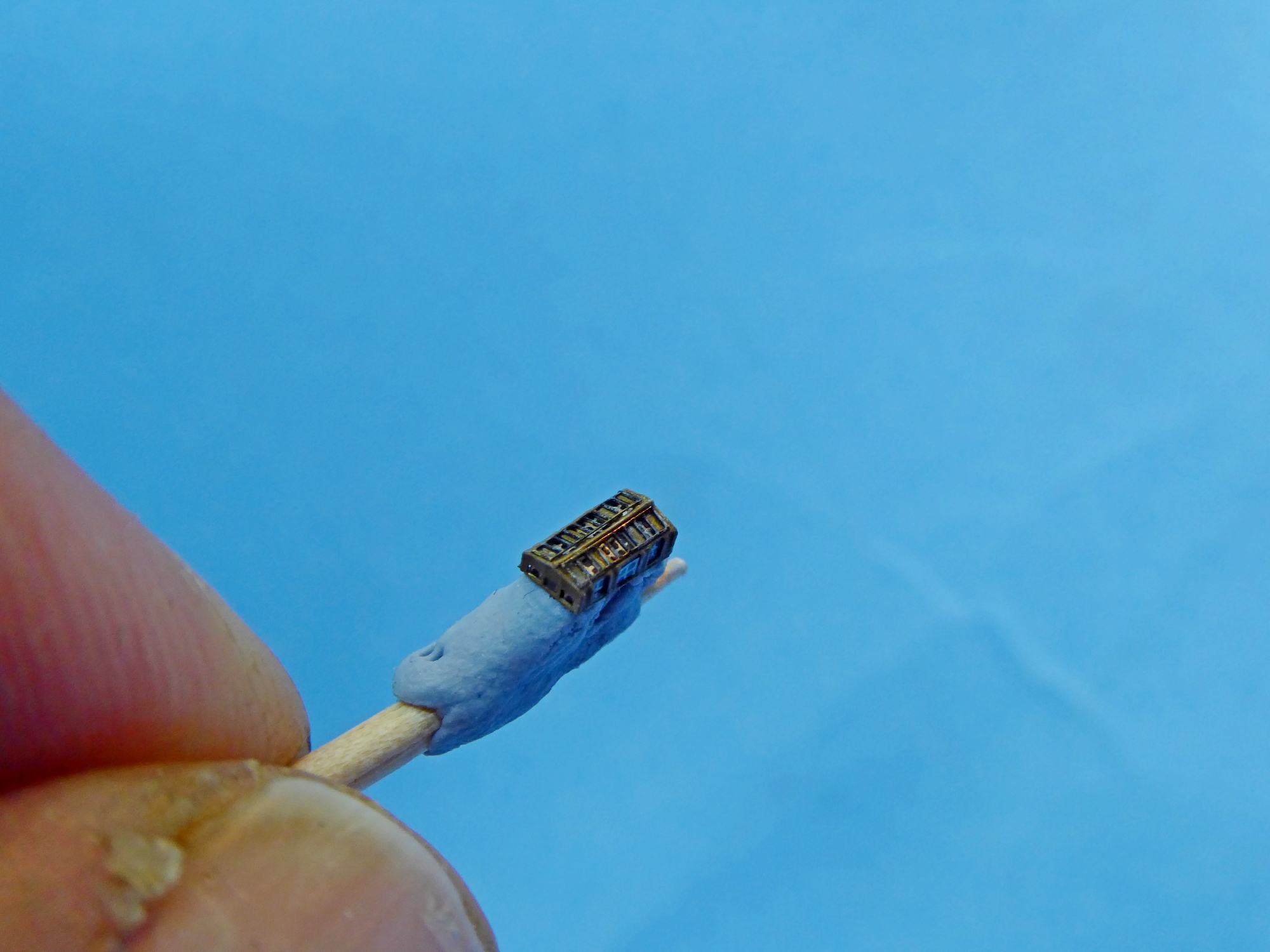

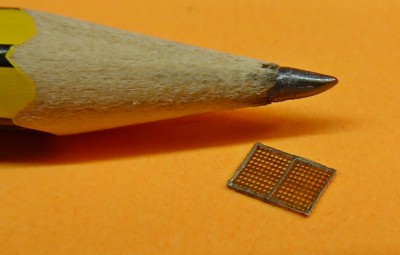

This was the building of the large skylight for the quarterdeck.......

I had a nice piece available of ' radar ' PE .....






when bent up it made a passable rendition--it is after all very small.....

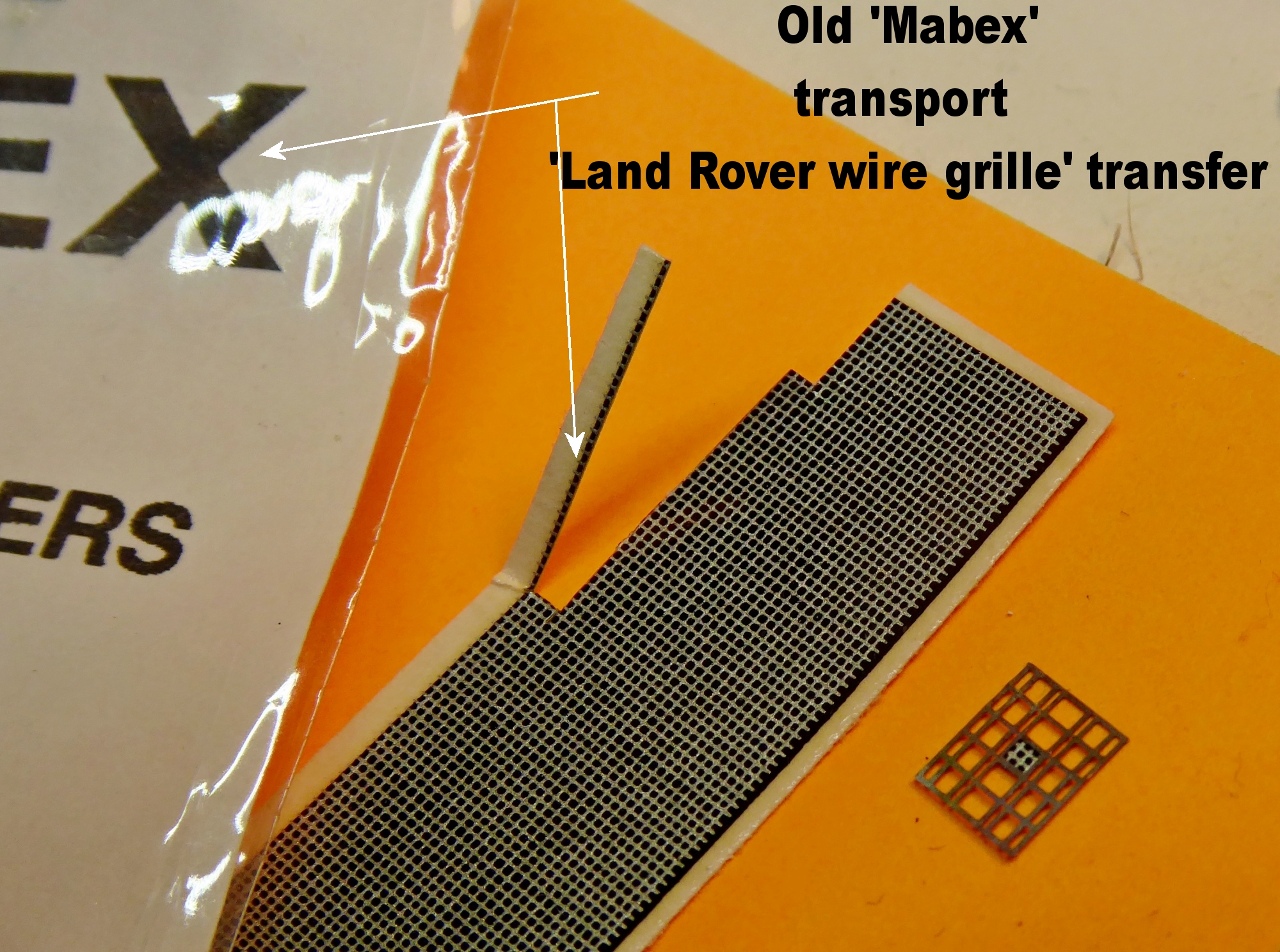

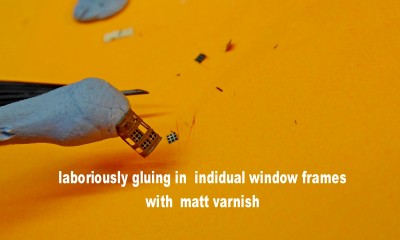

The small glazing bars could be achieved with the help of the 1970's Mabex waterslide decal transfer.....
( bought at a model train show in the 1980's and unused...





and the result was OK!... ( ...but was it really OK ? ?!)




After a sleepless night of turning it over in my mind (!! ).....

==> I decided that my impatience and lack of application had resulted in a skylight that was was wrong,
was not good enough, lacked finesse and was too blocky.




===================================================================================================================

Entirely my own fault for taking the short-cut that presented itself conveniently .. and .... misguidedly ....initially I wanted it hollow so I could glaze it with white glue

==> ....but having cut tiny squares of ' Landrover grille decal ' and installed them-- it defeated the entire point of being hollow.!

after much thought I devised a new plan .

====================================================================================================================

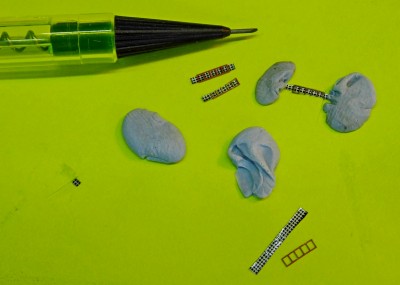

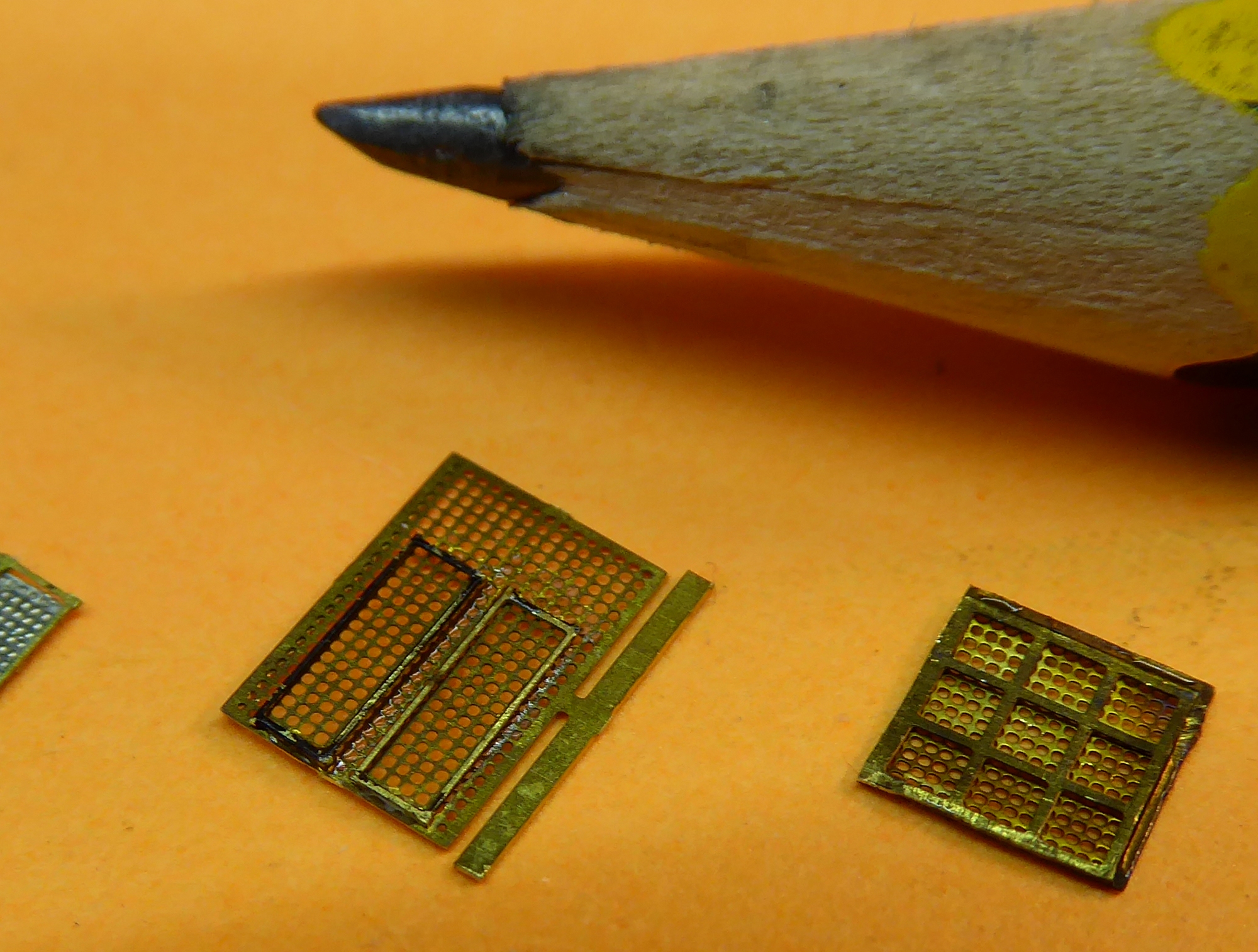

I could make a solid core, and overlay different sizes of Photo-etched ladder-stock

( I had plenty in all scales and variant sizes - acquired whilst trying to find the Utopian size ' gunport-frames PE squares '

Instead of individual tiles of windows-- I would use strips of the LR grille decal-- held down and straight with blu-tack at each end ,
then overlay the appropriates size PE, pre-painted- then tack it on to the decal with matt enamel varnish. ( Humbrol Matt-kote )

When dry --another drop of thinned matt varnish spread over the surface bonded the
decal LR grille strips to the PE fully

and only then trim the decal ends with a new 10 blade in a scalpel

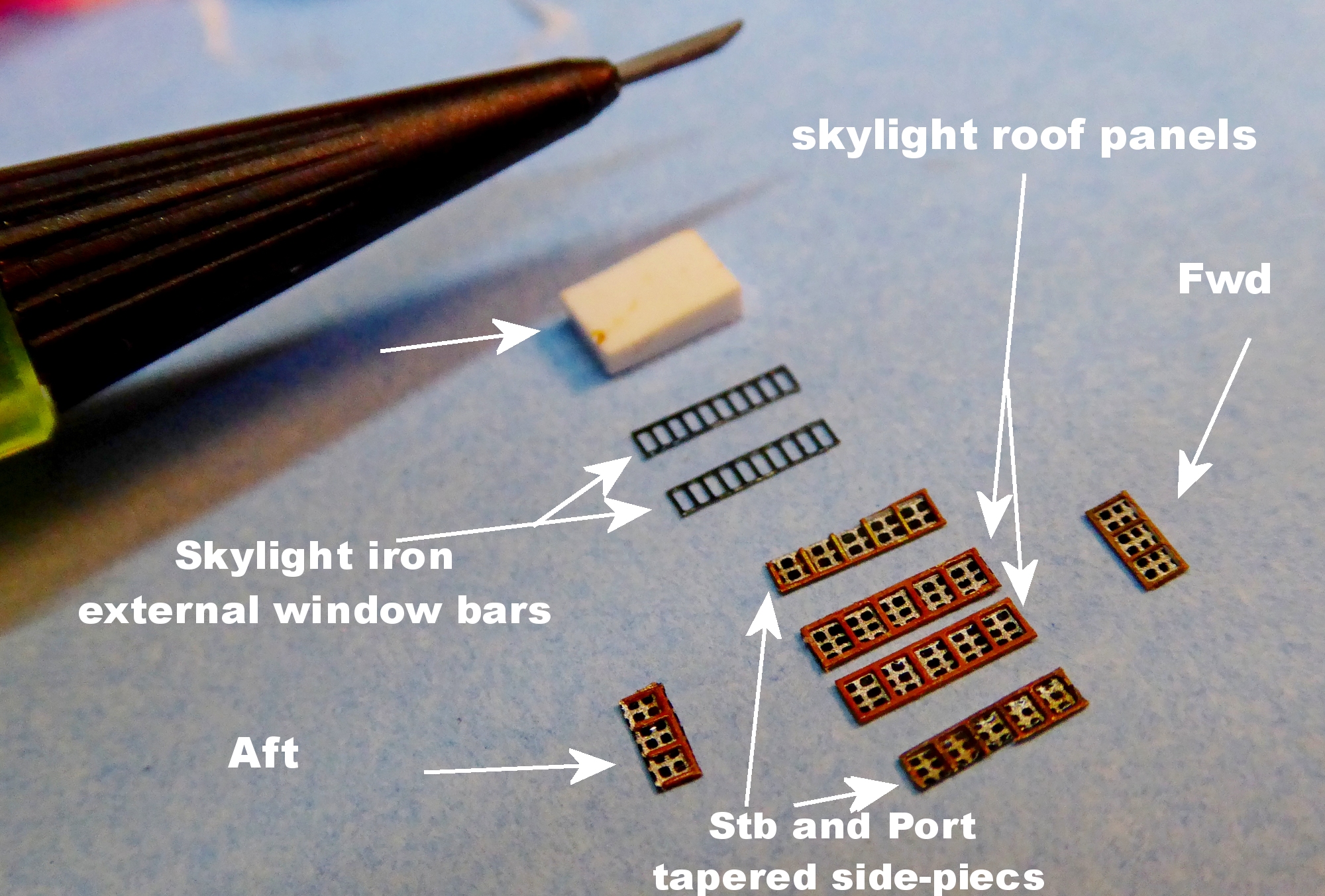

Thus..... I ended up with a " kit " of component parts to surround my previously cut 'core '





Hitherto ........the time expended was somewhat disproportionate to the tangible progress..!

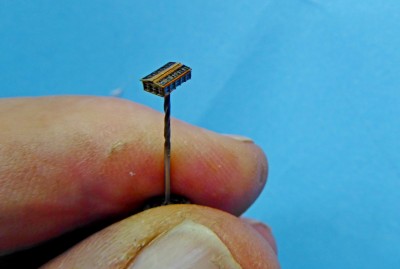

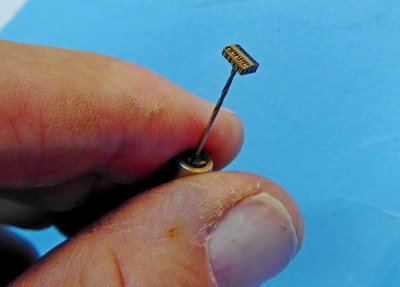

But the end result when assembled

( tacked with matt varnish and then droplets of CA brushed from underneath
so that the capillary action drew the glue into the ' gap' between the core and decal strip )

with a few additional small bits added and the new window bars closer spaced ( 'blacked ' with indelible marker
looked more agreeable to my eyes than that compromised first effort !

( its very small )






The lower edges of the tapered cut will be overlaid in situ ( after installation to the deck )
-- with flat stretched brown sprue in the manner of a skirting-board-- this will tidy it up nicely!


For a bit of light relief....

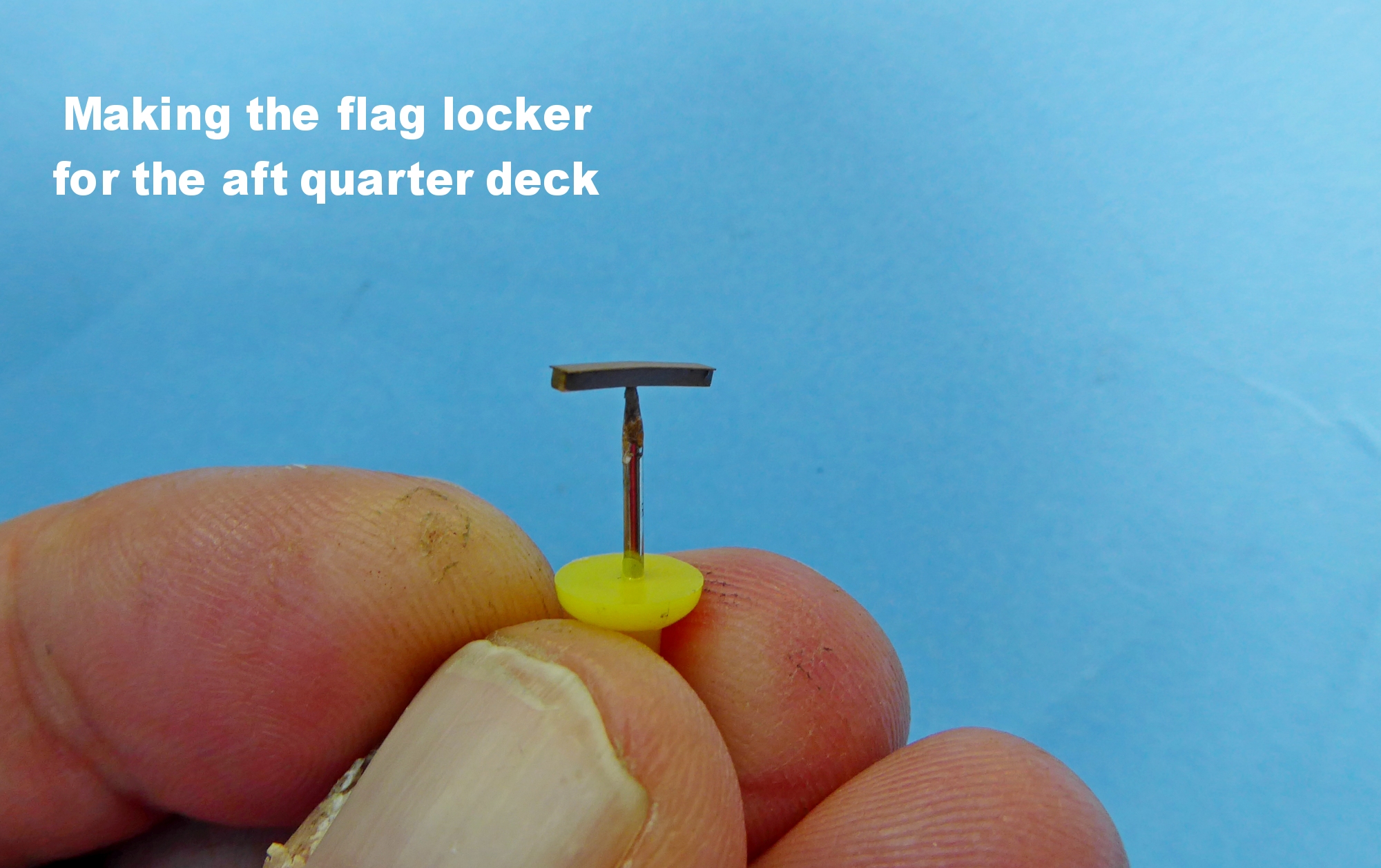

I made the near full width flag locker for the quarterdeck ( styrene square strip with paper lid)






and the quarterdeck staircase entrance ( at the moment still over-height -it will be cut and shortened to suit down a 1/700 officer....



More soon

JIm B

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

What a journey ...

Confronted in around 1980 with the issue of a multi-angled 'Victorian' skylight and having access to a milling machine, I milled the core of the skylight from a piece of acrylic glass, polished the faces and then stuck on the stiles and frames with CA. That has been my method for skylights and companionways (if they are not open) since.

_________________
Eberhard

Former chairman Arbeitskreis historischer Schiffbau e.V. (German Association for Shipbuilding History)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

It's hard to work at the atomic level!

_________________
Pascal

•Battleship Bretagne 3D: https://vu.fr/FvCY
•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ

@ Wefalck-- in what scale was that?

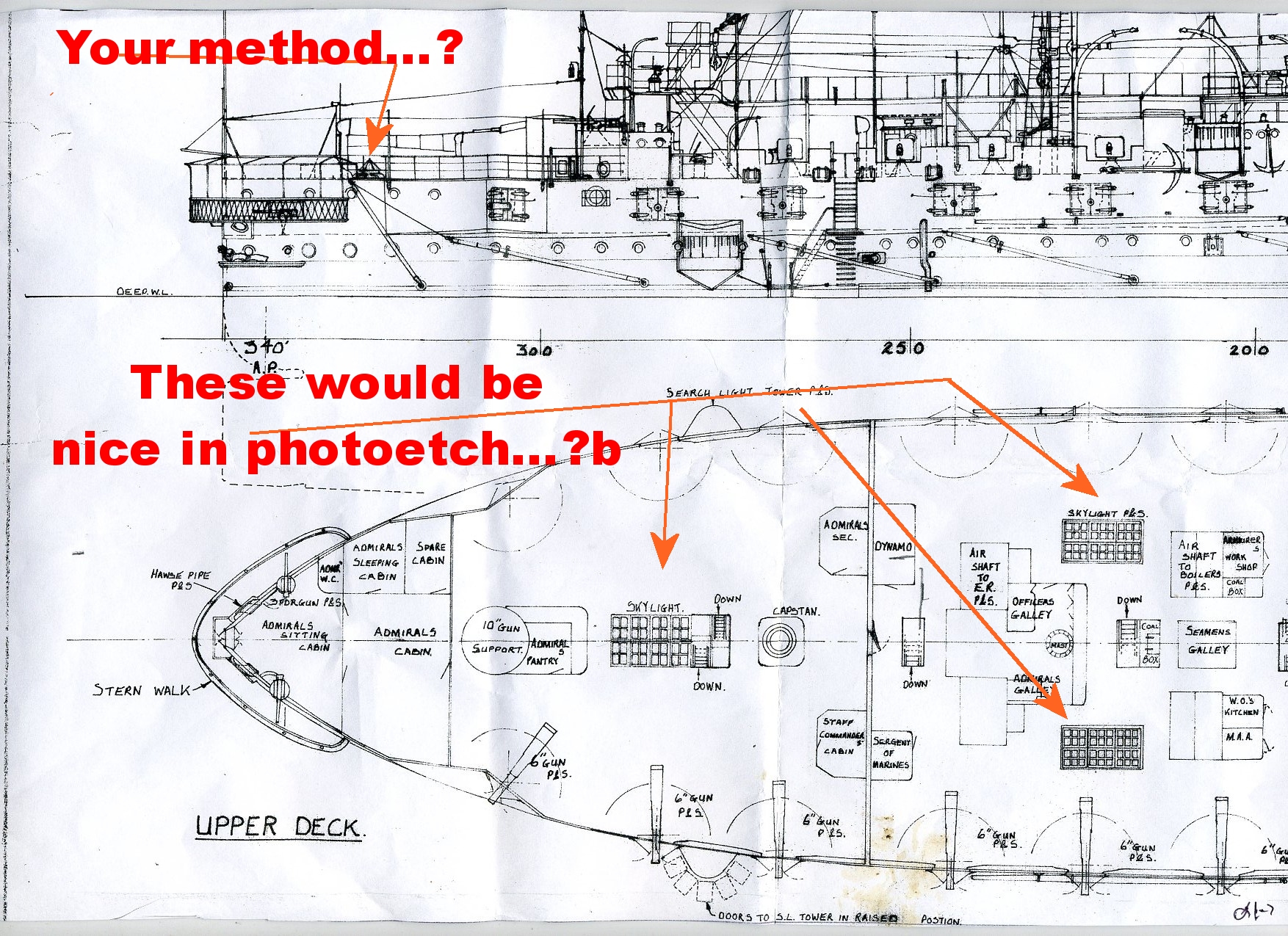

I say that ... I ask as I have a 1/192 scale Victorian Navy HMS Victoria ,
abandoned in a box since 2005....
for the time when my eyesight weakens....

That ship also has pointy skylights....
which at the time defeated me to render them precisely --
see below

cheers
Jim B

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Superb skylightlet

Jim, I last used such acrylic glass plugs for the engineroom- and other skylights on my SMS WESPE (1876) project in 1:160: http://www.shipmodels.info/mws_forum/viewtopic.php?f=13&t=158123&start=20

I first created a home-etched frame and then milled the acrylic glass plug to measure. That way around was easier then trying fit the etching to the plug.


The etched frame


Polishing the acrylic plug in the same set up in which it had been milled


Plug inserted into the frame

The frame was then painted to resemble mahagony and the protective grille added by lengths of brass-coloured wire that were lacquered into grooves that were etched into the inside of the frame to ensure equal spacing.




Originally, I conceived this idea for the 1860s/70s steam-tug in 1:60 scale (https://www.maritima-et-mechanika.org/m ... ustug.html). At that time there was no Internet and no buildings logs, so I don't have any process photographs, but the process was the same, except that the brass-frames were sawn, rather than etched. Over this I added walnut styles and frames, stained to resemble mahagony. The skylight is about 1.5 cm by 1.5 cm.
