Love the boats. Everything looks really good.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

Stunning progress. Well done!

_________________
http://www.3xblackcats.wordpress.com

Thanks Guys

Rodney's aircraft crane from the Pontos set. Think I may run a line from the hook back to the crane winch. It's a pain in the ass to build, but Pontos did a beautiful job even if it tested my sanity.

Seaplane catapult cradle. Pontos includes some hollow tubes that plug into the PE end pieces.

neat stuff-!!

-- the flared tubes on top aft of the main crane

what is their purpose?
exhausts??

I would guess at a guide for a moving cable...?
though none of the other cables appear to need that?

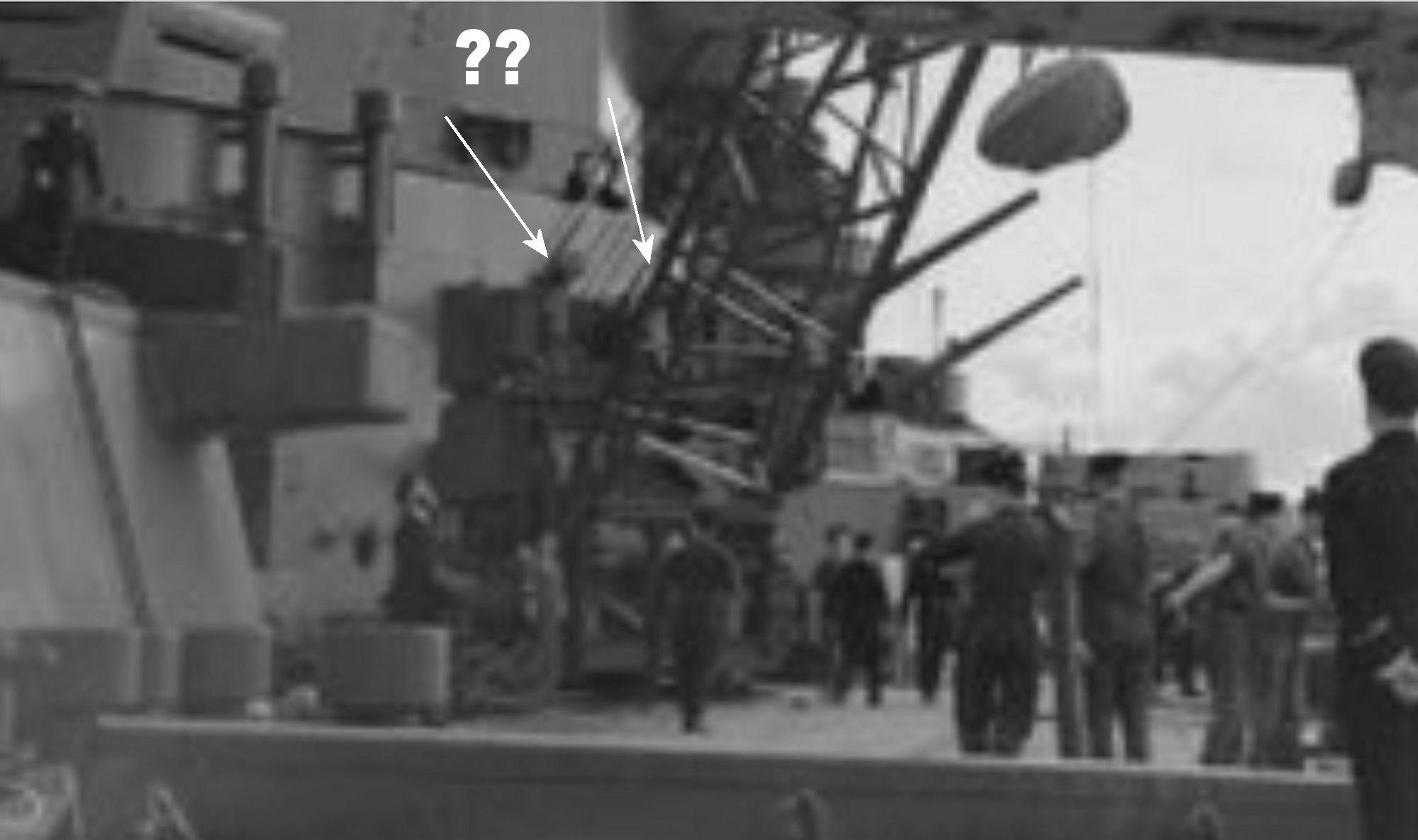

a ( very ) quick sweep of the net got me this image
poor quality and not helpful...

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Buffers to avoid the crane from being elevated too much; there's a small square pad on the gantry too.

Sorry for delayed response,

Thank you EJ -
now that you have pointed it out......... it makes perfect sense (!)
Best wishes

Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Hello


Sovereign Hobbies Draught Markings compared to the Pontos dry transfers. The Trumpeter fails provide any markings draught markings, so this is handy for option to add them or upgrade from what Pontos includes.


Installed on the bow and set with MicroSol. Excellent decals well worth the effort.


Stern


Main anchor chain dunked in AK Photoetch Burnishing then sprayed with Alclad Steel. Got to figure out what to use for the smaller support chains.

Greetings all.


Crane painted and mounted

The hawse pipe does not allow the anchor to come up through the channel. I don't know if you could grind a little to fix it or not. Not going to mess with at this stage.
I think the big cleats are on backwards too.

Micro Master Carley Floats added to middle turret.

Looks impressive--and huge!!

ref ,,,
,>>> The hawse pipe does not allow the anchor to come up through the channel. I don't know if you could grind a little to fix it or not.<<<<

simple solution==> don't even think of grinding...!

remove anchors-- keep the top of the stock shank attached to the chain - cut away a section of the shank => in the middle where it is invisible in the hawsepipe--- and then glue the ( maybe adjusted backs of ?) anchors into the anchor hawsepope mouth-- with white glue--to allow wriggle and adjust ( I do similar in 1/700 )




>>> I think the big cleats are on backwards too.<<<

alas the fairleads seem indeed to be reversed.

Most casual observers would not notice--but you did and I saw it too...
They could removed at deck level with a micro saw/ sharp blade==> whilst there are no rails in place
and swapped over ... or not...!

As the casting base stands proud of the hull--if you did remove them-- and reinstalled and gap-filled with white gluer or similar--they could easily
be repainted to match with a brush to the edge of the ' casting..'.

Bon chance!

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Thanks Jim, that is definingly doable. The other thing I was considering was to let them dangle from the chain. I would stagger the twin anchors against the hull, but maybe that would look dumb.

Fairleads corrected.


Pontos paravanes.

>>> Fairleads corrected.....<<<



Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Wow! i love those paravanes! Painting is also top notch

_________________
http://www.3xblackcats.wordpress.com

Thanks SG1. Took Jim's advice with the anchors.


Front anchor needs adjustment.




Need to see if I can get some better chain tension. It's harder with the Pontos resin support chains.

>>>>.............Took Jim's advice with the anchors..........<<<

and a TOP result you have achieved !!

BRAVO !

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com

Thanks for the help Jim, am happy in the way they turned out. Couple more assemblies done. My Dane pup scratched my eye taking me out for several days.


Thought this was a nice deck shot of boom from 1940

Paravane Booms.

Bow and Stern Flag Staffs

Really superb!

_________________
Pascal

•Battleship Bretagne 3D: https://vu.fr/FvCY
•SS Delphine 3D: https://vu.fr/NeuO
•SS Nomadic 3D: https://vu.fr/tAyL
•USS Nokomis 3D: https://vu.fr/kntC
•USS Pamanset 3D: https://vu.fr/jXGQ

Amazing, clean progress! Sorry for the eye

_________________
http://www.3xblackcats.wordpress.com

Thanks Guys



Paravanes and booms installed plus railing installed.


Front Flag Staff.


Stern Staff - still need to set rear legs.
