Ahoy all,

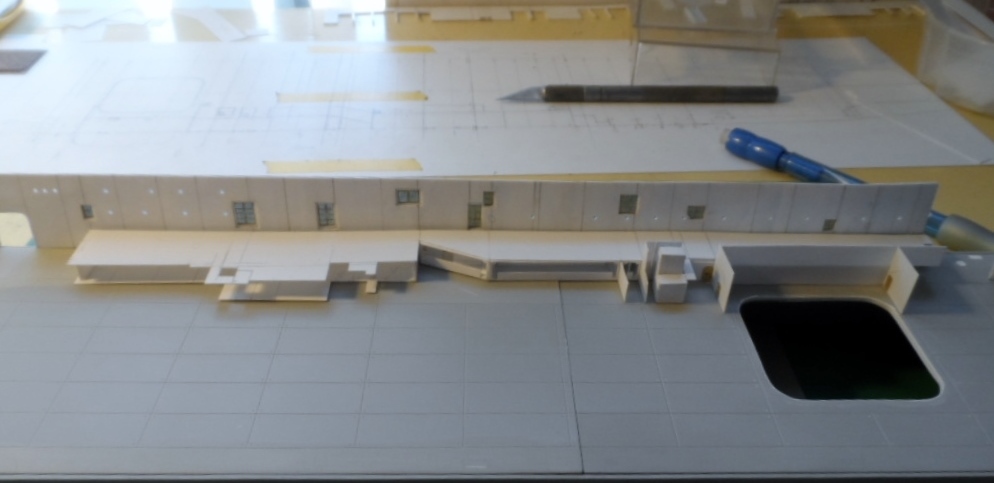

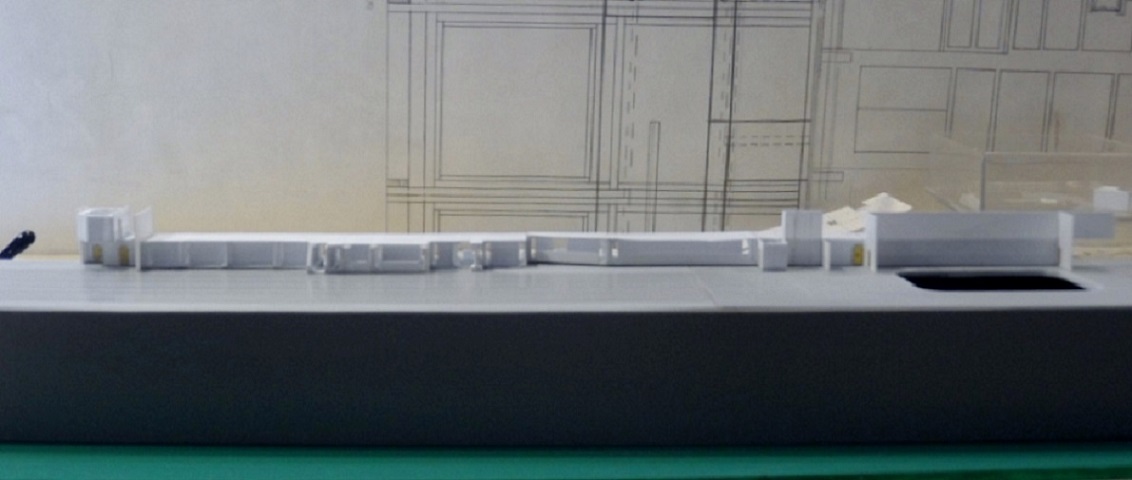

Well, I have decided to give it a go at another ship. Hopefully I can bring this one to completion by not stepping away from it as I have my other two ships. The good thing is I can always go back and finish them at a later date. The obtainment of PE for this build is also inspirational and motivating.

I will attempt to model the USS Essex (CV-9) as she appeared in 1943 with hanger deck detail scratch built. The main PE set will come from Pontos 1/350 USS CV-9 Essex 1943 Detail Set(35006F1).
Other PE will be from AMW, Tom's, and L'Arsenal. In doing the detail and other scratch items some decisions on how to go about this build had to be made. Here are some so far:

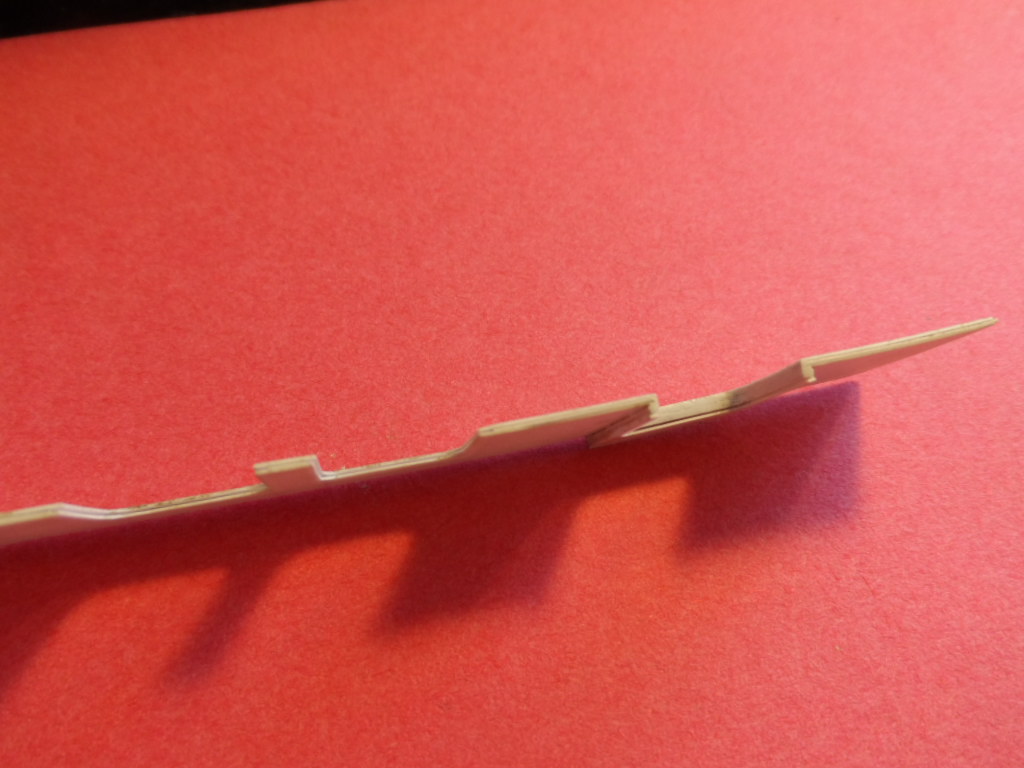

Due to using the Pontos wood deck no change will be made to the flight deck shape. However, the kit deck pieces will not be used. Instead the wood deck will be affixed to .02 sheet styrene cut to shape.

Again, due to the use of the wooden deck the bomb elevators will be placed as they are on said deck. This may throw off some of the scaling and accuracy of the main (hanger) deck.

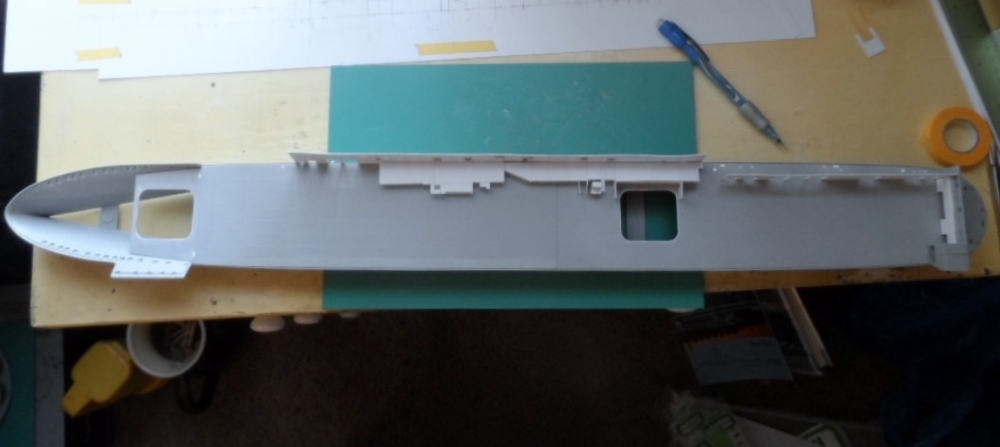

Deck elevators will be in the down position necessitating the opening of the hanger deck floors for the kit elevator pieces. Of note, the forward elevator pieces(E35) is larger than the hanger scribed pit. The aft deck elevator will be no problem as its new location taken from the wooden deck will be cut into the .02 sheet styrene.

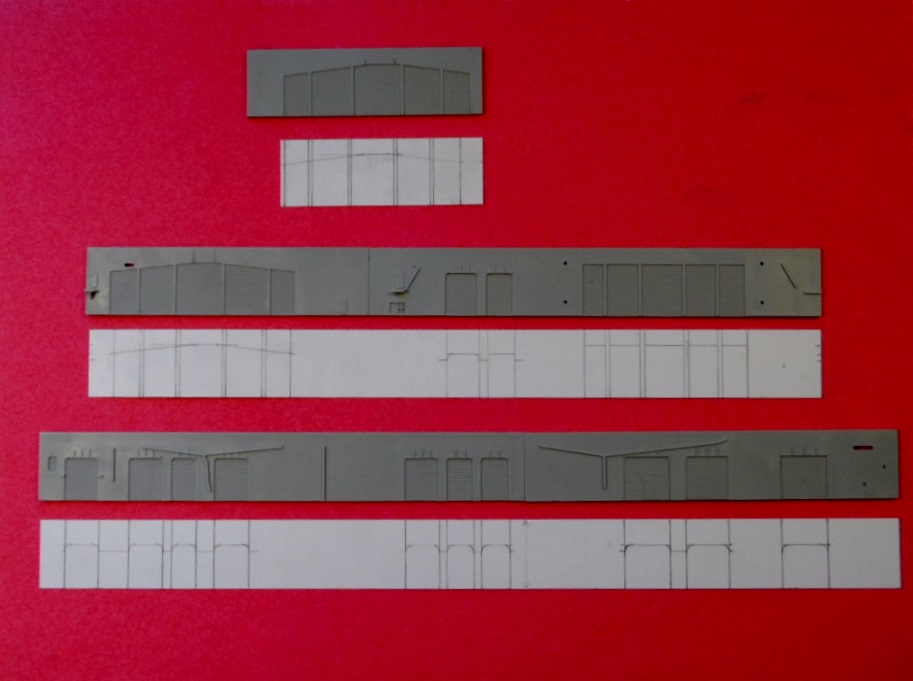

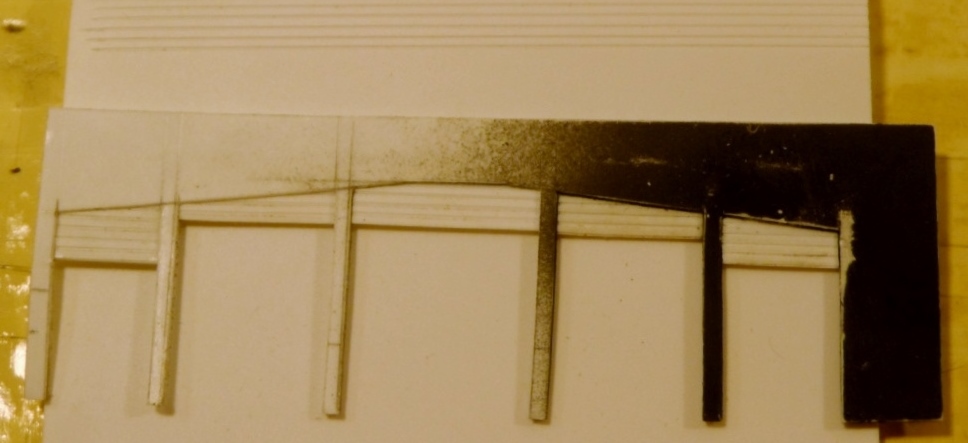

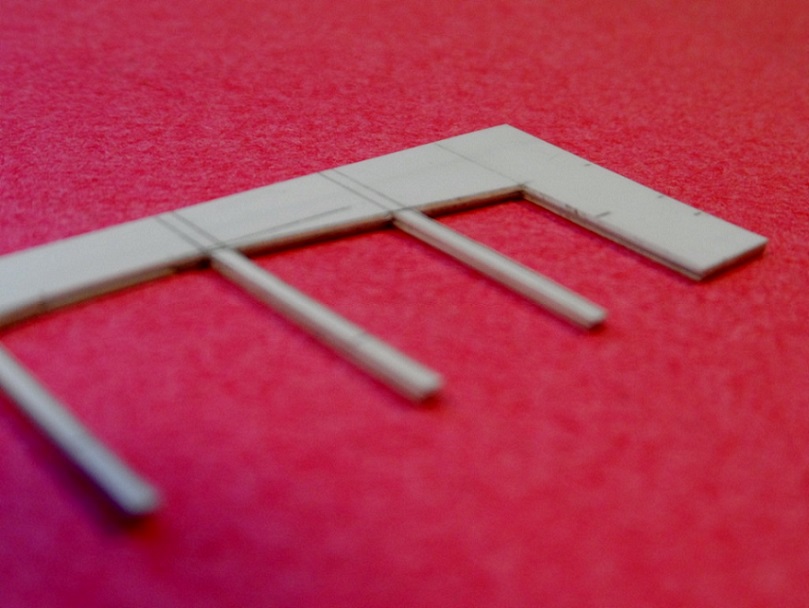

Most of the outer bulkheads will be scratch built from three layers of .01 sheet styrene glued up together. This is to facilitate a few things.
1. By using three layers of .01 the majority of bulkheads will measure .75mm in thickness as opposed to the 2mm thick kit pieces.
2. In making the inner layer slightly smaller around the roller door openings this will create the door guides into which I will place a couple of .005 sheet styrene strips.
3. Meshing of openings in outer bulkheads for air intakes and vent openings might look a little better than if I tried to do them on the kit pieces.

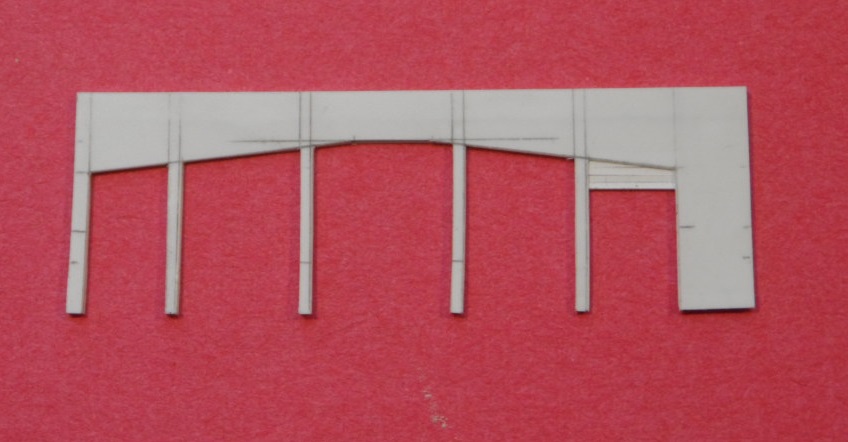

Hanger deck interior kit pieces D10 and D17 will not be used.These will be scratch built along with the flight deck foundations, interior bulkheads, platforms, etc.

I'm really hoping I can go through with this without getting bogged down in the details and end up moving on to something else. (There's plenty of it in the closet)


Attachments:
SAM_2860.JPG [ 192.5 KiB | Viewed 3287 times ]
SAM_2861.JPG [ 199.36 KiB | Viewed 3287 times ]
SAM_2863.JPG [ 193.22 KiB | Viewed 3287 times ]
SAM_2862.JPG [ 158.13 KiB | Viewed 3287 times ]
SAM_2865.JPG [ 196.2 KiB | Viewed 3287 times ]
SAM_2866.JPG [ 127.45 KiB | Viewed 3287 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jun 19, 2014 9:13 pm
Offline

Joined: Sun Nov 04, 2012 12:42 pm
Posts: 51
Location: Landlocked in The Great White North
Looks like a great start. I have the same kit and detail set sitting in my stash. I will be watching how you progress. :thumbs_up_1:

Chris


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jun 20, 2014 6:53 am
Offline
User avatar

Joined: Thu Feb 16, 2012 10:00 am
Posts: 121
Location: Neenah
Ditto.

I have Franklin on the short list. This should give me inspiration.

Ed-


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jun 20, 2014 1:30 pm
Offline
User avatar

Joined: Sat Nov 25, 2006 11:14 pm
Posts: 552
Location: San Diego, California
:whistle:

_________________
Dan
Field Artillery, King of Battle
Please check out the Secret Society of Model Builders model club in San Diego!
http://sdmodelclub.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jun 23, 2014 1:59 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2251
Location: Hoboken, NJ
Great idea making the hangar deck walls from scratch. The kit pieces just do not fit AT ALL, so you may as well go for the scale thickness.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Jun 24, 2014 3:09 pm
Offline

Joined: Sat Jan 12, 2013 1:44 am
Posts: 272
Location: San Diego, CA
Hey all,

Well, I haven't really gotten into the building phase yet as I am trying to work out how I'm going to do the detail. One thing I did find so far, which maybe of interest for those using the Pontos detail set, is that the bomb elevator at the base of the forward part of the bridge structure on the kit piece is not in the same location as the wooden flight deck. Also, the Pontos wooden deck does not have the location for the forward bomb elevator at the base of the #1 duel 5" turret.

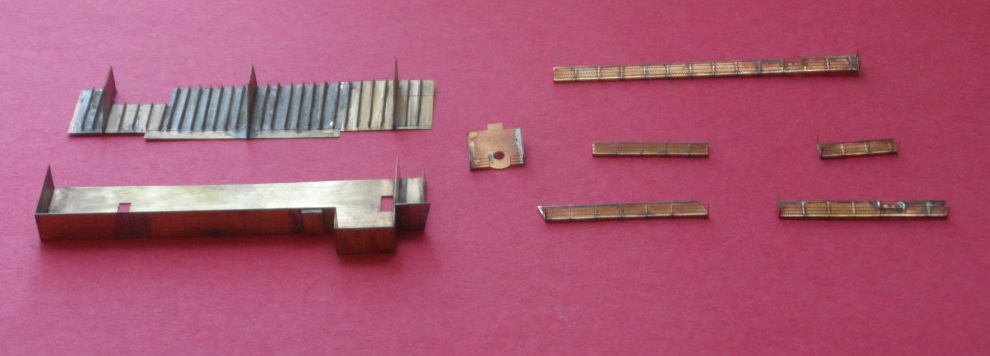

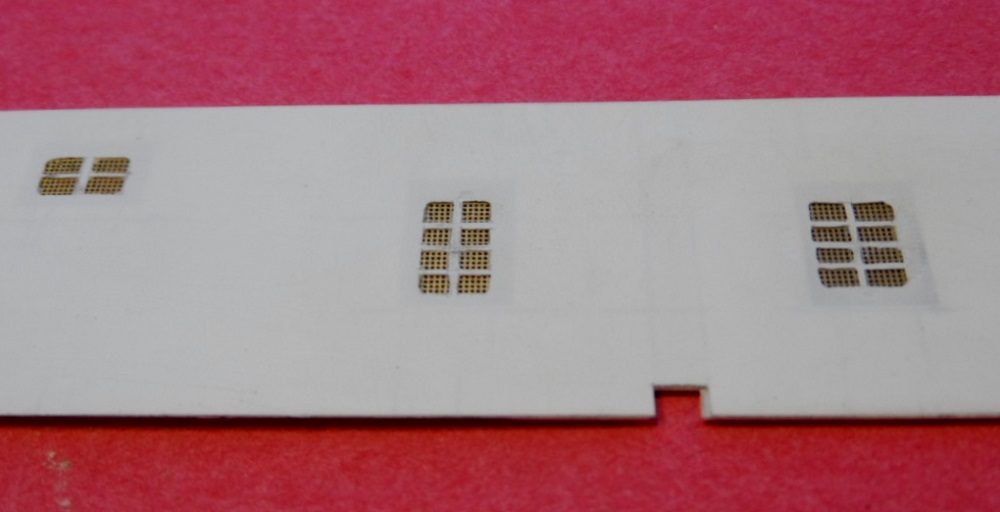

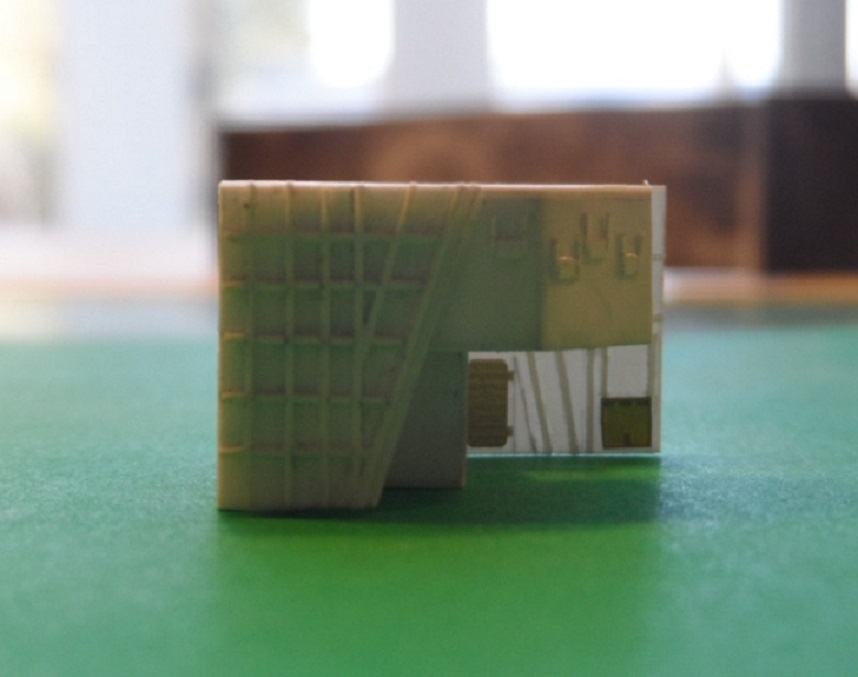

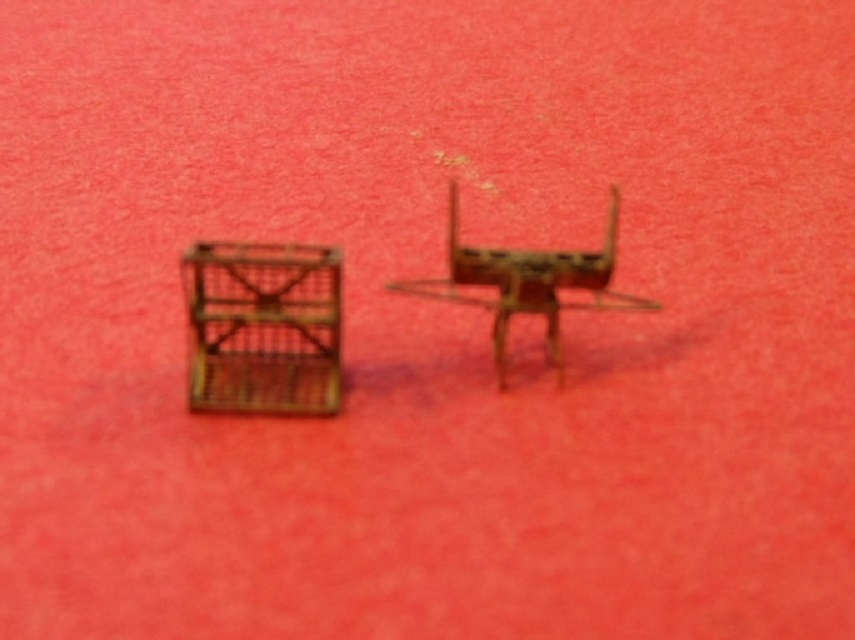

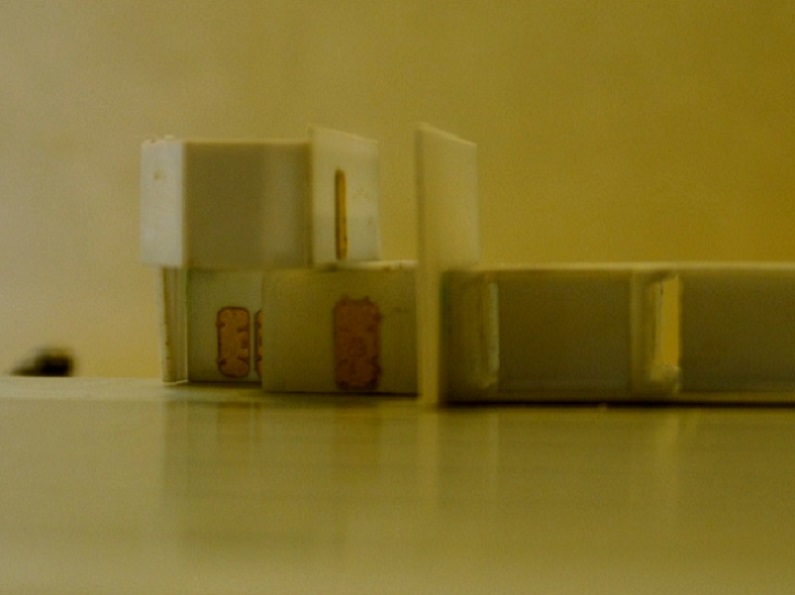

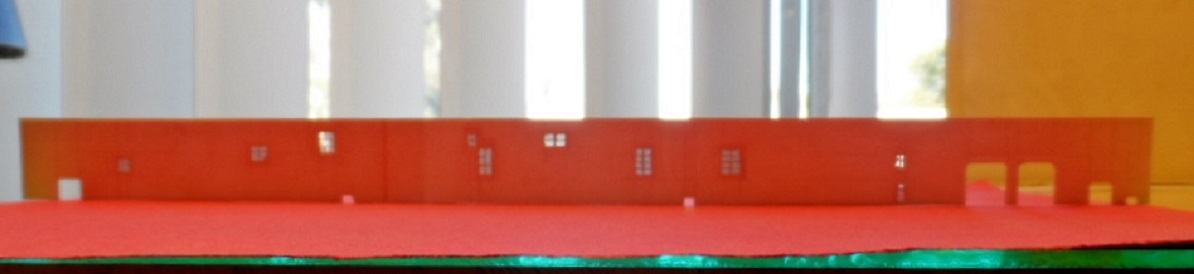

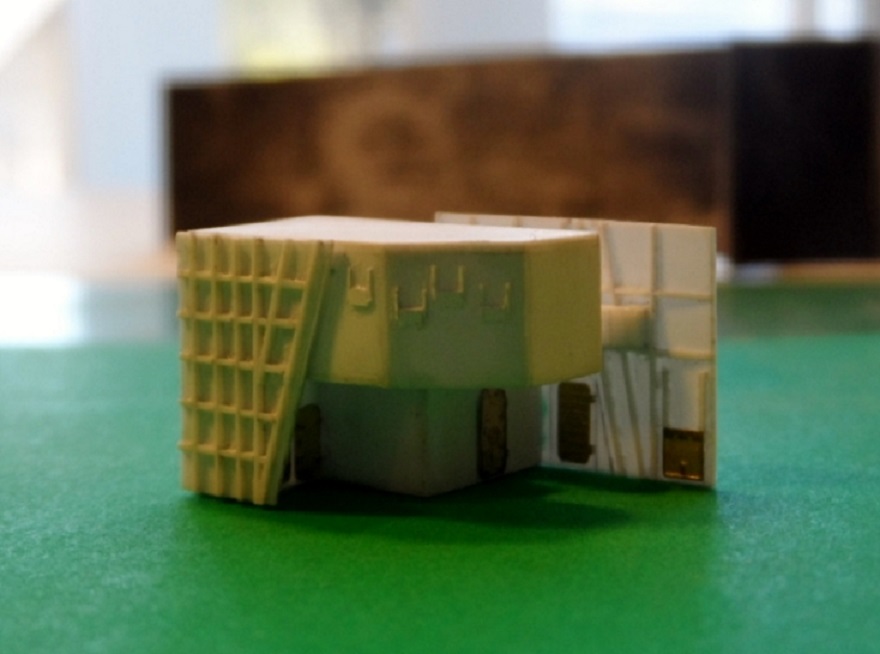

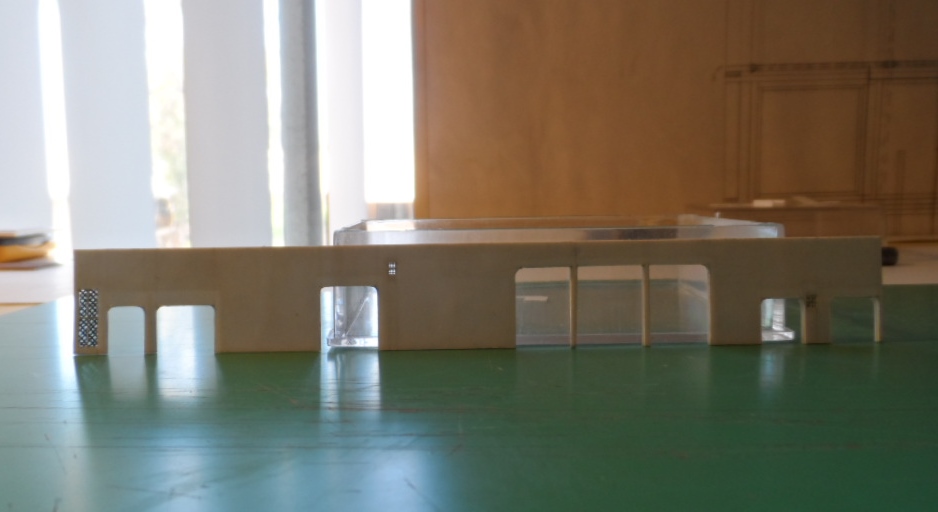

Some of the PE items have been soldered together so they can be ready for when I need them. Started some detail work on the port side using WEM mesh and a shutter from AMW. I'm holding off on finishing the port side bulkheads so I can see how well my roller door prototype turns out. I've added some slats to one door, but will do the others before painting and see if they will look like individual slats in the end.

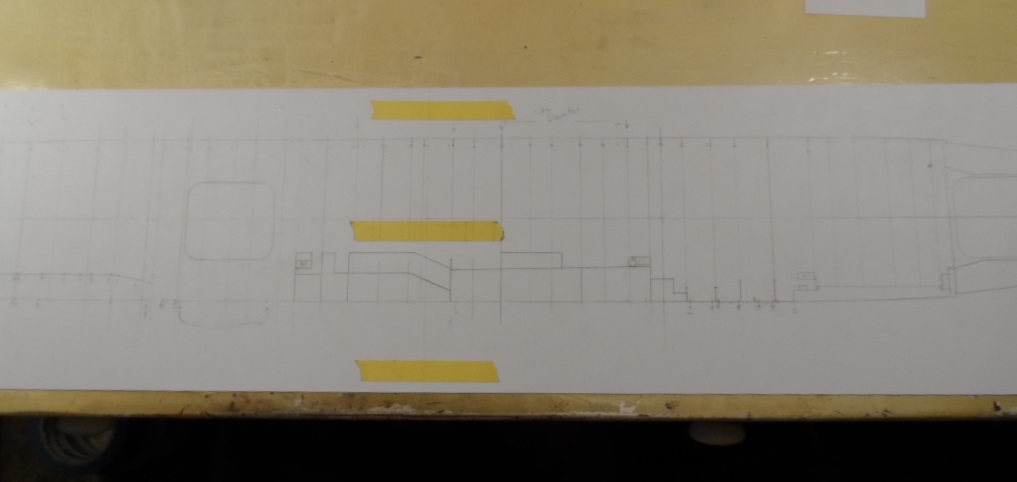

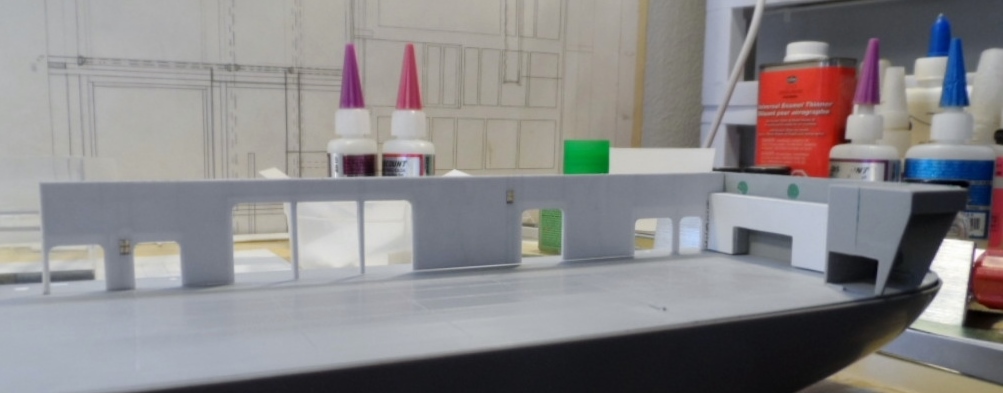

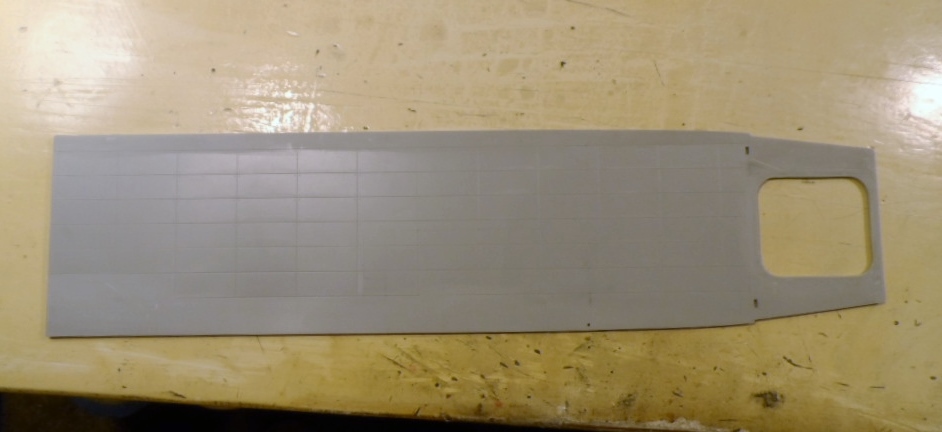

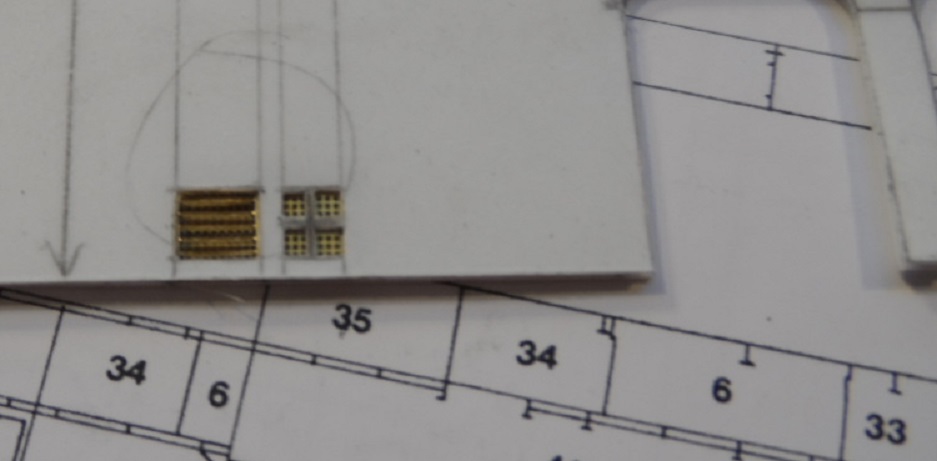

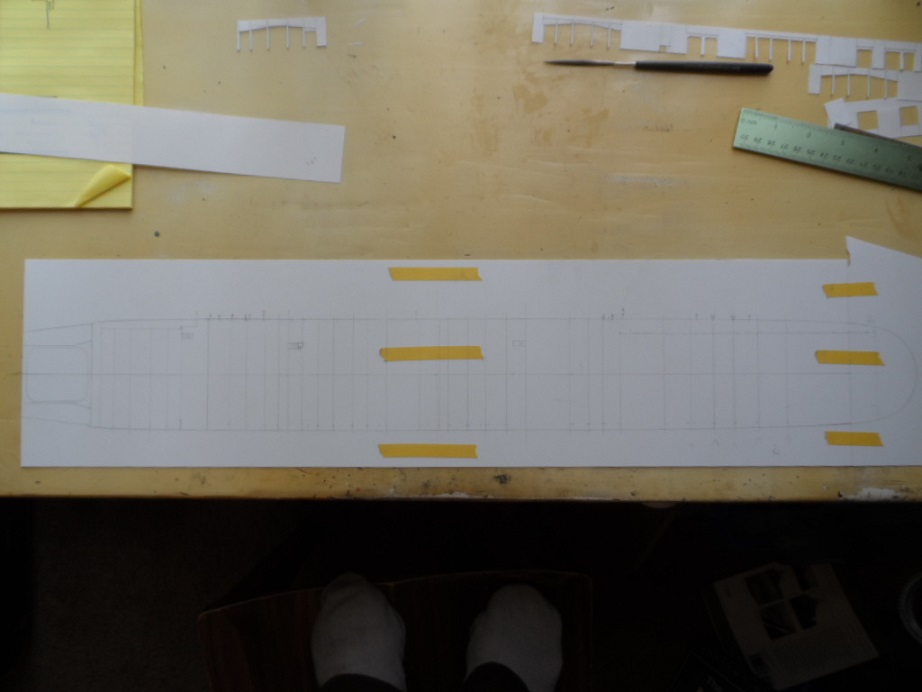

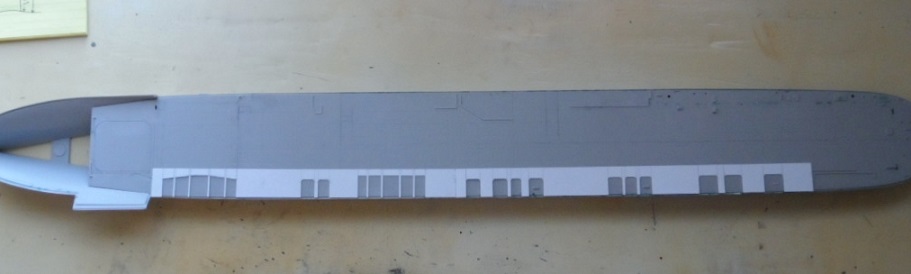

I had started drawing the hanger deck details right onto the hanger deck kit pieces but decided this would create a problem. I want to start gluing the deck pieces to the hull and get some painting underway which would have destroyed all the drawing I would have done. Now, by drawing the hanger deck detail onto some .02 sheet styrene I can refer back to it as I build the detail.


Attachments:
SAM_2874.JPG [ 184.41 KiB | Viewed 2892 times ]
SAM_2879.JPG [ 147.18 KiB | Viewed 2892 times ]
SAM_2871.JPG [ 127.06 KiB | Viewed 2892 times ]
SAM_2877.JPG [ 150.91 KiB | Viewed 2892 times ]
SAM_2876.JPG [ 152.14 KiB | Viewed 2892 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jul 03, 2014 2:09 am
Offline

Joined: Sat Jan 12, 2013 1:44 am
Posts: 272
Location: San Diego, CA
Well the build goes on slowly.

I'm still trying to figure out how some things will be brought together. Here are a few pics of what's going on.

The build is not going all that quick because for -1) I'm a slow builder, and 2) I believe I am over analyzing things.

But I'm having fun none the less. Plus I have an small OOB project to step away to if I feel like taking a break from Essex for a few minutes.


Attachments:

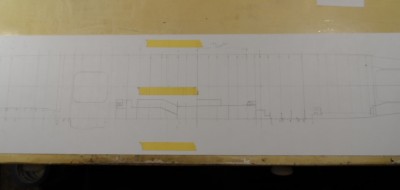

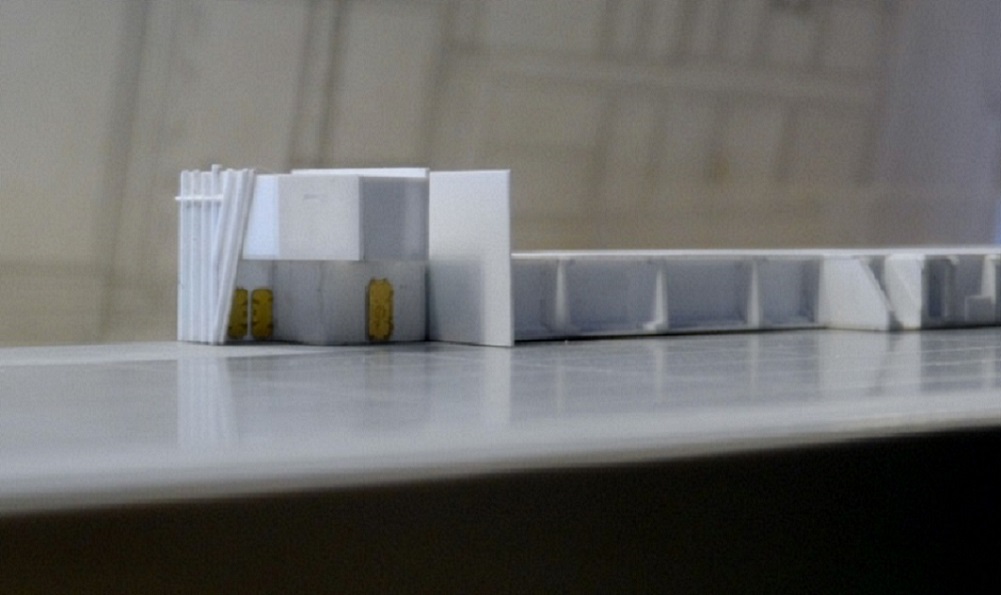

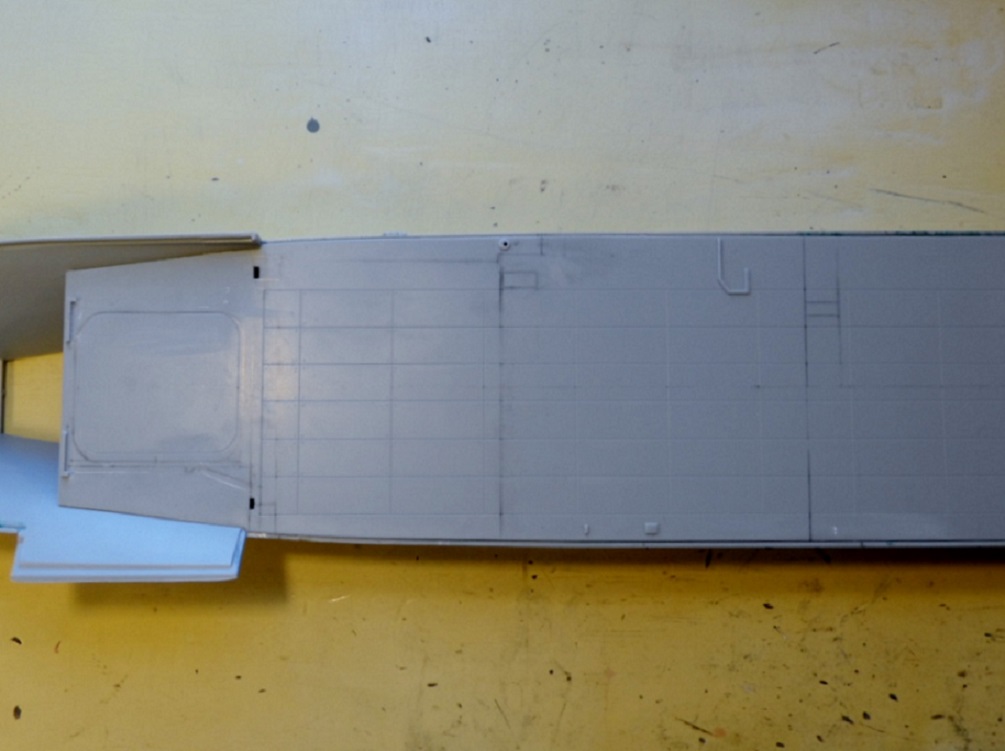

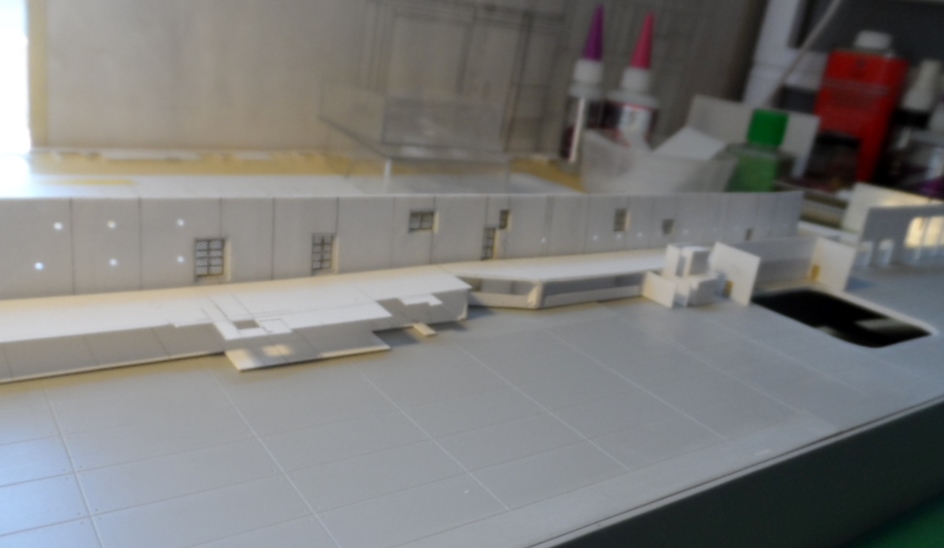

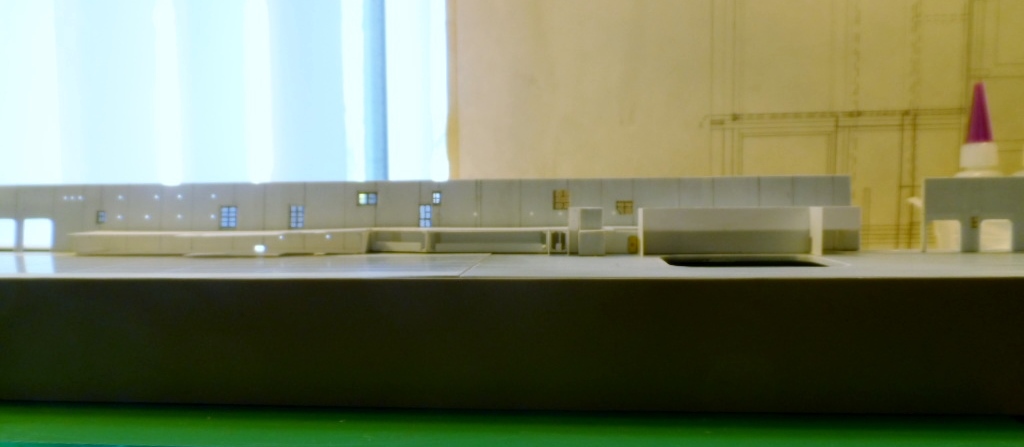

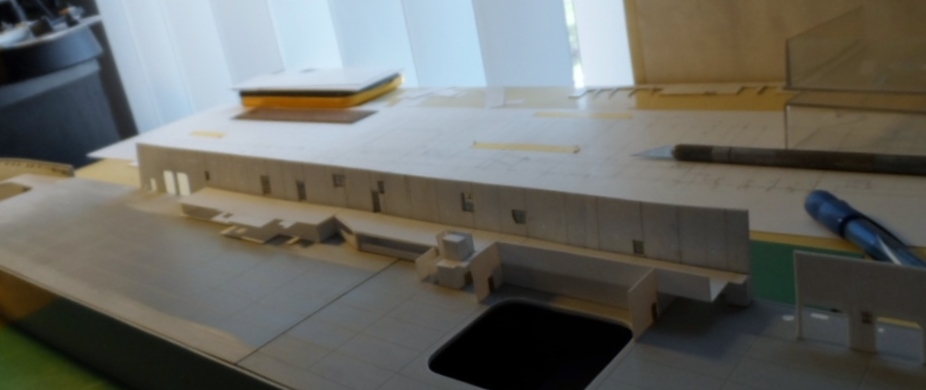

File comment: Here is where I'm at with hanger layout.
SAM_2884.JPG [ 117.55 KiB | Viewed 2746 times ]

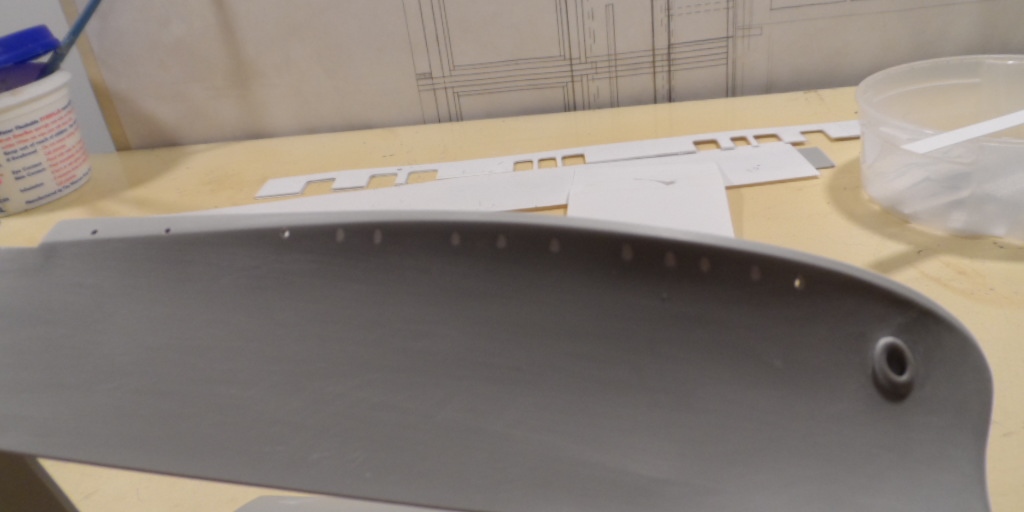

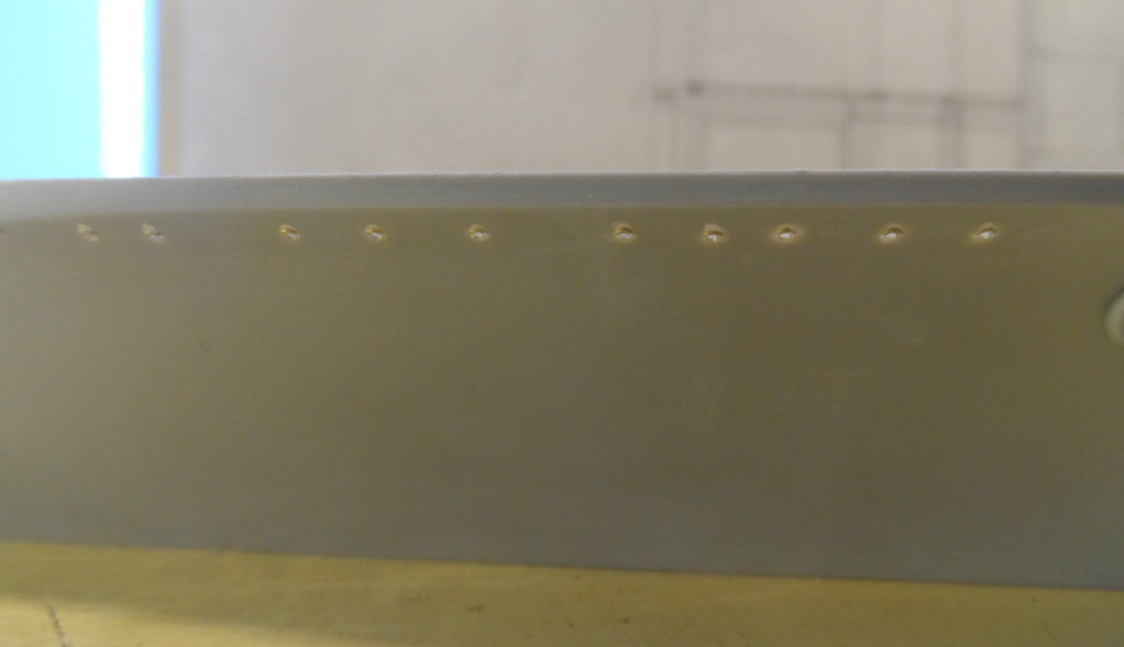

File comment: Here are the awful molded portholes. I've sanded down the eyebrows at this time.
SAM_2885.JPG [ 177.08 KiB | Viewed 2746 times ]

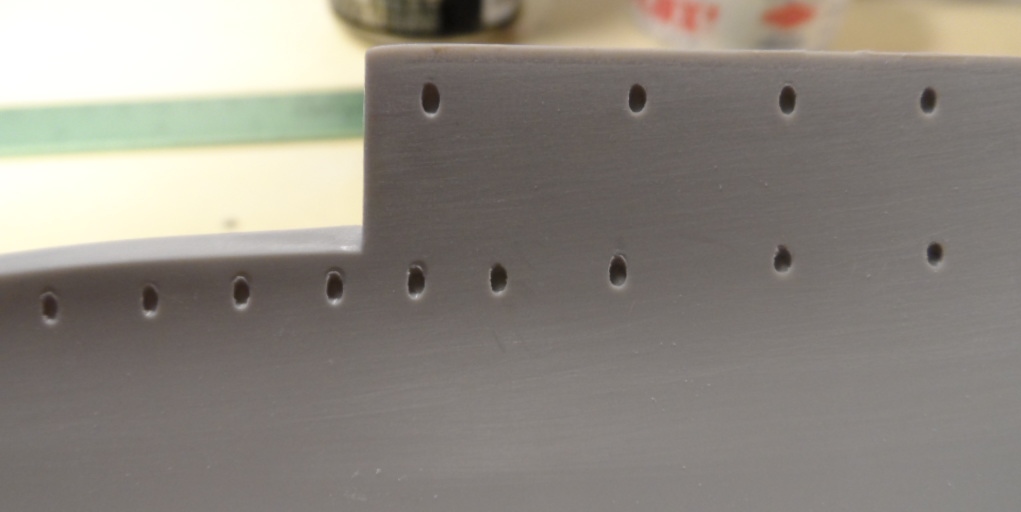

File comment: Here are some of the portholes I have filled in and drilled out a couple of them.
SAM_2886.JPG [ 188.69 KiB | Viewed 2746 times ]

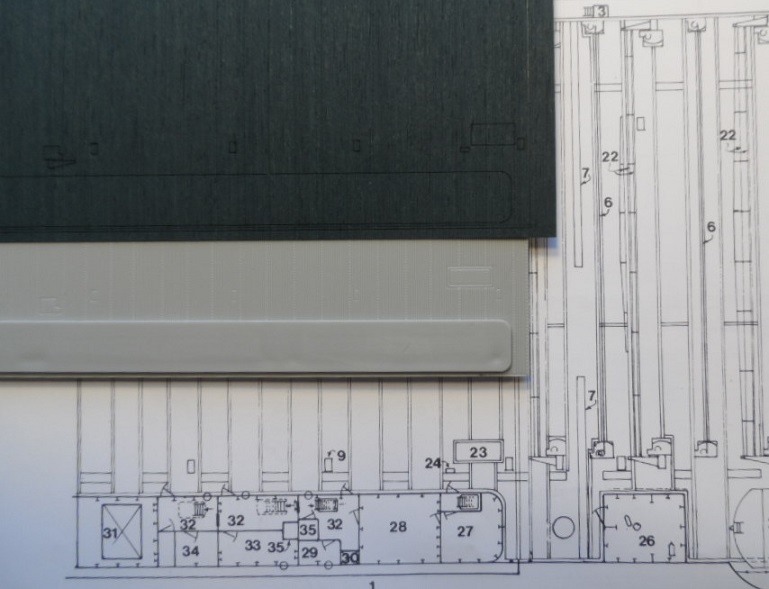

File comment: Here is the kit forward hanger deck plate. All raised detail has been removed.
SAM_2887.JPG [ 186.86 KiB | Viewed 2746 times ]
File comment: Here is a set of roller doors I have glued up at this time. I made myself a small sheet of panels grooved on both sides to cut to size for each opening. Each panel is close to 1/32" wide.
SAM_2890.JPG [ 197.26 KiB | Viewed 2746 times ]

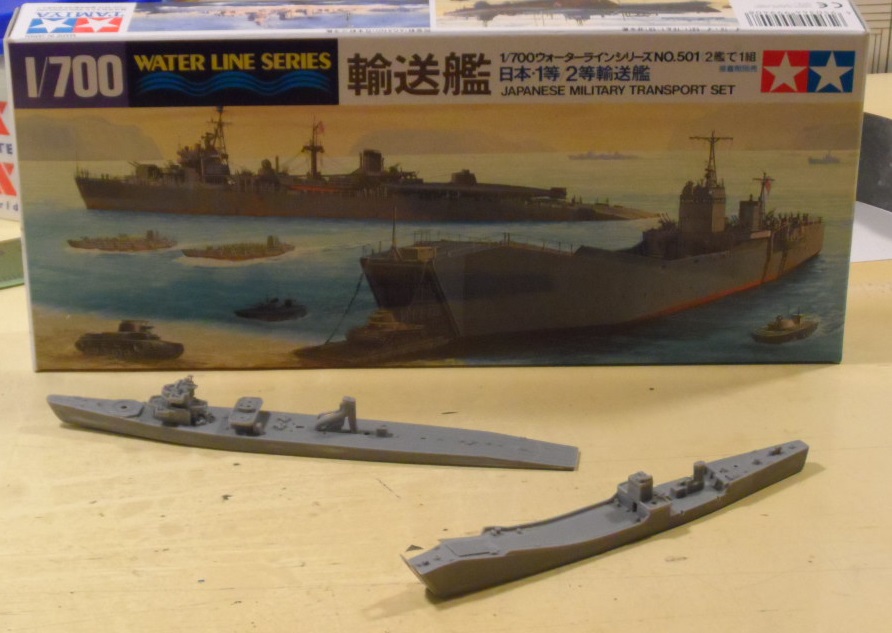

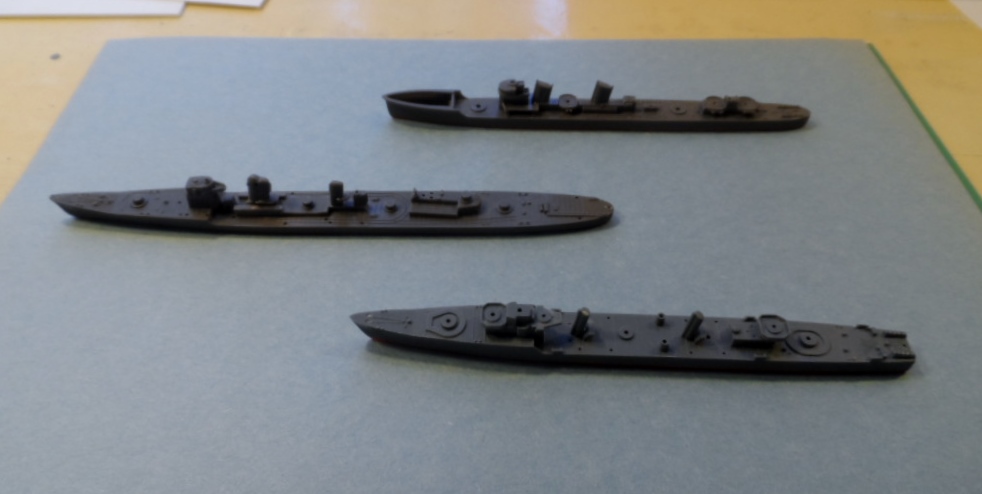

File comment: My OOB project. I will be adding Eduards Japanese ship railings.
SAM_2892.JPG [ 196.23 KiB | Viewed 2746 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jul 03, 2014 9:16 am
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2251
Location: Hoboken, NJ

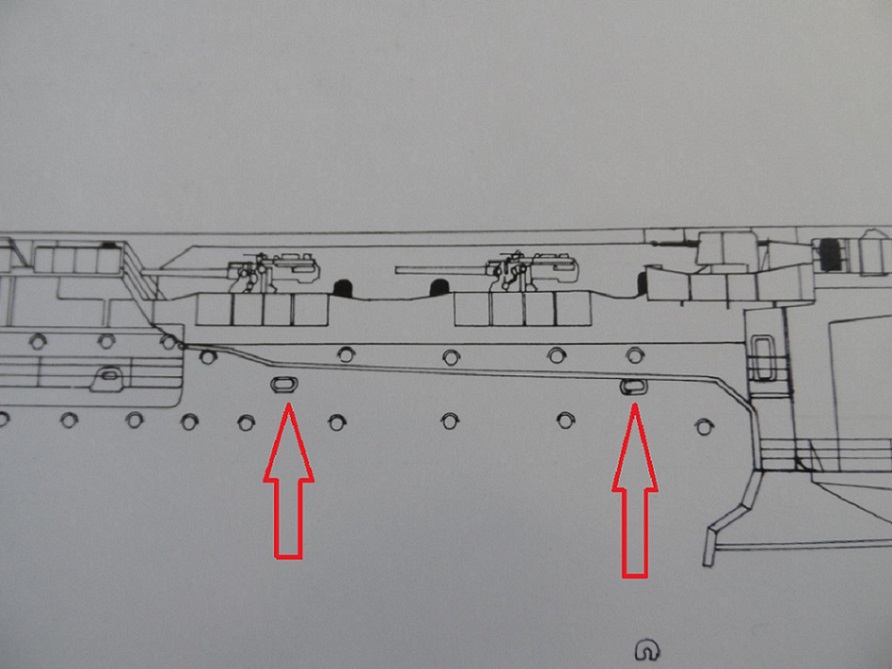

I think you're doing this, but can't really tell from the photos: the portholes should be perfectly round, meaning perpendicular to the hull. The way Trumpeter did them is to make them parallel to the waterline, which is incorrect, and gives the oval shape.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jul 03, 2014 4:01 pm
Offline

Joined: Sat Jan 12, 2013 1:44 am
Posts: 272
Location: San Diego, CA

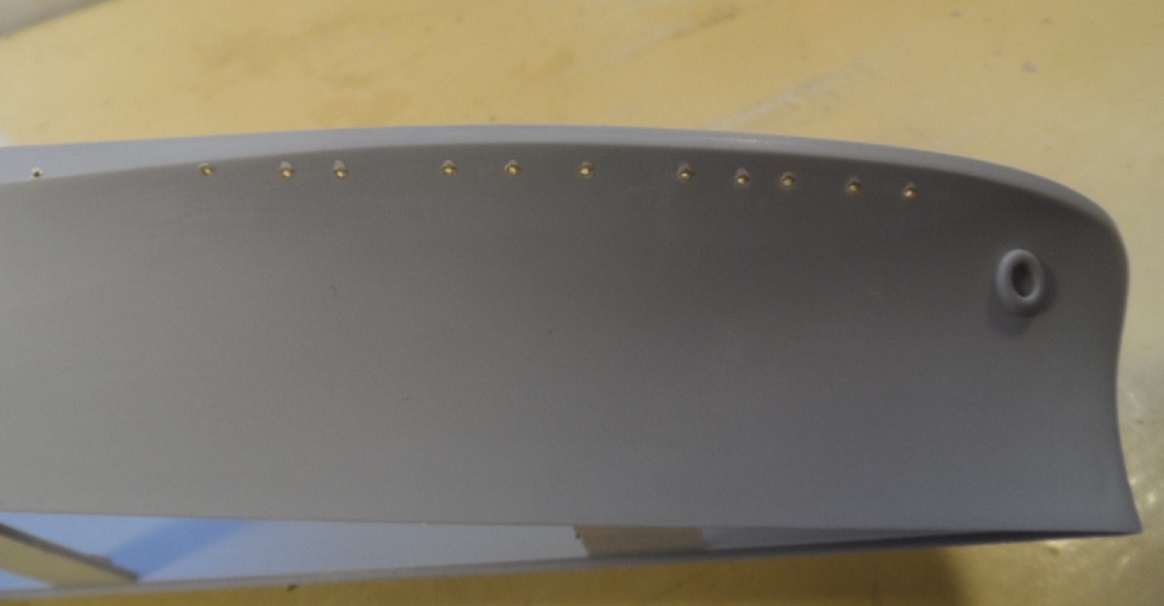

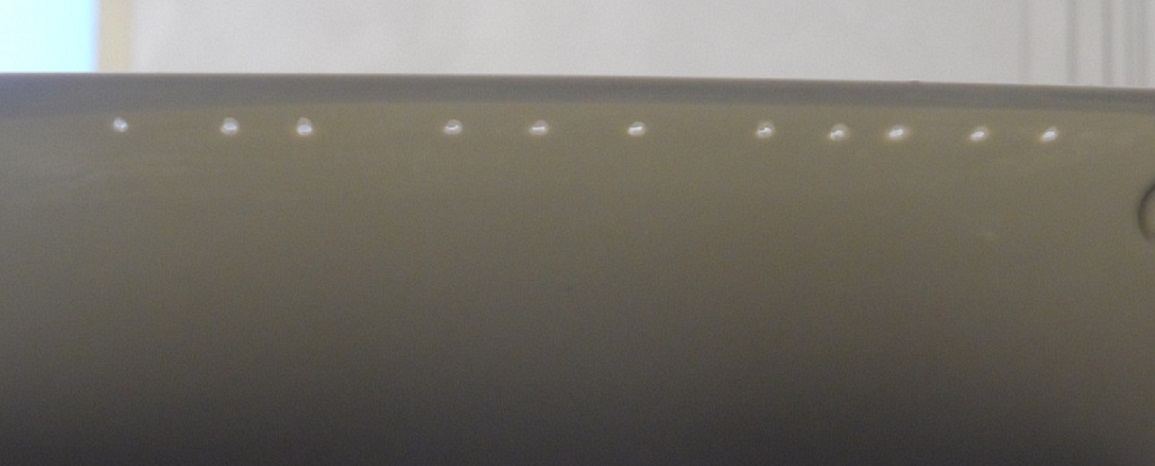

Here are some new pics of the starboard side bow portholes. The PE ones have been added in this section so far.

I agree Devin, that pic really didn't tell the real story.


Attachments:
File comment: Pic looking straight to side as if ship was laying on her keel.
SAM_2900.JPG [ 168.89 KiB | Viewed 2621 times ]
File comment: Same type of pic as before but with PE portholes added.
SAM_2909.JPG [ 149.67 KiB | Viewed 2621 times ]
File comment: Hull piece turned on side to get pic of portholes straight on. Angle is a little high.
SAM_2912.JPG [ 154.72 KiB | Viewed 2621 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jul 10, 2014 8:20 pm
Offline

Joined: Mon Jan 10, 2005 11:02 am
Posts: 10058
Location: EG48
Looking good. Before you go too crazy on the roller doors, keep a look out for the one that was further inboard than the others. It's easy to spot on plans once you know what to look for - it's the set that has bits on the deck edge and closes inboard of that.

_________________
Tracy White -Researcher@Large

"Let the evidence guide the research. Do not have a preconceived agenda which will only distort the result."
-Barbara Tuchman


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jul 11, 2014 5:11 pm
Offline

Joined: Sat Jan 12, 2013 1:44 am
Posts: 272
Location: San Diego, CA
Thank you for the reminder on the inset roller doors Tracy. If I'm not mistaken there are three on the port side, one for each set of roller doors aft of the side elevator. The inset roller door being the aft most of each set. The first inset has the mooring ring forward in the opening and the other two insets have the mooring ring set in the aft portion of the opening. Below is a buildup of one of my inset roller door openings.

I have one question that hopefully someone can answer or confirm. Did Essex herself have the two mooring rings cut into the hull bulkheads below the port side 5" open singles at the forecastle deck? Like in the pic below from AOTS Intrepid. Alan Raven's drawings show none and I can't remember if there was a pic online that didn't show them. Help would be appreciated.


Attachments:
File comment: Here are eight layers of .01 sheet styrene glued up for the inset roller door openings.
SAM_2914.JPG [ 199.05 KiB | Viewed 2384 times ]
SAM_2915.JPG [ 197.55 KiB | Viewed 2384 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Jul 22, 2014 6:15 pm
Offline

Joined: Sat Jan 12, 2013 1:44 am
Posts: 272
Location: San Diego, CA
Well I can't say I have gotten anything of real significance built up yet.

Most of the things I've been doing is more picture searches and looking over AOTS Intrepid.

I'm also still drawing out the plan for the deck levels on my .02 styrene sheets.

I did however add three IJN destroyers for my short breaks away from USS Essex. They will be built OOB.


Attachments:
File comment: 2/3 of starboard hanger bulkhead with vents and air intakes meshed over.
SAM_2926.JPG [ 139.72 KiB | Viewed 2263 times ]
File comment: Close-up of vents and intakes showing mesh.
SAM_2927.JPG [ 162.07 KiB | Viewed 2263 times ]
File comment: Mk 4 radar with its support all soldered up.
SAM_2922.JPG [ 181.07 KiB | Viewed 2263 times ]
File comment: Additions of OOB builds for breaks from Essex.
SAM_2923.JPG [ 196.68 KiB | Viewed 2263 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Jul 22, 2014 10:44 pm
Offline

Joined: Mon Jan 10, 2005 11:02 am
Posts: 10058
Location: EG48
Plastic Habit wrote:
Did Essex herself have the two mooring rings cut into the hull bulkheads below the port side 5" open singles at the forecastle deck? Like in the pic below from AOTS Intrepid. Alan Raven's drawings show none and I can't remember if there was a pic online that didn't show them. Help would be appreciated.


There's a slightly better copy of this photo on page 328 of Warship International Vol XXXVI No 4, 1999 - it doesn't look like they're there to me.

_________________
Tracy White -Researcher@Large

"Let the evidence guide the research. Do not have a preconceived agenda which will only distort the result."
-Barbara Tuchman


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jul 31, 2014 3:59 pm
Offline

Joined: Sat Jan 12, 2013 1:44 am
Posts: 272
Location: San Diego, CA
Slowly but surely things start coming together. Taking four days away from her didn't help the cause either.

Finished the last of the major bulkhead pieces, drilled portholes in the bulkhead piece that has the vents.

After coming back from my little break I started seeing how I was going to do some of the interior detail.

For right now I am concentrating on the hangar and forecastle deck portions under the island.

Nothing major has been glued down at this point.


Attachments:
SAM_2938.JPG [ 189.76 KiB | Viewed 2127 times ]
SAM_2933.JPG [ 196.11 KiB | Viewed 2127 times ]
SAM_2934.JPG [ 191.79 KiB | Viewed 2127 times ]
SAM_2932.JPG [ 184.65 KiB | Viewed 2127 times ]
SAM_2937.JPG [ 198.3 KiB | Viewed 2127 times ]
SAM_2935.JPG [ 171.67 KiB | Viewed 2127 times ]
SAM_2936.JPG [ 198.78 KiB | Viewed 2127 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jul 31, 2014 4:13 pm
Offline

Joined: Fri Jun 06, 2014 8:56 pm
Posts: 474
Location: Queensland, Australia
Taking your time looks like it works for you. Your detail is crisp and clean. Impressive.

_________________
stash:
1/350 Grosser Kurfurst by ICM
1/350 Seydlitz


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jul 31, 2014 7:35 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7108
Location: In the hills of North Jersey
Impressive work!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Aug 01, 2014 9:46 am
Offline
User avatar

Joined: Mon May 14, 2012 12:18 pm
Posts: 2062
Location: Salt Lake City, USA
Superb attention to detail!

_________________
-Jason Channell

Current Project: 1/200 Bismarck


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Aug 04, 2014 2:24 pm
Offline

Joined: Sat Jan 12, 2013 1:44 am
Posts: 272
Location: San Diego, CA
Well, I was able to get more done on the main deck level structure under the island. Man how life can slow you down.

Still have bulkheads to glue to the interior faces, but I want to wait until I have the supports in on the forecastle deck level in this section.
Once the forecastle deck is done I'll be able to start work on getting in the housing for the boiler uptake trunk in place and the horizontal trunks for the vents and air intakes to the mesh on the hangar bulkheads.

Started working on that one foundation that stands at the projection room.

I've never done much scratch building like this, so my hat is off to those that do entire ships from scratch.


Attachments:
SAM_2959.JPG [ 178.55 KiB | Viewed 1961 times ]
SAM_2961.JPG [ 156.4 KiB | Viewed 1961 times ]
SAM_2960.JPG [ 187.71 KiB | Viewed 1961 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Aug 06, 2014 8:13 pm
Offline

Joined: Sat Jan 12, 2013 1:44 am
Posts: 272
Location: San Diego, CA
Hope this is not the wrong thing to do, but I'm going to do it anyway.

After doing some scratch building I couldn't believe how happy I was with my efforts. I wanted to step up my building skills in doing this project, and to my surprise
I might actually be able to do this.

I just wanted to share my feeling of joy and hope everybody has had and continue to have moments like the one I'm having.
Even knowing that I could be on the other side of the spectrum tomorrow.

For such a small section it feels like a huge accomplishment.


Attachments:
SAM_2965.JPG [ 176.22 KiB | Viewed 1836 times ]
SAM_2966.JPG [ 169.33 KiB | Viewed 1836 times ]
SAM_2967.JPG [ 180.63 KiB | Viewed 1836 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Aug 06, 2014 8:26 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2251
Location: Hoboken, NJ
Looks good!
