PostPosted: Sun Dec 28, 2014 3:37 pm
Offline

Joined: Tue Sep 17, 2013 12:16 pm
Posts: 309
Hello everyone,

After some time off for the holidays, I had the chance to start off a new project. The kit is the Dragon 1/700 USS Belleau Wood CVL-24. For reference, I am using the Booklet of General Plans for the CVL-26 available online for download, the station sections posted on this site for the Cleveland Class Cruiser (Thank you DrPR), and all the builds posted on this site (1/700 & 1/350) as well as pictures of the Dragon 1/350 USS Independence kit, which seems to be very good. Thanks also to the CASF Independence Class guys who have answered my questions.

After reviewing the kit hull, I decided to try to shape it to a more accurate shape. The kit's lower hull is just a square extension of the upper hull, it doesn't include the detail of the blister, has no bilge keels, and the skeg is too wide. After reviewing pictures and drawings, the bottom of the hull is rounded and the stern below the waterline is more square, and finally it has a bulbous bow.

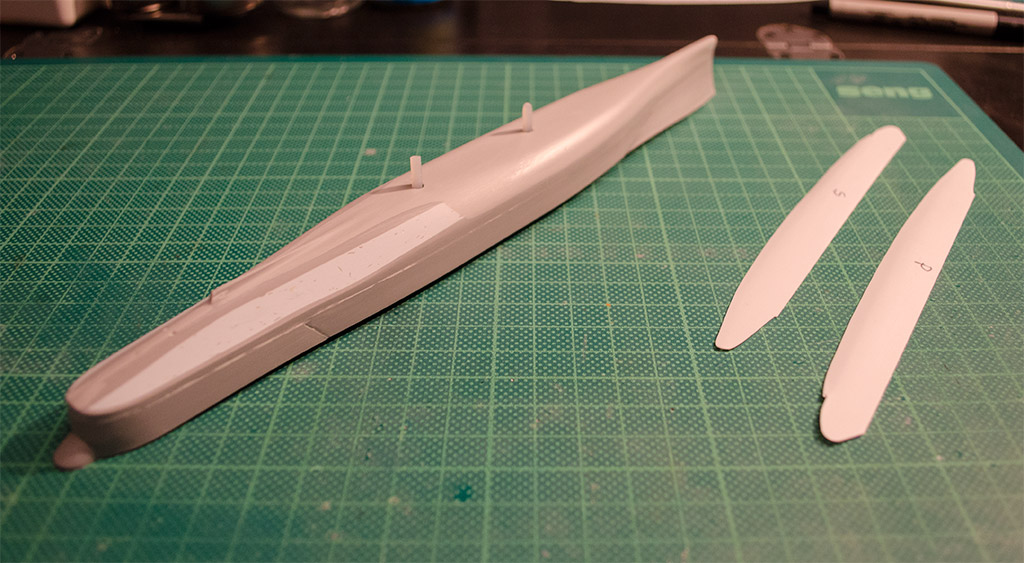

I filled up the lower hull with epoxy and started sanding away. Always checking against the station sections which I cut out (they are really tiny in 1/700). I sanded away the blisters and replaced them with styrene. I also reshaped the stern, since the kit is only an extension of the upper deck (round). It should start round and finish off square below the waterline, with a slight tumblehome.

Attachment:
cvl_24_01.jpg [ 139.99 KiB | Viewed 3983 times ]

Attachment:
cvl_24_03.jpg [ 177.98 KiB | Viewed 3983 times ]

Attachment:
cvl_24_04.jpg [ 178.04 KiB | Viewed 3983 times ]

Attachment:
cvl_24_05.jpg [ 187.85 KiB | Viewed 3983 times ]


Also, the bilge keels where added. They are styrene strips sharpened on one side to give the illusion of the triangular cross section.
Attachment:
cvl_24_10.jpg [ 112.47 KiB | Viewed 3983 times ]

Attachment:
cvl_24_11.jpg [ 145.55 KiB | Viewed 3983 times ]

Attachment:
cvl_24_12.jpg [ 137.63 KiB | Viewed 3983 times ]

Attachment:
cvl_24_13.jpg [ 149.45 KiB | Viewed 3983 times ]

Attachment:
cvl_24_14.jpg [ 134.65 KiB | Viewed 3983 times ]

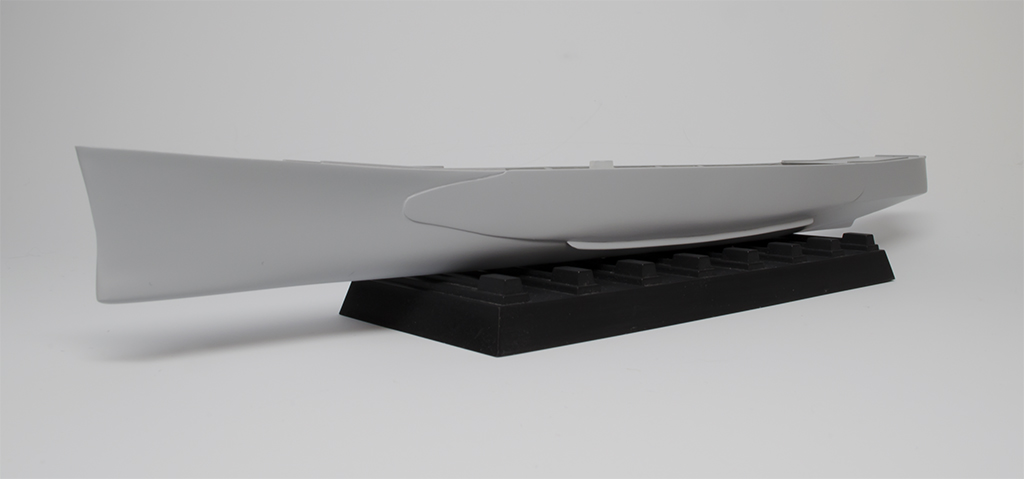

Also, I am bolting down my models to their bases, had a near catastrophic accident the other day.
Attachment:
cvl_24_15.jpg [ 125.03 KiB | Viewed 3983 times ]


I am still sanding it, reducing the blister join with the hull and rounding more the cross section of the stern.

Happy holidays to all!

...and as with my previous builds, comments and criticisms welcomed!

_________________
CV-8: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=153851
DD-436: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=157123
CVL-24 http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=158455


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 28, 2014 3:51 pm
Offline
User avatar

Joined: Mon May 21, 2007 5:49 pm
Posts: 1236
Location: Troutdale, OR
hypno7 wrote:
criticisms welcomed!


As if! Give me something to Critique and we will talk :heh: . Otherwise, that is impressive especially considering it is in 1/700.

Keep up the great work!

Matt

_________________
In the yards right now:
1/350 USS Portland CA-33 1942
1/350 Trumpeter Texas with a twist


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Dec 30, 2014 2:34 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1525
Location: Belgium
Great job! A lot of work, and very well done! No critique from me...
It gives me courage for my next Project, for which I will have to add part of a lower hull too, so seeing your technique helps.

For references, maybe the Warship Pictorial n40 on CVL22 can be helpful, or did these ships differ so much from one another? These books are very good quality and not very expensive, and the one on Lex helped me a lot.

Cheers,

Marijn


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Dec 30, 2014 1:58 pm
Offline

Joined: Tue Sep 17, 2013 12:16 pm
Posts: 309
Thanks Matt! Things to critique will come... I am still checking references and there are things I a not so sure about.

Thanks Marijn! It was not that much work, just sand away with 180 grit progressing to 1200 grit, all while checking the stations. This part is one of the most enjoyable for me in ship model building (specially that nice cruiser hull). What gave me trouble was the blister, but it looks OK for me now.

Thanks for the tip on the Warship Pictorial. About the differences between the sisters, I am still finding out what they were. I got some help on the CASF for this class.

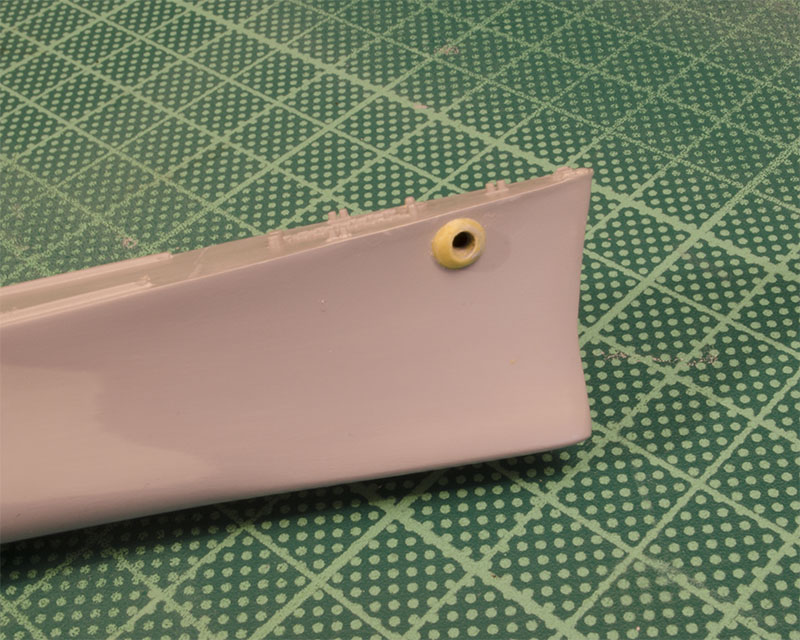

I had some more time off and worked on the shafts and the hawse pipes. The shafts are done with brass tubing adapted to the plastic parts and the hawse pipe is done using milliput (first time using it, and I am impressed...) as the kit didn't include any detail on this part.
Attachment:
cvl_24_16.jpg [ 192.91 KiB | Viewed 3846 times ]

Attachment:
cvl_24_17.jpg [ 168.26 KiB | Viewed 3846 times ]

_________________
CV-8: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=153851
DD-436: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=157123
CVL-24 http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=158455


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Dec 30, 2014 4:08 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2175
Location: Hoboken, NJ
Nice work capturing that squared-off Cleaveland/Independence stern. I've always really liked the look of that for some reason. Excellent work so far.

_________________
We like our history sanitized and theme-parked and self-congratulatory, not bloody and angry and unflattering. - Jonathan Yardley


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Dec 30, 2014 7:12 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 6711
Location: In the hills of North Jersey
Yowza! That's some fine work. I'd have bashed the hull against the workbench by now.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 31, 2014 6:12 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1525
Location: Belgium
If you're impressed with Milliput, you should try Magic Sculp!


It basically works the same as milliput, but is much smoother flexible (when wet, not after curing), which makes it work much better while sculpting. Also after curing, it doesn't crumble like Milliput oıften does, and feels much more like very hard resin which is a joy to carve and sand.

I started sculpting 1/35th scale figures with Milliput, but after trying Magic Sculp I never looked back and actually sculpted most of my figures with this material. On the ships, I am now using it a lot for filling gaps, but I would certainly also use it for the kind of job you're doing now.

One possible source in Germany: http://shop.frank-miniatures.com/Zubeho ... Sculp.html
Or at most decent shows, at a stand which caters for materials and figure-modellers.

Cheers,

Marijn


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 31, 2014 3:31 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 6992
Location: New York City
Looking very good to me.


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Jan 15, 2015 12:59 pm
Offline

Joined: Tue Sep 17, 2013 12:16 pm
Posts: 309
Thank you all for the kind words! It keeps me motivated. :wave_1:

I will certainly try that Magic Sculp. This is what I like of this board, you get a lot of tips.

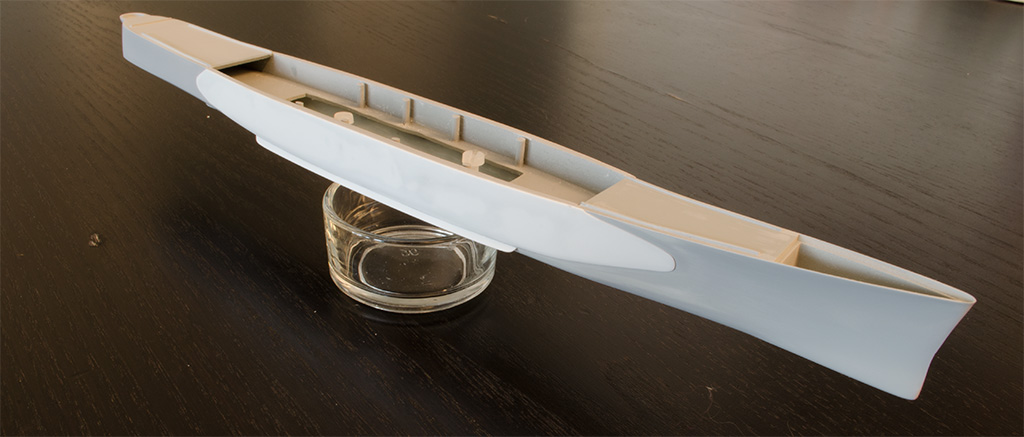

Making the blisters out of sheet styrene ended up being a mess. In the previous pictures it looks OK but they are too thick, so I sanded away to make them thinner, at least were the blister edge meets the hull. It happened that the thinner it got, air bubbles or parts where glue was of different thickness started to bulge out. For this to be good, the glue layer has to be the same thickness on all the surface, and no air bubbles, nearly impossible for me to do. So I removed them, cleaned up the mess, made a mask, and painted them on with primer. Paul Budzik has a very good video about hull plating, and although I didn't scribe it on the hull (I am not there yet), I used the alternative of making it with primer. After some sanding of rough edges, it is now the thickness I want (thinner on the top and thicker on the bottom).

I also redid the bilge keels, they are a thinner and the cross section is more uniform.

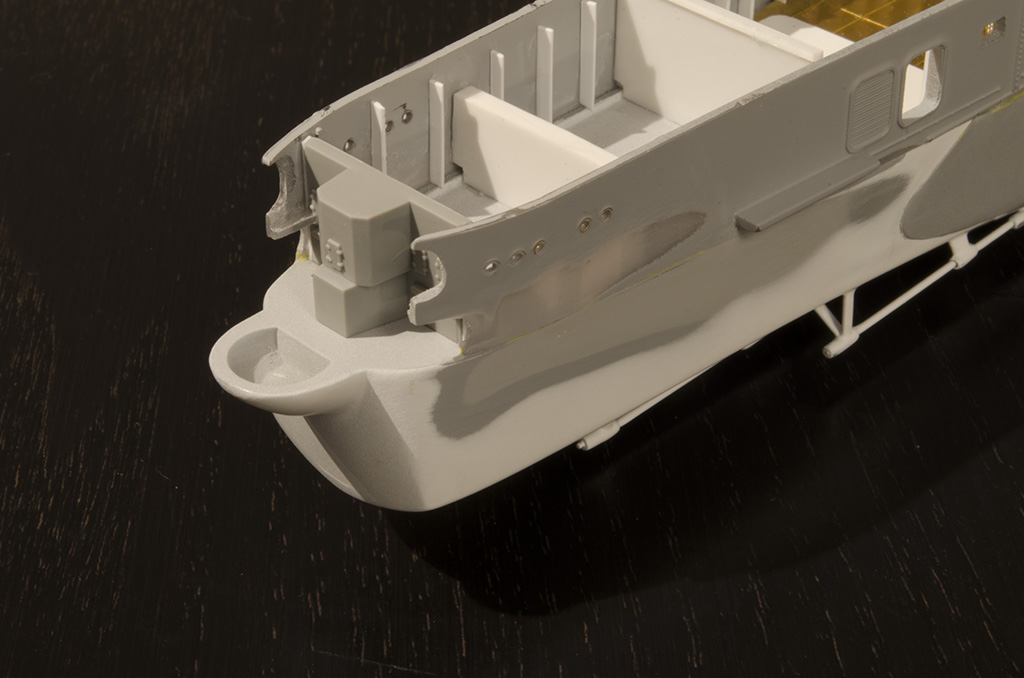

The hangar deck is also being worked on. The interior is based on pictures and the CVL-26 booklet of general plans. There are some parts where I (over)simplified things.

Attachment:
cvl_24_18.jpg [ 171.49 KiB | Viewed 3574 times ]

Attachment:
cvl_24_19.jpg [ 152.53 KiB | Viewed 3574 times ]


I have to say the fit on this kit is not the best, lots of filling and reinforcing.
Attachment:
cvl_24_20.jpg [ 152.02 KiB | Viewed 3574 times ]

Attachment:
cvl_24_21.jpg [ 144.08 KiB | Viewed 3574 times ]


Comments and criticism always welcomed!

_________________
CV-8: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=153851
DD-436: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=157123
CVL-24 http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=158455


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Jan 18, 2015 4:09 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1525
Location: Belgium
This is looking great!
A lot of difficult and annoying work, but the finished model ail look so much better for it.
Nice detailing on the interior too! Are you going to fill that up with aircraft again? :)

Cheers,

Marijn


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Jan 18, 2015 5:18 am
Offline
User avatar

Joined: Thu Aug 27, 2009 11:05 am
Posts: 2205
Location: Paris France
HI Hypno

well done :thumbs_up_1: nice progress ,i like this ships class . good luck for your project
cheers
Nicolas

_________________
https://ladiagonaledubosco.blogspot.fr/


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jan 19, 2015 5:06 am
Offline

Joined: Tue Sep 17, 2013 12:16 pm
Posts: 309
Thanks Marijn! Yes, it was some work, but after some finishing, it is getting to the point where it is acceptable to me. I will put some airplanes in the hangar deck, I can't help myself (you can't even see them... :big_grin:)

Thanks Nicolas! This class of ship is very nice for me too, specially since it is a cruiser hull, it does look very good!

More pictures to come soon! I am going to test Model Master paints for this build, lets see how the work out (saving my stash of WEM Colourcoats :big_grin: until supply is sustainable again)

_________________
CV-8: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=153851
DD-436: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=157123
CVL-24 http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=158455


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Feb 04, 2015 3:39 pm
Offline

Joined: Tue Sep 17, 2013 12:16 pm
Posts: 309
Hi everyone,

So, after a lot of filling and sanding, I had the chance to put some paint on the hull. Masking the Measure 33/3d was an exercise in patience for me. I don't know how much masking tape I used, but it was certainly a lot. For this build I am using Model Master paints. They are not as fine as WEM Colourcoats in my opinion, but very nice and tough nevertheless.
Attachment:
cvl_24_23.jpg [ 172.83 KiB | Viewed 3302 times ]

Attachment:
cvl_24_24.jpg [ 136.13 KiB | Viewed 3302 times ]

Attachment:
cvl_24_25.jpg [ 152.48 KiB | Viewed 3302 times ]

Attachment:
cvl_24_26.jpg [ 121.61 KiB | Viewed 3302 times ]

Attachment:
cvl_24_27.jpg [ 135.45 KiB | Viewed 3302 times ]

There are still some parts that need retouching, I will do that in the coming days. After that, I will start working on the flight deck and the airplanes.

As always, comments and criticism always welcome!

_________________
CV-8: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=153851
DD-436: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=157123
CVL-24 http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=158455


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Feb 04, 2015 4:16 pm
Offline

Joined: Sun Aug 15, 2010 6:19 pm
Posts: 672
Very well done

_________________
"Also we will never see a 1/350 late war Enterprise from Dragon due to a paralyzing fear of success...." - Heavy Melder

Lots of unfinished model ships + attention issues = A busy slipway where nothing gets done!


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Feb 04, 2015 5:38 pm
Offline
User avatar

Joined: Fri Apr 08, 2005 9:41 am
Posts: 2101
Location: Monson, MA.
Great paint job! :thumbs_up_1: :thumbs_up_1:




Bob Pink. :wave_1:


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Feb 04, 2015 6:44 pm
Offline
User avatar

Joined: Sun Feb 01, 2009 3:55 pm
Posts: 3125
Location: Hawaii
VERY nice paint work man :thumbs_up_1: :thumbs_up_1:

_________________
Drawing Board:
1/700 Whiff USS Leyte and escorts 1984
1/700 Whiff USN Modernized CAs 1984
1/700 Whiff ASW Showdown - FFs vs SSGN 1984

Slipway:
1/700 Whiff USN ASW Hunter Killer Group Dio 1984


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Feb 05, 2015 10:19 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 6711
Location: In the hills of North Jersey
Outstanding! Love the camo!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Feb 06, 2015 9:26 am
Offline
User avatar

Joined: Fri Jun 22, 2012 12:02 pm
Posts: 2229
Location: New Orleans, LA
Killer.

_________________
- Chris


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Feb 08, 2015 2:38 pm
Offline

Joined: Tue Sep 17, 2013 12:16 pm
Posts: 309
Thank you all! I appreciate it a lot. :wave_1:

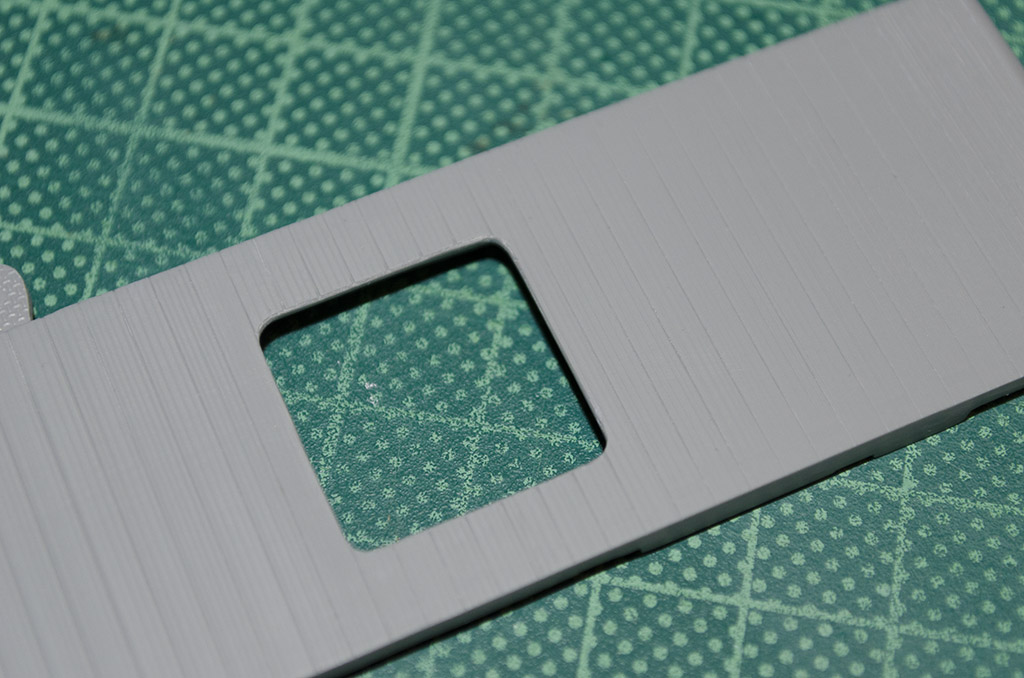

I started work on the flight deck. First, I removed the overscale detail on top of the deck, like the arresting gear and the decal locators, and separated the elevators as I want to show them in the down position in my model. Then I removed the catwalks and walkways that are too thick from the sides. Also the shields from the AA positions were removed, to be replaced with something thinner, and finally, the planks were scribed on the flight deck.
Attachment:
cvl_24_30.jpg [ 186.29 KiB | Viewed 3088 times ]

Attachment:
cvl_24_31.jpg [ 177.66 KiB | Viewed 3088 times ]


Comments, guidance, and criticism welcomed!

_________________
CV-8: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=153851
DD-436: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=157123
CVL-24 http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=158455


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Feb 09, 2015 4:46 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1525
Location: Belgium
You're making really good progress!
The camo looks excellent, as does the flightdeck planking. That's a lot of work, and very hard to do so fine and tidy!
This is a very clean build, and you're working in a most systematic way. It almost seems as if you know what you are doing. :big_grin: :big_grin: :big_grin:
I'm certainly looking forward to the next steps!

Cheers!

Marijn


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 59 posts ]  Go to page 1, 2, 3  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: Timothyo and 11 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
