Hello all fellow modelwarshippers!

After completing the marathon ( seemingly) build of Ancona...

viewtopic.php?f=59&t=159133


I fancied a nice ' quick' build... and for a change a ship that would be well documented in plans with plenty of supporting photographs.
A 'good'' kit starting point and what could be easier...>
This self delusion lasted around 1 hour--before I realised that whilst I really liked the ship--the kit had compromises that I could not leave alone

Inspired by an old print of the Fred Mitchell Painting hanging in my hallway....

Attachment:
ds 120.jpg
ds 120.jpg [ 155.79 KiB | Viewed 3205 times ]


Herewith the start of the build of HMS Majestic-- or possibly HMS Magnificent or indeed HMS Mars...

The Victorian Royal navy offered me the pre-dreadnought Magnificent class which comprised of 9 (!) ships

Background history can be read here

https://en.wikipedia.org/wiki/Majestic-class_battleship

The basis of the model is a 1/700 resin kit by Combrig models--

The model is evidently based on the Burt and the Roberts drawings-and the measures up them faithfully in every respect-...

alas as it turned out too faithfully! :scratch: :Oops_1:

At the outset I realised I would be removing a lot of things before the build proper would begin.( and any hope of a quick build evaporated! )

The boat deck/well-deck should have undercuts in all directions-

On the kit this was cast solid-

==> ( this is an example where I would be very happy to pay substantially more
for a high quality multi-media kit with brass decks etc )

Attachment:
ancona finished new 0-14.jpg
ancona finished new 0-14.jpg [ 160.23 KiB | Viewed 3205 times ]




anyhow--the deck enclosed by solid boxes looked wrong--and is wrong--an easy mistake to make when viewing the overhead views-

-less so when looking at the cross-section in the WARSHIP Volume...

so the first thing to do was to make some templates of the basically good shapes

Attachment:
ancona finished new 017.jpg
ancona finished new 017.jpg [ 133.9 KiB | Viewed 3205 times ]

Attachment:
ancona finished new 019.jpg
ancona finished new 019.jpg [ 115.1 KiB | Viewed 3205 times ]

Attachment:
ancona finished new 020.jpg
ancona finished new 020.jpg [ 115.62 KiB | Viewed 3205 times ]


getting rid of the unwanted resin was not subtle or pretty

Attachment:
maginificent build pocess 034.jpg
maginificent build pocess 034.jpg [ 182.61 KiB | Viewed 3205 times ]

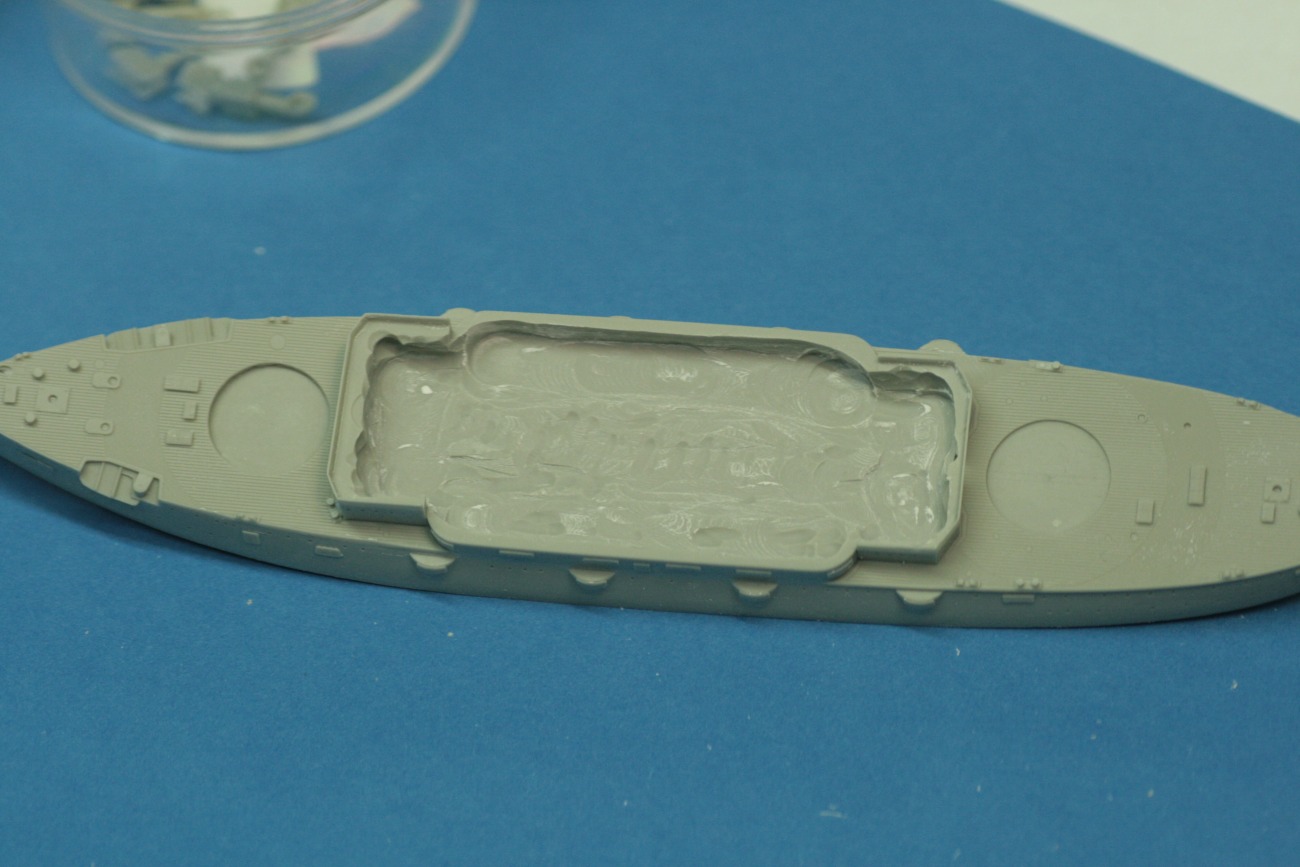

after making a fearful amount of dust with some flatening using drum sanders and other cutting tools
a basis for reconstruction resulted

Attachment:
maginificent build pocess 037.jpg
maginificent build pocess 037.jpg [ 162.51 KiB | Viewed 3205 times ]



The previously made templates being a valuable resource

Attachment:
maginificent build pocess 040.jpg
maginificent build pocess 040.jpg [ 145.09 KiB | Viewed 3205 times ]


Attachment:
maginificent build pocess 041.jpg
maginificent build pocess 041.jpg [ 152.88 KiB | Viewed 3205 times ]


The overhanging decks were made of brass sheet for stability

Attachment:
maginificent build pocess 046.jpg
maginificent build pocess 046.jpg [ 161.25 KiB | Viewed 3205 times ]


with the deck parts parts offered up--( and the Q/F gun apertures opened up )
it all started to look more promising

Attachment:
maginificent build pocess 052.jpg
maginificent build pocess 052.jpg [ 162.58 KiB | Viewed 3205 times ]




Other corrections were started along the way...

Attachment:
maginificent build pocess 064.jpg
maginificent build pocess 064.jpg [ 183.25 KiB | Viewed 3205 times ]


Attachment:
maginificent build pocess 060.jpg
maginificent build pocess 060.jpg [ 135.46 KiB | Viewed 3205 times ]



more shortly..

JB :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 03, 2015 5:55 pm
Offline
User avatar

Joined: Mon Nov 11, 2013 11:01 pm
Posts: 1118
Location: Detroit area
Oh boy, here comes another one! :big_grin: :cool_2:

_________________
Sean Nash, ACG (aircraft camo gestapo)

On the ways:
1/200 Trumpeter HMS Nelson
1/700 Tamiya USS Yorktown CV-5

In the stash:
1/35 Italiari PT-109
1/35 Tamiya "Pibber" Patrol Boat
1/350 Trumpeter USS Yorktown CV-10


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 03, 2015 6:16 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4349
Location: Nr Southampton England
As a distraction from the ugly business of grinding stuff up with a motor tool

and yearning for the subtlety of fine work..

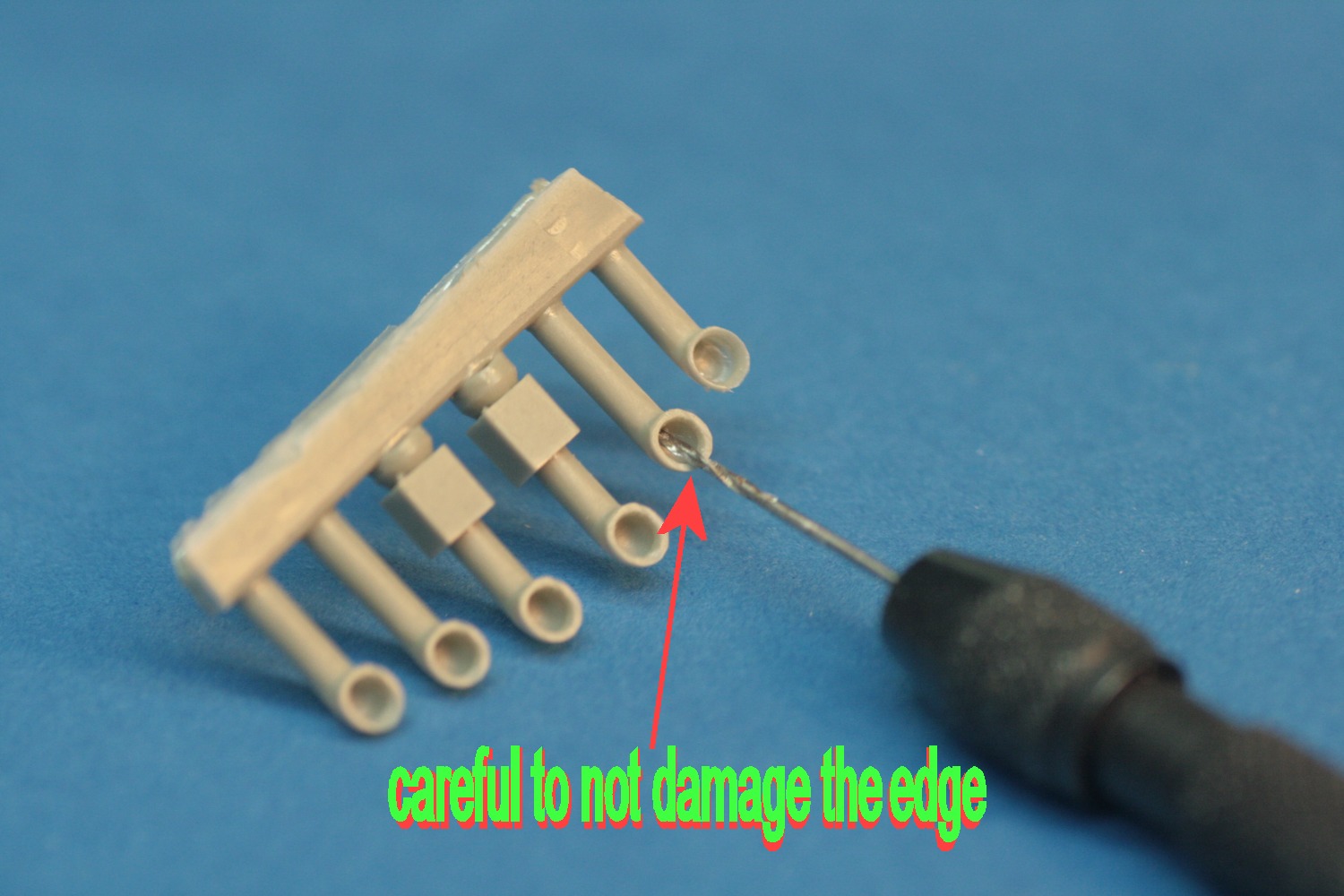

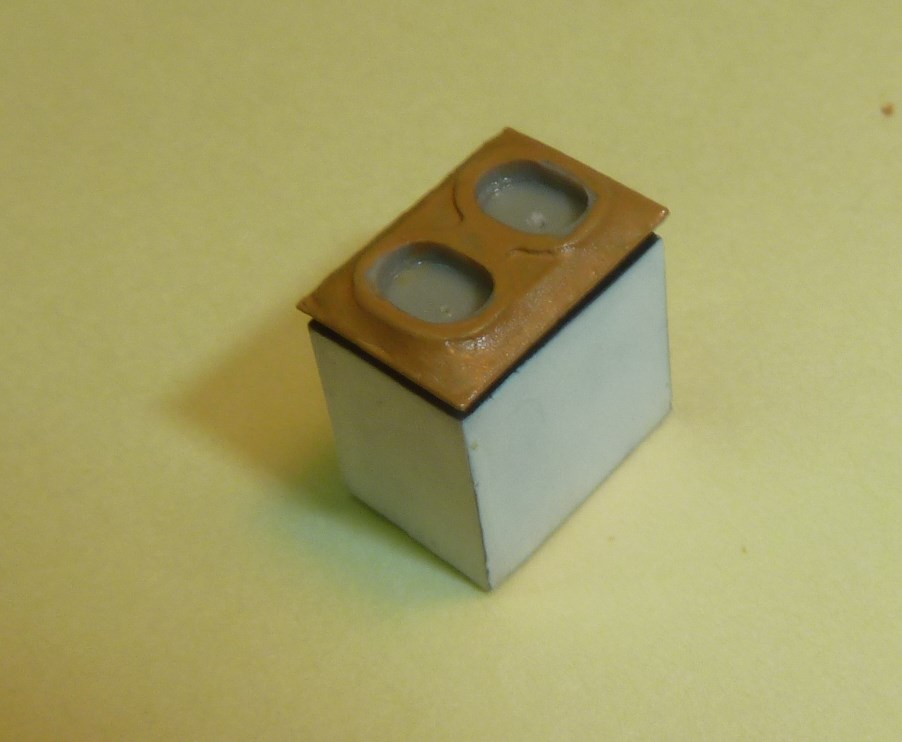

I made a start on the numerous cowl vents festooned all over the ship.

The kit items were about the right shape--if a bit clumsy looking on the rim of the cowl mouth.

In real life these are thin metal constructions--with a deep and visible throat aperture

I decided to try and refine the cast pieces to emulate the real thing!

Delicate touch is required--as it can easily go wrong with too much material removed...!

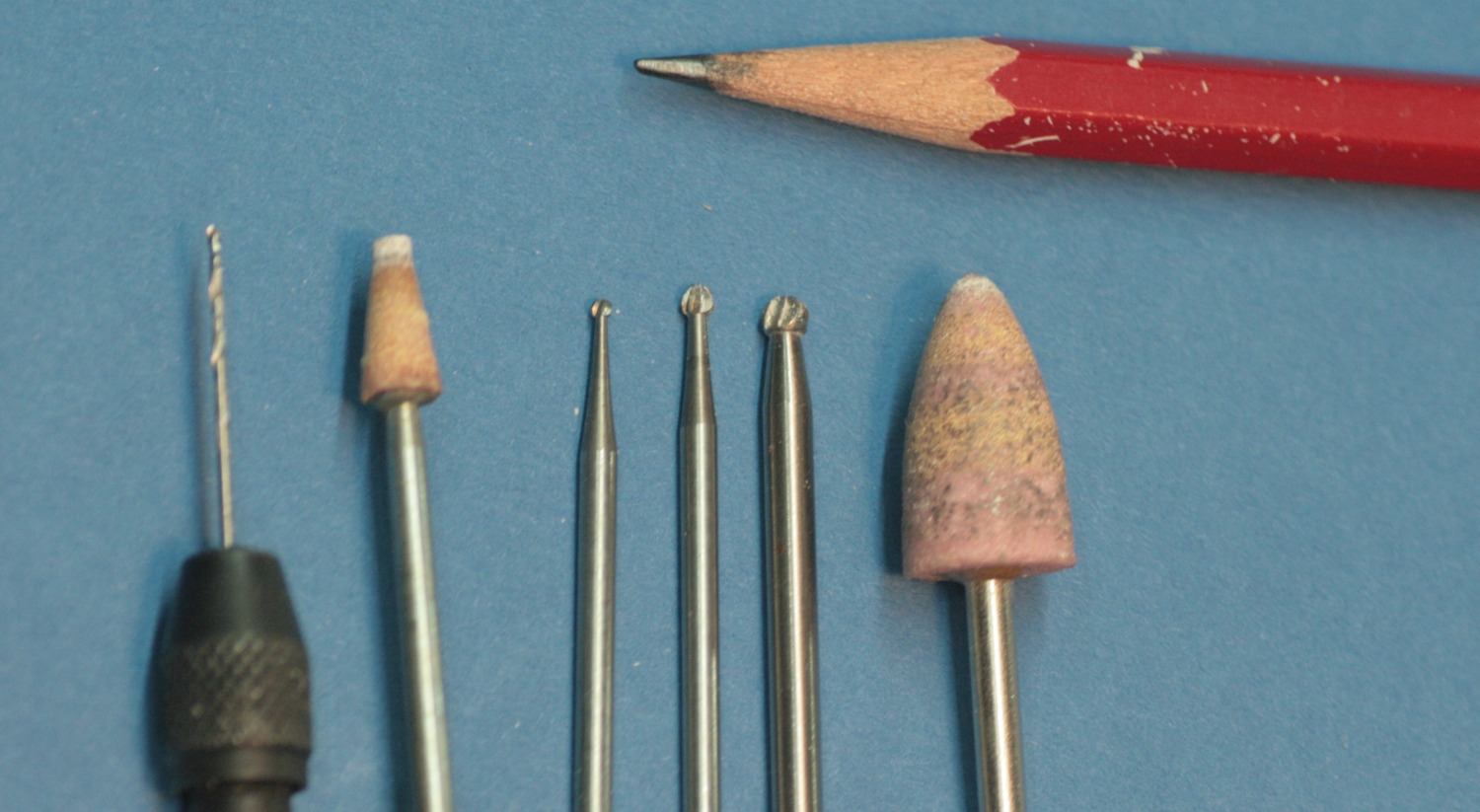

Tools used:

Attachment:
maginificent build pocess 014.jpg
maginificent build pocess 014.jpg [ 216.13 KiB | Viewed 3197 times ]



Attachment:
ancona finished new 025.jpg
ancona finished new 025.jpg [ 140.56 KiB | Viewed 3197 times ]


Attachment:
maginificent build pocess 002.jpg
maginificent build pocess 002.jpg [ 216.14 KiB | Viewed 3197 times ]


Attachment:
maginificent build pocess 011.jpg
maginificent build pocess 011.jpg [ 154.54 KiB | Viewed 3197 times ]


Attachment:
maginificent build pocess 007.jpg
maginificent build pocess 007.jpg [ 163.27 KiB | Viewed 3197 times ]

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 03, 2015 9:24 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 2987
Location: USA
Very much looking forward to this build. Great subject and world-class modeler!

_________________
Have fun, Monkey around.

-Steve Larsen

Complete catalog of over 1900 designs for scale modelers:
Gray resin - https://www.model-monkey.com/
Acrylic - https://modelmonkey.wixsite.com/modelmonkey


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 03, 2015 11:20 pm
Offline
User avatar

Joined: Mon May 14, 2012 12:18 pm
Posts: 1954
Location: Salt Lake City, USA
Love your work Jim! As usual I'm watching and learning...

_________________
-Jason Channell

Current Project: 1/200 HMS Hood


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 04, 2015 1:57 pm
Offline
User avatar

Joined: Thu Aug 27, 2009 11:05 am
Posts: 2197
Location: Paris France
HI Jim

I take a armchair ,ready for see your great lessons of model making :thumbs_up_1:
cheers
Nicolas

_________________
https://ladiagonaledubosco.blogspot.fr/


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 04, 2015 7:01 pm
Offline

Joined: Wed Aug 05, 2015 9:25 am
Posts: 2113
Location: Los Angeles and Houston
Yay!

Another 1/700 build.

I am almost kicking myself for not starting to build Pre-Dreadnaughts instead of WWII.

Considering that I use them for gaming, the Pre-Dreadnaughts would require less room for daylight battles (We need about 256 sq meters (16x16 - or, scale, 25miles by 25 miles) for a WWII game in the daylight, and about half that by night, or roughly, in scale, 10miles by 10 miles).

But the Pre-Dreadnaughts have a certain kind of charm as well. If by charm you mean chocking coal dust, scurvy, and ships that were barely seaworthy.

But they just look so cool (maybe it is that Steampunk is so in fashion these days).

MB

_________________
OMG LOOK! A signature

Working on:


1/700 (All Fall 1942):
HIJMS Nagara
HIJMS Aoba & Kinugasa
USS San Francisco
USS Helena
USS St. Louis
USS Laffey & Farenholt
HIJMS Sub-Chasers No. 4 - 7
HIJMS Sub-Chasers No. 13 - 16


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Dec 05, 2015 2:04 pm
Offline
User avatar

Joined: Tue Aug 18, 2009 11:02 am
Posts: 521
Location: Poland, Wroclaw
LE BOSCO wrote:
HI Jim

I take a armchair ,ready for see your great lessons of model making :thumbs_up_1:
cheers
Nicolas


If I may... taking next one... :smallsmile:

_________________
...in my shipyard...


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 06, 2015 5:06 am
Offline
User avatar

Joined: Wed Jan 12, 2005 3:28 am
Posts: 375
Location: alton hampshire uk
hi jim
just thought I'd point out that you don't do quick builds
cheers
gary r

_________________
a bad day sailing is better than a good day at the office


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 11, 2015 7:24 am
Offline

Joined: Wed Oct 11, 2006 5:46 am
Posts: 412
...awesome subject! Very well suited for your skills.
The Ancona wasn't a pretty ship, not your fault, you did your best, but when a ship is ugly is ugly no matter how good is the modeller :big_grin: :heh:

This new project, with black, white and yellow is much more actractive!

Looking forward for more progress...

Dino

_________________
http://lsa-space.blogspot.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Dec 11, 2015 11:38 am
Offline

Joined: Mon Jan 10, 2005 2:08 pm
Posts: 942
Let's see what you will make out of this particular sow's ear Jim :thumbs_up_1:

_________________
"On some great and glorious day the plain folks of the land will reach their heart's desire at last and the White House will be adorned by a downright moron." H. L. Mencken


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Dec 16, 2015 5:03 pm
Offline

Joined: Tue Jun 16, 2009 12:18 pm
Posts: 7
Taking a seat, Jim.


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 27, 2015 4:44 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4349
Location: Nr Southampton England
Thank you all for your interest...

there has been some considerable progress over the Christmas break

small steps--but important steps :cool_2: :thumbs_up_1:

I believe I may have solved what seemed to me to be an insurmountable problem with
this model- the sharp colour demarcation of the white/buff/white/black stripe

(my) masking and spraying did not seem to yield the crispness of edge line I sought

- I shall report back in next week when I get back from Germany with photos !

Best wishes and a happy New Year

Jim Baumann

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Dec 27, 2015 6:11 am
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2253
Location: Copenhagen
I am looking forward to your solution for this problem - a very typical one for models of Victorian ships.

Happy new year! Guten Rutsch!

_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 28, 2015 11:29 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4349
Location: Nr Southampton England
Ha! they have PC's in Germany... !! :big_grin: :cool_2:

having shot a few images before I left for Germany....

herwith some more recent progress....

The funnel base was of the correct shape and size; however the cowl edges and corners were damaged ( see photo below )and in any case the cowl was also a bit undersized....
The cowl was enlarged by means of the the application of thin copper wire using CA glue, snipped off in situ to the correct size with a blade onto a small metal block for a really clean corner

Attachment:
28.12.2015 278.JPG
28.12.2015 278.JPG [ 90.39 KiB | Viewed 2442 times ]


Attachment:
28.12.2015 281.JPG
28.12.2015 281.JPG [ 77.18 KiB | Viewed 2442 times ]


Once the wire had been cut and filed, the gaps were infilled with CA glue in a couple of coats

and paint has been applied and left to setttle it all started to look more promising !

Attachment:
28.12.2015 285.JPG
28.12.2015 285.JPG [ 89.09 KiB | Viewed 2442 times ]




More soon !

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 28, 2015 12:05 pm
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 2987
Location: USA
Fantastic! Thanks, yet again, Jim, for taking us all to school.

_________________
Have fun, Monkey around.

-Steve Larsen

Complete catalog of over 1900 designs for scale modelers:
Gray resin - https://www.model-monkey.com/
Acrylic - https://modelmonkey.wixsite.com/modelmonkey


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 28, 2015 12:37 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4349
Location: Nr Southampton England
( fighting with German keyboard and unfamiliar graphics program...! )

update continues..../

( in the meantime I had affixed the brass boat decks, installed the mounts for the QF guns, as well as made the new fwd and aft decks as well as added some structure and doors underneath

( more shortly when I can access my photos on my own PC )

Demarcation of fine lines in 1/700 ... alas I am not a patient masker or sprayer...

and my masking efforts in this scale to date have always been indifferent and unsatisfactory...

I wanted and needed to keep it sharp and well defined, so I went back to my favoured and well tried and tested TL decals striping in various colours

https://tl-modellbau.de/TL-Decals_1

I sharpened up the demarcation twixt the buff and the white all round... adding black and white striping decals where appropriate to gain straight lines .

Attachment:
28.12.2015 382.JPG
28.12.2015 382.JPG [ 228.87 KiB | Viewed 2425 times ]




Once the first runs of stripes were hard and dry I added the black stripe ( according to Burt and the painting on my wall at home :cool_2: ) though blue according to Brian King (?)

...thereafter I added a broader white stripe at the waterline

Attachment:
28.12.2015 374.JPG
28.12.2015 374.JPG [ 228.65 KiB | Viewed 2425 times ]


The entire hull top- sides of the ship were now varnished with matt clear varnish to give an inter-face 'twixt the various layers, so as to inhibit damage in handling and also to prevent softening of existing decals when the next layer went on to represent the underwater red

Attachment:
28.12.2015 381.JPG
28.12.2015 381.JPG [ 182.42 KiB | Viewed 2425 times ]


Attachment:
28.12.2015 385.JPG
28.12.2015 385.JPG [ 227.14 KiB | Viewed 2425 times ]


Attachment:
28.12.2015 384.JPG
28.12.2015 384.JPG [ 284.01 KiB | Viewed 2425 times ]




no more modelmaking for a week...spending the New Year in Germany

but then the project should gain momentum :cool_2: :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 28, 2015 1:23 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4349
Location: Nr Southampton England
This is a worthy read....

HMS HOOD 1893

viewtopic.php?f=59&t=66011&hilit=hood+bill&start=0


my chum Bill Livingstone has far more skill and patience than I with an airbrush

though it probably took him five times longer :wave_1: :big_grin: :big_grin: :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Dec 28, 2015 2:36 pm
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2253
Location: Copenhagen
I used similar decals stripes for the waterline of a Russian ship recently. Good idea to use it as demarcation line instead of masking tape!

(British-type keyboards are a pain - always hitting "y" instead of "z" ;) )

_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jan 01, 2016 5:59 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4349
Location: Nr Southampton England
Indeed Lars ! :wave_1:


I have also used the wider strips very effectivly for the clean and sharp demarcation of the buff/white on the
funnel sub-structures and also the cowl vents ´-

But the wider strips give not just simply a demaraction line,
but aso fill in most effectively the entire block in a verz satisfactory smooth and dense finish white all in one piece


More photos soon once back in the UK and at mz modelbench!

Happy new Year!
JIM B
