Today is the 75th anniversary of the sinking of H.M.S. Barham.
I deemed it appropriate to start this thread today as it will deal with the construction of this famous battleship.

It’s been quite some time since I last made an appearance here. I moved into a new home and it’s taken more time than anticipated to establish the circumstances suitable for building models.
Although still not completely furnished, I now have a separate room devoted to my hobby which is a great improvement over the conditions that prevailed in my previous one-room-flat. With considerably more room available now it is even possible to think about 1:350 scale construction…

This time however I still hold on to 1:700 scale. Many years ago I was fortunate enough to purchase a kit of H.M.S. Barham from Waveline. At that time it was among the best resin kits in 1:700 with delicate castings. On the other hand smaller parts were made of less than pleasant white metal and (in my example) no photoetch was included. Later I decided to depict her shortly before that fateful torpedo attack, accompanied by H.M.S. Valiant and H.M.S. Griffin.
In the meantime Trumpeter’s Version of Barham became available. It was inexpensive so I bought one and made up my mind to build this instead of the Waveline kit because the deck pattern of the latter is quite irregular. At last year’s Scale Modelworld show at Telford I had a chat with Jim Baumann about my plans and he persuaded me to have a go at WEM’s Barham which (being available) he generously sent me later.

Now I’m in the enviable position of possessing all three 1:700 versions of the ship.
Attachment:
mws6.jpg [ 194.86 KiB | Viewed 2923 times ]

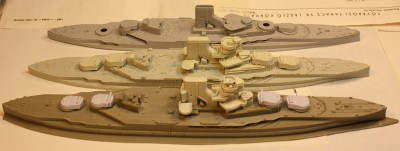

In the picture below from up to down the Trumpeter, Waveline and WEM versions (the latter with Admiralty Models main turrets) are shown.
Attachment:
mws1.jpg [ 145.63 KiB | Viewed 2923 times ]

Attachment:
mws2.jpg [ 140.35 KiB | Viewed 2923 times ]

Books and plans used for refence:
Attachment:
mws3.jpg [ 194.75 KiB | Viewed 2923 times ]

Photoetch sets from various manufacturers including WEM, Gold Medal Models, Artist Hobby, Flyhawk, Lion Roar,Starling Models, Five Star and Rainbow many of which will only supply one or two components and brass barrels from Master, (resin parts from Admiralty Modelworks also planned tu utilize not shown):
Attachment:
mws4.jpg [ 199.92 KiB | Viewed 2923 times ]

Prior to commencing construction I always make a plan summarizing the solutions chosen upon scrutinizing available sources. It’s an old fashioned hand drawn sequence with a text (for some strange tradition, myself being Hungarian) in English. It may look like a fool’s diary but proved extremely useful to keep myself organized and prevent me from missing anything out during the lengthy building process. This plan took me about a week to prepare (after working hours, in my free time).
Attachment:
mws4.jpg [ 199.92 KiB | Viewed 2923 times ]

While planning the construction I relied on the superb builds of Mike McCabe, Geonsup Yoon and, most notably on the lovely 1:350 scratchbuilt work of Dino Carancini. Thank you making accessible pictures of your excellent models!
The pictures were shot by my Canon EOS 450D camera and will be reduced in size to conform the rules of this forum.

I must warn anyone interested that this is going to be a really protracted build report – the amount of my free time has not increased so I will proceed slowly this time as well.

George Pék


Attachments:
mws5.jpg [ 191.57 KiB | Viewed 2923 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Nov 25, 2016 6:29 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 2:15 pm
Posts: 688
Location: Northants, UK
Popcorn at the ready :big_grin:


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Nov 25, 2016 7:12 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 6350
Location: In the hills of North Jersey
Your journal is incredible. No wonder your models are so precise. I will be watching this with great interest. I have a 1/2 built Waveline Barham on the shelf of doom. Good luck!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Nov 25, 2016 9:28 pm
Offline
User avatar

Joined: Tue Sep 25, 2012 8:11 am
Posts: 428
Location: Elyria, Ohio USA
Great subject. Looking forward to following this one :thumbs_up_1:

_________________
Just finished:
1/350 USS Samuel B Roberts FRAM I 1966

Current projects:
1/700 USS Baltimore late 1943
1/350 HMS Hood 1941


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Nov 26, 2016 4:07 pm
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 320
Location: Budapest, Hungary
Simon, Martin, Mike,
thank you for your interest in my work.

In fact I did the preparations and some preliminary work this spring in my old appartment but then had to wrap everything up and wait for some months to recommence the build at my new place.

The WEM kit has a large „plate” of resin cast on the underside perhaps to reinforce the hull and prevent it from warping – a phenomenon often seen in their models. This plate is supposed to be sanded off but I decided to to leave it there and sand it flush with the ship’s sides to gain extra freeboard which will allow me to position the model into rather than on the seascape.
The following pictures illustrate this process with the bulge’s fore end being sanded level with the hull.
Attachment:
mws7.jpg [ 72.04 KiB | Viewed 2775 times ]

Attachment:
mws8.jpg [ 76.71 KiB | Viewed 2775 times ]

Attachment:
mws1.jpg [ 113.66 KiB | Viewed 2775 times ]

Attachment:
mws2.jpg [ 101.67 KiB | Viewed 2775 times ]

Attachment:
mws3.jpg [ 92.34 KiB | Viewed 2775 times ]


Attachments:
mws8.jpg [ 76.71 KiB | Viewed 2775 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Nov 28, 2016 4:31 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4349
Location: Nr Southampton England

.... I decided to to leave it there and sand it flush with the ship’s sides to gain extra freeboard which will allow me to position the model into rather than on the seascape.....


what a good idea-- !

GREAT to see you commencing the build of Barham!--the methodical approach you have is admirable!...

Bravo and may you progress!

JIM B :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Nov 28, 2016 8:35 pm
Offline

Joined: Fri Nov 11, 2005 7:13 am
Posts: 223
Location: Lexington, MA
Awesome!!!!!

I've been drifting through a 1/350 (Academy) Warspite to Barham conversion since early spring this year and could do with some motivation....


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Dec 06, 2016 8:31 am
Offline

Joined: Tue Sep 17, 2013 12:16 pm
Posts: 287
This is going to be another stunning model George! Good start, and I see you have plenty of extras and bibliography to work with, but what blew me away is your notes... that looks sick (in a good way I mean). :wave_1:

_________________
CV-8: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=153851
DD-436: http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=157123
CVL-24 http://www.shipmodels.info/mws_forum/viewtopic.php?f=59&t=158455


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 29, 2016 9:26 am
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 320
Location: Budapest, Hungary
Thank you Jim, Richard and Eryck!


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 29, 2016 9:34 am
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 320
Location: Budapest, Hungary
An update at last.
Construction has been delayed by the delivery of my new modelling desk. Once installed it provides much improved working conditions, though.

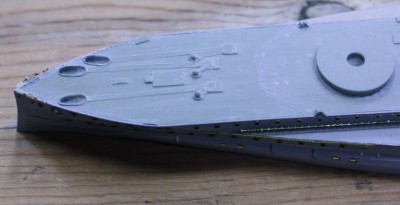

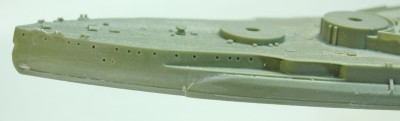

The ship’s hull has been screwed to my old temporary base. Portholes have been drilled out (perhaps too big, but these old dreadnoughts seem to have had larger portholes than later ships). The armour strakes were simulated by masking with strips of tape then applying coats of Mr. Surfacer.
Attachment:
mws1.jpg [ 78.85 KiB | Viewed 2184 times ]

Attachment:
mws2.jpg [ 100.7 KiB | Viewed 2184 times ]

I did not mask the decks but there was just a little overspray. The bulges have dozens of vents which are not present in the kit. Upon studying photographs I stated that these vents were flush with the surrounding plates, or even somewhat recessed. I put small rectangular pieces of masking tape the appropriate locations before spraying the primer and reinforced the outline with a pin after the primer had dried. It hasn’t turned out very regular and uniform in shape… If I knew then what was available, I wouldn’t have gone through all this.
Attachment:
mws3.jpg [ 62.92 KiB | Viewed 2184 times ]

Attachment:
mws4.jpg [ 82.81 KiB | Viewed 2184 times ]


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 29, 2016 10:04 am
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 320
Location: Budapest, Hungary

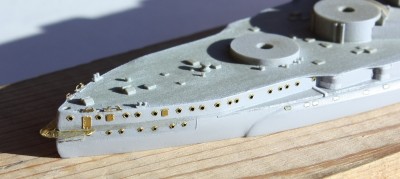

Next I added some details to the sides.
When Dino Carancini built his Barham there was a little debate here about the degaussing cable – it can be made out only in a few photographs from the last phase of the ships’s carreer. It seems to be present only in the fore part of the ship. Some people suggested that is is not appropriate to build a model like this as a degaussing cable is only effective when the ship is completely encircled by it. This is valid but the picures suggest otherwise. Anyway, I show this incomplete degaussing cable in my model and try to convince myself that under the circumstances of war the RN may not have had the opportunity to finish the installation of this device.
Attachment:
mws1.jpg [ 88.44 KiB | Viewed 2177 times ]

Attachment:
mws2.jpg [ 74.09 KiB | Viewed 2177 times ]

Attachment:
mws3.jpg [ 188.46 KiB | Viewed 2177 times ]

Attachment:
mws4.jpg [ 136.45 KiB | Viewed 2177 times ]

Attachment:
mws5.jpg [ 68.26 KiB | Viewed 2177 times ]

Attachment:
mws6.jpg [ 96.95 KiB | Viewed 2177 times ]

Attachment:
mws8.jpg [ 112.93 KiB | Viewed 2177 times ]

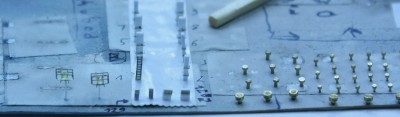

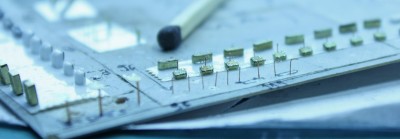

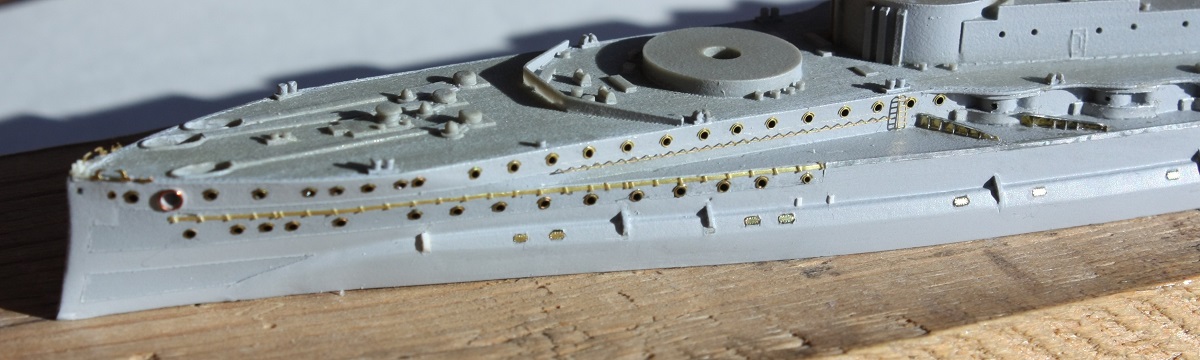

PE portholes of two different sizes have been used along with a variety of other details like strakes, grab rails, rectangular scuttles, etc. The sternwalk (strangley missing from the Profile Morskie drawings but even from the sources deemed more reliable like Raven & Roberts or the Shipcraft publication, whereas its presence is clearly evident in contemporary pictures) canopy is not fitted yet for easy of painting.
Attachment:
mws9.jpg [ 137.58 KiB | Viewed 2177 times ]

I realised almost too late one flaw of the WEM model: the casemate battery is set too deep inboard. I tried to alleviate this problem by gluing strips of aluminium to the armour plates below and above the cylinders from which the guns will protrude – it has got better, but is still not perfect.
Attachment:
mws7.jpg [ 95.8 KiB | Viewed 2177 times ]


Attachments:
mws10.jpg [ 90.88 KiB | Viewed 2177 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 29, 2016 10:10 am
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 320
Location: Budapest, Hungary

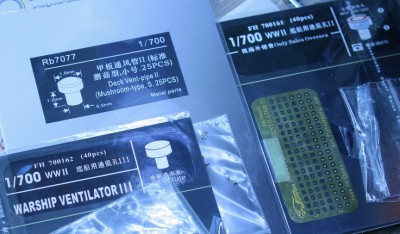

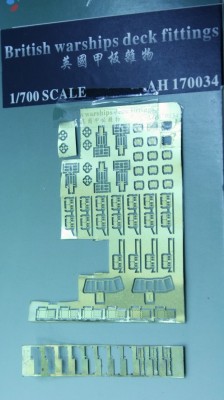

Well into the construction I was made aware of the existence of FlyHawk’s superset for the 1:700 Warspite
(
Attachment:
mws16.jpg [ 136.44 KiB | Viewed 2177 times ]

and Queen Elizabeth (sadly no Barham here) by Trumpeter - I didn’t hesitate to order both (my next ship will be Valiant, almost identical to QE at this time). Even in this early stage I could benefit from this marvellous set by utilising the finely etched blast covers for the bulge which improved my scratchbuilt ones tremendously.
Attachment:
mws15.jpg [ 121.46 KiB | Viewed 2177 times ]

Attachment:
mws10.jpg [ 90.88 KiB | Viewed 2177 times ]

Attachment:
mws11.jpg [ 98.68 KiB | Viewed 2177 times ]

Attachment:
mws12.jpg [ 155.51 KiB | Viewed 2177 times ]

Attachment:
mws13.jpg [ 164.88 KiB | Viewed 2177 times ]

Attachment:
mws14.jpg [ 188.11 KiB | Viewed 2177 times ]
Next I will cut almost everything off the main and forecastle decks and pour all the brass I have on them.


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 29, 2016 11:08 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4349
Location: Nr Southampton England
Wow--you have been busy! :thumbs_up_1:

The brass PE lids have tidied up the vents!

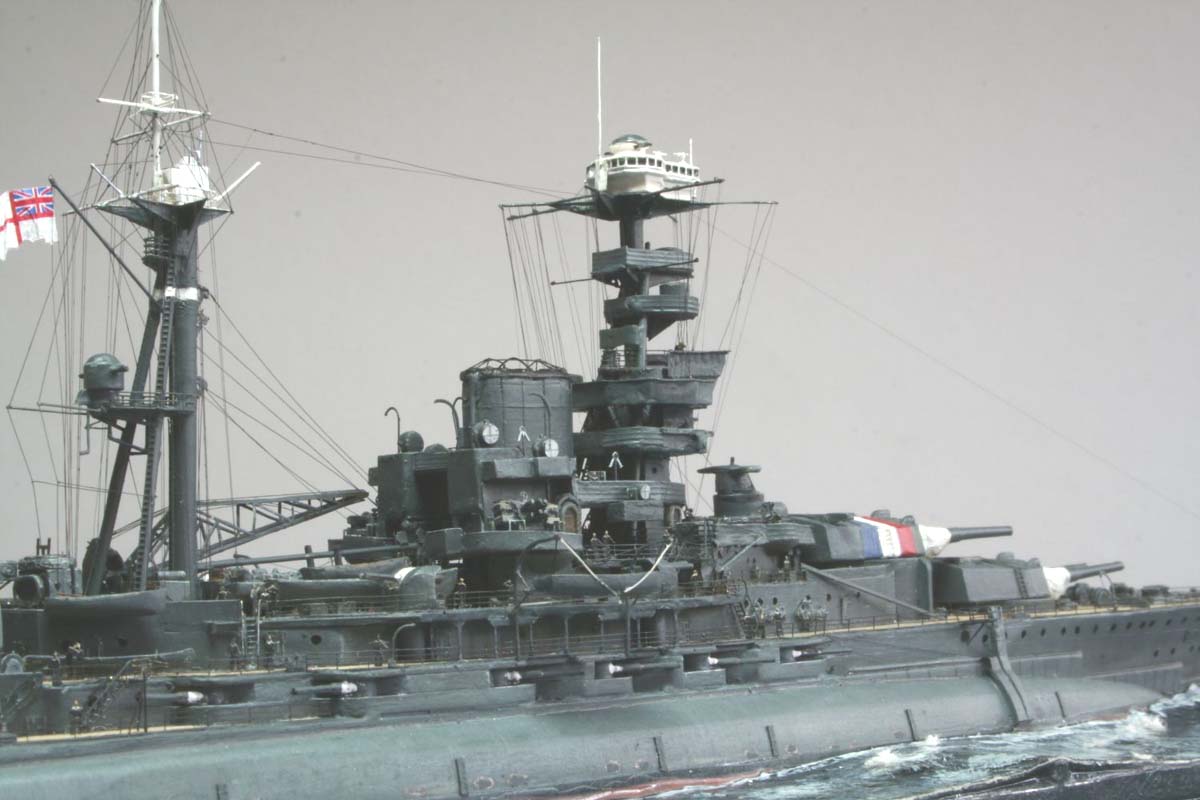

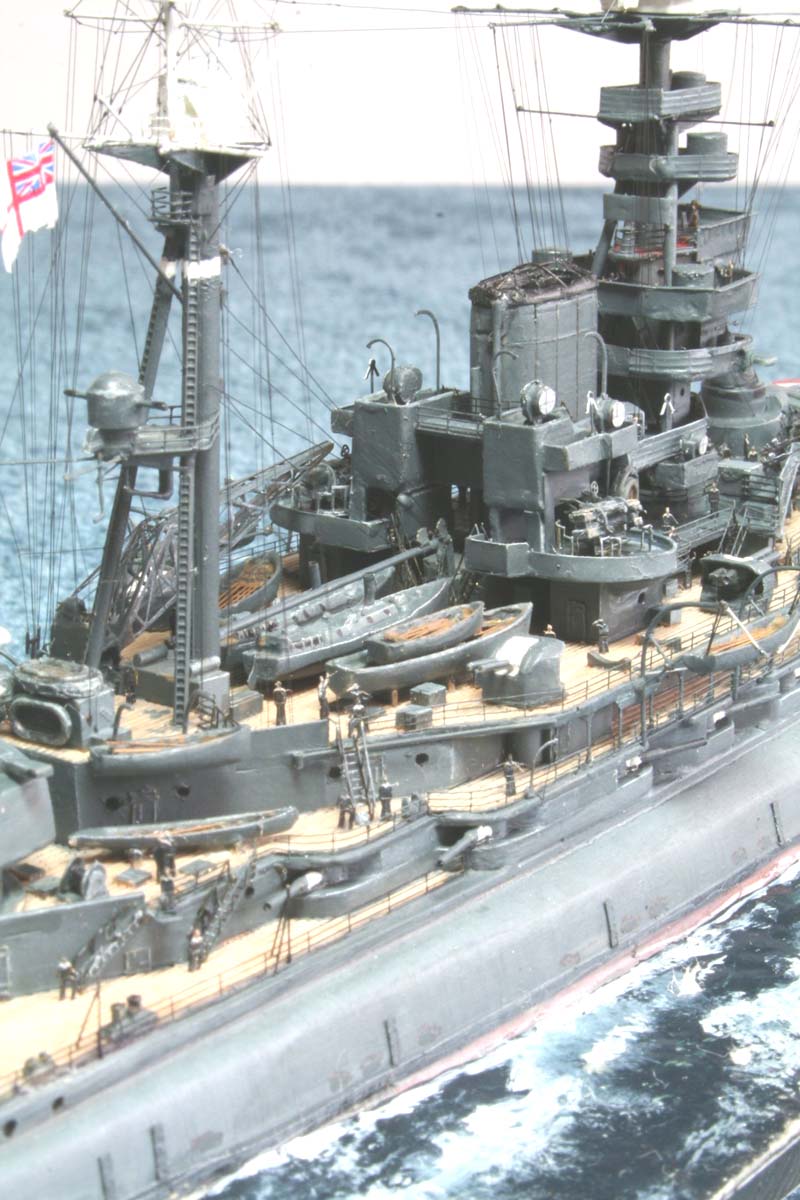

On my 1/700 Royal Oak build ( seems like eons back but a mere 13 tears ago! ) from the WSW base...
I also concluded the lids on the bulge were flush--
and I recall I suggested them with a paint tone differential outlined in pencil see images x 2 below

If I was going to do it again-
-I would make a small metal blade punch ( out of a strip stainless steel PE waste; edge sanded into a blade )
bent into suitable desired shape, then pressed into a blob of filler paste ( to stabilise the shape and make a handle)
and press this cutting punch( with a small hammer tap ) onto black or grey decal strip
==> apply the hatches as a decal and later paint over the whole lot
could work!?

JB



_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 29, 2016 2:50 pm
Offline
User avatar

Joined: Fri Jun 22, 2012 12:02 pm
Posts: 2098
Location: New Orleans, LA
I always love following your builds. I learn so much from the excellent work you put into these vessels.

_________________
- Chris


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 29, 2016 2:55 pm
Offline
User avatar

Joined: Thu Aug 27, 2009 11:05 am
Posts: 2197
Location: Paris France
as usual ..a great work :thumbs_up_1:
cheers
Nicolas

_________________
https://ladiagonaledubosco.blogspot.fr/


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Dec 29, 2016 5:17 pm
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 320
Location: Budapest, Hungary
Chris & Nicolas, thank you very much!
Jim, with hindsight I am glad that I initially made a shallow recess for those bulge vents. I also sanded down the backside of the PE covers. This way they don't really protrude from the surface surrounding them.
The method outlined in your post is truly ingenious - I am sure it works.
I have two Royal Oaks in my stash - one from WSW and one from Samek.
I will use your beautiful model as an inspiration when it comes to building them although I think they will be completed as other members of the R class.


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Jan 15, 2017 5:41 pm
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 320
Location: Budapest, Hungary
Some progress to report:
after almost everything has been shaved off the forecastle deck
Attachment:
mws1.jpg [ 175.35 KiB | Viewed 1918 times ]

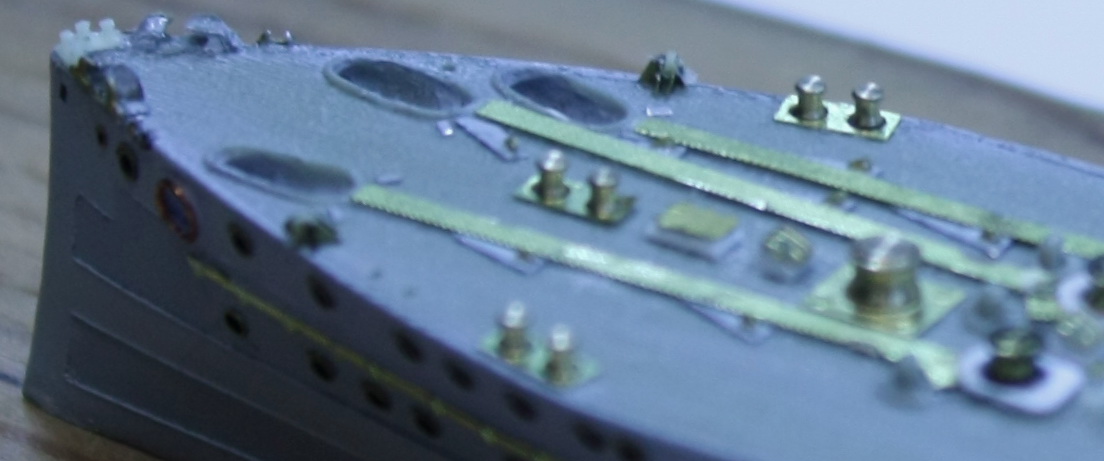

the ground tackle and the fittings surrounding it have been rebuilt using various detail sets and some scratchbuilt parts. The the rest of the forecastle deck and the quarterdeck will be treated similarly.
Attachment:
mws2.jpg [ 196.34 KiB | Viewed 1918 times ]

Attachment:
IMG_4648.JPG [ 120.9 KiB | Viewed 1918 times ]

Attachment:
IMG_4649.JPG [ 133.96 KiB | Viewed 1918 times ]


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Jan 15, 2017 10:55 pm
Offline
User avatar

Joined: Thu Jul 02, 2015 1:06 am
Posts: 965
Location: Bangkok, Thailand
Great project of a handsome ship! I'll be watching for more progress! :thumbs_up_1: :thumbs_up_1:

Aop

_________________
On the way:
--1/350 Tamiya DKM Tirpitz Nov 1944

--1/350 scratch-build HMS Lion never built battleship (1938)

And our artworks!


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun May 21, 2017 5:37 am
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 320
Location: Budapest, Hungary
It’s been a long time since I last posted an update. Alas I’ve been extremely busy with work and the progress I have made is moderate at best.

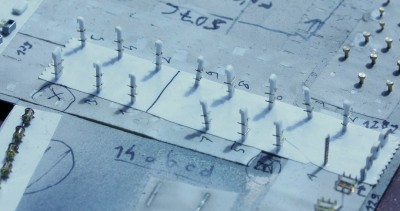

I carried on with the detailing of the deck fittings. Barham had less superstructure than the other members of the class (in their rebuilt configuration). Consequently there is quite a lot of equipment on the forecastle deck and quarterdeck. I tried to use the most accurate items of the photoetched details at my disposal. Unfortunately the state depicted (as sunk) is poorly documented (at least I was unable to unearth good quality photographs aside from a nice, high-res starboard view). On the other hand even the most respected plans contain errors. The only commercially available plan containing every detail to scratchbuild a 1:350 scale replica, the Profile Morskie booklet should be interpreted with caution. I adopted a policy of confirming every detail with other sources, correcting not- too- infrequent errors and only accepting info from that booklet when no picture or drawing from the detail in question was available (to me).

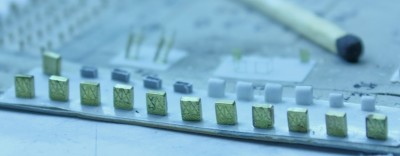

Thus I assembled eight washdeck lockers, 21 small and four large skylights plus two night lifebuoy casings from the Artist Hobby set of RN deck fittings which I found the most accurate and impressive of all that I had.
Attachment:
mws30.jpg [ 168.97 KiB | Viewed 1556 times ]

I glued them along with a total of 82 mushroom vents of three sizes from two manufacturers (FyHawk and Rainbow)
Attachment:
mws31.jpg [ 177.92 KiB | Viewed 1556 times ]

to two pieces of cardboard for the two camouflage colours (AP 507B and C) to make pre-assembly painting convenient.
Attachment:
mws9.jpg [ 153.13 KiB | Viewed 1556 times ]

Attachment:
mws10.jpg [ 148.9 KiB | Viewed 1556 times ]

Attachment:
mws11.jpg [ 108.39 KiB | Viewed 1556 times ]

Attachment:
mws13.jpg [ 113.21 KiB | Viewed 1556 times ]

The quarterdeck skylights in various stages of assembly:
Attachment:
mws 6.jpg
mws 6.jpg [ 199.02 KiB | Viewed 1556 times ]

Attachment:
mws7.jpg [ 197.93 KiB | Viewed 1556 times ]

There are 14 four inch ammunition lockers - these were folded to shape using the Lion Roar caisson and store box set with very nice relief etched front plate.
Attachment:
mws12.jpg [ 111.89 KiB | Viewed 1556 times ]

11 cable reels were also prepared for later assembly – I attached handles to them cut from pieces of railing.
Attachment:
mws2.jpg [ 186.24 KiB | Viewed 1556 times ]


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun May 21, 2017 5:44 am
Offline
User avatar

Joined: Sun Oct 12, 2008 3:55 am
Posts: 320
Location: Budapest, Hungary
Of course not every deck detail is available from aftermarket manufacturers – there is still room for scratchbuilding. A good example for this is the variety of tall vents surrounding barbette B and X. The moulded-on vents were cut off the barbettes, then new ones have been fabricated from Evergreen strips, laminated, sanded to shape and provided with bracing cut from 1:700 and 1:600 railing.
Attachment:
mws1.jpg [ 190.76 KiB | Viewed 1552 times ]

Attachment:
mws40.jpg [ 184.73 KiB | Viewed 1552 times ]

The tiny vents were somewhat difficult to handle.
Attachment:
IMG_4652.JPG [ 96.93 KiB | Viewed 1552 times ]

I similarly scratchbuilt 12 short vents which will be located on the after part of the forecastle deck.


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 101 posts ]  Go to page 1, 2, 3, 4, 5, 6  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: NGaged and 10 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
Powered by phpBB® Forum Software © phpBB Group
