 Post subject: 1/700 Victorieuse
PostPosted: Sun Jan 07, 2018 4:29 pm
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1000
New year, new online build. Doggy Industries Triomphante was one of last years' more interesting new kits and as I have wanted to do a battleship of one of the colonial powers for a long time I have put this one to the top of the to-build pile. The kit looks really nice out of the box and as I found some very good pictures of Victorieuse in a white and buff scheme I decided to build her as her older sister.
After looking at a lot of 19th century pictures and drawings I have decided to respectfully disagree with Abdur about the shape of the poop deck and made my own version in evergreen 2020.
Attachment:
poopandgallery.JPG [ 148.21 KiB | Viewed 1017 times ]

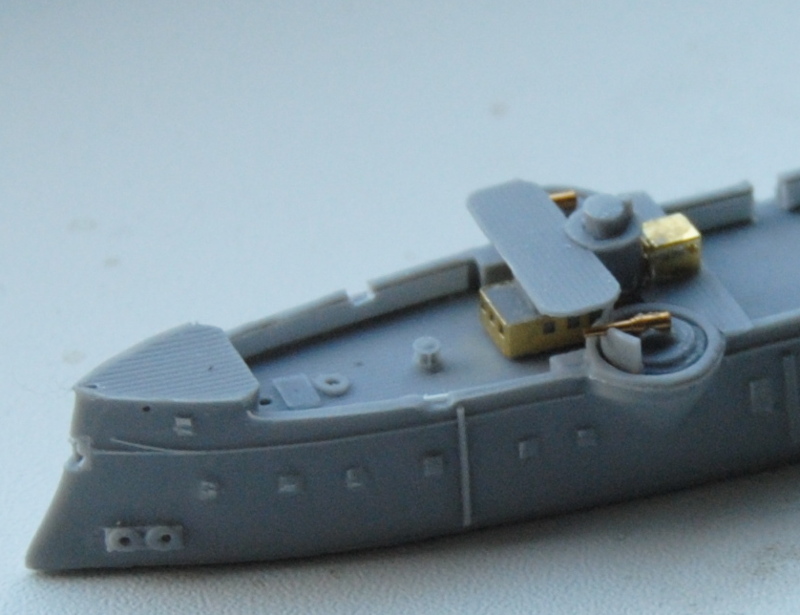

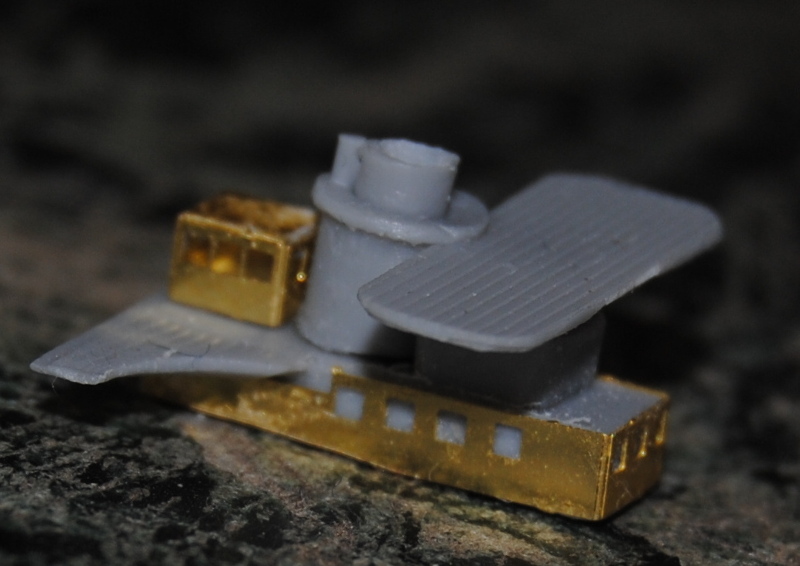

I also did a quick build of the bridge and funnel combination. All resin and PE parts fit very well.
I did lower the funnel as I want to put her under sail with the funnel retracted.
Attachment:
superstructure1.JPG [ 125.09 KiB | Viewed 1017 times ]

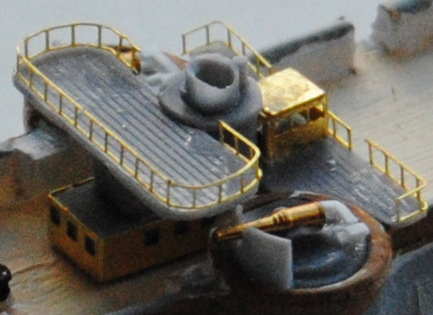

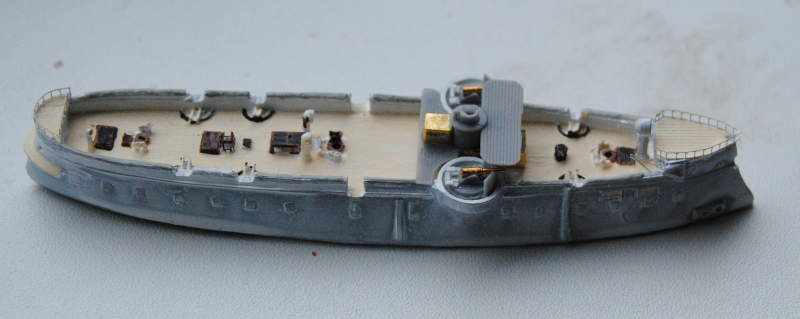

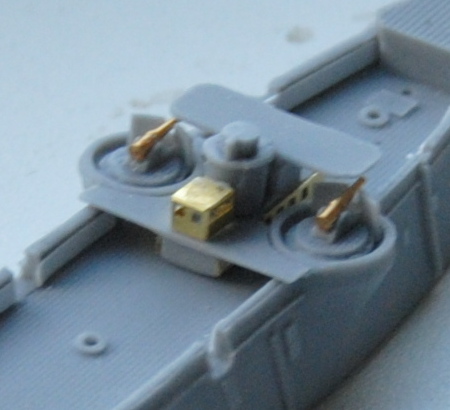

And the upper deck main guns were assembled. Everything is still loose in these pictures, I want to add some more detail later.
Attachment:
bridgandguns1.JPG [ 129.67 KiB | Viewed 1017 times ]

Attachment:
bridgeandgunsb.JPG [ 62.07 KiB | Viewed 1017 times ]

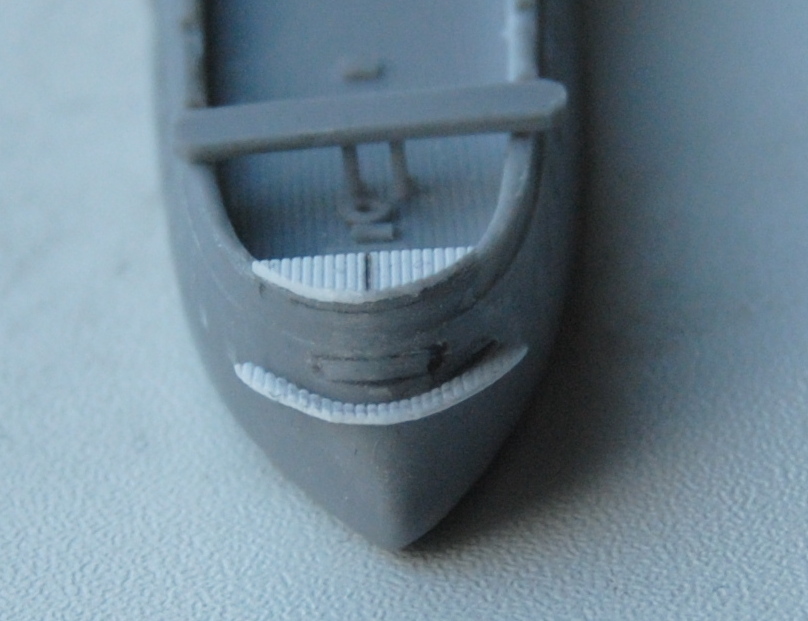

The hull was given some extra detail around the masts. All pictures I have seen of french battleships of the period show lots of heavy rope around the masts and this was made out of speaker wire.
Attachment:
ropesandvents.JPG [ 40.84 KiB | Viewed 1017 times ]

Attachment:
sideview1.JPG [ 85.5 KiB | Viewed 1017 times ]

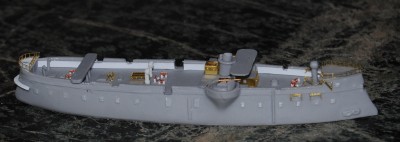

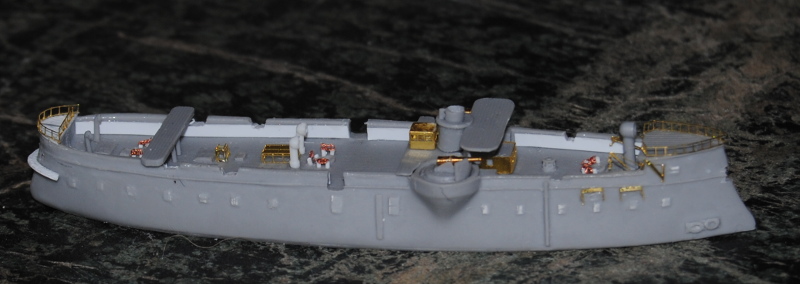

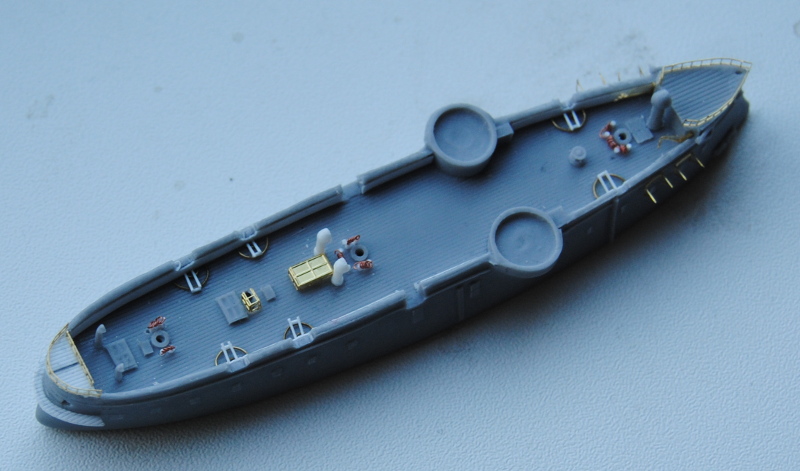

And to round off a weekends' work I added the bases for the main deck secondary guns and sent Victorieuse away for a coat of primer.
Attachment:
secondaryguns1.JPG [ 132.96 KiB | Viewed 1017 times ]

Attachment:
secondaryguns2.JPG [ 30.22 KiB | Viewed 1017 times ]


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Tue Jan 09, 2018 2:06 am
Offline
User avatar

Joined: Mon Jan 10, 2005 5:30 pm
Posts: 4332
Location: Nr Southampton England
small query--as its not yet too late

I might be wrong...

but

The funnel--I think --should be Vertical

not Forward raked (as it seems) the kit item might be ..

Attachment:
Victorieuse.jpg [ 331.56 KiB | Viewed 916 times ]


Hope to help---- just in time... :smallsmile: :wave_1:


Very best wishes

Jim B :wave_1:

_________________
....I buy them at three times the speed I build 'em.... will I live long enough to empty my stash...?
http://www.modelshipgallery.com/gallery ... index.html

IPMS UK SIG (special interest group) www.finewaterline.com


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Tue Jan 09, 2018 6:57 am
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1000
Hi Jim,
thanks for pointing that one out. The kit funnel is perfectly straight, the superstructure was placed loosely on the hull for the photo shoot however so it appears to be somewhat mis aligned .
The picture you are posting BTW is the picture I'm using as my 'primary' reference, I love the color scheme of Victorieuse at that point in her history. It does mean I will have to make some changes to the rig when it gets to that part of the build. This is still somewhat in the future though. I have started reworking the upper deck main guns last night, will try and post pictures later.


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Thu Jan 11, 2018 12:44 pm
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2212
Location: Copenhagen
Interesting!

I want to built that kit too. Do you found photos of the stern?

_________________


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Fri Jan 12, 2018 1:00 pm
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1000
Hi maxim,
I did find some pictures of the stern, not of the highest quality though. pm me if you're interested. One thing is really clear, La Gallisoniere can not be built from this kit.


Last edited by Pieter on Sat Jan 20, 2018 7:42 am, edited 2 times in total.

Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Fri Jan 12, 2018 10:56 pm
Offline

Joined: Sat Jul 05, 2014 1:27 pm
Posts: 66
Location: Caumont-sur-Durance, France
Pieter

You are correct. The original design for the three corvettes cuirassées of the La Galissonnière class was by Camille Audenet but the design for the two final ships of the class, Victorieuse and Triomphante, was modified by Sabatier during their extended construction period, so they should be considered only half sisters to La Galissonnière.


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Sun Jan 14, 2018 12:44 pm
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1000
Hi Maurice, thanks for the comment. If you have any more information about the design and construction of the ships, especially the rigging, that would be most welcome. So far I'm stuck with the very basic sketch on http://dossiersmarine.org/c-c.htm


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Mon Jan 15, 2018 6:56 am
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1000

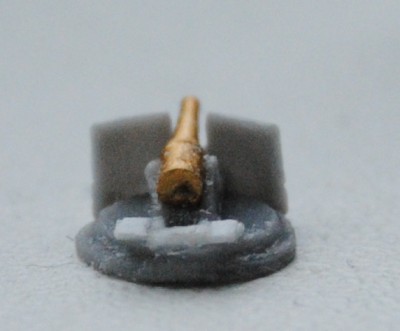

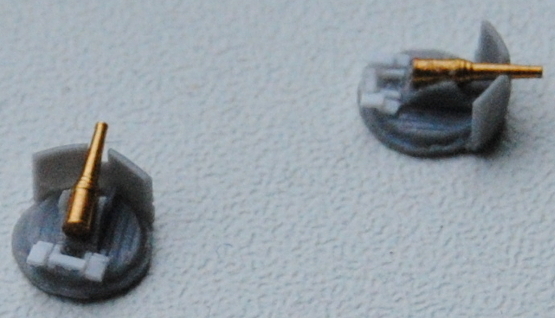

Not much progress to report as the sun came out this weekend . Haven't seen that here for a while.
Anyway, the main guns have now gained their working platforms in .3mm styrene.
Attachment:
mainguns1.JPG [ 126.31 KiB | Viewed 598 times ]

Attachment:
maingun3.JPG [ 76.5 KiB | Viewed 598 times ]

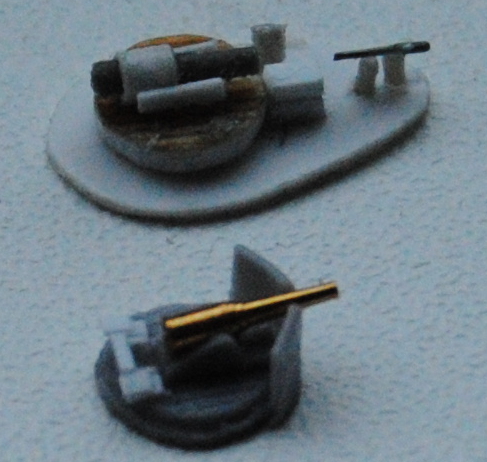

And I took the opportunity to compare these BL guns with the much more complicated muzzle loaders from the other side of the channel.
Attachment:
maingunscompared.JPG [ 130.13 KiB | Viewed 598 times ]

Meanwhile the first paint is on the deck. Still needs a lot of work.
Attachment:
firstpaint.JPG [ 211.13 KiB | Viewed 598 times ]


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Wed Jan 17, 2018 4:36 am
Online

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1271
Location: Belgium
Very interesting subject, and great work so far! :thumbs_up_1:

Cheers,

Marijn


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Thu Jan 18, 2018 8:50 pm
Offline
User avatar

Joined: Mon Jan 05, 2009 12:53 am
Posts: 37
Location: Beijing,China
Very happy to see that. Great work. :woo_hoo:

_________________
My own fleet...


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Fri Jan 19, 2018 12:22 am
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2212
Location: Copenhagen
@ Abdur: do you plan another of the French ship of the Sino-French War? E.g. the Alma class?

_________________


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Fri Jan 19, 2018 7:21 pm
Offline
User avatar

Joined: Mon Jan 05, 2009 12:53 am
Posts: 37
Location: Beijing,China
Two cruisers are on their way. :big_grin:

_________________
My own fleet...


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Sat Jan 20, 2018 3:17 am
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2212
Location: Copenhagen
Cool! :woo_hoo:

_________________


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Sat Jan 20, 2018 7:39 am
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1000
Hi Abdur, nice to see you around and I hope you can live with my efforts at resin surgery.
A few things have happened.

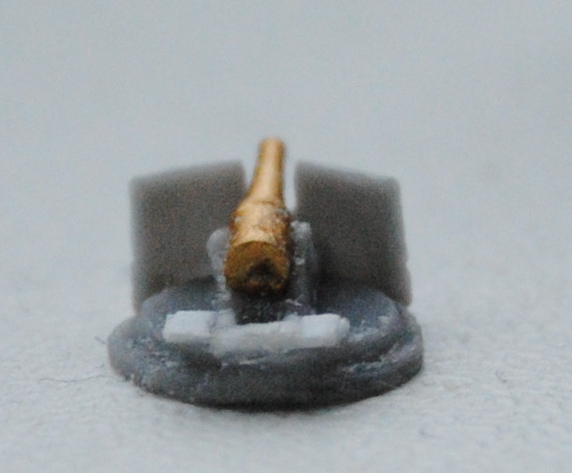

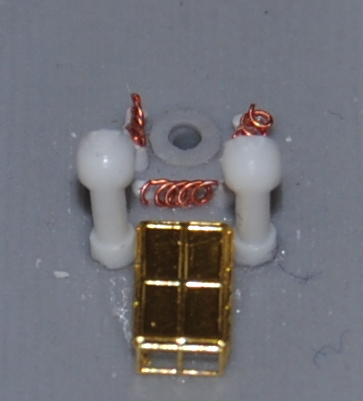

I have made the 134mm secondary guns out of some massively over scale 3"guns from the spare box.
Attachment:
secondaries.JPG [ 9.5 KiB | Viewed 404 times ]

The bridges and guns have been railed and are ready for their first coat of paint.
Attachment:
bridgereadyforpaint.JPG [ 115.23 KiB | Viewed 404 times ]

Attachment:
overview.JPG [ 111.45 KiB | Viewed 404 times ]

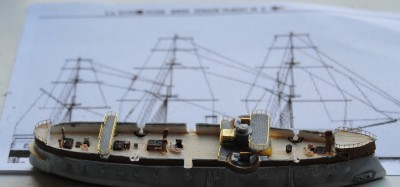

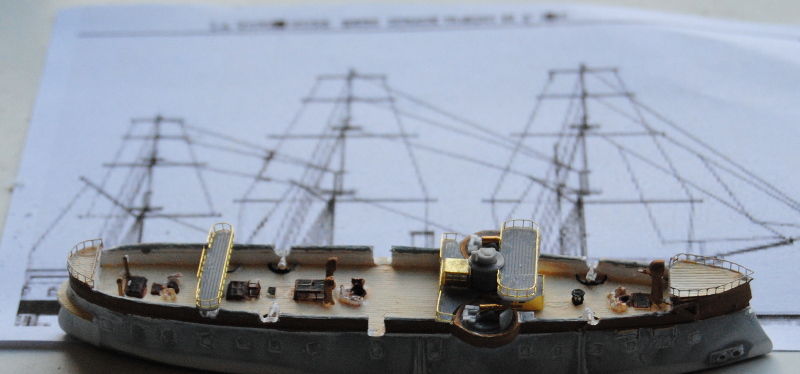

And as you can see here I will start working on the masts and bowsprit from the very basic sketch that I managed to find while the bridges are going through the paint and repaint process.
Once the masts are ready I can choose a base and actually start painting the hull. White paint does not take handling very well so i have postponed that until Victorieuse is almost on its base.


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Sat Jan 20, 2018 10:48 am
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2212
Location: Copenhagen
Interesting details - good to see them to support the few photos of the real ships.

_________________


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Sat Jan 20, 2018 12:41 pm
Offline
User avatar

Joined: Fri Apr 08, 2005 9:41 am
Posts: 2043
Location: Monson, MA.
Looking good! :thumbs_up_1: :thumbs_up_1:




Bob Pink. :wave_1:


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Sat Jan 20, 2018 1:52 pm
Offline
User avatar

Joined: Thu Dec 28, 2017 10:48 am
Posts: 110
great work and in such a small scale too.....love the subject too...

Pete


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Mon Jan 22, 2018 10:45 am
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1000
Thanks Pete and Bob.


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Wed Jan 31, 2018 5:53 am
Offline

Joined: Sat Sep 17, 2005 9:19 am
Posts: 1000

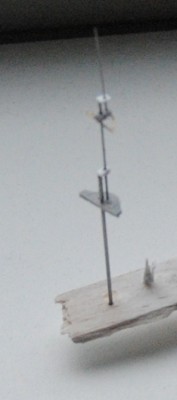

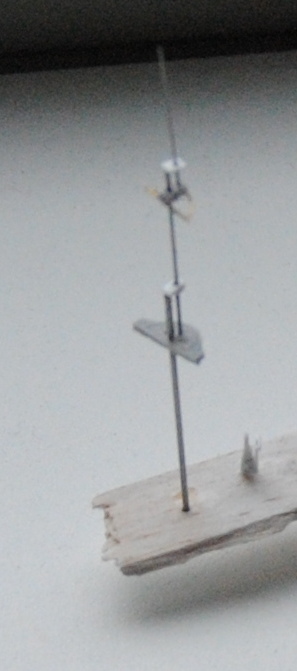

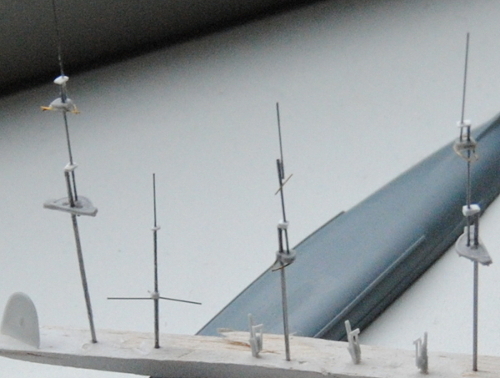

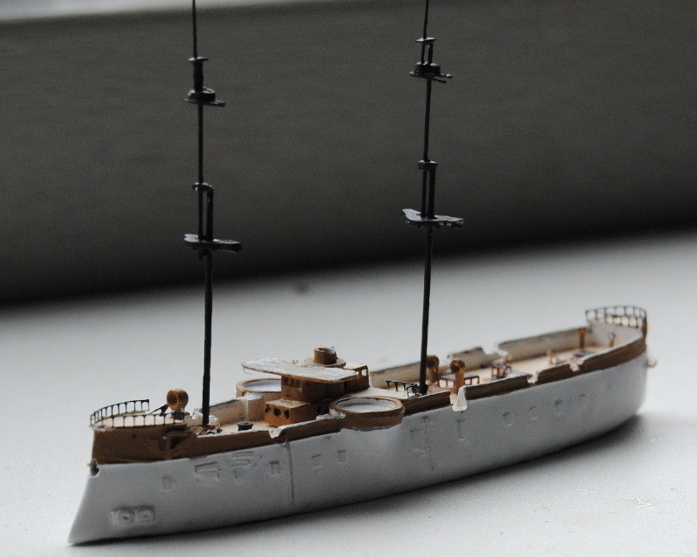

A few things have happened over the past week. I have started to build up the masts. Even tough I am trying to use as much parts as possible from the original kit making masts out of the plastic rod included in the kit is a very bad idea as the masts will have to take rigging. So I have built them up in different thicknesses of stainless steel rod and built out and strengthened the platforms in brass rod.
Attachment:
masts1.JPG [ 138.37 KiB | Viewed 271 times ]

Attachment:
masts2.JPG [ 52.42 KiB | Viewed 271 times ]

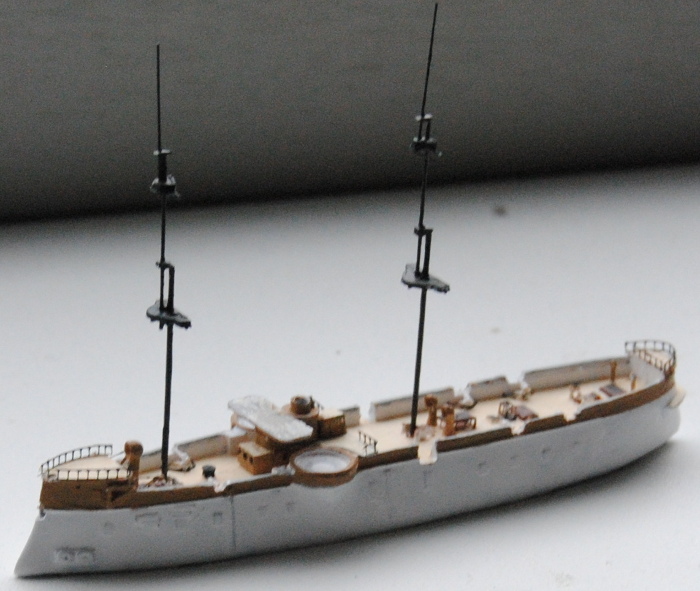

And as I will be mounting her on a base shortly I have put the first layers of white paint to the hull. The masts in the picture are still not glued on and will remain so until the hull is screwed down.
Attachment:
hullwhite1.JPG [ 139.55 KiB | Viewed 271 times ]

Attachment:
hullwhite2.JPG [ 145.54 KiB | Viewed 271 times ]


Report this post
Top
 Profile
Reply with quote
 Post subject: Re: 1/700 Victorieuse
PostPosted: Wed Jan 31, 2018 12:24 pm
Offline

Joined: Tue Jun 14, 2005 6:23 am
Posts: 2212
Location: Copenhagen
How do you made the connections between the different parts of the masts? Are these small plastic parts?

_________________


Report this post
Top
 Profile
Reply with quote
