Hello everyone!

Oh, it was a really long time me being away from MW Forum but now I am back with another great but also common model.

I am planning to build USS Arizona in 1/200 scale with full hull from time just before the attack on Pearl Harbour. In Trumpeter set I will combine two aftermarket sets with detailing parts - Big Ed (7 joined sets of PE parts from Eduard) and dedicated Mk1 Design set.

I hope You will not be bored with another Arizona build ;)

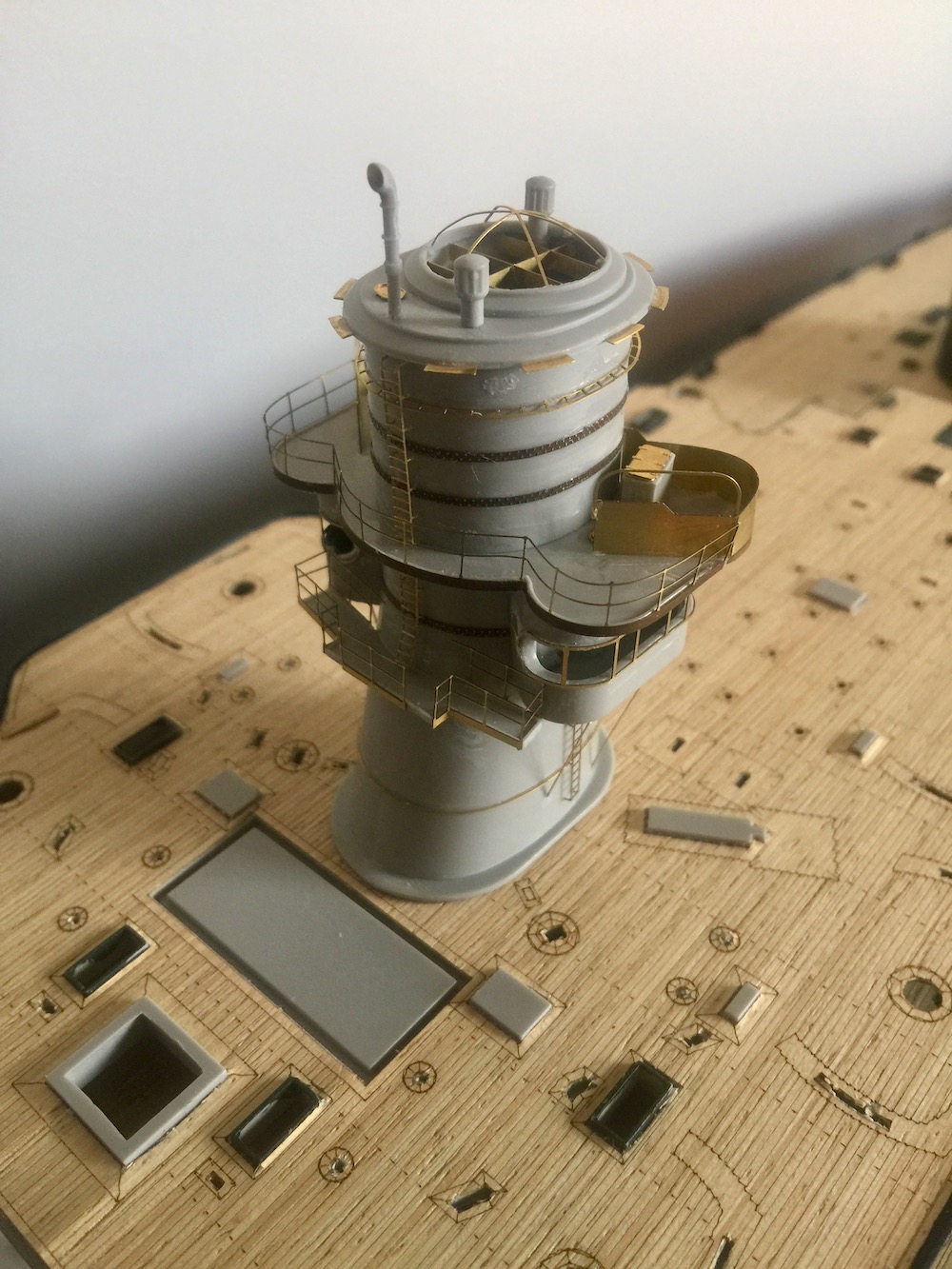

So, this is how it looks at the bench:


I always like to start with structure elements leaving hull for later phases of the build, so I have started with the funnel. Of course, it needs some more small corrections but it is there for now:
