one short month or so later....
there has been some tangible progress.... in small bites albeit--
but I am making the methods and solutions up as I go along....

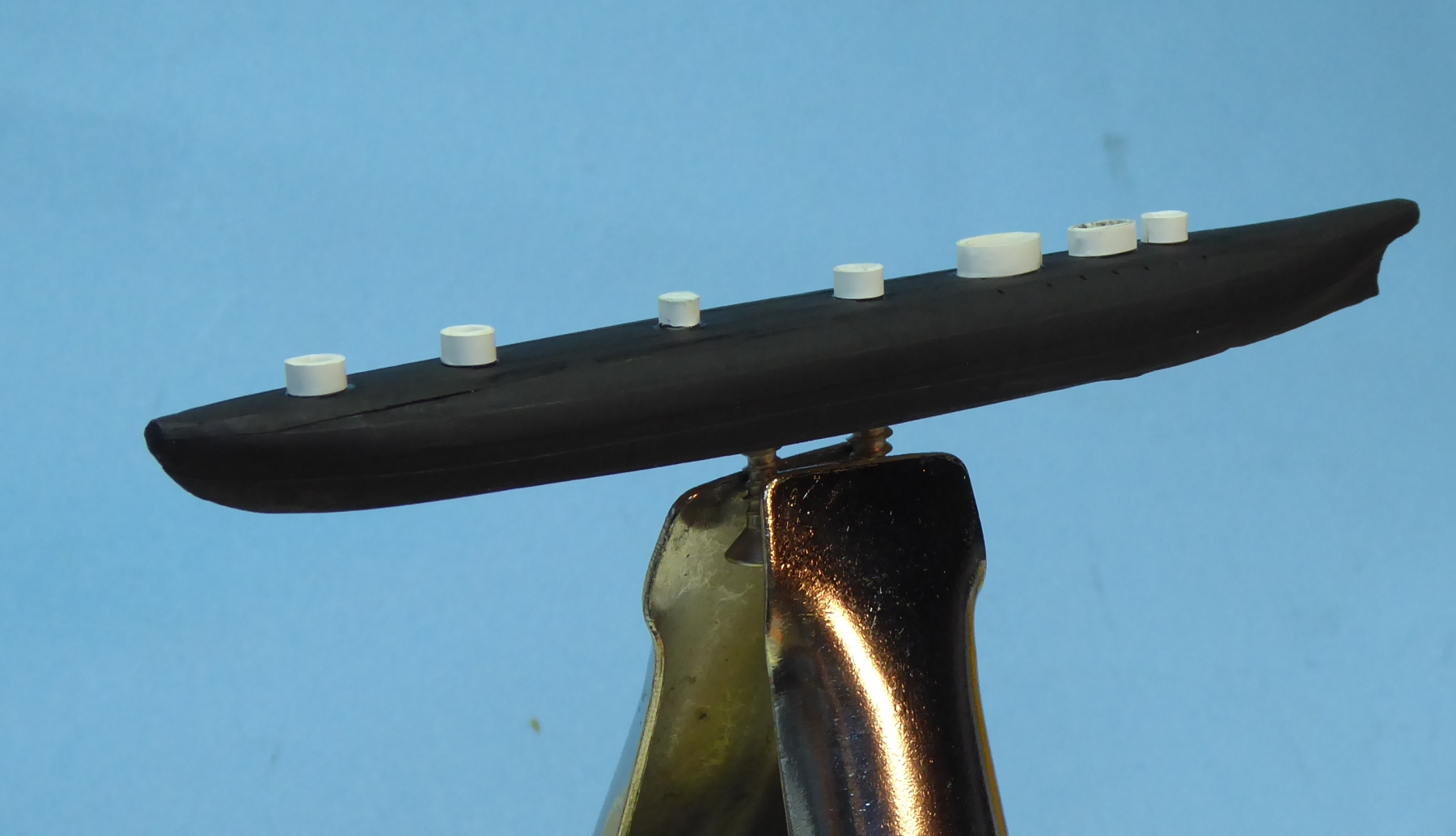

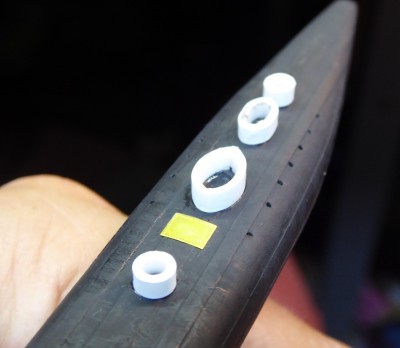

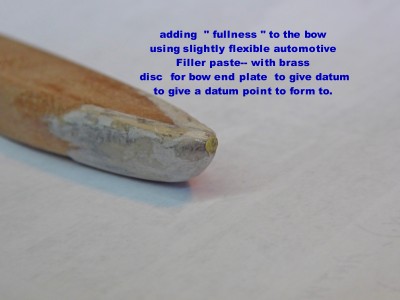

I created the various turrets of ( 15 year old!) styrene tubing of various diameters
==> in the hope that it was stable and had stopped out gassing !
The oval turrets were made by compressing the
in-hot-water pre-heated tubing
and then cooled in a mini-vice ( everything is mini on this ship! )
Attachment:
P1010991.jpg [ 663.7 KiB | Viewed 2207 times ]
Attachment:
P1010967.jpg [ 566 KiB | Viewed 2207 times ]
Attachment:
P1010970.jpg [ 952.45 KiB | Viewed 2207 times ]

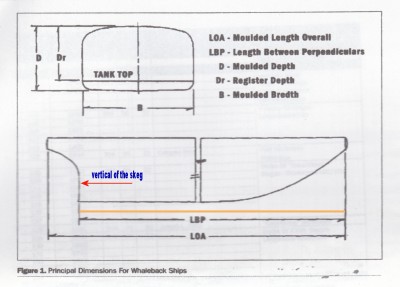

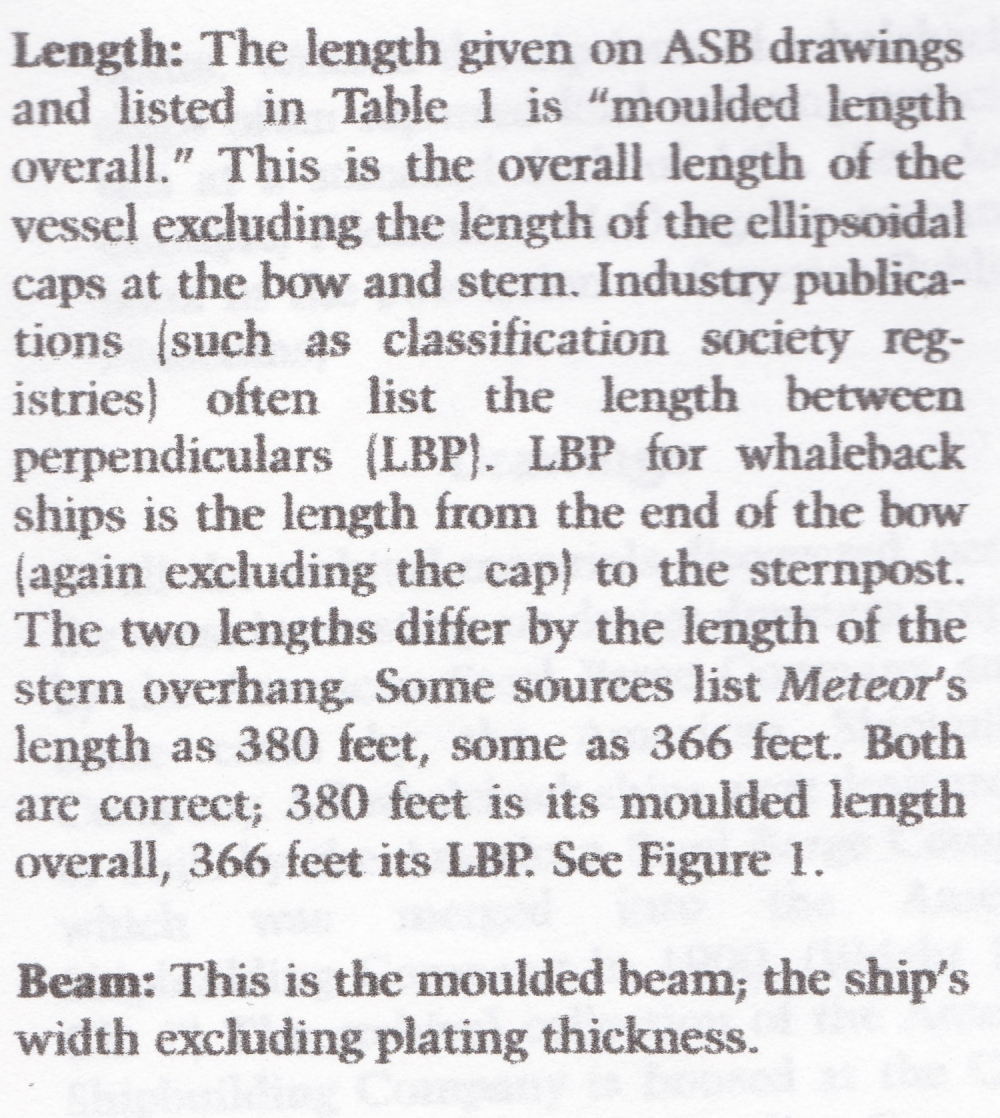

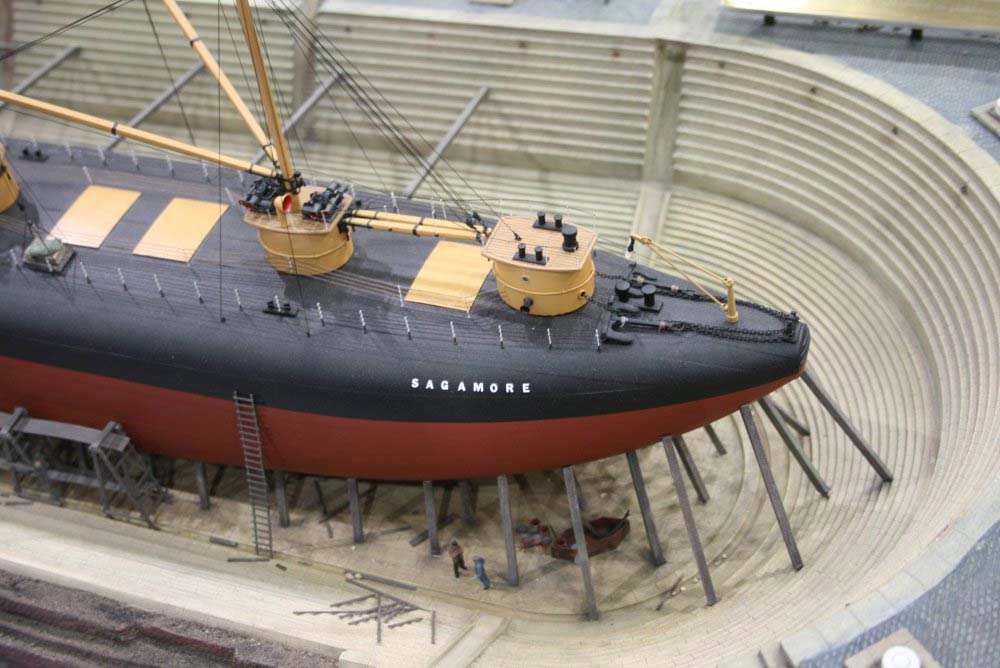

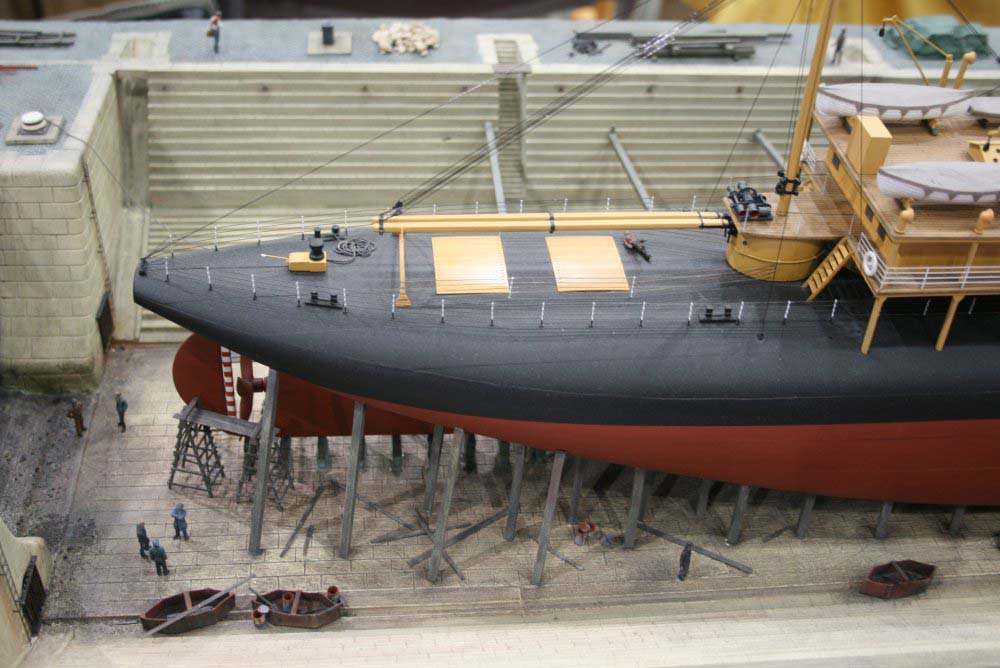

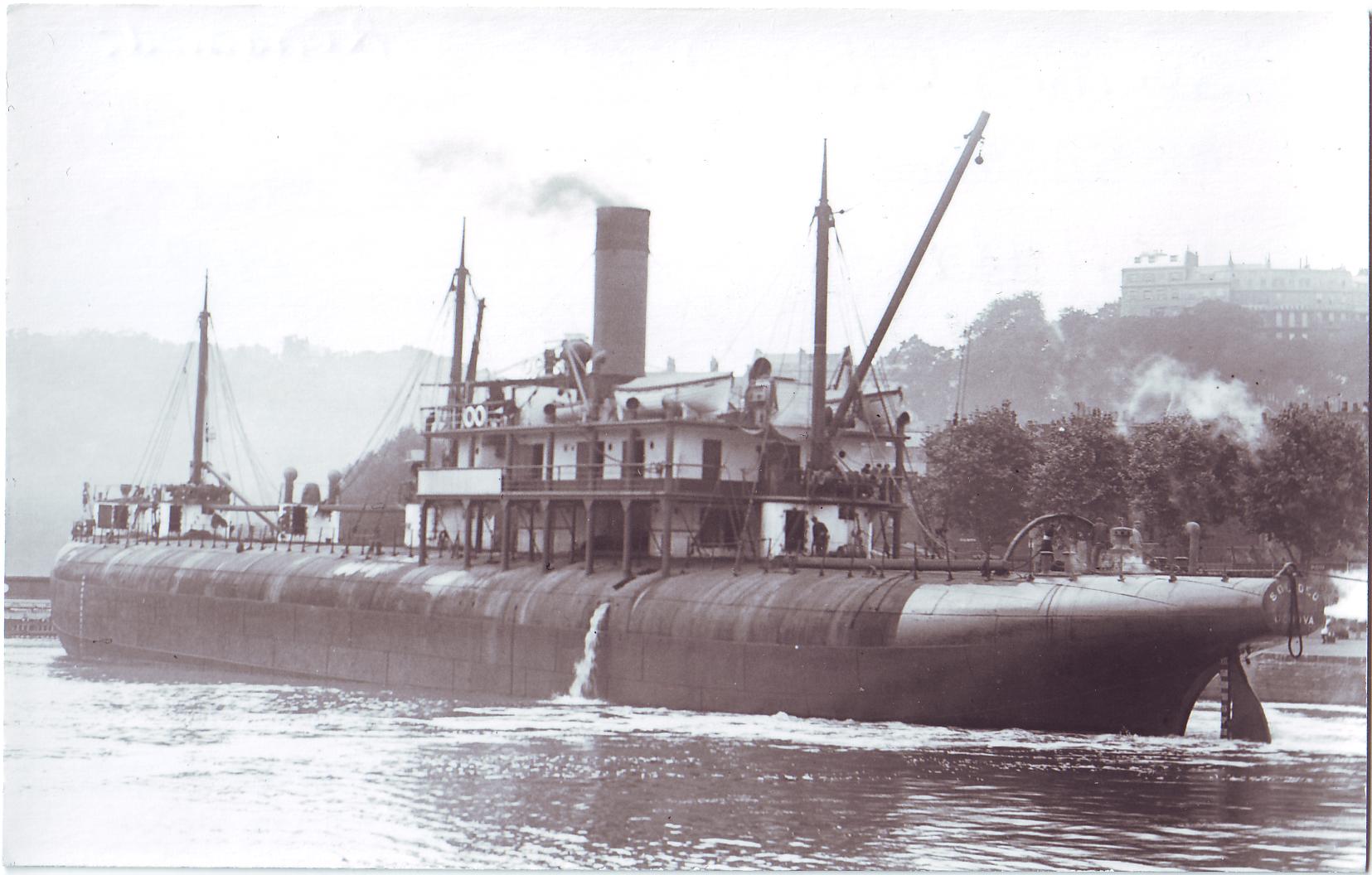

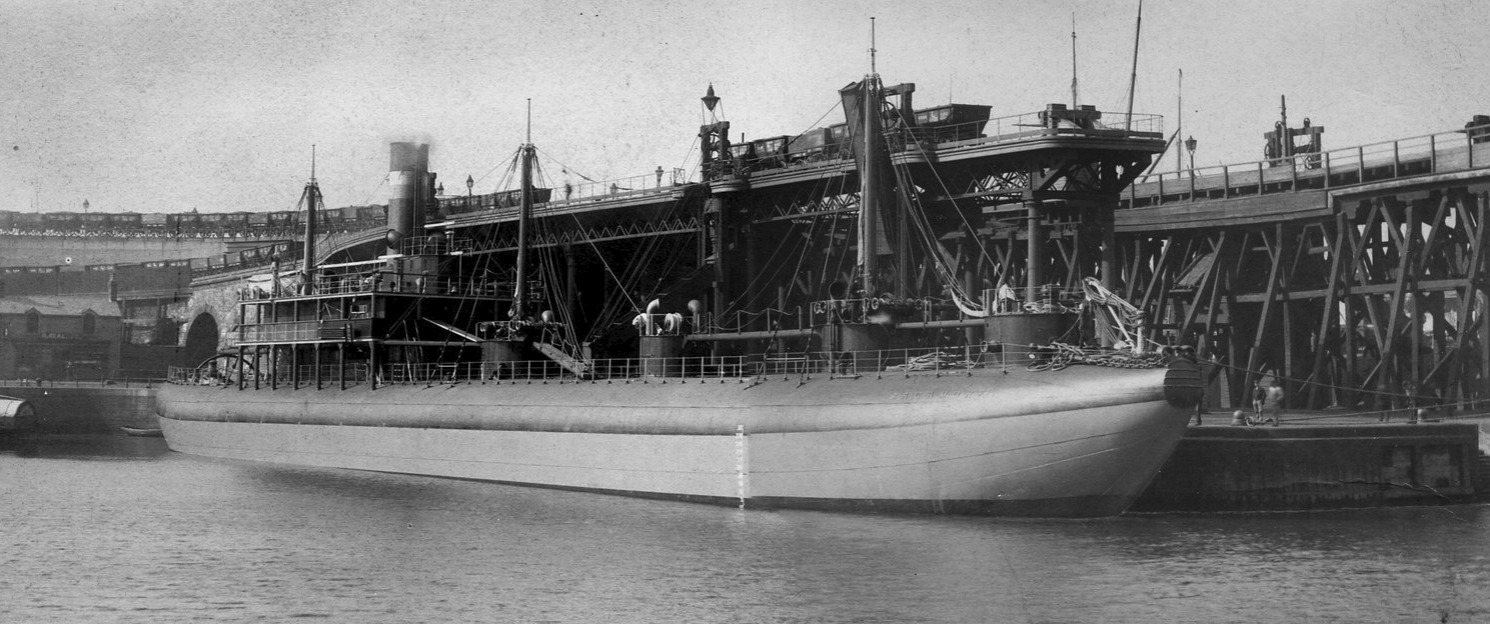

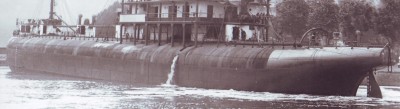

the hatches on whalebacks --on the real ship-
unlike the usual practice-
of raised coamings, timber , canvas coverings secured by battens with hammered in wooden wedges....
No Siree !
--that would interfere with clean discharge of any water on the decks....
nope - on these ' wet-deck' ships of minimal resistance-- ....
The hatches were near-Flush
bolted down hatches of steelplate !!
rendering these in miniature was a potential challenge

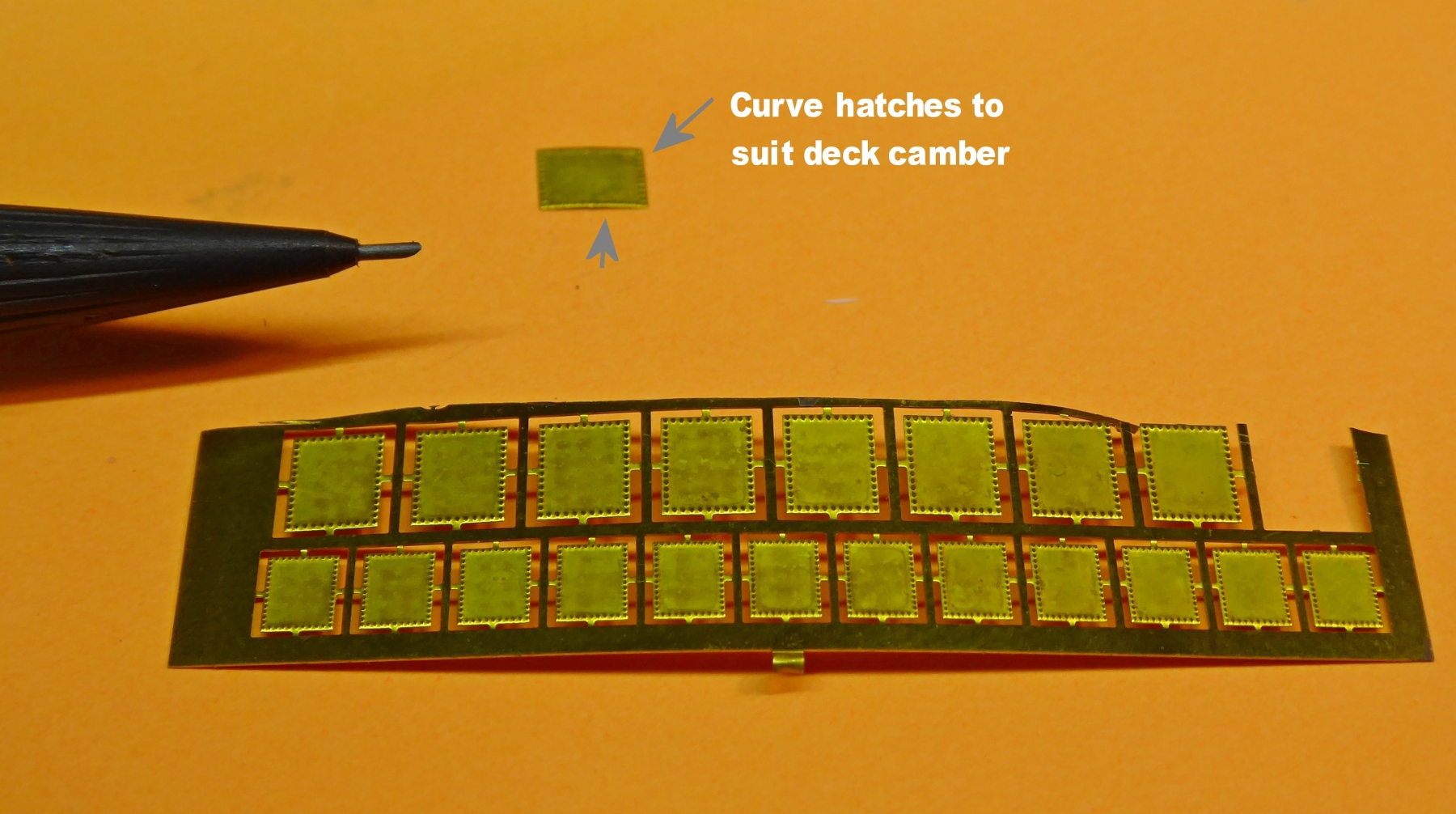

Fortunately --some generic PE ( l'arsenal ) .....that has been resting in my stash fro many years-( it may come in in handy some day...)
was indeed dimensionally spot -on-- with a subtle bolt pattern relief etched.
This was a real relief!=> repeatable and dead identical !
Attachment:
P1010977.jpg [ 850.2 KiB | Viewed 2207 times ]
Attachment:
P1010975.jpg [ 879.44 KiB | Viewed 2207 times ]

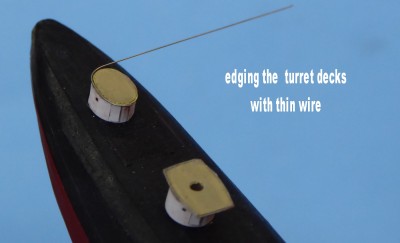

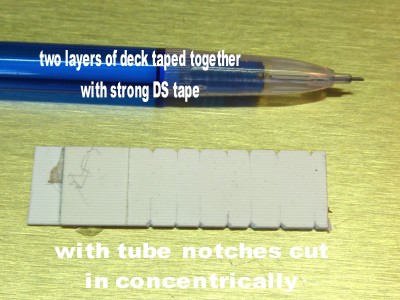

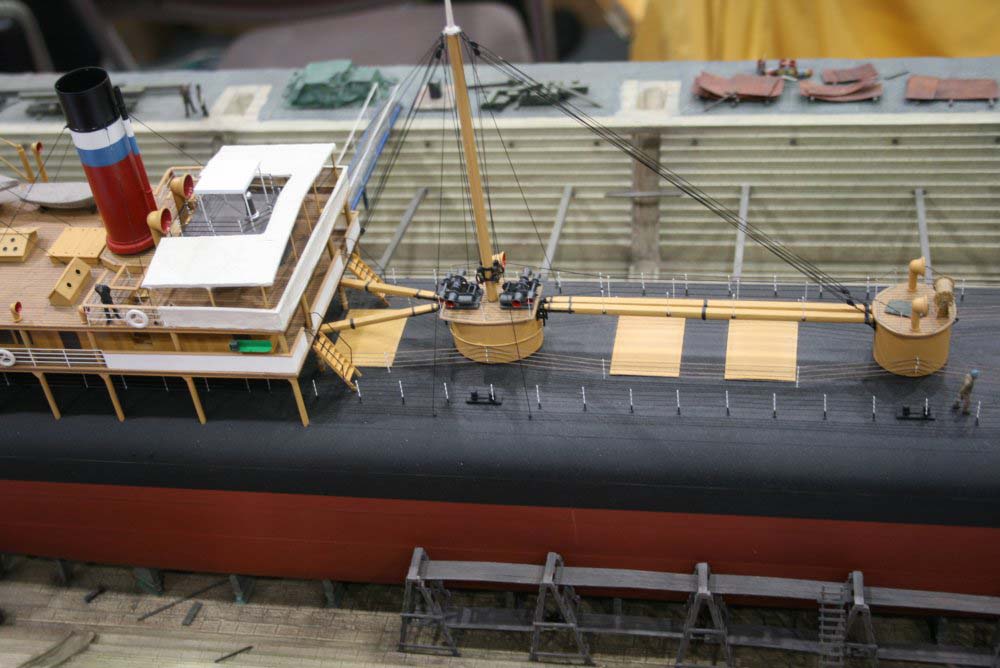

the turret decks were overhanging - of various shapes

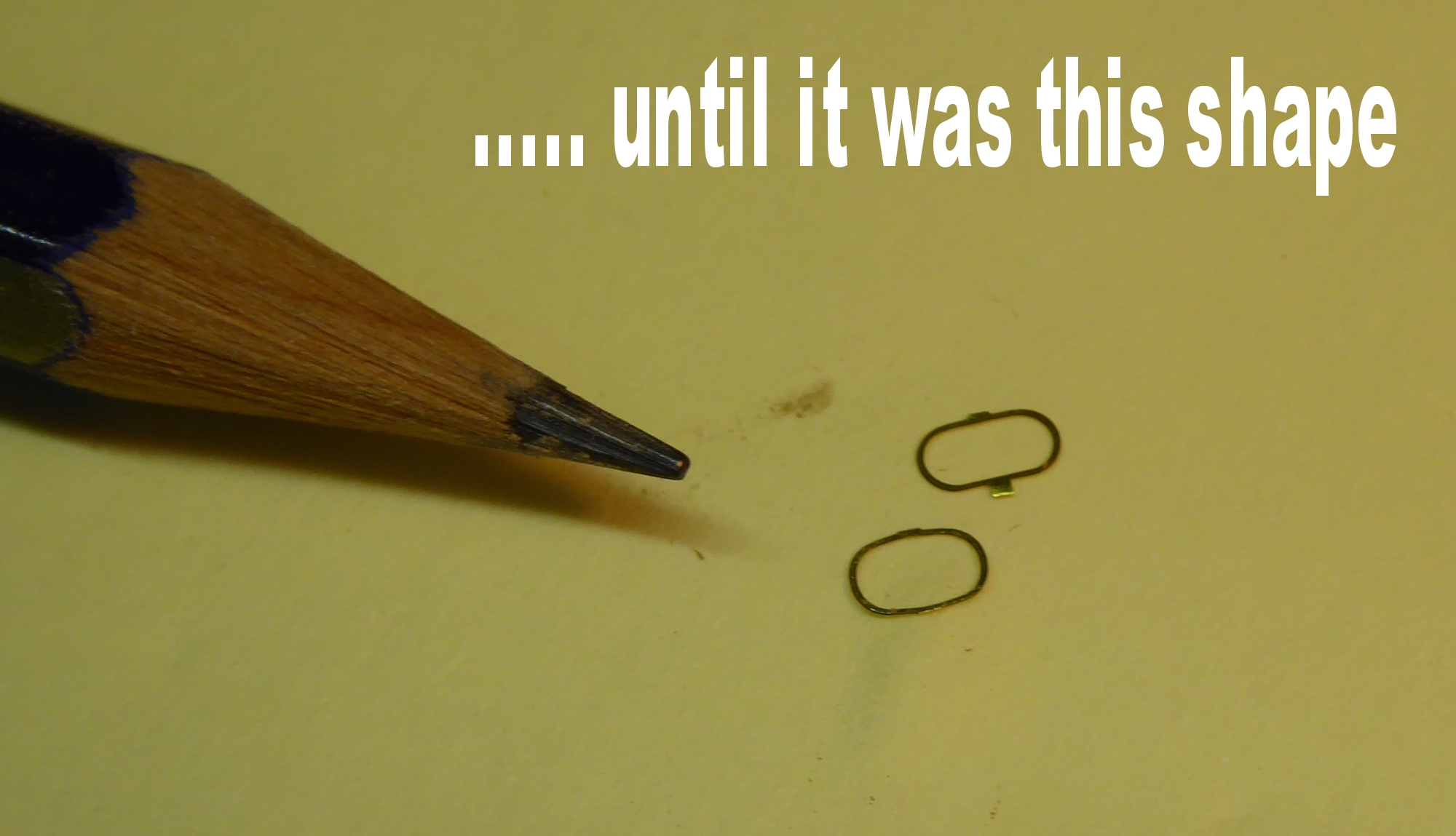

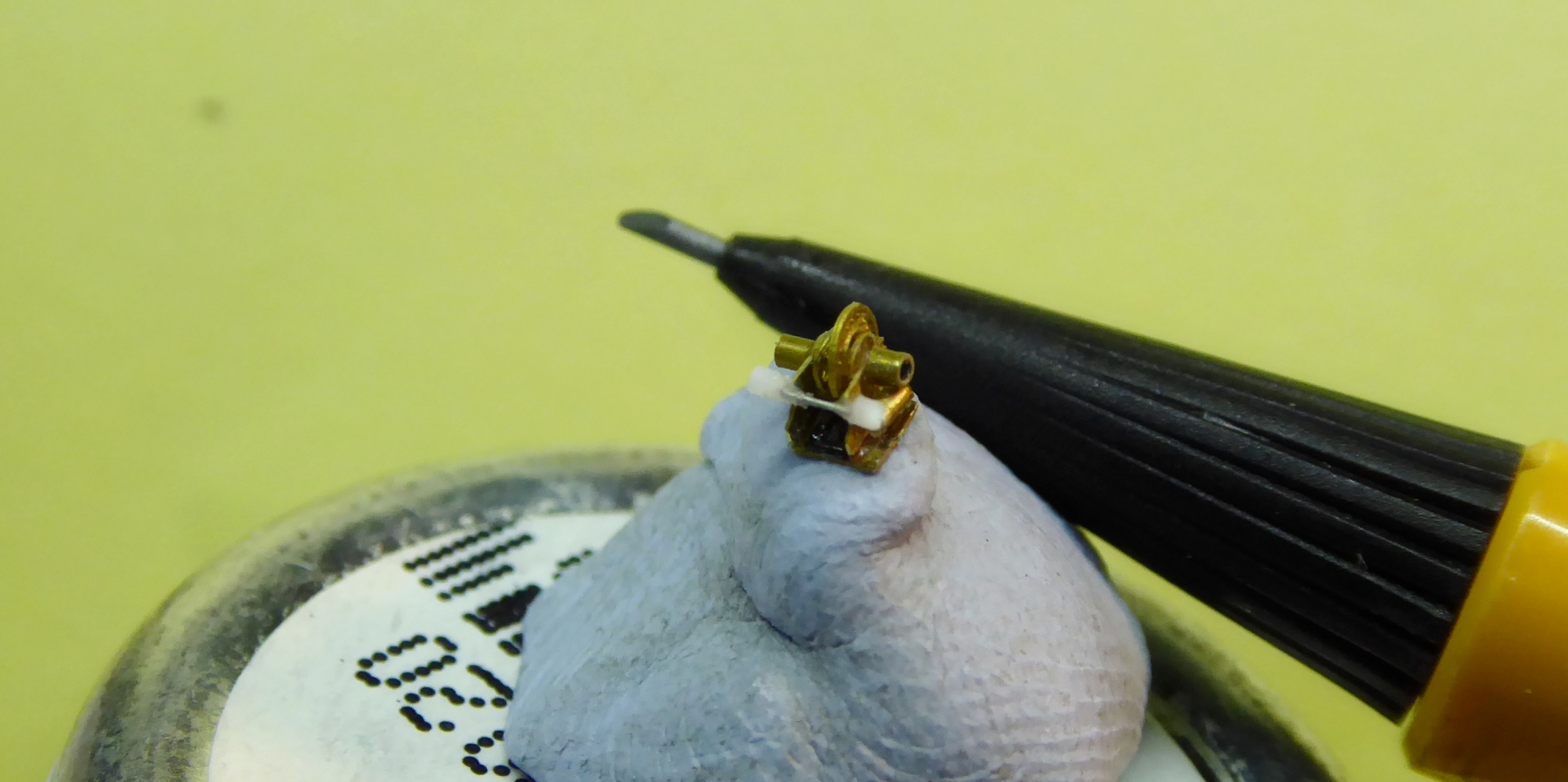

these were filed to shape out of thin PE brass scrap
These were very hard to hold firmly without damage whilst being filed

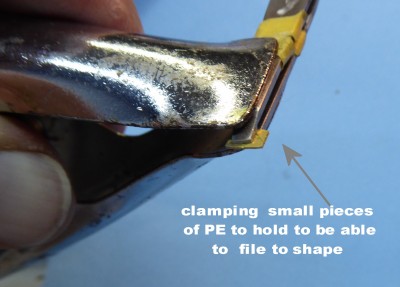

I devised a sprung clamp via thick flat headed tweezers
... a bit gawky...-- but effective
Attachment:
P1010988.jpg [ 910.38 KiB | Viewed 2207 times ]

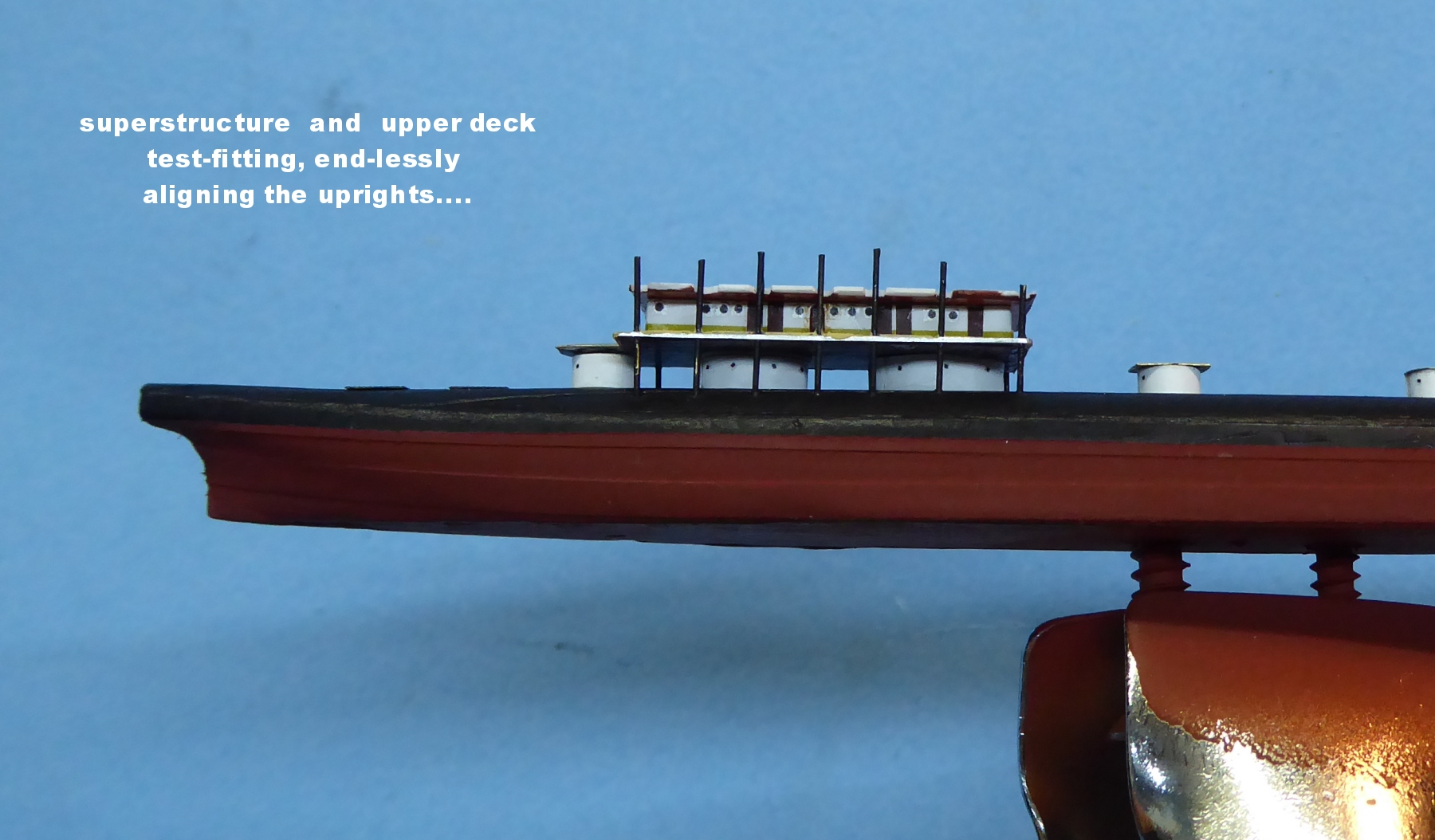

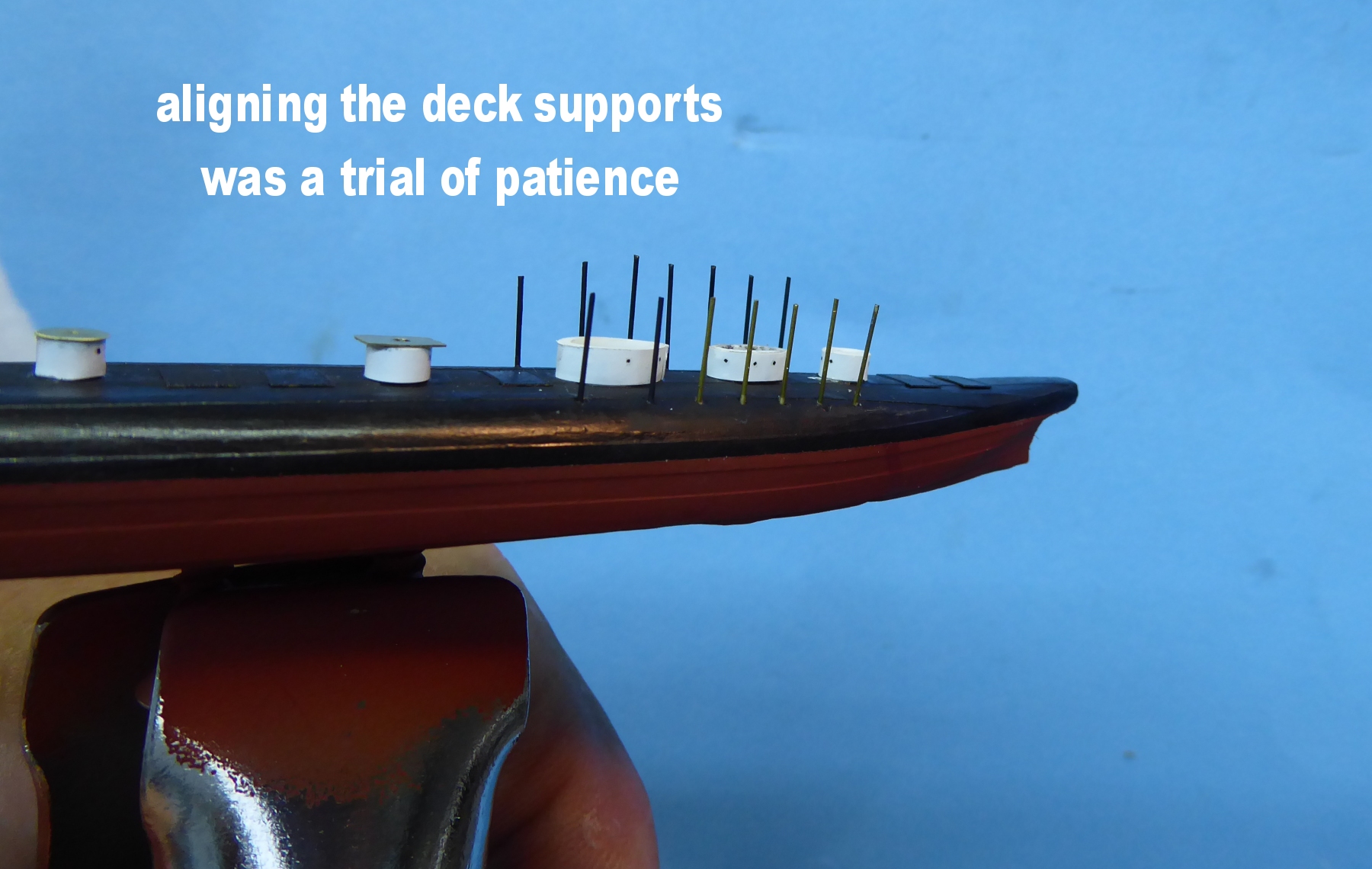

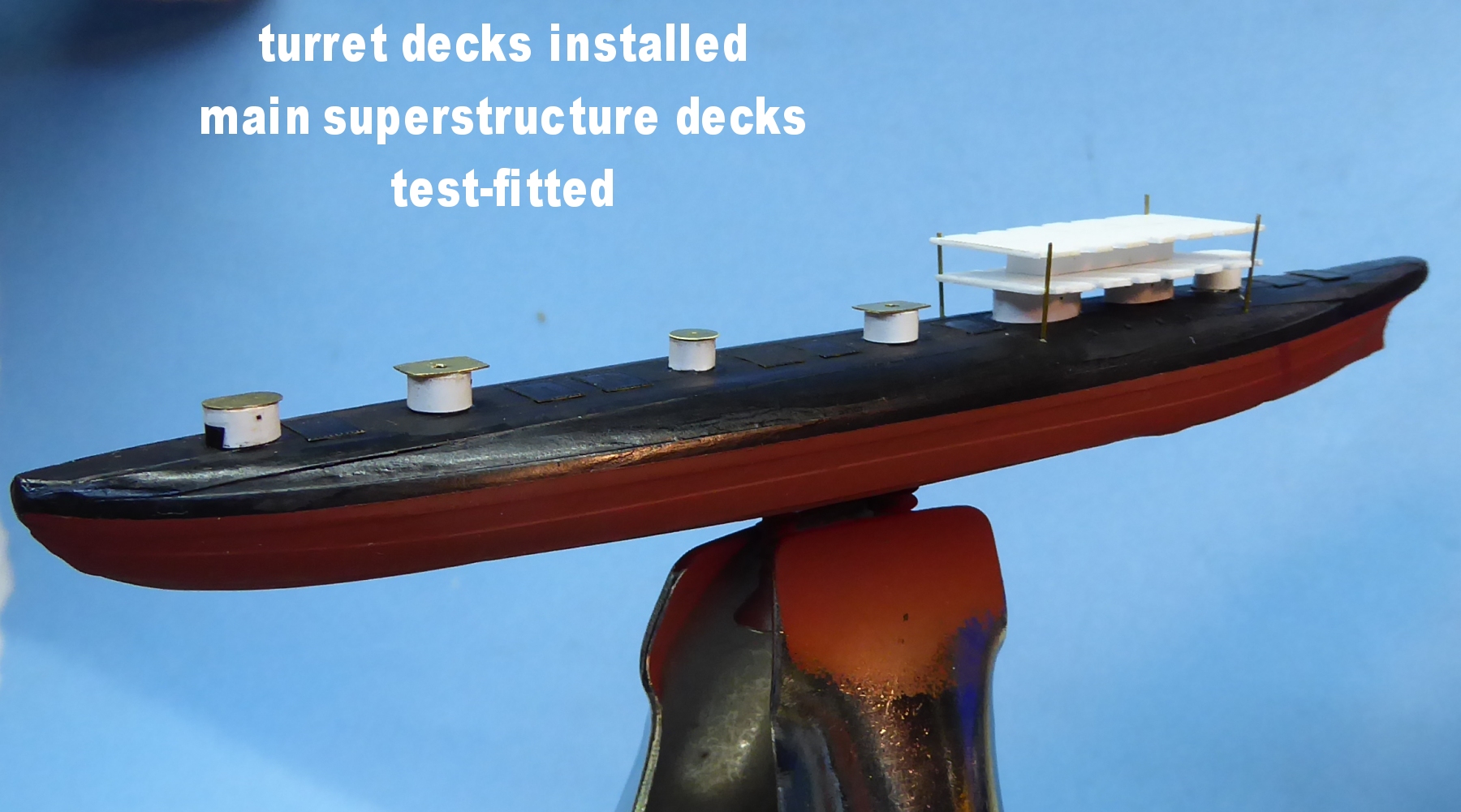

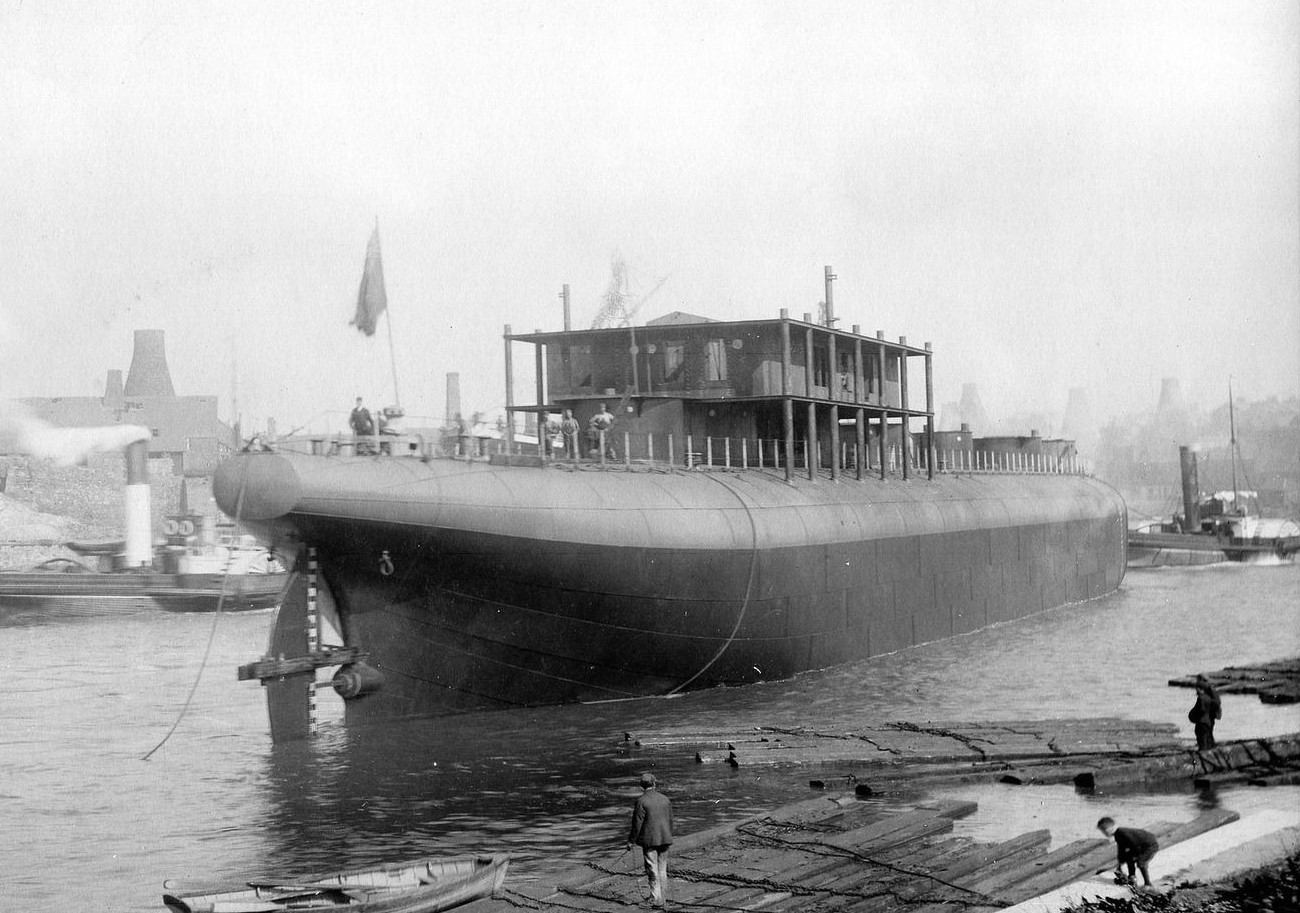

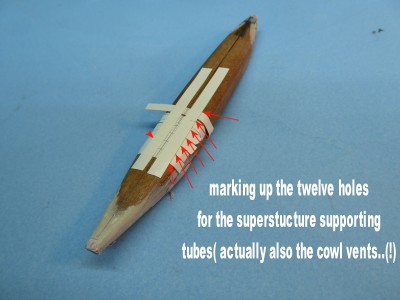

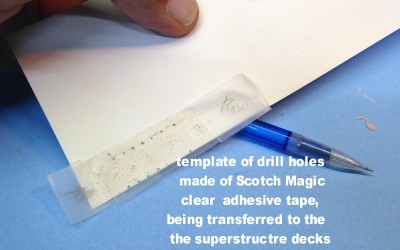

Using the first fwd and aft pairs of uprights,
the lower superstructure deck was testfitted
Attachment:
P1010995.jpg [ 628.88 KiB | Viewed 2207 times ]
then the real work began of getting the uprights perpendicular...
Attachment:
P1020002.jpg [ 685.98 KiB | Viewed 2207 times ]
Attachment:
P1020014.jpg [ 646.25 KiB | Viewed 2207 times ]

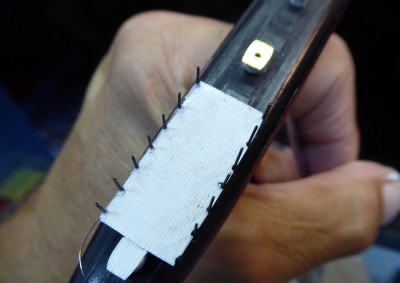

The upper accommodation block was made , wrapped in white thin vinyl tape for a homogeneous surface,
fitted with a wrap of light brown decal strip and portholes as well as flush fitting doors ( dark brown decal strip)
Attachment:
P1020003.jpg [ 641.98 KiB | Viewed 2207 times ]
Attachment:
P1020007.jpg [ 902.08 KiB | Viewed 2207 times ]
when the uprights had been re-re-re-re-adjusted, they were fixed with CA , the deckedegs were faced with a thin stainless steel PE strip
Attachment:
P1020021.jpg [ 795.47 KiB | Viewed 2207 times ]

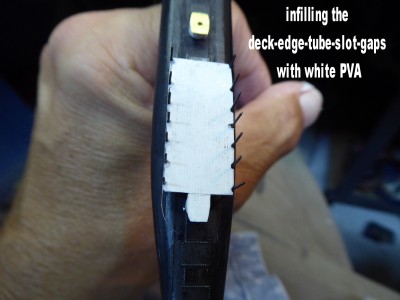

and the the oversize ( latitude to adjust!!) holes by the uprights
were backfilled with white woodworking glue
( a bit like PVA, but tackier and fasterdrying ) so as to self-level...
Attachment:
P1020016.jpg [ 846.19 KiB | Viewed 2207 times ]
Attachment:
P1020017.jpg [ 942.05 KiB | Viewed 2207 times ]

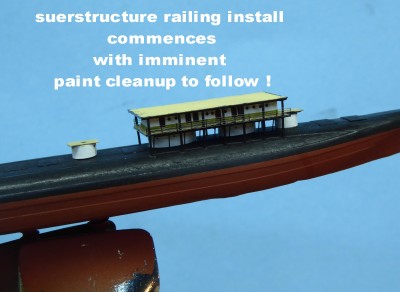

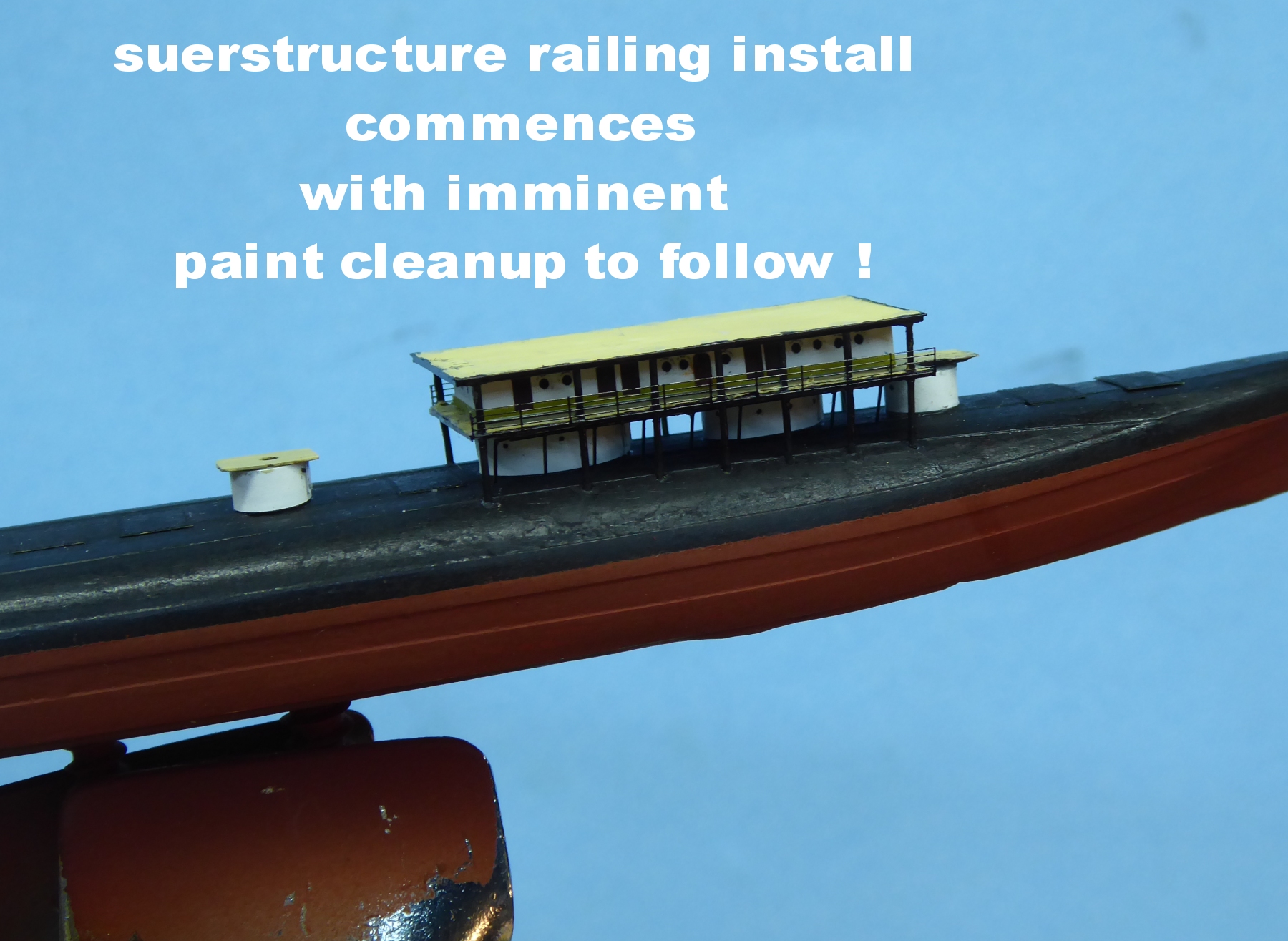

The superstructure block was added on the pre-painted deck
and the upright tubes trimmed off
Attachment:
P1020027.jpg [ 694.75 KiB | Viewed 2207 times ]

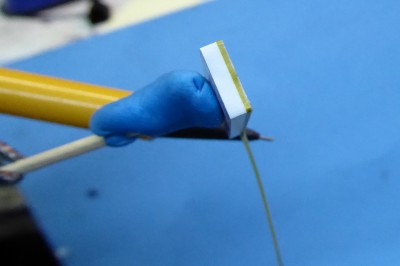

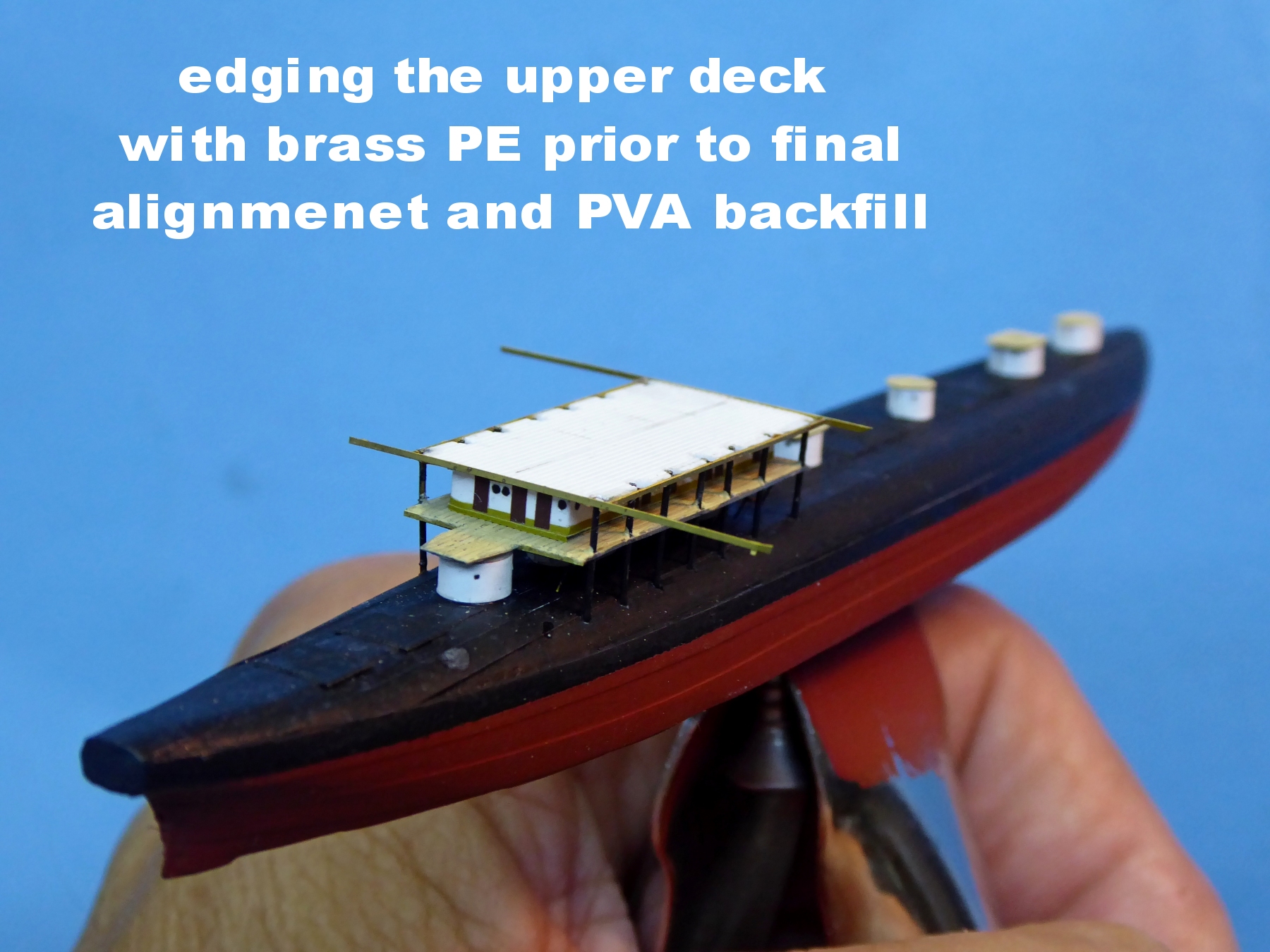

as a repeat of the lower deck-- the deck was edged with brass , snipped off and backfilled with white glue
Attachment:
P1020040.jpg [ 977.68 KiB | Viewed 2207 times ]

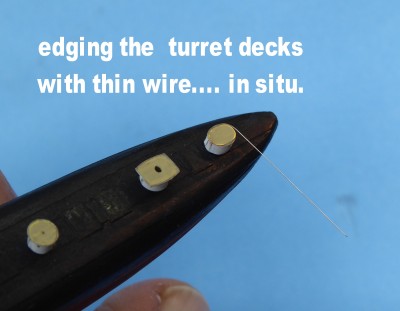

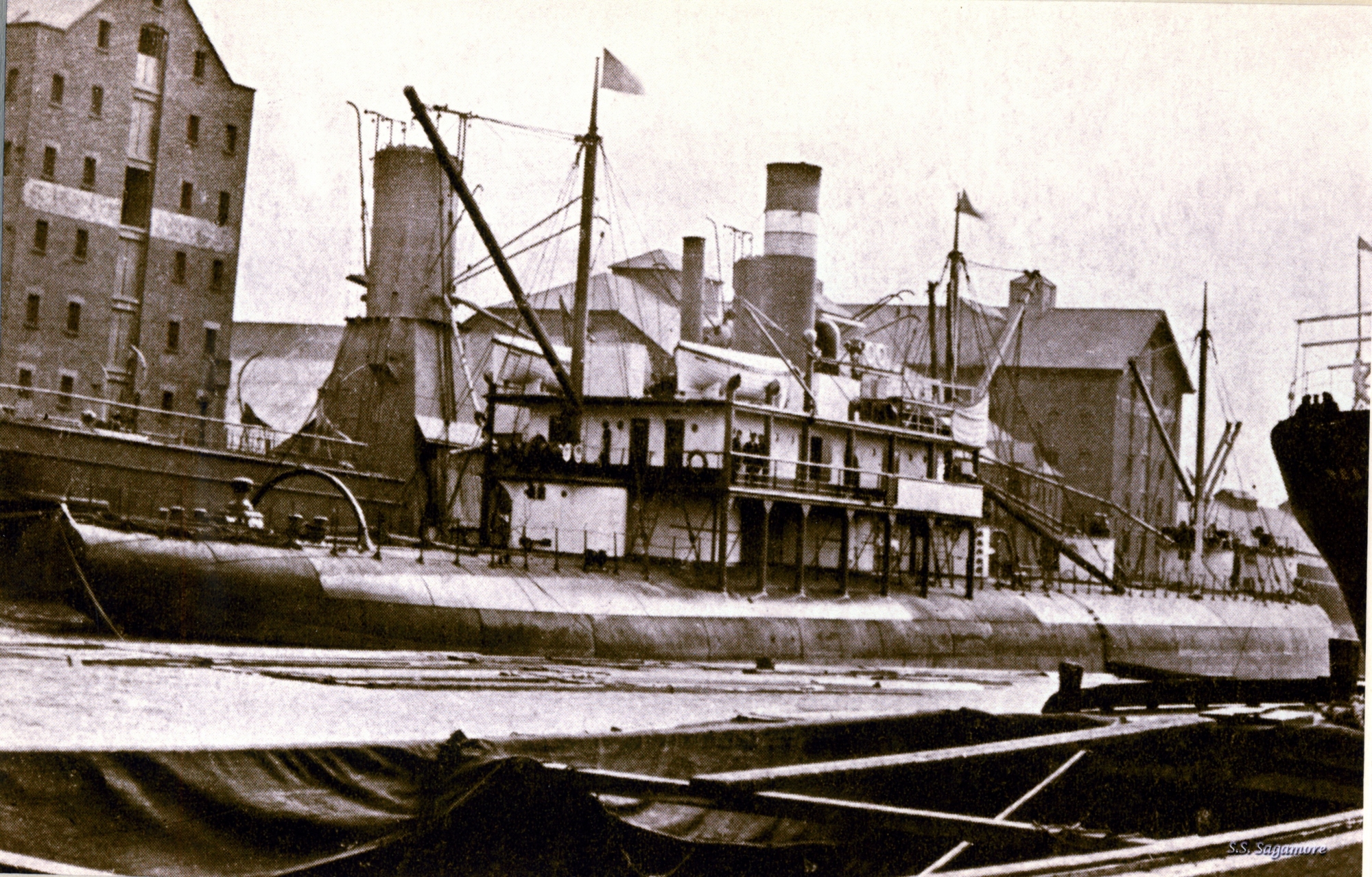

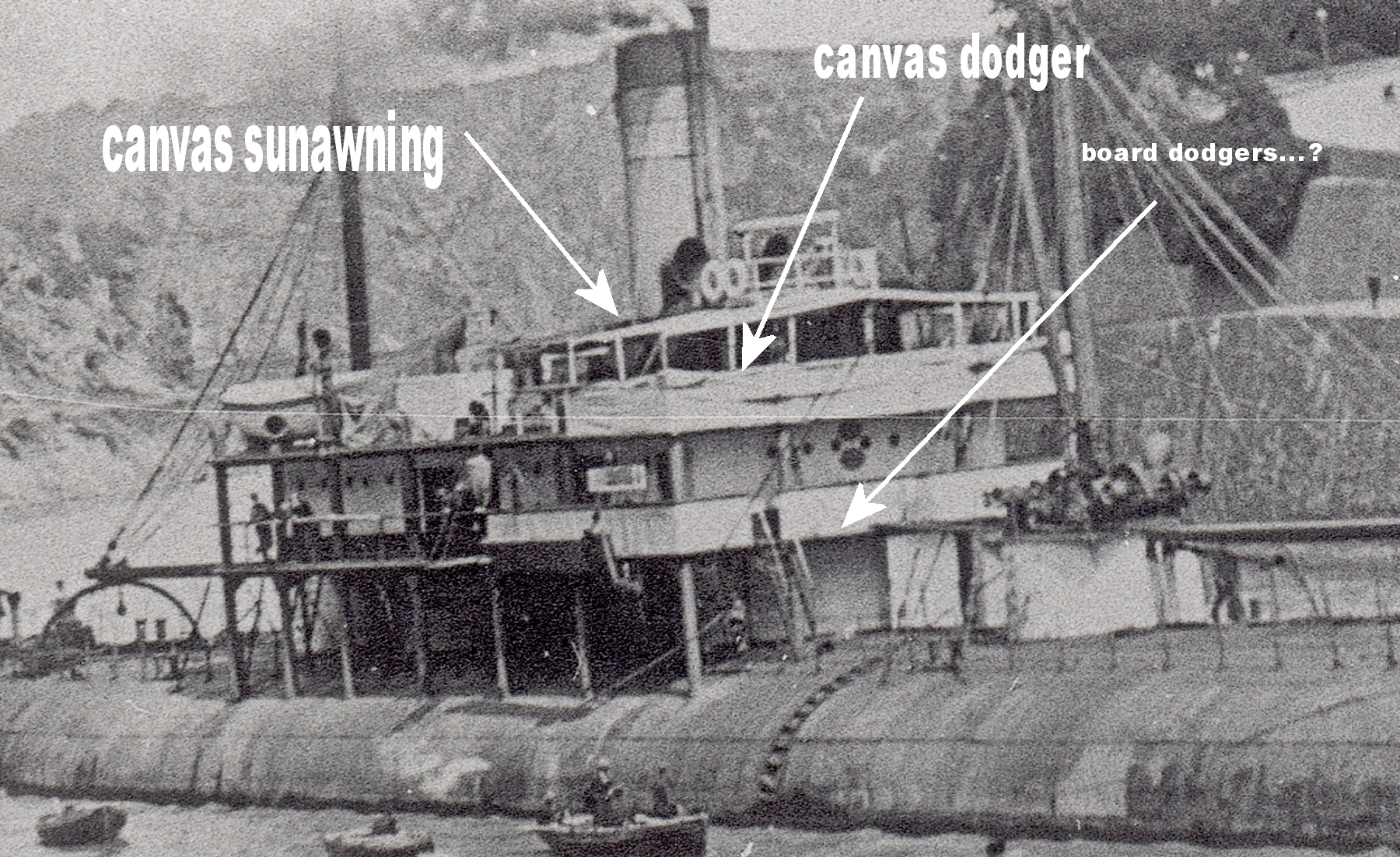

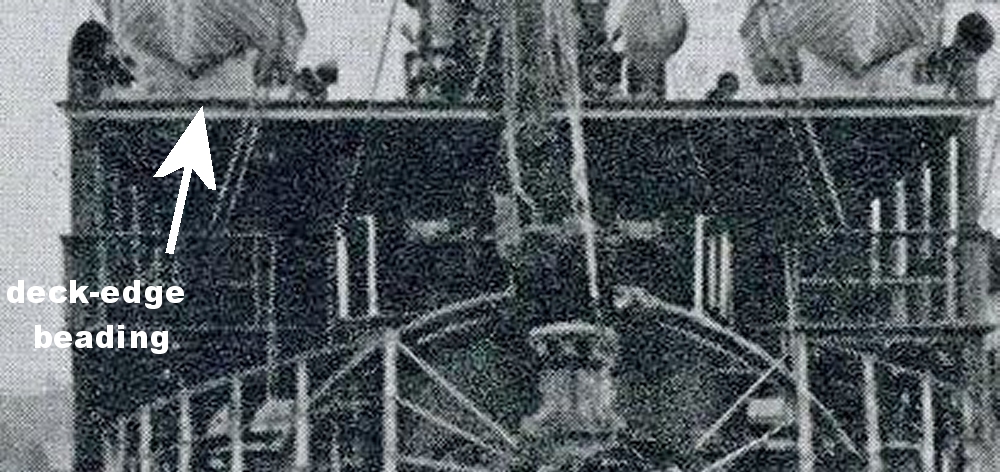

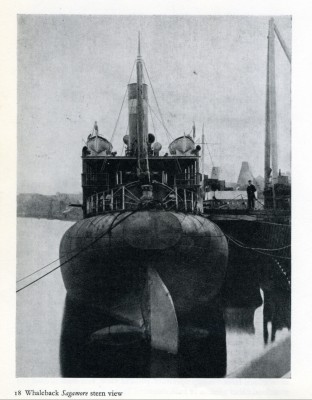

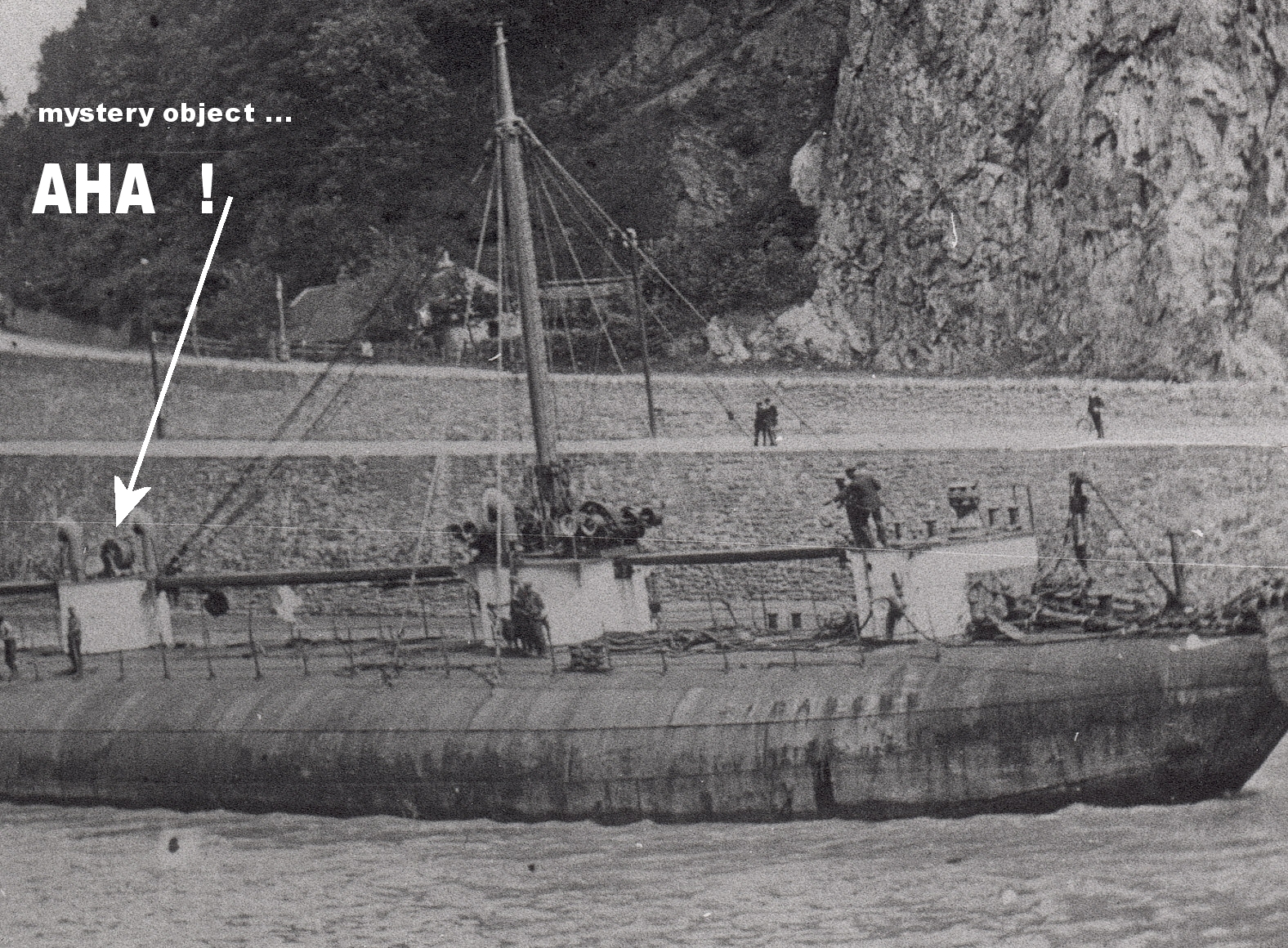

a tinned copper wire beading was added as per photos of the real ship
Attachment:

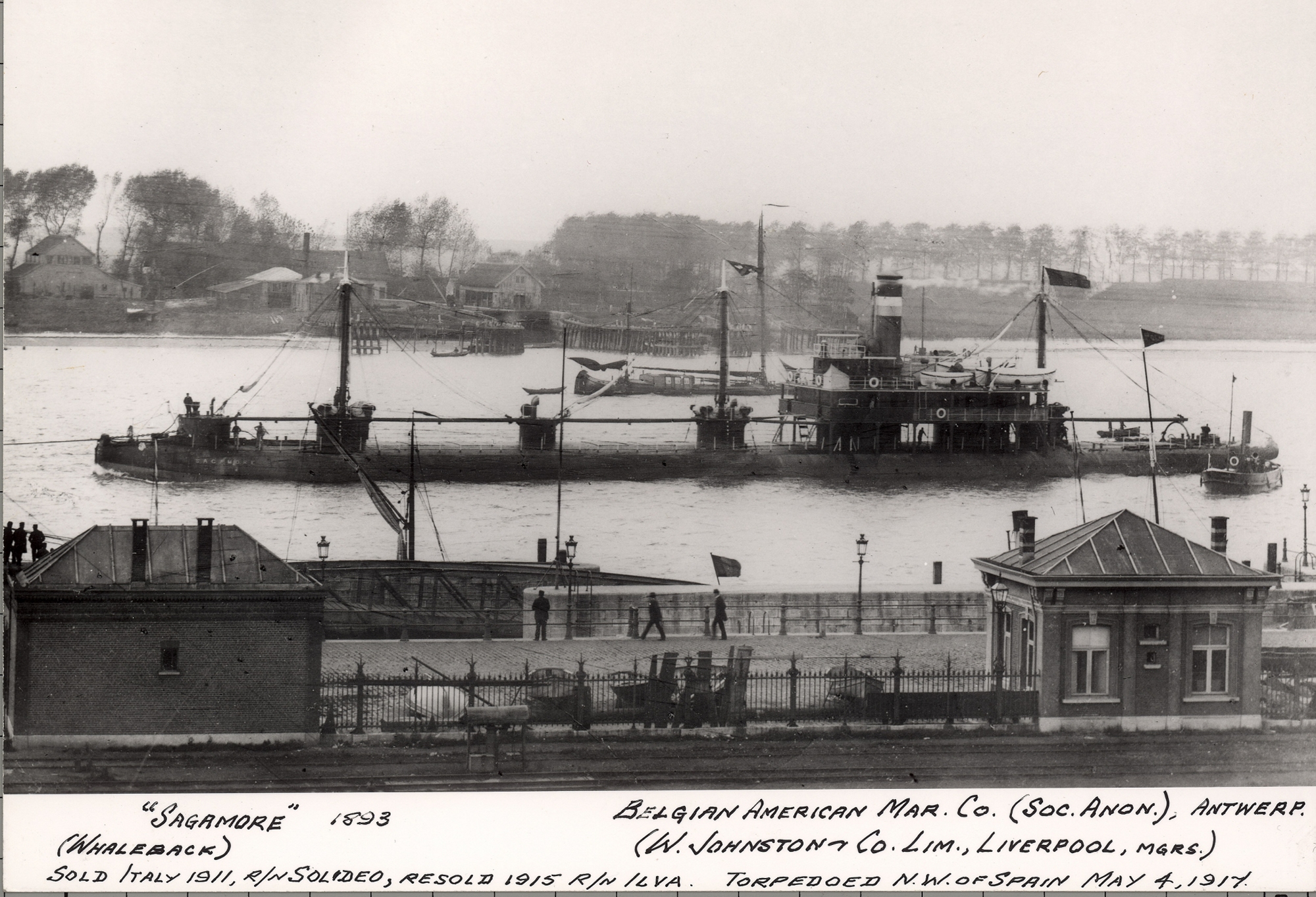

sagamore4.jpg [ 344.63 KiB | Viewed 2207 times ]

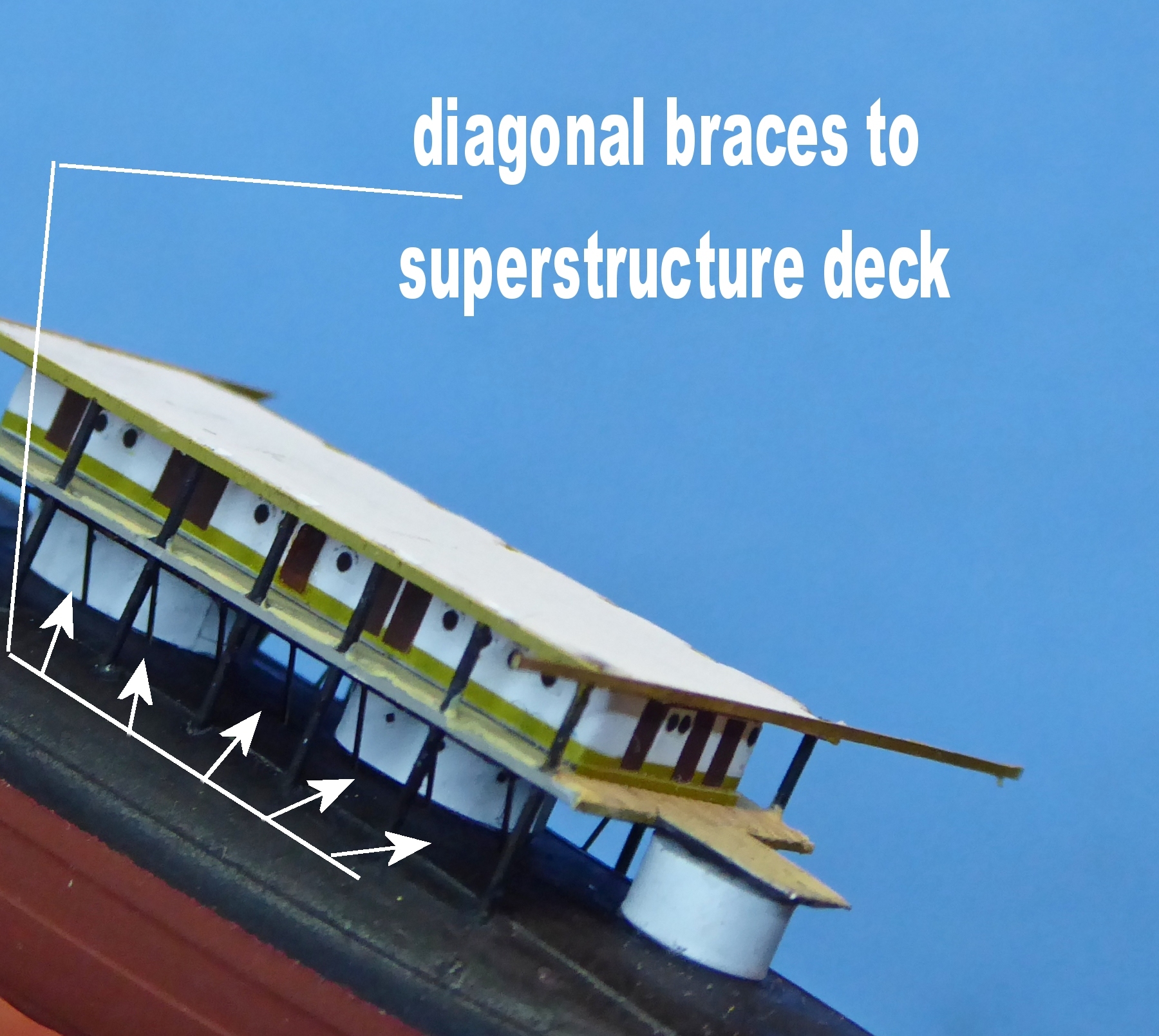

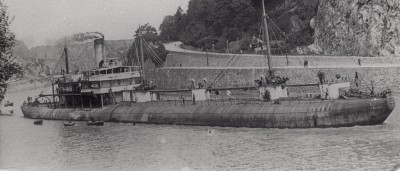

The lower deck had angled diagonal braces on the underside of the deck
Tricky in these small spaces (!! ) to install these evenly, at the same angle and length
without frustration of damage.
so I resorted to a simple solution, not quite as per the real thing -- but...
Attachment:
P1020033.jpg [ 852.65 KiB | Viewed 2207 times ]
looks pretty convincing ( to my eyes....)
Attachment:
P1020043.jpg [ 1.13 MiB | Viewed 2207 times ]
so now the model is taking a bit of shape and is getting to thye fiddly parts
just how I like it!
Attachment:
P1020048.jpg [ 853.75 KiB | Viewed 2207 times ]
