Now that my H.M.S. Royal Oak is nearing completion it is time to make a start on my next 'R' Class in 1/500. This will be H.M.S. Ramillies in her 1944 fit.

References will be R.A. Burt's British Battleships of World War One and British Battleships of World War Two books plus Norman Friedman's 'British Battleships' book as well as photographs from the Imperial War Museum Website and internet. Also the excellent 'Battleship Ramillies - The Final Salvo' book by Ian Johnston with Mick French.

I will document from the start of the build this time. Same as with Royal Oak, I will make compromises everywhere throughout the build. Therefore the model will be nowhere near 100% accurate. But I will add detail and try and improve the venerable old kit... So let's get started:

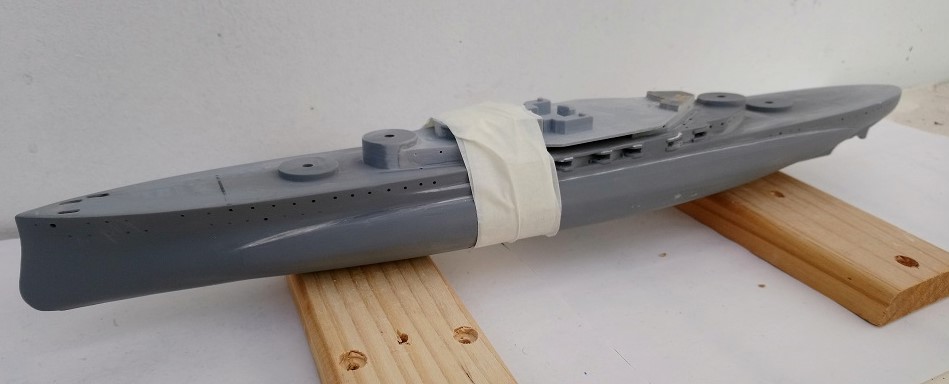

The hull halves are assembled and aft deck installed. The casemate section has been sanded back to the hull and the incorrect detailing removed. I will rebuild it in Evergreen Strip to more closely resemble the real ship. Ramillies in 1944 had some of the casemate guns removed and plated over so I am currently thinking of ways to build the plated off sections.

The basic superstructures and funnel have also been assembled and caked in filler to hide the enormous gaps due to the very poor fit of the kit. The angle on the kit's funnel cap (or clinker screen) looks too shallow to me so I have raised it with Evergreen strip and will sand and file it to better match the real ship.

Next up after that will be to add Ramillies' very distinctive large torpedo bulges from Evergreen strip.


Attachments:
DSC_1044R.JPG [ 355.37 KiB | Viewed 1036 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Sat May 02, 2020 5:56 am
Offline

Joined: Tue Oct 23, 2018 2:00 pm
Posts: 186
I have added the first layer of the torpedo bulges fro Evergreen Strip. Once dry I will add the second layer and finalise the shapes of them. Good thing I bought some extra tubes of filler recently. They will be needed here. I intend to mount her on a sea base so will not have to fine-tune the joints from the bottom of the bulges to the hull which conveniently saves some work. I love when that happens! No need to bother with propellers, propellershafts or rudders either. It does not bother me that she will be rudderless out of sight below the sea base.

Some more filling work carried out to the basic superstructures and shelter deck also. The kit depicts the Shelter Deck as being planked, as do most kits of 'R' Class battleships. Indeed not knowing any differently at the time I depicted it as such in my first two 'R; Class kits. We live and learn. This area should be steel plating as discussed in the CASF 'R' Class thread. So a layer of filler is required to kill the planking detail and to eliminate all the holes in the deck for fitting the kit supplied ship's boats. I will be using Atlantic Models photoetched cradles as supplied in their 'R' Class Detail Set.

The Atlantic Models Photoetch set provides a photoetch deck sheet to fix to the incorrect aft superstructure of the kit. Their sheet is planked though and should be plated like the surrounding deck. No matter though, there is an easy fix. Turn the sheet upside down and leave the planks facing downwards and out of sight. Problem solved.


Attachments:
DSC_1045R.JPG [ 348.25 KiB | Viewed 968 times ]
DSC_1052R.JPG [ 379.76 KiB | Viewed 968 times ]
DSC_1058R.JPG [ 396.2 KiB | Viewed 968 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Sat May 02, 2020 11:03 am
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7108
Location: In the hills of North Jersey
Love to see these old kits come to life. Nice start!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
PostPosted: Sun May 03, 2020 12:14 pm
Offline

Joined: Tue Oct 23, 2018 2:00 pm
Posts: 186
Thanks Martin. Yes a dedicated photoetch set helps greatly.

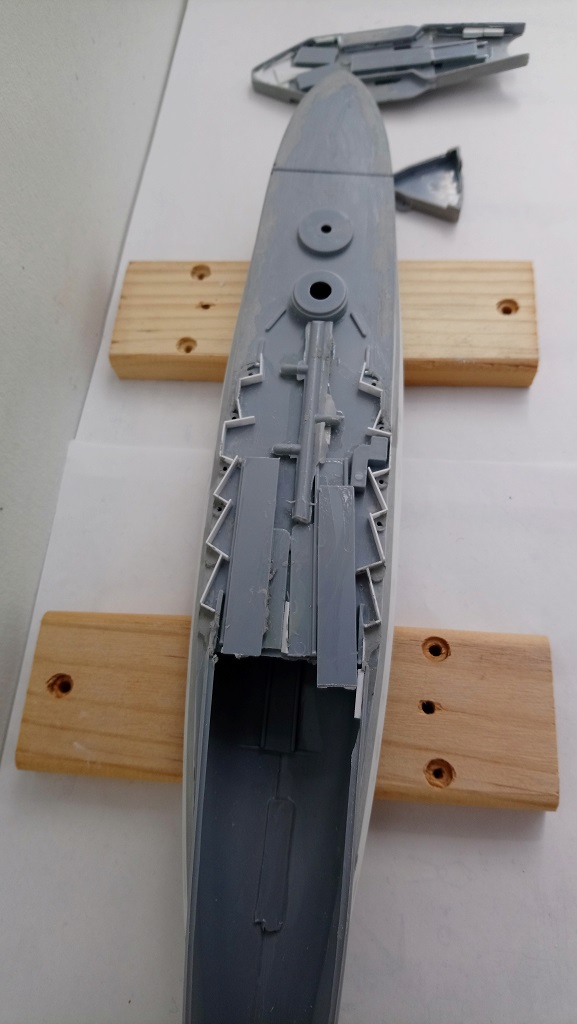

Some more progress. I drilled out the portholes and scratchbuilt the casemate gun deck. It presents an odd concertina-esque pattern when viewed from above.
