I physically started this build as my 1/700 Taiho build was winding down. I wanted to take advantage of my learning curve with regard to Taiho’s scratch-built deck before it started to fade into memory. I especially wanted to try and avoid some of the pitfalls I encountered.

Conceptually, this build started years earlier, when Fujimi released its 1/350 Shokaku and Zuikaku class kits in 2011-12. I really wanted to build one of these sisters, but I hated the kit’s flight deck, just as I did with the Taiho kit and most of the other 1/700 & 1/350 Fujimi CV kits. Properly scaled planking seemed to have escaped Fujimi’s attention. (At this point, I would imagine that just about everyone knows this is a major sore point of for me.) I also intend to waterline the hull.

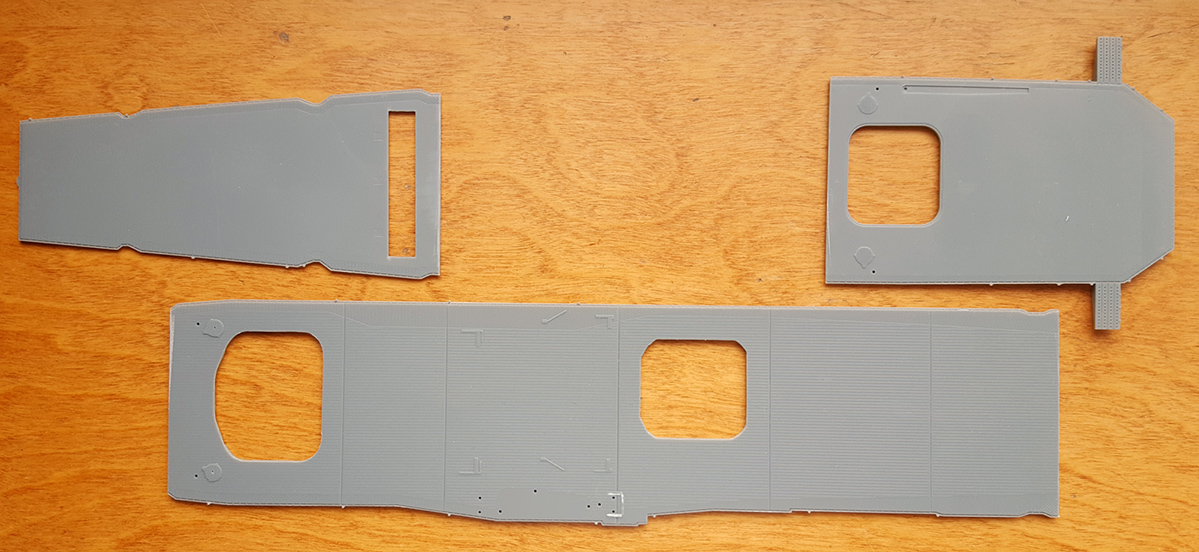

A 1/350 Fujimi Shokaku and Hiryu kit languished in the stash while I pondered and rejected various approached to correcting those decks. Truth be told, it was Gabriel’s (Angeliccypher) own 1/350 Hiryu W-I-P thread that really started my wheels turning on how to accomplish such a fix (see: viewtopic.php?f=59&t=162876 ). His work on the kit flight deck, (with side input from Mark Senna), led me to the solution I eventually chose for Taiho, and now Hiryu.

Frankly, I find the warts and all W-I-Ps such as his utterly invaluable, and a major benefit of being a member of this community. So, thank you, Gabriel!! I appreciate your willingness to post a real life build. :-) And, I hope to see you post more of your Hiryu progress soon.

With the Hiryu kit, the same truism applies as with my Taiho project: If I can’t make the flight deck work, then the likelihood of my completing the project is low. One of the attractive points of using Hiryu as a test bed is that her flight deck is only about 60% planked. This is as opposed to the Shokakus, whose flight decks are probably 90% planked.

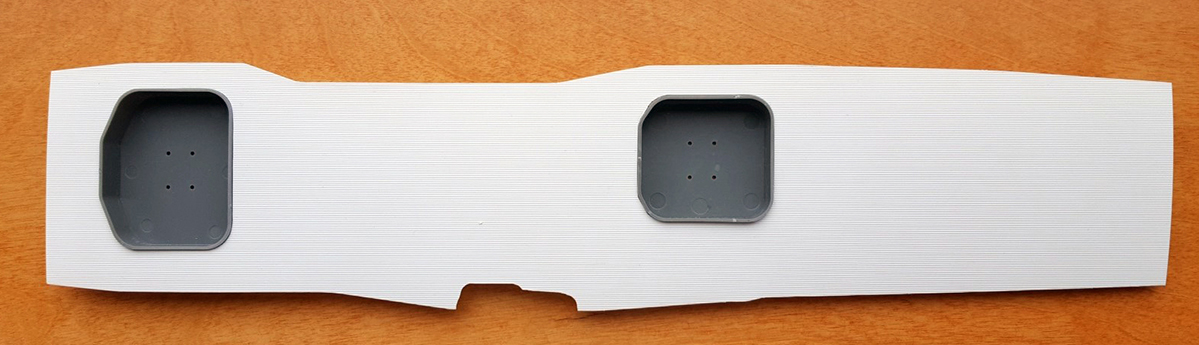

I used Evergreen 2025 V-Groove polystyrene sheet for the planking. Doing so yielded planks of a scale 7.5 inches wide. I also decided I would use the recent Shipyard Works PE flight deck set for Hiryu. However, this time, I am choosing to retain all of the PE flight decking, and not just the treaded metal deck edging. Separating the metal treading from the metal portion of the flight deck surfaces has proven to be very problematic. I don’t feel that I can’t do so without jeopardizing the clean finish of the PE. In turn, this means that tie-down holes must be applied to the custom built flight deck.

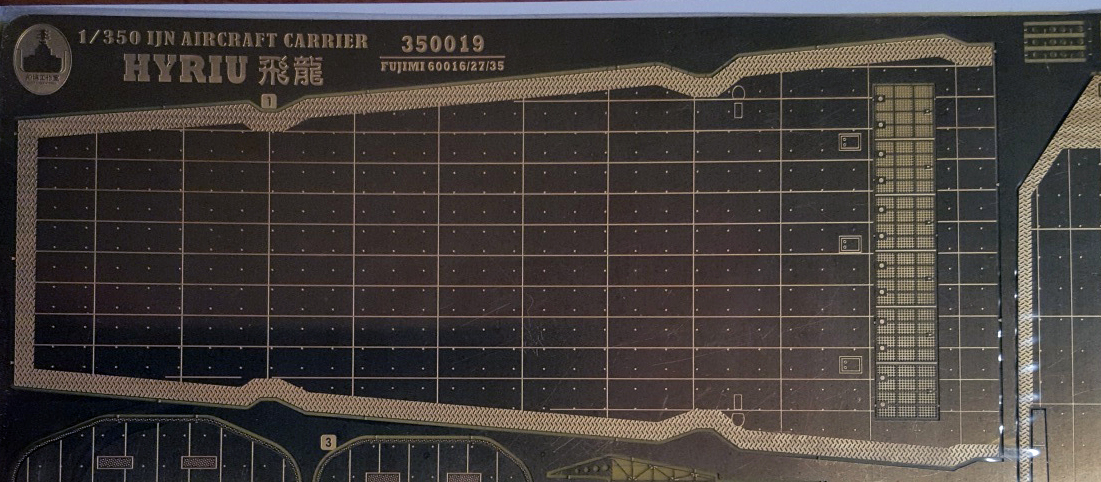

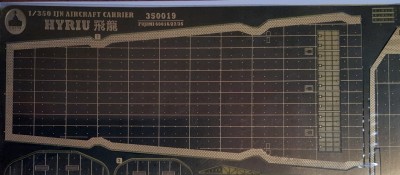

In addition to the Shipyard set, I also purchased the Fujimi PE set for this kit.

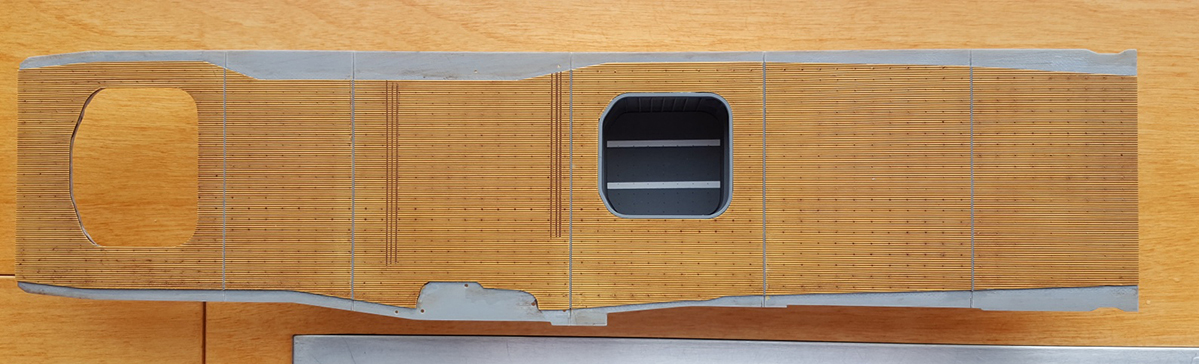

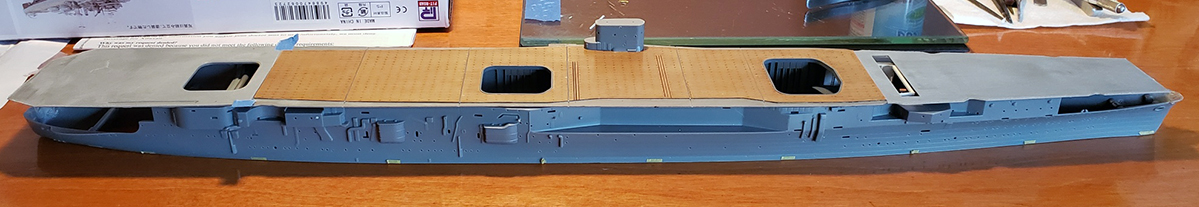

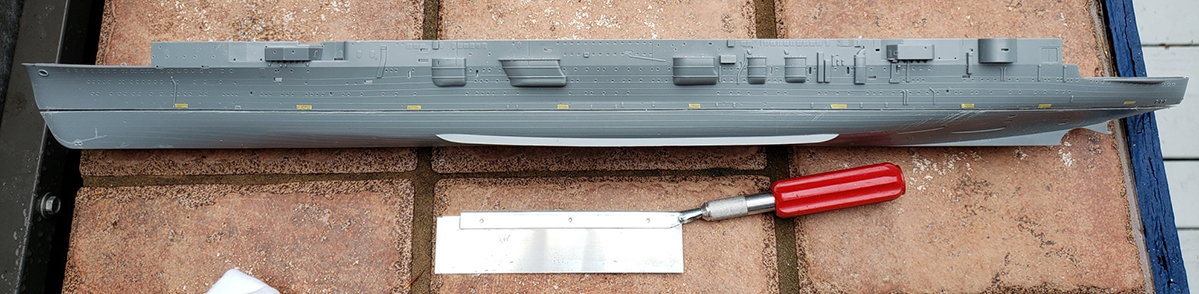

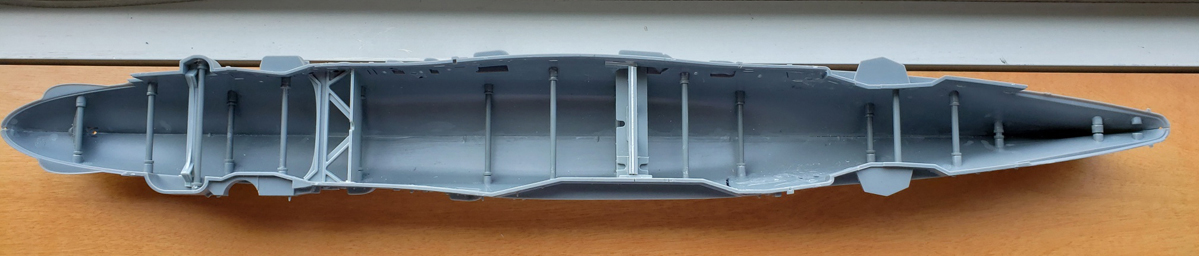

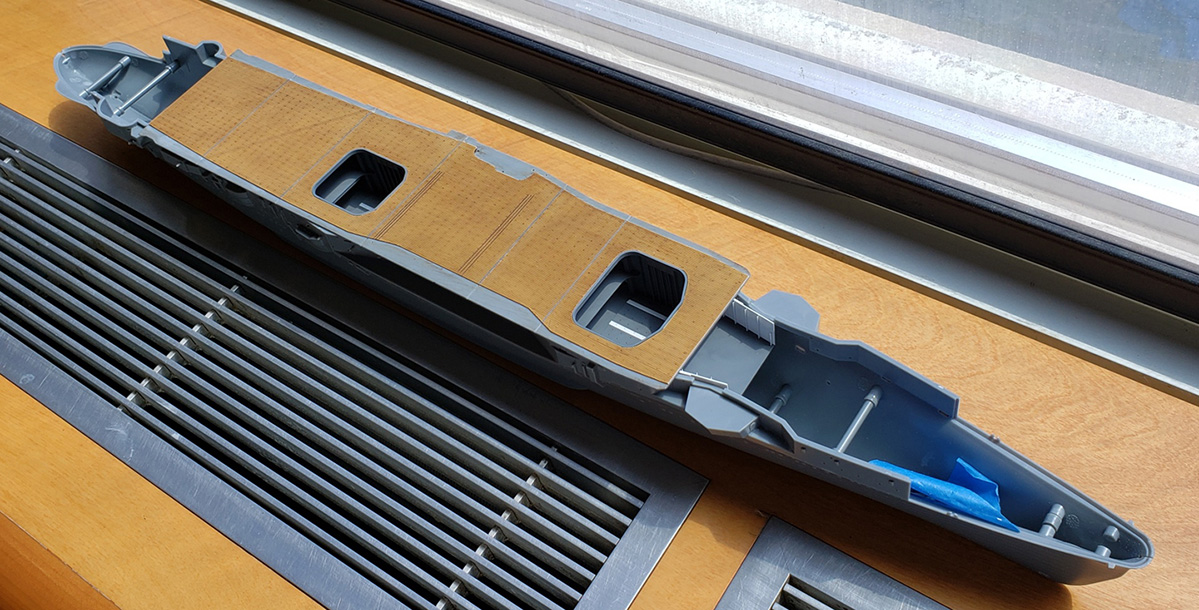

I’ll start by posting a photo reflecting the current status of the build. In fact, at this point, I’m actually stopping the project for the time being so that I can work on another set of projects that are underway. I expect to periodically resume and post progress to this W-I-P.

For the record, this is my first 1/350 build. There won’t be many in the future, as there isn’t much display room in my city apartment.


Attachments:
20200713_082532_resized.jpg [ 297.74 KiB | Viewed 1230 times ]
Hiryu 1-350 (F)  box art.jpg
Hiryu 1-350 (F) box art.jpg [ 331.52 KiB | Viewed 1230 times ]
Hiryu 1-350 (F) PE set G-up 34.jpg
Hiryu 1-350 (F) PE set G-up 34.jpg [ 337.35 KiB | Viewed 1230 times ]
Shipyardworks 1-350 Hiryu set -l1600.jpg
Shipyardworks 1-350 Hiryu set -l1600.jpg [ 331.78 KiB | Viewed 1230 times ]
Shipyardworks 1-350 Hiryu set - forward flight deck.jpg
Shipyardworks 1-350 Hiryu set - forward flight deck.jpg [ 487.57 KiB | Viewed 1230 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jul 13, 2020 2:58 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7413
Location: New York City
I’ll also let the photo record be as self-explanatory as possible. I’ll try to point out steps that were of interest or posed challenges.

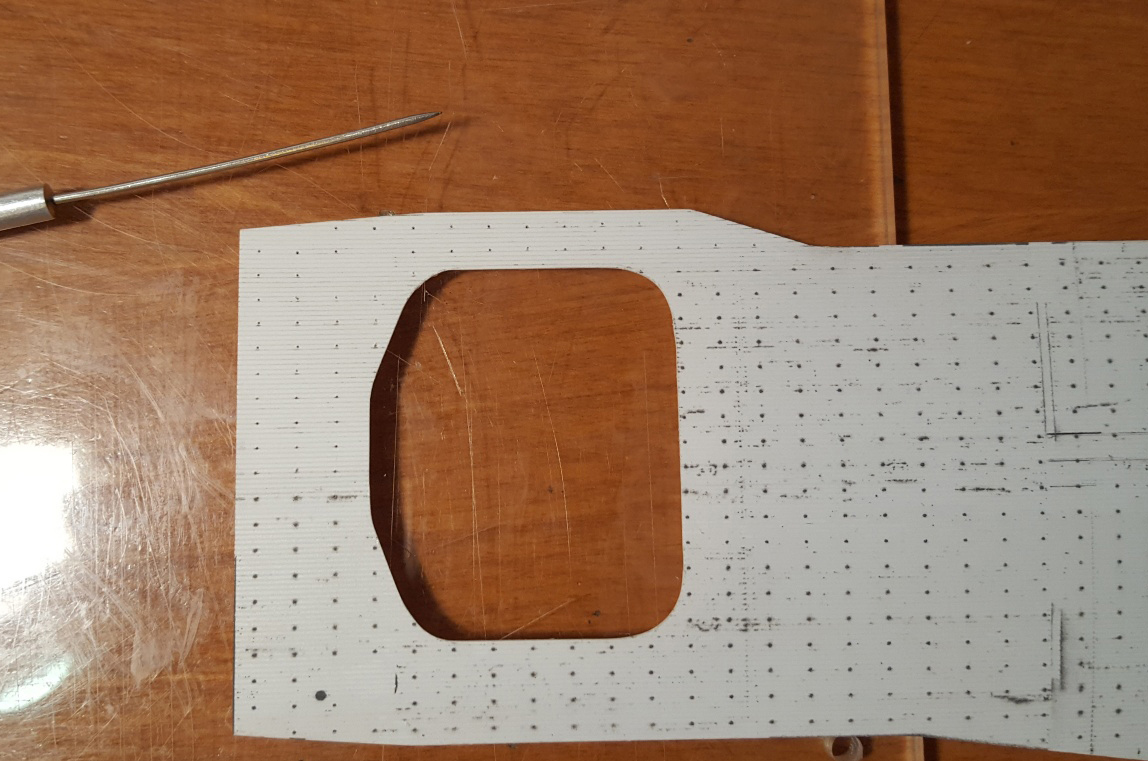

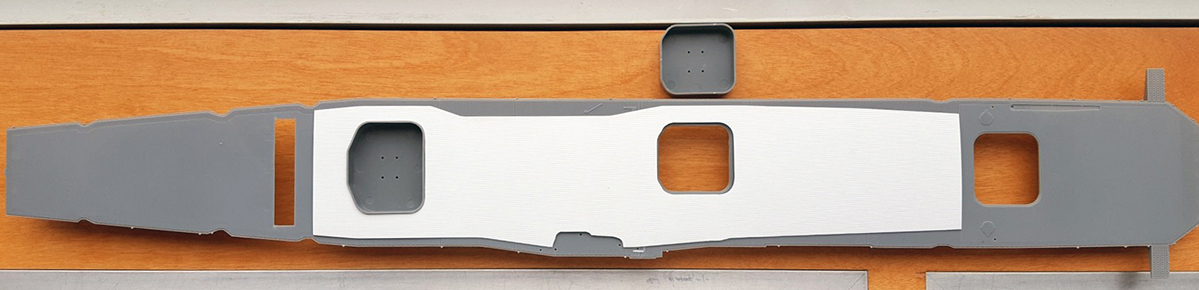

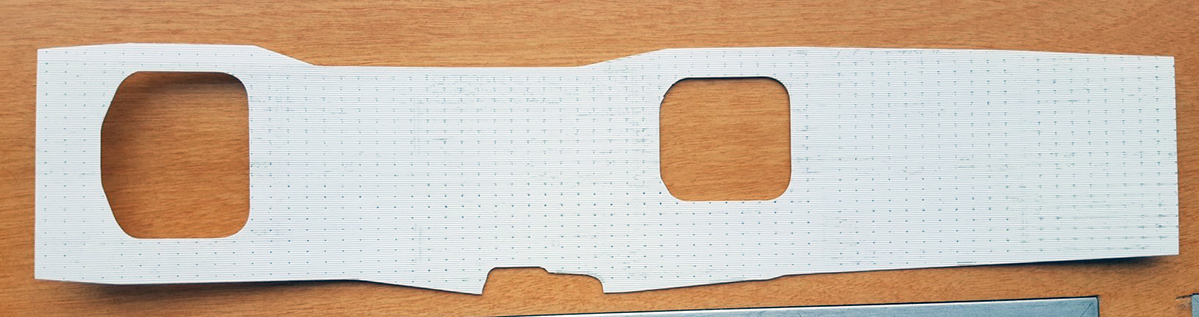

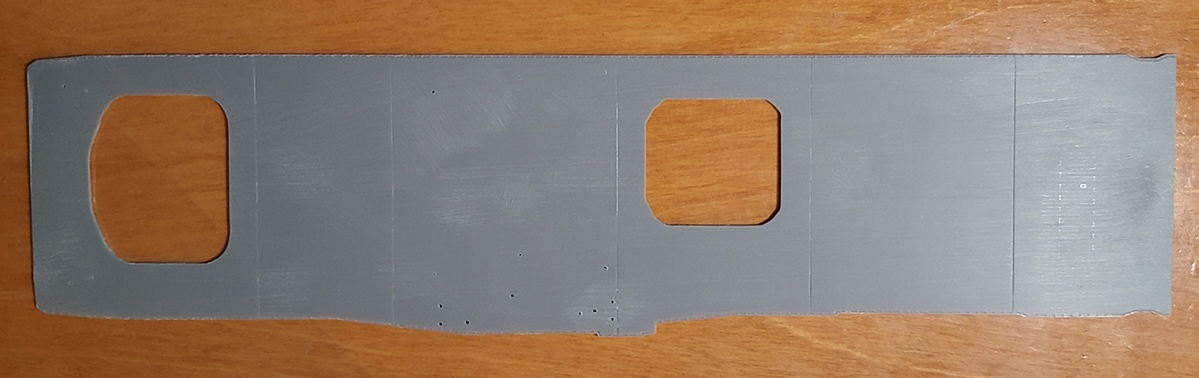

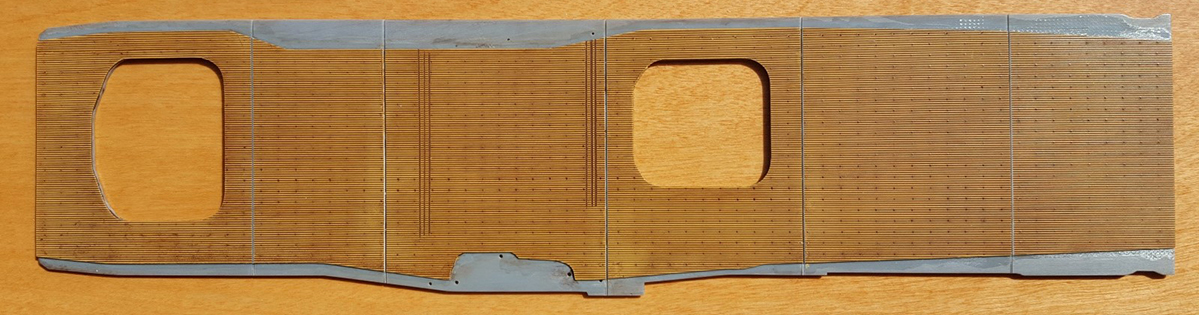

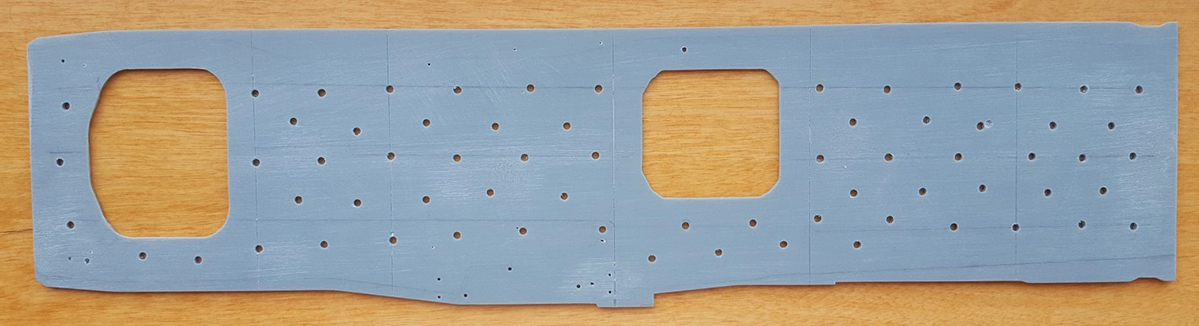

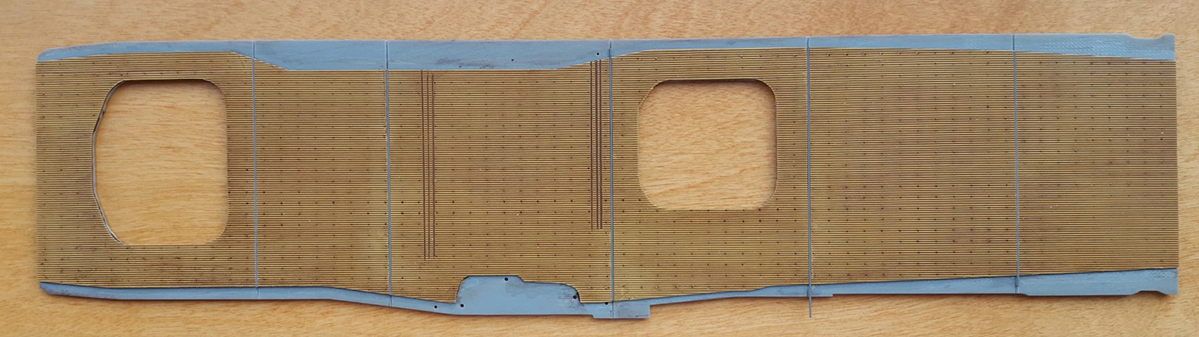

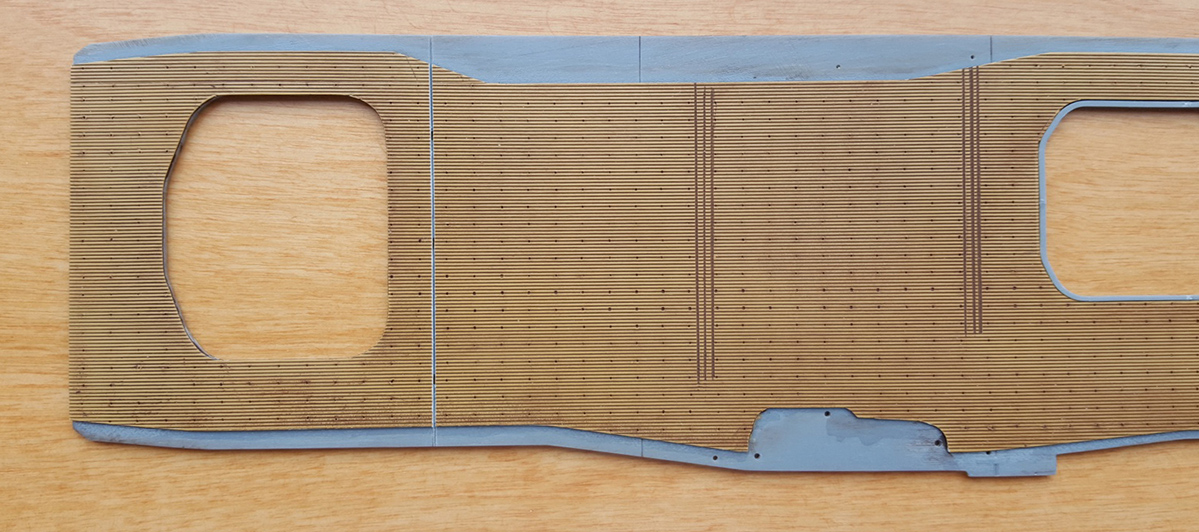

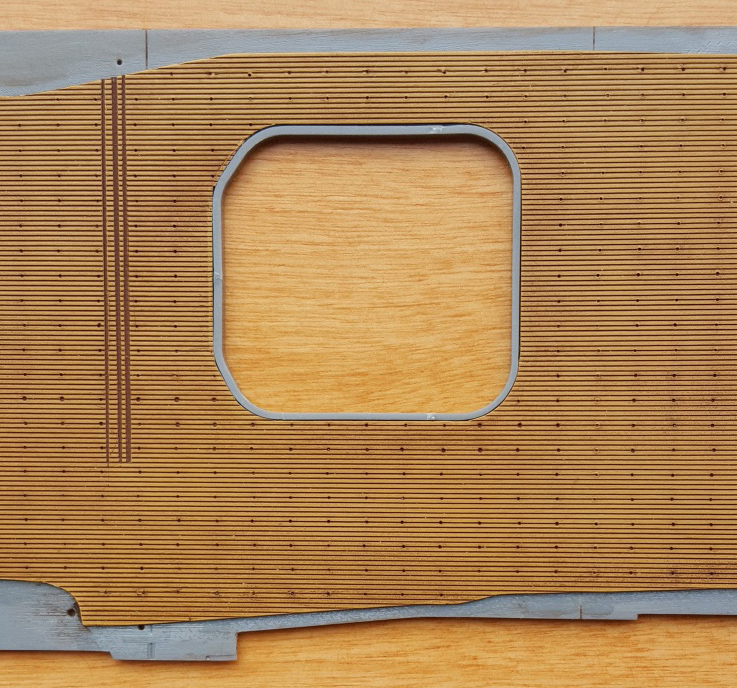

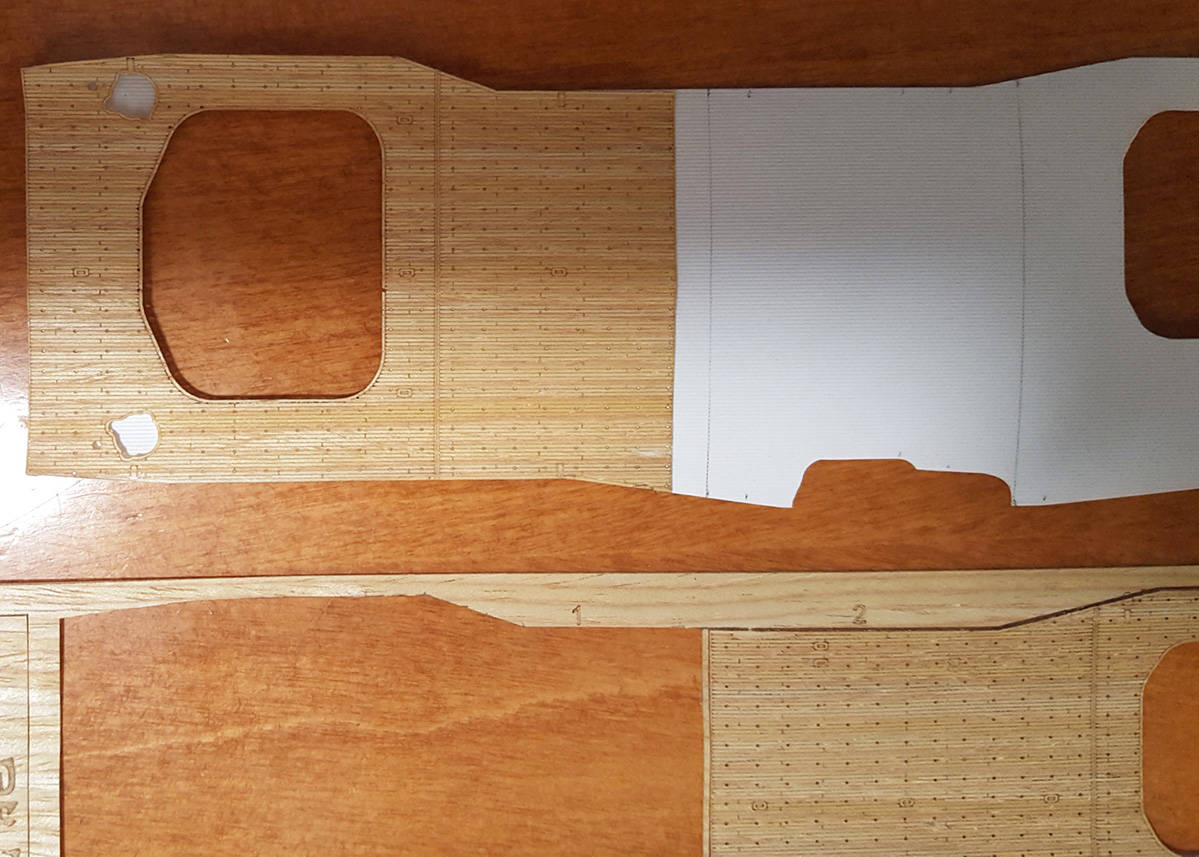

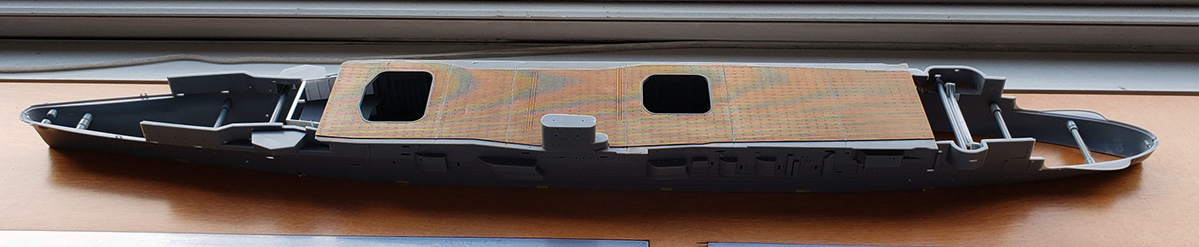

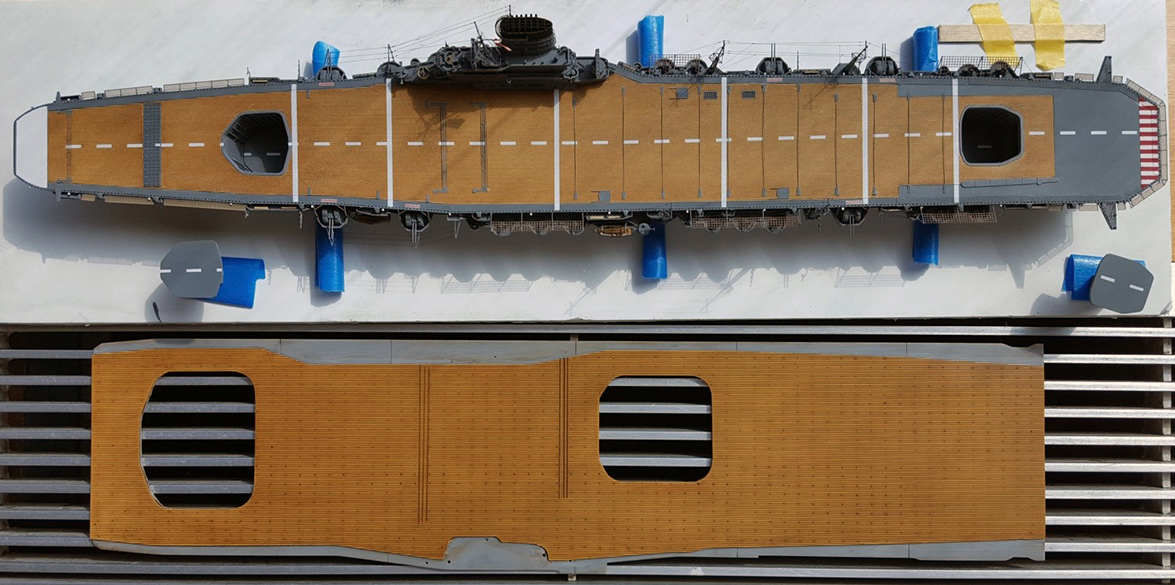

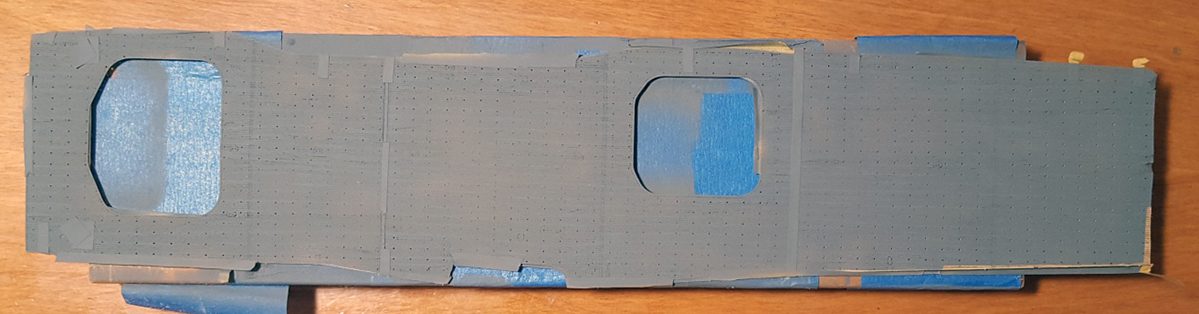

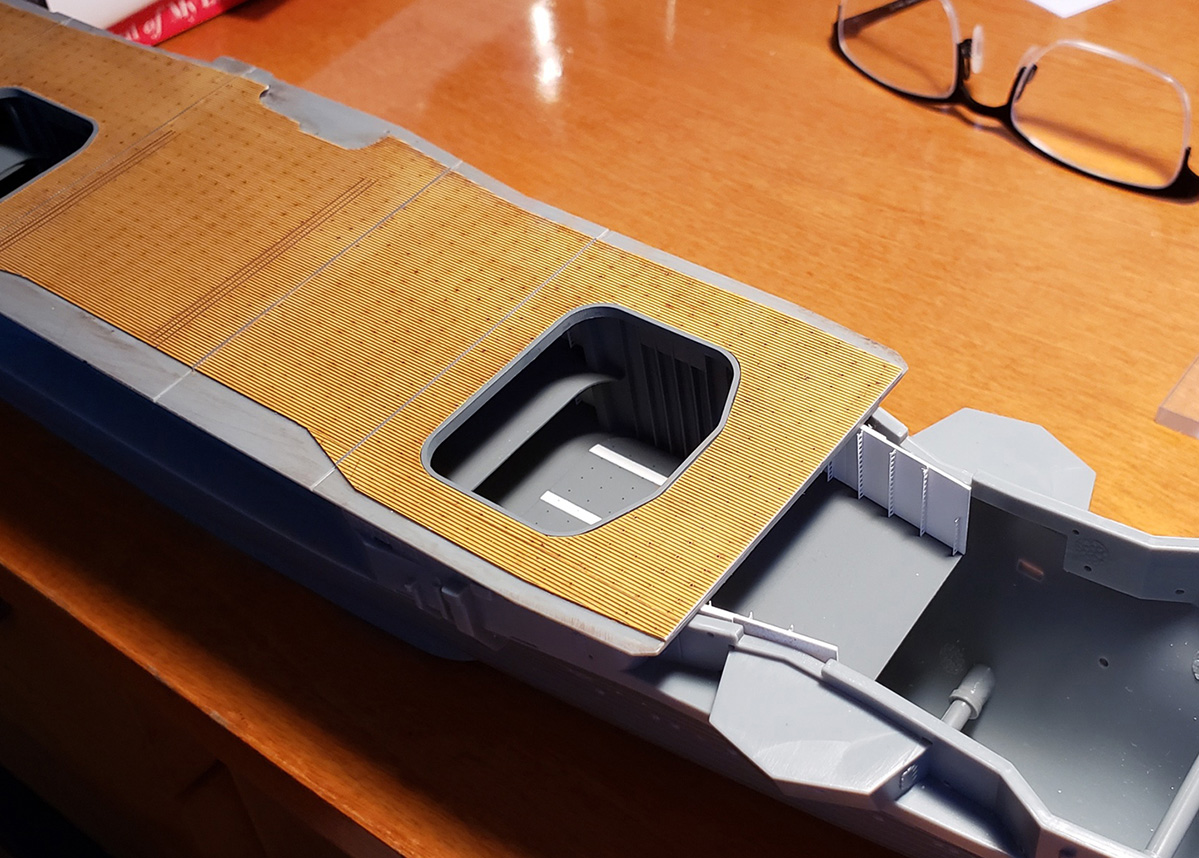

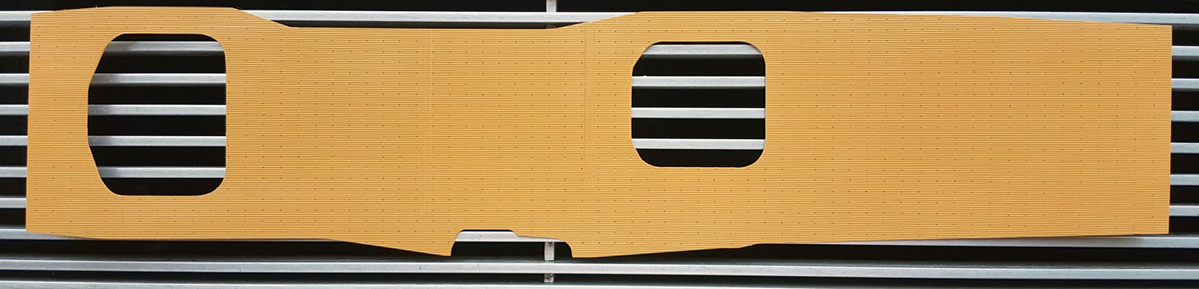

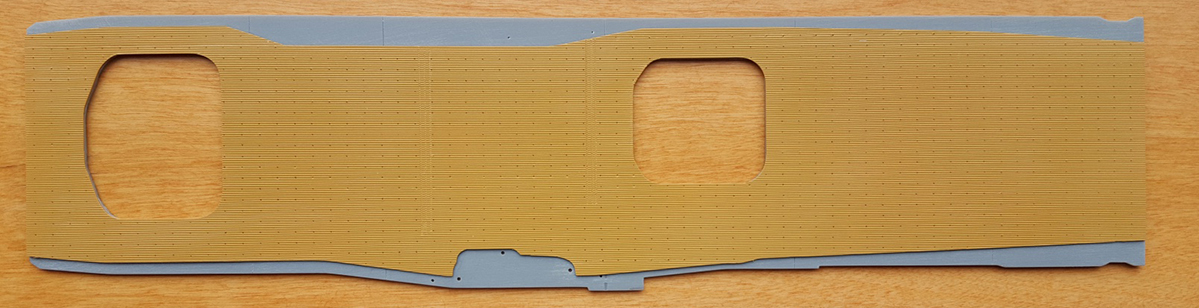

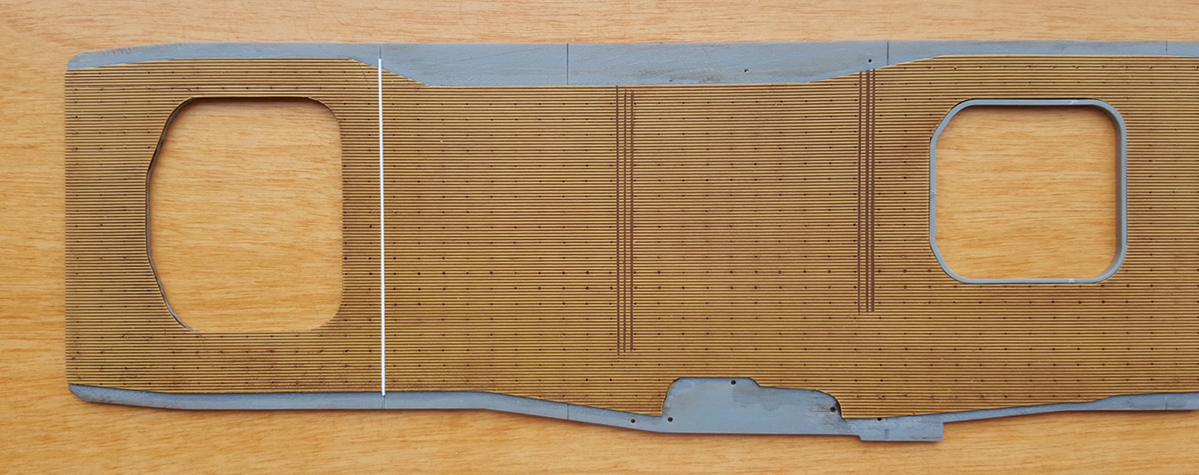

As with Taiho, the planking was cut to size. The flight deck was cut into three pieces, to allow me to sand down the planked portion of the kit flight deck. Then, I used the wood sticker from the Shipyard set to mark the tie-down holes by aligning it on the V Groove flight deck and spray painting it with gray. The marked tiedowns were then debossed using a simple punch tool I have. The deck was then washed with a burnt umber oil pigment. Channels were etched crosswise into the grooving for the crash barrier cables. The planking was then glued to the kit flight deck.


Attachments:
20200420_092936_resized.jpg [ 255.12 KiB | Viewed 1229 times ]
20200420_093006_resized.jpg [ 231.01 KiB | Viewed 1229 times ]
20200423_155415.jpg [ 349.09 KiB | Viewed 1229 times ]
20200424_202125_resized.jpg [ 293.74 KiB | Viewed 1229 times ]
20200424_202459.jpg [ 365.37 KiB | Viewed 1229 times ]
20200426_191410_resized.jpg [ 291.38 KiB | Viewed 1229 times ]
20200426_203649_resized.jpg [ 372.13 KiB | Viewed 1229 times ]
20200508_085824_resized.jpg [ 360.04 KiB | Viewed 1229 times ]
20200514_091318_resized.jpg [ 280.95 KiB | Viewed 1229 times ]
20200514_091340_resized.jpg [ 267.31 KiB | Viewed 1229 times ]
20200515_082144_resized.jpg [ 287.67 KiB | Viewed 1229 times ]
Taiho & Hiryu decks..jpg
Taiho & Hiryu decks..jpg [ 385.74 KiB | Viewed 1229 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jul 13, 2020 3:00 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7413
Location: New York City

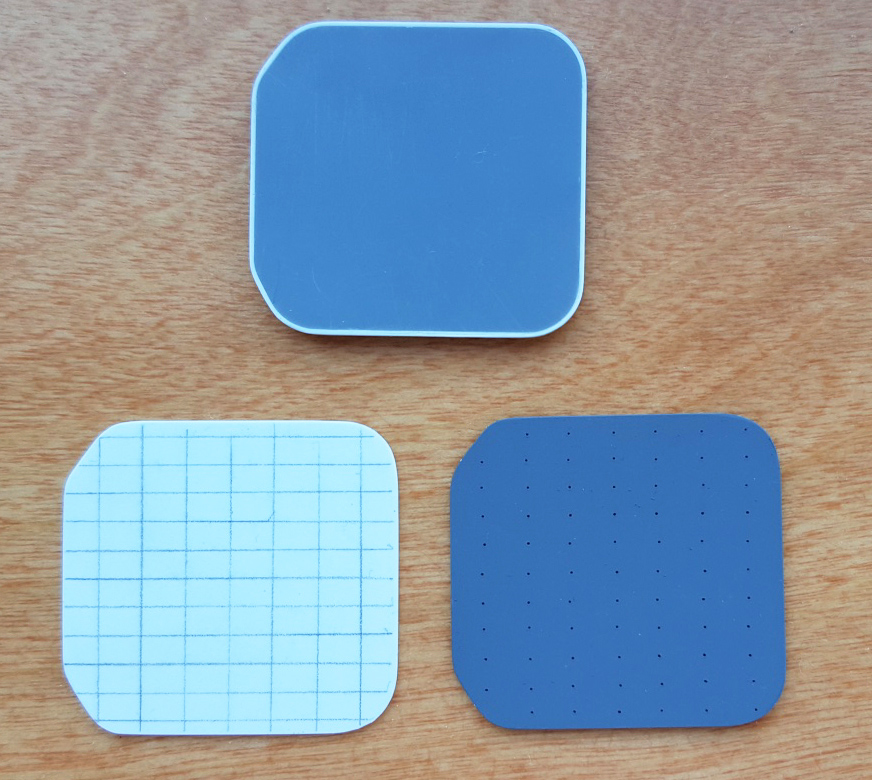

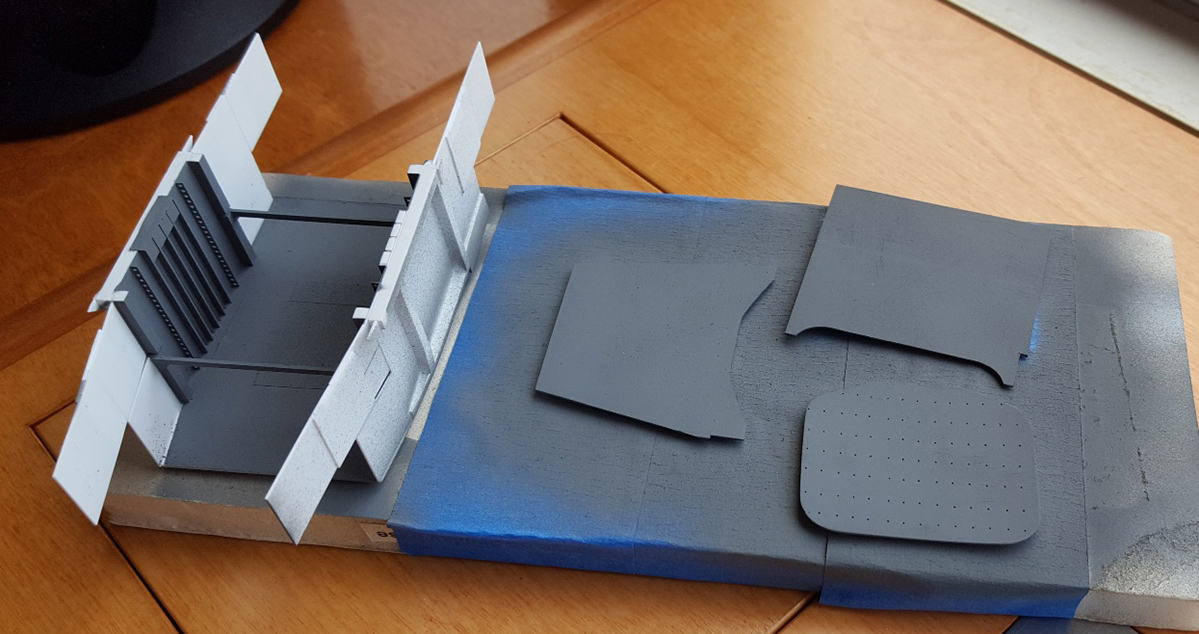

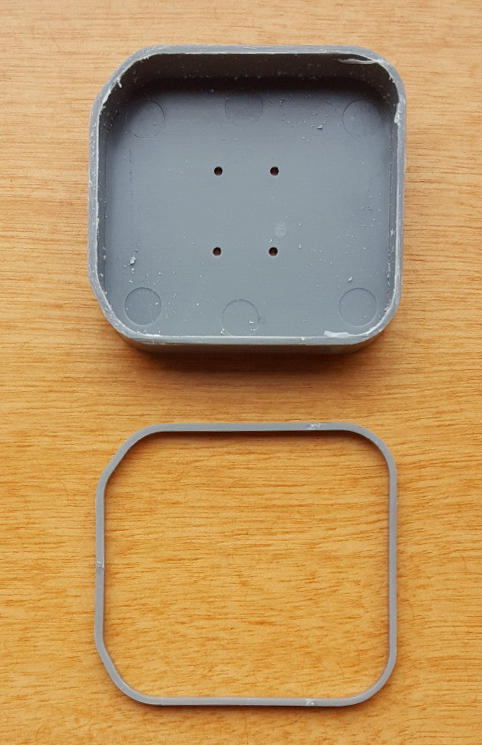

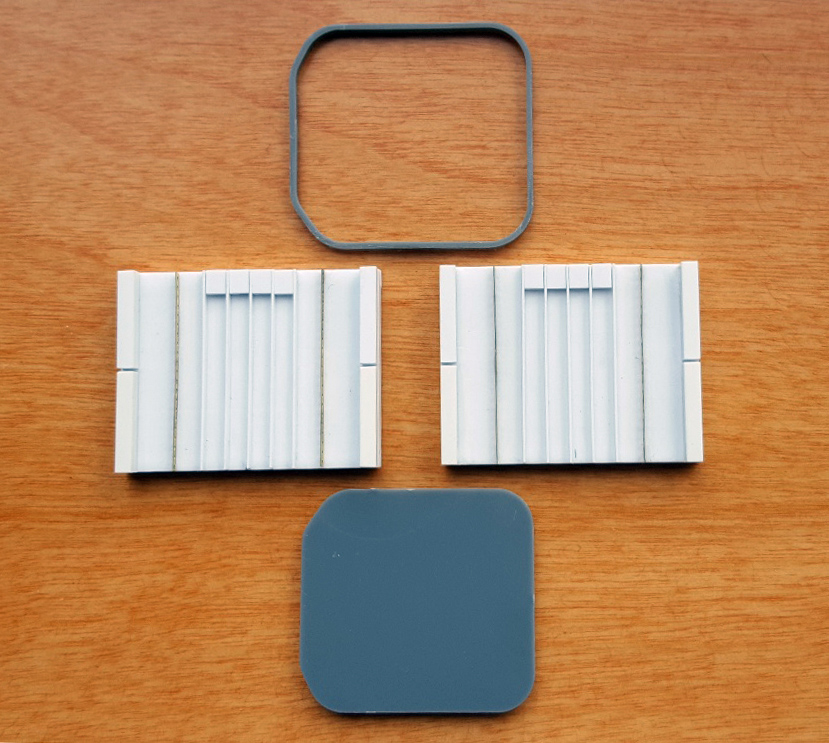

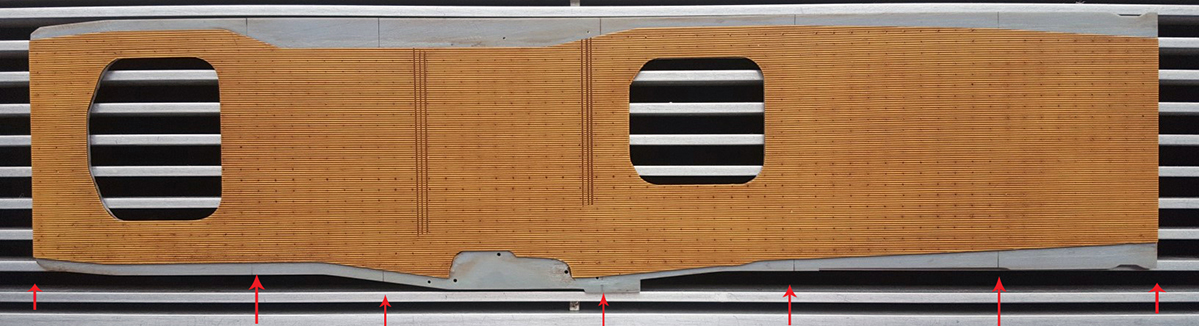

The elevator well aprons were cut from the kit supplied elevator wells. Grooves were then cut cross-wise into the flight deck planking to allow for styrene inserts for the deck expansion joints.


Attachments:
20200525_094112_resized.jpg [ 283.89 KiB | Viewed 1228 times ]
20200525_094152_resized.jpg [ 360.37 KiB | Viewed 1228 times ]
Hiryu FD expansion joint locations.jpg
Hiryu FD expansion joint locations.jpg [ 332.35 KiB | Viewed 1228 times ]
20200525_094301_resized.jpg [ 336.55 KiB | Viewed 1228 times ]
20200525_094232_resized.jpg [ 376.31 KiB | Viewed 1228 times ]
20200526_160235_resized.jpg [ 344.5 KiB | Viewed 1228 times ]
20200526_183211_resized.jpg [ 332.72 KiB | Viewed 1228 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jul 13, 2020 3:04 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7413
Location: New York City

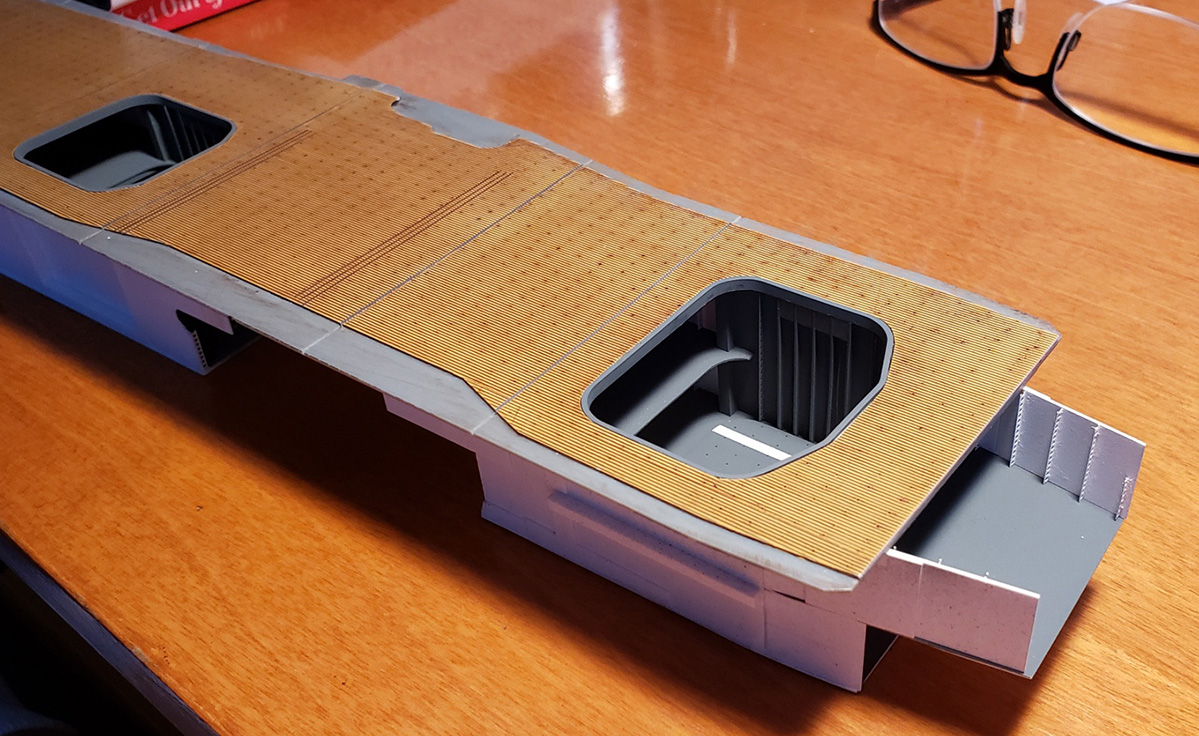

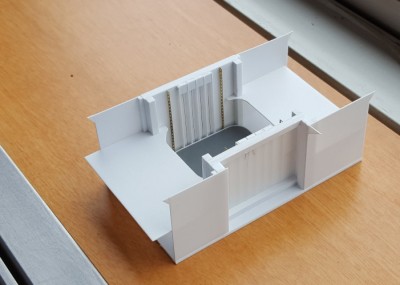

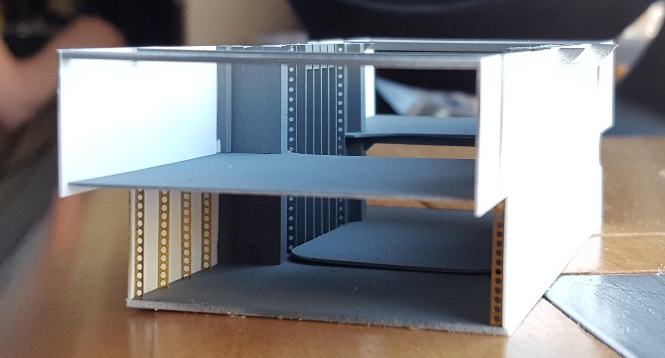

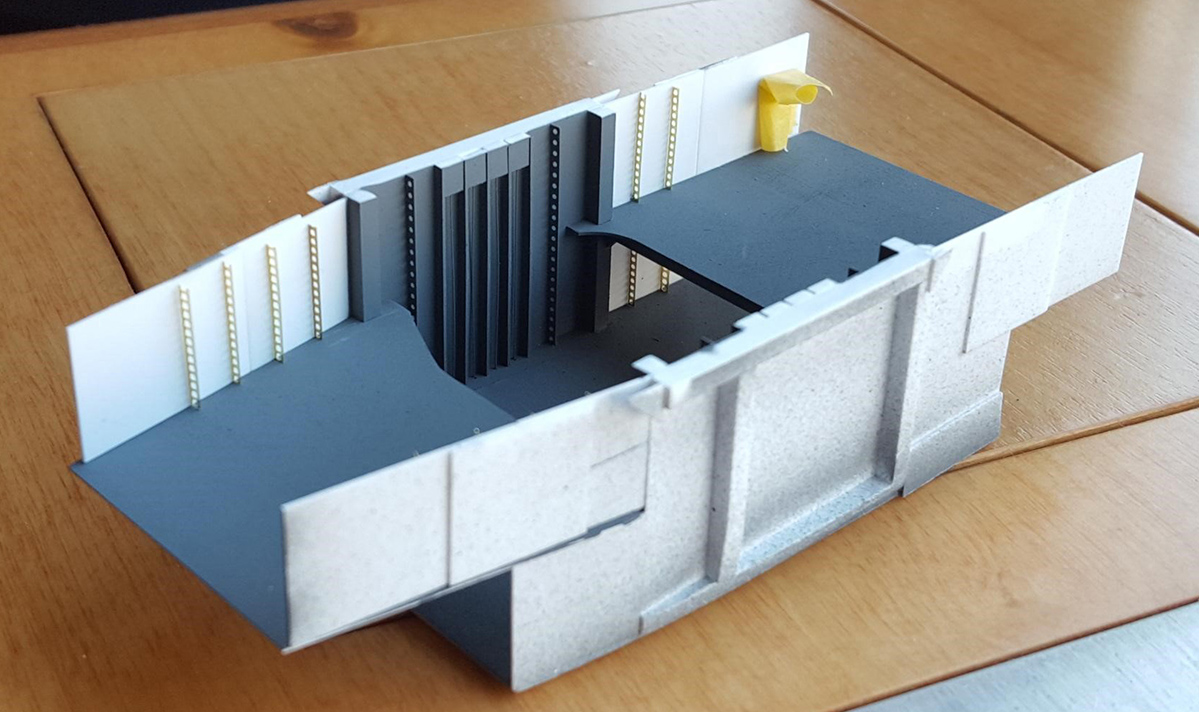

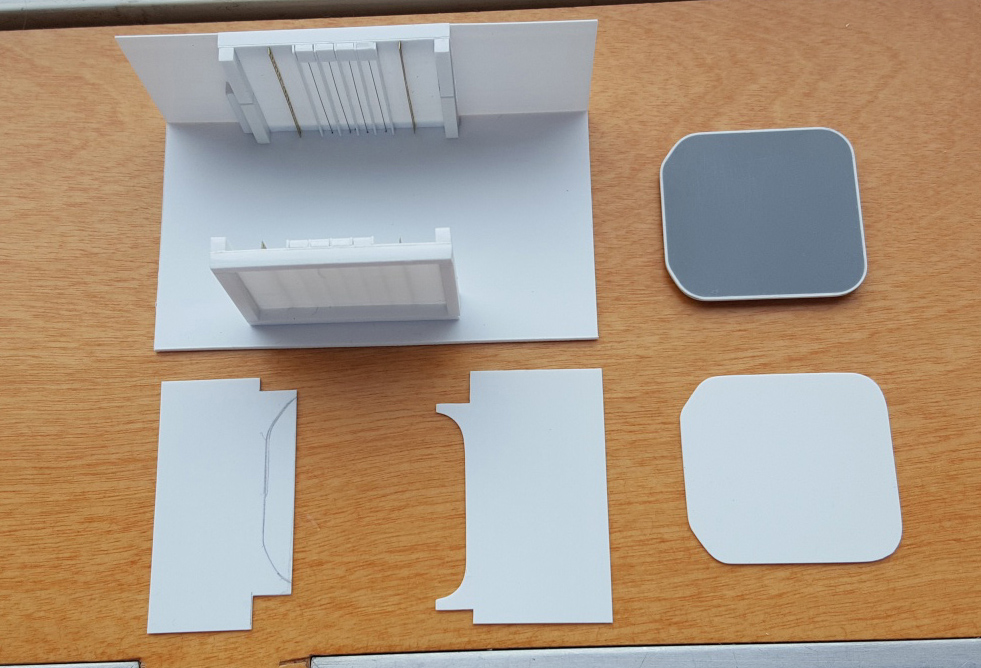

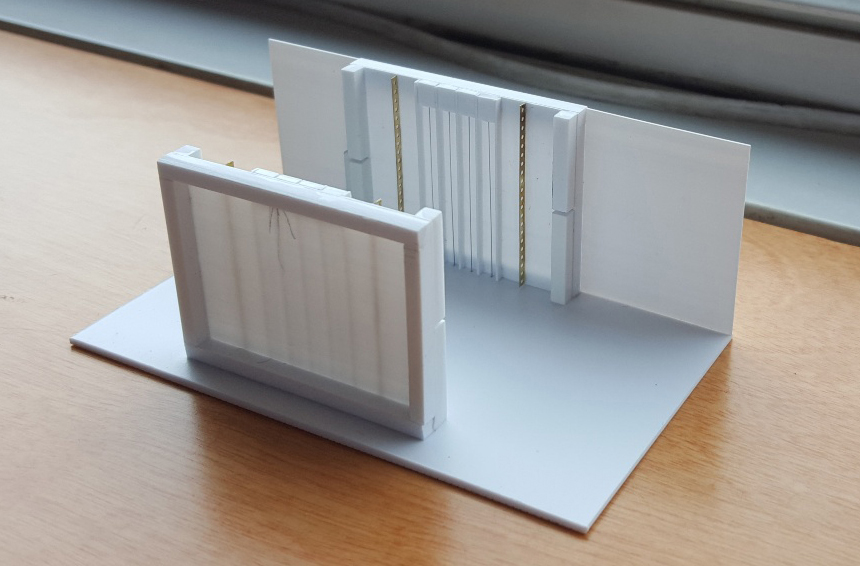

The elevators were again scratch-built. One new detail that the larger scale enabled was the addition of the elevator counter-weight cables on either side of the elevator.


Attachments:
20200531_165914_resized.jpg [ 312.92 KiB | Viewed 1228 times ]
20200603_090740_resized.jpg [ 259.57 KiB | Viewed 1228 times ]
20200603_090901_resized.jpg [ 298.31 KiB | Viewed 1228 times ]
20200605_100605_resized.jpg [ 212.77 KiB | Viewed 1228 times ]
20200608_083932_resized.jpg [ 327.4 KiB | Viewed 1228 times ]
20200608_084359_resized.jpg [ 163.7 KiB | Viewed 1228 times ]
20200609_085207_resized.jpg [ 334.09 KiB | Viewed 1228 times ]
20200611_080304_resized.jpg [ 377.65 KiB | Viewed 1228 times ]
20200611_092146_resized.jpg [ 374.96 KiB | Viewed 1228 times ]
20200612_091247_resized.jpg [ 277.5 KiB | Viewed 1228 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jul 13, 2020 3:07 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7413
Location: New York City

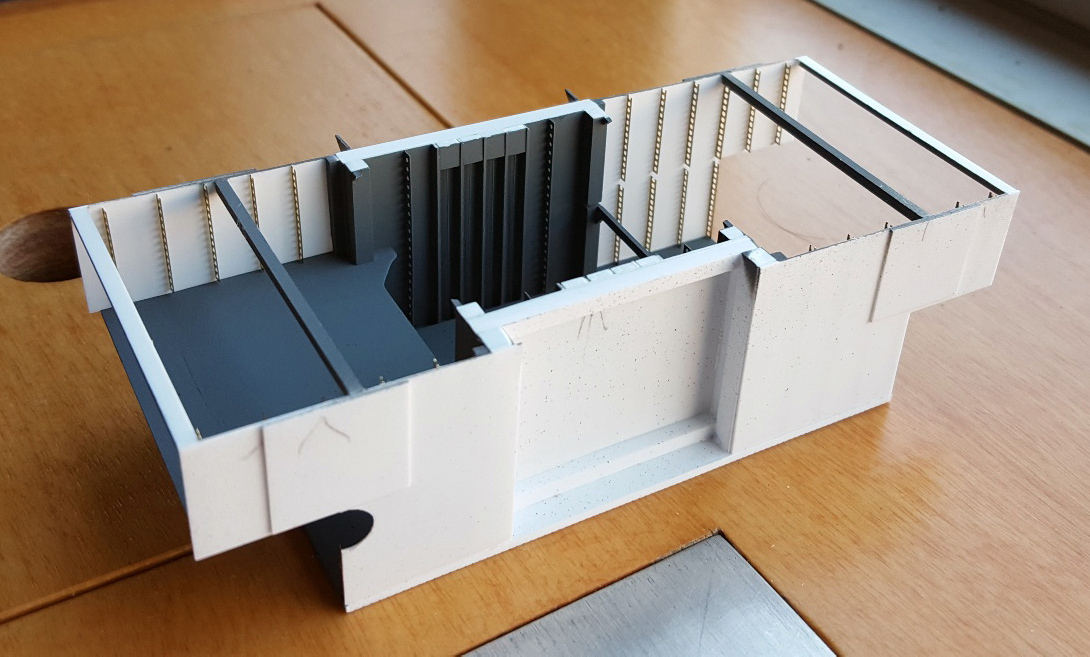

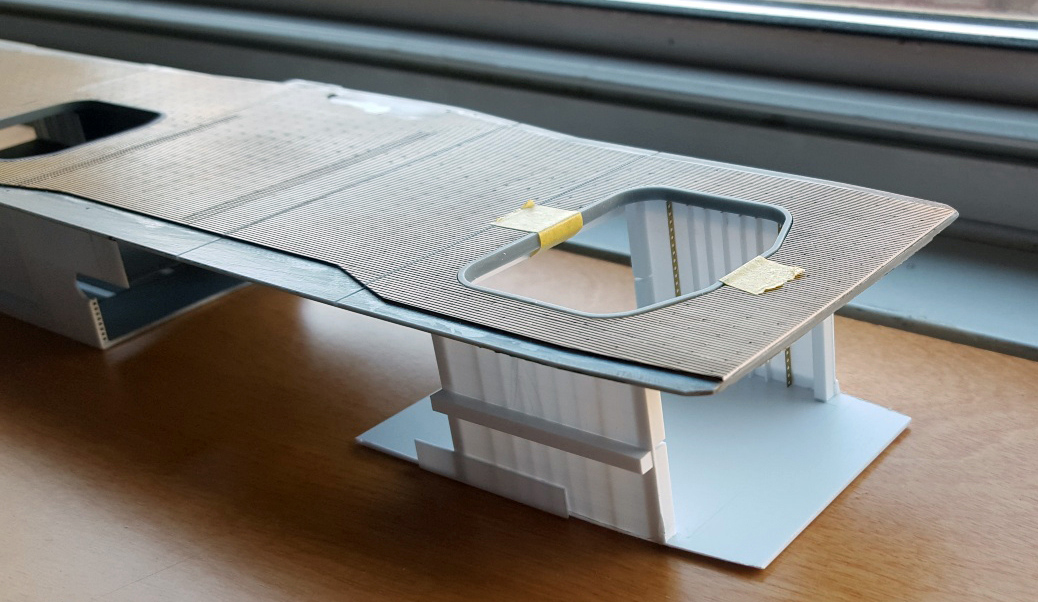

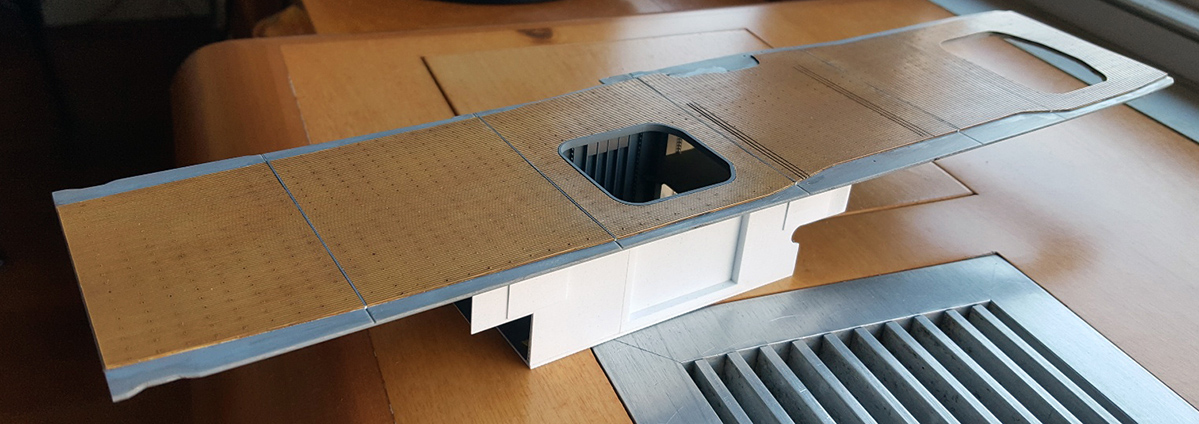

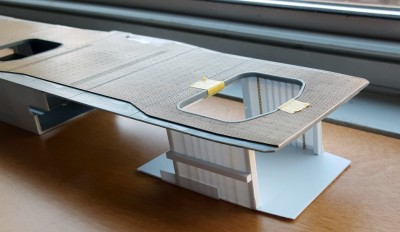

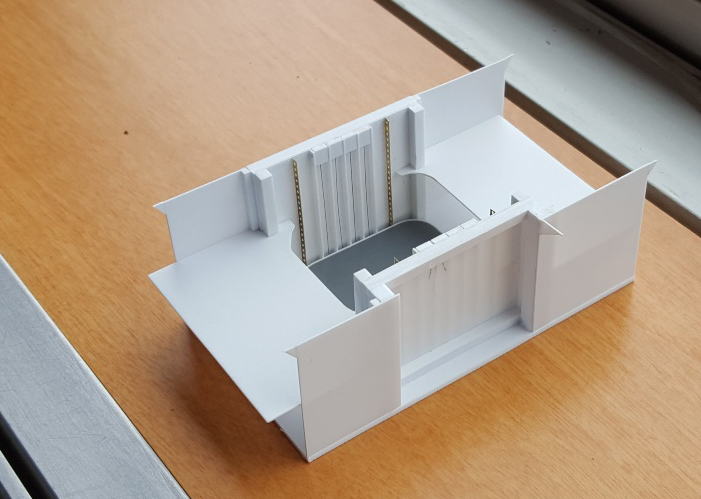

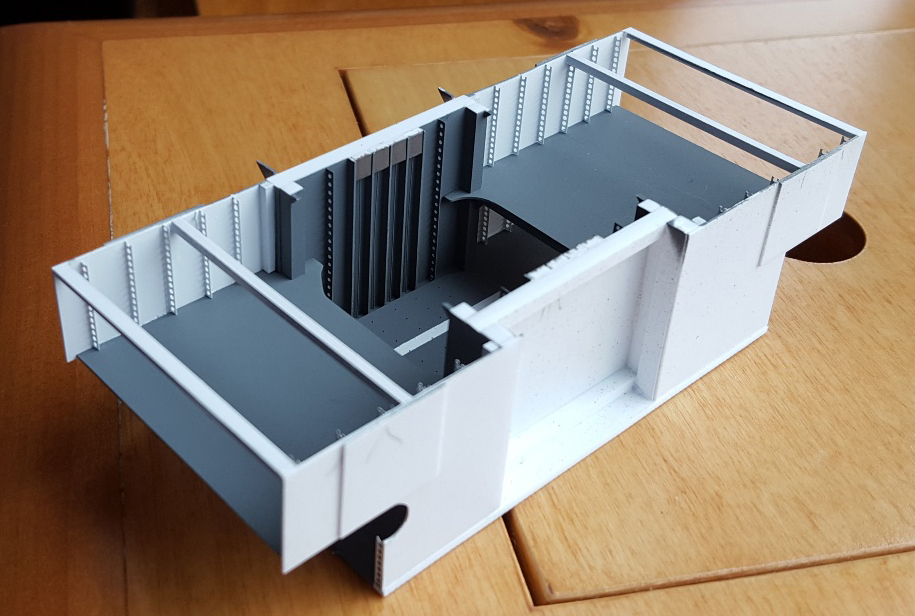

Elevator well and hangar deck construction was greatly limited by the crosswise rods used by Fujimi to stiffen and stabilize the hull. I had to cut out two rods in order to enable any sort of lower hangar deck. (Those two rods will be re-positioned within the hull. I’m also going to have to stiffen and reinforce the rigidity of the hull considerable before I get around to water-lining the hull). Space considerations and tight fit tolerances meant constant refitting, particularly for the forward elevator/hangar deck assembly.


Attachments:
20200622_081215_resized.jpg [ 295.45 KiB | Viewed 1226 times ]
20200628_193223_resized.jpg [ 355.84 KiB | Viewed 1226 times ]
20200702__resized.jpg [ 343.27 KiB | Viewed 1226 times ]
20200705_150630_resized.jpg [ 361.53 KiB | Viewed 1226 times ]
20200705_150757_resized.jpg [ 377.66 KiB | Viewed 1226 times ]
20200705_150830_resized.jpg [ 225.57 KiB | Viewed 1226 times ]
20200705_150836_resized alt.jpg
20200705_150836_resized alt.jpg [ 356.74 KiB | Viewed 1226 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jul 13, 2020 3:11 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7413
Location: New York City
stay tuned.


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jul 13, 2020 5:02 pm
Offline
User avatar

Joined: Wed May 06, 2020 4:02 am
Posts: 42
That is looking very nice and good, especially your elevators are awesome. I’ll certainly check this one up hoping for updates :smallsmile:

_________________
Some people say we modelers build, others say we replicate or even duplicate. But regardless of how we name it what we are doing, we have fun with it. Which is why I (and hopefully we all) engage in this wonderful hobby


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jul 13, 2020 6:56 pm
Offline

Joined: Thu Jan 10, 2013 9:25 pm
Posts: 227
Dan , you are the MASTER of scratch-built elevator wells! :worship_1:

Q: do you work from a set of blueprints/plans, or "eye it" based on pictures and other references materials?

_________________
- Greg


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Jul 14, 2020 6:06 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1716
Location: Belgium
:woo_hoo: :woo_hoo: :woo_hoo:

This will be a pleasure to follow!!!

It already is now... :big_grin:
Great job on the deck and elevator wells! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

In case you are not looking forward to waterlining: what about keeping the full hull but embedding it in a seascape? :big_grin: :whistle:


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Jul 14, 2020 10:47 am
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7413
Location: New York City
Thanks for the comments, guys.

Quote:
Q: do you work from a set of blueprints/plans, or "eye it" based on pictures and other references materials?


Yes to both. The contours and confines of the hull drives what can actually be done. In Taiho's case, the elevators were placed at either end of the the hangar deck, and the contours of the kit hull followed the plans well enough to make the wells and hangar decks close to accurate for what I did.

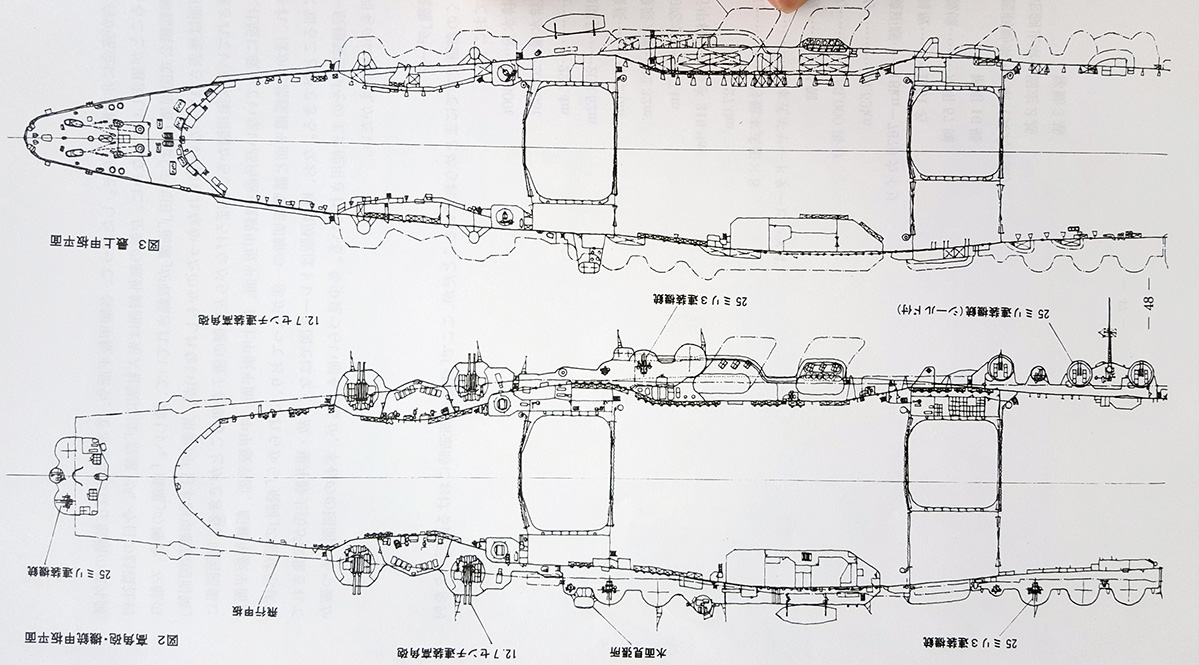

The Hiryu kit makes this a little more challenging. As you can see from the schematic below, the elevator well itself is pretty straightforward. Wrapping a hangar deck around either side of an elevator accurately was far more challenging, and required far more eyeballing, particularly for the lower level. I went more for overall effect rather than absolute accuracy. Btw, I'm not planning on opening the aft elevator well. Two is enough.

Quote:
n case you are not looking forward to waterlining: what about keeping the full hull but embedding it in a seascape?


A good idea, but I just don't have room for the display that would entail. Waterlining it allows me to just place the ship on a shelf with other builds. I'm going to go with the hidden waterline plate approach, instead of killing myself to fair a waterline plate to the hull.


Attachments:
Hiryu upper hangar deck layout.jpg
Hiryu upper hangar deck layout.jpg [ 296.08 KiB | Viewed 1106 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Jul 15, 2020 5:34 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1716
Location: Belgium
Dan K wrote:
A good idea, but I just don't have room for the display that would entail. Waterlining it allows me to just place the ship on a shelf with other builds. I'm going to go with the hidden waterline plate approach, instead of killing myself to fair a waterline plate to the hull.


Good idea! Getting rid of such a long seam seems much harder indeed than fitting the waterline plate inside the hull halves. And seams like that have a way of becoming visible again after the model is finished through shrinkage of the filler. Ask any aircraft modeller...

And lack of space is of course a real issue. Even a slow builder like me accumulates enough finished models over the years tof force me to decide which ones to keep on display and which ones to store in boxes...
I also live in a (small) city, but I'm sure New York housing offers even much less space to spare.
Anyway, waterline models look great on a clean surface too!


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Jul 17, 2020 10:14 am
Offline
User avatar

Joined: Wed Nov 22, 2006 4:42 pm
Posts: 328
Location: Lisbon, Portugal
Well... I didn't saw this coming!
Dan is working in 1/350... you will have the chance to put double the amount of detail you usualy place in your masterpieces!

Following with interest!
Cheers,
Rui

_________________
Ship Modelers of the World UNITE


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jul 20, 2020 12:57 pm
Offline

Joined: Sat Jan 24, 2009 5:16 pm
Posts: 734
Location: Wisconsin
1/350 Scale. Uh oh! Looking great Dan!


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Jul 20, 2020 6:00 pm
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 7108
Location: In the hills of North Jersey
Joe Simon wrote:
1/350 Scale. Uh oh! Looking great Dan!

Haha. Right? He needs to stay in his own lane!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Sep 14, 2020 12:56 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7413
Location: New York City
:heh:

A quick update:

My family and I finally got to take a vacation (actually a staycation in another location) and I took the Hiryu hull with me. I figured there would be plenty of time to do the messy grunt work.

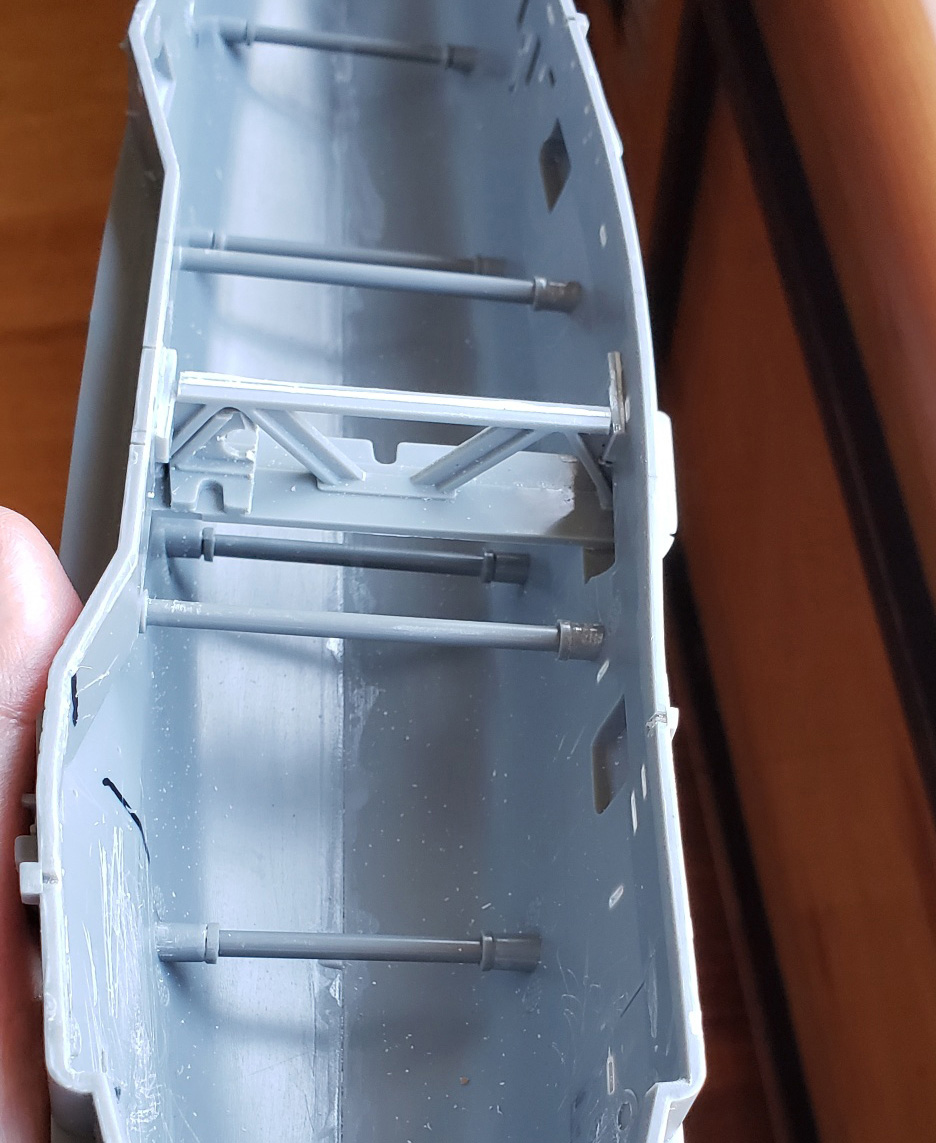

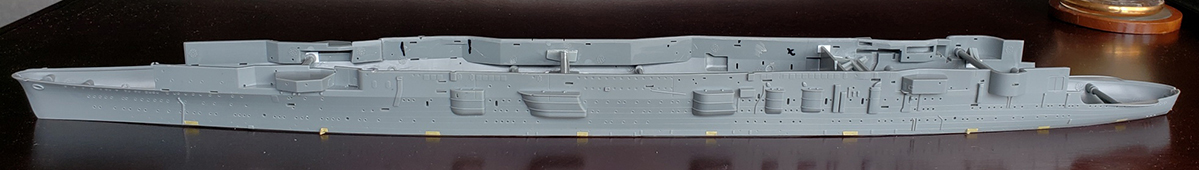

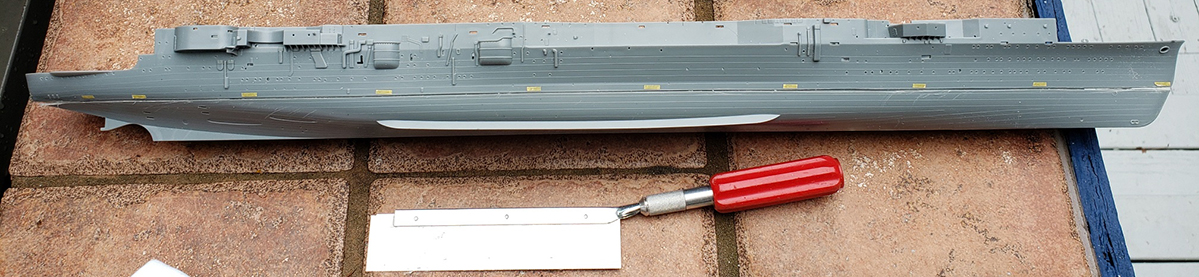

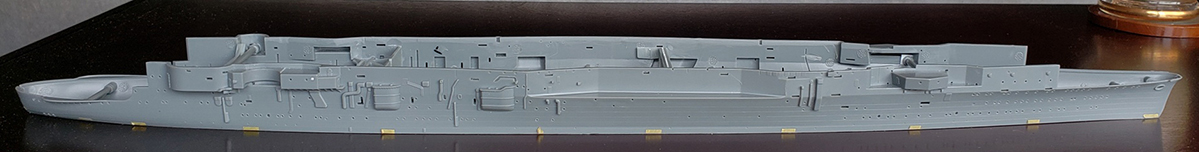

The upper hull was stiffened with old Revell display stands used as inserts (very effective) and was then waterlined using a hobby saw. There’s a plating line on the hull that conveniently approximates the waterline and I left myself a little room for error. Some fine-tuning of the actual waterline has been done using a file and all the portholes have been drilled out, though these photos don’t show all of that.


Attachments:
20200719_100538_sm.jpg [ 193.88 KiB | Viewed 466 times ]
20200718_113647_sm.jpg [ 281.44 KiB | Viewed 466 times ]
20200902_161003_resized_1sm.jpg [ 334.09 KiB | Viewed 466 times ]
20200902_161028_resized_1sm.jpg [ 347.85 KiB | Viewed 466 times ]
20200903_161017_resized_2.jpg [ 306.75 KiB | Viewed 466 times ]
20200910_105912_resized.jpg [ 136.08 KiB | Viewed 466 times ]
20200910_105932_resized.jpg [ 151.51 KiB | Viewed 466 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Sep 14, 2020 12:58 pm
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7413
Location: New York City

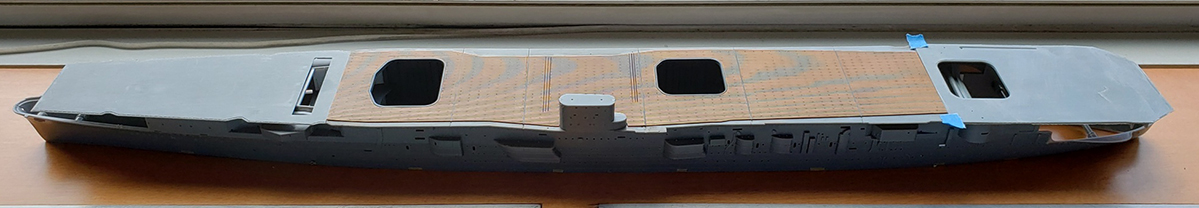

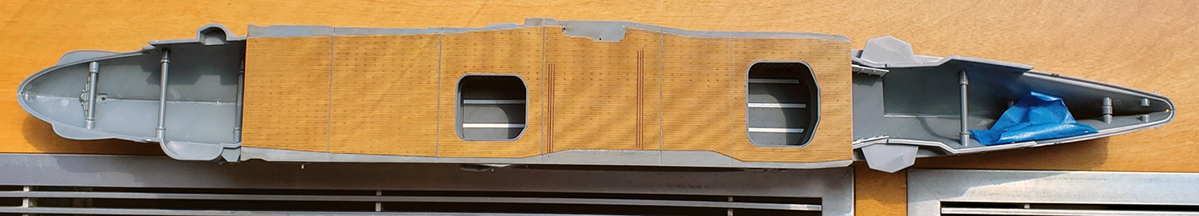

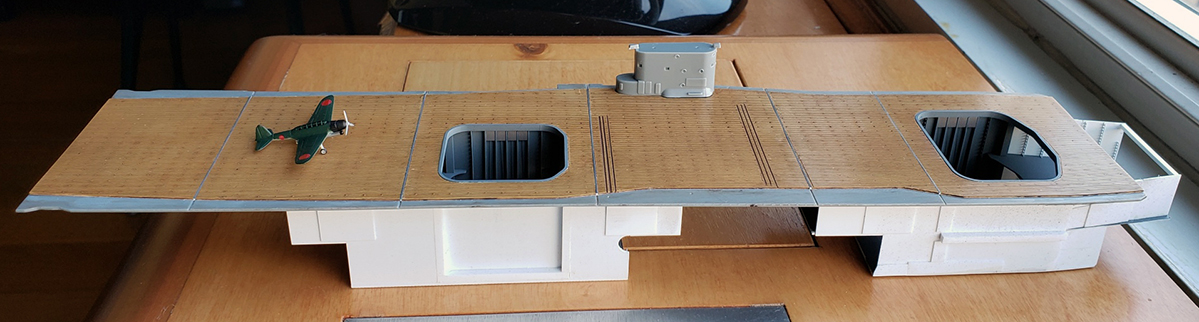

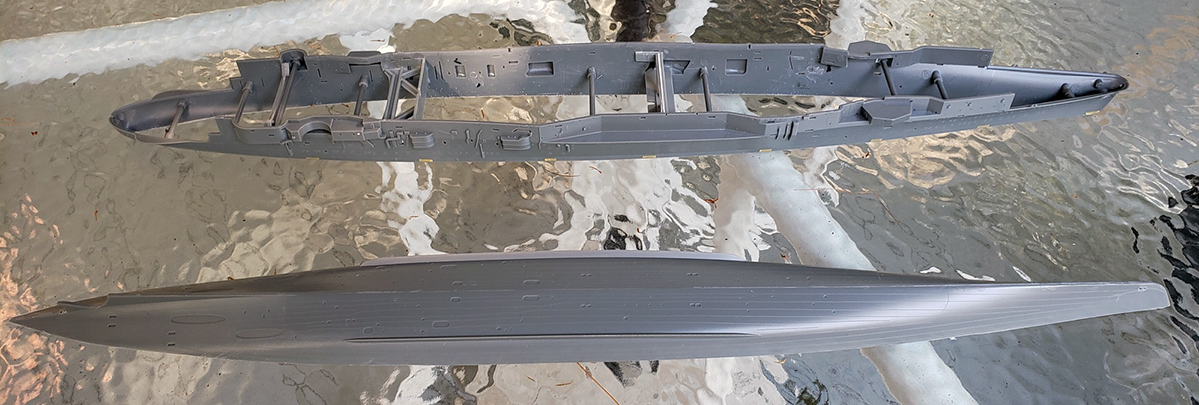

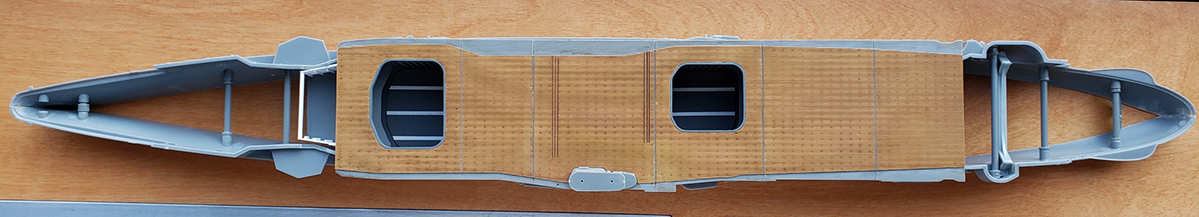

Obviously, I just had to test fit the hull with the hangars and flight deck. :smallsmile:

The next step will be to ensure the hull lies completely flat and install a hidden waterline plate/bottom for stability.


Attachments:
20200911_175904_resized.jpg [ 240.54 KiB | Viewed 466 times ]
20200912_094803_resized.jpg [ 239.44 KiB | Viewed 466 times ]
20200912_124520_resized.jpg [ 220.27 KiB | Viewed 466 times ]
20200912_124638_resized.jpg [ 182.07 KiB | Viewed 466 times ]
Report this post
Top
 Profile
Reply with quote
PostPosted: Mon Sep 14, 2020 8:40 pm
Offline
User avatar

Joined: Wed May 30, 2007 12:26 am
Posts: 230
Hey 'Dan K', your Build Looks GREAT!!!! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

I hear you about building a 350 scale, is quite Intense!! I plan to build four (4) 350 scale FF/FFG that I served onboard....maybe after I build my Asian fleet (JMSDF and PLAN carriers). I only have a few of those bigger models, so where do you "display them" do you place on shelf, curio??

Curious, with ALL That Work on those elevators, and by the way....that is Excellent looking scratchbuilding :cool_1: :cool_2: , but will you Do This??!!!!

https://www.youtube.com/watch?v=qOjZ0wDhlf8

I think that it is small enough for me to build on possible 700 scale ship.

M.


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Sep 15, 2020 7:46 am
Offline
Model Monkey
Model Monkey

Joined: Sat Aug 20, 2005 9:27 pm
Posts: 3512
Location: USA
Restocked popcorn supply, enjoying the show.

_________________
Have fun, Monkey around.

-Steve Larsen

Catalog of over 2500 products for scale modelers - https://www.model-monkey.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Tue Sep 15, 2020 10:12 am
Offline

Joined: Tue Jan 11, 2005 10:56 am
Posts: 7413
Location: New York City
Thx, M!

Quote:
where do you "display them" do you place on shelf, curio??


Just a couple of shelves with dust covers. I'll have to take a photo later.

Quote:
but will you Do This??!!!!


Yowsa! Wow. That's impressive, and unexpected. A neat piece of model engineering, for sure. That's very cool but, no, I won't be doing that. I'm not even sure I could shoehorn the mechanism into a waterlined hull.

Quote:
enjoying the show.


Free entertainment!


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Sep 18, 2020 2:58 am
Offline

Joined: Tue Feb 06, 2007 10:24 am
Posts: 1716
Location: Belgium
Glad to see progress on this one! :thumbs_up_1: :thumbs_up_1: :thumbs_up_1:

Although I have absolutely nothing against full-hull models, I love the look of IJN carriers waterlined.
If only there would be a 1/350 scale Soryu kit... That would be one of only that might make me do a carrier in 1/350.
Meanwhile, I'll watch your build and learn!


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 23 posts ]  Go to page 1, 2  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: Neptune and 49 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
