Build Log for USS STODDARD (DD-566)
Configuration - post 1968 LBNSD Overhaul
Scale: 1/144


Kit: Revell (Germany) USS FLETCHER (DD-445) No. 05091-0389 (2005) – Bashed
Various 3D Parts: Model Monkey, diStefano (Shapeways), & others
PE : Eduard (Big Ed) & Kit Supplied
Decals: Stan Cedarleaf
Screws: Keith Bender
Scratch built: 01 Level, 01 Level Deckhouses, 3”/50 Gun Tubs, 3”/50 magazine and Mk. 63 GFCS enclosures, etc. Mk. 56 GFCS platform and foundation, Main Tripod Mast, RADARS, and all electronics, instrumentation, etc.

Background:
I served in STODDARD from June 1966-April 1968 and went on one wartime cruise (WestPac 67-68) aboard her for which we were awarded (in addition to the normal USN/RVN trinkets) the Navy Unit Commendation. I’ve been a member of the Stoddard Alumni Association for many years and have always wanted to build an accurate model of the ship as she appeared when I served aboard. So, having been able to find one of these larger kits at a very reasonable price, I’ve decide to go ahead and begin work on this project.

In preparation for this build, I have had personal contact with Rick E. Davis, a fellow modeler and researcher. Rick, in addition to his many photographs, has provided me with quite a bit of valuable information re. the post-WWII FLETCHER class modifications which was performed on many of the 175 class destroyers built during WWII. STODDARD was decommissioned finally in 1969 but served as an electronic R/C test ship in the 1970s and 1980s to prove out the Block 1 Phalanx Gun System then being developed by Raytheon Corp. She survived these tests and was finally sunk during a USN SEAL team SINKEX operation in 1999.

Prior to my professional retirement in April 2019, I began drawing up the necessary CAD drawings that would be required to build an accurate model of STODDDARD as she was configured during the time I served aboard her. Having licensed CAD software at home, I have continued refining and finishing these drawings at my own leisure. I exclusively use Bentley MicroStation CAD software for my drawings. Currently, I am using MicroStation Power Draft 2D CAD software.

Before leaving my job in April 2019, I was able to assemble the basic hull of the kit and begin to plan out the various hull openings/modifications needed to make this model accurate as to the bottom of hull details (intakes/discharges/etc.) which are not usually molded into the normal model kit hull.

I would also note that another modeler, Guillermo Martino Baz (Willie), from Vigo, Spain – (a forum participant), is also building this kit into a sister ship – ex USS McGOWEN (DD-784) which served as Spanish Navy Destroyer D25 Jorge Juan. Willie has his build log also in the Works in Progress sub-forum. We correspond with each other and his modeling expertise is welcomed by me because he is extremely precise in his approach to building his model as accurate as possible.

Hull:
For the most part, the kit hull will be used ‘out of box’ as there were very little, if any, changes made to the hull during the lifespan of the FLETCHER class ships, with the exception of the SONAR domes that were modernized and replaced in the 1950s. As mentioned before, I will also add the various hull openings and intakes/discharges as shown on U.S. Navy Bureau of Ships Drawing 683714, DD568 Docking Plan (USS WREN) – 10/1952, Charleston Naval Shipyard. This is a typical FLETCHER class docking plan showing all underside openings, etc. on the ship’s hull. Once the underside penetrations & intakes are completed, I will prepare the various parts for adding shafts, screws, rudders, etc. The screws will be provided by another forum member, Keith Bender – his screws, IMHO, are simply the best available and most accurate. Once the hull has been primed & painted, custom decals for the ship name & hull numbers will be added and the hull turned upright on a construction stand and work on the main deck will begin.

In order to “keep up with the Jones” (referring to Willie’s build of Jorge Juan), I will also be attempting to “oil can” the hull; in effect, giving the hull a treatment to show the effects of years at sea as most FLETCHER Class destroyers that survived into the late ‘60s. “Oil Canning” is the concave effect the water pressure against these thin-hulled ships exerted and somewhat distorted the steel hull plating between the frames of the ship’s hull. We had the same effect on USS NEW JERSEY’s hull but mainly around the stern of the ship and not on the sides or flat planes of the hull.

09/02/20 - Now that my workshop is fairly complete I will be able to begin the STODDARD build in earnest. Tonight I built a wooden jig to hold the hull upside down while I make the necessary penetrations & openings for intakes, discharges, and SONAR dome, etc.


09/03/20 - This evening I measured the 2 salt water condenser intakes, located them, and cut out the basic openings.


Note: The original list of vendor/providers may be updated from time to time if 3D parts become available before I build my own scratch made parts where necessary.

EDIT - Added correct Revell kit (FLETCHER) and modified Guillermo Baz model description.

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

Hank:

Glad to see the shipyard in commission! who knows what adventures will be encountered in her construction and what unsolvable problems will be solved.

Onward! Cheers: Tom

Thanks Tom!
This will be another long term project - no way around that! Once I'm able to use the shop during daylight hours then things will get going on a steady basis. Today I took inventory of available Evergreen tubing (none!) and will probably be out working again this evening after supper.

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

Hank: What sizes Evergreen tube do you need? I have some left over in a couple of sizes.

Hope that you get the AC going again!

The Watts, DD 567 operated for USNR training out of Tacoma and was in similar arrangement except she retained the 53 mount.

Cheers: Tom

Tom,
I appreciate the offer but I went ahead this afternoon and placed an order w/Hobbylinc for 8 different diameters of hollow tubing. I'll probably use 4 of them on this build, but wanted to have the others on hand in case I needed them.

It will probably be the last order I place for a while - I've got to get some organization going on this project; I have things all over the place and need to create a punch list before I mess up something without the proper info on hand. Sort of putting the cart before the horse.

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

Think of the logistic organization existed in real shipyard construction and what a wrangling nightmare it must have been during the war competing priorities. It was the approaching "steel shortage" that led to the cancellation of the Montana's, the last 4 Alaska's and delay of Illinois and Kentucky. DE's were completed variously with steam and diesel electric drive due to the lack of reduction gear cutting capacity. CVE's were launched with triple expansion Uniflow Steam (Piston) engines for the same reason. Of course having components delivered simplifies things a bit. If the yard (you) don't have to make the 5" 38's or the torpedo mounts, then a few less parts on hand.

Orders are good to help keep the hobby shops open!

Glad she's under construction!

Cheers: Tom

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Willie,

Thanks so much for the gracious reply!! and the correction - I'll edit that comment quickly.

I'm using the 1/144 Revell FLETCHER kit by the way. I got a rather good deal on it from another forum member a couple years ago and have had it sitting in the shadows since!

Hope to be in contact every now & then as we both make progress on our builds!

Welcome aboard!

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

Certainly the Tin Can Sailors were likely to have a more exciting war. Even little Whitehurst, DE 634 sank a submarine and took a Kamikaze off the Philippine Islands. A lot of history walking those decks! I'm sure in Hank's day there were still old hands who had achieved their manhood in the Great Blue Fleet of the Pacific.

Tom,
Yes, when I walked aboard STODDARD in June 1966 there were quite a few "lifers" in the crew who had served in WWII as teens and either lied about their age to enlist or were just past the legal age to enlist. They NEVER spoke ill of the Navy or anything it did. I guess for most, the Navy gave them their lives, so to speak.

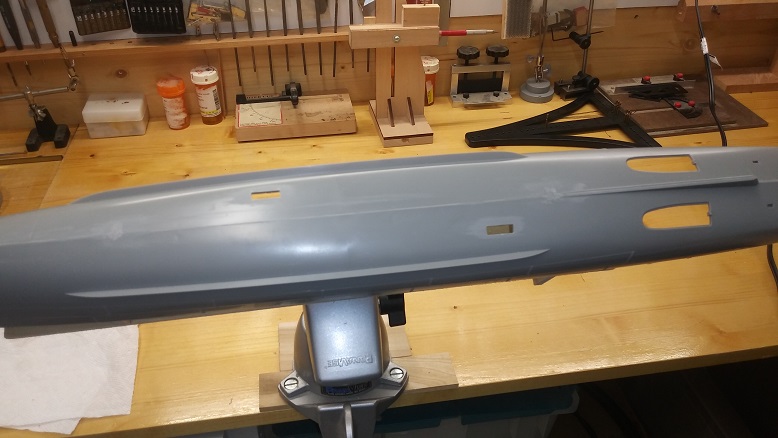

OK, I'm winding down on the bottom of the hull penetration work, with mostly double checking the dockyard plan for DD-628 (USS WREN) to make sure I'm on track. I will build the salt water intakes once the wooden cradle is temporarily removed and I have access to the inside of the hull. I've gotten the two shaft alley pieces in place and will putty them tomorrow. So, here's the hull:

(the parts taped on the hull are for the salt water intake boxes) I have not yet begun to sand with very fine emery paper (crocus paper) to smooth out the surface of the hull.

I've just taken stock of my 3D parts and what has and has not been cured under the UV lamp. Since these have all been sitting in their shipping bubble wrap for the last 2 years, some of them are yellow, some white, some about the same. I'm guessing they're all still good - I'd hate to have to buy new ones all over again.

Note: Using the 1952 Charleston, SC shipyard DryDock Plan for USS WREN (DD-568), my hull penetrations may not be identical to those that Willie has drilled into his hull. Close, but not identical.

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

The last couple days have been correspondance with Rick E. Davis regarding SONAR domes, FLETCHER class DD's, and what these pieces of exterior equipment looked like, etc. We both found an illustration which more than likely was the appropriate dome and after a call to one of my former shipmates, who JUST happened to be an S03 during our cruise, was able to correctly locate the dome on the bottom of the hull (STODDARD's unit was located on the centerline of the ship, not to one side). So, last night and today I created the SQS-4 dome out of basswood and after some final dimensional corrections today, came up with the final version which is thus:

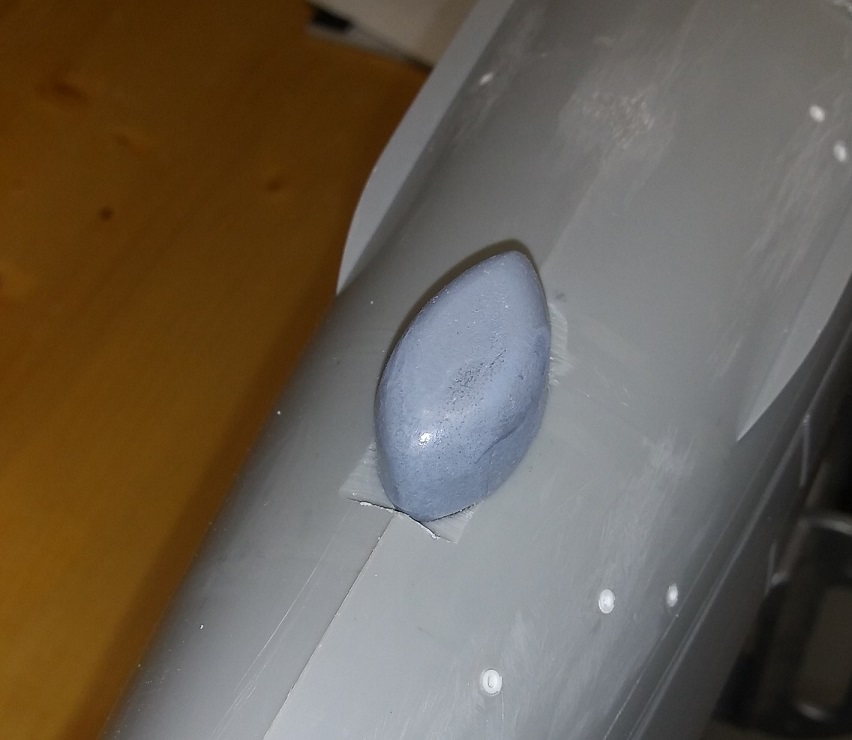

Tomorrow evening I'll putty the base of the dome & hull area and once it has set up, shape it to the proper contours, etc.

After a double check of all my bottom of hull openings I'll then remove the cradle and construct the insides of the salt water intakes in order to complete their assembly (has to be done from the inside of the hull).

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

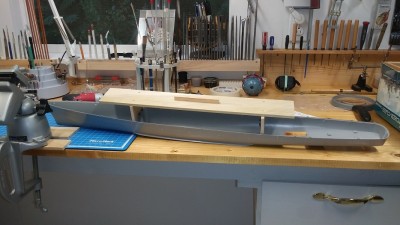

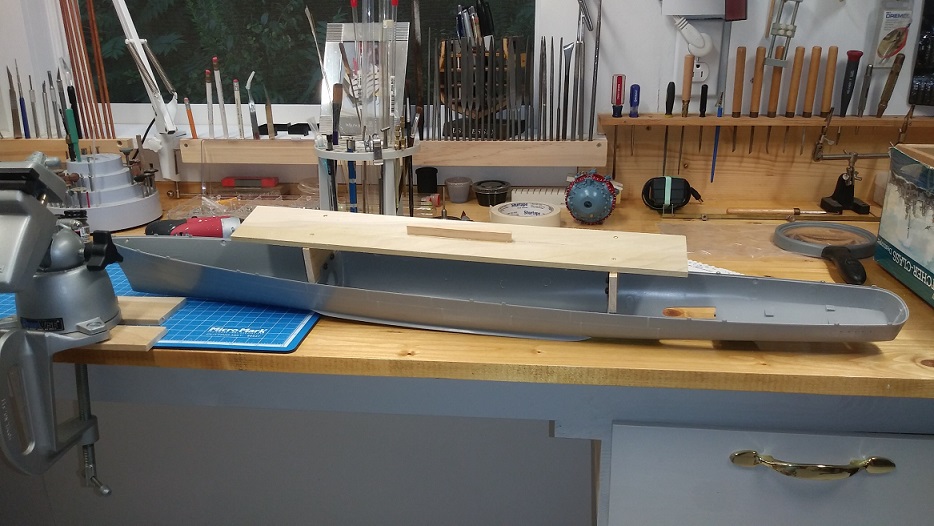

Looks really good Hank! Now that the hull won't sit upright on it's own are you going to modify the cradle (or build a new one) to hold it shiny side up? So far I have built flat bottom ships without protrusions and haven't had that problem. I enjoyed your last build and will eagerly follow this one and all the evolutions of research and problem solving!

Cheers: Tom

_________________
Amen dico tibi, hodie mecum eris in paradiso (Lk 23,43).

Thanks, Tom! Yes - I'll modify the cradle to sit the hull upright once everything on the hull bottom is in place. That probably will take next week to do, but who's counting days, right?? Still in the unpacking of plans - as I just found my full sized prints of STODDARD's 1968 BoGP that I had rolled up in a tube. Always something else!!!

Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

Willie wrote:


Willie,
Over the last several days I have been in contact with Rick E. Davis and a fellow shipmate (SONARMan) whom I served with in order to pin down some info that up to this point evaded me as to the correct SONAR dome that STODDARD had installed when I was aboard. So, Rick has provided me with a couple photos of the later SQS-4 SONAR dome as was fitted in 1956 on STODDARD. It was further updated in 1959 with new components, but the dome remained the same. I will email you these photos so you can see them better than posting them here. Determining the exact size is a bit tricky - we do know that dome was 185" long from fore to aft and located centerline on the hull. You'll see this in the photos. I have some further shaping work to do on my model's dome in order to make it as accurate as possible, esp. after seeing the photos myself. This is the same dome as shown on the photo you included of CASSIN YOUNG.
We also found online a good simple illustration of a typical SONAR dome which more than likely was like the one installed. However, there were no dimensions, so that took a bit of guesswork on our part and some math to come up with 3 dimensions when only one is known.

I am sending you an email with photos and further info regarding what we've come up with and so forth.

10PM Edit - However, the 2nd photo I sent you shows a tape measure and I've explained in my email how I arrived at the dimension for the overall depth of the dome. I've adjusted the sizes given for your ship due to the shorter dome length. All in millimeters (mm). Lastly, my former shipmate and Rick seem to think that the domes are the same color as the hull, and I tend to agree. I just checked my photos from the 2019 Norfolk harbor cruise where I got pix of an ARLEIGH BURKE DD in drydock. the SONAR dome was red all the way down to the plastic sheeting covering the dome which tells me it's all red. So, that's my story and I'm sticking to it


Hank

_________________
HMS III
Mocksville, NC
BB62 vet 68-69

Builder's yard:
USS STODDARD (DD-566) 66-68 1:144, Various Lg Scale FC Directors
Finished:
USS NEW JERSEY (BB-62) 67-69 1:200
USN Sloop/Ship PEACOCK (1813) 1:48
ROYAL CAROLINE (1748) 1:47
AVS (1768) 1:48

Hank:

From the photo you sent me the dome looks at the same position as on Cassin Young if the bilge keel on the kit is correctly located. I have the Alan Raven Fletcher AOS book and (amazingly) there is not hint one that the ship had any sonar dome at all. Did the model kit have one? Out of sight out of mind I guess!

Looking good! Cheers: Tom

Nothing is more frustrating and hard to research in my efforts on the FLETCHER class, than what sonar they had. However, based on what I have found, I can state some things.

During the operational life of FLETCHER's, two locations were used to install sonars, the transducer was located at either Frame 25 or at about frame 52. This was mostly due to WHERE the underwater systems (not just the echo-ranging gear) had been initially installed and where the space had been allocated for the associated equipment. It would have been too expensive to install the sonar in an all new location. The WWII sonars, the first fixed dome and the late war retractable dome types, were located at Frame 25. The retractable dome types centerline location required an ALL new seachest that broken into the original keel. The SUMNER's and GEARING' got a new sonar installed at Frame 52 (where on the FLETCHER's the Depth Finder system was located). When the USN recommissioned FLETCHER's back to Fleet Service during the KW, they got an upgraded version of sonar that had evolved on the SUMNER's and GEARING's in commission post WWII, re-classified as SQS-10, but installed at Frame 25. On the units that were not decommissioned and returned to mothballs, the newer SQS-4 family of sonars, were installed at Frame 52. On some FLETCHER's in an effort to reduce some interference, the SQS-4 sonars were moved to Frame 25. But, this was a very expensive mod, and most units modified were the specialized DDE conversions, planned to be in service longer than the "Fleet Destroyer" versions.

The SQS-4 Sonar Family were FOUR units with different frequency ranges. Initially they were all called SQS-4 with a Mod number. When the systems were upgraded with RDT, they became SQS-29 through 32. A VERY FEW systems, were give an additional upgrade, calling them SQS-39 through 42 (I have only identified less than a hand full of units that ended up with the third iteration during the late 1960's).

SQS-4 Mod 1 ---> SQS-29 ---> SQS-39
SQS-4 Mod 2 ---> SQS-30 ---> SQS-40
SQS-4 Mod 3 ---> SQS-31 ---> SQS-41
SQS-4 Mod 4 ---> SQS-32 ---> SQS-42

On top this, there were 100-in long and 185-in long domes of several types, known by their "CW" numbers. I don't know why two sizes of domes were installed, I thought that maybe the frequency of the units determined that. But, I don't have enough evidence and what I do have doesn't show an apparent pattern. Also several different dome types were used. I'm afraid that we are seeing different types for each of these sizes of domes. For 100-in domes, I have come across CW351, CW351A, and CW553. For the 185-in domes, I have come across CW405, CW438, and CW554. CW553 and CW554 were the newest domes. I have not found any "engineering" drawings specific to domes, that would give their size parameters. It is unlikely that the USN would change the installation footprint, length and width, where the dome mates to the Foundation "ring". However, the depth could change for some reason.

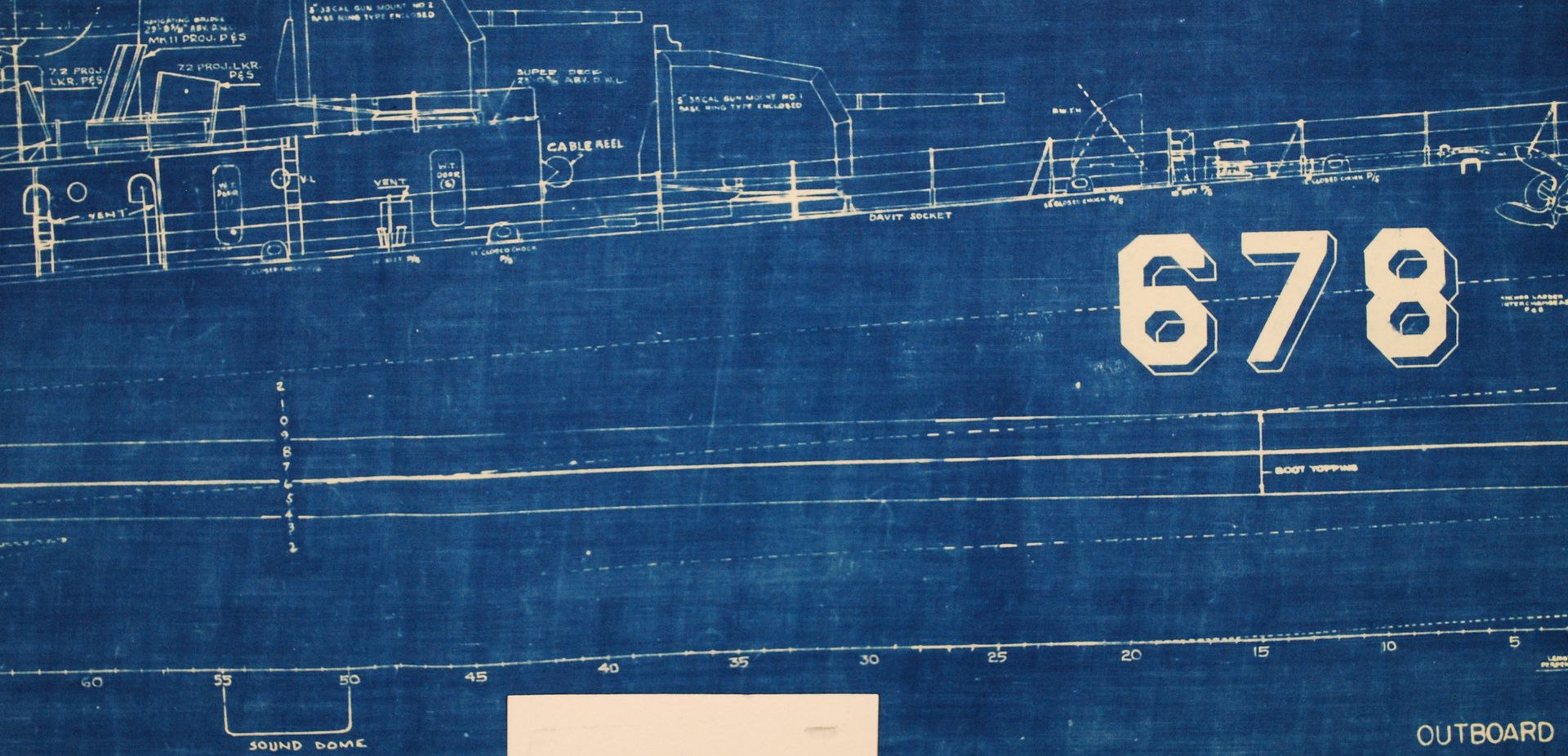

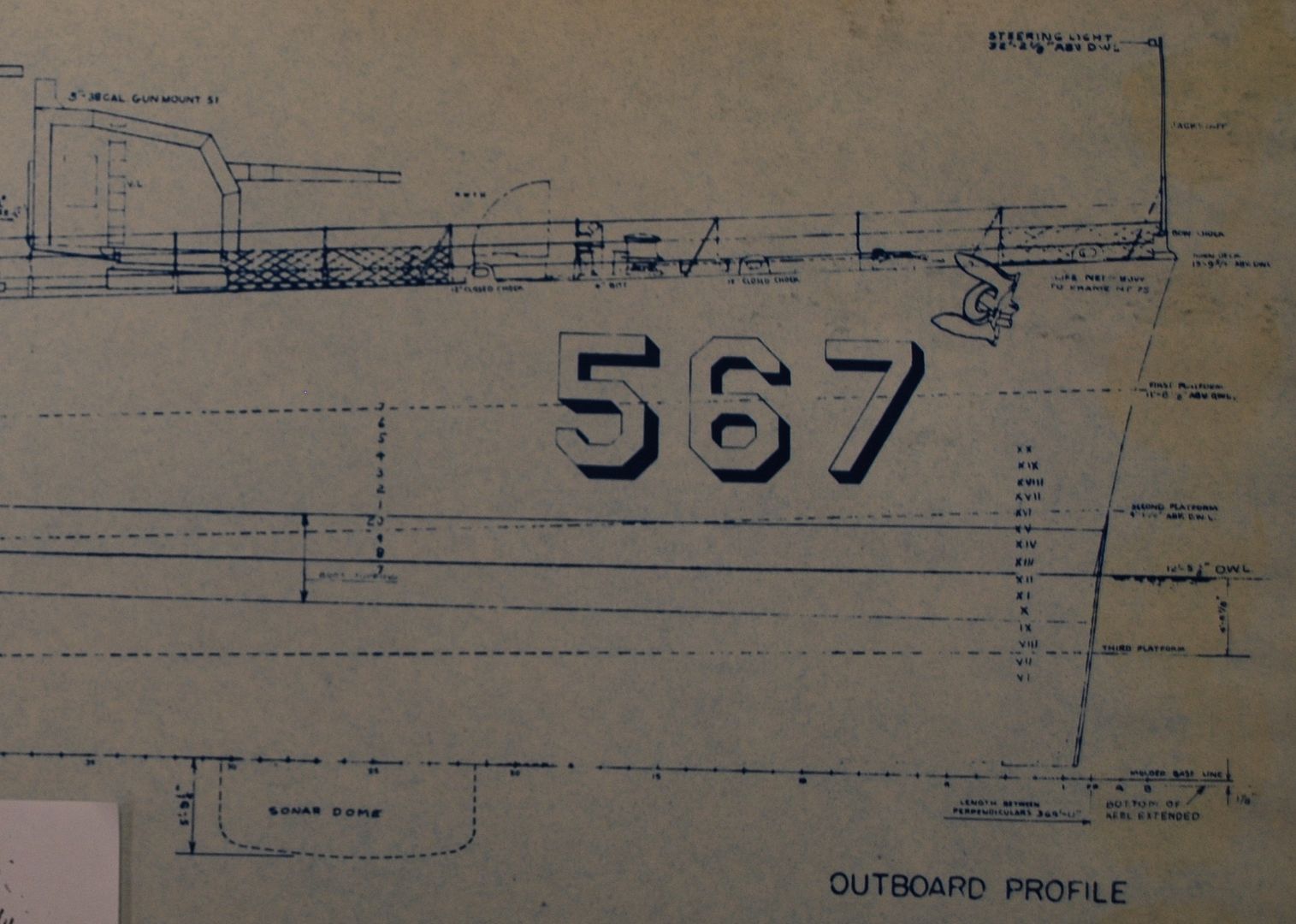

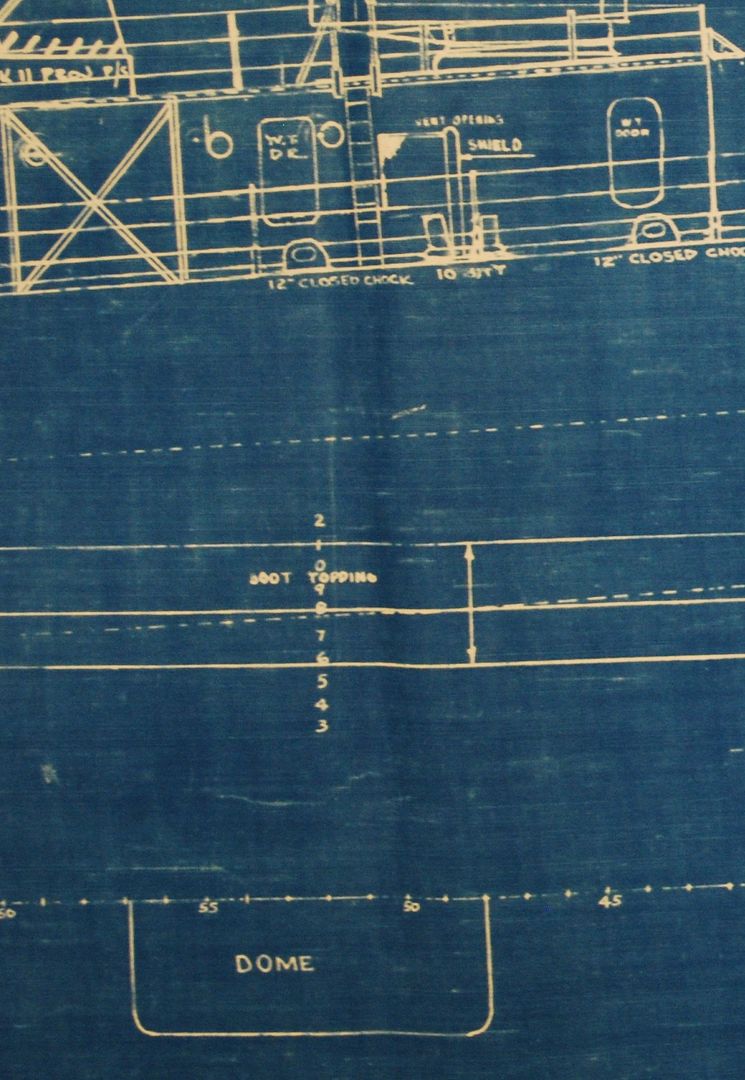

Some examples by looking at BGP's for Tom's, "FLIGER747", and his project USS WATTS, Willie's project for ex-USS McGOWAN (JORGE JUAN), and the museum destroyer USS CASSIN YOUNG.
