PostPosted: Tue Aug 18, 2009 11:36 am
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France
:wave_1:

This is my attempt at turning the well known early Revell's Fletcher to a late round bridge. I chose USS Killen for her fine MS 31 scheme, and for having found enough photos that showed both her sides and her details. Other candidates were USS Leutze DD 481, but I have already built her in 1/350, and USS Willie Dee DD 579, but I didn't find enough photos of her. Besides that, Killen had a fine service history: she joined the war late, but was present at Surigao Straits and it seems that her torpedoes struck Yamashiro: a quite unknown ship, but surely not an anonymous one.
Killen was a Puget Sound Navy Yard product. She shared some particularities with a quartet of round bridge Fletchers that were built by that yard already in the improved AA configuration. My references are the fundamental NavSource photo archive and the booklet of general plans of USS Sigsbee, DD 502, found at HNSA. I wish all the navies had such a quantity of references avaiable on the net!
At first, I wanted her to be a RC model, but then, assuming that she wouldn't be fit for open sea (I have no lakes nor ponds to make my RC boats steam, just a river and the Mediterranean... :surfer: ) I renounced. I bought some PE sets instead, and I'm waiting for them. Unfortunately Nautilus' PE was beyond my financial reach, and Tom's were already discontinued. I turned to Eduard's that are not perfectly fit for that version, but still have a stack of useful missing details.

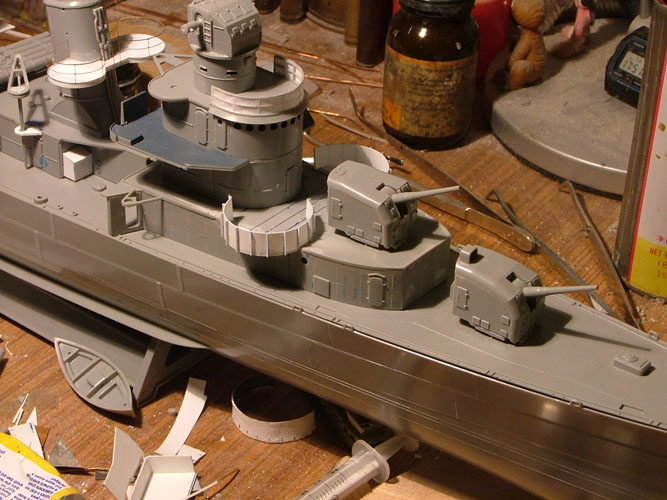

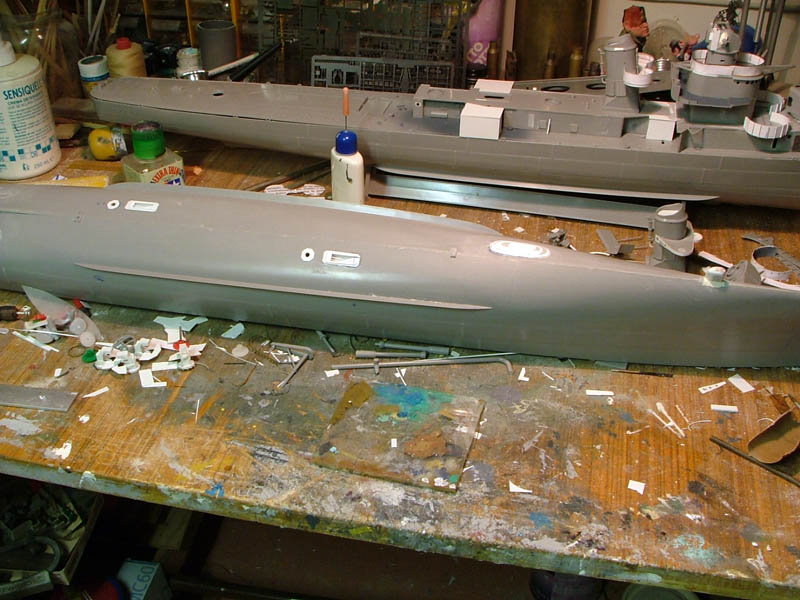

Here is what I have achieved so far


Attachments:
killen3.jpg [ 107.87 KiB | Viewed 2376 times ]
killen2.jpg [ 116.68 KiB | Viewed 2397 times ]
Killen1.jpg [ 124.29 KiB | Viewed 2390 times ]

_________________
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Aug 19, 2009 8:36 am
Offline
User avatar

Joined: Mon Jan 10, 2005 3:01 pm
Posts: 819
Location: Port Townsend, WA
Looks good. Keep the pictures coming.

_________________
Any ship larger than a Destroyer is a waste of metal.


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Aug 20, 2009 9:56 pm
Offline
User avatar

Joined: Mon Apr 24, 2006 4:56 pm
Posts: 934
Location: Berks County, Pennsylvania
looks like you have a good start, can't wait to see more. :thumbs_up_1: :thumbs_up_1:

_________________
"It is best to remain silent and let others assume you are dumb than to speak up and remove all doubt"

http://nssavannah.wordpress.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Aug 21, 2009 4:22 am
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France
les wrote:
Looks good. Keep the pictures coming.

:thanks: Will do :wave_1:

Avery Boyer wrote:
looks like you have a good start, can't wait to see more. :thumbs_up_1: :thumbs_up_1:


Me too I can't wait :lol_1: . But currently I'm waiting for the PE sets before to proceed, as I will make my planning accordingly.

No, it isn't true :| the problem is that we are having a so hellish hot summer that very often I just can't sit at my workbench, 'cause I always feel tired and I think it's best to wait for a cooler season than to work without concentration.
So I try to avoid difficult tasks and in the meantime, I take on some small easy details such as building the 4 missing Bofors and sanding the propellers

_________________


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Sep 03, 2009 2:21 pm
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France
Eduard's PE finally arrived. It was battered & bent because of a hard trip in a poor package, some parts went directly to the trash :( I will use some parts from it and some others from Nautilus', hoping that I will receive it in a better shape. The spare parts of the two sets will be used on a much simpler USS Chevalier that I will evenctually build to sell it and raise some money.

Now, to the photos


Attachments:

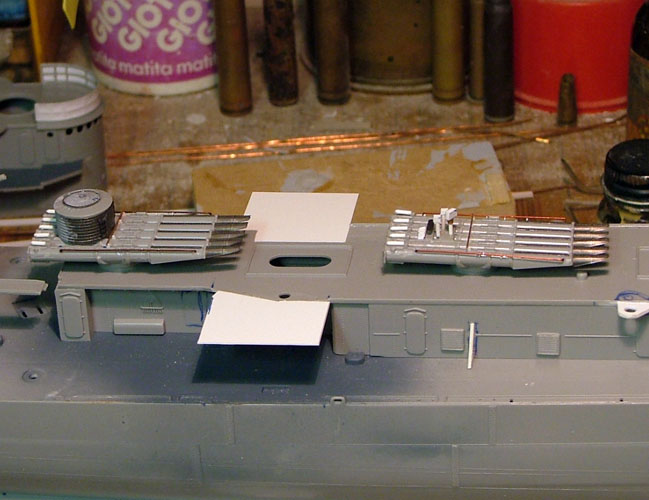

File comment: The two TLs; PE parts add a nice touch, but most of the work is still to be done on our own
DSCF3653.JPG [ 86.37 KiB | Viewed 2376 times ]

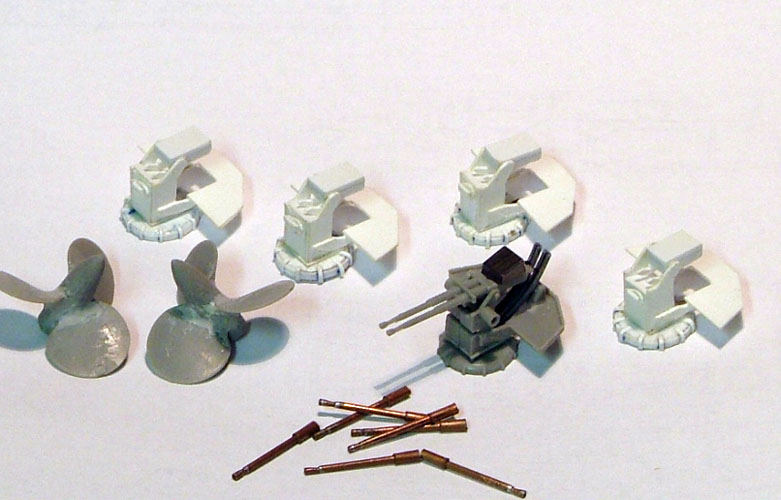

File comment: Miscellaneous details: two propellers in need of a bit of sanding, the original Bofors and the 4 scratchbuilt ones. I'm using some electric wire insulation cut in half for the shell chutes.
DSCF3656.JPG [ 89.57 KiB | Viewed 2399 times ]

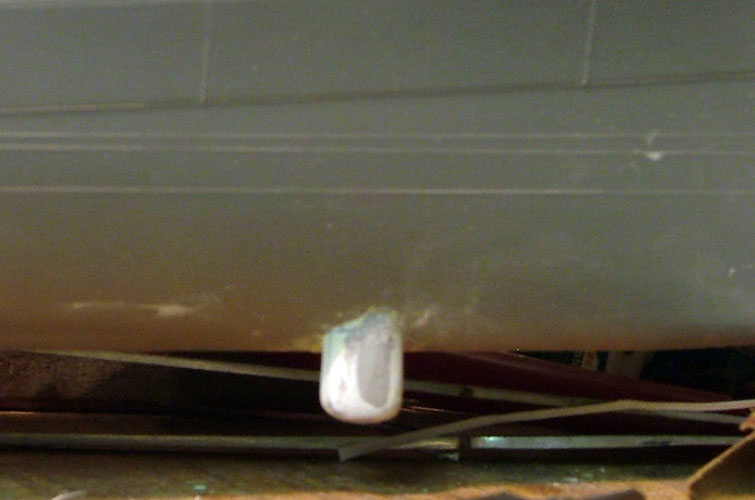

File comment: The sonar dome as I thought it could be. That too, still to be sanded.
DSCF3660.JPG [ 68.48 KiB | Viewed 2307 times ]

_________________
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Sep 03, 2009 2:57 pm
Offline
User avatar

Joined: Tue Jan 09, 2007 12:55 pm
Posts: 296
Location: Terzo di Aquileia - Udine - Italy
Ciao Secondo
Big job :thumbs_up_1: :thumbs_up_1:
Anch'io ho il Fletcher in 1/144
Non so quando lo farò, ma....
seguo con interesse il tuo wip
Luciano :wave_1:

_________________
Best Regard from Italy
http://www.navymodeling.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Sat Sep 05, 2009 7:24 am
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France
Grazie Luciano, sono onorato del tuo interesse! Puoi seguirmi anche su Betasom :wave_1:

One thing that was puzzling me more was the horizontal pattern of Measure 31, Design 11d, applied on USS Killen. Vertical surfaces were very well documented in the photos taken after her commissioning, decks were not.
I had luck finding the plate that showed the master pattern of that design as foreseen for the Fletcher class. It also seems that on Killen the paint job was executed with great accuracy, as the camouflage of the ship matches almost perfectly the master pattern :eyebrows:
So I think there are good chanches that the "invisible" horizontal surfaces were painted exactly as shown on the drawing. Special thanks to Rick E. Davis for the photos he kindly sent to me, I owe him a quantum leap of the accuracy of my build :thumbs_up_1:


Attachments:

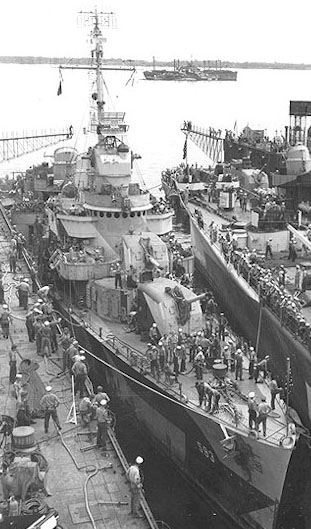

File comment: The Killen in drydock, 25 December 1944. This wiew proves that the horizontal camo perfectly matched the master pattern.
0559306 II.jpg
0559306 II.jpg [ 70.46 KiB | Viewed 2333 times ]

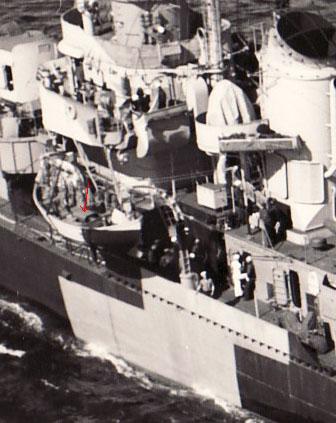

File comment: Red arrow showing the ocean gray patch that was actually supposed to be on the whaleboat.
DD593 II.jpg
DD593 II.jpg [ 50.73 KiB | Viewed 2316 times ]
File comment: The plate showing the master pattern
g170934 III.jpg
g170934 III.jpg [ 37.1 KiB | Viewed 2324 times ]

_________________
Report this post
Top
 Profile
Reply with quote
PostPosted: Sun Sep 06, 2009 2:04 am
Offline
User avatar

Joined: Tue Jan 09, 2007 12:55 pm
Posts: 296
Location: Terzo di Aquileia - Udine - Italy
Ciao Secondo
Ok!
Anche se purtroppo non riesco a seguire tutti i Forum
Va bene qui!!
Luciano :wave_1: :wave_1:

_________________
Best Regard from Italy
http://www.navymodeling.com/


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Sep 17, 2009 4:37 pm
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France
Minor progresses being achieved :|
I copied Rotorhead's water scoops and then added the second sonar fairwater (being empty, I supposed it had to be plated over; I'm neither sure it had to be right there, but it's a nice addition even if inaccurate). On the upper structures, I'm concentrating on the bridge area and some other modifications were to be done, as in fact the Killen, as Rick told me, was a round bridge that shared many features of the square bridges. I'm using Eduard's PE parts for now, as I wish to use the majority of the Nautilus' set for my O'Bannon. I'm not really satisfied with Eduard's so far, I had many fitting troubles on the radar, and the sheets offer replacements for parts that could be left standing, or easily scratchbuilt, while omitting more useful details.


Attachments:

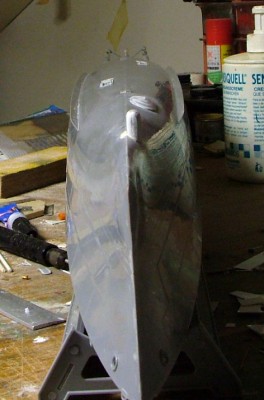

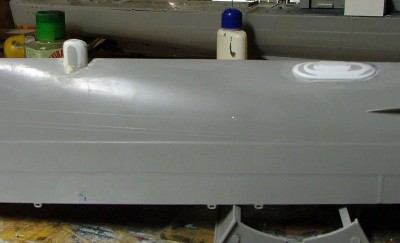

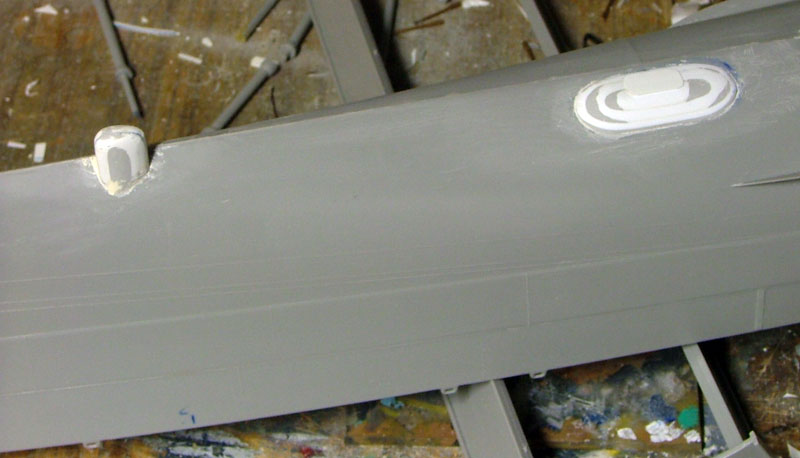

File comment: Water scoops and sonars
DSCF3661KL.jpg [ 123.75 KiB | Viewed 2352 times ]

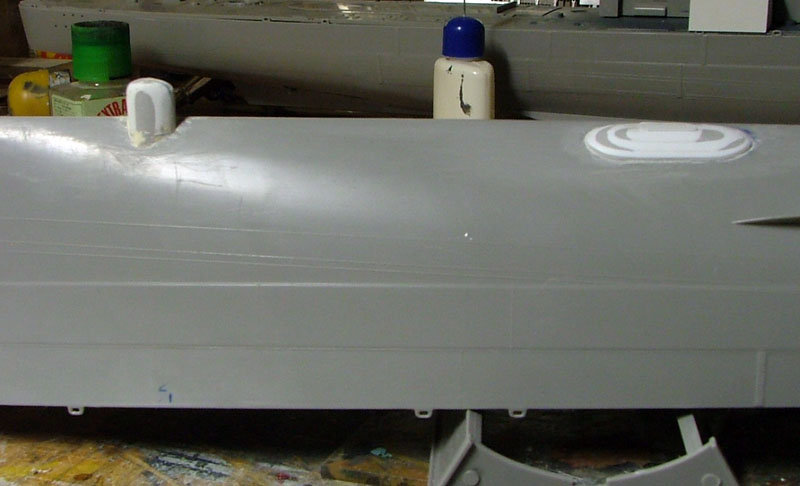

File comment: A closer look to the water scoop and the sonar fairwater
DSCF3663KL.jpg [ 111.3 KiB | Viewed 2329 times ]
DSCF3665Kl.jpg [ 117.43 KiB | Viewed 2353 times ]

_________________
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Sep 17, 2009 5:53 pm
Offline
User avatar

Joined: Thu Dec 25, 2008 5:36 pm
Posts: 127
Secondo,

Good job on those intake scoops. :cool_2: Any more detail shots on your sonar application? Looks interesting.

Regards
Steve


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Sep 17, 2009 9:40 pm
Offline
User avatar

Joined: Mon Aug 14, 2006 3:48 am
Posts: 110
Location: Singapore
Sonar dome looks nice, but it shall be placed off keel axis, towards port board.

_________________
God created Arrakis to train the faithful.


Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Sep 18, 2009 8:04 am
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France
Rotorhead wrote:
Secondo,

Good job on those intake scoops. :cool_2: Any more detail shots on your sonar application? Looks interesting.

Regards
Steve


Just ask :wave_1:
The drawing of the sonar fairwater has been posted by Rick at page 39 of the "Calling all USS Fletcher class (DD) fans"
http://www.shipmodels.info/mws_forum/viewtopic.php?f=49&t=8105&start=570

I built my own more or less accordingly to that drawing, but its dimensions and its exact positioning are the result of my guessing. We suppose it should have been placed between the bridge and mount 52, but I sticked it there after having checked the section shown in the drawing, matching the shape of the hull bottom. Positioning of the sonar dome was much easier and accurate, that being proved by drawings and photographic evidence.

Sleepwalker wrote:
Sonar dome looks nice, but it shall be placed off keel axis, towards port board.

I red in that topic that it had to be offset to starboard :thinking: there's also a drawing confirming that the sonar dome was on the starboard side; I'm just not sure about the position of the fairwater. However, I'm starting to consider the option to sand everything down to waterline :heh:


Attachments:

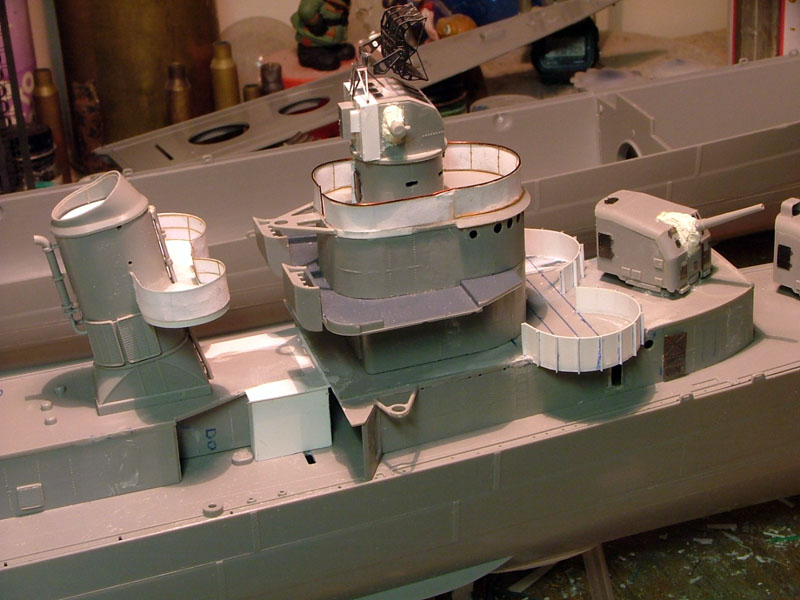

File comment: A photo shot more or less on the ship axis, showing the offset sonar dome and fairwater
DSCF3666.JPG [ 91.72 KiB | Viewed 2311 times ]
File comment: I'm not really familiar with bread and butter yet...
DSCF3668KL.jpg [ 74.94 KiB | Viewed 2317 times ]
DSCF3667KL.jpg [ 73.49 KiB | Viewed 2307 times ]

_________________
Report this post
Top
 Profile
Reply with quote
PostPosted: Fri Sep 25, 2009 7:07 pm
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France

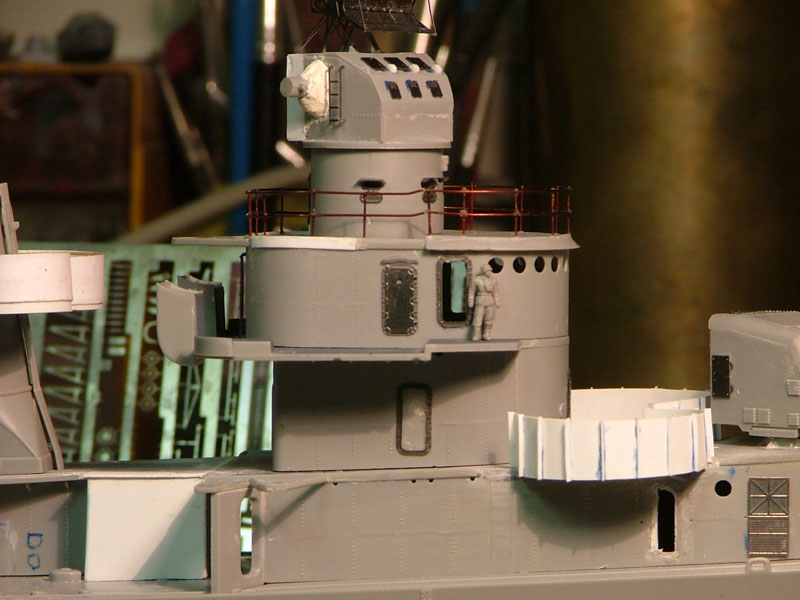

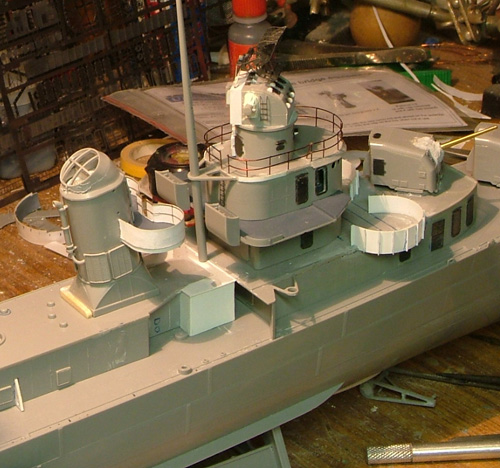

I wasn't satisfied with my flying bridge railing, so I redid it. I'm also trying to add the wheelhouse details so that I could leave the doors open, with some people standing on the bridge wings; I ordered some Preiser figures for that. Currently I just have a pair of german artillerymen left from my K 5 :heh:


Attachments:
DSCF3672.JPG [ 105.48 KiB | Viewed 2356 times ]

_________________
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Nov 11, 2009 9:25 am
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France

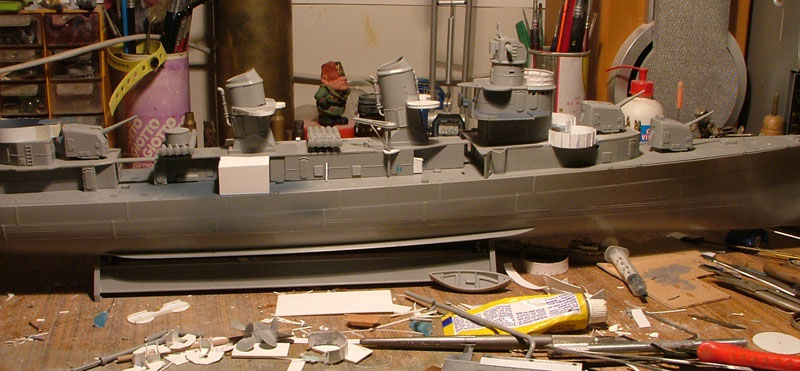

A minor update: things are starting to get intensive at the university so I have less free time to spend at the shipyard :scratch:
I purchased some other aftermarket sets: BMK 5" barrels and L'Arsenal navigation bridge equipment, both really worth their price.

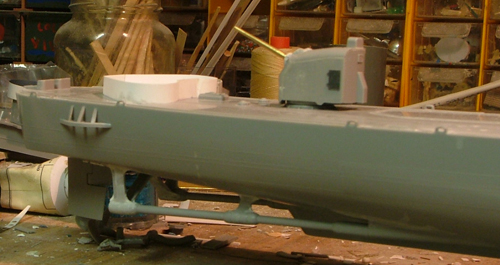

The propellers' struts are horrible and need to be faired; zync dispersers are missing; prop guards may benefit from a bit of PE, but no set has parts for that details.


Attachments:
DSCF3688 copia.jpg
DSCF3688 copia.jpg [ 132.51 KiB | Viewed 2317 times ]
DSCF3690.JPG [ 136.64 KiB | Viewed 2301 times ]

_________________
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Nov 11, 2009 5:01 pm
Offline
User avatar

Joined: Tue Nov 21, 2006 7:44 am
Posts: 559
Location: Germany
Ciao Secondo,

I know the kit and in this scale there are a lot of details to add and what you have done on your USS Killen so far looks really good :thumbs_up_1:

_________________
Cheers,
Christian
_________________
AKA "Painter"
VMF'06 - German Gamblers
Veritable Modelling Friends 2006, Germany


Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Nov 11, 2009 5:41 pm
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France
Thanks for the encouragement Christian, I appreciate it as what I've done so far may look good, but it's what is still missing that frightens me most :(
I've found a net fine enough to decently represent the flottanet baskets; next challenges will be to decently represent the canvas covers over the 40 mm ready-service ammo racks; I would have loved to show those racks uncovered as if the crew was on general quarters, but that was something that only PE, or a work of inhuman patience, could have achieved.
Another small issue: the mazes of electrical cables that were running on many visible surfaces, i.e. the back of the mast; I would like to find a method for glueing many copper wires or nylon lines together side by side, so that I won't need to put them on one by one.

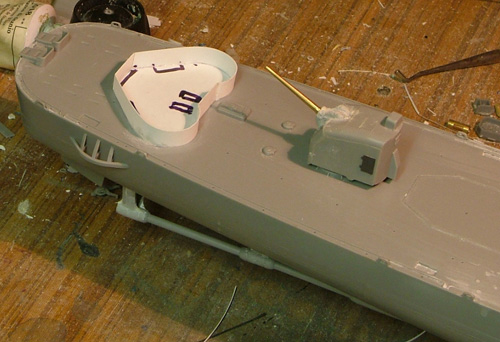

This is the fantail gun tub: Killen's one was truncated at its aft end to leave some more room for the spare DC racks (still to be invented here :smallsmile: )


Attachments:
DSCF3689.JPG [ 93.24 KiB | Viewed 2280 times ]

_________________
Report this post
Top
 Profile
Reply with quote
PostPosted: Wed Nov 11, 2009 6:28 pm
Offline
User avatar

Joined: Tue Nov 21, 2006 7:44 am
Posts: 559
Location: Germany
do you know Nautilus Models? They have an PE set for the Fletcher that should solve some of your problems:
http://nautilusmodels.com/144-203.htm

The set is not cheap but you will find a lot of fine parts to upgrade the kit.

Currently I have made the clamps and hinges for my 1/350 scale Gearing kit. You can take a look to it her in Work in Progress:
viewtopic.php?f=59&t=45015&start=45

_________________
Cheers,
Christian
_________________
AKA "Painter"
VMF'06 - German Gamblers
Veritable Modelling Friends 2006, Germany


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Nov 12, 2009 8:46 am
Offline
User avatar

Joined: Mon Jan 10, 2005 3:01 pm
Posts: 819
Location: Port Townsend, WA
Quote:
I would have loved to show those racks uncovered as if the crew was on general quarters, but that was something that only PE, or a work of inhuman patience, could have achieved.


The thought just crossed my mind. You might try to do it in plastic by taking a thin strip of plastic and gluing it to the gun tub side. Then add a layer of small pieces with space between them. Finish with another layer of plastic. The holes wouldn't be rounded, but the effect would be the same. Possible????

_________________
Any ship larger than a Destroyer is a waste of metal.


Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Nov 12, 2009 12:59 pm
Offline
User avatar

Joined: Fri Jul 11, 2008 6:24 am
Posts: 1246
Location: Saint-Andiol, France
Christian Bruer wrote:
do you know Nautilus Models? They have an PE set for the Fletcher that should solve some of your problems:
http://nautilusmodels.com/144-203.htm

The set is not cheap but you will find a lot of fine parts to upgrade the kit.

Currently I have made the clamps and hinges for my 1/350 scale Gearing kit. You can take a look to it her in Work in Progress:
viewtopic.php?f=59&t=45015&start=45


Yes, I have already bought the Nautilus set as it was the only one to have a SC 4 radar and the K guns' DC racks; I'll use the surplus parts on my USS O'Bannon :thumbs_up_1: I'm also following your build with much interest as I have also some conversions similar to yours in my planning :smallsmile:

Quote:
The thought just crossed my mind. You might try to do it in plastic by taking a thin strip of plastic and gluing it to the gun tub side. Then add a layer of small pieces with space between them. Finish with another layer of plastic. The holes wouldn't be rounded, but the effect would be the same. Possible????


The problem is the really particular shape of those racks :scratch: Eduard includes a pair of them in its set, and when I saw those things I realized that only PE could achieve that; I thought about a method similar to yours, just involving copper wire instead of plastic, but when I figured out the cost/effectiveness of the whole work (each gun tub had 4 rows of those racks!), I decided to cover everything with a good ol' canvas.

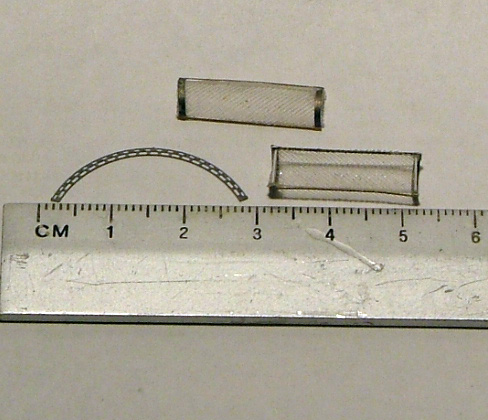

In the following photo, yu can see the PE rack and a pair of flottanet baskets, not really symmetrical but fine enough to be accepted :smallsmile:

Thanks all the same for the advice!


Attachments:
DSCF3691.JPG [ 94.51 KiB | Viewed 2278 times ]

_________________
Report this post
Top
 Profile
Reply with quote
PostPosted: Thu Nov 12, 2009 4:12 pm
Offline
User avatar

Joined: Tue Nov 21, 2006 7:44 am
Posts: 559
Location: Germany
Secondo wrote:
I'm also following your build with much interest as I have also some conversions similar to yours in my planning :smallsmile:

Thanks, I'm watching yours too :wave_1:

_________________
Cheers,
Christian
_________________
AKA "Painter"
VMF'06 - German Gamblers
Veritable Modelling Friends 2006, Germany


Report this post
Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 22 posts ]  Go to page 1, 2  Next

All times are UTC - 6 hours [ DST ]


Who is online

Users browsing this forum: Bing [Bot] and 8 guests


You can post new topics in this forum
You can reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
