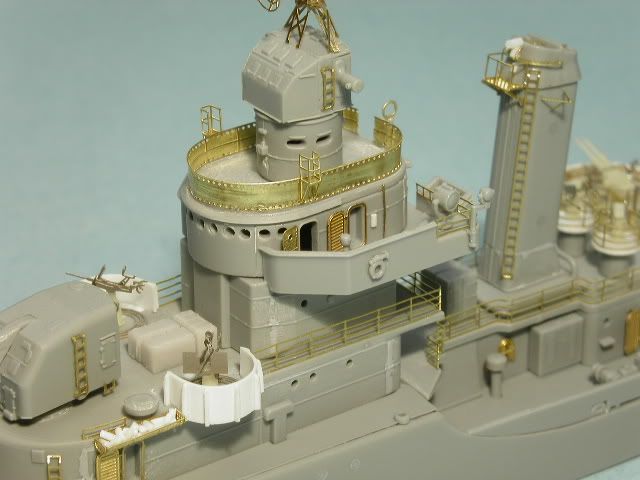

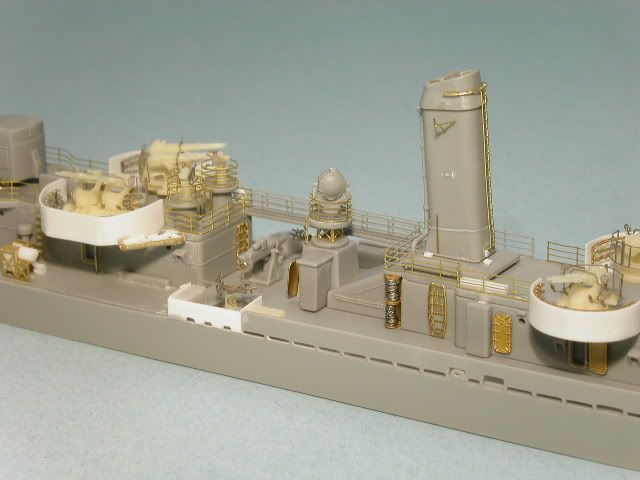

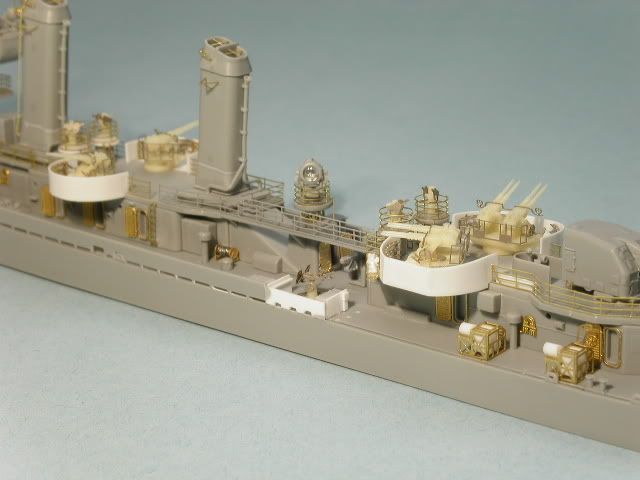

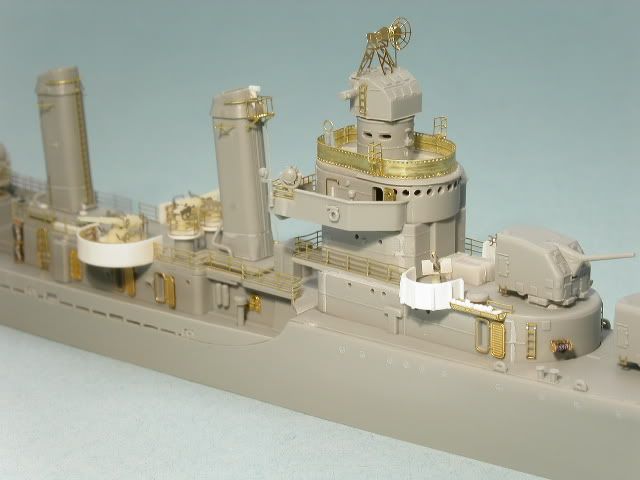

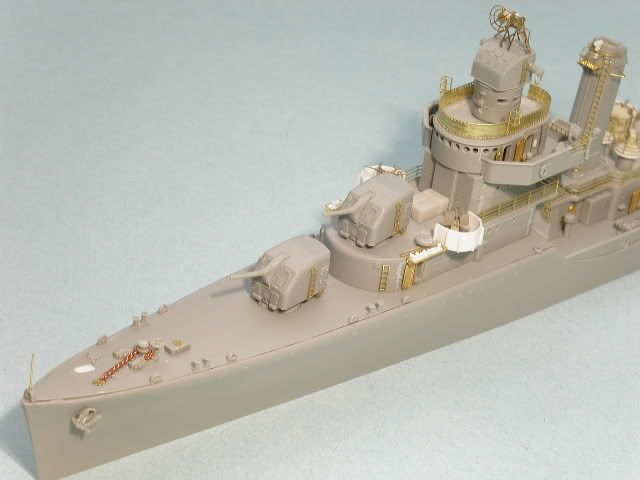

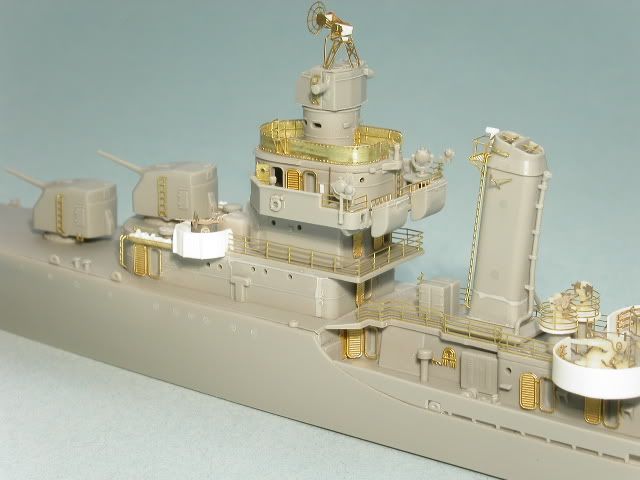

Here are photos of where I'm currently at with my Dragon Laffey conversion to the USS Nields DD-616 as seen in August 1945. My model depicts the Nields as she appeared with the late war anti aircraft refit which involved removing the torpedo tubes and adding 40mm and 20 mm AA guns, getting rid of the forward most side depth charge racks, and removing the starboard anchor and chain. I have pieced the many subassemblies together for these photos. So any gaps or misalignments will not be there after painting and final assembly.

The prototype USS Nields in July '45.
http://www.navsource.org/archives/05/0561601.jpg

















Erik

_________________
My ship build(s)
http://www.modelshipgallery.com/gallery ... index.html

Nice job, looks very accurate. I REALLY like your model, the anti-kamikaze mods are a favorite interest of mine. I'll look at images I have later today to see if there is anything that may help you. But a quick-look at images I have of DD-616, 600, 601 and DD-612 (all modified at New York Navy Yard) tells me that may not add anything to what you have already. Some other BENSON-GLEAVES units modified to the Anti-Kamikaze configuration had extra Mk 51 directors atop the pilothouse, but none of these ships seem to show that.

As an aside. DD-600, 601, 616, and 617 (DesDiv 32) were the first BENSON-GLEAVES to be modified with the Anti-Kamikaze mod. The original plan was to remove the TT and to replace the twin 40-mm mounts with quad 40-mm mounts and not to install the twin 40-mm mounts between the stacks. But, as they were being modified, the plan changed to what you see.

Great work.

Thanks for the kind words Rick. I like the look of the AA refit on the Bensons. They are literally bristling with guns. I'm working on building the main mast now, out of brass. I have a few things to tweak and add then I'll start painting the separate components before final assembly. This site has been a real inspiration for me to push the envelope as far as my modeling skills are concerned.

Erik

_________________
My ship build(s)
http://www.modelshipgallery.com/gallery ... index.html

I'll say!!

Excellent work, Erik - I love the way she looks.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

Agreed, very nice work! Keep posting.

_________________
Timothy Dike
Owner & Administrator
ModelWarships.com

Impressive! I'm jealous!

_________________
--
Sean Hert

Hi Erik

Fantastic
Luciano

_________________
Best Regard from Italy
http://www.navymodeling.com/

Nice clean build.
Looking forward to seeing more !!
David

Waterlined, modified, looks very nice.

Jim

_________________
jim

aux viewtopic.php?f=59&t=40896

CV-3 viewtopic.php?t=39515&p=263120#p263120

CV-6 viewtopic.php?t=33201&p=201342#p201342

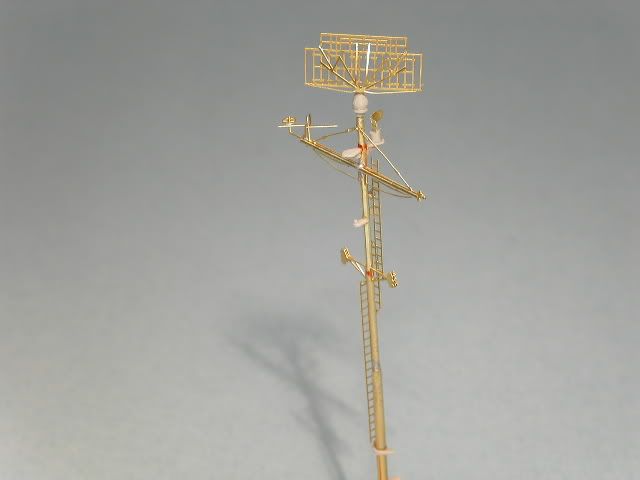

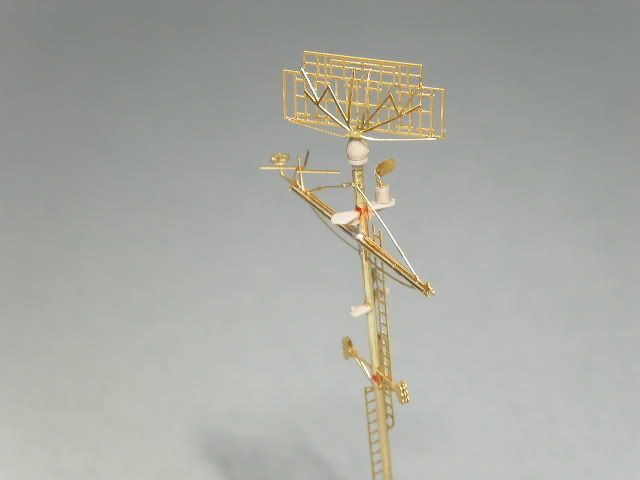

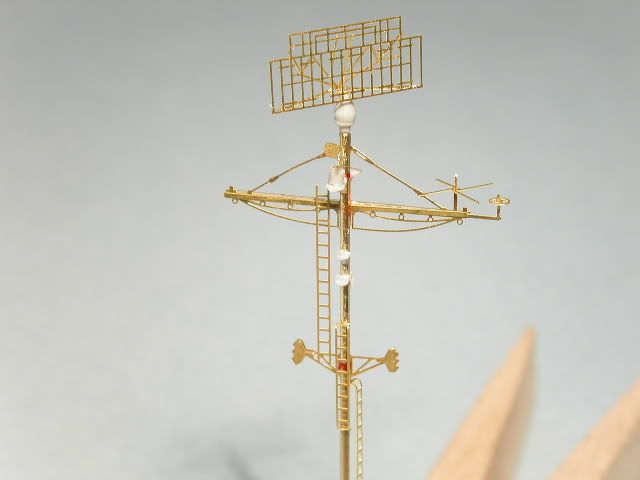

Here's a few photos of the mast assembly. I used .032"brass rod soldered to the end of .047" brass rod for the main mast. I sanded the joint thouroughly . The rest of the mast is a combination of brass rod, GMM Benson photo etch and some of the details off the original Dragon mast.







Erik

You are really good at this. The mast looks very nice.

Great job Erik. I'm looking forward to more updates.

_________________
Gordon


"Then there was one patched-up carrier...."
Vice Admiral Thomas A. Kinkaid

Superb!!!!






Bob Pink.

Like fine jewelry. Very impressive.

_________________
Timothy Dike
Owner & Administrator
ModelWarships.com

And how!

Boy, that looks good.

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery

P.E is truly a delight!!! awesome job Erik


Jose

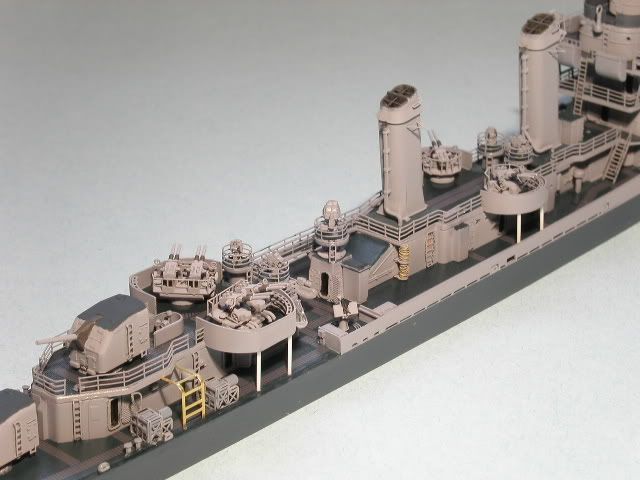

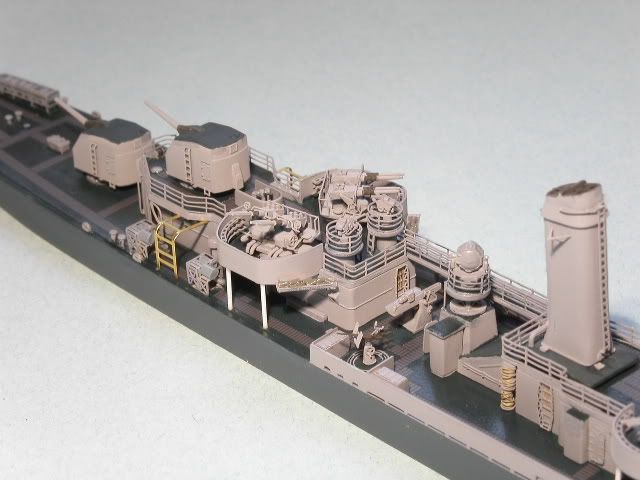

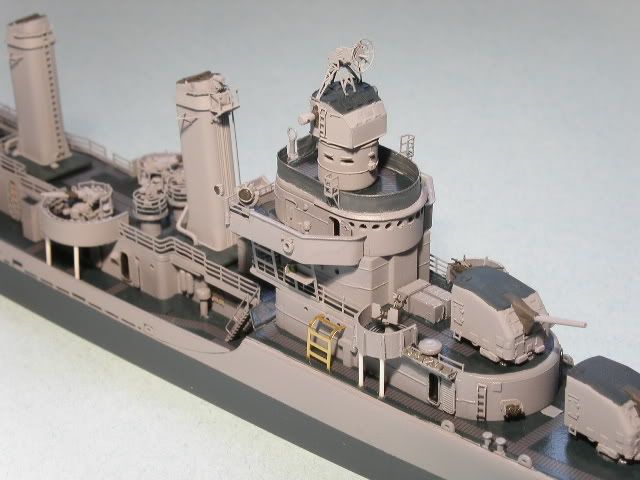

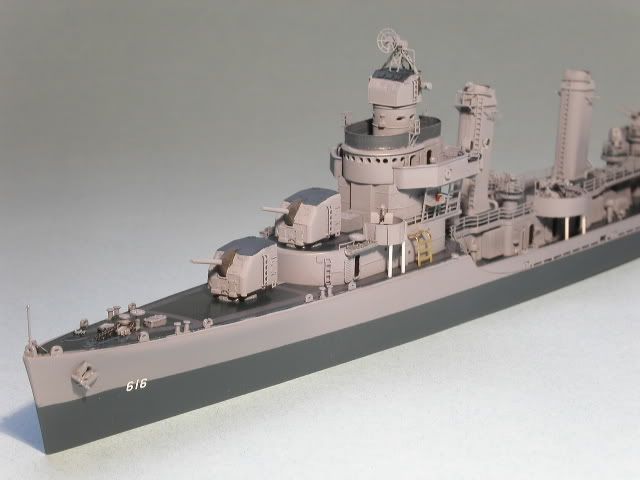

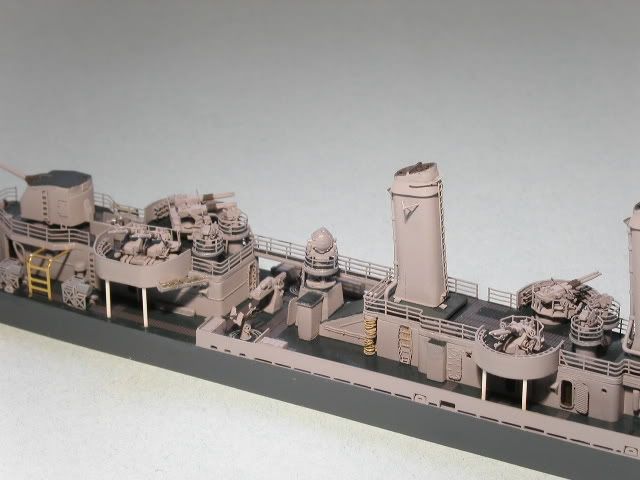

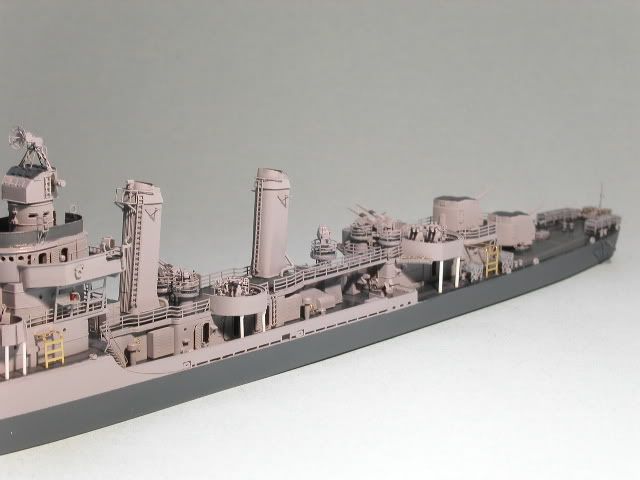

After many months away from this project, I'm back to working on it. Here's where I am now. I'm on the home stretch! I still have some details to add as well as masts, rigging and the crew.













Erik

_________________
My ship build(s)
http://www.modelshipgallery.com/gallery ... index.html

She looks amazing! I had a question, how did you get your scratch-built gun tubs to look so clean and precise? Keep up the good work.

_________________
-Abram
ModelWarships Gallery Page
Joslin Models Facebook Page

... Just some of the things I feel about this build! Fantastic job, can't wait to see this one done!

Matt
