Greetings!

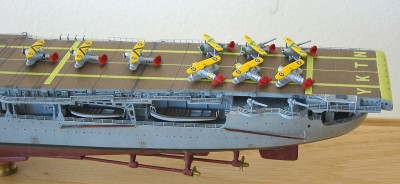

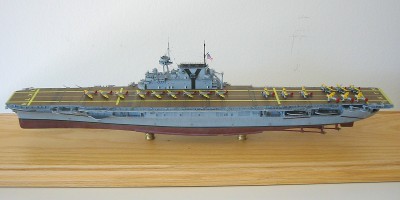

Just completed build of the Revell 1/487 scale USS Yorktown CV5 circa 1939. Included in the build:

Gold Medal Models PE set

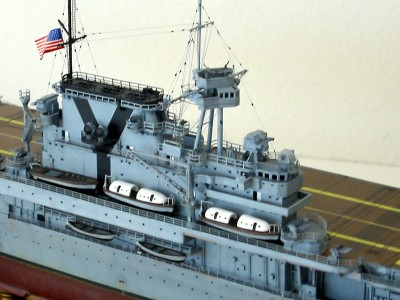

Model Monkey Yorktown island modified to 1939 appearance
Starfighter 5" guns

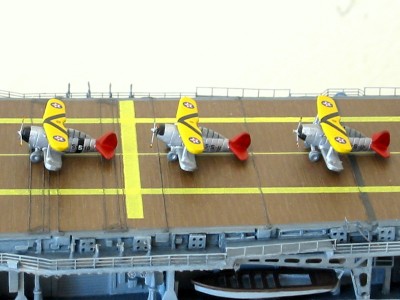

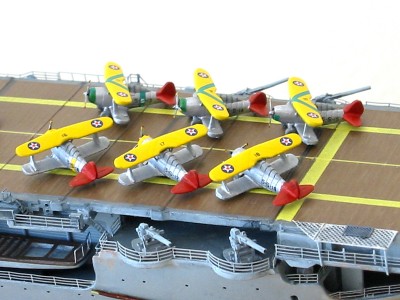

Trumpeter 1/350 F2F's cut down and modified to 1/487 SBC Scout Bombers
Various styrene sheet, tubes, rods, and strips
Various spare photoetch items

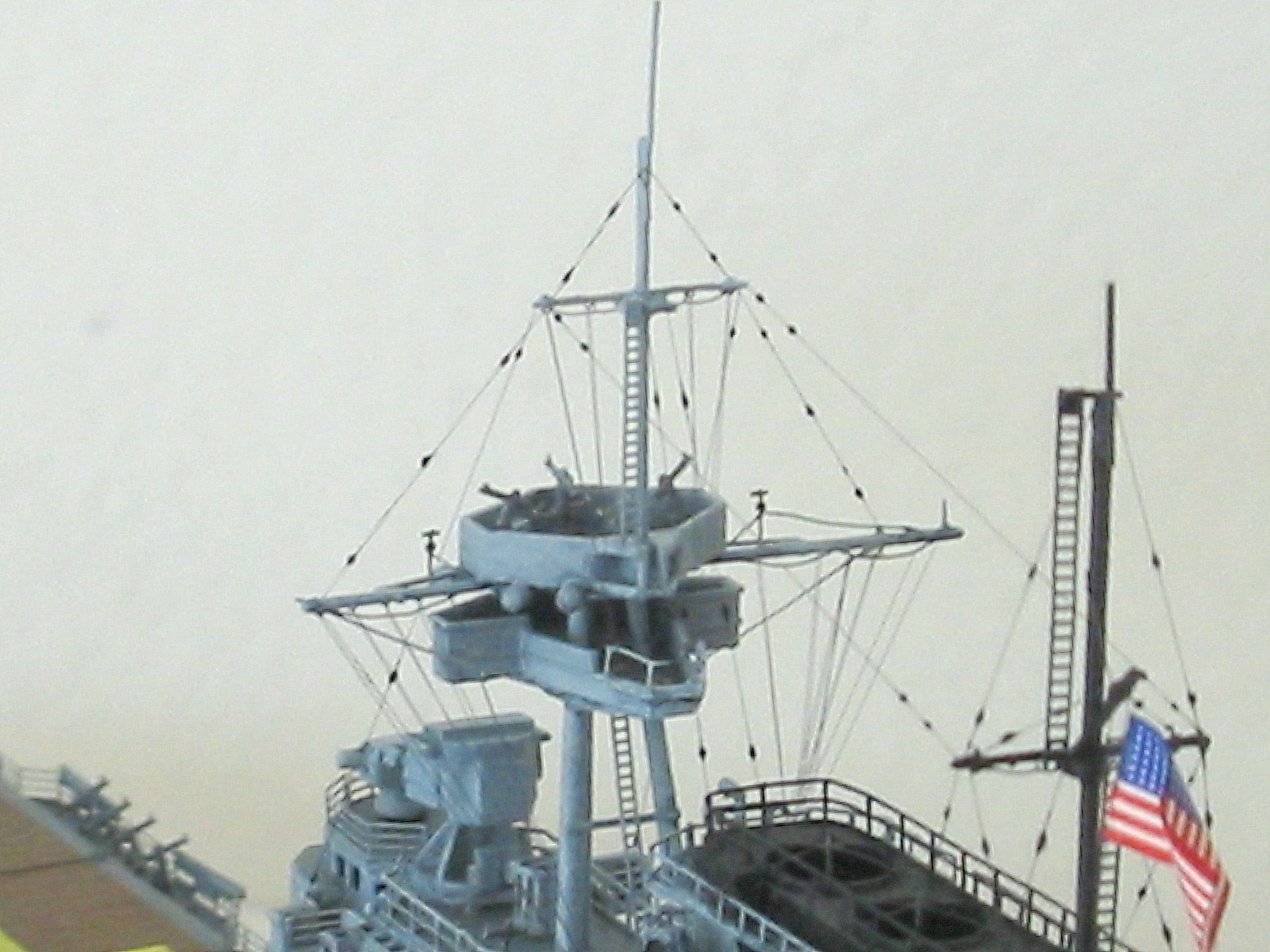

Caenis 2 denier thread for rigging
Many hours of tedious work

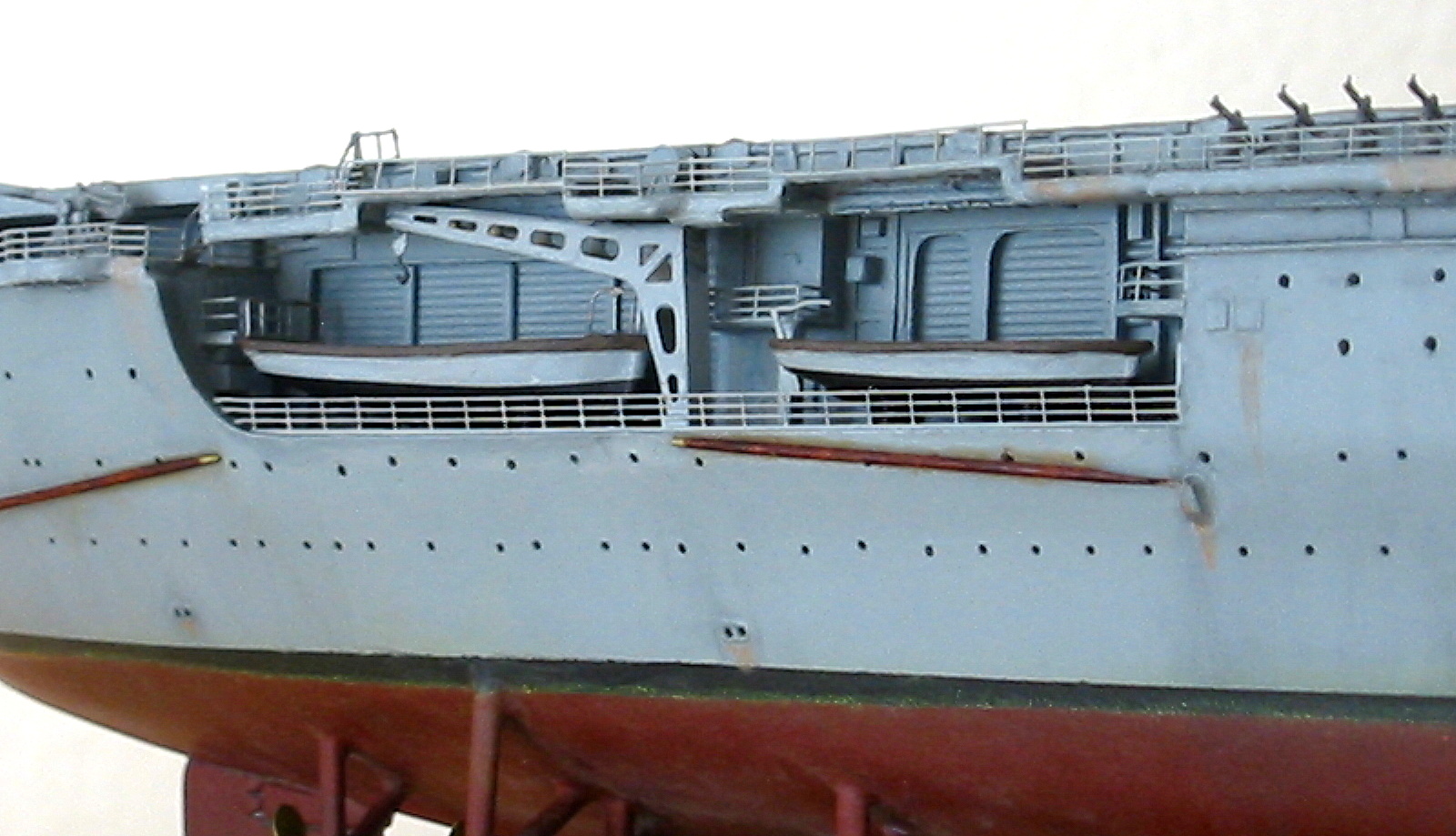

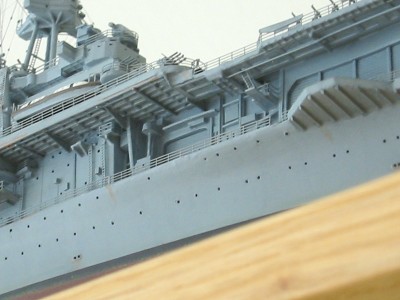

I wanted a pre-war (1938/1939) Yorktown with a stained wood deck and yellow wing aircraft. This involved many scratch built details and modifications to various parts. Aircraft were a major challenge - I ended up modifying the kit aircraft to look like TBD Devastators and used greatly cut down and modified Trumpeter 1/350 scale F2Fs to look like 1/487 scale SBC scout bombers. Not perfect, but I am satisfied with the result. Model Monkey island is excellent, but needed to be very carefully modified to reflect the 1939 appearance. The kit hull and flight deck are well done and only need some minor work. Decals for the aircraft were a challenge and most came from spares bin. Rigging was difficult due to very thin Caenis thread and old eyes. Paints include Tamiya and Mr. Color. Deck finished with Derwent water colour pencils applied dry and rubbed in to the acrylic base color paint.

Thanks for having a look. Questions and comments always welcome.
Bill


Attachments:
1.jpg [ 325.31 KiB | Viewed 138 times ]
2.jpg [ 385.22 KiB | Viewed 138 times ]
3.JPG [ 500.46 KiB | Viewed 138 times ]
4.JPG [ 673.51 KiB | Viewed 138 times ]
5.JPG [ 599.39 KiB | Viewed 138 times ]
6.JPG [ 487.95 KiB | Viewed 138 times ]
7.JPG [ 653.96 KiB | Viewed 138 times ]
8.JPG [ 670.54 KiB | Viewed 138 times ]
9.JPG [ 397.13 KiB | Viewed 138 times ]
10.JPG [ 296.8 KiB | Viewed 138 times ]
Report this post
Top
 Profile
Reply with quote
Red Devil Squadron
PostPosted: Mon Jul 07, 2025 10:16 pm
Offline
User avatar

Joined: Sun Sep 21, 2008 9:56 pm
Posts: 347
More images . . .


Attachments:
11.jpg [ 447.28 KiB | Viewed 137 times ]
12.JPG [ 449.02 KiB | Viewed 137 times ]
13.JPG [ 429.05 KiB | Viewed 137 times ]
14.JPG [ 413.73 KiB | Viewed 137 times ]
15.JPG [ 430.48 KiB | Viewed 137 times ]
16.JPG [ 305.1 KiB | Viewed 137 times ]
17.JPG [ 548.96 KiB | Viewed 137 times ]
18.JPG [ 542.37 KiB | Viewed 137 times ]
19.JPG [ 441.06 KiB | Viewed 137 times ]
20.jpg [ 474.25 KiB | Viewed 137 times ]
Report this post
Top
 Profile
Reply with quote
Red Devil Squadron
PostPosted: Mon Jul 07, 2025 10:17 pm
Offline
User avatar

Joined: Sun Sep 21, 2008 9:56 pm
Posts: 347
Final images . . . .


Attachments:
21.jpg [ 493.77 KiB | Viewed 137 times ]
22.JPG [ 510.82 KiB | Viewed 137 times ]
23.JPG [ 597.01 KiB | Viewed 137 times ]
24.JPG [ 487.97 KiB | Viewed 137 times ]
Report this post
Top
 Profile
Reply with quote
dhenning
PostPosted: Mon Jul 07, 2025 10:31 pm
Offline
User avatar

Joined: Sat Oct 05, 2013 1:32 pm
Posts: 343
Holy cow!! Beautiful work! I love to see the old classic kits built and detailed. Sadly, that is sometimes our only options....meanwhile I hear that there might be another US battleship that was never built or another Yamato coming out in 1/350 scale.......

Amazing work and perseverance.

Dave


Report this post
Top
 Profile
Reply with quote
Timmy C
PostPosted: Mon Jul 07, 2025 11:31 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 6:00 pm
Posts: 12331
Location: Ottawa, Canada
Gorgeous work, well done!

_________________
De quoi s'agit-il?


Report this post
Top
 Profile
Reply with quote
MartinJQuinn
PostPosted: Tue Jul 08, 2025 9:10 am
Offline
User avatar

Joined: Tue Jan 11, 2005 1:40 pm
Posts: 8350
Location: New Jersey
She's a beauty - well done!

_________________
Martin

"Tomorrow is the most important thing in life. Comes into us at midnight very clean. It's perfect when it arrives and it puts itself in our hands. It hopes we've learned something from yesterday." John Wayne

Ship Model Gallery


Report this post
Top
 Profile
Reply with quote
Devin
PostPosted: Tue Jul 08, 2025 3:07 pm
Offline
User avatar

Joined: Mon Jan 10, 2005 10:46 am
Posts: 2467
Location: Hoboken, NJ
Beautiful!
