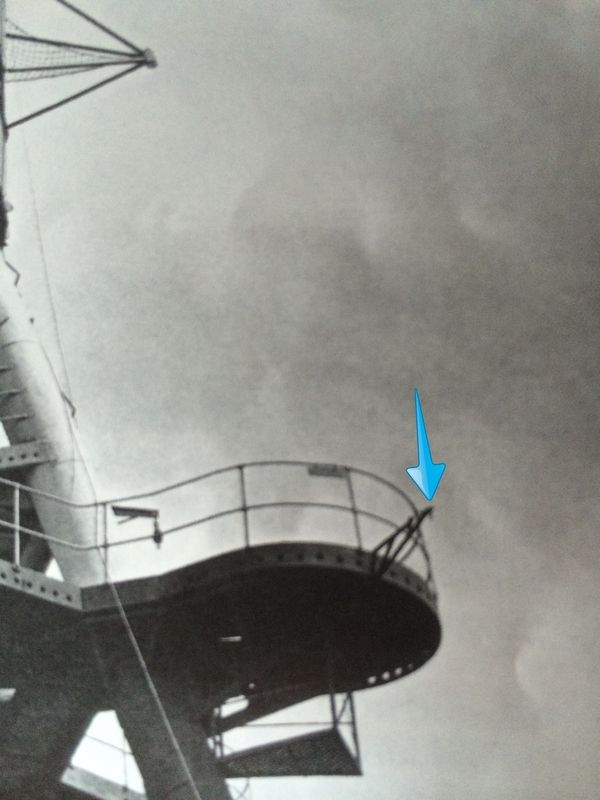

Here's another crop of a picture starboard quarter from post attack. It shows the T perpendicular to the ship's axis whereas the other seems like it's folded forward. I would conclude that it pivots on its base and during the post attack assessment, it was moved manually. It appears that there might be a diagonal brace to one or the arms of the T..

_________________
Completed: Trumpeter 1/200 USS Arizona
Current Project: Trumpeter1/200 scale HMS Hood
Future Project: TBD

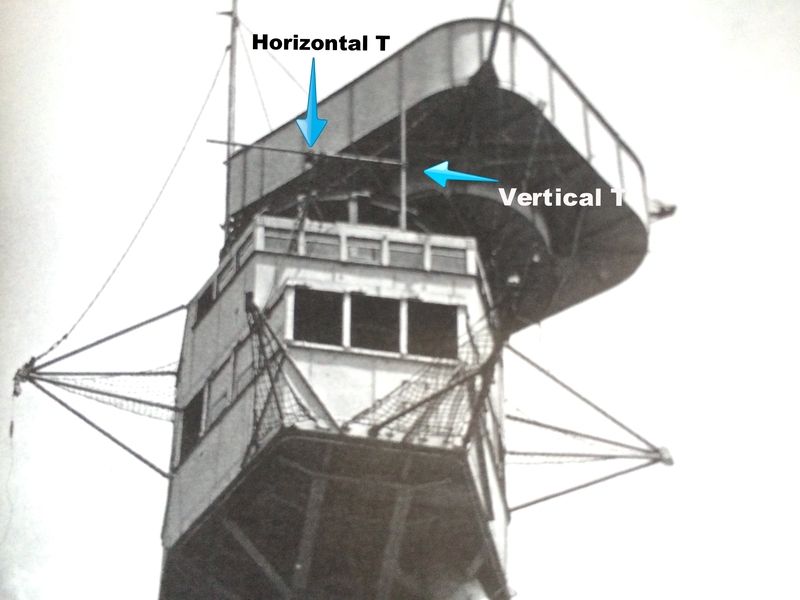

It had a horizontal T that extended out from the fighting top. Then it had a vertical T off of the forward end of the horizontal T.

I think it was a 'still..

I sure wish I knew what it went to.. It's curious that all the arms don't show up in many of the pictures. Perhaps the explosion shook some of it off. Any idea when it was installed?

_________________
Completed: Trumpeter 1/200 USS Arizona
Current Project: Trumpeter1/200 scale HMS Hood
Future Project: TBD

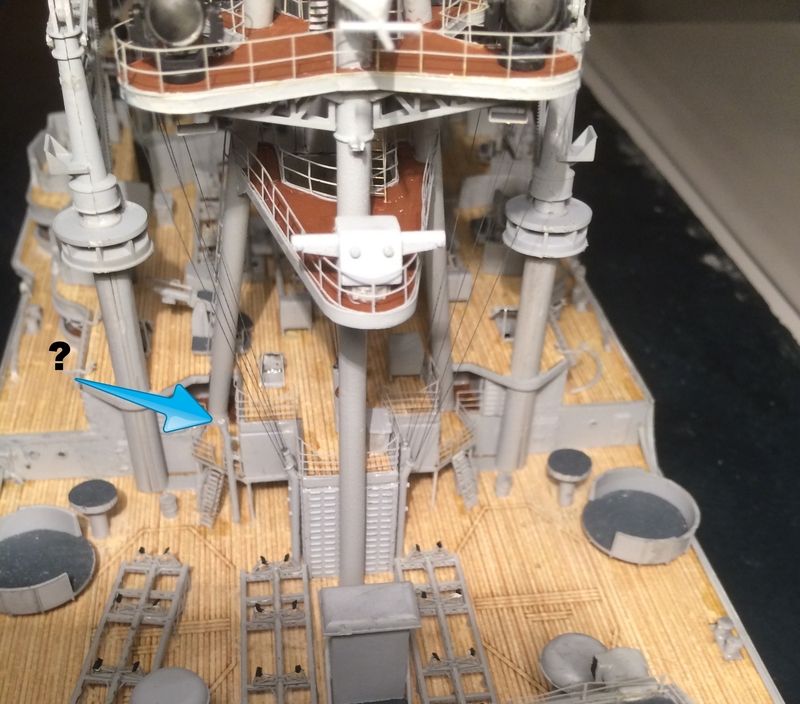

Moving on to the next antenna trunk, I was able to determine that there was another line that had a redirection point. This one was redirected from the searchlight platform up to the birdbath.

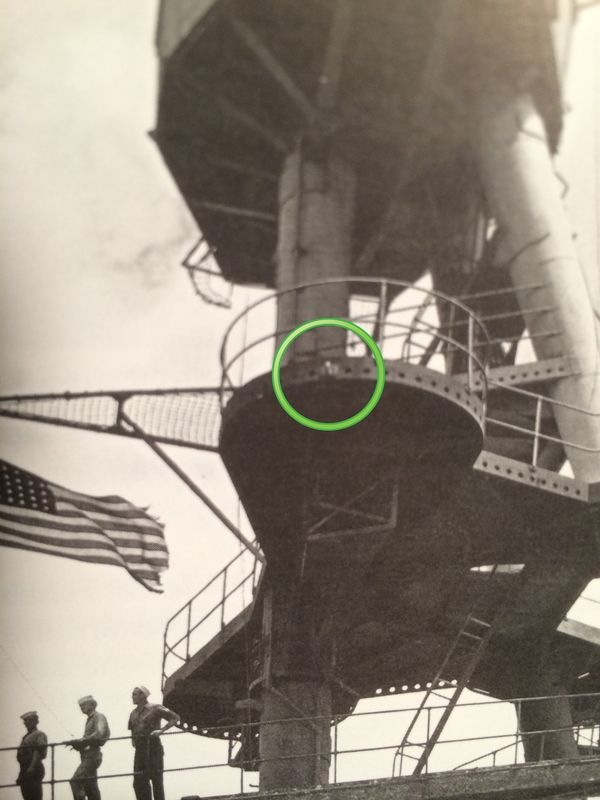

Here is a photo of the pully structure extending out from the searchlight platform.


The arrows on this photo show which antenna trunk this line starts at, the pully location, and the final location.


There was one more line that came out of this trunk. This line goes straight up to the fighting top yard arm.

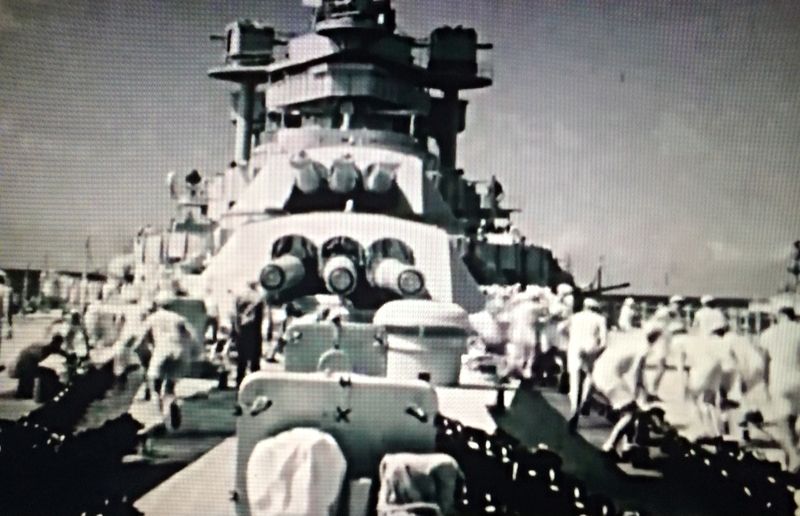

Also, I was able to get a clearer shot of the bow confirming that she still had all three anchors after the refit.

Great detective work Jeff: Explains what those were for. I thought they were some sort of davit. I have had them on but somehow they keep getting knocked off. Now I know what they were used for and where the line came from and where it went.
Thanks so much for the posting.

_________________
Mark
Master Gunnery Sergeant USMC (Ret.)
http://www.modelshipgallery.com/gallery ... index.html

On the bench:

1/200 USS Enterprise, CV-6

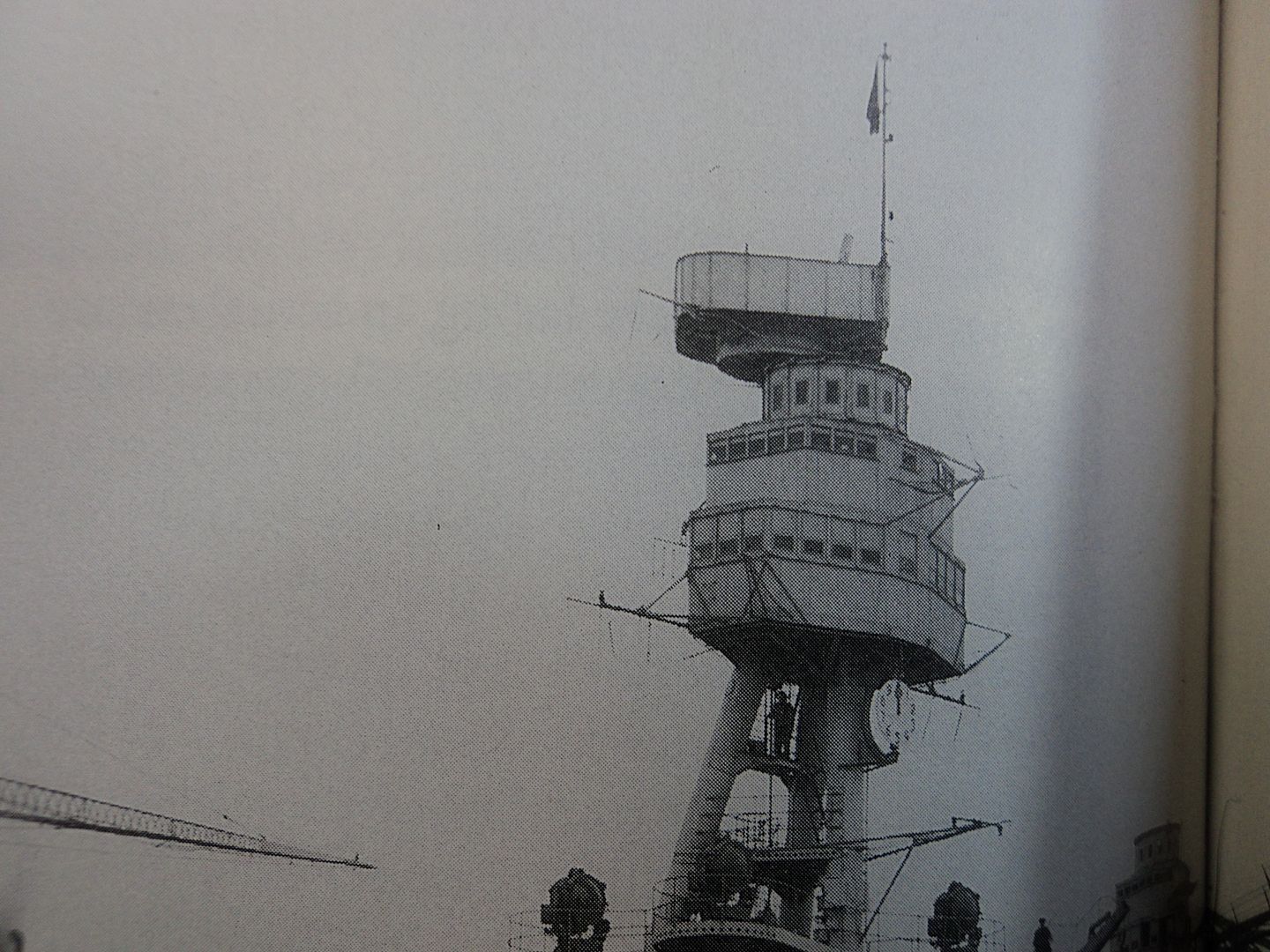

Okay, after studying photo's in the Stillwell and Squadron books, this one caught my eye and offered the most detail on the 'antenna's on the aft end of the main top:

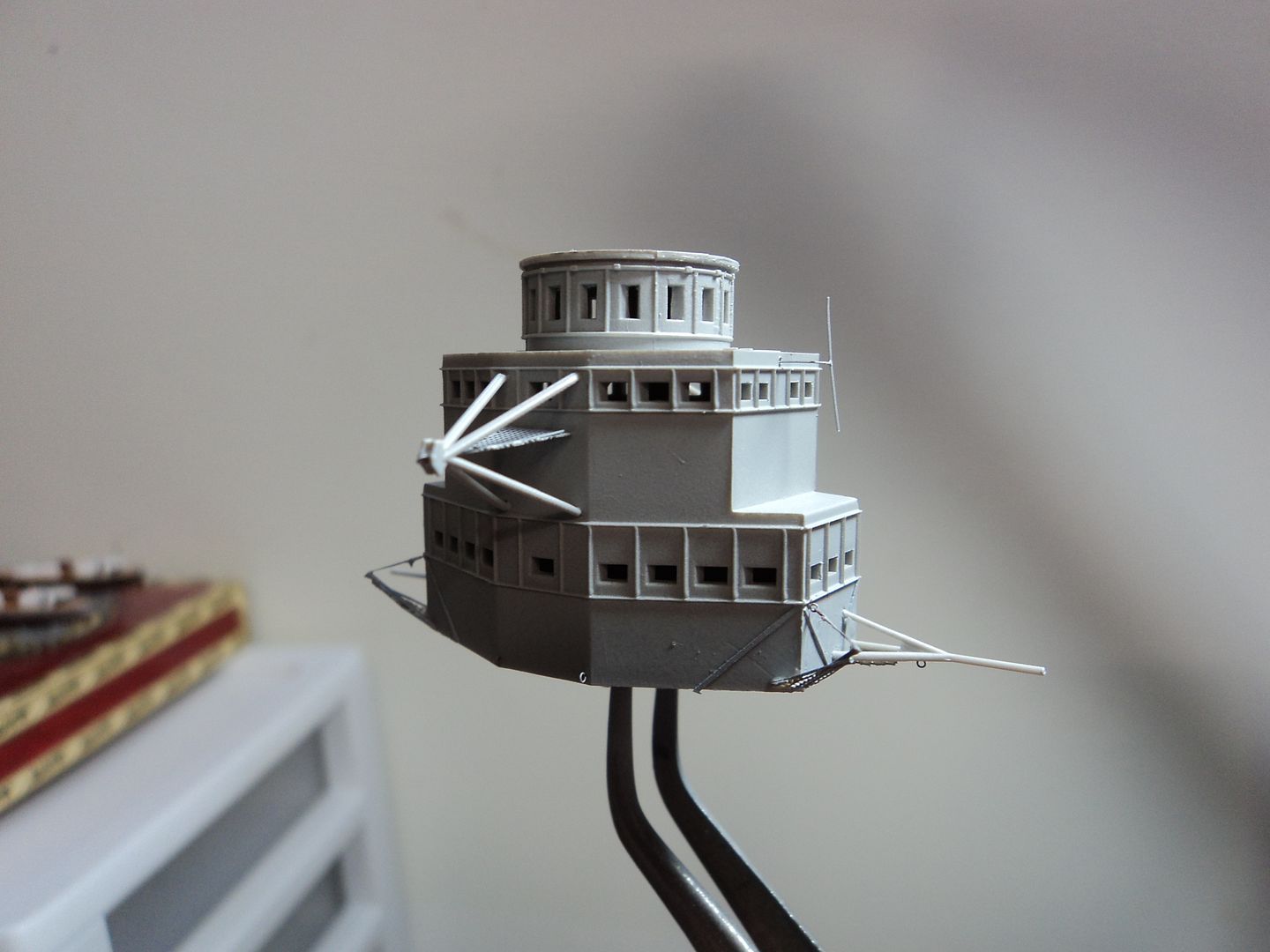

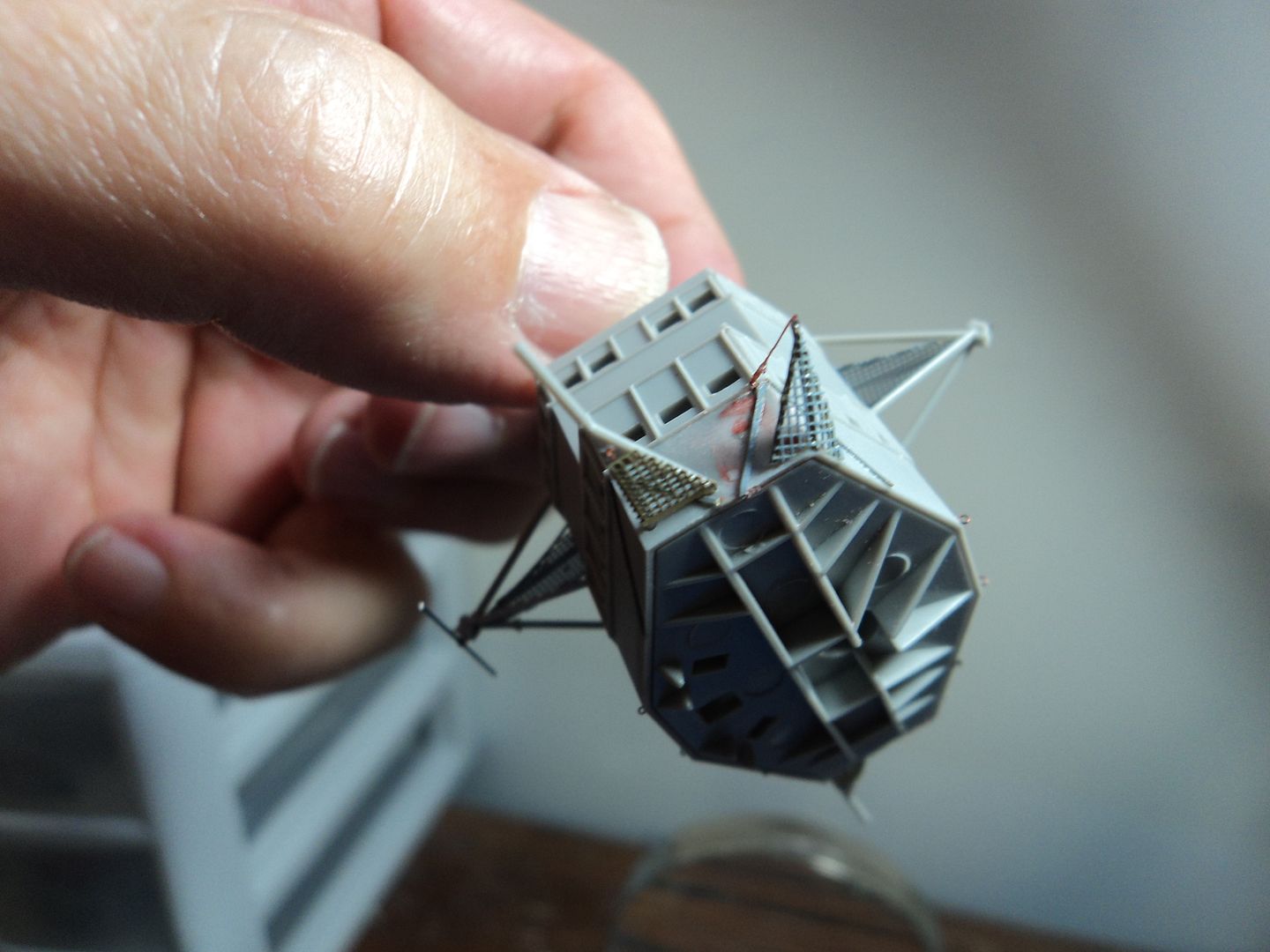

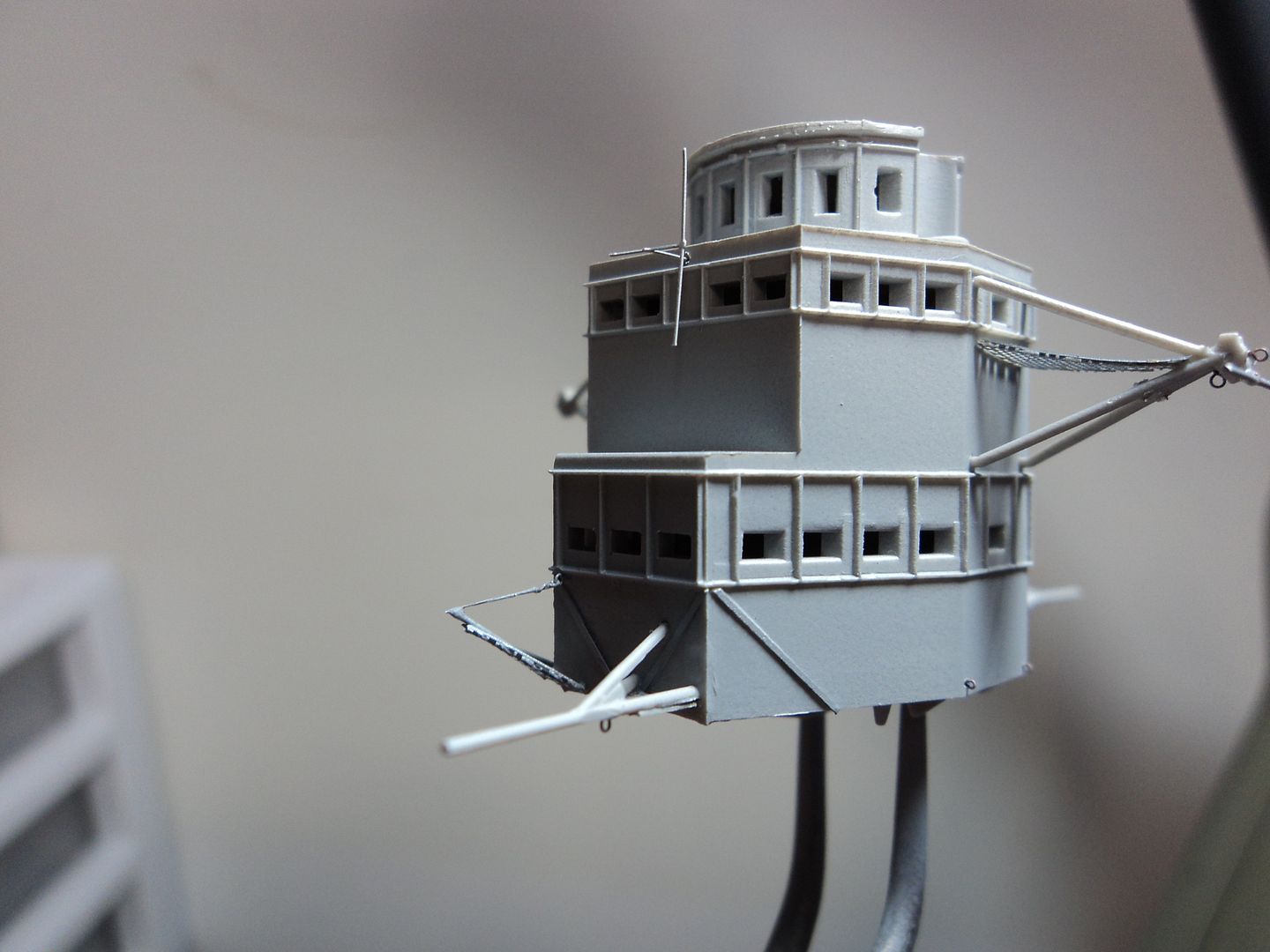

This is what I came up with. I am happy with it. I used spare flight deck netting for the netting and a piece of wire for the antenna. I used flat photo etch for the corner bracing and Bob's Buckles eyelets for the eyelets.








The bar across the front is where I am going to place the antenna insulators when I get to that point. For now, I am going to finish rigging the main top, add the bird bath and call it good for now.

Thanks to Jeff and Randy for pointing the way on this one.
